Presentation Transcript
agenda
Agenda
  • Administrivia
  • Normalization
  • Homework #7
  • Mid-Term #2
administrivia
Administrivia
  • Homework #4
  • Homework #5
  • Homework #6
  • Quiz 2
  • Mid-Term #1 Keys
  • Mid-Term Grades
regrade requests hw 5 6
Regrade Requests HW 5 & 6
  • Create Database
  • Enter query(s) as submitted
  • Submit to me
    • Database (electronic)
    • Graded homework (paper)
  • Reserve the right to change test data and reexecute query
normalization

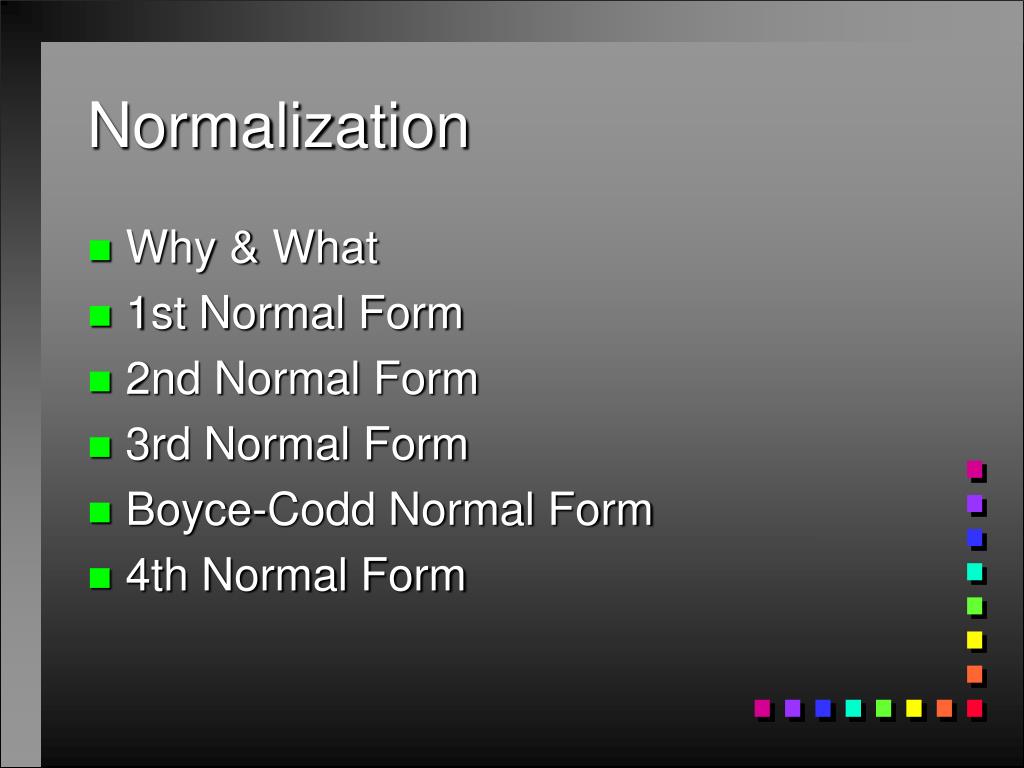

Normalization
  • Why & What
  • 1st Normal Form
  • 2nd Normal Form
  • 3rd Normal Form
  • Boyce-Codd Normal Form
  • 4th Normal Form
normalization why
Normalization - Why
  • Eliminate anomalies
  • Avoid duplication
  • Increase flexibility and stability
  • Reduce maintenance
normalization what
Normalization - What?!?
  • Analysis of functional dependencies between attributes
  • Building several smaller tables from larger ones
  • Decomposing relations with anomalies to produce smaller, well-structured relations
  • Reducing complexity & increasing stability
normalization what 2
Normalization - What (2)
  • Series of Steps
    • Recipe for constructing a “good” physical model of a database from a logical model
    • Applied to all existing tables, including ones produced by earlier normalization steps
example
Example

Sales

(Order#, Date, CustID, Name, Address, City, State, Zip, {Product#, ProductDesc, Price, QuantityOrdered}, Subtotal, Tax, S&H, Total)

  • What are the problems with using a single table for all order information?
problems
Problems
  • Implementing Repeating Groups
  • Duplication of Data (customer name & address)
  • Unnecessary Data (subtotal, total, tax)
  • Others

Normalization is a process to eliminate these problems.

1st normal form
1st Normal Form
  • Eliminate Repeating Groups
  • 1st Normal Form has no repeating groups
  • Create definition with all other attributes, remove the repeat {}, and change the primary key to include the “key” for the repeating group.
example12

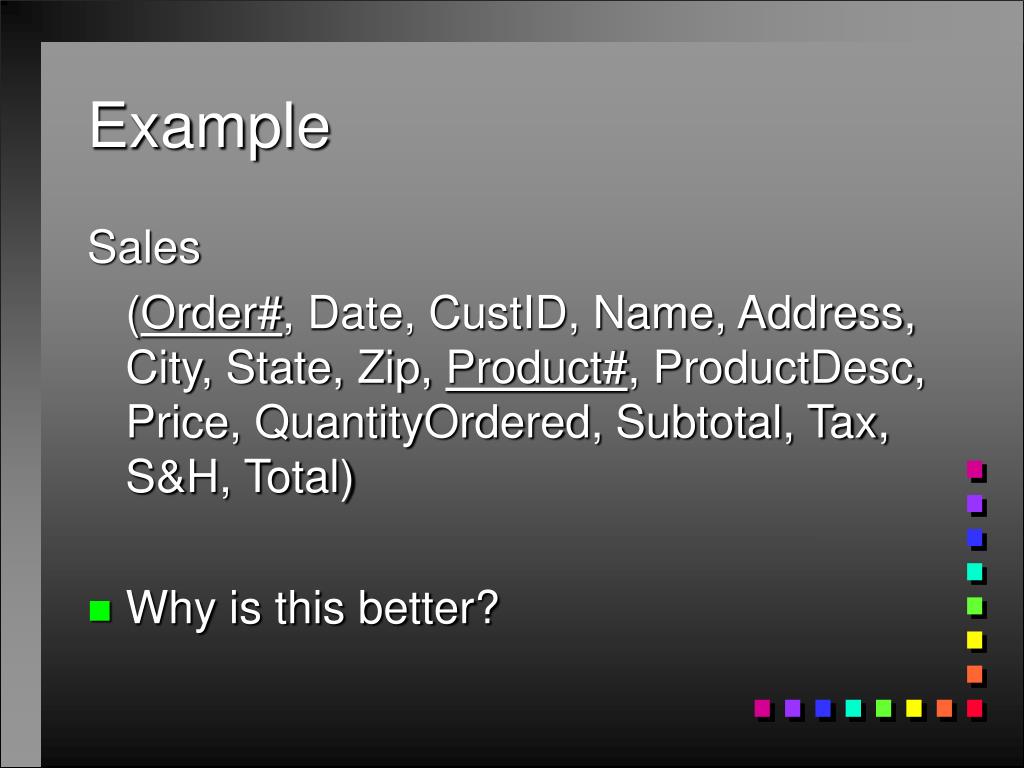

Example

Sales

(Order#, Date, CustID, Name, Address, City, State, Zip, Product#, ProductDesc, Price, QuantityOrdered, Subtotal, Tax, S&H, Total)

  • Why is this better?
1st nf improvements

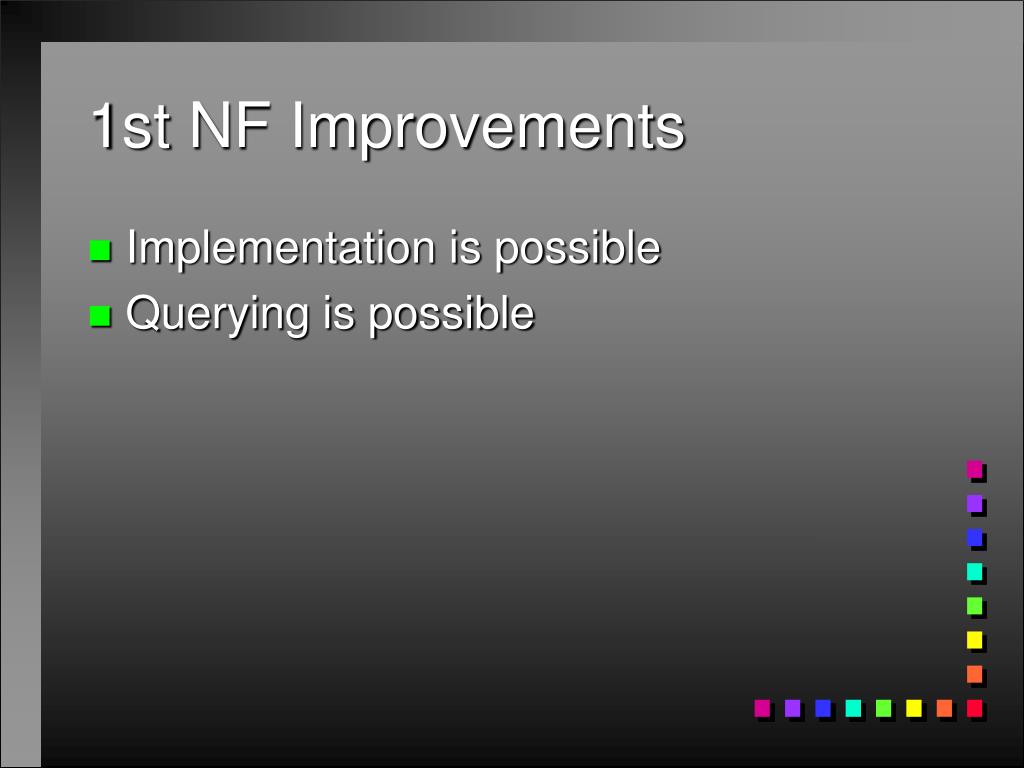

1st NF Improvements
  • Implementation is possible
  • Querying is possible
2nd normal form

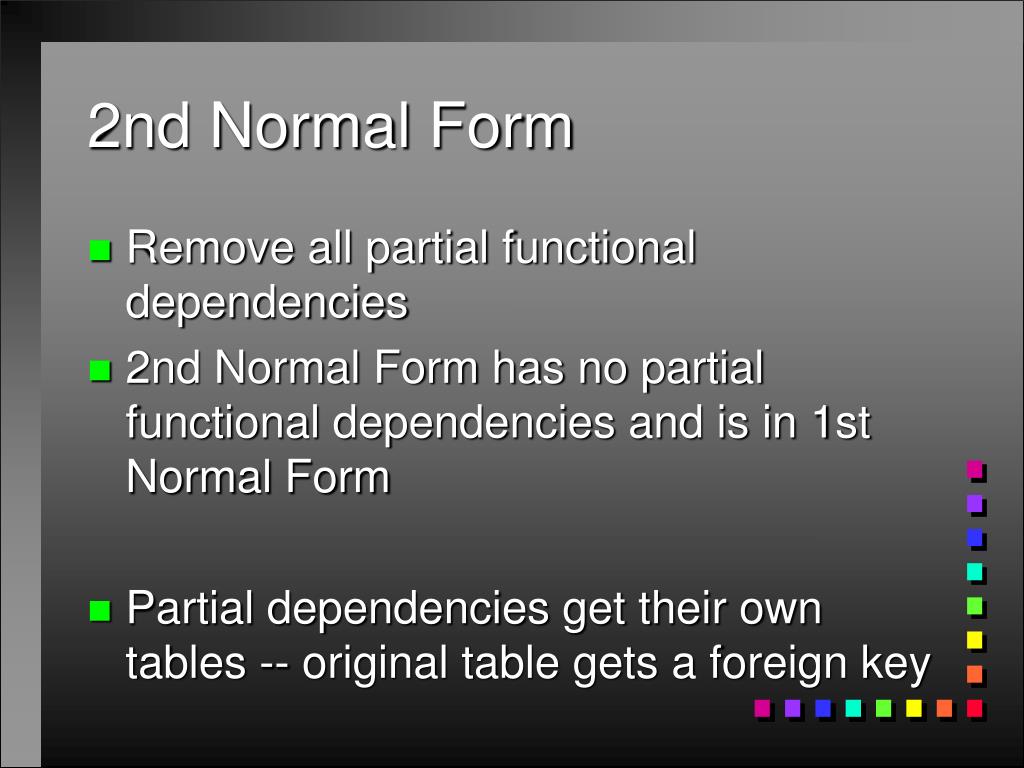

2nd Normal Form
  • Remove all partial functional dependencies
  • 2nd Normal Form has no partial functional dependencies and is in 1st Normal Form
  • Partial dependencies get their own tables -- original table gets a foreign key
partial functional dependencies

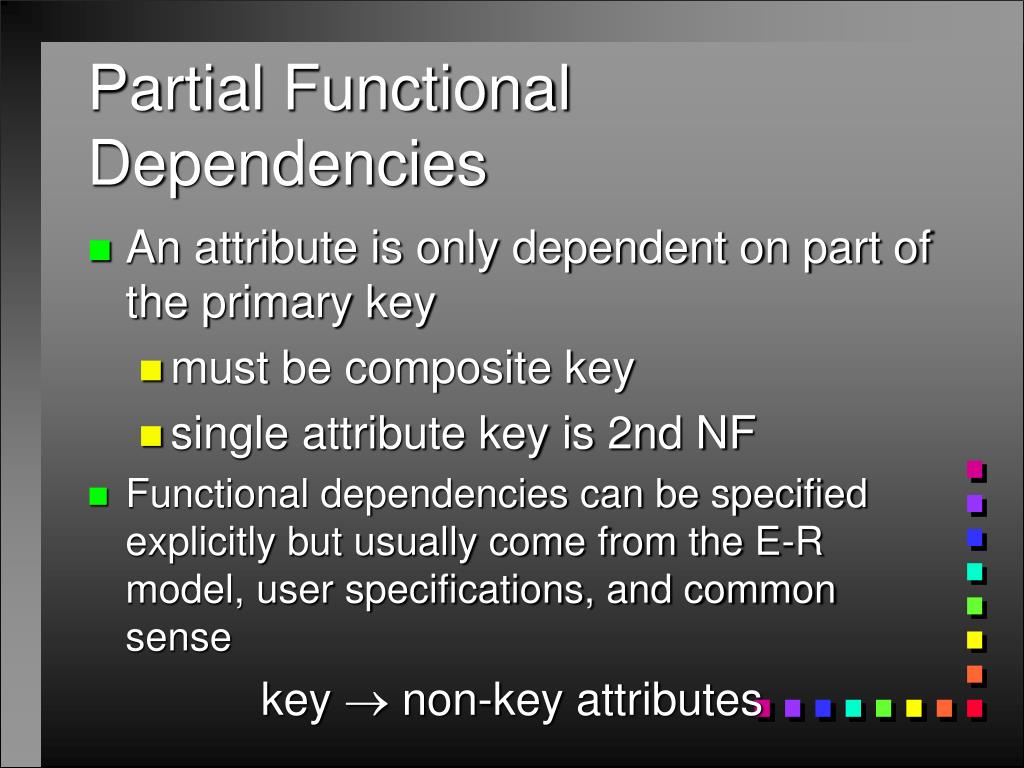

Partial Functional Dependencies
  • An attribute is only dependent on part of the primary key
    • must be composite key
    • single attribute key is 2nd NF
  • Functional dependencies can be specified explicitly but usually come from the E-R model, user specifications, and common sense

key  non-key attributes

example functional dependencies

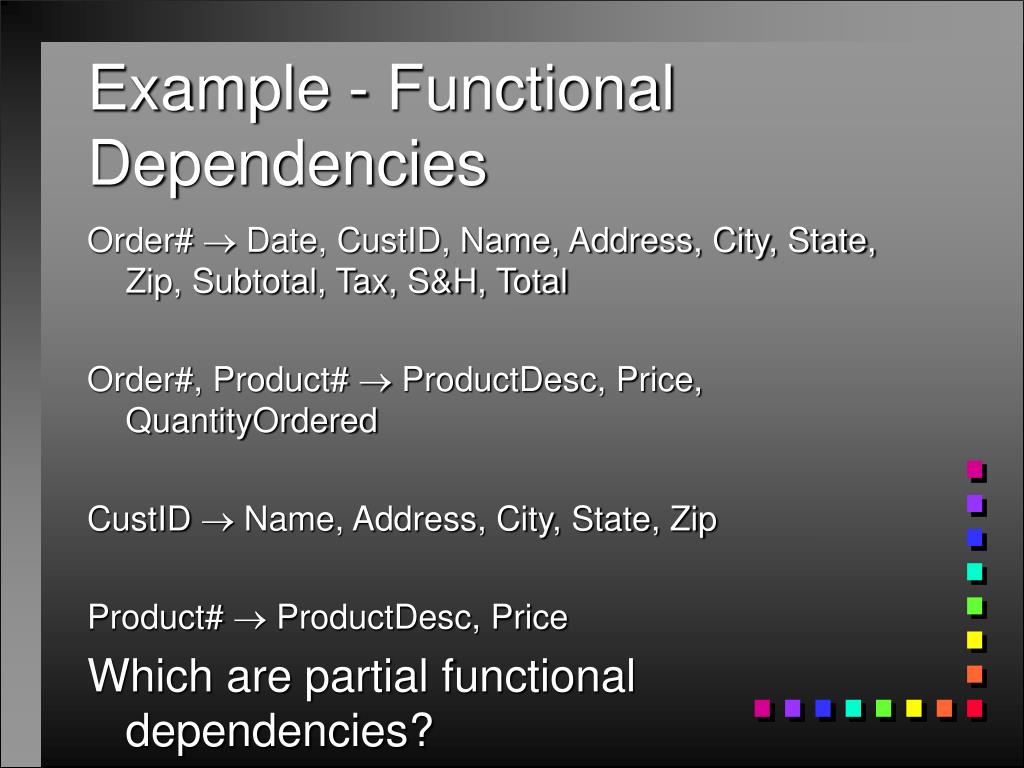

Example - Functional Dependencies

Order#  Date, CustID, Name, Address, City, State, Zip, Subtotal, Tax, S&H, Total

Order#, Product#  ProductDesc, Price, QuantityOrdered

CustID  Name, Address, City, State, Zip

Product#  ProductDesc, Price

Which are partial functional dependencies?

example17
Example

Sales (Order#, Date, CustID, Name, Address, City, State, Zip, Subtotal, Tax, S&H, Total)

OrderLine (Order#, Product#, ProductDesc, Price, QuantityOrdered)

  • Is this 2nd NF?
example18

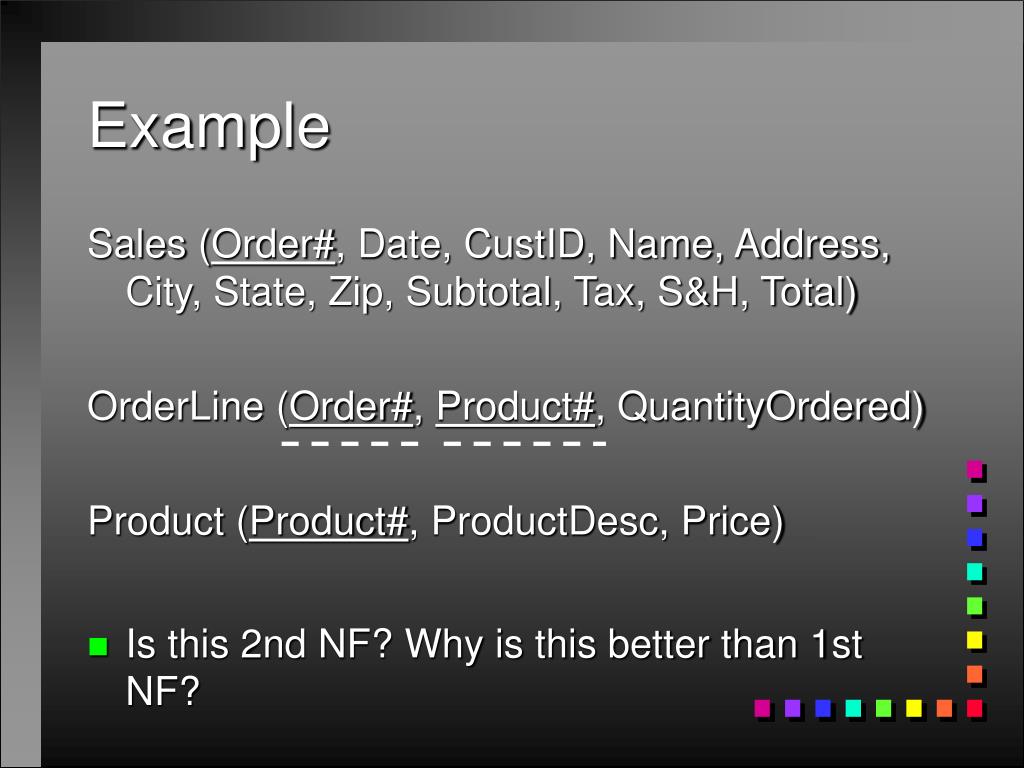

Example

Sales (Order#, Date, CustID, Name, Address, City, State, Zip, Subtotal, Tax, S&H, Total)

OrderLine (Order#, Product#, QuantityOrdered)

Product (Product#, ProductDesc, Price)

  • Is this 2nd NF? Why is this better than 1st NF?
2nd nf improvements

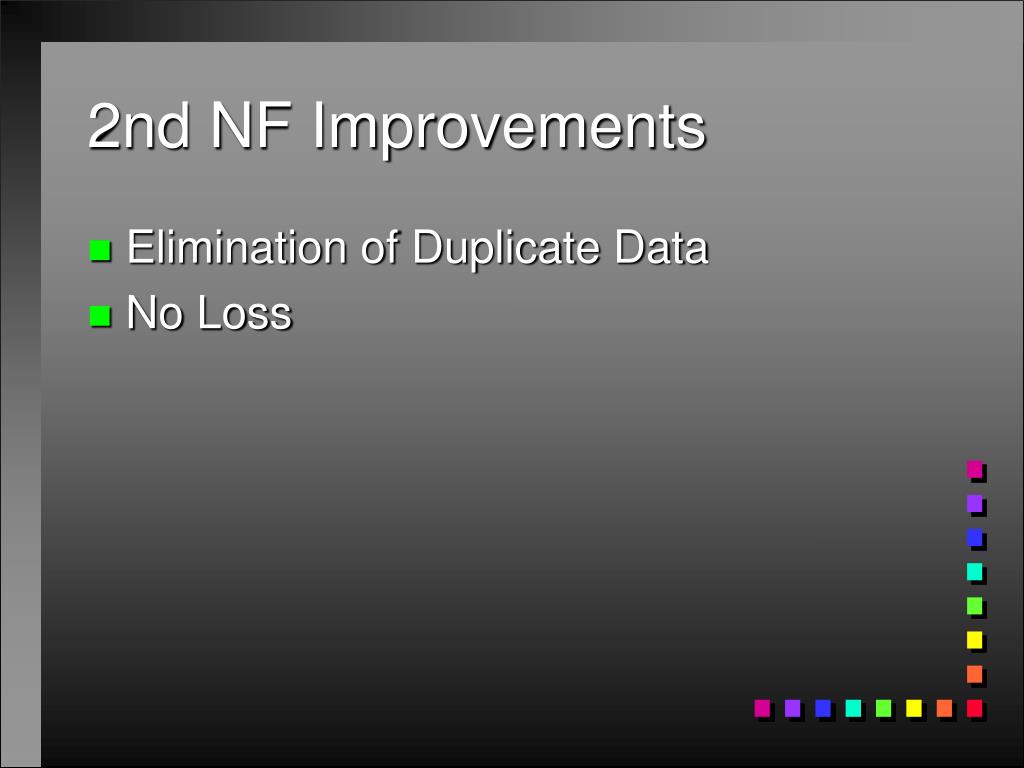

2nd NF Improvements
  • Elimination of Duplicate Data
  • No Loss
3rd normal form
3rd Normal Form
  • Eliminate transitive functional dependencies
  • 3rd Normal Form has no transitive depencencies and is in 2nd Normal Form
  • Transitive dependencies get their own tables -- original table gets a foreign key
transitive functional dependencies

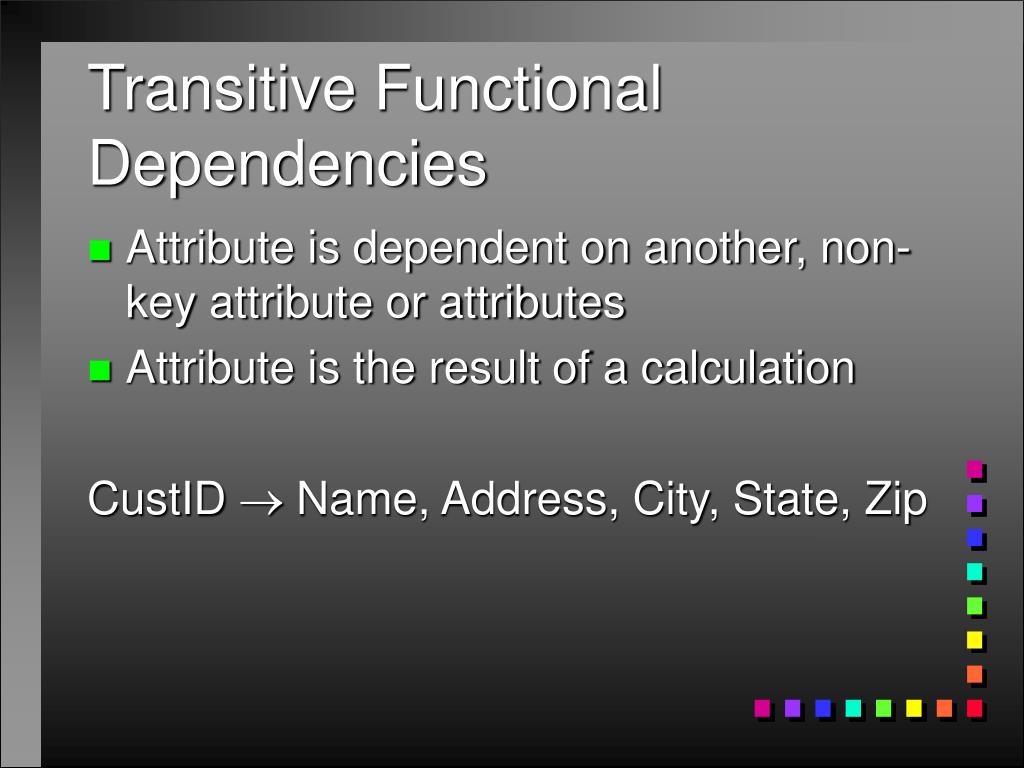

Transitive Functional Dependencies
  • Attribute is dependent on another, non-key attribute or attributes
  • Attribute is the result of a calculation

CustID ® Name, Address, City, State, Zip

example22
Example

Sales (Order#, Date, CustID, Subtotal, Tax, S&H, Total)

OrderLine (Order#, Product#, QuantityOrdered)

Product (Product#, ProductDesc, Price)

Customer (CustID, Name, Address, City, State, Zip)

  • Is this 3rd NF? Why is this better than 2nd NF?
example23
Example

Sales (Order#, Date, CustID)

OrderLine (Order#, Product#, QuantityOrdered)

Product (Product#, ProductDesc, Price)

Customer (CustID, Name, Address, City, State, Zip)

  • Is this 3rd NF? Why is this better than 2nd NF?
3rd nf improvements

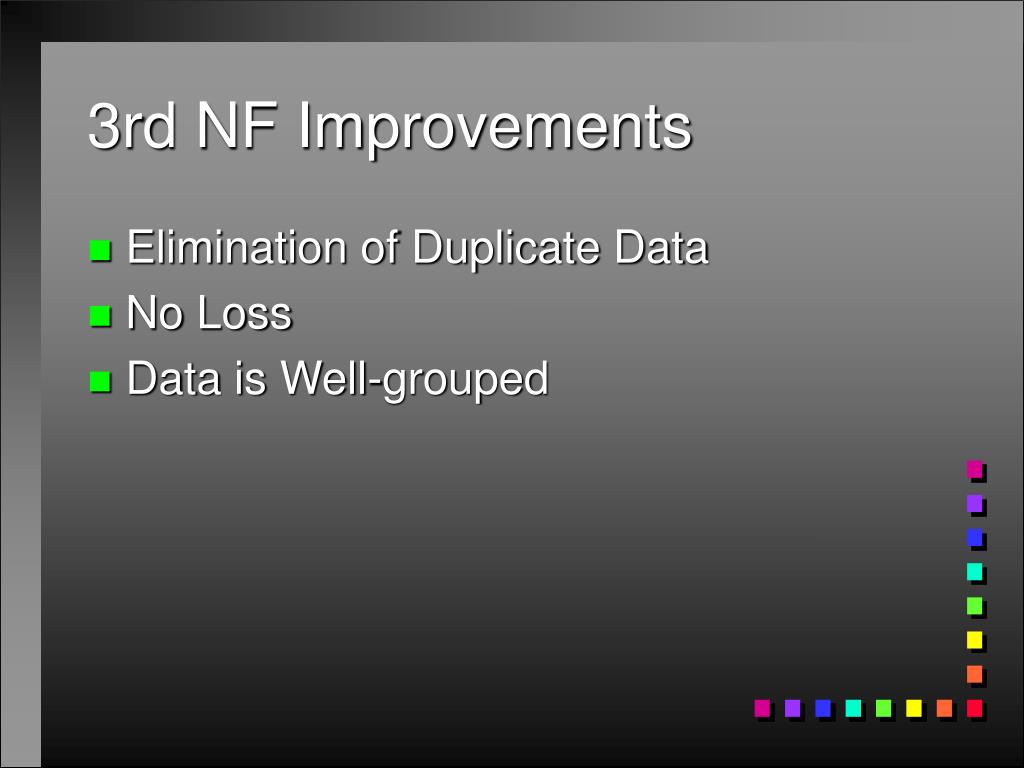

3rd NF Improvements
  • Elimination of Duplicate Data
  • No Loss
  • Data is Well-grouped
beyond 3rd normal form
Beyond 3rd Normal Form
  • Assume we also want to track information about products, builders, and finishes
  • The following are the functional dependencies:
    • Product, Finish ® Builder
    • Builder ® Finish
beyond 3rd normal form26

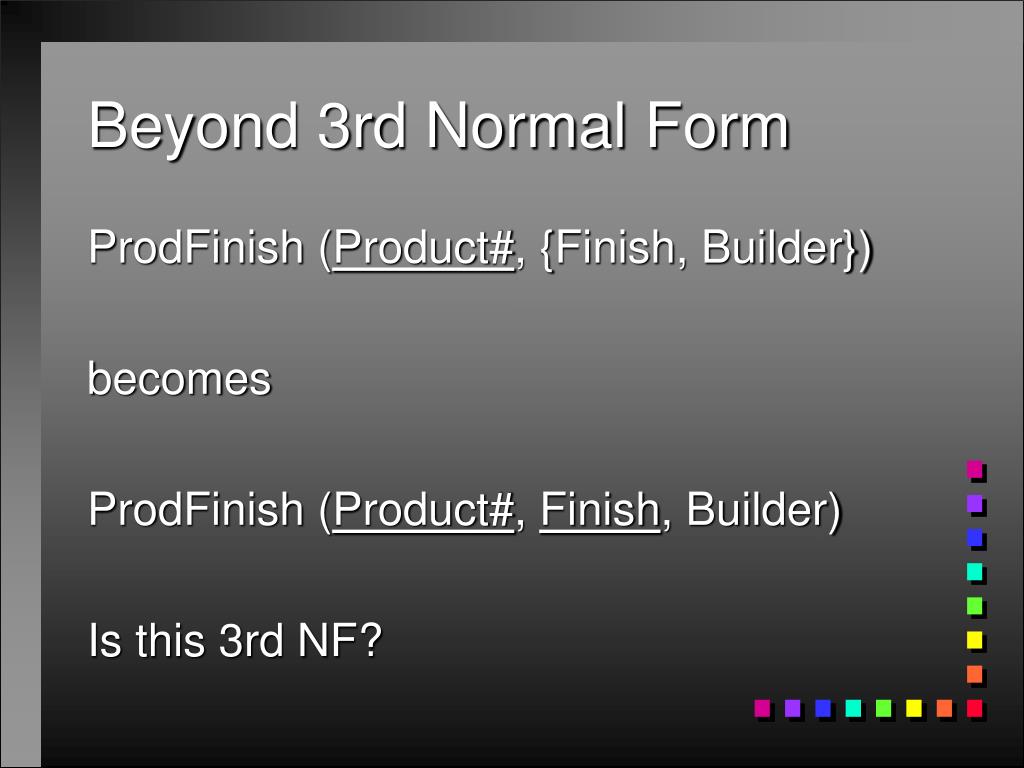

Beyond 3rd Normal Form

ProdFinish (Product#, {Finish, Builder})

becomes

ProdFinish (Product#, Finish, Builder)

Is this 3rd NF?

what s wrong with 3rd nf
What’s wrong with 3rd NF?
  • Product, Finish ® Builder
  • Builder ® Finish
what s wrong with 3rd nf28

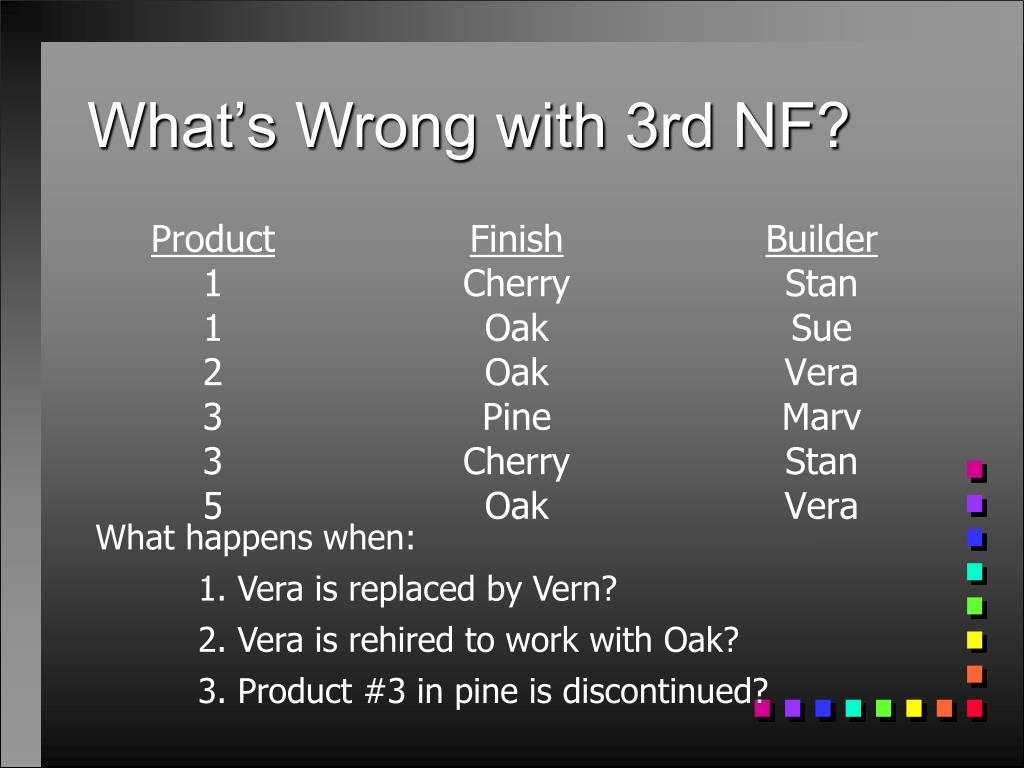

What’s Wrong with 3rd NF?

What happens when:

1. Vera is replaced by Vern?

2. Vera is rehired to work with Oak?

3. Product #3 in pine is discontinued?

what s wrong with 3rd nf29

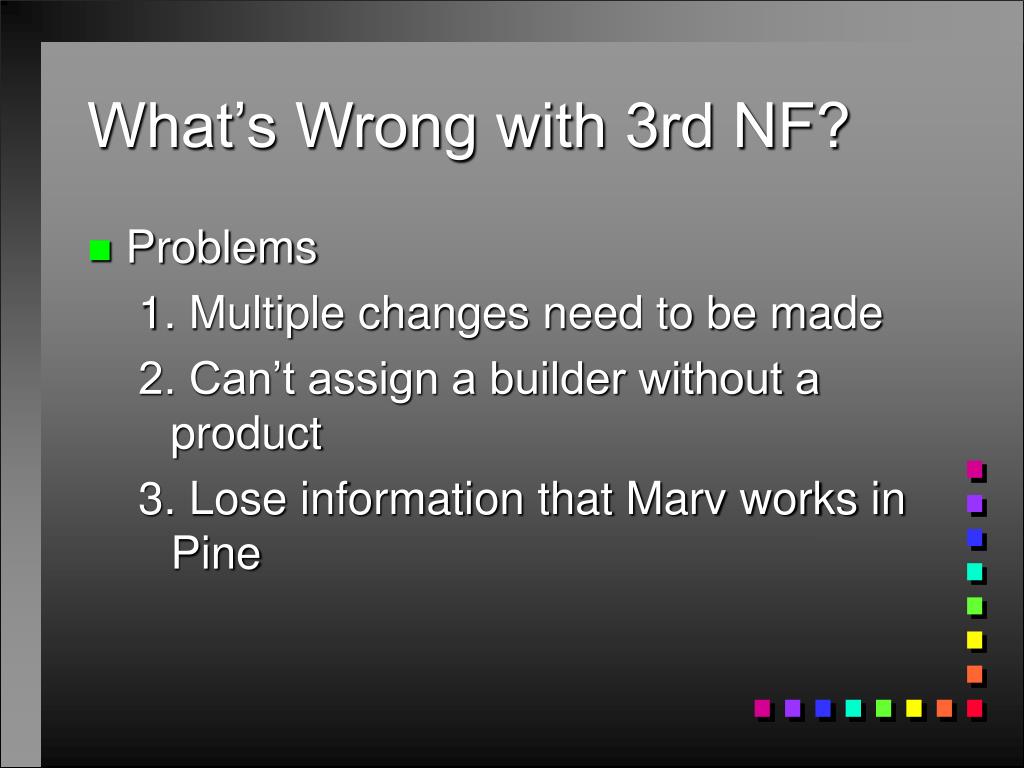

What’s Wrong with 3rd NF?
  • Problems

1. Multiple changes need to be made

2. Can’t assign a builder without a product

3. Lose information that Marv works in Pine

problem solution
Problem & Solution

Problem:

  • Builder ® Finish
  • Builder is not a key

Solution:

  • Boyce-Codd Normal Form
boyce codd normal form bcnf
Boyce-Codd Normal Form (BCNF)
  • Every determinant in a relation (LHS of the FD’s) is a candidate key and 3rd NF
  • Make determinant part of the key and that which is dependent on it an attribute and renormalize
example32

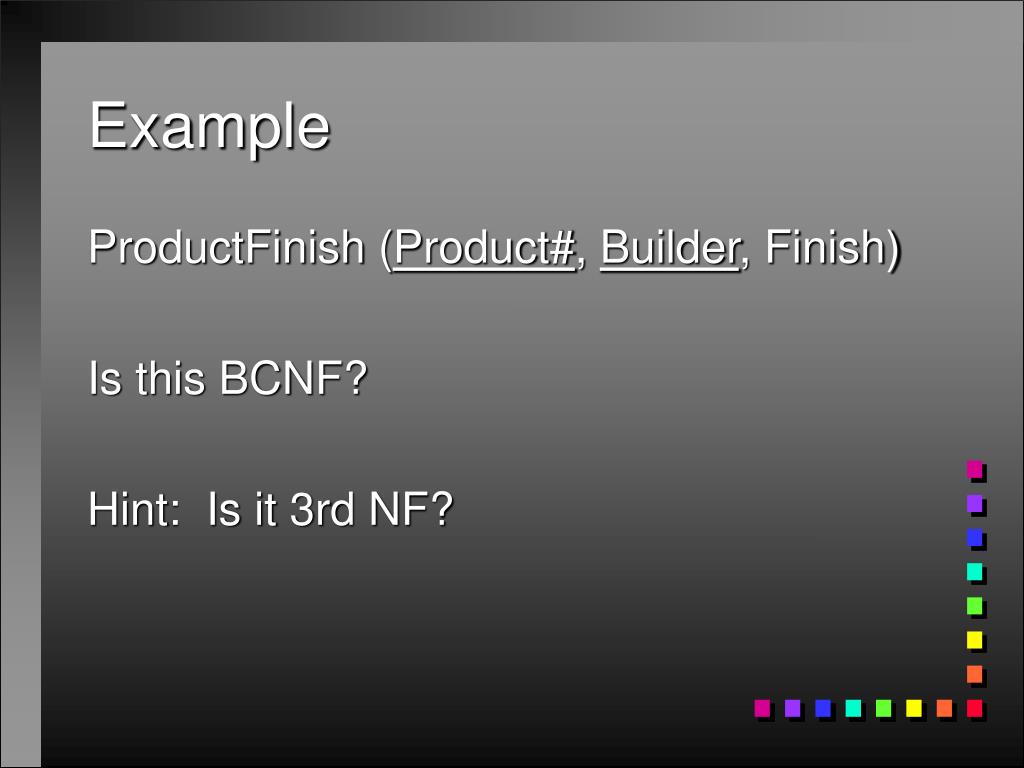

Example

ProductFinish (Product#, Builder, Finish)

Is this BCNF?

Hint: Is it 3rd NF?

example33

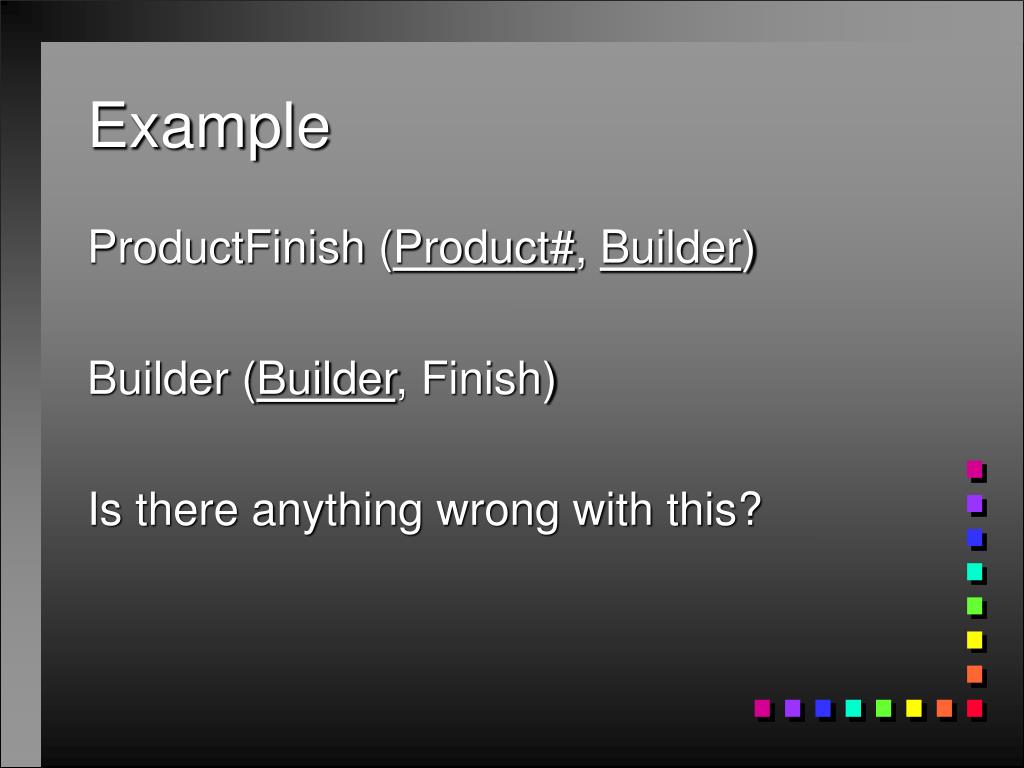

Example

ProductFinish (Product#, Builder)

Builder (Builder, Finish)

Is there anything wrong with this?

example34
Example

ProductBuilder (Product#, Builder)

Builder (Builder, Finish)

Normalization often results in the need to rename tables so the table name matches the actual contents.

beyond bcnf

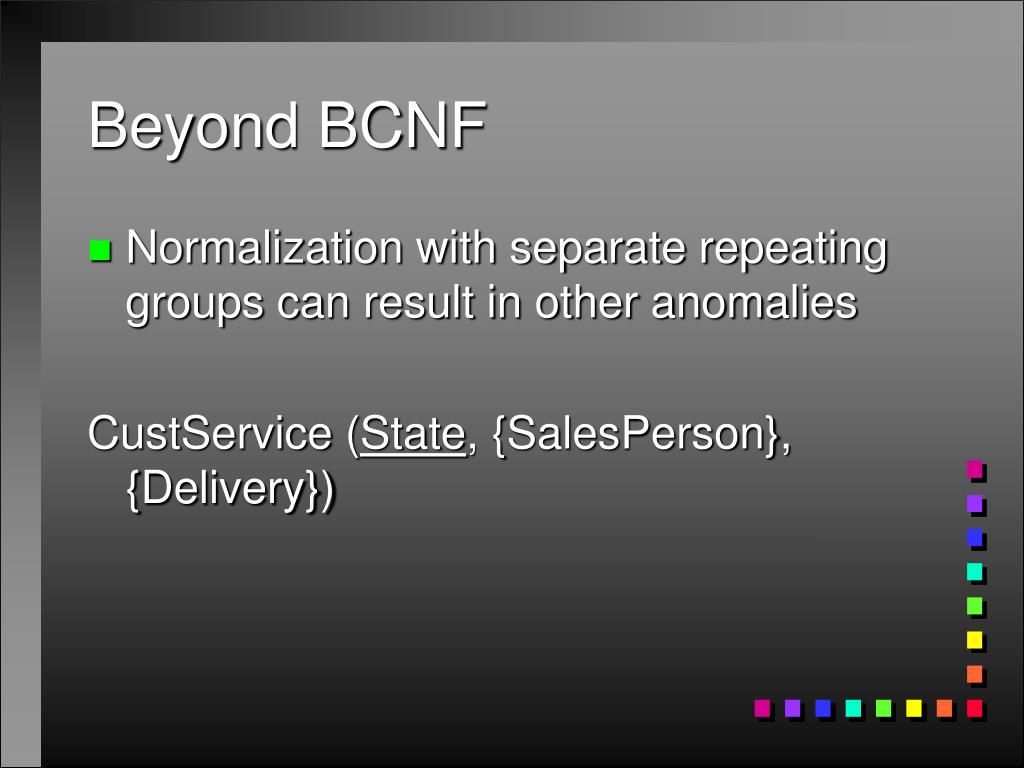

Beyond BCNF
  • Normalization with separate repeating groups can result in other anomalies

CustService (State, {SalesPerson}, {Delivery})

beyond bcnf36
Beyond BCNF

CustService (State, SalesPerson, Delivery)

Is this BCNF?

beyond bcnf37

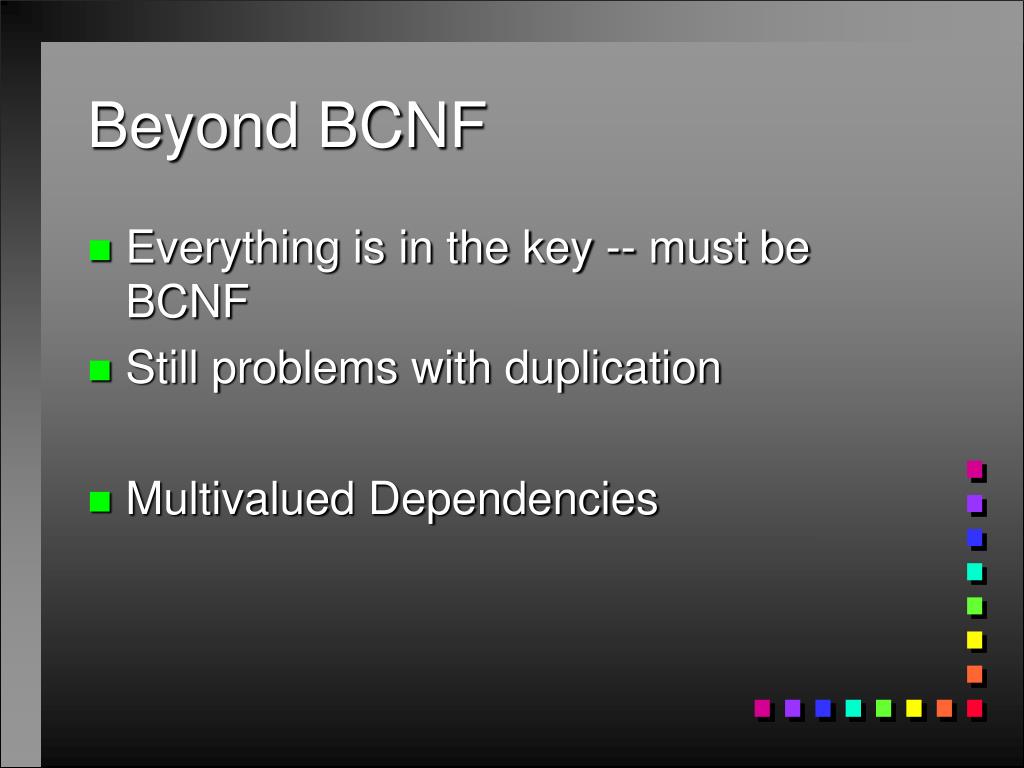

Beyond BCNF
  • Everything is in the key -- must be BCNF
  • Still problems with duplication
  • Multivalued Dependencies
multivalued dependency
Multivalued Dependency
  • At least three attributes (A, B, C)
  • A ® B and A ® C
  • B and C are independent of each other (they really shouldn’t be in the same table)
4th normal form
4th Normal Form
  • No multivalued dependencies and BCNF
  • Create separate tables for each separate functional dependency
example40

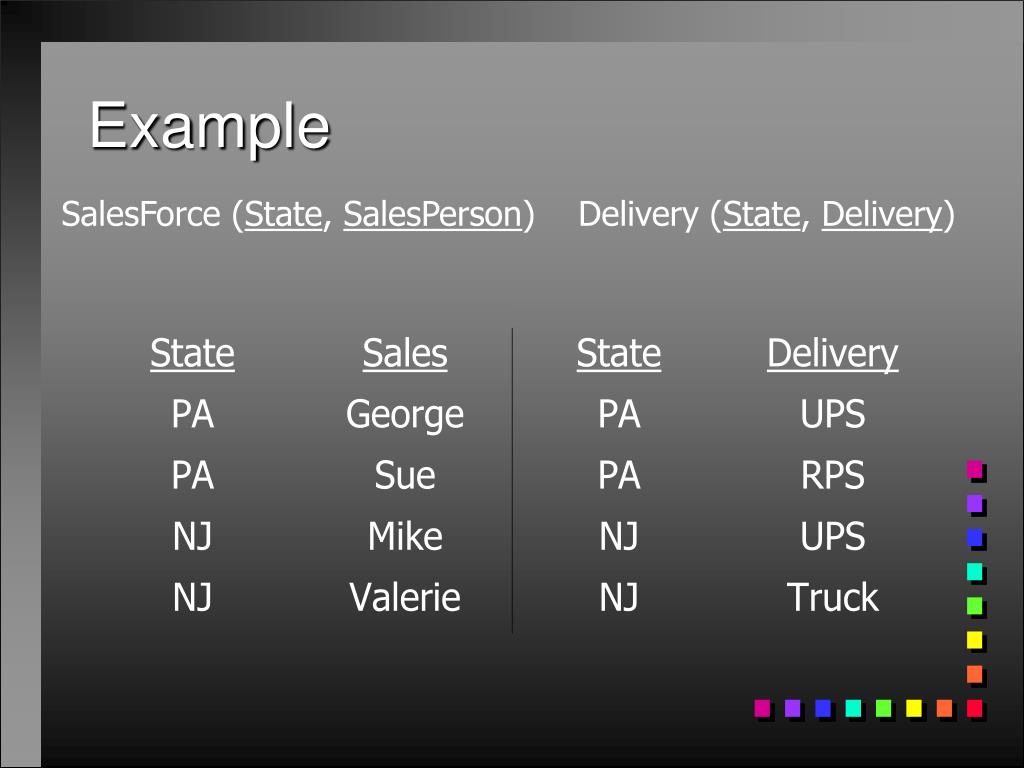

Example

SalesForce (State, SalesPerson) Delivery (State, Delivery)

beyond 4th normal form
Beyond 4th Normal Form
  • 5th Normal Form
    • Project-Join Normal Form
  • Domain Key Normal Form (DKNF)
slide42

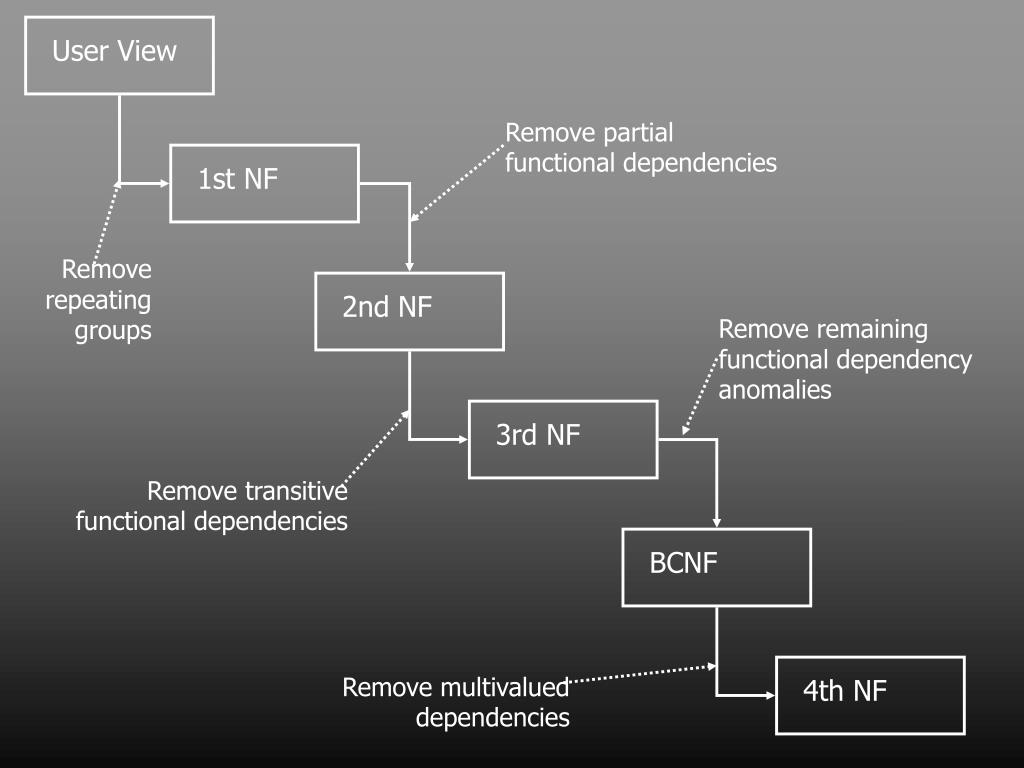

User View

1st NF

2nd NF

3rd NF

BCNF

4th NF

Remove partial functional dependencies

Remove repeating groups

Remove remaining functional dependency anomalies

Remove transitive functional dependencies

Remove multivalued dependencies

in class exercises
In-Class Exercises
  • Identify the current normal form
  • If not 4th NF, transform to 4th NF
homework 7

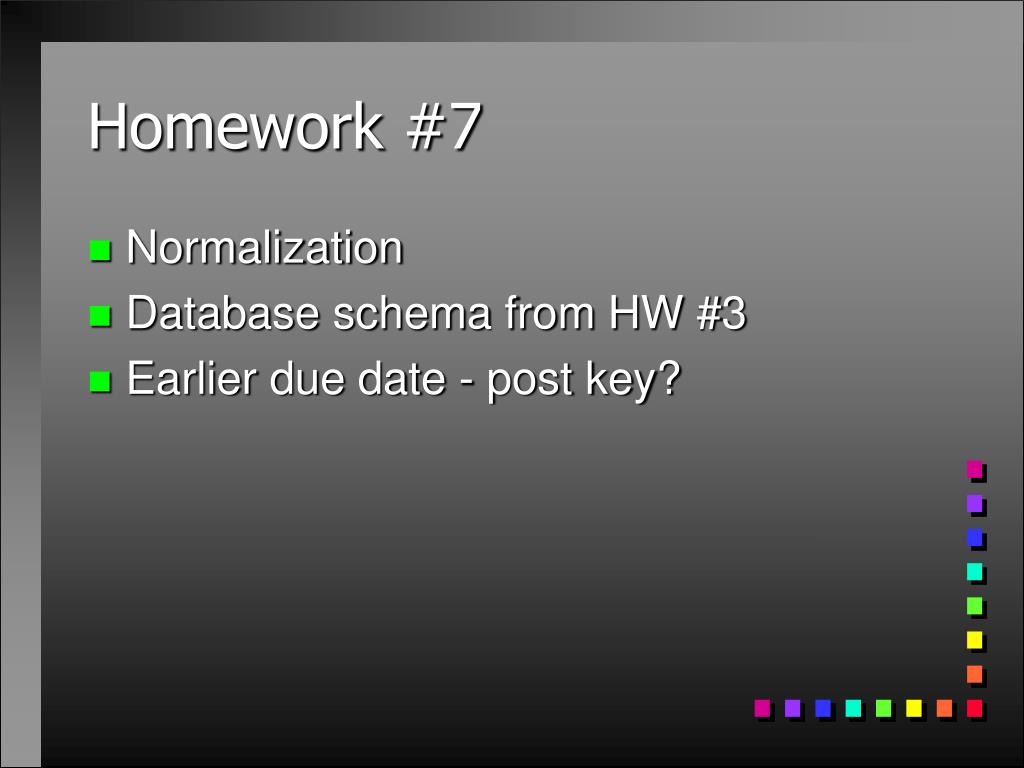

Homework #7
  • Normalization
  • Database schema from HW #3
  • Earlier due date - post key?
mid term 2
Mid-Term #2
  • Next week, 3/20
  • Topics
    • Converting an E-R Diagram to a physical database schema
    • Normalizing that schema (3NF)
    • SQL
    • Identification of BCNF, 4NF problems
