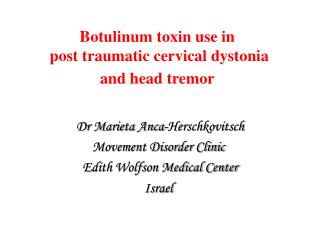

Botulinum toxin use in post traumatic cervical dystonia and head tremor. Dr Marieta Anca-Herschkovitsch Movement Disorder Clinic Edith Wolfson Medical Center Israel . Post-traumatic cervical dystonia :a subject of debate The development of abnormal posturing of the neck or shoulder after
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
Dr Marieta Anca-Herschkovitsch
Movement Disorder Clinic
Edith Wolfson Medical Center
The development of abnormal posturing of the neck or shoulder after
local injury has been termed posttraumatic cervical dystonia (PTCD).
FIRST DESCRIPTION IN 1888 BY GOWERS
Features to distinguish this disorder as a distinct clinical entity from those
of typical idiopathic cervical dystonia are :
onset and maximum disability occur very quickly after injury(hours
to days), severe pain and a fixed abnormal posture(Lang ,2003),not
influenced by sleep,poor response to BTX (Frei et al ,2004 )
In order to establish a consistent causal relationship between peripheral trauma
and movement disorder, Jankovic (1994) proposed the following criteria :
1. The injury should be severe enough to cause local symptoms persisting or requiring medical attention for at least two weeks after the trauma;
2. The onset of involuntary movements must have occurred within one year after the trauma;
3. The abnormal movements should be anatomically related to the site of the injury. Moreover, the causal relationship should be supported by the absence of other causes capable of producing the same symptoms, presence of reflex sympathetic dystrophy and poor response to conventional treatment.
traumaticmovement disorders and CRPS is poorly understood.
*-mediated through the sympathetic nervoussystem- view recently called into
question (Schott,1995; Baron et al., 1999)
* -Inflammation might be involved in the development of CRPS following injury,at least in the early stages (Birklein et al., 2001).
* -Peripheral mechanisms ( sensitization of peripheral nociceptors,or
ectopic or ephaptic transmission of nerve impulses) are suggested as a
possible mechanism of CRPS and post-traumaticmovement disorders (Jankovic,
1994; Schott, 1986b, 2001).
However,spread to ipsilateral, axial, and contralateral muscles mayoccur in fixed
dystonia, as in CRPS and post-traumatic dystonia,in these cases, such peripheral
mechanisms are unlikely to explain the development of abnormalmovements after
*-Impairment of interneuronal circuitsat the spinal/ brainstem level and central synaptic reorganizationanalogous to that following amputation could be a possible mechanisms leading to such sequelae even aftera minor peripheral injury (van Hilten et al., 2001).
1-abnormal movements in CRPSindicate a somatoform or malingering origin?
2-evidence for organic origin :
*- abnormalities of reciprocal inhibition of H-reflexes, seen in typical
dystonia (Koelman et al., 1999; van de Beeket al., 2002a,b),
*-abnormal stretch reflexes (van Hilten et al.,2001; van de Beek et al., 2002b)
*- high prevalence of HLA-DR13 in dystonia associated with CRPS
(van Hilten et al., 2000b)
*-changes in contra lateral thalamic perfusion on 123iodine-labeledsingle
photon emission computed tomography (SPECT) imaging incases of
CRPS (Fukumoto et al., 1999) .
However,whether these central or peripheral changes are primary or secondaryto
the clinical abnormalities remains a matter of dispute, andthe finding of a HLA-DR
13 association has yet to be replicatedin other studies.
*- A series of 9 patients with PTCD in whom involuntary muscle spasms and
abnormal head postures occurred within 7 days after cervical injury were treated
with botulinum toxin as necessary, and were followed up to 5 years. Based on our
observations of these cases, we propose that complex regional pain syndrome
(CRPS) could represent a variant of posttraumatic cervical dystonia that may
develop over time after the initiation of dystonia. (Frei et al,2004)
*-A retrospective study of the clinical characteristics of the 16 patients with early
post-traumatic CD (CD-PT) in comparison with the 52 patients reporting no
antecedent trauma (CD-NT) was performed( O’Riordan,2004 ).
In this comparison the CD-PT group had a significantly increased
frequency of laterocollis, significantly more reported pain and more reported
depression. Non-significant trends were noted for less responsiveness to
botulinum toxin and less use of gestes antagonistes in the CD-PT group
no consensus about the natural course of the whiplash injuries .
probably involves some degree of aberrant muscle
spasms and may produce a wide range of symptoms
It was reported a significant reduction in pain and improvement in ROM in
77.4% of patients responding significantly to a BTX-A injection in an open label
study with 31 patients, grade II WAD( Francisco Juan, 2003 ).
Patients received 50–75 units of BTX-A, and the follow-up assessment was at
week 8. BTX-A, specifically Botox®, has been studied for the treatment of WAD
and chronic neck pain. BTX type-B has been studied in patients with post-
whiplash headaches( Opida CL, 2002).
The injection technique used for the neck is based on experience with cervical
dystonia. The sites chosen are chiefly in the large superficial muscles,
specifically, the splenius capitis, rectus capitis, semispinalis capitis, and
trapezius (can develop hypertrophy).
The muscles can easily be palpated in most individuals and can be injected
without sophisticated techniques and without EMG .
Posttraumatic painful cervical dystonia
SUBJECTS( 12 PATIENTS ) : 4 male and 8 female,age range 25-68y, 1 subject
post cervical laminectomy , 1 post head trauma, 10 post whiplash injury
ONSET of neck dystonia : few weeks to 6 months post trauma , on chronic
cervicalgia and lack of other treatment strategies efficacy
RESPONSE to Botox treatment –variable :
--mild whiplash early treated resolved in 6 mo (2 inj) in 2 patients,
--subjective/objective improvement (pain,ROM )in treatment period 2y-8y (each3-4 months), reduction of muscle tenderness and volume,head posture
--Dynamic dystonia on treatment: 1 patient’s laterocollis shifted to
SIDE EFFECTS: transient dysphagia in 1 patient
DOSES of Botulinum toxin/inj : 150-300 ui BTX /400-1000 ui Dysport
SITES FOR INJECTION : trapezius,splenius capitis,sternomastoids ,paraspinal
*In a clinical series of 487 individuals diagnosed with ET with a mean age of
onset of 52, half of the sample had a family history of ET, half presented with
symmetrical disease and tremor affected the arms (97%), voice (62%), head or
neck (48%). ( Uitti RJ, 2007 )
* 43 patients with head tremor as the major complaint were treated with local botulinum toxin type A (Btx A) injections into neck muscles: 29 were classified as tremulous cervical dystonia (TCD), and 14 as head tremor without dystonia (HT). Patients with HT received mean total doses of 400 units (U) of Dysport (Btx A) (range, 160-560 U) distributed between the two spleniuscapitis muscles. Patients with TCD received a mean total dose of 500 U Dysport (range, 320-720 U) injected into a mean of 3 muscles (range, 2-4 muscles). The condition of all patients improved subjectively. The total on the Tsui scale as well as pain scores decreased significantly (p < 0.05) following treatment. Latency of onset, duration of improvement, and side effects showed no significant difference in HT and TCD. Amplitude of HT decreased significantly for both groups following treatment. The mean dominant peak frequency in TCD and HT was slightly less than 5 Hz and did not change significantly after treatment.(Poewe et al, 1997)
4 female, 2male, age 23-62 y, 2 with TCD as rotatory torticollis ,
4 with HT changing direction /axis between anteroposterior
(yes-yes) to lateral (no-no)movements
Family history –negative
Associated movement disorders- 2 patients(TS)
Treatment duration :1y-5y
Doses of botulinum toxin : 100-300 ui Botox/300-900ui Dysport
Sites for injection: splenius capitis, sternomastoid muscles, bilateral
Efficacy: improvement subjective / objective(amplitude,frequency)
Side effects: negative
Botulinum toxin is a safe and effective therapy for most patients with cervical dystonia, including posttraumatic syndromes
Botulinum toxin can safely be used to control
tremor in patients in whom other forms of
therapy have failed.
