What are Connectors and how it is used

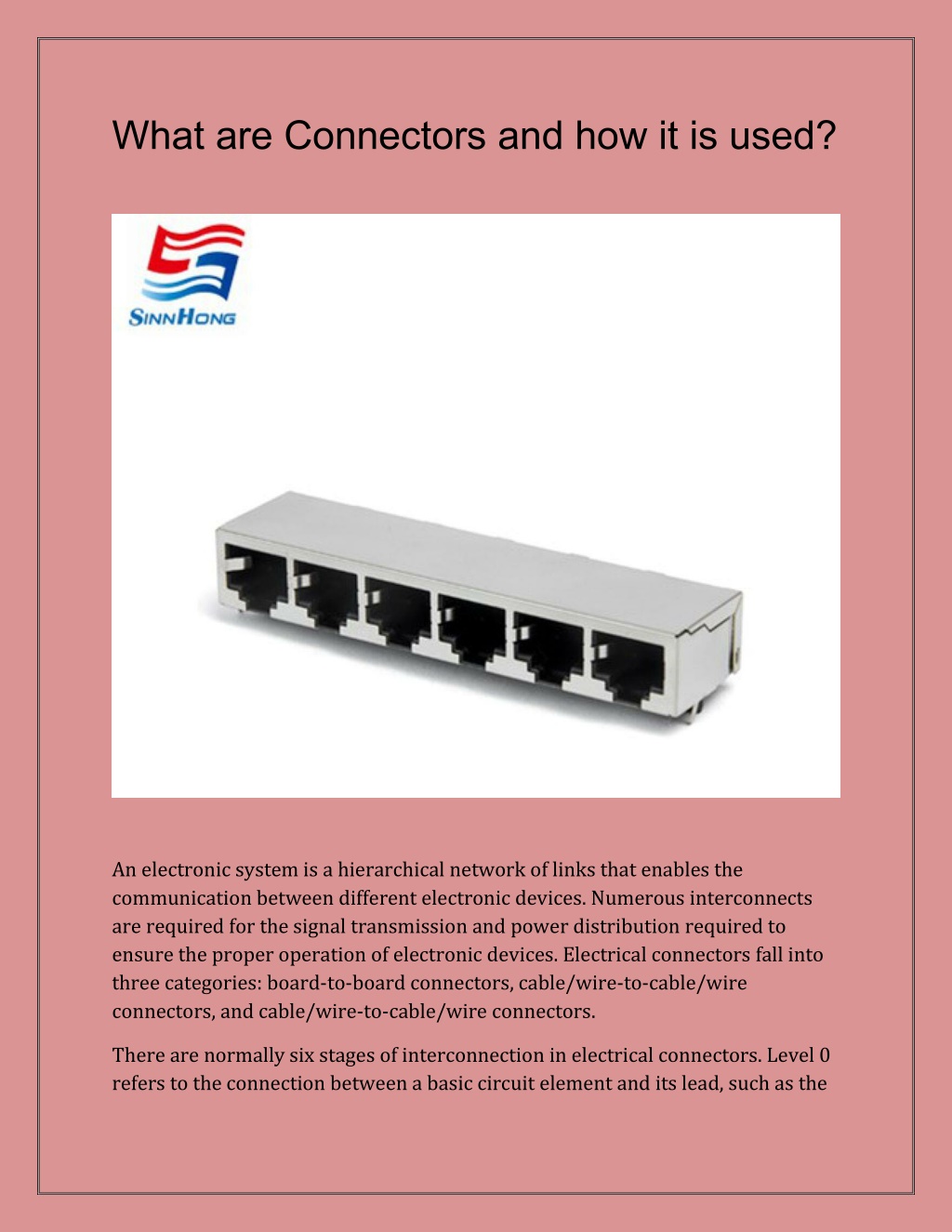

1. What are Connectors and how it is used? An electronic system is a hierarchical network of links that enables the communication between different electronic devices. Numerous interconnects are required for the signal transmission and power distribution required to ensure the proper operation of electronic devices. Electrical connectors fall into three categories: board-to-board connectors, cable/wire-to-cable/wire connectors, and cable/wire-to-cable/wire connectors. There are normally six stages of interconnection in electrical connectors. Level 0 refers to the connection between a basic circuit element and its lead, such as the

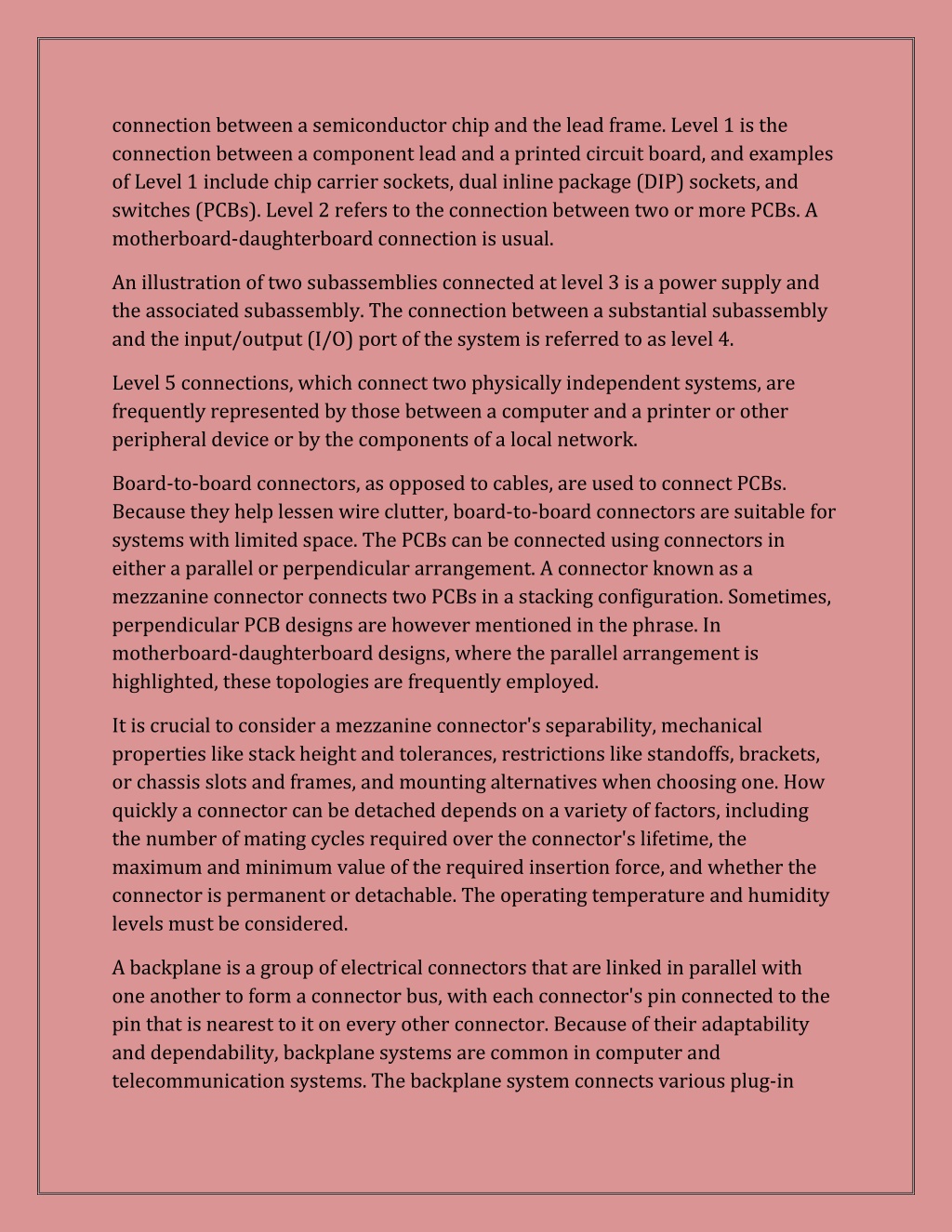

2. connection between a semiconductor chip and the lead frame. Level 1 is the connection between a component lead and a printed circuit board, and examples of Level 1 include chip carrier sockets, dual inline package (DIP) sockets, and switches (PCBs). Level 2 refers to the connection between two or more PCBs. A motherboard-daughterboard connection is usual. An illustration of two subassemblies connected at level 3 is a power supply and the associated subassembly. The connection between a substantial subassembly and the input/output (I/O) port of the system is referred to as level 4. Level 5 connections, which connect two physically independent systems, are frequently represented by those between a computer and a printer or other peripheral device or by the components of a local network. Board-to-board connectors, as opposed to cables, are used to connect PCBs. Because they help lessen wire clutter, board-to-board connectors are suitable for systems with limited space. The PCBs can be connected using connectors in either a parallel or perpendicular arrangement. A connector known as a mezzanine connector connects two PCBs in a stacking configuration. Sometimes, perpendicular PCB designs are however mentioned in the phrase. In motherboard-daughterboard designs, where the parallel arrangement is highlighted, these topologies are frequently employed. It is crucial to consider a mezzanine connector's separability, mechanical properties like stack height and tolerances, restrictions like standoffs, brackets, or chassis slots and frames, and mounting alternatives when choosing one. How quickly a connector can be detached depends on a variety of factors, including the number of mating cycles required over the connector's lifetime, the maximum and minimum value of the required insertion force, and whether the connector is permanent or detachable. The operating temperature and humidity levels must be considered. A backplane is a group of electrical connectors that are linked in parallel with one another to form a connector bus, with each connector's pin connected to the pin that is nearest to it on every other connector. Because of their adaptability and dependability, backplane systems are common in computer and telecommunication systems. The backplane system connects various plug-in

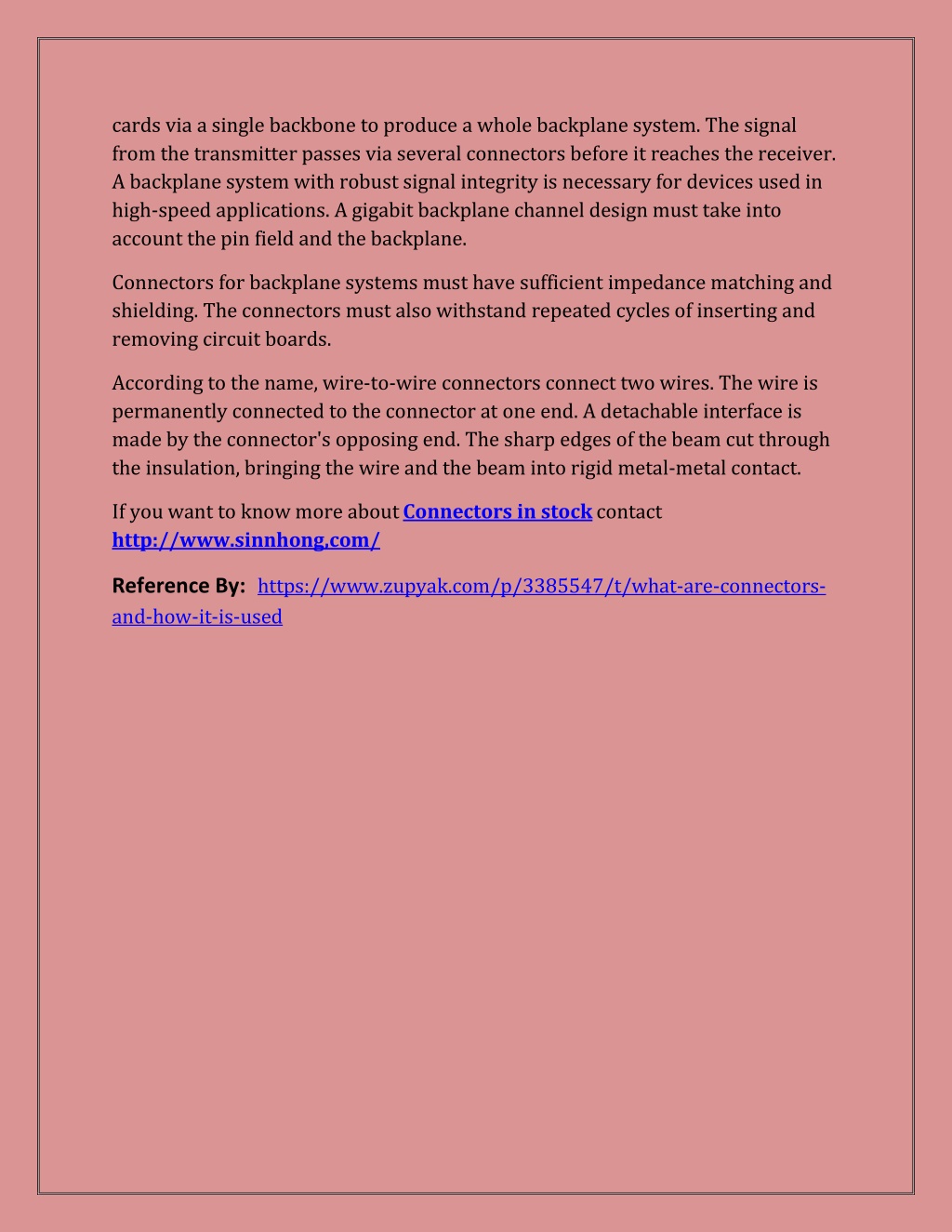

3. cards via a single backbone to produce a whole backplane system. The signal from the transmitter passes via several connectors before it reaches the receiver. A backplane system with robust signal integrity is necessary for devices used in high-speed applications. A gigabit backplane channel design must take into account the pin field and the backplane. Connectors for backplane systems must have sufficient impedance matching and shielding. The connectors must also withstand repeated cycles of inserting and removing circuit boards. According to the name, wire-to-wire connectors connect two wires. The wire is permanently connected to the connector at one end. A detachable interface is made by the connector's opposing end. The sharp edges of the beam cut through the insulation, bringing the wire and the beam into rigid metal-metal contact. If you want to know more aboutConnectors in stockcontact http://www.sinnhong,com/ Reference By:https://www.zupyak.com/p/3385547/t/what-are-connectors- and-how-it-is-used
