Automatic flap barriers

Automatic flap barriers are another type of access control system designed to manage pedestrian traffic in secure areas. Similar to turnstiles, flap barriers are often used in places like office buildings, airports, train stations, and other facilities where controlled access to specific areas is necessary. Here are some key features and characteristics of automatic flap barriers. https://www.novusapl.com/flapbarrier-ultrapremium-series.php

Siddharth28
Download Presentation

Automatic flap barriers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

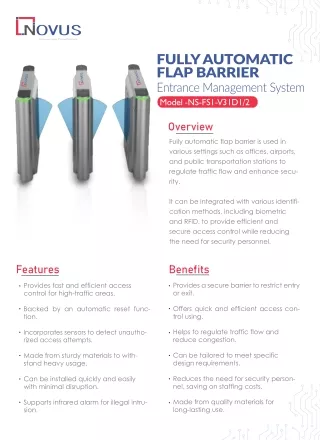

  1. FULLY AUTOMATIC FLAP BARRIER Entrance Management System Model -NS-FS1-V31D1/2 Overview Fully automatic flap barrier is used in various settings such as offices, airports, and public transportation stations to regulate traffic flow and enhance secu- rity. It can be integrated with various identifi- cation methods, including biometric and RFID, to provide efficient and secure access control while reducing the need for security personnel. Features Benefits Provides a secure barrier to restrict entry or exit. Provides fast and efficient access control for high-traffic areas. Offers quick and efficient access con- trol using. Backed by an automatic reset func- tion. Helps to regulate traffic flow and reduce congestion. Incorporates sensors to detect unautho- rized access attempts. Can be tailored to meet specific design requirements. Made from sturdy materials to with- stand heavy usage. Reduces the need for security person- nel, saving on staffing costs. Can be installed quickly and easily with minimal disruption. Made from quality materials for long-lasting use. Supports infrared alarm for illegal intru- sion.

  2. Fully Automatic Flap Barrier| NS-FS1-V31D1/2 Technical Specifications Appearance Dimension 1200*300*1000mm Material Structure Channel Width 304 original brushed stainless steel, acrylic 550mm Thickness The full thickness of the outer box is 1.2 + 1.0mm Drive Motor 24V DC brushless motor, low noise 35 ~ 40 people/min in normally open mode and 30 ~ 35 people/min in normally closed mode; The actual traffic speed is different from the traffic environment and personnel Traffic Speed Movement Structure Traffic Direction Guide rail structure One-way traffic/two-way traffic ID / IC card swiping and other reading head verification opening, infrared induction automatic opening, button opening, etc. Current anti pinch, infrared anti pinch, illegal intrusion infrared alarm Opening Mode Protection Function Opening Signal Service Life Infrared Quantity Dry contact signal ≥ 6 million times 3 pairs (4 pairs can be customized) 30-60w -15~75 C (add thermostat below this temperature) Accessories Power Applicable Temperature Optional Disclaimer: Brief product specifications are mentioned, that may change without prior notice, please check with OEM before purchase. Images are shown for reference only; the actual product may differ due to product enhancement. www.novusapl.com Copyright © 2019, Novus Automation Private Limited
