Steel frame structure construction

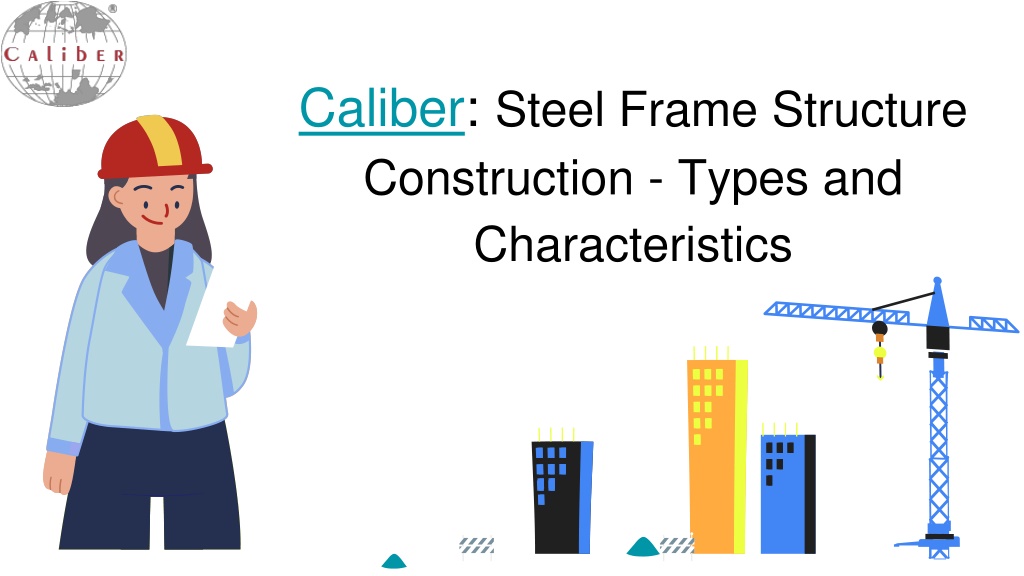

1. Caliber: Steel Frame Structure Construction - Types and Characteristics

2. Steel Frame Structure Construction – Types And Characteristics Structural steel is a type of steel that is used to create construction materials in a variety of shapes. Structural steel shapes often take the form of an elongated beam and have a specific cross-sectional profile. Structural steel framing is a type of building frame that consists of vertical columns and horizontal beams. These elements are made out of steel and arranged in a rectangular grid. The grid supports the floors, roof, and walls of the building. There are three main types of structural steel framing for buildings: skeleton, wall bearing, and long span. Each has its unique benefits that need to be considered when choosing the best option for a particular building project.

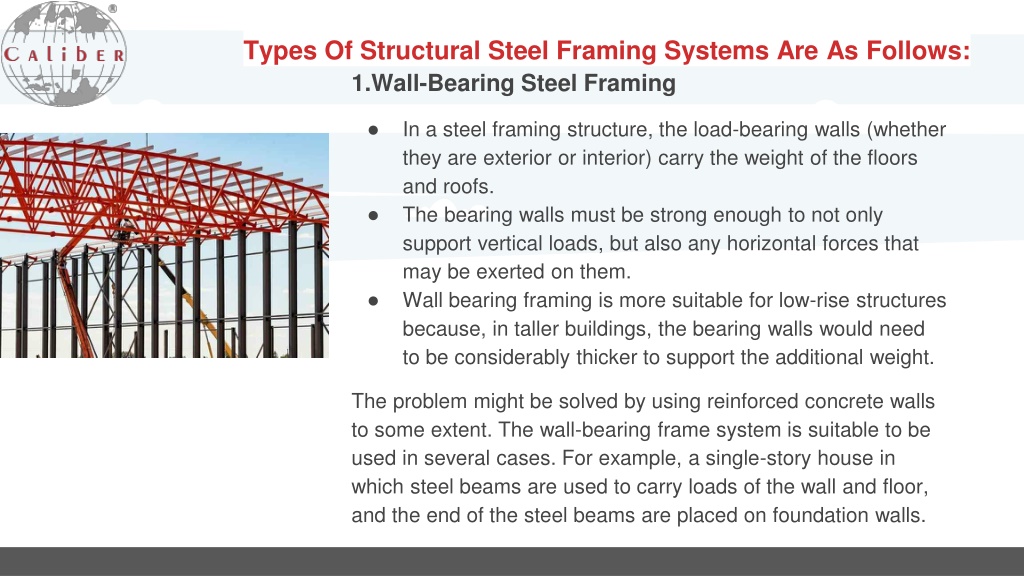

3. Types Of Structural Steel Framing Systems Are As Follows: 1.Wall-Bearing Steel Framing • In a steel framing structure, the load-bearing walls (whether they are exterior or interior) carry the weight of the floors and roofs. • The bearing walls must be strong enough to not only support vertical loads, but also any horizontal forces that may be exerted on them. • Wall bearing framing is more suitable for low-rise structures because, in taller buildings, the bearing walls would need to be considerably thicker to support the additional weight. The problem might be solved by using reinforced concrete walls to some extent. The wall-bearing frame system is suitable to be used in several cases. For example, a single-story house in which steel beams are used to carry loads of the wall and floor, and the end of the steel beams are placed on foundation walls.

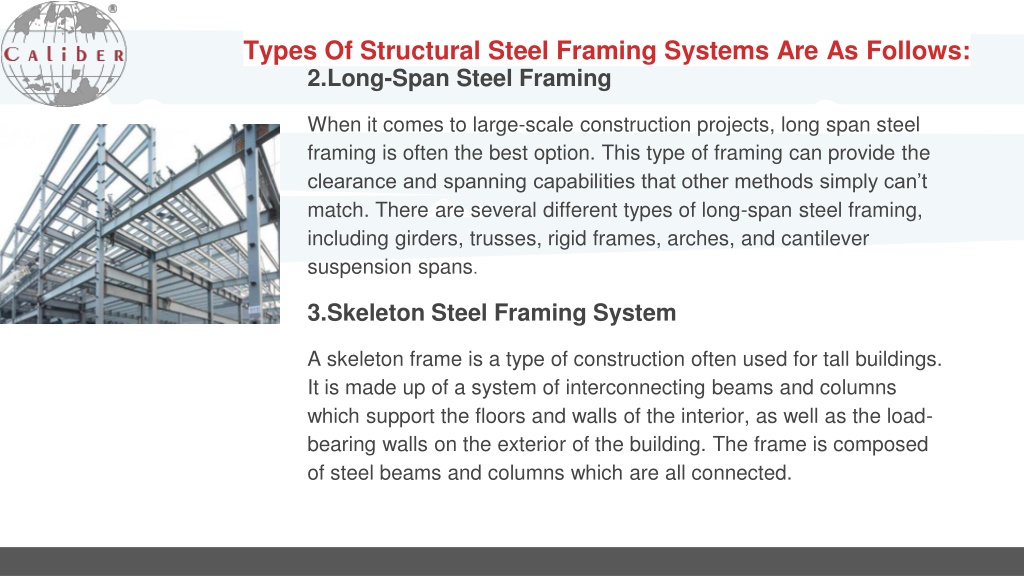

4. Types Of Structural Steel Framing Systems Are As Follows: 2.Long-Span Steel Framing When it comes to large-scale construction projects, long span steel framing is often the best option. This type of framing can provide the clearance and spanning capabilities that other methods simply can’t match. There are several different types of long-span steel framing, including girders, trusses, rigid frames, arches, and cantilever suspension spans. 3.Skeleton Steel Framing System A skeleton frame is a type of construction often used for tall buildings. It is made up of a system of interconnecting beams and columns which support the floors and walls of the interior, as well as the load-bearing walls on the exterior of the building. The frame is composed of steel beams and columns which are all connected.

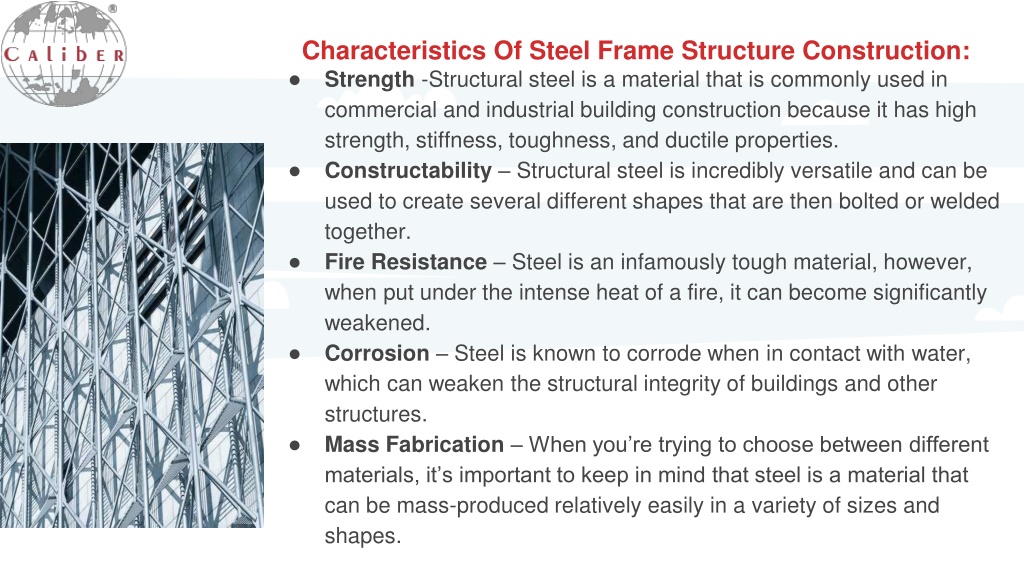

5. Characteristics Of Steel Frame Structure Construction: • Strength -Structural steel is a material that is commonly used in commercial and industrial building construction because it has high strength, stiffness, toughness, and ductile properties. • Constructability – Structural steel is incredibly versatile and can be used to create several different shapes that are then bolted or welded together. • Fire Resistance – Steel is an infamously tough material, however, when put under the intense heat of a fire, it can become significantly weakened. • Corrosion – Steel is known to corrode when in contact with water, which can weaken the structural integrity of buildings and other structures. • Mass Fabrication – When you’re trying to choose between different materials, it’s important to keep in mind that steel is a material that can be mass-produced relatively easily in a variety of sizes and shapes.

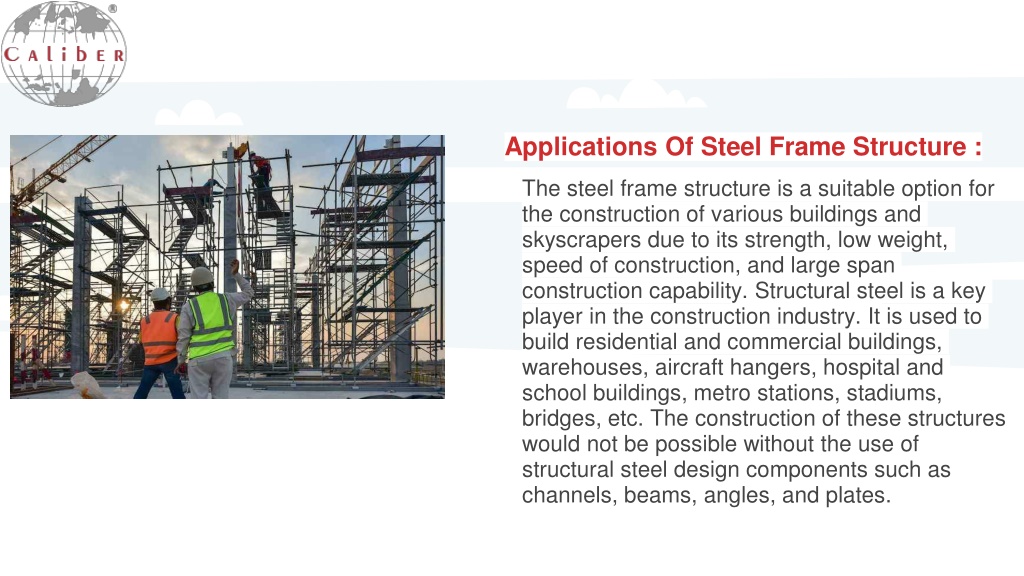

6. Applications Of Steel Frame Structure : The steel frame structure is a suitable option for the construction of various buildings and skyscrapers due to its strength, low weight, speed of construction, and large span construction capability. Structural steel is a key player in the construction industry. It is used to build residential and commercial buildings, warehouses, aircraft hangers, hospital and school buildings, metro stations, stadiums, bridges, etc. The construction of these structures would not be possible without the use of structural steel design components such as channels, beams, angles, and plates.

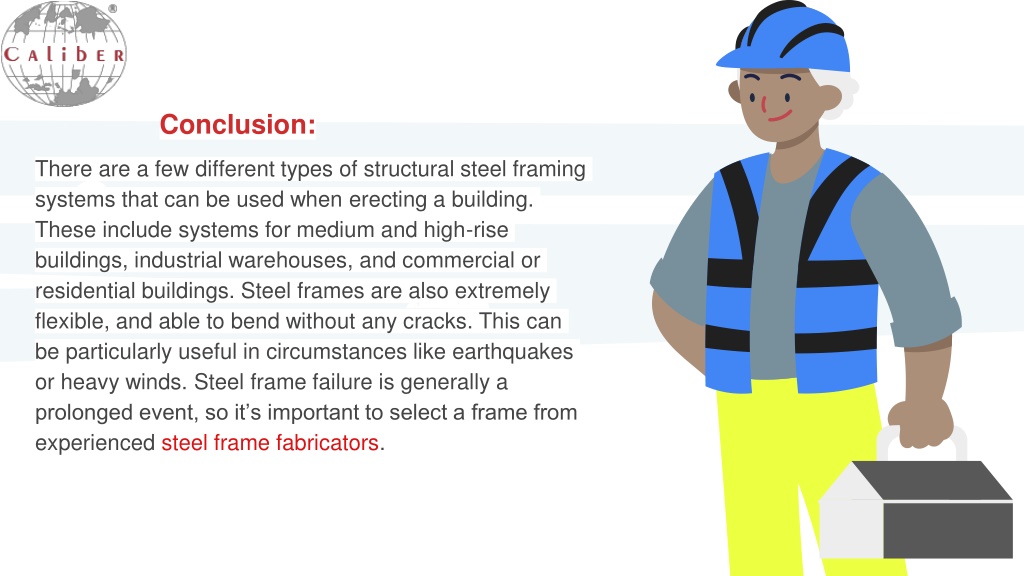

7. Conclusion: There are a few different types of structural steel framing systems that can be used when erecting a building. These include systems for medium and high-rise buildings, industrial warehouses, and commercial or residential buildings. Steel frames are also extremely flexible, and able to bend without any cracks. This can be particularly useful in circumstances like earthquakes or heavy winds. Steel frame failure is generally a prolonged event, so it’s important to select a frame from experienced steel frame fabricators.

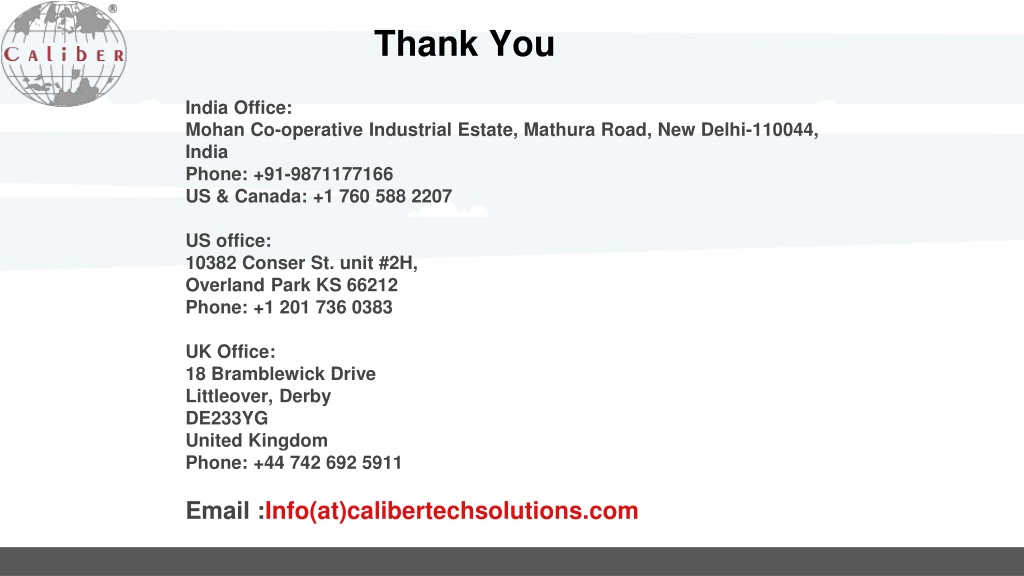

8. Thank You India Office: Mohan Co-operative Industrial Estate, Mathura Road, New Delhi-110044, India Phone: +91-9871177166 US & Canada: +1 760 588 2207 US office: 10382 Conser St. unit #2H, Overland Park KS 66212 Phone: +1 201 736 0383 UK Office: 18 Bramblewick Drive Littleover, Derby DE233YG United Kingdom Phone: +44 742 692 5911 Email :Info(at)calibertechsolutions.com
