  1. Meteosat Second Generation Bryan Conway Satellite Applications Section, Met Office bryan.conway@metoffice.com

  2. Meteosat Second Generation • New EUMETSAT geostationary satellite series • 28 August 2002: Launch of MSG-1 • 17 October 2002: Solid state amplifier problems; commissioning suspended • 27 November 2002: Commissioning resumed • 28 November 2002: First images • Apr 03: EUMETCast MSG dissemination trials started • Aug 03: Calibrated imagery • Dec 03: Validated products • Jan 04: MSG-1 moved to 3.3°W • Jan 04: MSG operational

  3. First MSG image Ch 1,2,3 composite 28 Nov 2002, 12.15 UTC Note: MSG now at 10W; final station will be 3.3W © EUMETSAT 2002

  4. Meteosat  Meteosat Second Generation (MSG) METEOSAT MSG channels 3 12 imaging cycle 30 min. 15 min. resolution 5 km (IR) 3 km (IR) 2.5 km (vis) 1 km (vis) data rate 166 kb/s 1000 kb/s power 200 W 600 W mass 720 Kg 2010 Kg lifetime 5 years 7 years

  5. MSG channels Wavelength (μm) application 0.6 and 0.8 cloud detection and tracking, scene identification, vegetation, aerosol 1.6 snow/cloud discrimination, ice/water cloud discrimination, aerosol 3.9 low cloud / fog detection, land/sea temperature (at night) 6.2 and 7.3 mid and upper tropospheric water vapour, cloud/vapour tracking, cloud height assignment 8.7 ice/water cloud discrimination 9.7 ozone - amount and feature tracking 10.8 and 12.0 land/sea and cloud temperature 13.4 cloud height assignment 0.75 high resolution visible

  6. MSG coverage(based on nominal location of 0º) 3,712 x 3,712 (Meteosat 2,500 x 2,500) 11,136 x 5,568 (Meteosat 5,000 x 5,000) HRV(Nominal & Alternative) All Channels except HRV

  7. MSG derived products (1/2) • Generated by EUMETSAT, SAFs or NMSs, with various spatial and temporal resolutions. • EUMETSAT MPEF products include • AMVs (winds) • Cloud mask, cloud analysis • CTH • Precipitation index • Global instability index • ... (See MSG EURD on EUMETSAT web site)

  8. MSG derived products (2/2) • Nowcasting and VSRF SAF: • software for NMSs to generate products including • Rapidly developing thunderstorm product • Stability analysis imagery • Convective rainfall rate • Met Office operational products will include: • Cloud mask, CTH and cloud type (strat/conv)

  9. Availability of MSG products from EUMETSAT • Subject to EUMETSAT data policy • EUMETCast: • All images + some derived products • near real time • GTS: derived products, e.g., winds • Internet: public and closed services (proposed) • UMARF: full imagery + products archive

  10. EUMETCast Overview DVB BROADCAST DWD EUMETSAT DVB UPLINK USERS

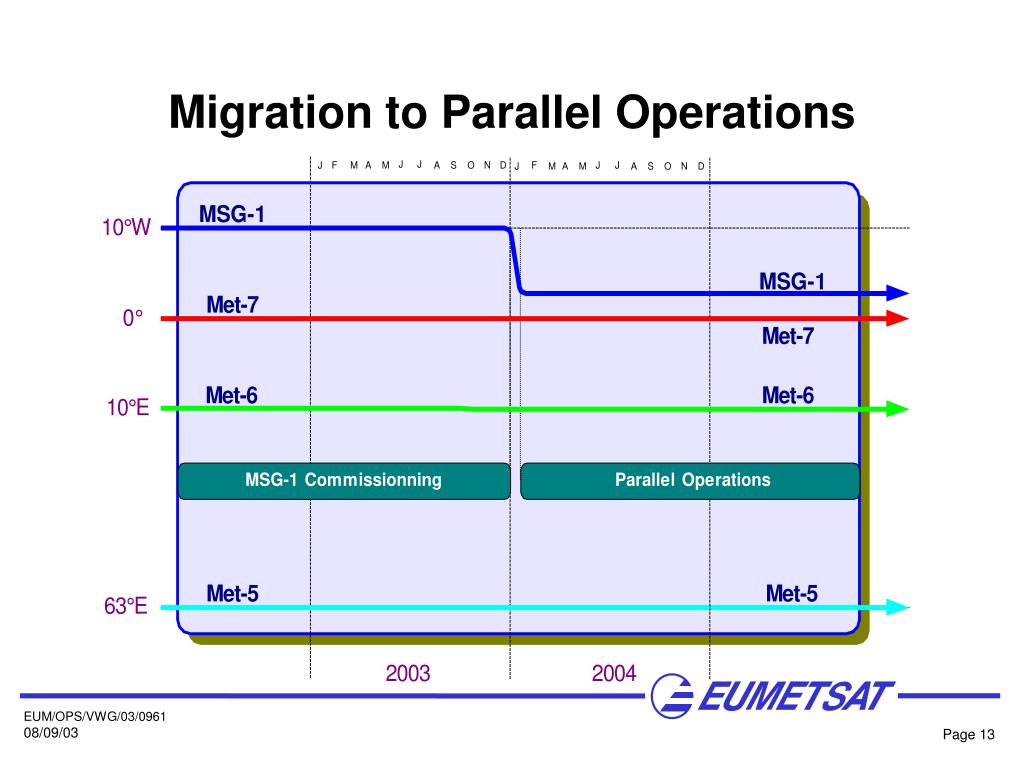

  11. Migration to Parallel Operations

  12. Rapid scanning service (not MSG) • 10-minute scans from M-6 at 10ºE • Vis, IR and WV • 4-week cycle: • 3w5d continuous rapid scanning • 48h gap for ranging, etc. • Available via EUMETCast • Probably change to 5-minute scans in 2004

  13. RSS area (10-min scans)

  14. Further information See EUMETSAT web site at www.eumetsat.de for more information about • MSG • Rapid scanning service • Other EUMETSAT programmes and services • SAFs
