Gas Chromatography 30-GCG101

LabExpo Gas Chromatography System offers precision control with advanced electronic flow/pressure systems and accurate programmed heating. It features six individual heating zones, multiple detector options, rapid heating/cooling, safety functions, and a high-sensitivity design for reliable analysis.

Scarlett_Labexpo
Download Presentation

Gas Chromatography 30-GCG101

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

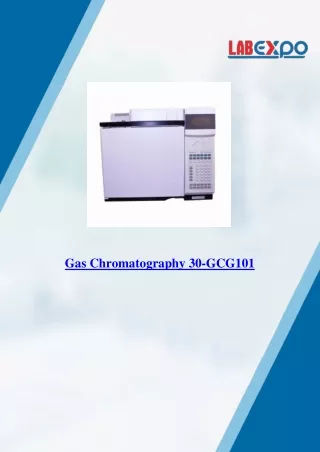

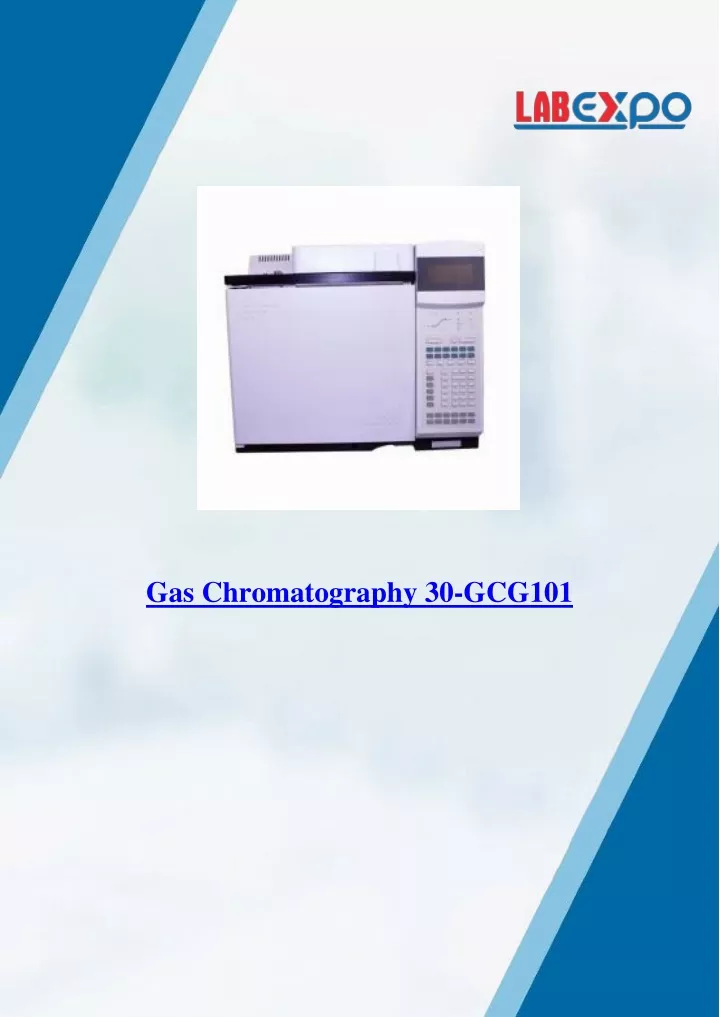

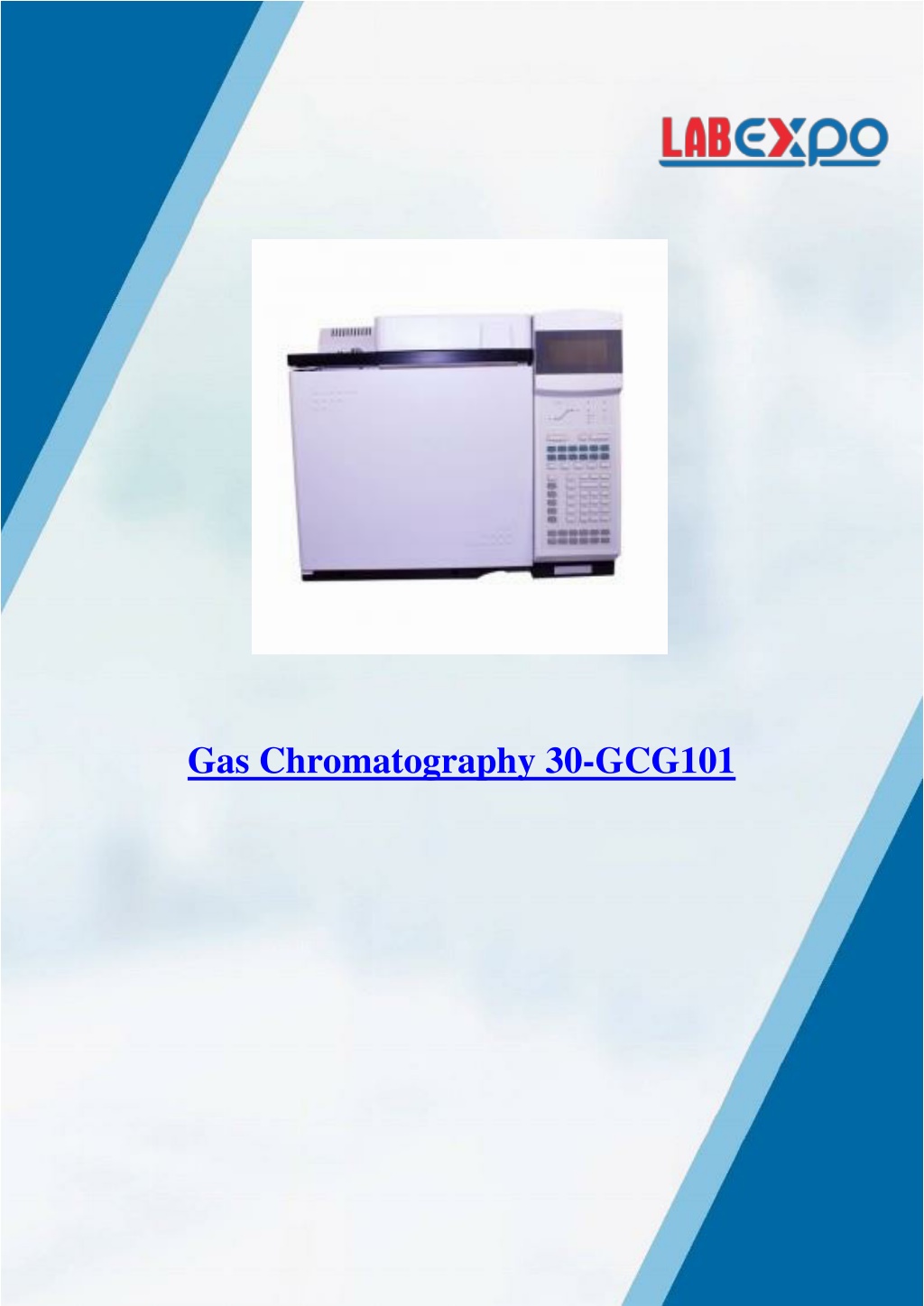

  1. Gas Chromatography 30-GCG101

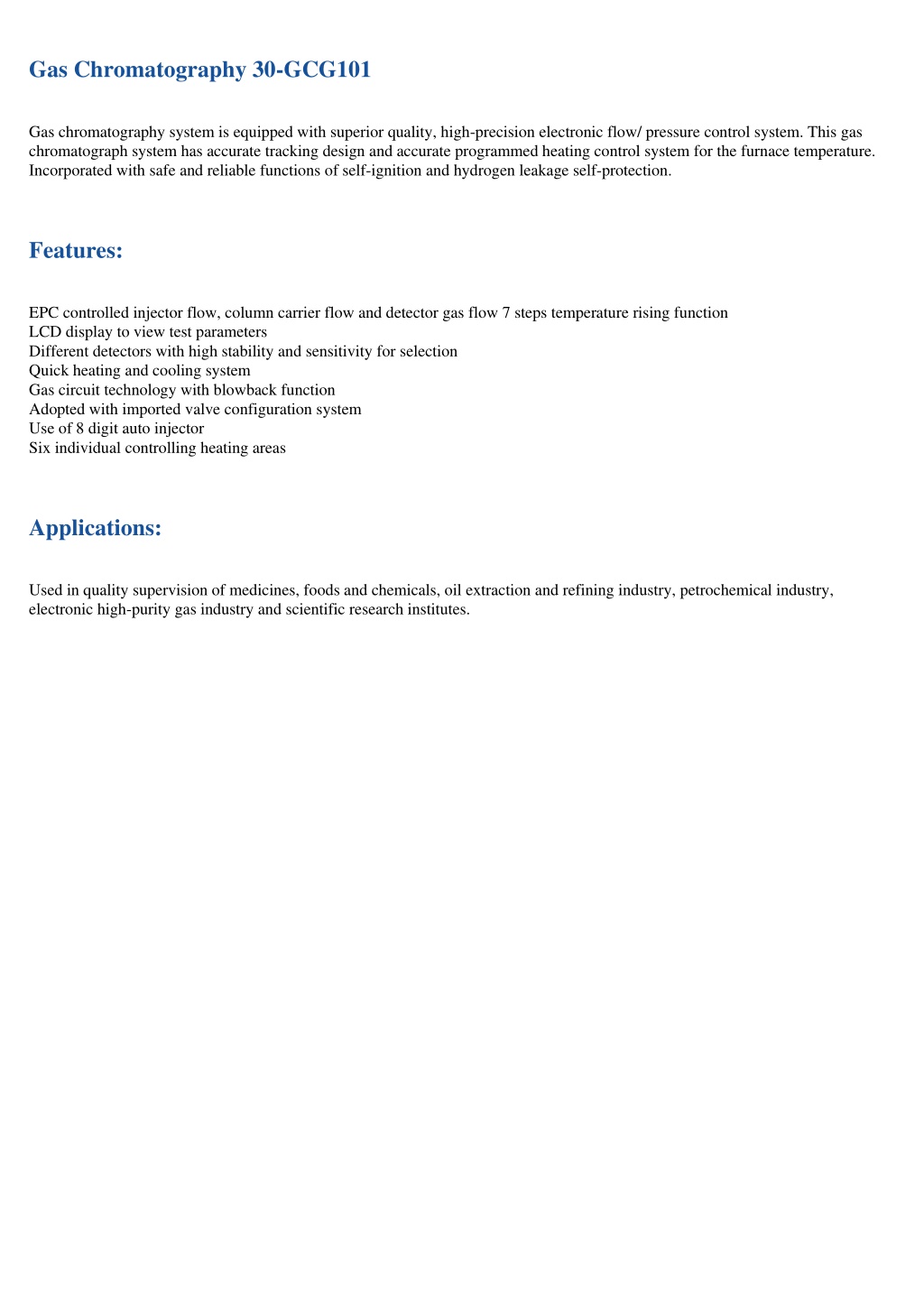

  2. Gas Chromatography 30-GCG101 Gas chromatography system is equipped with superior quality, high-precision electronic flow/ pressure control system. This gas chromatograph system has accurate tracking design and accurate programmed heating control system for the furnace temperature. Incorporated with safe and reliable functions of self-ignition and hydrogen leakage self-protection. Features: EPC controlled injector flow, column carrier flow and detector gas flow 7 steps temperature rising function LCD display to view test parameters Different detectors with high stability and sensitivity for selection Quick heating and cooling system Gas circuit technology with blowback function Adopted with imported valve configuration system Use of 8 digit auto injector Six individual controlling heating areas Applications: Used in quality supervision of medicines, foods and chemicals, oil extraction and refining industry, petrochemical industry, electronic high-purity gas industry and scientific research institutes.

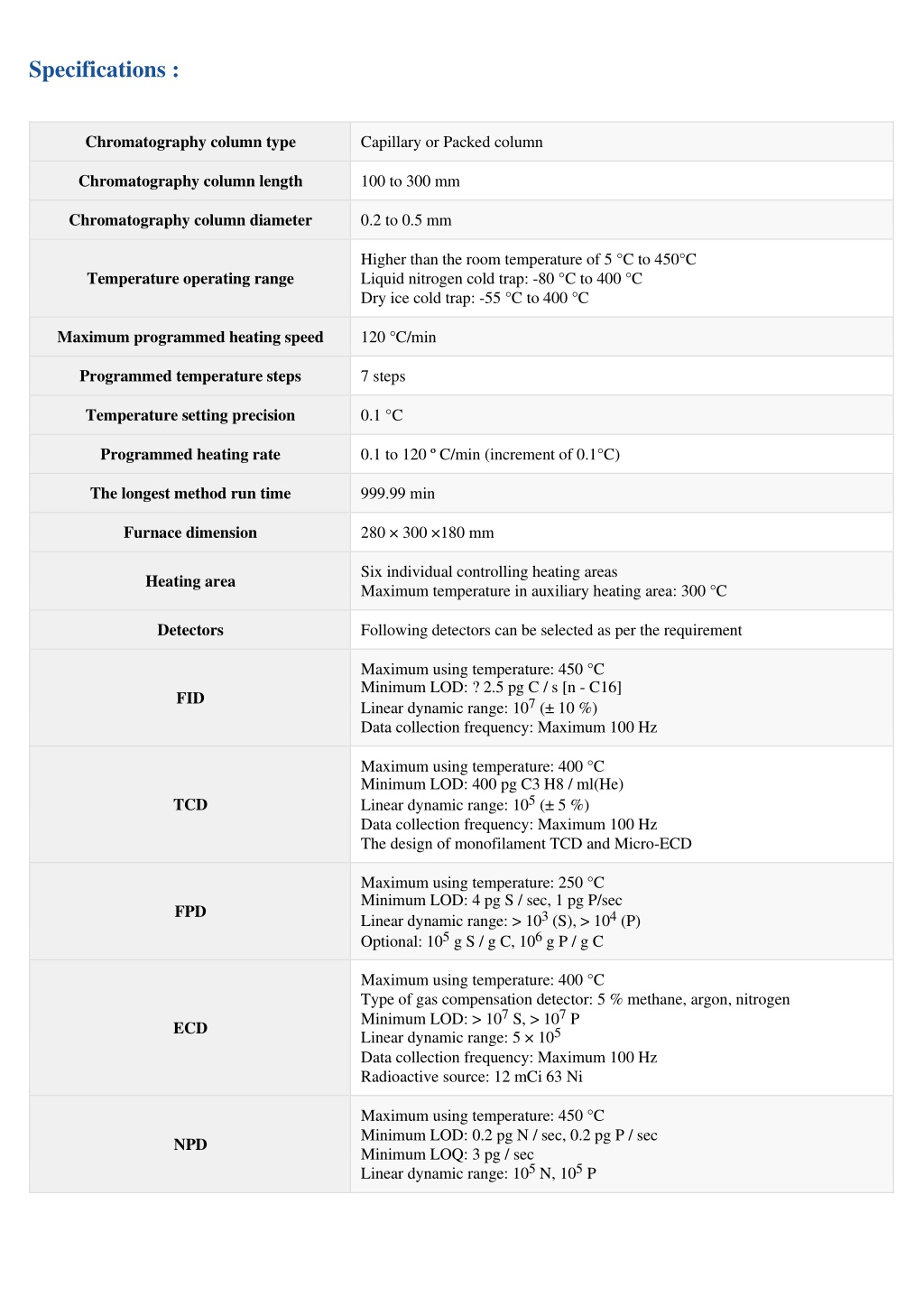

  3. Specifications : Chromatography column type Capillary or Packed column Chromatography column length 100 to 300 mm Chromatography column diameter 0.2 to 0.5 mm Higher than the room temperature of 5 °C to 450°C Liquid nitrogen cold trap: -80 °C to 400 °C Dry ice cold trap: -55 °C to 400 °C Temperature operating range Maximum programmed heating speed 120 °C/min Programmed temperature steps 7 steps Temperature setting precision 0.1 °C Programmed heating rate 0.1 to 120 º C/min (increment of 0.1°C) The longest method run time 999.99 min Furnace dimension 280 × 300 ×180 mm Six individual controlling heating areas Maximum temperature in auxiliary heating area: 300 °C Heating area Detectors Following detectors can be selected as per the requirement Maximum using temperature: 450 °C Minimum LOD: ? 2.5 pg C / s [n - C16] Linear dynamic range: 107 (± 10 %) Data collection frequency: Maximum 100 Hz FID Maximum using temperature: 400 °C Minimum LOD: 400 pg C3 H8 / ml(He) Linear dynamic range: 105 (± 5 %) Data collection frequency: Maximum 100 Hz The design of monofilament TCD and Micro-ECD TCD Maximum using temperature: 250 °C Minimum LOD: 4 pg S / sec, 1 pg P/sec Linear dynamic range: > 103 (S), > 104 (P) Optional: 105 g S / g C, 106 g P / g C FPD Maximum using temperature: 400 °C Type of gas compensation detector: 5 % methane, argon, nitrogen Minimum LOD: > 107 S, > 107 P Linear dynamic range: 5 × 105 Data collection frequency: Maximum 100 Hz Radioactive source: 12 mCi 63 Ni ECD Maximum using temperature: 450 °C Minimum LOD: 0.2 pg N / sec, 0.2 pg P / sec Minimum LOQ: 3 pg / sec Linear dynamic range: 105 N, 105 P NPD

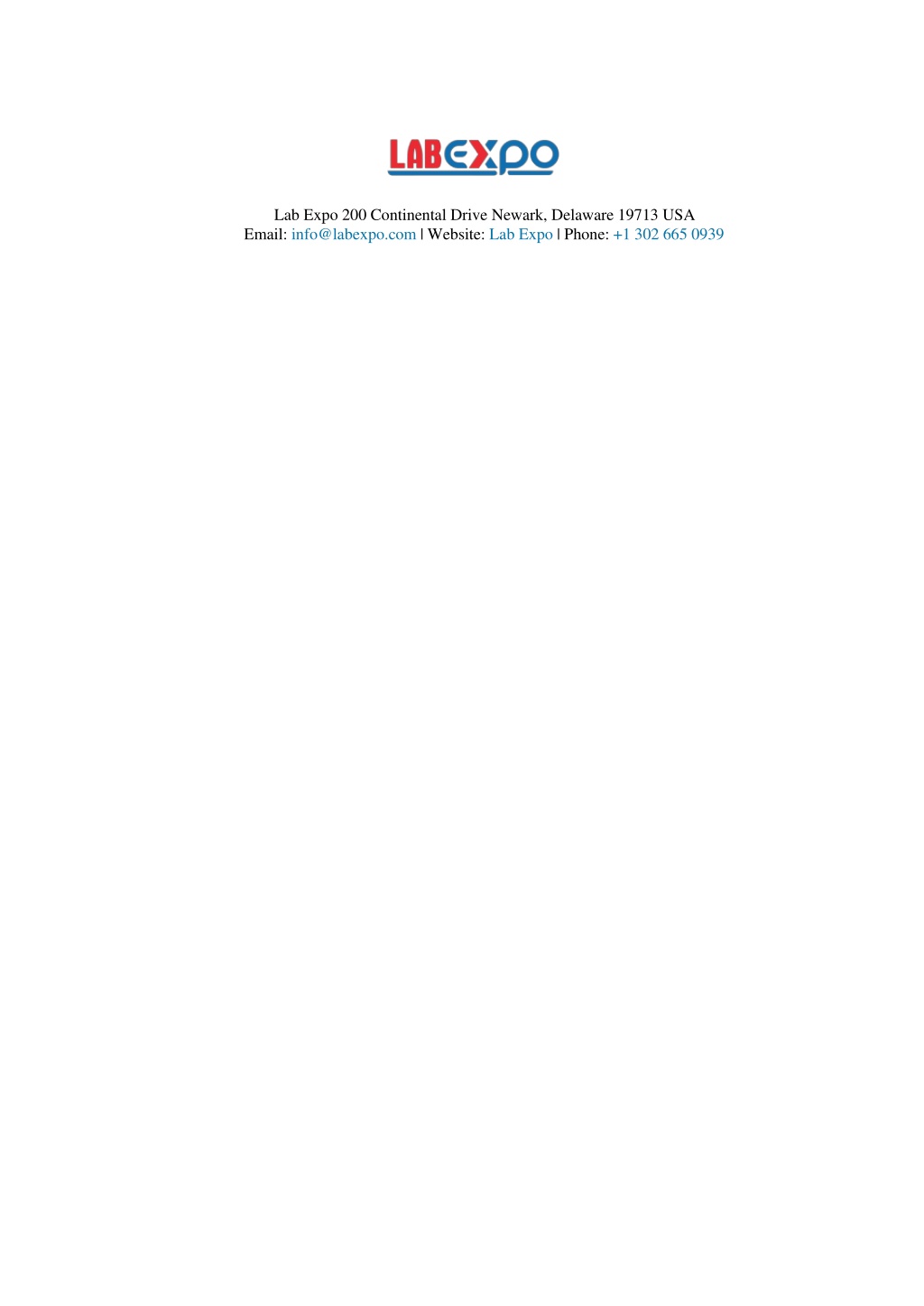

  4. Lab Expo 200 Continental Drive Newark, Delaware 19713 USA Email: info@labexpo.com | Website: Lab Expo | Phone: +1 302 665 0939
