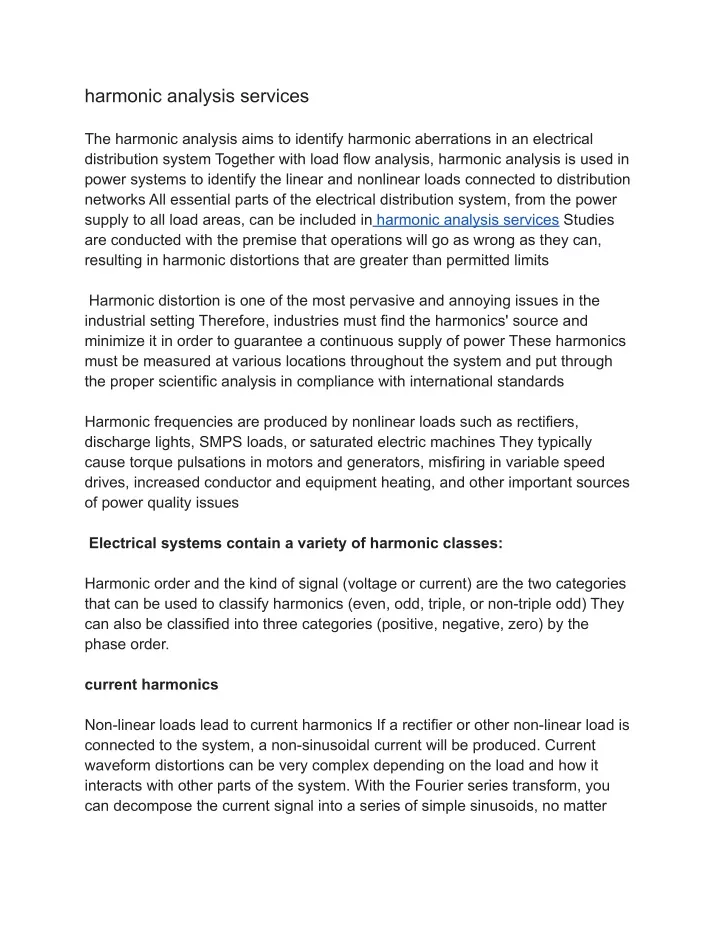

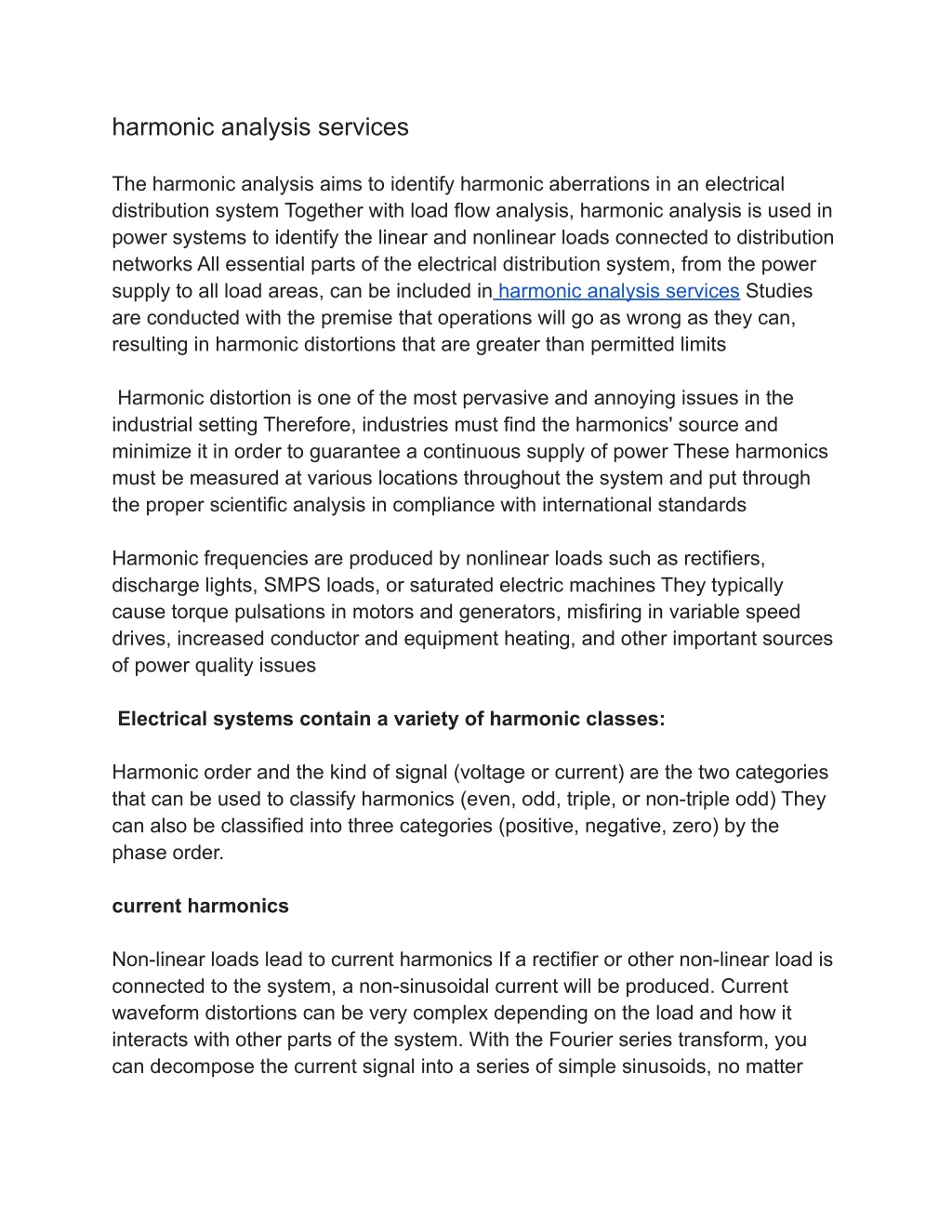

1. harmonic analysis services The harmonic analysis aims to identify harmonic aberrations in an electrical distribution system Together with load flow analysis, harmonic analysis is used in power systems to identify the linear and nonlinear loads connected to distribution networks All essential parts of the electrical distribution system, from the power supply to all load areas, can be included in harmonic analysis services Studies are conducted with the premise that operations will go as wrong as they can, resulting in harmonic distortions that are greater than permitted limits Harmonic distortion is one of the most pervasive and annoying issues in the industrial setting Therefore, industries must find the harmonics' source and minimize it in order to guarantee a continuous supply of power These harmonics must be measured at various locations throughout the system and put through the proper scientific analysis in compliance with international standards Harmonic frequencies are produced by nonlinear loads such as rectifiers, discharge lights, SMPS loads, or saturated electric machines They typically cause torque pulsations in motors and generators, misfiring in variable speed drives, increased conductor and equipment heating, and other important sources of power quality issues Electrical systems contain a variety of harmonic classes: Harmonic order and the kind of signal (voltage or current) are the two categories that can be used to classify harmonics (even, odd, triple, or non-triple odd) They can also be classified into three categories (positive, negative, zero) by the phase order. current harmonics Non-linear loads lead to current harmonics If a rectifier or other non-linear load is connected to the system, a non-sinusoidal current will be produced. Current waveform distortions can be very complex depending on the load and how it interacts with other parts of the system. With the Fourier series transform, you can decompose the current signal into a series of simple sinusoids, no matter

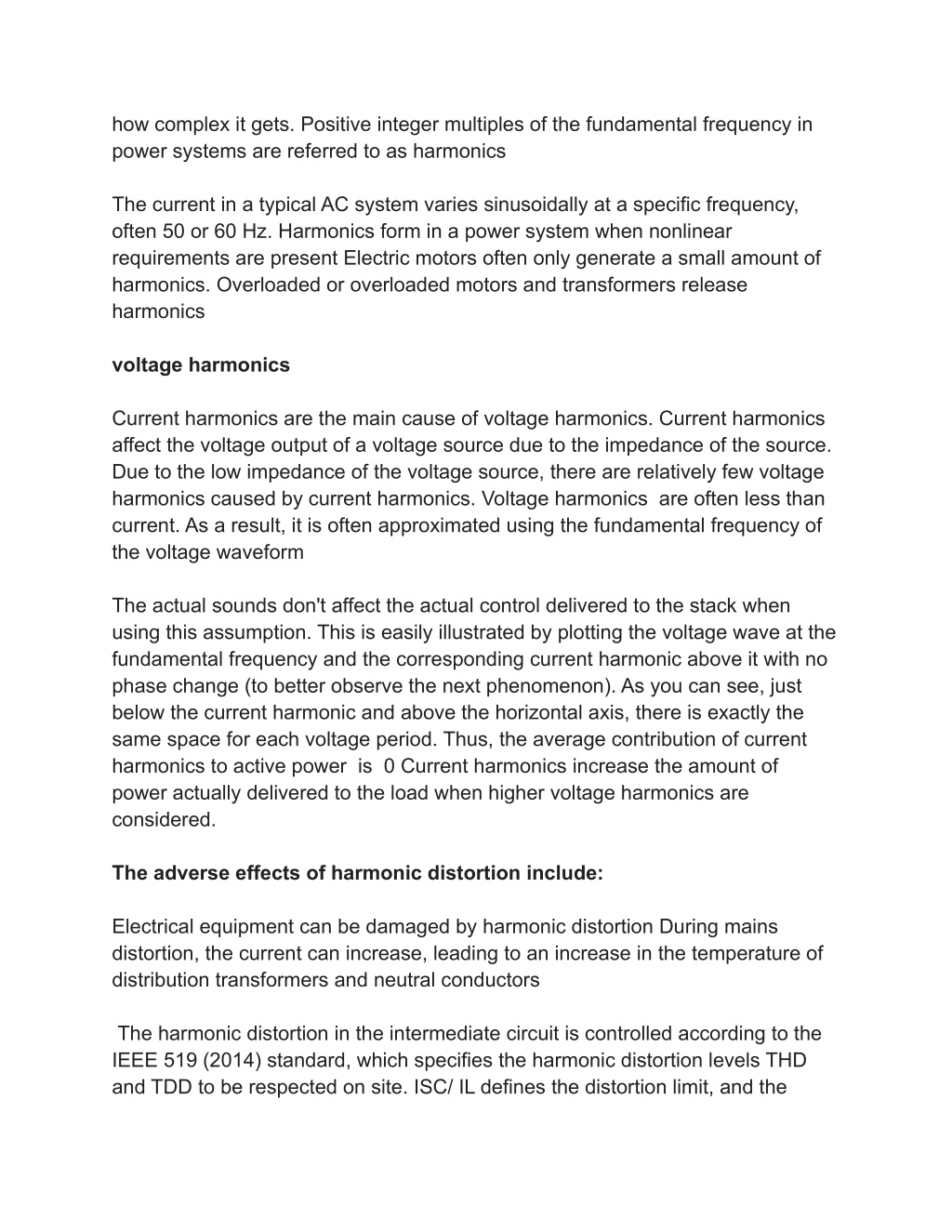

2. how complex it gets. Positive integer multiples of the fundamental frequency in power systems are referred to as harmonics The current in a typical AC system varies sinusoidally at a specific frequency, often 50 or 60 Hz. Harmonics form in a power system when nonlinear requirements are present Electric motors often only generate a small amount of harmonics. Overloaded or overloaded motors and transformers release harmonics voltage harmonics Current harmonics are the main cause of voltage harmonics. Current harmonics affect the voltage output of a voltage source due to the impedance of the source. Due to the low impedance of the voltage source, there are relatively few voltage harmonics caused by current harmonics. Voltage harmonics are often less than current. As a result, it is often approximated using the fundamental frequency of the voltage waveform The actual sounds don't affect the actual control delivered to the stack when using this assumption. This is easily illustrated by plotting the voltage wave at the fundamental frequency and the corresponding current harmonic above it with no phase change (to better observe the next phenomenon). As you can see, just below the current harmonic and above the horizontal axis, there is exactly the same space for each voltage period. Thus, the average contribution of current harmonics to active power is 0 Current harmonics increase the amount of power actually delivered to the load when higher voltage harmonics are considered. The adverse effects of harmonic distortion include: Electrical equipment can be damaged by harmonic distortion During mains distortion, the current can increase, leading to an increase in the temperature of distribution transformers and neutral conductors The harmonic distortion in the intermediate circuit is controlled according to the IEEE 519 (2014) standard, which specifies the harmonic distortion levels THD and TDD to be respected on site. ISC/ IL defines the distortion limit, and the

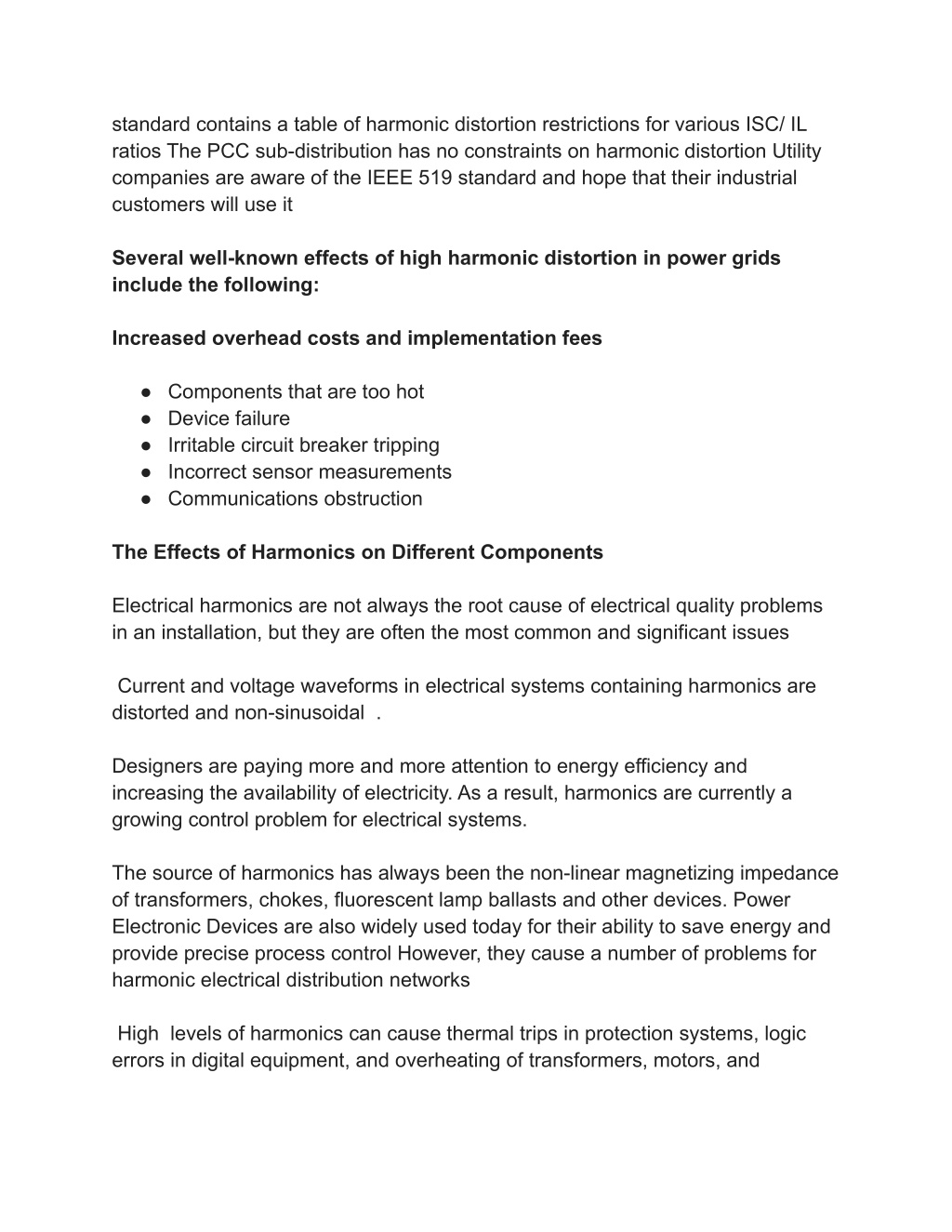

3. standard contains a table of harmonic distortion restrictions for various ISC/ IL ratios The PCC sub-distribution has no constraints on harmonic distortion Utility companies are aware of the IEEE 519 standard and hope that their industrial customers will use it Several well-known effects of high harmonic distortion in power grids include the following: Increased overhead costs and implementation fees ● Components that are too hot ● Device failure ● Irritable circuit breaker tripping ● Incorrect sensor measurements ● Communications obstruction The Effects of Harmonics on Different Components Electrical harmonics are not always the root cause of electrical quality problems in an installation, but they are often the most common and significant issues Current and voltage waveforms in electrical systems containing harmonics are distorted and non-sinusoidal . Designers are paying more and more attention to energy efficiency and increasing the availability of electricity. As a result, harmonics are currently a growing control problem for electrical systems. The source of harmonics has always been the non-linear magnetizing impedance of transformers, chokes, fluorescent lamp ballasts and other devices. Power Electronic Devices are also widely used today for their ability to save energy and provide precise process control However, they cause a number of problems for harmonic electrical distribution networks High levels of harmonics can cause thermal trips in protection systems, logic errors in digital equipment, and overheating of transformers, motors, and

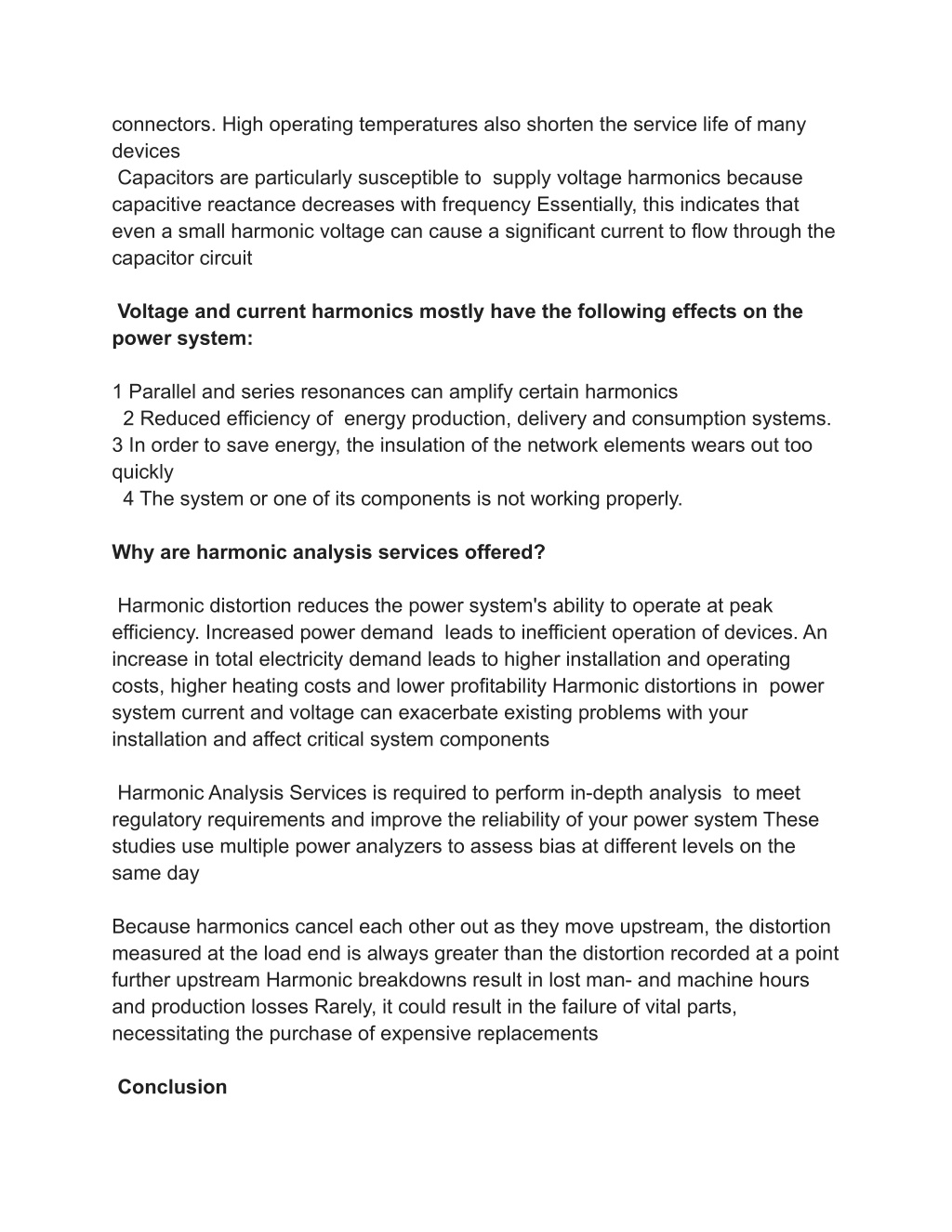

4. connectors. High operating temperatures also shorten the service life of many devices Capacitors are particularly susceptible to supply voltage harmonics because capacitive reactance decreases with frequency Essentially, this indicates that even a small harmonic voltage can cause a significant current to flow through the capacitor circuit Voltage and current harmonics mostly have the following effects on the power system: 1 Parallel and series resonances can amplify certain harmonics 2 Reduced efficiency of energy production, delivery and consumption systems. 3 In order to save energy, the insulation of the network elements wears out too quickly 4 The system or one of its components is not working properly. Why are harmonic analysis services offered? Harmonic distortion reduces the power system's ability to operate at peak efficiency. Increased power demand leads to inefficient operation of devices. An increase in total electricity demand leads to higher installation and operating costs, higher heating costs and lower profitability Harmonic distortions in power system current and voltage can exacerbate existing problems with your installation and affect critical system components Harmonic Analysis Services is required to perform in-depth analysis to meet regulatory requirements and improve the reliability of your power system These studies use multiple power analyzers to assess bias at different levels on the same day Because harmonics cancel each other out as they move upstream, the distortion measured at the load end is always greater than the distortion recorded at a point further upstream Harmonic breakdowns result in lost man- and machine hours and production losses Rarely, it could result in the failure of vital parts, necessitating the purchase of expensive replacements Conclusion

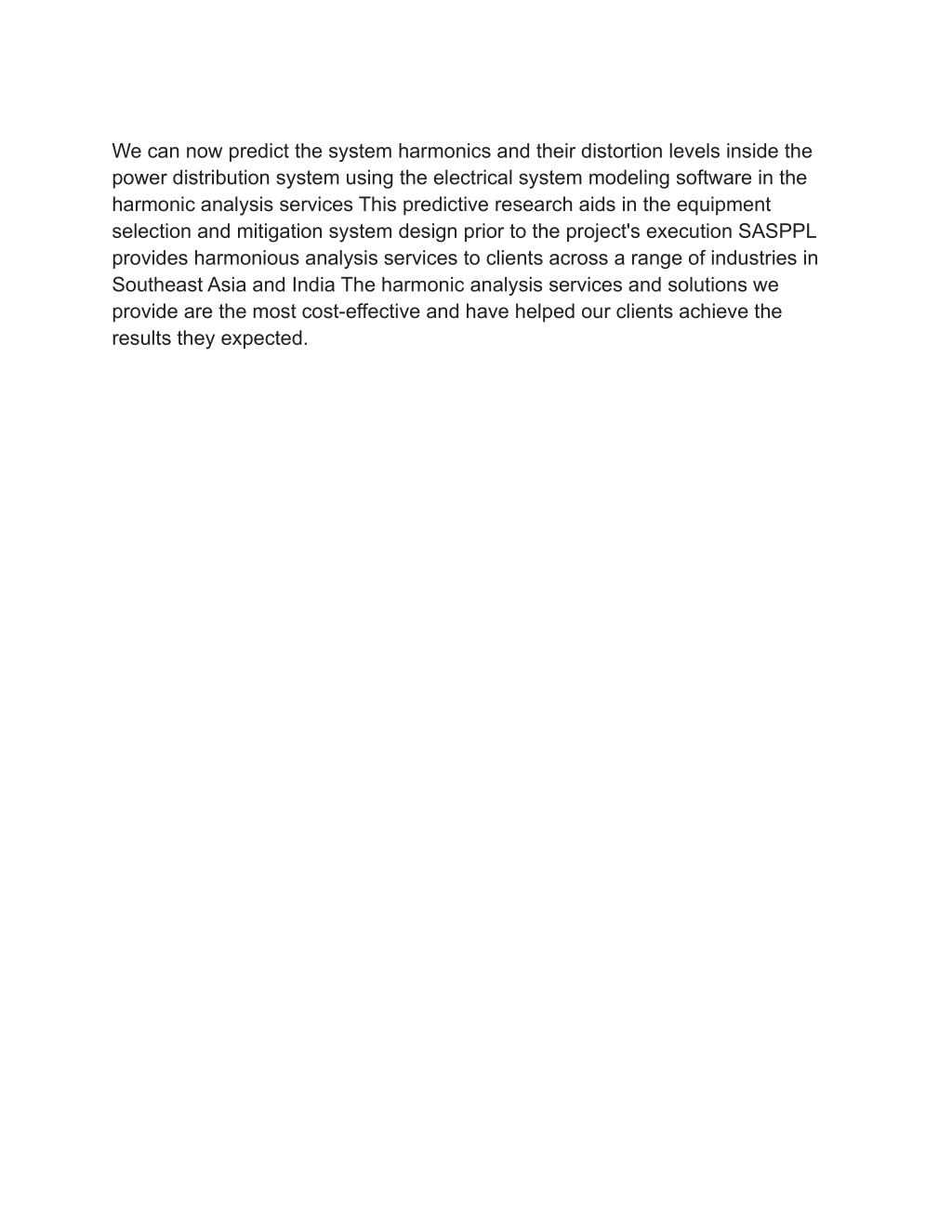

5. We can now predict the system harmonics and their distortion levels inside the power distribution system using the electrical system modeling software in the harmonic analysis services This predictive research aids in the equipment selection and mitigation system design prior to the project's execution SASPPL provides harmonious analysis services to clients across a range of industries in Southeast Asia and India The harmonic analysis services and solutions we provide are the most cost-effective and have helped our clients achieve the results they expected.
