Harmonic analysis services

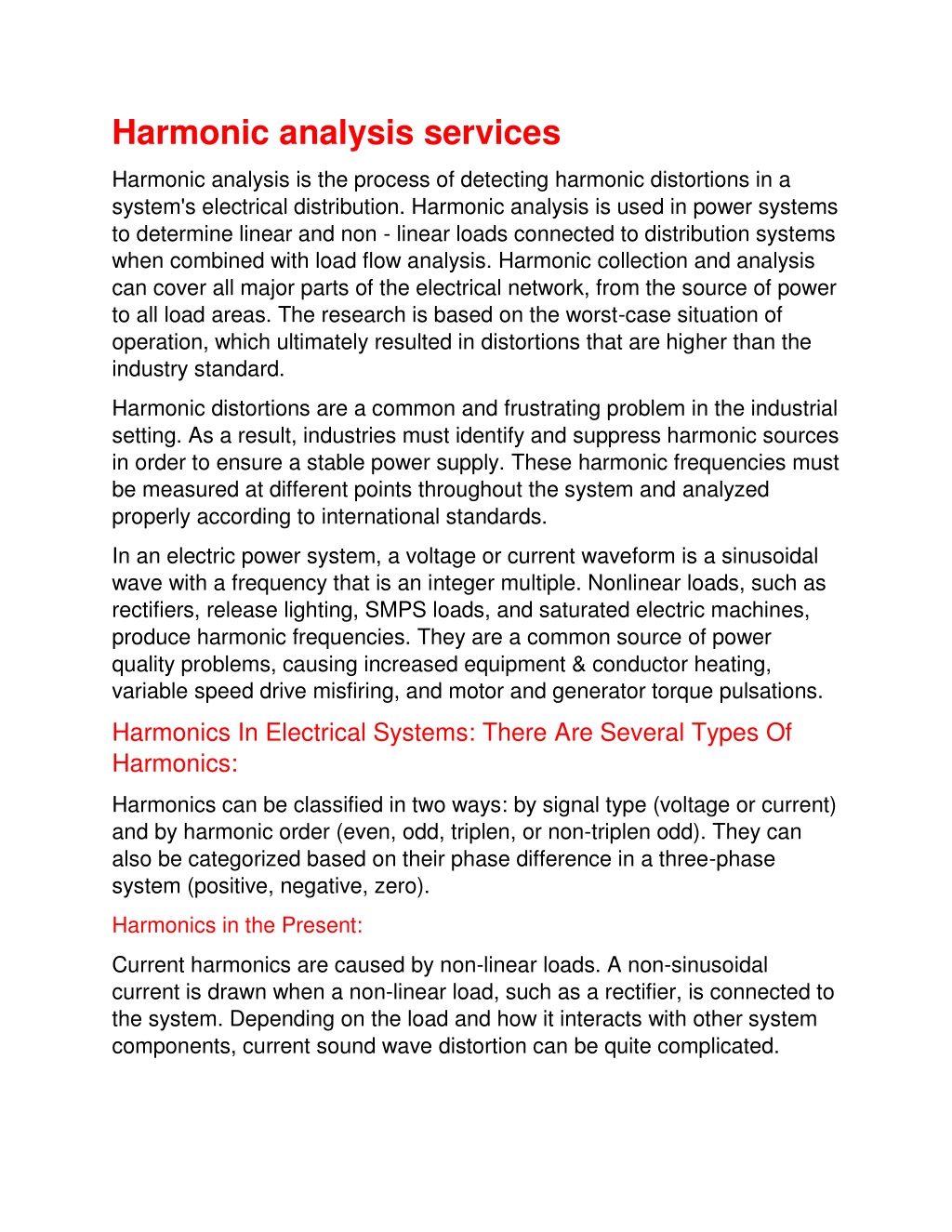

1. Harmonic analysis services Harmonic analysis is the process of detecting harmonic distortions in a system's electrical distribution. Harmonic analysis is used in power systems to determine linear and non - linear loads connected to distribution systems when combined with load flow analysis. Harmonic collection and analysis can cover all major parts of the electrical network, from the source of power to all load areas. The research is based on the worst-case situation of operation, which ultimately resulted in distortions that are higher than the industry standard. Harmonic distortions are a common and frustrating problem in the industrial setting. As a result, industries must identify and suppress harmonic sources in order to ensure a stable power supply. These harmonic frequencies must be measured at different points throughout the system and analyzed properly according to international standards. In an electric power system, a voltage or current waveform is a sinusoidal wave with a frequency that is an integer multiple. Nonlinear loads, such as rectifiers, release lighting, SMPS loads, and saturated electric machines, produce harmonic frequencies. They are a common source of power quality problems, causing increased equipment & conductor heating, variable speed drive misfiring, and motor and generator torque pulsations. Harmonics In Electrical Systems: There Are Several Types Of Harmonics: Harmonics can be classified in two ways: by signal type (voltage or current) and by harmonic order (even, odd, triplen, or non-triplen odd). They can also be categorized based on their phase difference in a three-phase system (positive, negative, zero). Harmonics in the Present: Current harmonics are caused by non-linear loads. A non-sinusoidal current is drawn when a non-linear load, such as a rectifier, is connected to the system. Depending on the load and how it interacts with other system components, current sound wave distortion can be quite complicated.

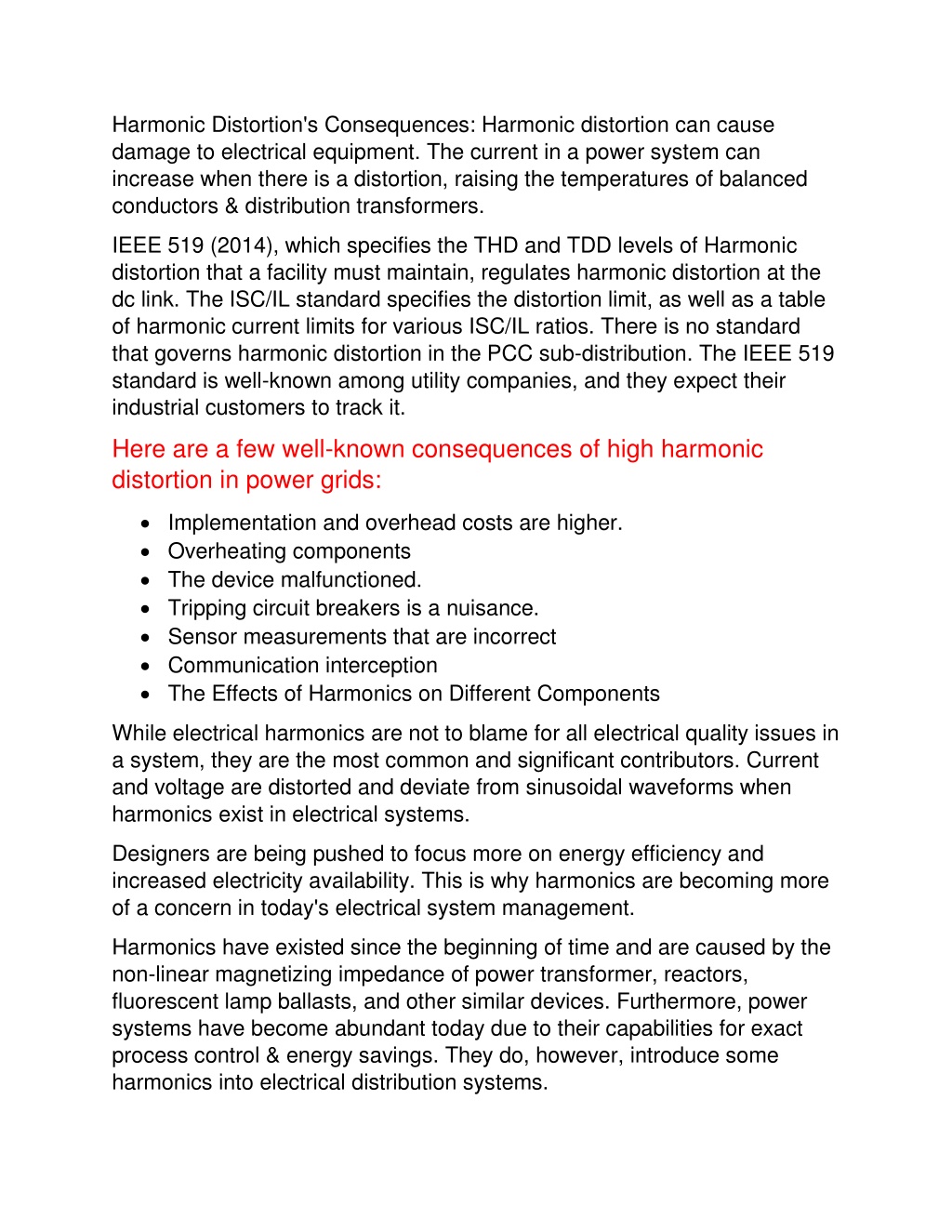

2. The Fourier series transform allows the current waveform to be divided into a series of simple sinusoids that begin at the power system's fundamental frequency and occur at integer multiples of the fundamental frequency, regardless of how complex it becomes. Harmonics are the positive integer multiples in power systems. A typical alternating current power system's current varies sinusoidal at a specific frequency, which is usually 50 or 60 hertz. A sinusoidal current with the same regularity as the voltage is drawn when a linear time-invariant load demand is connected to the system (though usually not in phase with the voltage). When the loads in a power system are non-linear, harmonics occur. Harmonic generation is usually not a significant part of electric motors. Harmonics are produced when motors or transformers are over-fluxed or saturated. Harmonics of Voltage: Harmonics in voltage are primarily caused by harmonics in current. Because of the source impedance, current harmonics will distort the voltage provided by the voltage source. Current harmonic analysis services will result in relatively minor voltage harmonics if the voltage source's source impedance is low. Voltage harmonics are usually minor compared to current harmonics. As a result, the fundamental frequency of the voltage waveform is commonly used to approximate it. If this estimation is used, current sounds have no impact on the amount control sent to the stack. Drawing the voltage wave at the fundamental frequency & overlaying the resulting current harmonic without changing the phase is a simple way to demonstrate this (to observe the following phenomenon more easily). For each period of voltage, there is an equal amount of region above the horizontal axis or below the current harmonic wave as there is below the axis but above the current harmonic wave, as can be seen. As a result, on average, current harmonics contribute zero real power. When higher voltage harmonics are considered, current harmonics make a contribution to the real power transferred to the load.

3. Harmonic Distortion's Consequences: Harmonic distortion can cause damage to electrical equipment. The current in a power system can increase when there is a distortion, raising the temperatures of balanced conductors & distribution transformers. IEEE 519 (2014), which specifies the THD and TDD levels of Harmonic distortion that a facility must maintain, regulates harmonic distortion at the dc link. The ISC/IL standard specifies the distortion limit, as well as a table of harmonic current limits for various ISC/IL ratios. There is no standard that governs harmonic distortion in the PCC sub-distribution. The IEEE 519 standard is well-known among utility companies, and they expect their industrial customers to track it. Here are a few well-known consequences of high harmonic distortion in power grids:  Implementation and overhead costs are higher.  Overheating components  The device malfunctioned.  Tripping circuit breakers is a nuisance.  Sensor measurements that are incorrect  Communication interception  The Effects of Harmonics on Different Components While electrical harmonics are not to blame for all electrical quality issues in a system, they are the most common and significant contributors. Current and voltage are distorted and deviate from sinusoidal waveforms when harmonics exist in electrical systems. Designers are being pushed to focus more on energy efficiency and increased electricity availability. This is why harmonics are becoming more of a concern in today's electrical system management. Harmonics have existed since the beginning of time and are caused by the non-linear magnetizing impedance of power transformer, reactors, fluorescent lamp ballasts, and other similar devices. Furthermore, power systems have become abundant today due to their capabilities for exact process control & energy savings. They do, however, introduce some harmonics into electrical distribution systems.

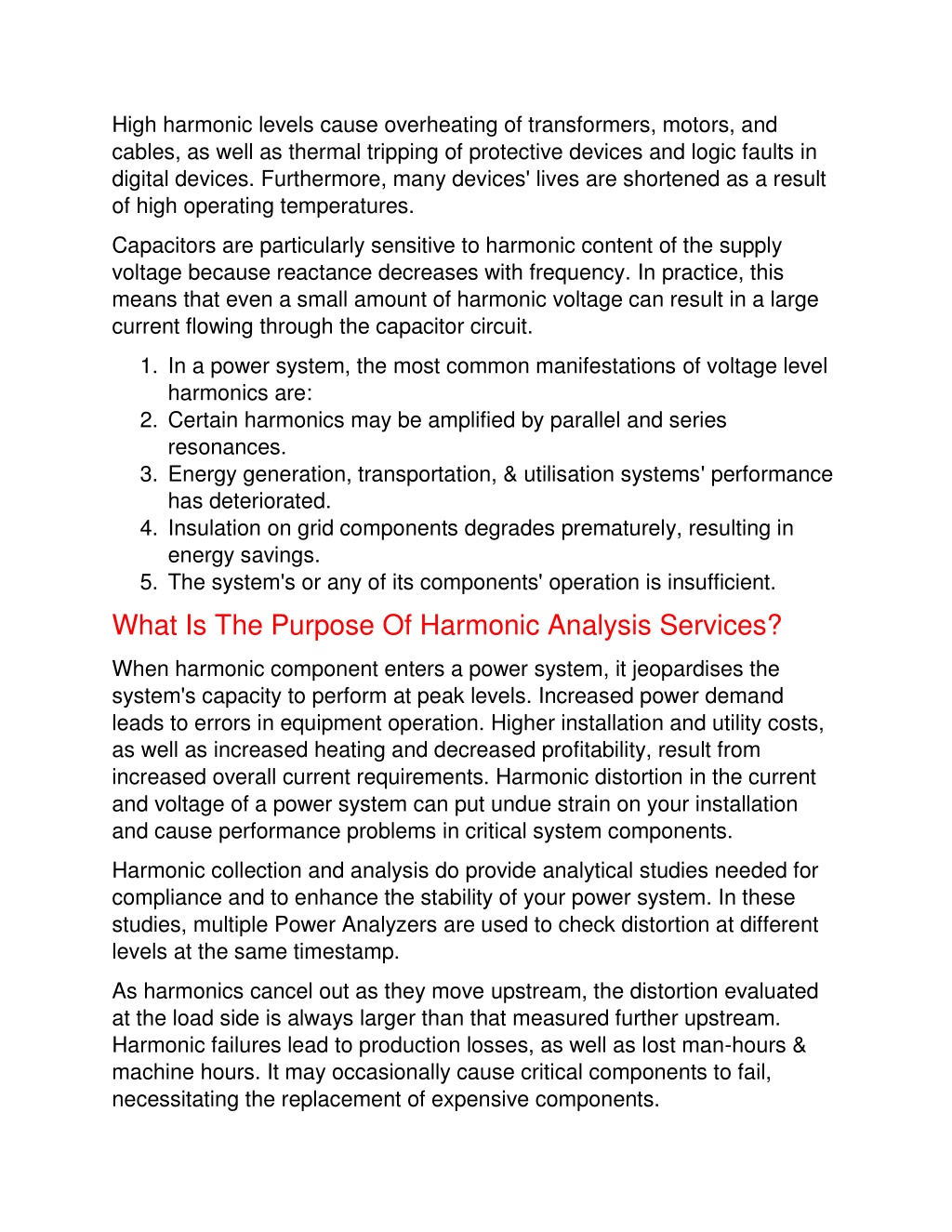

4. High harmonic levels cause overheating of transformers, motors, and cables, as well as thermal tripping of protective devices and logic faults in digital devices. Furthermore, many devices' lives are shortened as a result of high operating temperatures. Capacitors are particularly sensitive to harmonic content of the supply voltage because reactance decreases with frequency. In practice, this means that even a small amount of harmonic voltage can result in a large current flowing through the capacitor circuit. 1. In a power system, the most common manifestations of voltage level harmonics are: 2. Certain harmonics may be amplified by parallel and series resonances. 3. Energy generation, transportation, & utilisation systems' performance has deteriorated. 4. Insulation on grid components degrades prematurely, resulting in energy savings. 5. The system's or any of its components' operation is insufficient. What Is The Purpose Of Harmonic Analysis Services? When harmonic component enters a power system, it jeopardises the system's capacity to perform at peak levels. Increased power demand leads to errors in equipment operation. Higher installation and utility costs, as well as increased heating and decreased profitability, result from increased overall current requirements. Harmonic distortion in the current and voltage of a power system can put undue strain on your installation and cause performance problems in critical system components. Harmonic collection and analysis do provide analytical studies needed for compliance and to enhance the stability of your power system. In these studies, multiple Power Analyzers are used to check distortion at different levels at the same timestamp. As harmonics cancel out as they move upstream, the distortion evaluated at the load side is always larger than that measured further upstream. Harmonic failures lead to production losses, as well as lost man-hours & machine hours. It may occasionally cause critical components to fail, necessitating the replacement of expensive components.

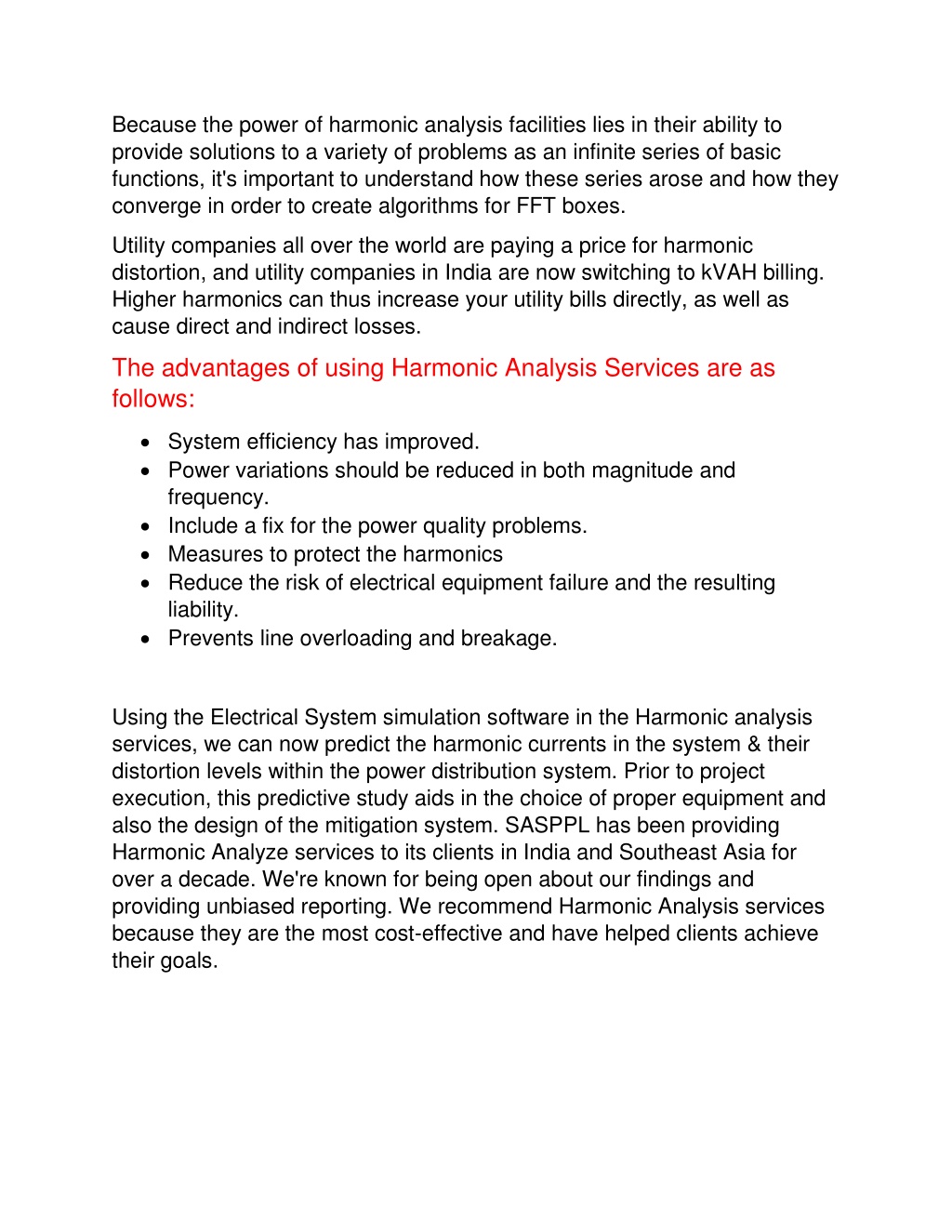

5. Because the power of harmonic analysis facilities lies in their ability to provide solutions to a variety of problems as an infinite series of basic functions, it's important to understand how these series arose and how they converge in order to create algorithms for FFT boxes. Utility companies all over the world are paying a price for harmonic distortion, and utility companies in India are now switching to kVAH billing. Higher harmonics can thus increase your utility bills directly, as well as cause direct and indirect losses. The advantages of using Harmonic Analysis Services are as follows:  System efficiency has improved.  Power variations should be reduced in both magnitude and frequency.  Include a fix for the power quality problems.  Measures to protect the harmonics  Reduce the risk of electrical equipment failure and the resulting liability.  Prevents line overloading and breakage. Using the Electrical System simulation software in the Harmonic analysis services, we can now predict the harmonic currents in the system & their distortion levels within the power distribution system. Prior to project execution, this predictive study aids in the choice of proper equipment and also the design of the mitigation system. SASPPL has been providing Harmonic Analyze services to its clients in India and Southeast Asia for over a decade. We're known for being open about our findings and providing unbiased reporting. We recommend Harmonic Analysis services because they are the most cost-effective and have helped clients achieve their goals.
