Electrical transient analysis services

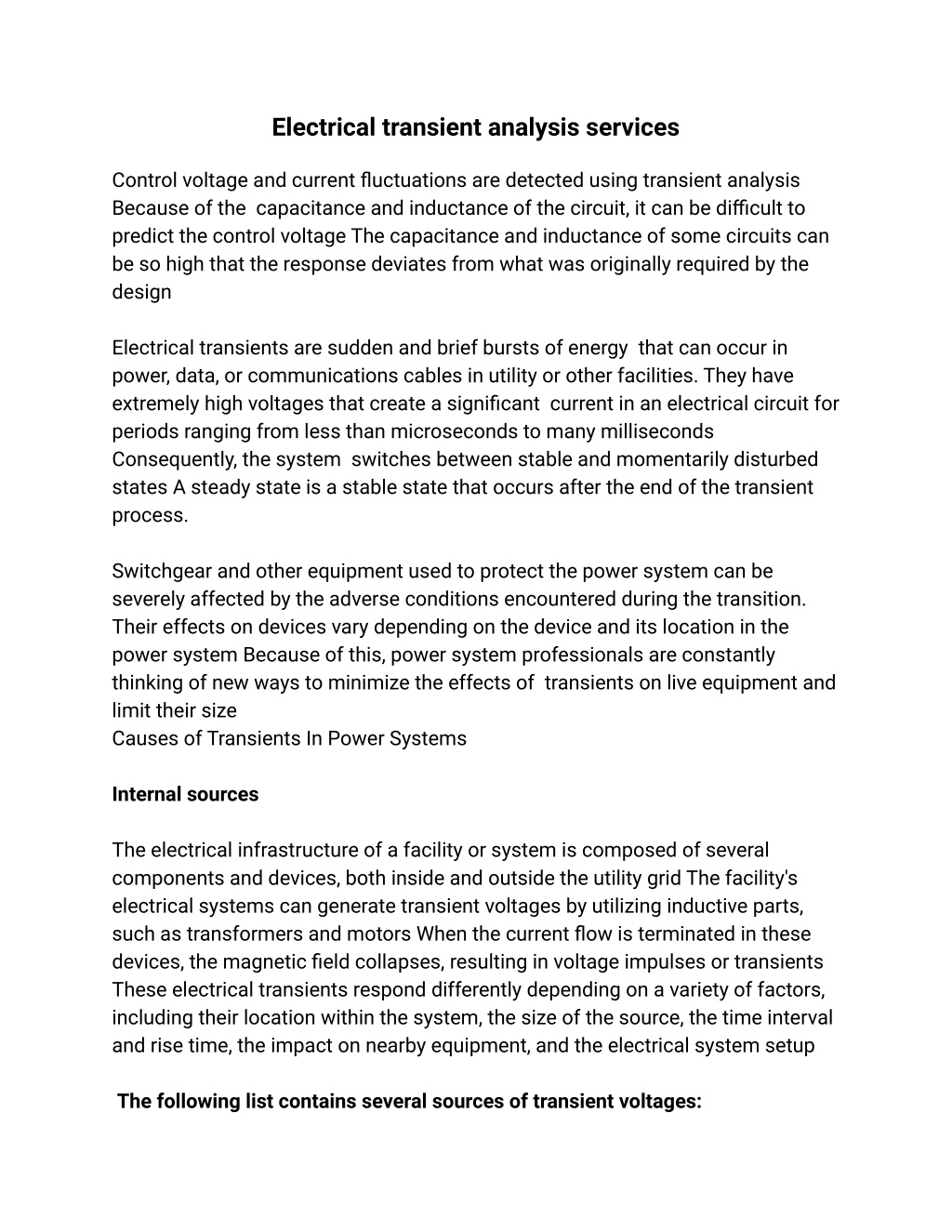

1. Electrical transient analysis services Control voltage and current fluctuations are detected using transient analysis Because of the capacitance and inductance of the circuit, it can be difficult to predict the control voltage The capacitance and inductance of some circuits can be so high that the response deviates from what was originally required by the design Electrical transients are sudden and brief bursts of energy that can occur in power, data, or communications cables in utility or other facilities. They have extremely high voltages that create a significant current in an electrical circuit for periods ranging from less than microseconds to many milliseconds Consequently, the system switches between stable and momentarily disturbed states A steady state is a stable state that occurs after the end of the transient process. Switchgear and other equipment used to protect the power system can be severely affected by the adverse conditions encountered during the transition. Their effects on devices vary depending on the device and its location in the power system Because of this, power system professionals are constantly thinking of new ways to minimize the effects of transients on live equipment and limit their size Causes of Transients In Power Systems Internal sources The electrical infrastructure of a facility or system is composed of several components and devices, both inside and outside the utility grid The facility's electrical systems can generate transient voltages by utilizing inductive parts, such as transformers and motors When the current flow is terminated in these devices, the magnetic field collapses, resulting in voltage impulses or transients These electrical transients respond differently depending on a variety of factors, including their location within the system, the size of the source, the time interval and rise time, the impact on nearby equipment, and the electrical system setup The following list contains several sources of transient voltages:

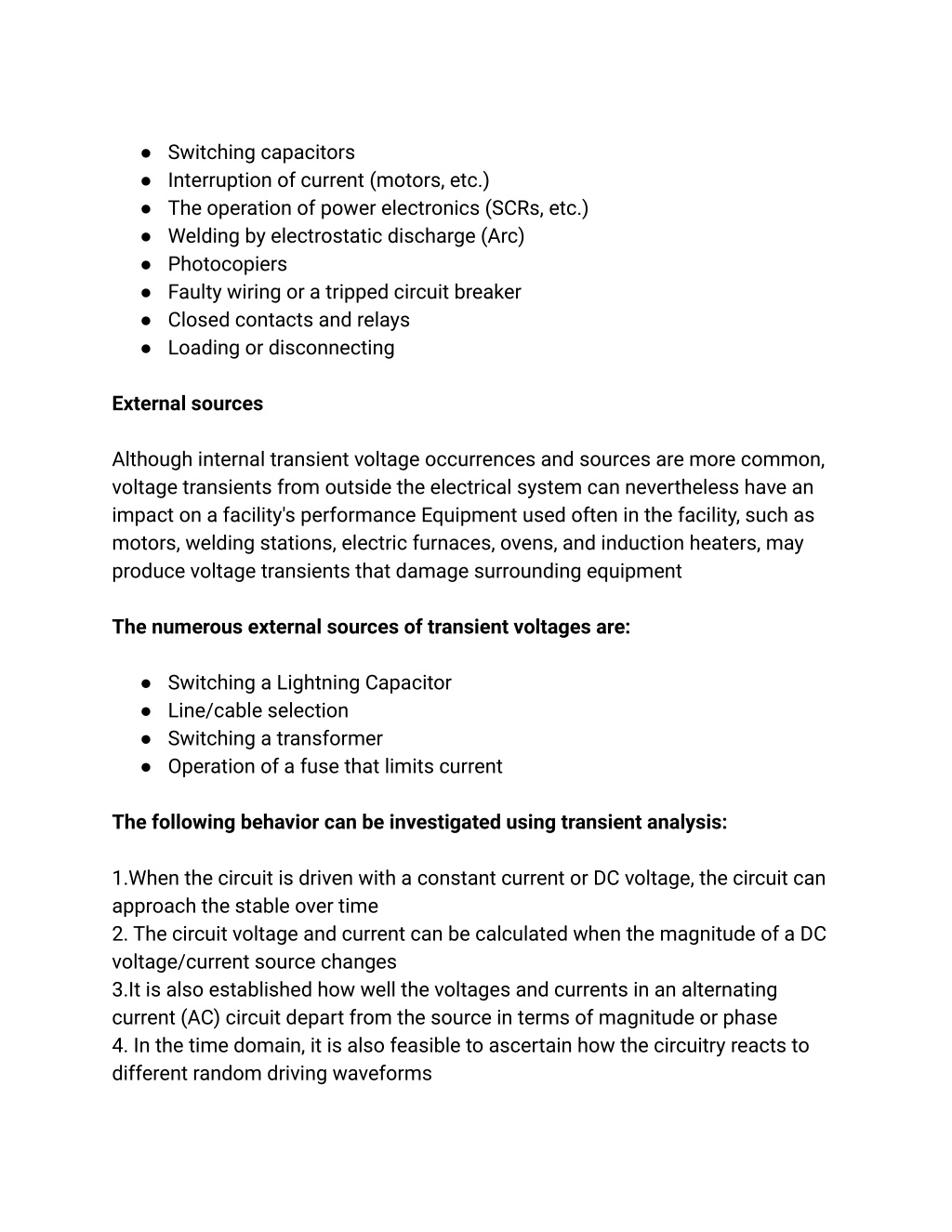

2. ● Switching capacitors ● Interruption of current (motors, etc.) ● The operation of power electronics (SCRs, etc.) ● Welding by electrostatic discharge (Arc) ● Photocopiers ● Faulty wiring or a tripped circuit breaker ● Closed contacts and relays ● Loading or disconnecting External sources Although internal transient voltage occurrences and sources are more common, voltage transients from outside the electrical system can nevertheless have an impact on a facility's performance Equipment used often in the facility, such as motors, welding stations, electric furnaces, ovens, and induction heaters, may produce voltage transients that damage surrounding equipment The numerous external sources of transient voltages are: ● Switching a Lightning Capacitor ● Line/cable selection ● Switching a transformer ● Operation of a fuse that limits current The following behavior can be investigated using transient analysis: 1.When the circuit is driven with a constant current or DC voltage, the circuit can approach the stable over time 2. The circuit voltage and current can be calculated when the magnitude of a DC voltage/current source changes 3.It is also established how well the voltages and currents in an alternating current (AC) circuit depart from the source in terms of magnitude or phase 4. In the time domain, it is also feasible to ascertain how the circuitry reacts to different random driving waveforms

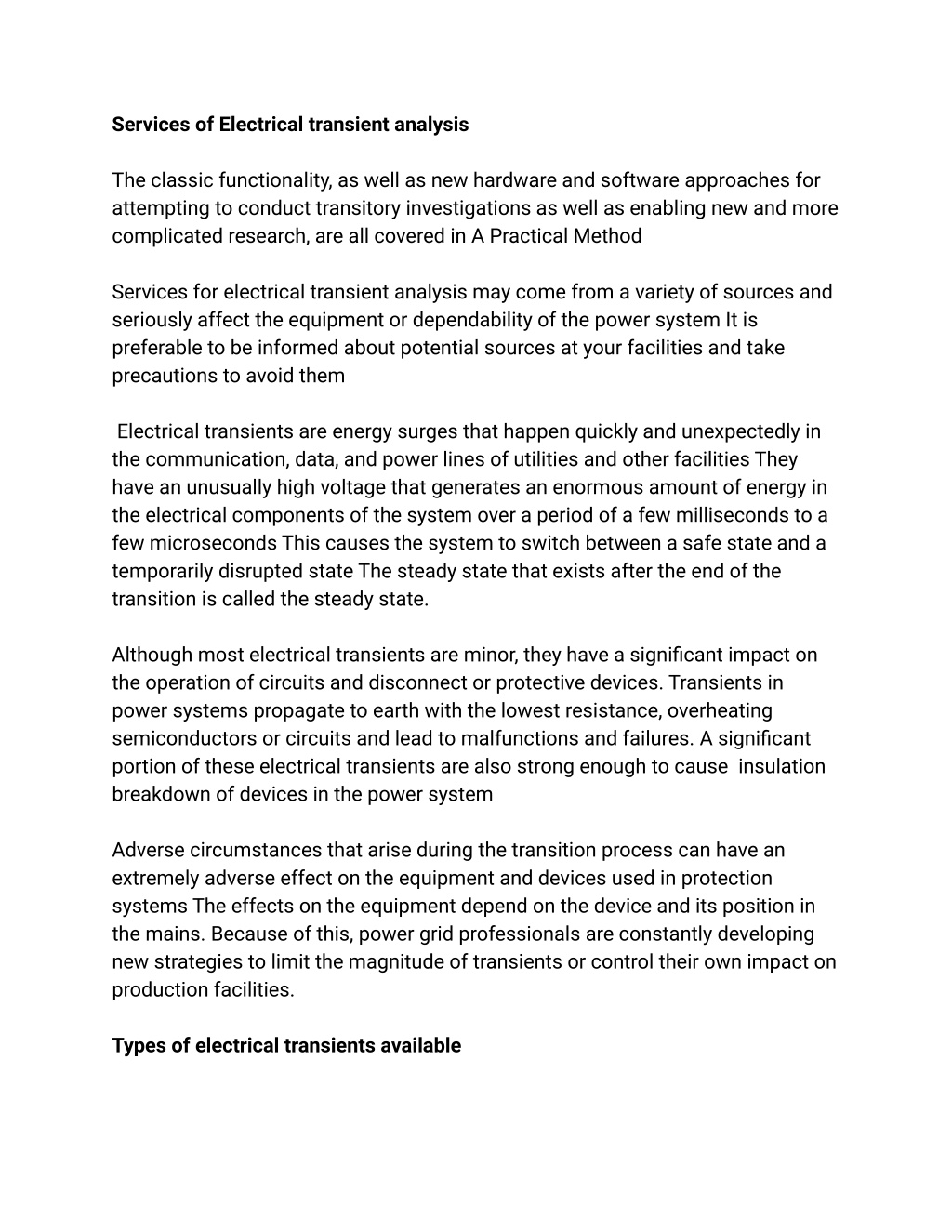

3. Services of Electrical transient analysis The classic functionality, as well as new hardware and software approaches for attempting to conduct transitory investigations as well as enabling new and more complicated research, are all covered in A Practical Method Services for electrical transient analysis may come from a variety of sources and seriously affect the equipment or dependability of the power system It is preferable to be informed about potential sources at your facilities and take precautions to avoid them Electrical transients are energy surges that happen quickly and unexpectedly in the communication, data, and power lines of utilities and other facilities They have an unusually high voltage that generates an enormous amount of energy in the electrical components of the system over a period of a few milliseconds to a few microseconds This causes the system to switch between a safe state and a temporarily disrupted state The steady state that exists after the end of the transition is called the steady state. Although most electrical transients are minor, they have a significant impact on the operation of circuits and disconnect or protective devices. Transients in power systems propagate to earth with the lowest resistance, overheating semiconductors or circuits and lead to malfunctions and failures. A significant portion of these electrical transients are also strong enough to cause insulation breakdown of devices in the power system Adverse circumstances that arise during the transition process can have an extremely adverse effect on the equipment and devices used in protection systems The effects on the equipment depend on the device and its position in the mains. Because of this, power grid professionals are constantly developing new strategies to limit the magnitude of transients or control their own impact on production facilities. Types of electrical transients available

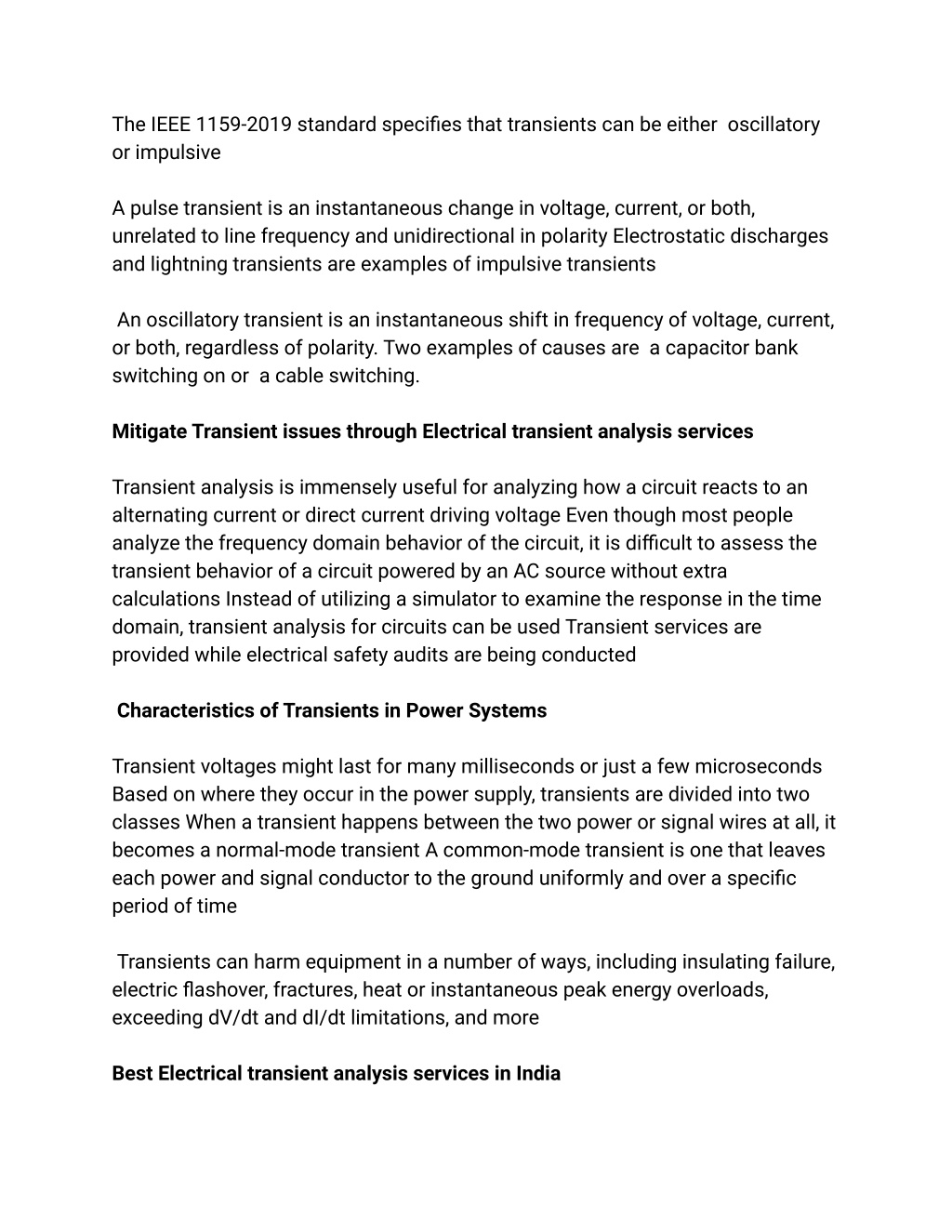

4. The IEEE 1159-2019 standard specifies that transients can be either oscillatory or impulsive A pulse transient is an instantaneous change in voltage, current, or both, unrelated to line frequency and unidirectional in polarity Electrostatic discharges and lightning transients are examples of impulsive transients An oscillatory transient is an instantaneous shift in frequency of voltage, current, or both, regardless of polarity. Two examples of causes are a capacitor bank switching on or a cable switching. Mitigate Transient issues through Electrical transient analysis services Transient analysis is immensely useful for analyzing how a circuit reacts to an alternating current or direct current driving voltage Even though most people analyze the frequency domain behavior of the circuit, it is difficult to assess the transient behavior of a circuit powered by an AC source without extra calculations Instead of utilizing a simulator to examine the response in the time domain, transient analysis for circuits can be used Transient services are provided while electrical safety audits are being conducted Characteristics of Transients in Power Systems Transient voltages might last for many milliseconds or just a few microseconds Based on where they occur in the power supply, transients are divided into two classes When a transient happens between the two power or signal wires at all, it becomes a normal-mode transient A common-mode transient is one that leaves each power and signal conductor to the ground uniformly and over a specific period of time Transients can harm equipment in a number of ways, including insulating failure, electric flashover, fractures, heat or instantaneous peak energy overloads, exceeding dV/dt and dI/dt limitations, and more Best Electrical transient analysis services in India

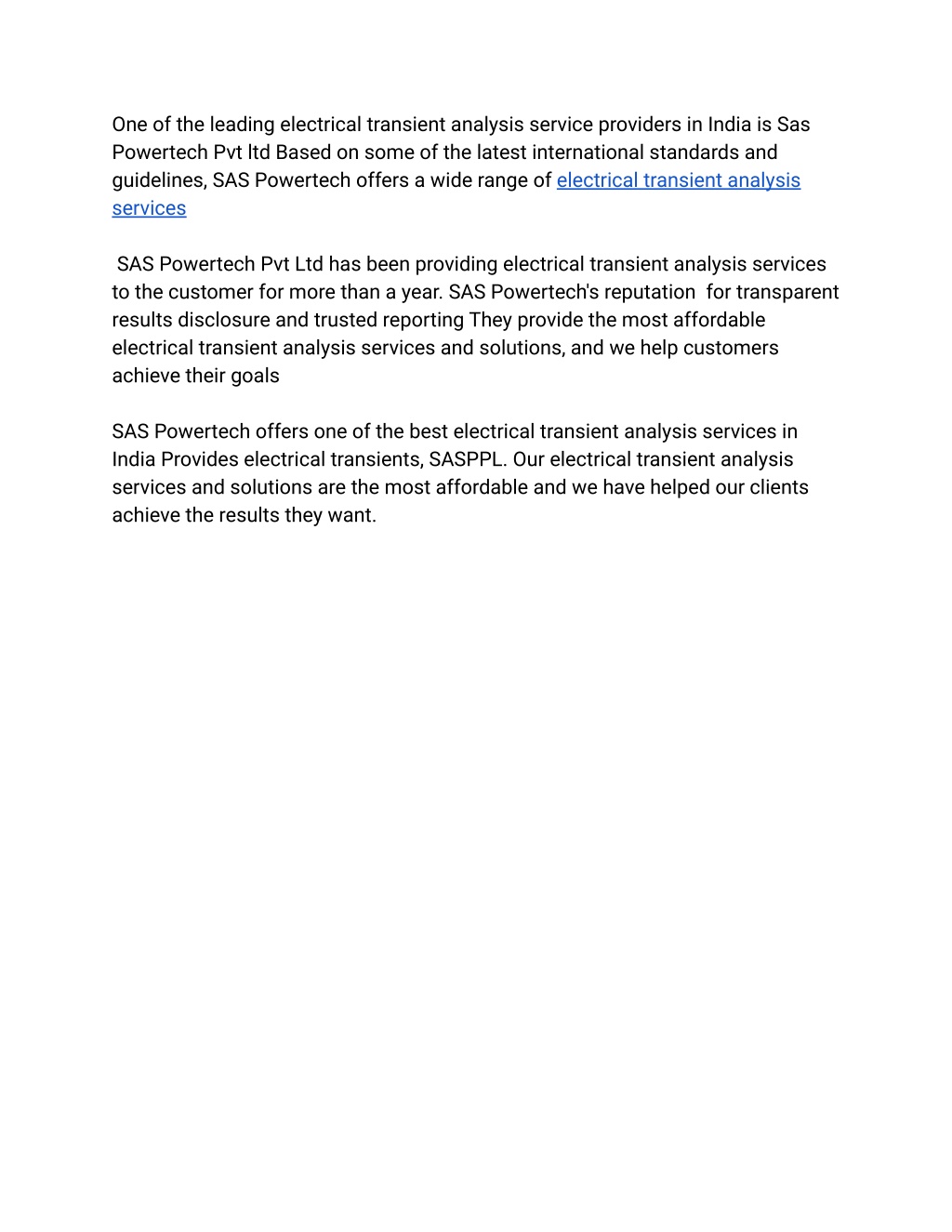

5. One of the leading electrical transient analysis service providers in India is Sas Powertech Pvt ltd Based on some of the latest international standards and guidelines, SAS Powertech offers a wide range of electrical transient analysis services SAS Powertech Pvt Ltd has been providing electrical transient analysis services to the customer for more than a year. SAS Powertech's reputation for transparent results disclosure and trusted reporting They provide the most affordable electrical transient analysis services and solutions, and we help customers achieve their goals SAS Powertech offers one of the best electrical transient analysis services in India Provides electrical transients, SASPPL. Our electrical transient analysis services and solutions are the most affordable and we have helped our clients achieve the results they want.
