Electrical transient analysis services

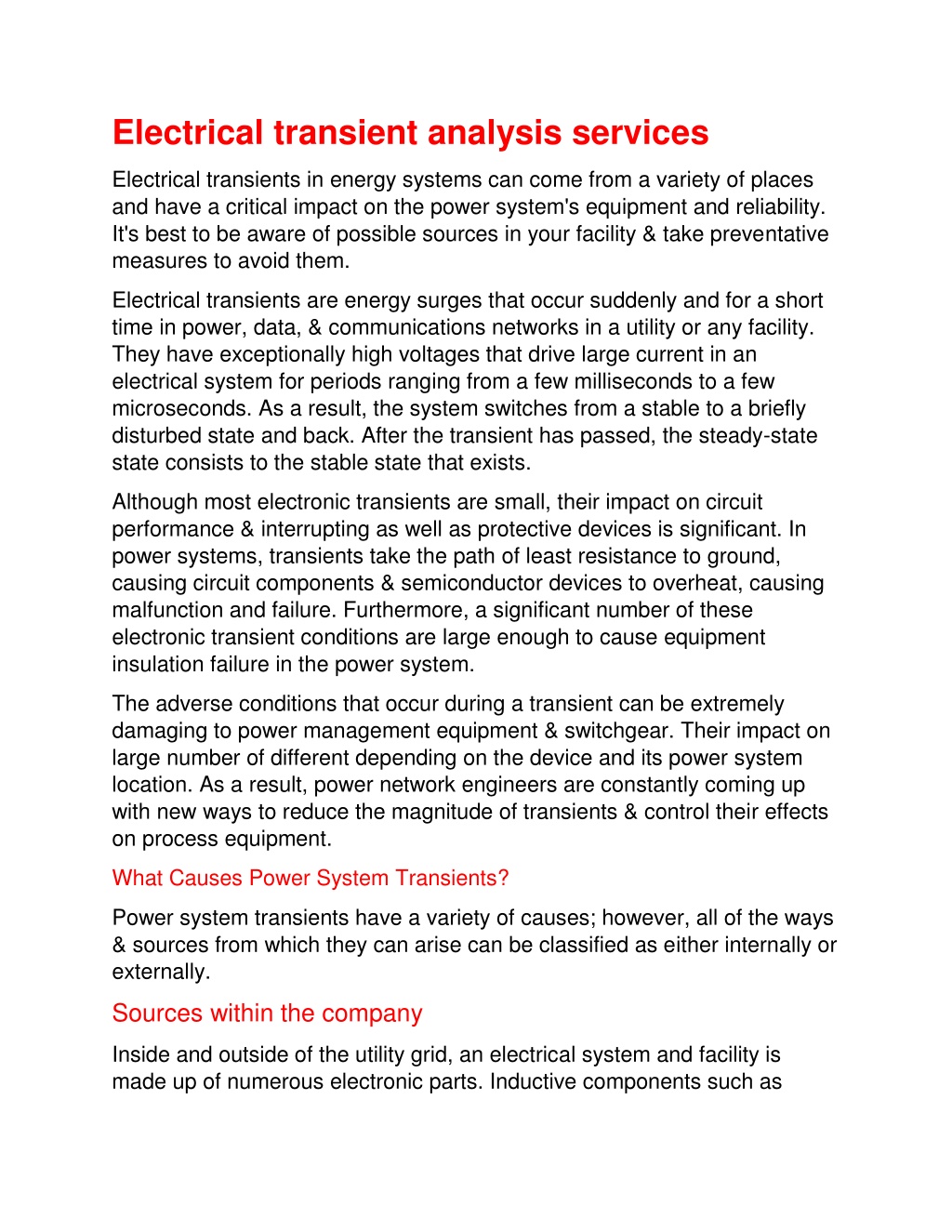

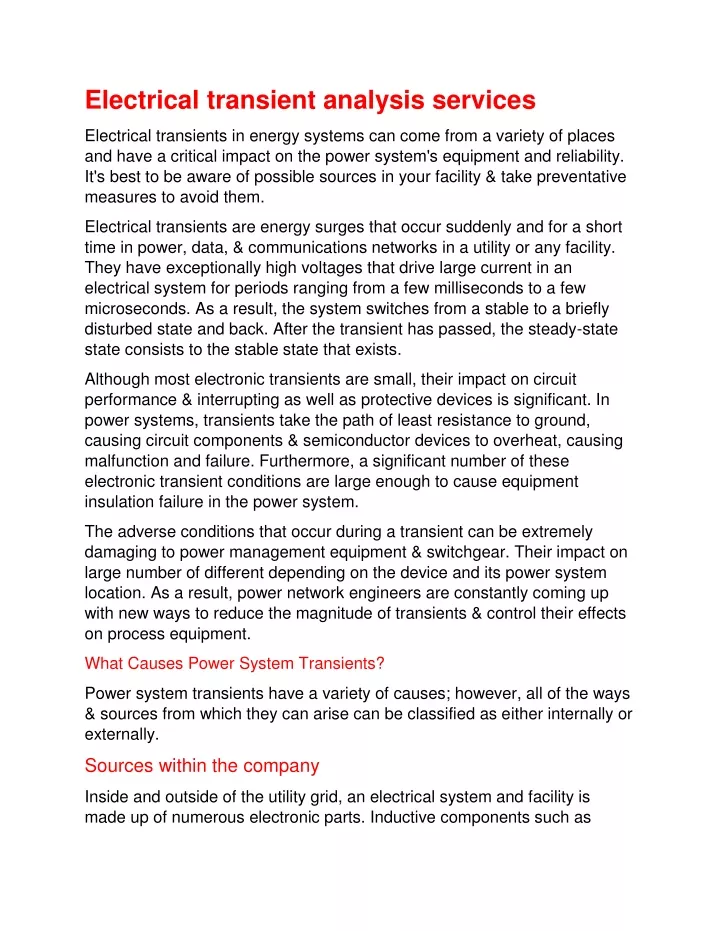

1. Electrical transient analysis services Electrical transients in energy systems can come from a variety of places and have a critical impact on the power system's equipment and reliability. It's best to be aware of possible sources in your facility & take preventative measures to avoid them. Electrical transients are energy surges that occur suddenly and for a short time in power, data, & communications networks in a utility or any facility. They have exceptionally high voltages that drive large current in an electrical system for periods ranging from a few milliseconds to a few microseconds. As a result, the system switches from a stable to a briefly disturbed state and back. After the transient has passed, the steady-state state consists to the stable state that exists. Although most electronic transients are small, their impact on circuit performance & interrupting as well as protective devices is significant. In power systems, transients take the path of least resistance to ground, causing circuit components & semiconductor devices to overheat, causing malfunction and failure. Furthermore, a significant number of these electronic transient conditions are large enough to cause equipment insulation failure in the power system. The adverse conditions that occur during a transient can be extremely damaging to power management equipment & switchgear. Their impact on large number of different depending on the device and its power system location. As a result, power network engineers are constantly coming up with new ways to reduce the magnitude of transients & control their effects on process equipment. What Causes Power System Transients? Power system transients have a variety of causes; however, all of the ways & sources from which they can arise can be classified as either internally or externally. Sources within the company Inside and outside of the utility grid, an electrical system and facility is made up of numerous electronic parts. Inductive components such as

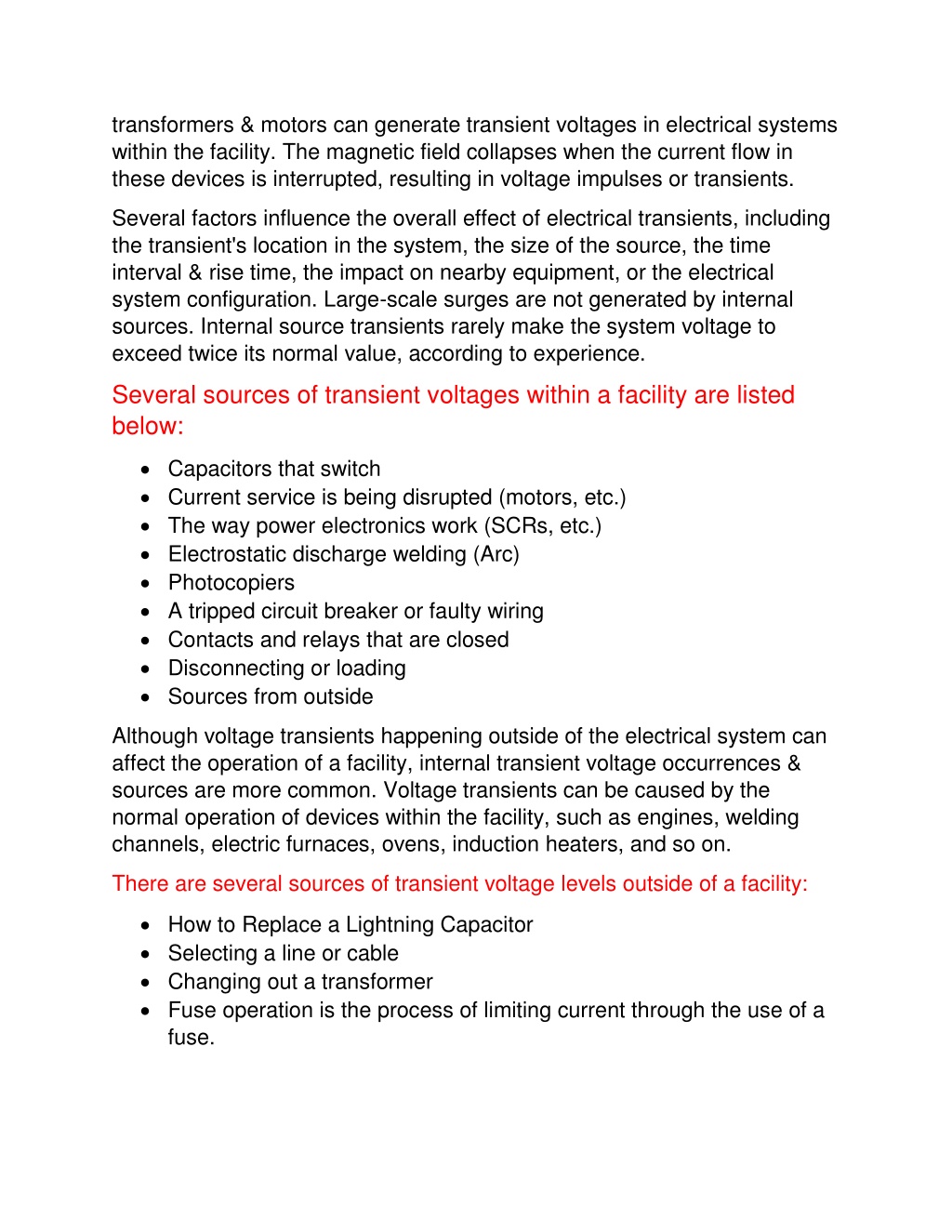

2. transformers & motors can generate transient voltages in electrical systems within the facility. The magnetic field collapses when the current flow in these devices is interrupted, resulting in voltage impulses or transients. Several factors influence the overall effect of electrical transients, including the transient's location in the system, the size of the source, the time interval & rise time, the impact on nearby equipment, or the electrical system configuration. Large-scale surges are not generated by internal sources. Internal source transients rarely make the system voltage to exceed twice its normal value, according to experience. Several sources of transient voltages within a facility are listed below:  Capacitors that switch  Current service is being disrupted (motors, etc.)  The way power electronics work (SCRs, etc.)  Electrostatic discharge welding (Arc)  Photocopiers  A tripped circuit breaker or faulty wiring  Contacts and relays that are closed  Disconnecting or loading  Sources from outside Although voltage transients happening outside of the electrical system can affect the operation of a facility, internal transient voltage occurrences & sources are more common. Voltage transients can be caused by the normal operation of devices within the facility, such as engines, welding channels, electric furnaces, ovens, induction heaters, and so on. There are several sources of transient voltage levels outside of a facility:  How to Replace a Lightning Capacitor  Selecting a line or cable  Changing out a transformer  Fuse operation is the process of limiting current through the use of a fuse.

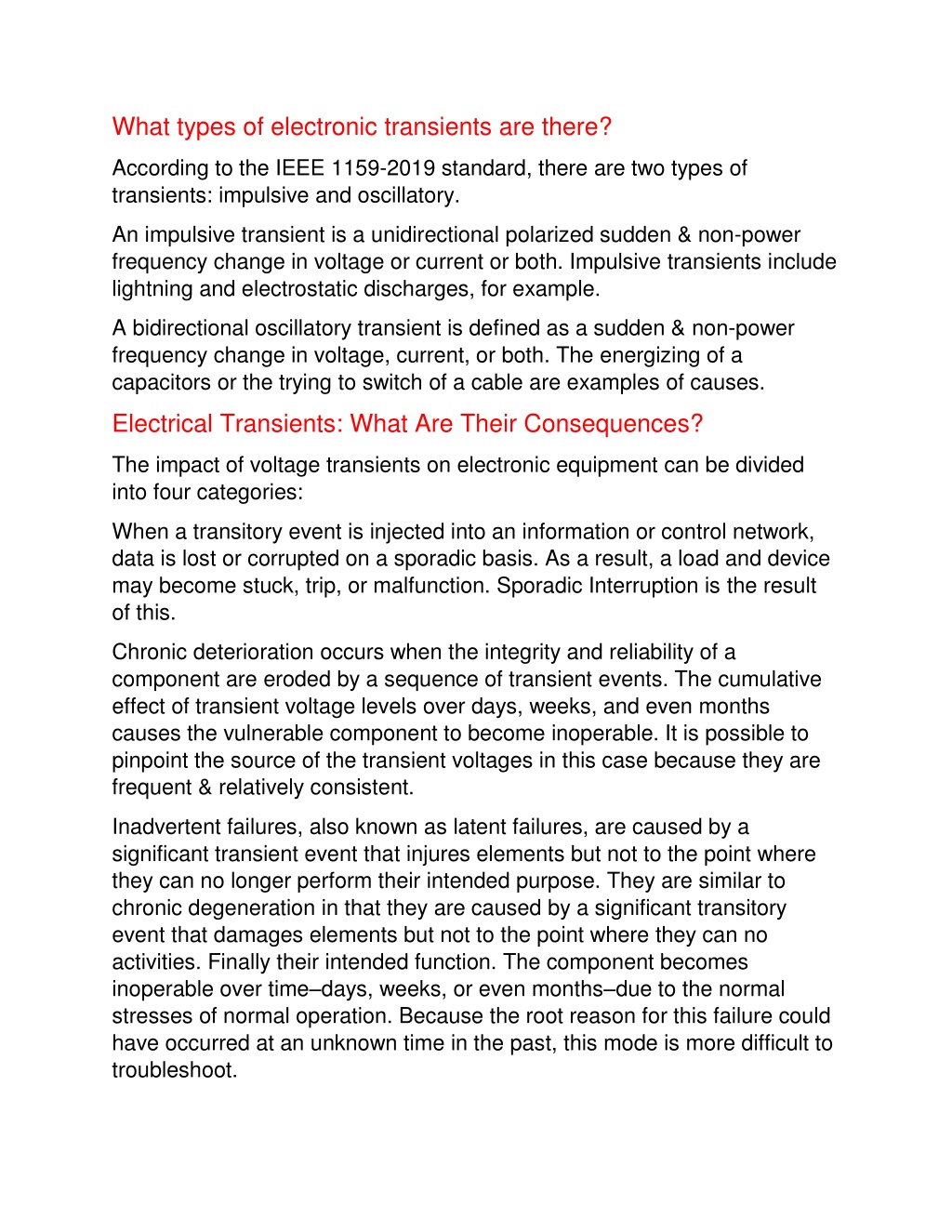

3. What types of electronic transients are there? According to the IEEE 1159-2019 standard, there are two types of transients: impulsive and oscillatory. An impulsive transient is a unidirectional polarized sudden & non-power frequency change in voltage or current or both. Impulsive transients include lightning and electrostatic discharges, for example. A bidirectional oscillatory transient is defined as a sudden & non-power frequency change in voltage, current, or both. The energizing of a capacitors or the trying to switch of a cable are examples of causes. Electrical Transients: What Are Their Consequences? The impact of voltage transients on electronic equipment can be divided into four categories: When a transitory event is injected into an information or control network, data is lost or corrupted on a sporadic basis. As a result, a load and device may become stuck, trip, or malfunction. Sporadic Interruption is the result of this. Chronic deterioration occurs when the integrity and reliability of a component are eroded by a sequence of transient events. The cumulative effect of transient voltage levels over days, weeks, and even months causes the vulnerable component to become inoperable. It is possible to pinpoint the source of the transient voltages in this case because they are frequent & relatively consistent. Inadvertent failures, also known as latent failures, are caused by a significant transient event that injures elements but not to the point where they can no longer perform their intended purpose. They are similar to chronic degeneration in that they are caused by a significant transitory event that damages elements but not to the point where they can no activities. Finally their intended function. The component becomes inoperable over time–days, weeks, or even months–due to the normal stresses of normal operation. Because the root reason for this failure could have occurred at an unknown time in the past, this mode is more difficult to troubleshoot.

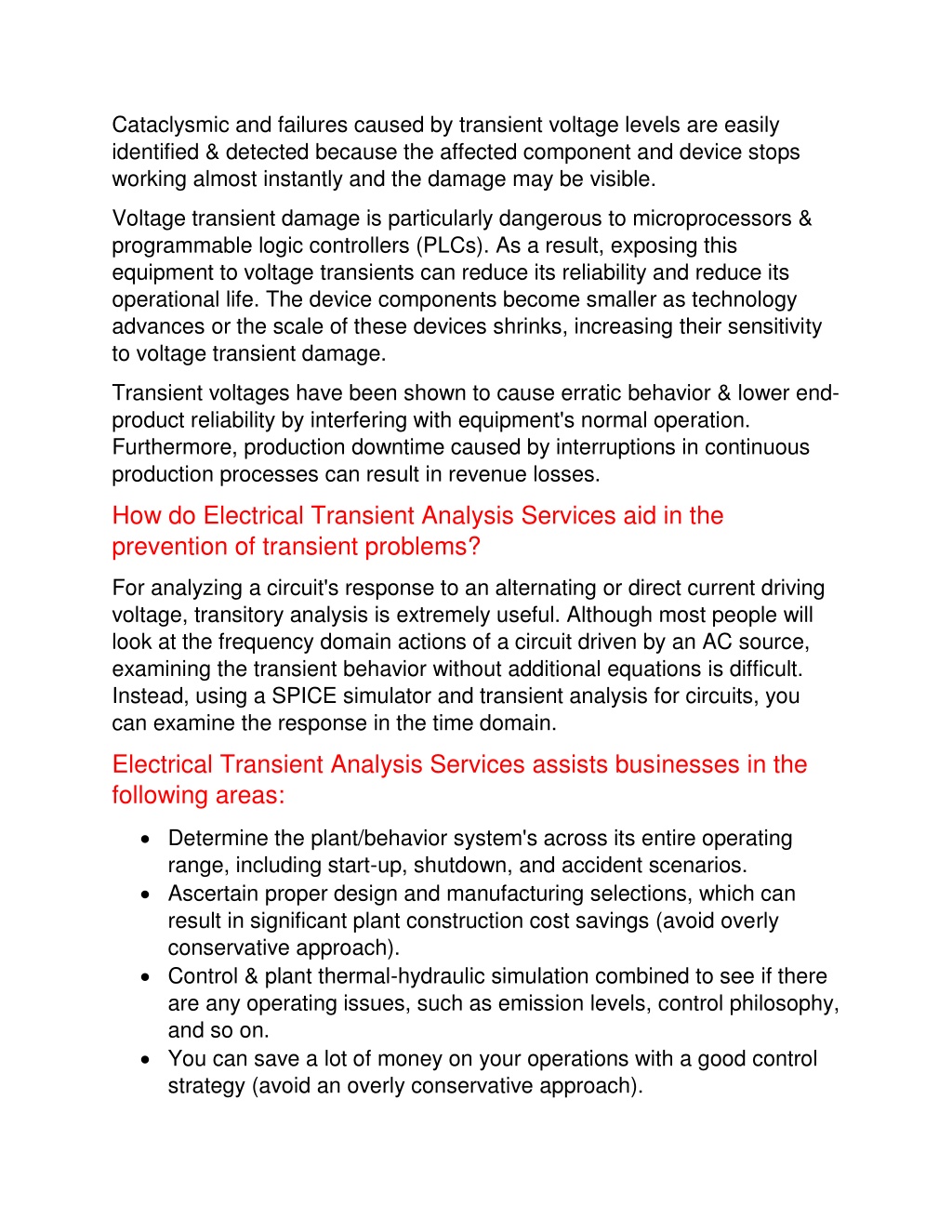

4. Cataclysmic and failures caused by transient voltage levels are easily identified & detected because the affected component and device stops working almost instantly and the damage may be visible. Voltage transient damage is particularly dangerous to microprocessors & programmable logic controllers (PLCs). As a result, exposing this equipment to voltage transients can reduce its reliability and reduce its operational life. The device components become smaller as technology advances or the scale of these devices shrinks, increasing their sensitivity to voltage transient damage. Transient voltages have been shown to cause erratic behavior & lower end- product reliability by interfering with equipment's normal operation. Furthermore, production downtime caused by interruptions in continuous production processes can result in revenue losses. How do Electrical Transient Analysis Services aid in the prevention of transient problems? For analyzing a circuit's response to an alternating or direct current driving voltage, transitory analysis is extremely useful. Although most people will look at the frequency domain actions of a circuit driven by an AC source, examining the transient behavior without additional equations is difficult. Instead, using a SPICE simulator and transient analysis for circuits, you can examine the response in the time domain. Electrical Transient Analysis Services assists businesses in the following areas:  Determine the plant/behavior system's across its entire operating range, including start-up, shutdown, and accident scenarios.  Ascertain proper design and manufacturing selections, which can result in significant plant construction cost savings (avoid overly conservative approach).  Control & plant thermal-hydraulic simulation combined to see if there are any operating issues, such as emission levels, control philosophy, and so on.  You can save a lot of money on your operations with a good control strategy (avoid an overly conservative approach).

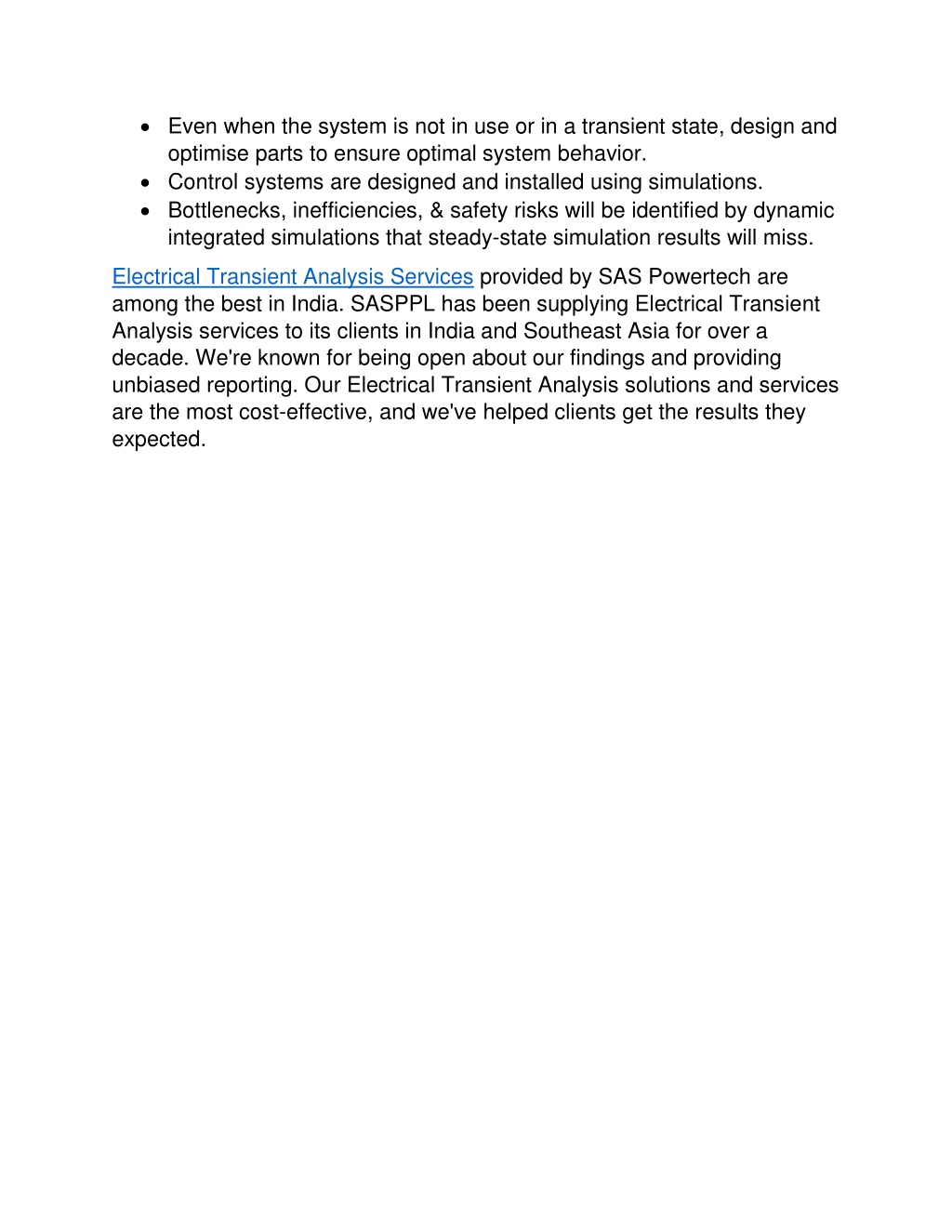

5.  Even when the system is not in use or in a transient state, design and optimise parts to ensure optimal system behavior.  Control systems are designed and installed using simulations.  Bottlenecks, inefficiencies, & safety risks will be identified by dynamic integrated simulations that steady-state simulation results will miss. Electrical Transient Analysis Services provided by SAS Powertech are among the best in India. SASPPL has been supplying Electrical Transient Analysis services to its clients in India and Southeast Asia for over a decade. We're known for being open about our findings and providing unbiased reporting. Our Electrical Transient Analysis solutions and services are the most cost-effective, and we've helped clients get the results they expected.
