Siemens 6ES7232-4HD32-0XB0 Analog Output Module_AMPS ELECTRIC TRADING

The Siemens 6ES7232-4HD32-0XB0 is a top-tier analog output module that brings precision, flexibility, and reliability to your automation setup. Whether youu2019re working on a new project or upgrading an existing one, this module is a smart choice for robust industrial performance.<br><br>ud83dudc49 For pricing, availability, or expert advice, contact AMPS Electric Trading u2013 your go-to Siemens distributor in Qatar.<br><br>ud83dudd17 Learn more about this module on the Siemens official page

Sarah199
Download Presentation

Siemens 6ES7232-4HD32-0XB0 Analog Output Module_AMPS ELECTRIC TRADING

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SIEMENS 6ES7232-4HD32- 0XB0 ANALOG OUTPUT MODULE AMPS ELECTRIC TRADING

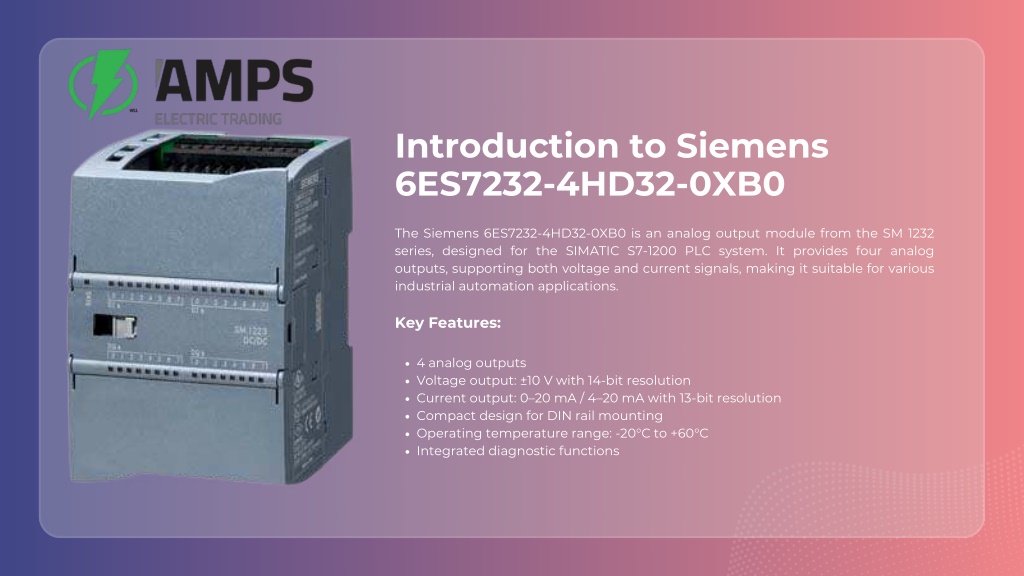

  2. Introduction to Siemens 6ES7232-4HD32-0XB0 The Siemens 6ES7232-4HD32-0XB0 is an analog output module from the SM 1232 series, designed for the SIMATIC S7-1200 PLC system. It provides four analog outputs, supporting both voltage and current signals, making it suitable for various industrial automation applications. Key Features: 4 analog outputs Voltage output: ±10 V with 14-bit resolution Current output: 0–20 mA / 4–20 mA with 13-bit resolution Compact design for DIN rail mounting Operating temperature range: -20°C to +60°C Integrated diagnostic functions

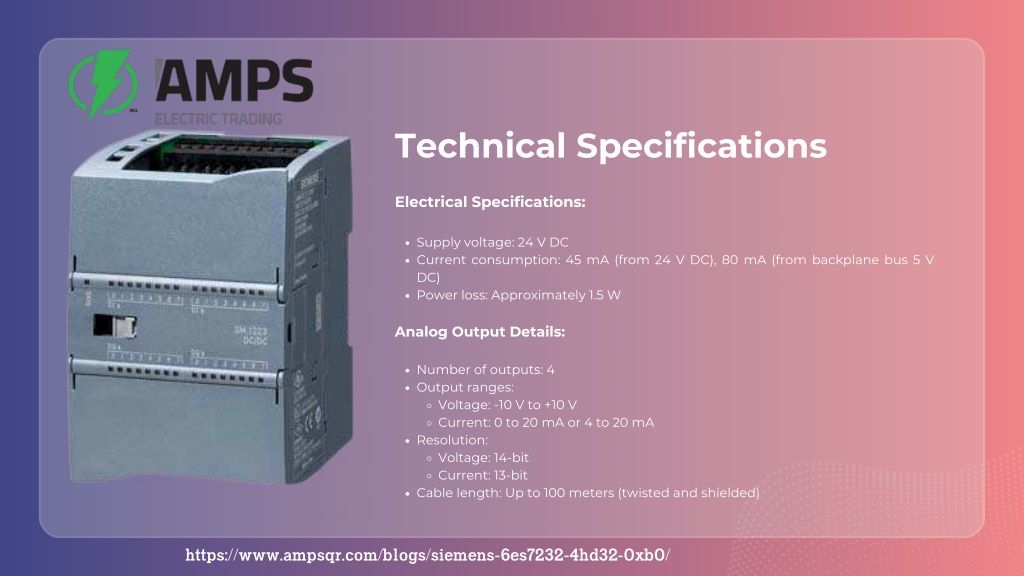

  3. Technical Specifications Electrical Specifications: Supply voltage: 24 V DC Current consumption: 45 mA (from 24 V DC), 80 mA (from backplane bus 5 V DC) Power loss: Approximately 1.5 W Analog Output Details: Number of outputs: 4 Output ranges: Voltage: -10 V to +10 V Current: 0 to 20 mA or 4 to 20 mA Resolution: Voltage: 14-bit Current: 13-bit Cable length: Up to 100 meters (twisted and shielded) https://www.ampsqr.com/blogs/siemens-6es7232-4hd32-0xb0/

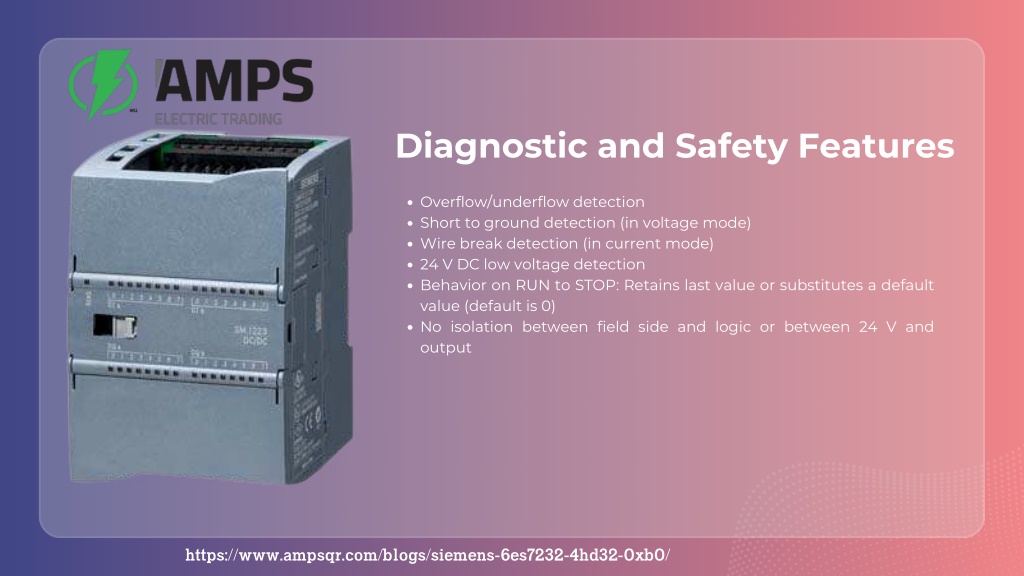

  4. Diagnostic and Safety Features Overflow/underflow detection Short to ground detection (in voltage mode) Wire break detection (in current mode) 24 V DC low voltage detection Behavior on RUN to STOP: Retains last value or substitutes a default value (default is 0) No isolation between field side and logic or between 24 V and output https://www.ampsqr.com/blogs/siemens-6es7232-4hd32-0xb0/

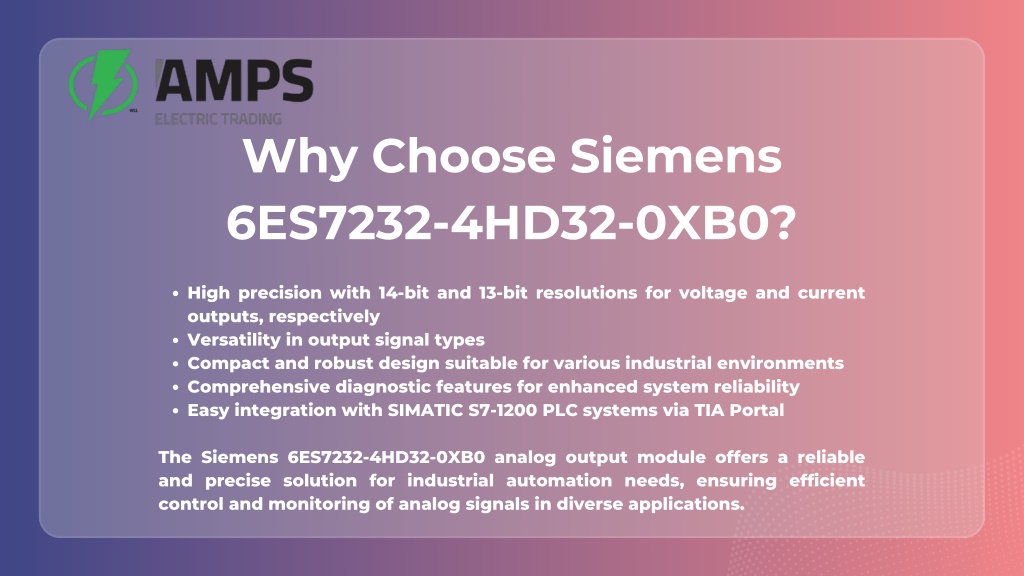

  5. Why Choose Siemens 6ES7232-4HD32-0XB0? High precision with 14-bit and 13-bit resolutions for voltage and current outputs, respectively Versatility in output signal types Compact and robust design suitable for various industrial environments Comprehensive diagnostic features for enhanced system reliability Easy integration with SIMATIC S7-1200 PLC systems via TIA Portal The Siemens 6ES7232-4HD32-0XB0 analog output module offers a reliable and precise solution for industrial automation needs, ensuring efficient control and monitoring of analog signals in diverse applications.

  6. THANK YOU CONTACT US AMPS Electric Trading, Barwa Village,Building No 2,Shop No 31 Doha,Ad Dawhah,Qatar,PO Box No 34988 PH :+974 30338370
