Blood Card Centrifuge -BCC1001

Labtro Blood Card Centrifuge offers a max speed of 4000 rpm and holds 12 or 24 cards, with a max RCF of 2120u00d7g for 24 cards and 1480u00d7g for 12 cards. Features include a brushless motor, 10 acceleration modes, u226455 dB noise, automatic lid lock, and overspeed/temperature control. Ideal for serum tests.

Sara235
Download Presentation

Blood Card Centrifuge -BCC1001

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

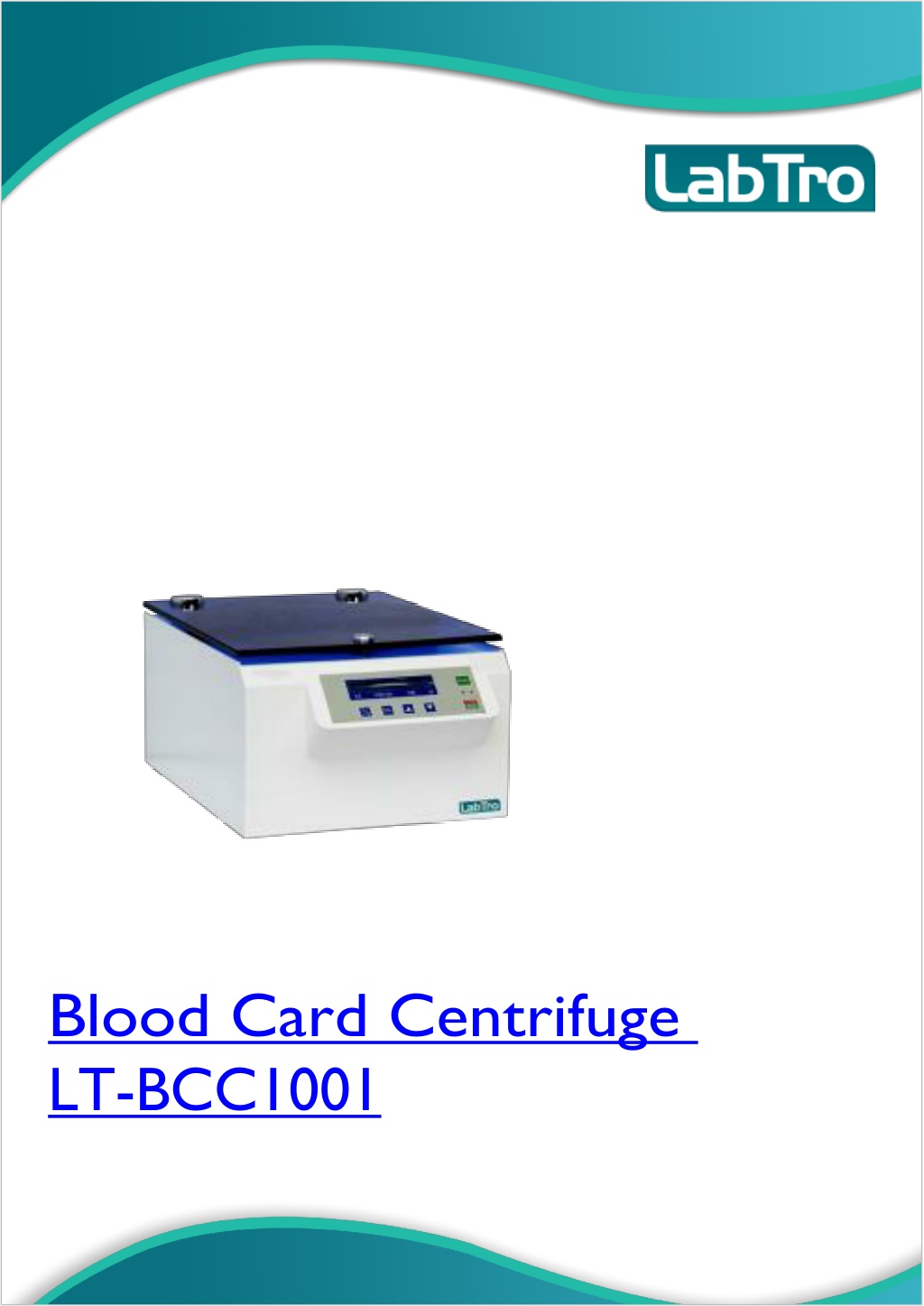

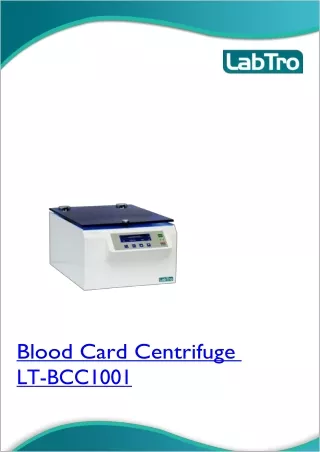

  1. Blood Card Centrifuge LT-BCC1001

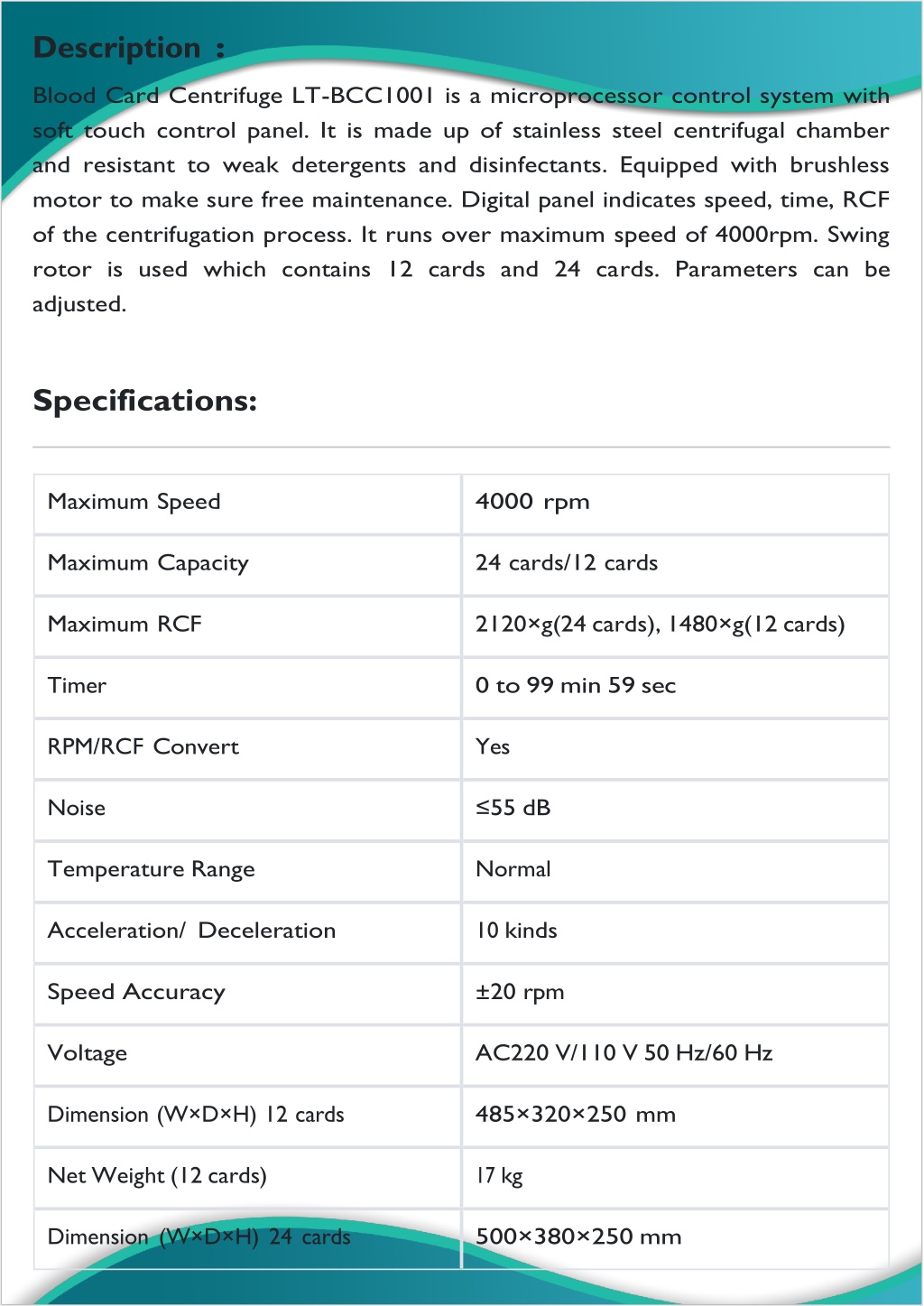

  2. Description : Blood Card Centrifuge LT-BCC1001 is a microprocessor control system with soft touch control panel. It is made up of stainless steel centrifugal chamber and resistant to weak detergents and disinfectants. Equipped with brushless motor to make sure free maintenance. Digital panel indicates speed, time, RCF of the centrifugation process. It runs over maximum speed of 4000rpm. Swing rotor is used which contains 12 cards and 24 cards. Parameters can be adjusted. Specifications: Maximum Speed 4000 rpm Maximum Capacity 24 cards/12 cards Maximum RCF 2120×g(24 cards), 1480×g(12 cards) Timer 0 to 99 min 59 sec RPM/RCF Convert Yes Noise ≤55dB Temperature Range Normal Acceleration/ Deceleration 10 kinds Speed Accuracy ±20 rpm Voltage AC220 V/110 V 50 Hz/60 Hz Dimension (W×D×H) 12 cards 485×320×250 mm Net Weight (12 cards) 17 kg Dimension (W×D×H) 24 cards 500×380×250 mm

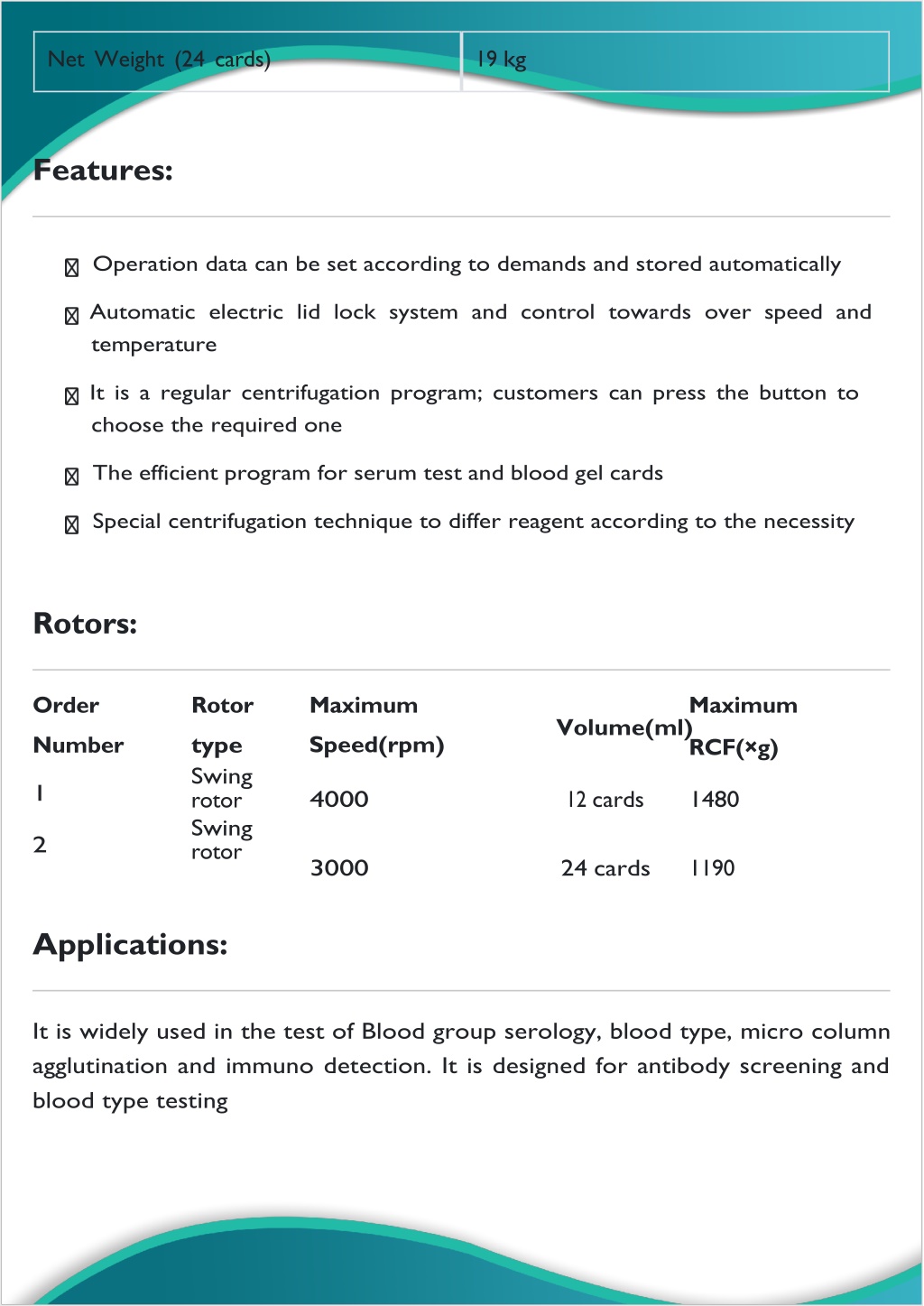

  3. Net Weight (24 cards) 19 kg Features: Operation data can be set according to demands and stored automatically Automatic electric lid lock system and control towards over speed and temperature It is a regular centrifugation program; customers can press the button to choose the required one The efficient program for serum test and blood gel cards Special centrifugation technique to differ reagent according to the necessity Rotors: Order Rotor Maximum Maximum Volume(ml) Speed(rpm) Number type Swing rotor Swing rotor RCF(×g) 1 4000 12 cards 1480 2 3000 24 cards 1190 Applications: It is widely used in the test of Blood group serology, blood type, micro column agglutination and immuno detection. It is designed for antibody screening and blood type testing

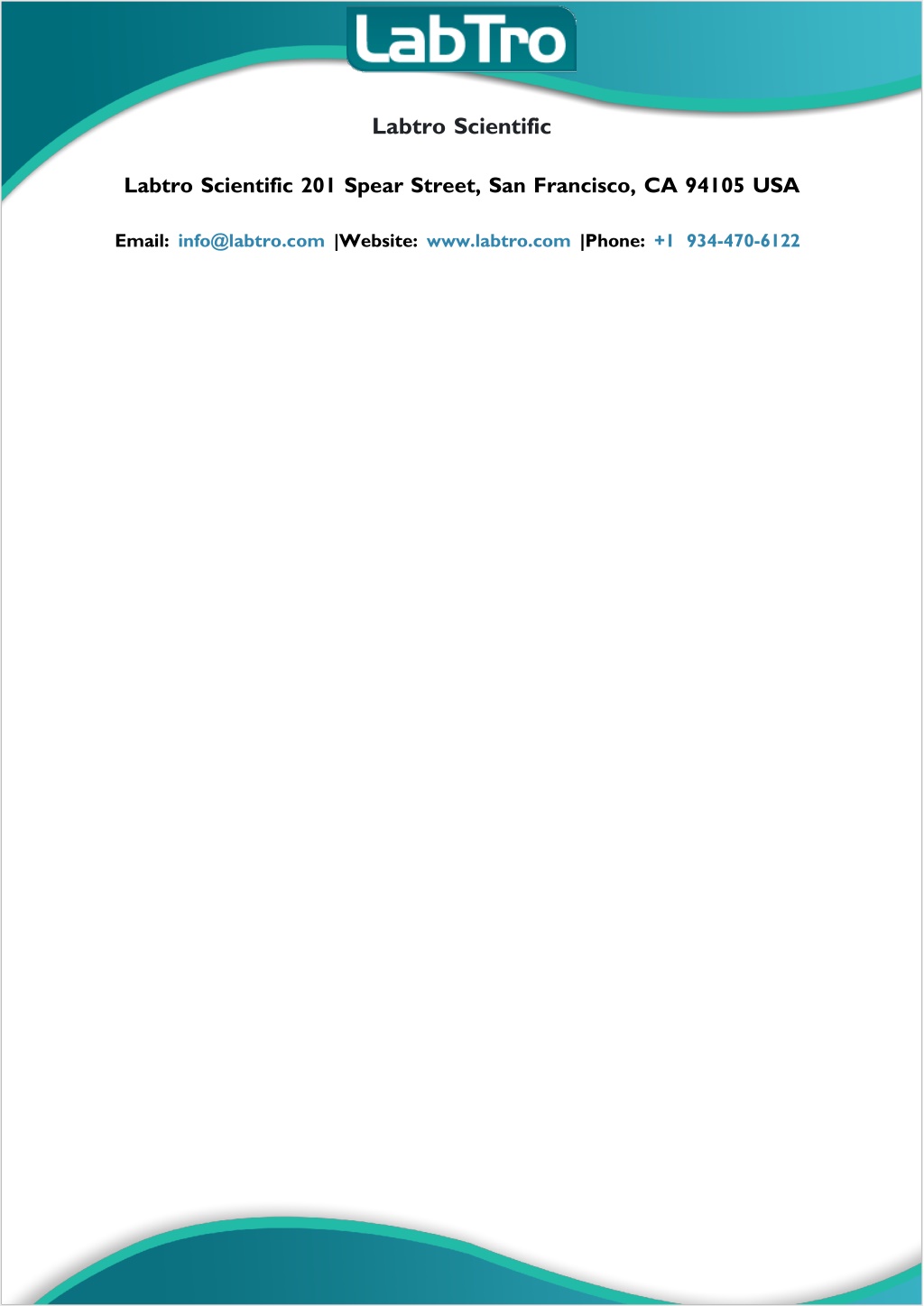

  4. Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
