using the 8254 timer counter

Using the 8254 Timer-Counter

Understanding the role of the system’s 8254 programmable Interval-Timer/Counter

motivation

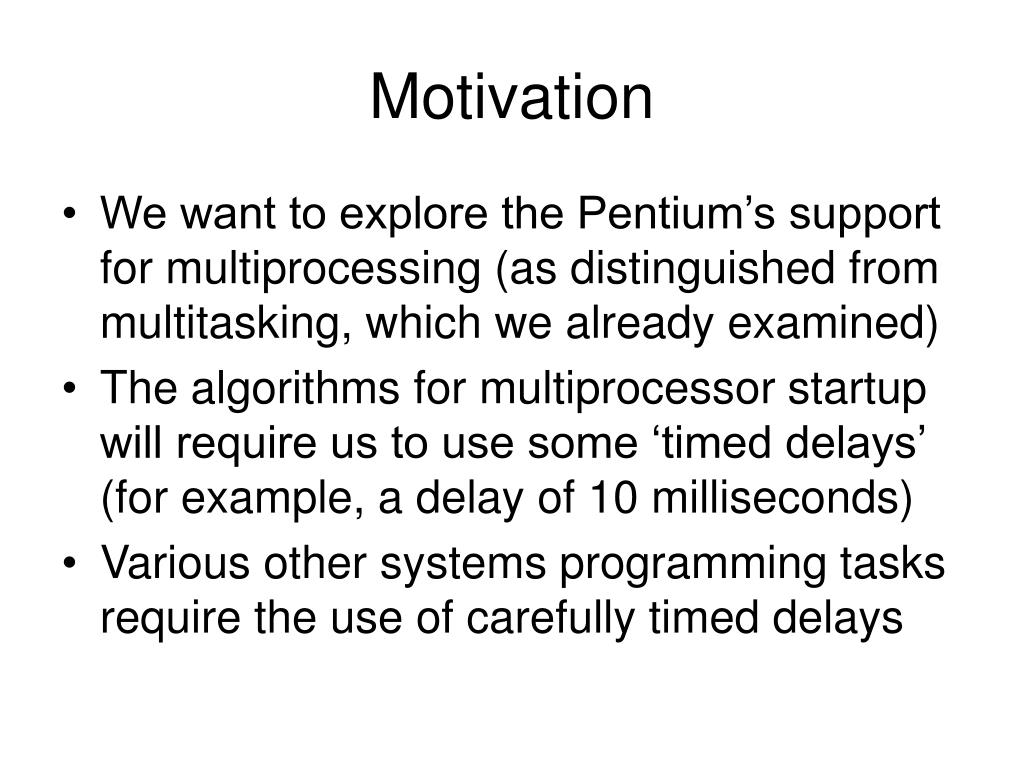

Motivation
  • We want to explore the Pentium’s support for multiprocessing (as distinguished from multitasking, which we already examined)
  • The algorithms for multiprocessor startup will require us to use some ‘timed delays’ (for example, a delay of 10 milliseconds)
  • Various other systems programming tasks require the use of carefully timed delays
the 8254 pit
The 8254 PIT
  • The 8254 Programmable Interval-timer is used by the PC system for (1) generating timer-tick interrupts (rate is 18.2 per sec), (2) performing dynamic memory-refresh (reads ram once every 15 microseconds), and (3) generates ‘beeps’ of PC speaker
  • When the speaker-function isn’t needed, the 8254 is available for other purposes
counter decrements when pulsed
Counter decrements when pulsed

COUNT REGISTER

CLK

MSB

LSB

OUT

MSB

LSB

LATCH REGISTER

GATE

STATUS

TIMER/COUNTER CHANNEL

three timer counter channels
Three timer/counter ‘channels’

8284

PCLK

1193182 Hz

Channel 0

CLK0

OUT0

Interrupt IRQ0

GATE0

Port 0x61, bit #4

CLK1

Channel 1

OUT1

DRAM refresh

GATE1

Port 0x61, bit #5

CLK2

Channel 2

OUT2

GATE2

speaker

AND

Port 0x61, bit #0

8254 PIT

+5 V

Port 0x61, bit #1

8254 command port
8254 Command-Port

7 6 5 4 3 2 1 0

CHANNEL

COMMAND

OUTPUT MODE

binary

/ BCD

Output Mode

000 = one-shot level

001 = retriggerable

010 = rate-generator

011 = square-wave

100 = software strobe

101 = hardware strobe

Counting Mode

0 = binary

1 = BCD

Channel-ID

00 = chn 0

01 = chn 1

10 = chn 2

Command-ID

00 = Latch

01 = LSB r/w

10 = MSB r/w

11 = LSB-MSB r/w

Commands are sent to the 8254 via io/port 0x43

programming a pit channel

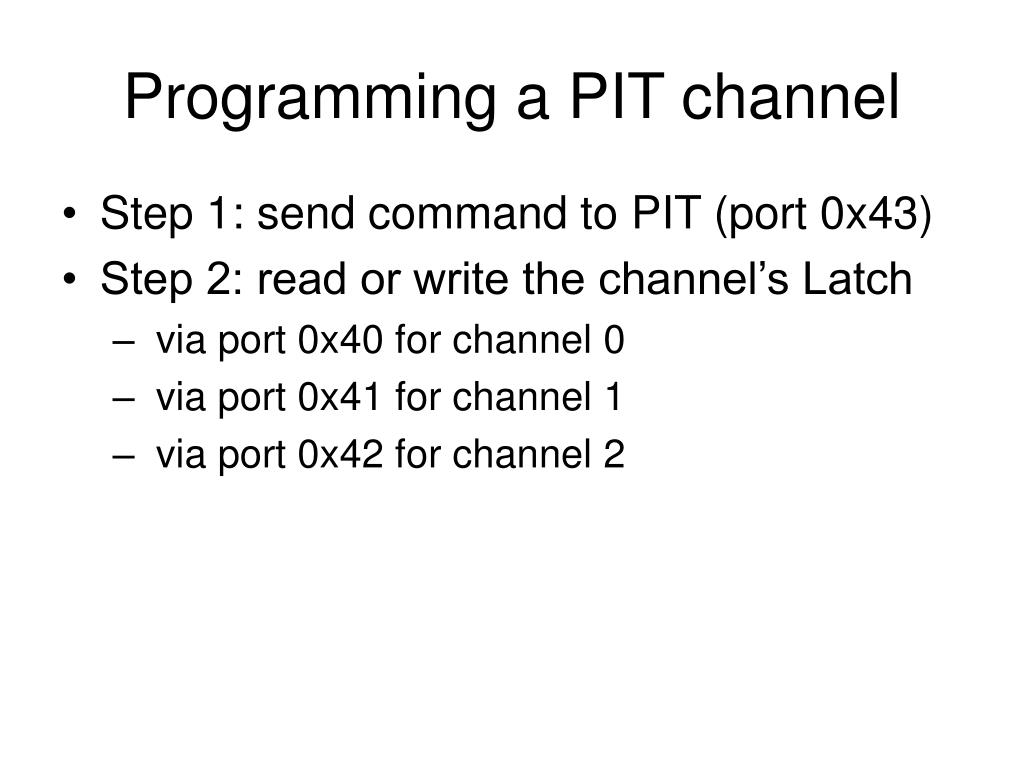

Programming a PIT channel
  • Step 1: send command to PIT (port 0x43)
  • Step 2: read or write the channel’s Latch
    • via port 0x40 for channel 0
    • via port 0x41 for channel 1
    • via port 0x42 for channel 2
status control via port 0x61

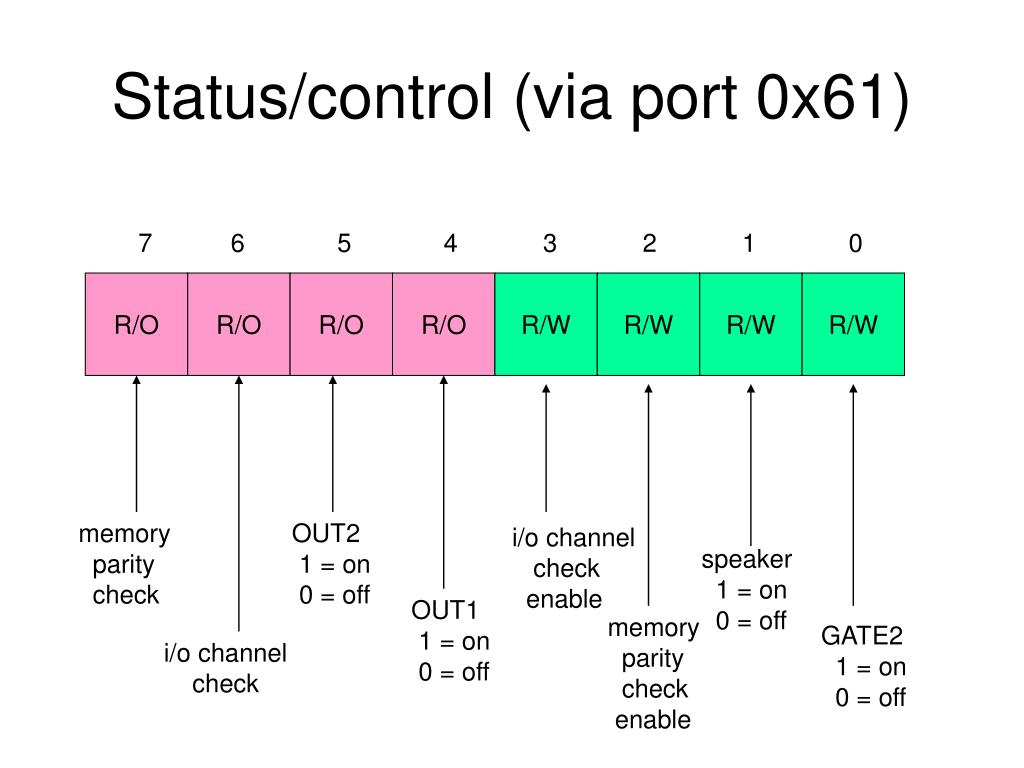

Status/control (via port 0x61)

7 6 5 4 3 2 1 0

R/O

R/O

R/O

R/O

R/W

R/W

R/W

R/W

memory

parity

check

OUT2

1 = on

0 = off

i/o channel

check

enable

speaker

1 = on

0 = off

OUT1

1 = on

0 = off

memory

parity

check

enable

GATE2

1 = on

0 = off

i/o channel

check

algorithm for 10 ms delay

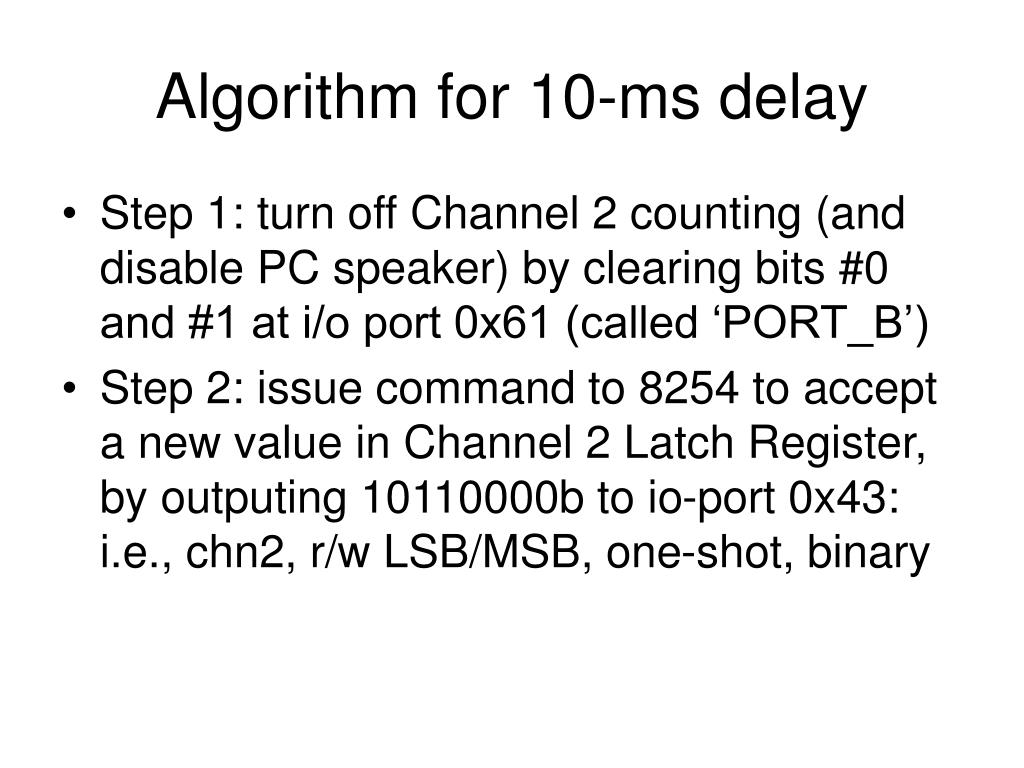

Algorithm for 10-ms delay
  • Step 1: turn off Channel 2 counting (and disable PC speaker) by clearing bits #0 and #1 at i/o port 0x61 (called ‘PORT_B’)
  • Step 2: issue command to 8254 to accept a new value in Channel 2 Latch Register, by outputing 10110000b to io-port 0x43: i.e., chn2, r/w LSB/MSB, one-shot, binary
algorithm continued

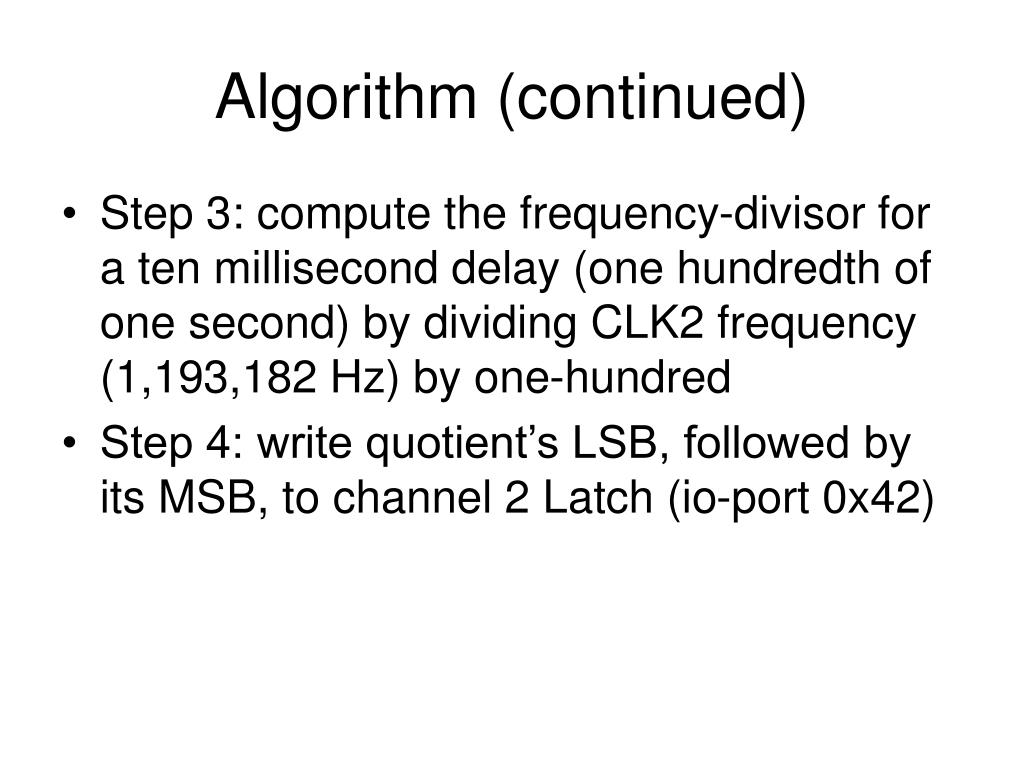

Algorithm (continued)
  • Step 3: compute the frequency-divisor for a ten millisecond delay (one hundredth of one second) by dividing CLK2 frequency (1,193,182 Hz) by one-hundred
  • Step 4: write quotient’s LSB, followed by its MSB, to channel 2 Latch (io-port 0x42)
algorithm continued again
Algorithm (continued again)
  • Begin the Channel 2 countdown (set bit #0 at io-port 0x61) and immediately read and save the Pentium’s TimeStamp Counter
  • Spin in a tight loop until the OUT2 signal goes active (Channel 2 count exhausted) by testing bit #5 at io-port 0x61
  • Immediately re-read TimeStamp Counter
  • Perform subtraction (to get CPU cycles)
algorithm concluded
Algorithm (concluded)
  • Divide cycle-count by ten-thousand, to get processor’s clock-speed in Mega-Hertz (i.e., in millions of cycles-per-second)
  • Display this quotient in decimal format!
in class exercise
In-class exercise
  • The Real-Time Clock chip automatically updates its clock/calendar registers once each second
  • Register values cannot be reliably read while the RTC’s update is in progress
  • Most significant bit in RTC register 0x0A provides indication of ‘update-in-progress’
  • How long does the RTC ‘update’ last?
algorithm for update duration
Algorithm for update-duration
  • Wait until a new RTC update begins
  • Immediately read the TimeStamp Counter
  • Wait until this update-operation finishes
  • Immediately read the TimeStamp Counter
  • Wait until the next update begins
  • Immediately read the TimeStamp Counter
  • The RATIO of these two time-intervals gives ‘update-duration’ as a fraction of one second
