high performance multilayer perceptron on a custom computing machine

HIGH PERFORMANCE MULTILAYER PERCEPTRON ON A CUSTOM COMPUTING MACHINE

Authors: Nalini K. Ratha, Anil K. Jain

H. GÜL ÇALIKLI

2002700743

introduction

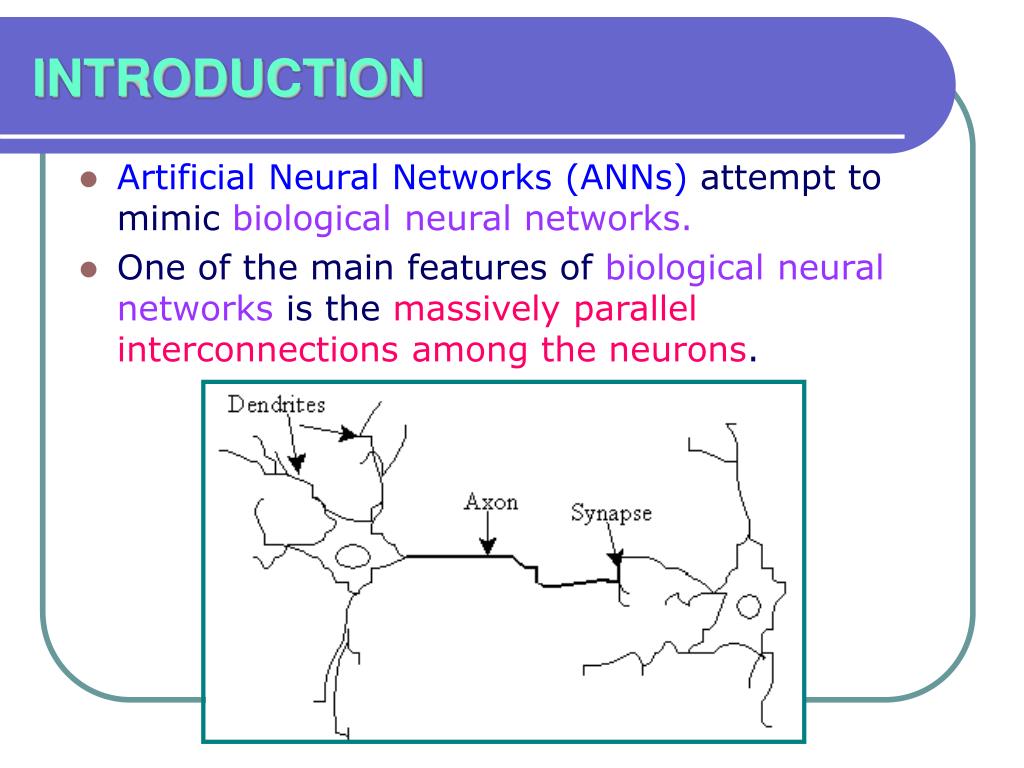

INTRODUCTION
  • Artificial Neural Networks(ANNs)attempt to mimic biological neural networks.
  • One of the main features of biological neural networks is the massively parallel interconnections among the neurons.
introduction3

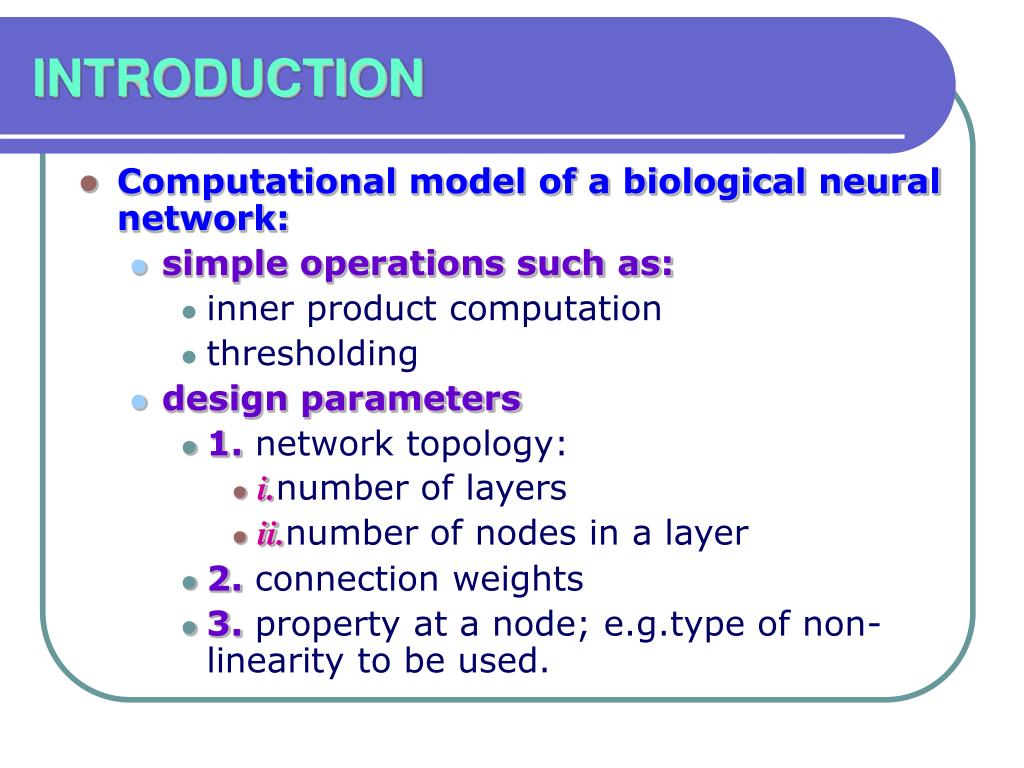

INTRODUCTION
  • Computational model of a biological neural network:
    • simple operations such as:
      • inner product computation
      • thresholding
    • design parameters
      • 1.network topology:
        • i.number of layers
        • ii.number of nodes in a layer
      • 2.connection weights
      • 3.property at a node; e.g.type of non-linearity to be used.
introduction4
INTRODUCTION

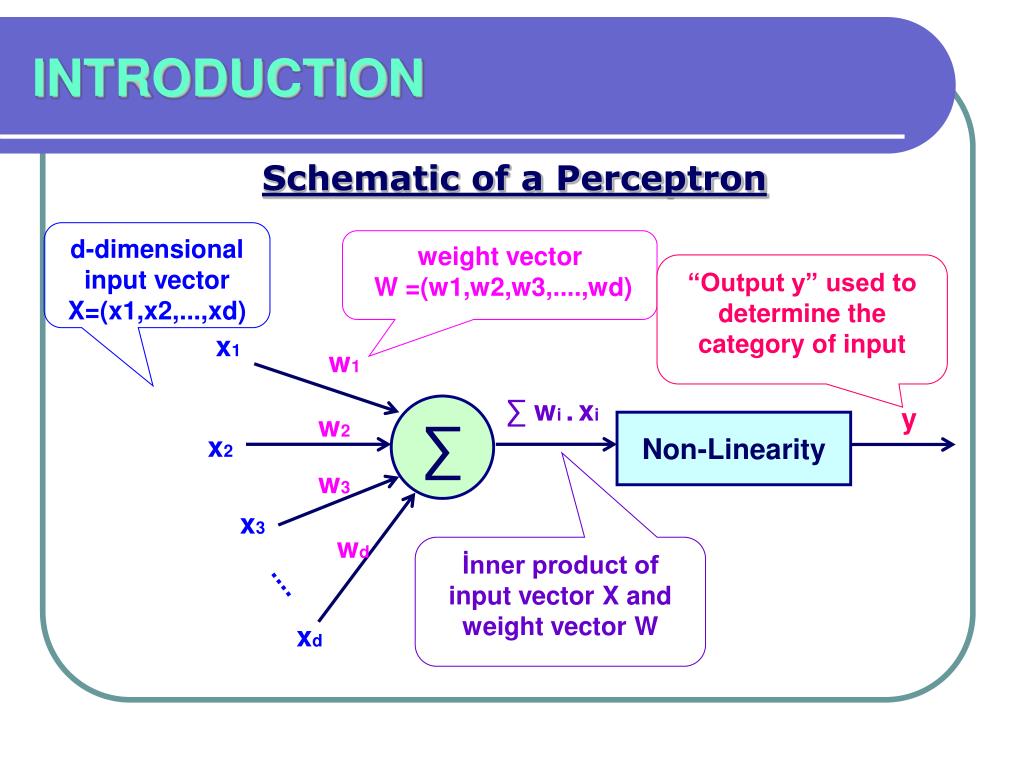

Schematic of a Perceptron

d-dimensional input vector X=(x1,x2,...,xd)

weight vector

W =(w1,w2,w3,....,wd)

“Output y” used to determine the category of input

x1

w1

∑ wi .xi

y

w2

Non-Linearity

x2

w3

x3

wd

İnner product of input vector X and weight vector W

....

xd

introduction5
INTRODUCTION:
  • Multilayer Perceptrons: (MLPs)
  • one of the most popular neural network models for solving pattern classification and image classification problems
  • consists of several layer of perceptrons
  • nodes in the i layer are connected to nodes in the (i+1) layer through suitable weights
  • no interconnection among the nodes in a layer.

th

th

introduction multilayer perceptrons
INTRODUCTION:Multilayer Perceptrons

Multilayer Perceptron

Biological neuron

introduction7

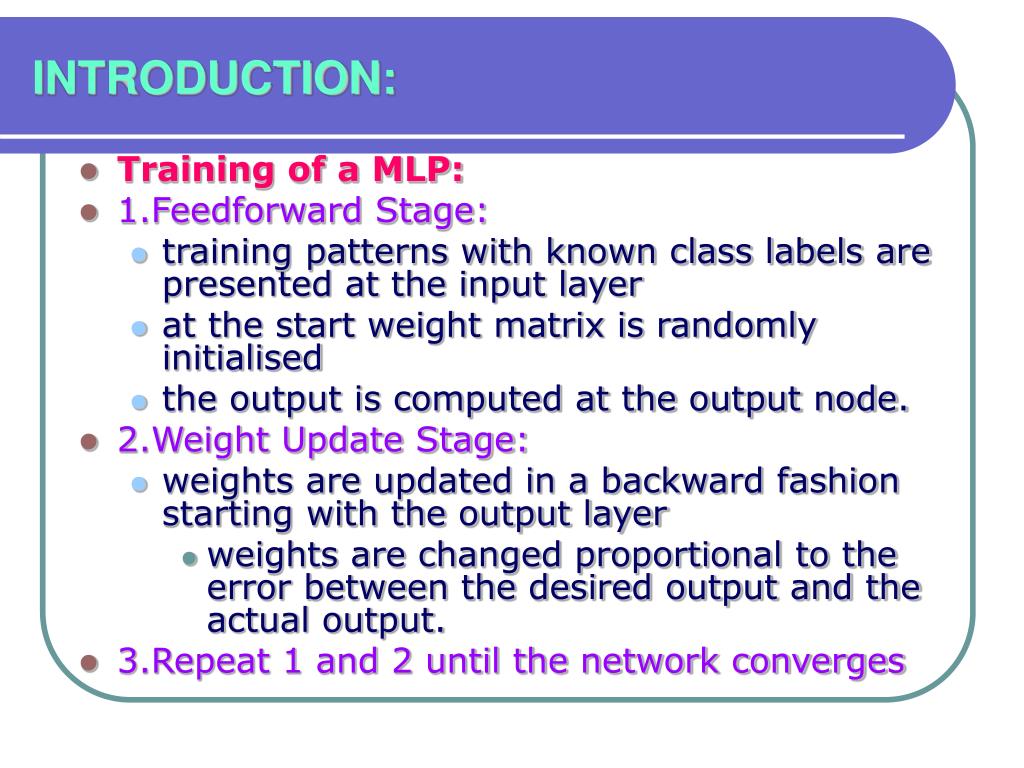

INTRODUCTION:
  • Training of a MLP:
  • 1.Feedforward Stage:
    • training patterns with known class labels are presented at the input layer
    • at the start weight matrix is randomly initialised
    • the output is computed at the output node.
  • 2.Weight Update Stage:
    • weights are updated in a backward fashion starting with the output layer
      • weights are changed proportional to the error between the desired output and the actual output.
  • 3.Repeat 1 and 2 until the network converges
introduction8
INTRODUCTION:

A Multilayer Perceptron

x1

x2

x3

.

.

.

.

.

.

.

.

Feature Vector

.

.

.

xd

hidden layer

output layer

input layer

introduction9
INTRODUCTION:
  • For an n-node MLP, O(n2) interconnections are needed.
  • THUS:
    • mapping a MLP onto a parallel processor is a real challenge.
    • on a uniprocessor, the whole operation proceeds sequentially one node at a time. (no complex communications involved)
  • HOWEVER:
    • for a high performance implementation, efficient communication capability must be supported.
introduction10
INTRODUCTION:
  • Typical Pattern Recognition and Computer Vision Applications:
    • applications have >100 input nodes
    • classification process involving complex decision boundaries demands a large number of hidden nodes
introduction11
INTRODUCTION:
  • Real Time Computer Vision Applications:
  • The network training can be carried out offline.
  • Recall Phase:High input/output bandwidth is required along with fast classification (recall) speeds.
introduction12
INTRODUCTION:
  • For a three layer network (excluding the input layer),let :
      • m:input nodes
      • n1:nodes in the first hidden layer
      • n2:nodes in the second hidden layer
      • k:output nodes (classes)
      • Nm: the number of multiplications
      • Na:the number of additions

Nonlinearity not included

  • Nm=(m*n1)+(n1*n2)+(n2*k)
  • Na=Nm-(n1+n2+k)
introduction13
INTRODUCTION:
  • Example- a Practical Vision System
  • Process a 1024 x 1024 image in “real time”
  • 30 frames to be processed per second
  • 30 x 1024 x 1024 =30 x 106 input patterns/sec
  • THUS, a real time neural network classifier is expected to perform billions of operations per second.
  • Connection weights are floating point numbers floating point multiplications and additions
  • Result:Throughputs of this kind are difficult to achieve with today’s most powerful uniprocessors.
introduction14
INTRODUCTION:
  • Parallel Architectures for ANNs
  • Types of Parallelism Available in a MLP:
  • 1. Training session parallelism
  • 2. Training example parallelism
  • 3. Layer and forward/backward parallelism
  • 4. Node parallelism
  • 5. Weight parallelism
  • 6. Bit parallelism

easily mapped onto a parallel architecture

introduction15
INTRODUCTION:

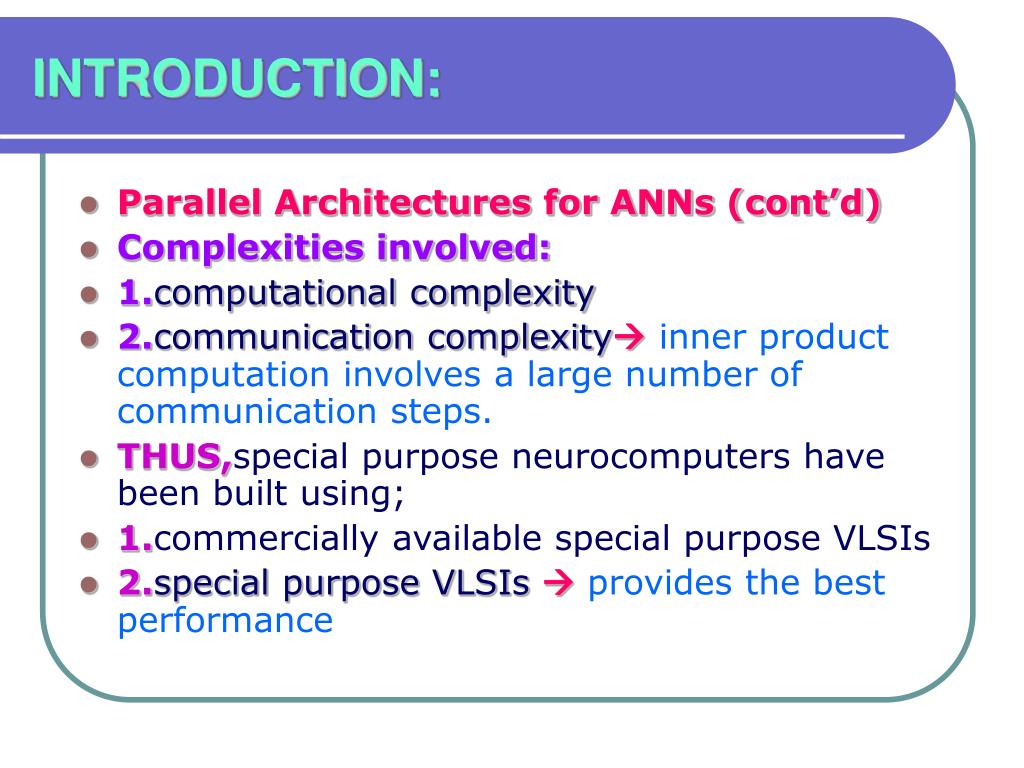

  • Parallel Architectures for ANNs (cont’d)
  • Complexities involved:
  • 1.computational complexity
  • 2.communication complexityinner product computation involves a large number of communication steps.
  • THUS,special purpose neurocomputers have been built using;
  • 1.commercially available special purpose VLSIs
  • 2.special purpose VLSIs provides the best performance
introduction16
INTRODUCTION:
  • Parallel Architectures for ANNs (cont’d)
  • Dynamically changing architecture
    • number of nodes
    • number of layers from application to application
  • Expensive to design a VLSI architecture for individual applications
  • Typically, architectures with a fixed number ofnodes and layers are fabricated.
introduction17
INTRODUCTION:
  • Parallel Architectures for ANNs (cont’d)
  • Special Purpose ANN Implementations in the Literature
  • Ghosh and Hwang:
  • investigate architectural requirements for simulating ANNs using massively parallel multipocessors
  • propose a model for mapping neural networks onto message passing multicomputers.
introduction18
INTRODUCTION:
  • Liu:
  • presents an efficient implementation of backpropagation algorithm on the CM-5 that avoids explicit message passing
  •  results of CM-5 implementation compared with those of Cray-2,CrayX-MP,and CrayY-MP
  • Chinn:
  •  describe a systolic algorithm for ANN on MasPar-1 using a 2-D Systolic Array-Based Design
introduction19
INTRODUCTION:
  • Onuki:
  • present a parallel implementation using a set of sixteen standard 24 bit DSPs connected in a hypercube
  • Kirsanov:
  • discusses a new architecture for ANNs using Transputers
  • Muller:
  • presents a special purpose parallel computer using a large number of Motorola floating point processors for ANN implementation.
introduction20

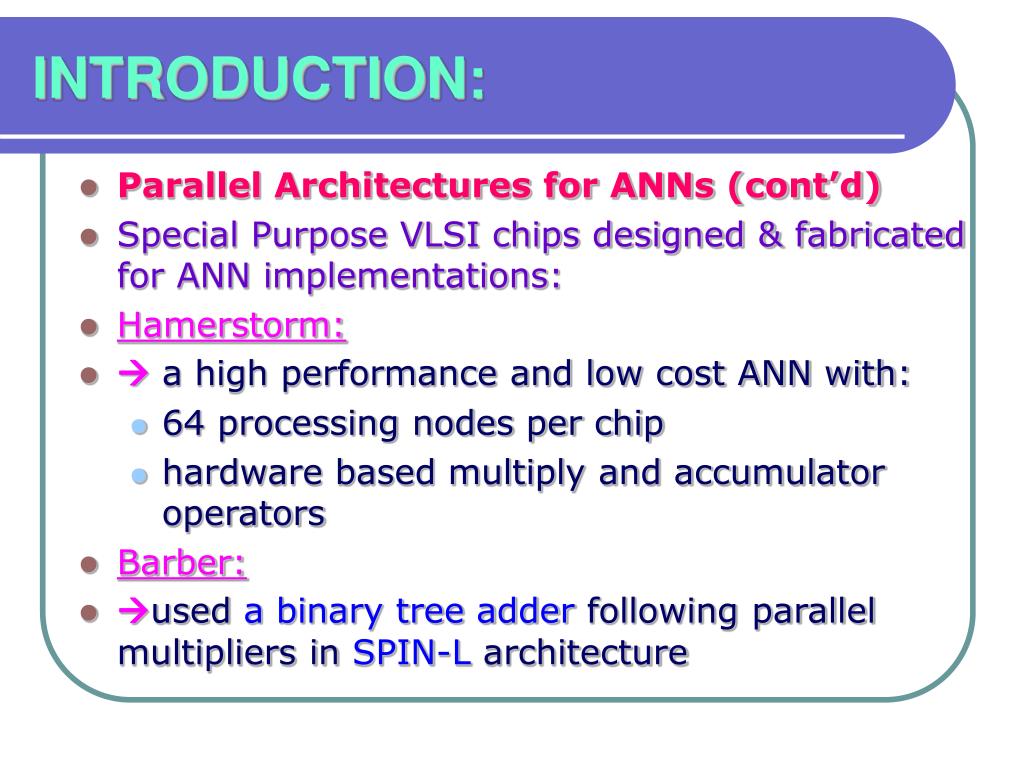

INTRODUCTION:
  • Parallel Architectures for ANNs (cont’d)
  • Special Purpose VLSI chips designed & fabricated for ANN implementations:
  • Hamerstorm:
  •  a high performance and low cost ANN with:
    • 64 processing nodes per chip
    • hardware based multiply and accumulator operators
  • Barber:
  • used a binary tree adder following parallel multipliers in SPIN-L architecture
introduction21

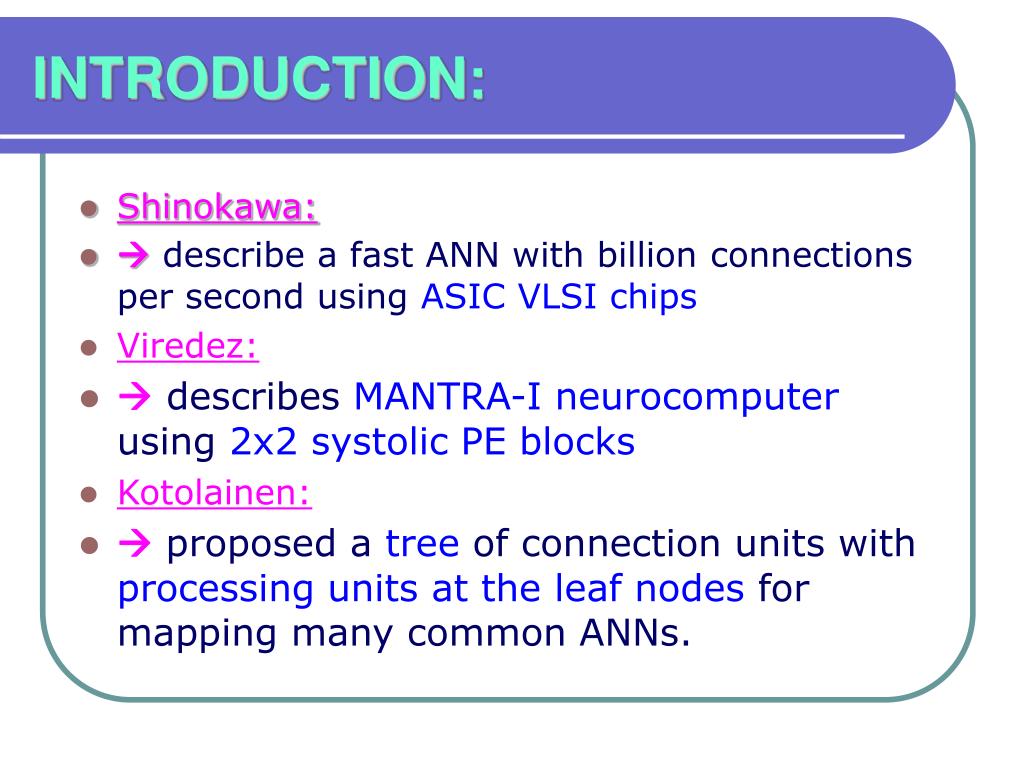

INTRODUCTION:
  • Shinokawa:
  • describe a fast ANN with billion connections per second using ASIC VLSI chips
  • Viredez:
  • describes MANTRA-I neurocomputer using 2x2 systolic PE blocks
  • Kotolainen:
  •  proposed a tree of connection units with processing units at the leaf nodes for mapping many common ANNs.
introduction22
INTRODUCTION:

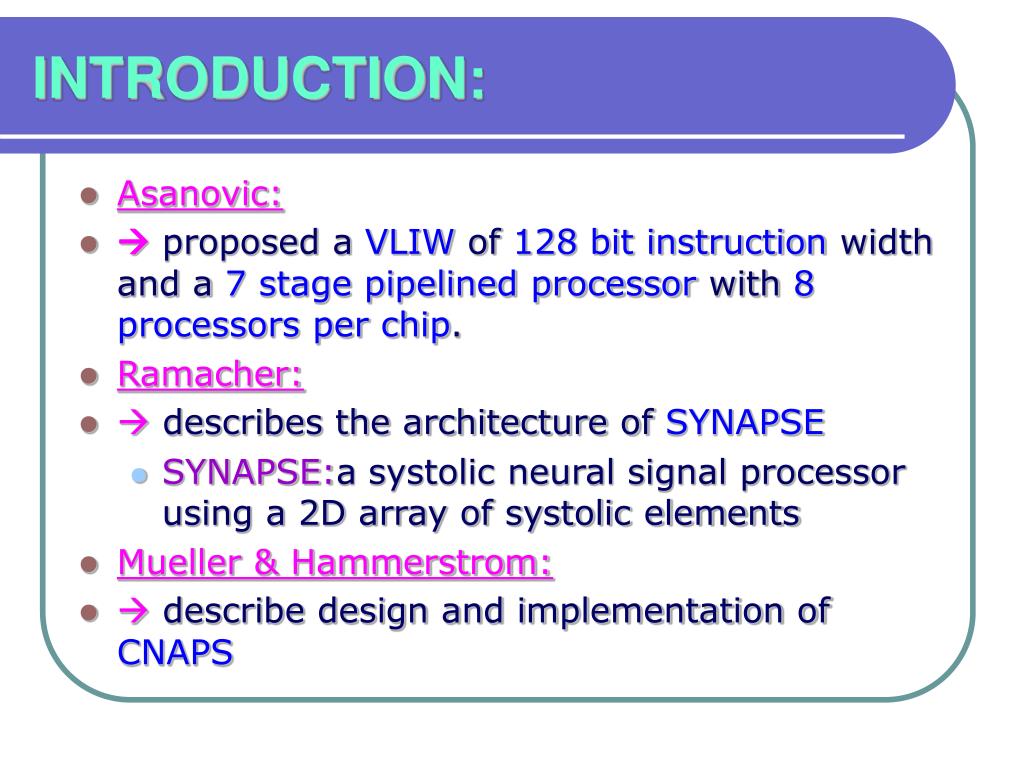

  • Asanovic:
  •  proposed a VLIW of 128 bit instruction width and a 7 stage pipelined processor with 8 processors per chip.
  • Ramacher:
  •  describes the architecture of SYNAPSE
    • SYNAPSE:a systolic neural signal processorusing a 2D array of systolic elements
  • Mueller & Hammerstrom:
  •  describe design and implementation of CNAPS
introduction23
INTRODUCTION:
  • CNAPS:
    • a gate array implementation of ANNs
    • a single CNAPS chip:
      • consists of 64 processing nodes
      • each node connected in a SIMD fashion
      • using broadcast interconnect.
    •  each processor has:
      • 4K bytes of local memory
      • a multipler
      • ALU
      • dual internal buses
introduction24
INTRODUCTION:

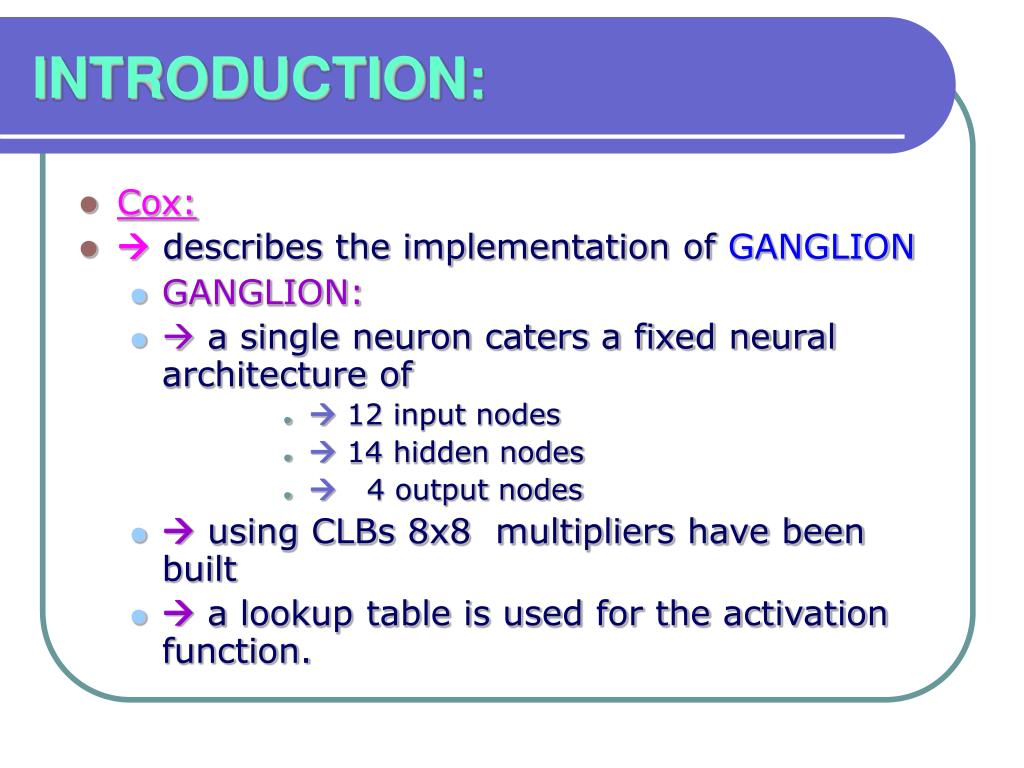

  • Cox:
  • describes the implementation of GANGLION
    • GANGLION:
    •  a single neuron caters a fixed neural architecture of
          • 12 input nodes
          •  14 hidden nodes
          •  4 output nodes
    •  using CLBs 8x8 multipliers have been built
    •  a lookup table is used for the activation function.
introduction25
INTRODUCTION:
  • Stochastic Neural Architectures:
  • There is no need for a time-consuming and area costly floating point multiplier.
  • Suitable for VLSI implementations
  • Examples:
  • Armstrong & Thomas:
  • proposed a variation of ANN called Adaptive Logic Network (ALNs)
  • ALNs: similiar to ANNs
        •  costly multiplications replaced by logical and operations
        •  additions replaced by logical or operations
introduction26
INTRODUCTION:
  • Masa et. al.:
  • Describe an ANN,
    • with  a single output

 six hidden layers

 seventy inputs

    • can operate at 50 MHz input rate
custom computing machines
CUSTOM COMPUTING MACHINES
  • Uniprocessor:
  • instruction set available to a programmer is fixed
  • an algorithm is coded using a sequence of instructions
  • processor can serve many applications by simply reordering the sequence of instructions
  • Application Specific Integrated Circuits (ASICs)
  • used for a specific application
  • provide higher performance compared to the general purpose uniprocessor
custom computing machines28
CUSTOM COMPUTING MACHINES

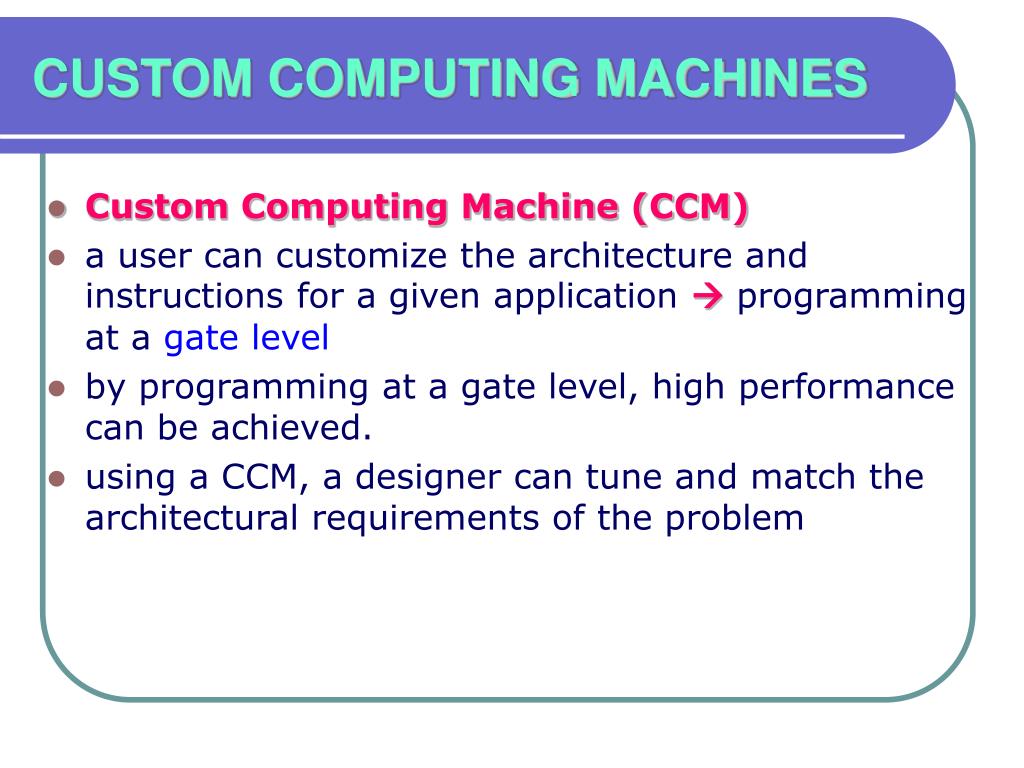

  • Custom Computing Machine (CCM)
  • a user can customize the architecture and instructions for a given application  programming at a gate level
  • by programming at a gate level, high performance can be achieved.
  • using a CCM, a designer can tune and match the architectural requirements of the problem
custom computing machines29
CUSTOM COMPUTING MACHINES

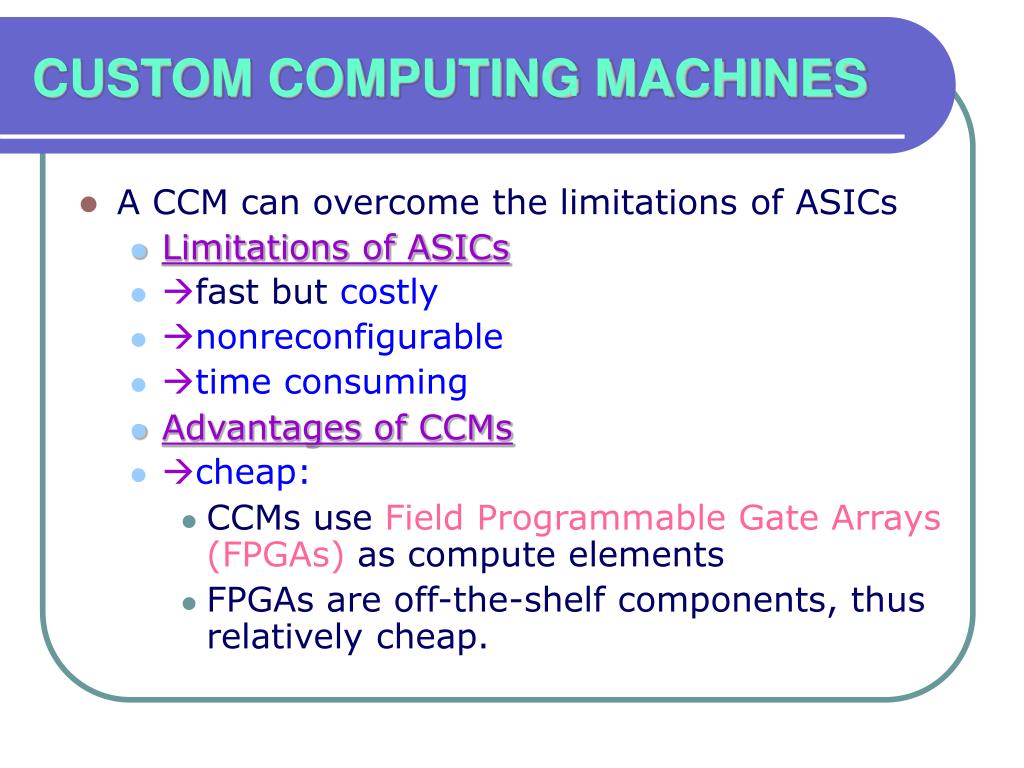

  • A CCM can overcome the limitations of ASICs
    • Limitations of ASICs
    • fast but costly
    • nonreconfigurable
    • time consuming
    • Advantages of CCMs
    • cheap:
      • CCMs use Field Programmable Gate Arrays(FPGAs) as compute elements
      • FPGAs are off-the-shelf components, thus relatively cheap.
custom computing machines30

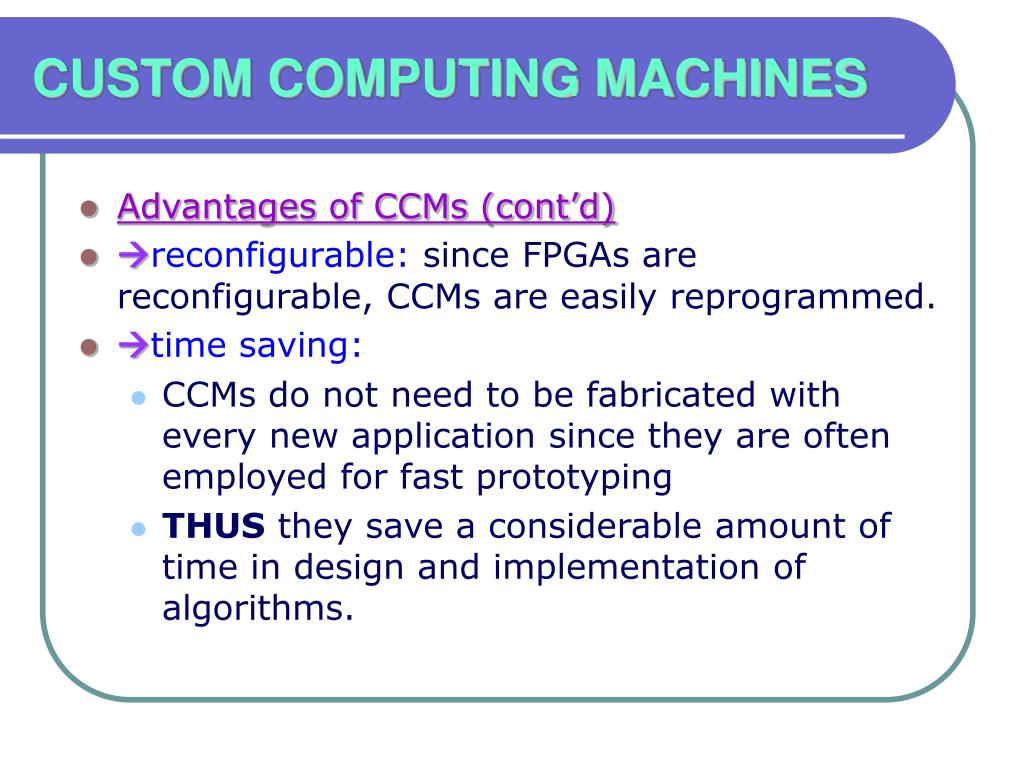

CUSTOM COMPUTING MACHINES
  • Advantages of CCMs (cont’d)
  • reconfigurable: since FPGAs are reconfigurable, CCMs are easily reprogrammed.
  • time saving:
    • CCMs do not need to be fabricated with every new application since they are often employed for fast prototyping
    • THUS they save a considerable amount of time in design and implementation of algorithms.
splash 2 architecture and programming flow
SPLASH 2 – ARCHITECTURE and PROGRAMMING FLOW
  • Splash 2 is one of the leading FPGA basedcustom computing machine designed and developed by Supercomputing Research Center
system level view of the splash 2 architecture
SYSTEM LEVEL VIEW of the SPLASH 2 ARCHITECTURE

interface board:1.connects Splash 2 to the host

2.Extends the address and data buses

Processing Element (PE): Each PE has 512 KB of memory

The host can read/write this memory

PE X0:controls the data flow into the processor board

PEs (X1-X16)

Splash 2 Processing Board

The Sun host can read/write to memories and memory mapped control registers of Splash 2 via these buses.

splash 2 architecture and programming flow33

512 K 16-bit

Memory

RD

RD

WR

WR

32

18

16

Processing

Element

(PE) Xilinx 4010

32

36

36

36

SPLASH 2 – ARCHITECTURE and PROGRAMMING FLOW

Processing Element in Splash 2

SBus Read

SBus Write

individual memory available with each PE makes it convenient to store temporary results and tables.

Address

Data

SBus Address

SBus Data

Processor inhibit

To left neighbor

To right neighbor

To crossbar

splash 2 architecture and programming flow34
SPLASH 2 – ARCHITECTURE and PROGRAMMING FLOW

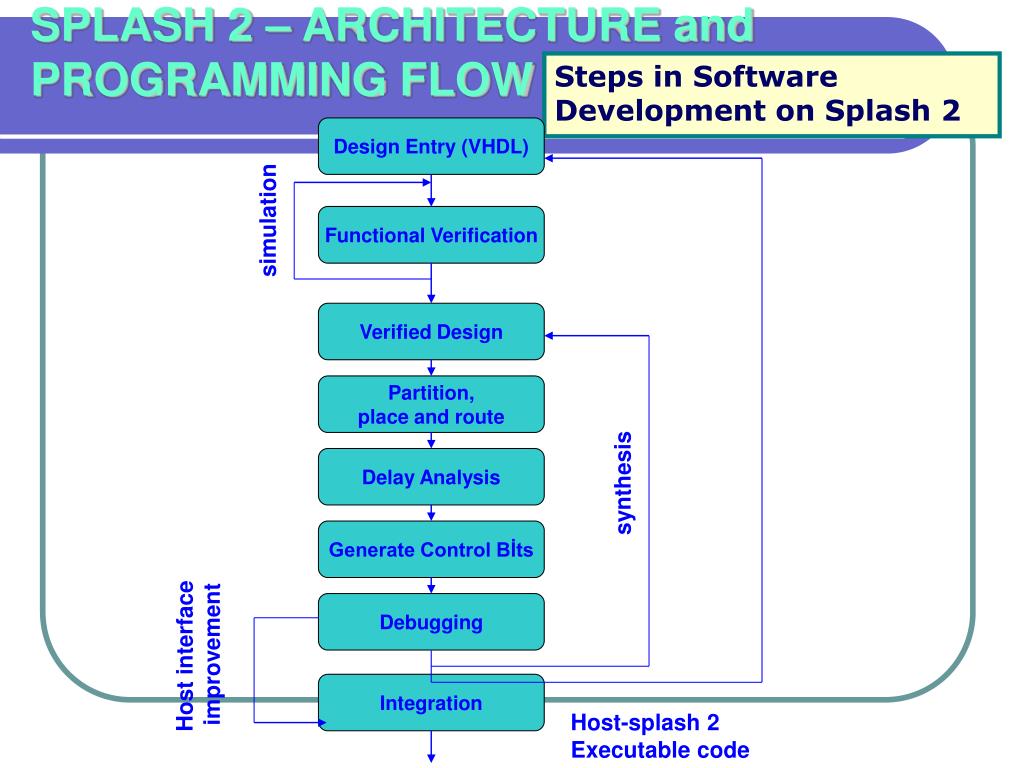

Programming Flow for Splash 2

VHDL source

Simulation

Logic Synthesis

(Gate level

decription)

Main concern:

achieve the best

placement of logic

in an FPGA in order

to minimize timing

delay.

İf timing obtained is

not acceptable then

design process is

repeated.

Logic designed using VHDL is verified.

  • To program Splash 2, we
  • need to program:
  • Each of the PEs
  • Crossbar
  • Host interface

Partition, place

and route

(Logic placement)

Timing of

logic

if the logic circuit can not be

mapped to CLBs and flip flops

which are available internal to an

FPGA , then designer needs to

revise the logic in the VHDL

code and the process is

repeated.

Splash 2

Once the logic is

mapped to CLBs, the

timing for the entire

digital logic is obtained.

splash 2 architecture and programming flow35
SPLASH 2 – ARCHITECTURE and PROGRAMMING FLOW

Steps in Software Development on Splash 2

Design Entry (VHDL)

simulation

Functional Verification

Verified Design

Partition,

place and route

Delay Analysis

synthesis

Generate Control Bİts

Debugging

Host interface

improvement

Integration

Host-splash 2

Executable code

mapping an mlp on splash 2
MAPPING an MLP on SPLASH 2

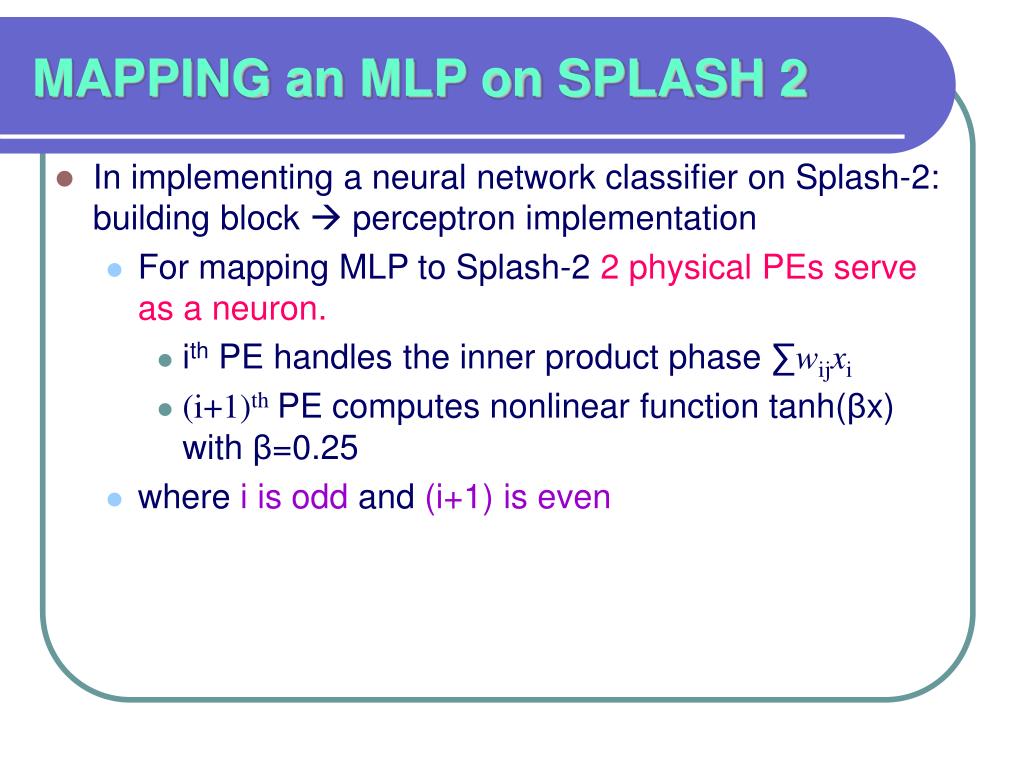

  • In implementing a neural network classifier on Splash-2: building block  perceptron implementation
    • For mapping MLP to Splash-2 2 physical PEs serve as a neuron.
      • ith PE handles the inner product phase ∑wijxi
      • (i+1)thPE computes nonlinear function tanh(βx) with β=0.25
    • where i is odd and (i+1) is even
mapping an mlp on splash 237
MAPPING an MLP on SPLASH 2

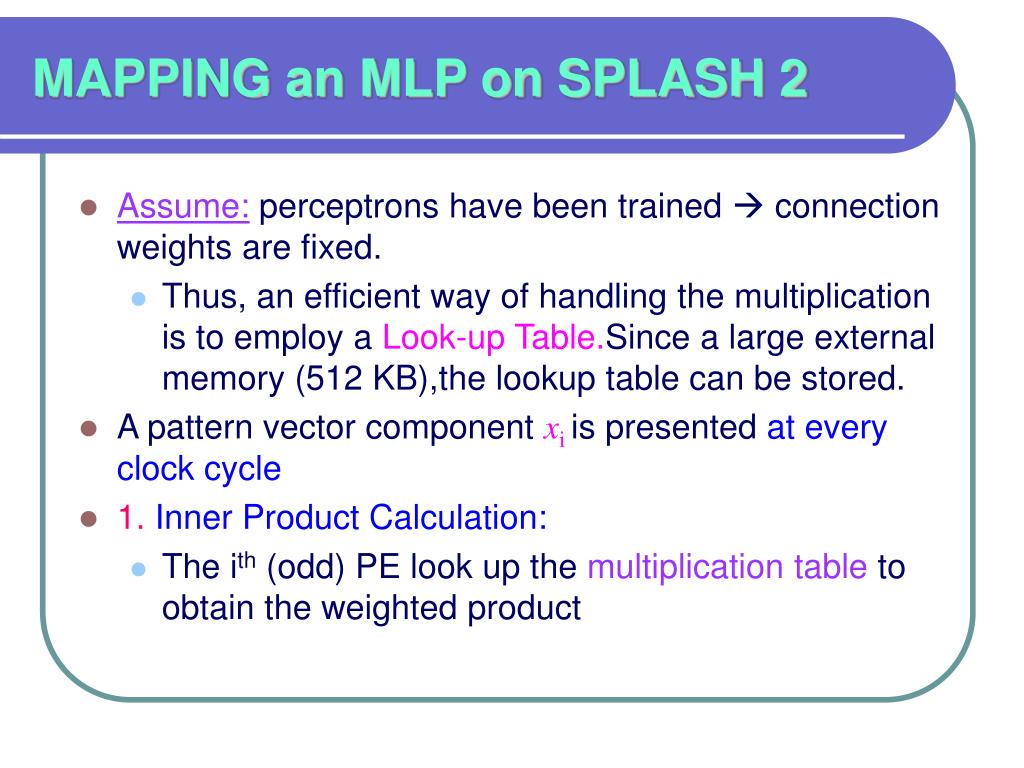

  • Assume:perceptrons have been trained  connection weights are fixed.
    • Thus, an efficient way of handling the multiplication is to employ a Look-up Table.Since a large external memory (512 KB),the lookup table can be stored.
  • A pattern vector component xiis presented at every clock cycle
  • 1. Inner Product Calculation:
    • The ith (odd) PE look up the multiplication table to obtain the weighted product
mapping an mlp on splash 238
MAPPING an MLP on SPLASH 2
    • The sum ∑wijxi is computed using an accumulator.
    • After all the components of a pattern vector have been examined, we have computed the inner product.
  • 2. Application of nonlinear function to the inner product
    • The nonlinearity is again stored as a lookup table in the second PE.
    • On receiving the inner product result from the first PE, the second uses the result as the address to the non-linearity look-up table and produces the output.
mapping an mlp on splash 239
MAPPING an MLP on SPLASH 2

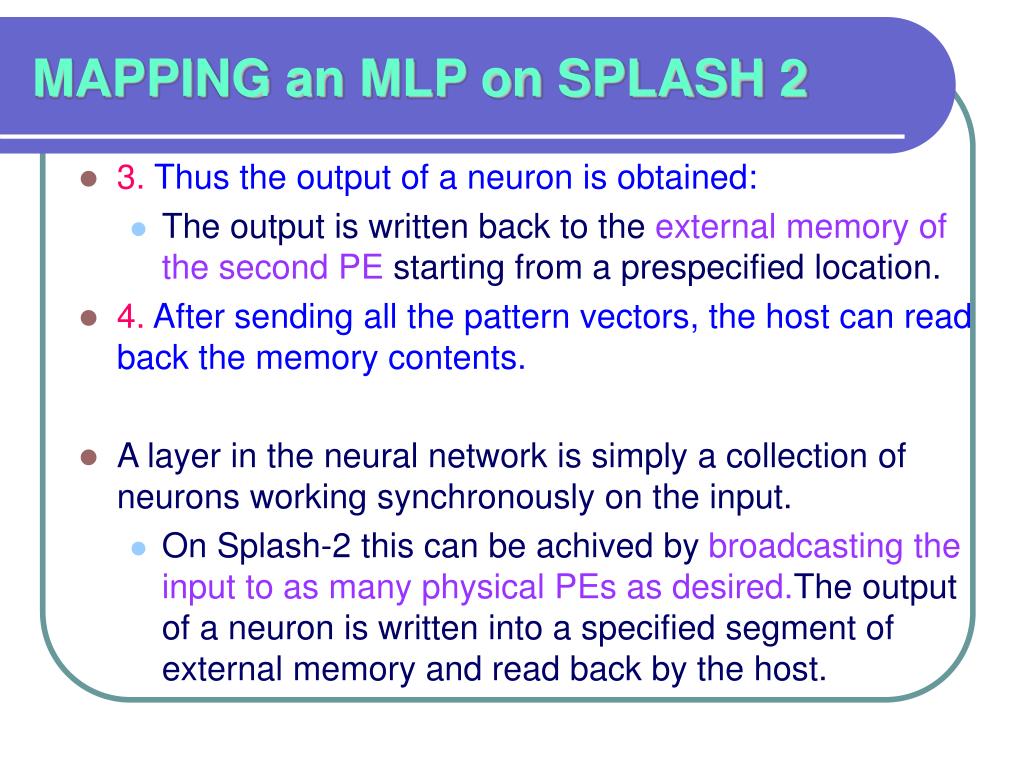

  • 3. Thus the output of a neuron is obtained:
    • The output is written back to the external memory of the second PE starting from a prespecified location.
  • 4. After sending all the pattern vectors, the host can read back the memory contents.
  • A layer in the neural network is simply a collection of neurons working synchronously on the input.
    • On Splash-2 this can be achived bybroadcasting the input to as many physical PEs as desired.The output of a neuron is written into a specified segment of external memory and read back by the host.
mapping an mlp on splash 240
MAPPING an MLP on SPLASH 2
  • For every layer in MLP stages 1-4 is repated until the output layer is reached.
  • NOTE: For every layer, there is a different look-up table.
  • Look-up Table Organization:
    • There are m multiplications to be performed per node corresponding to the m-dimensional weight vector.
    • Look-upTable is divided into m segments.
mapping an mlp on splash 241

Table m

:

12

17

Block

Offset

11

0

Table 1

MAPPING an MLP on SPLASH 2

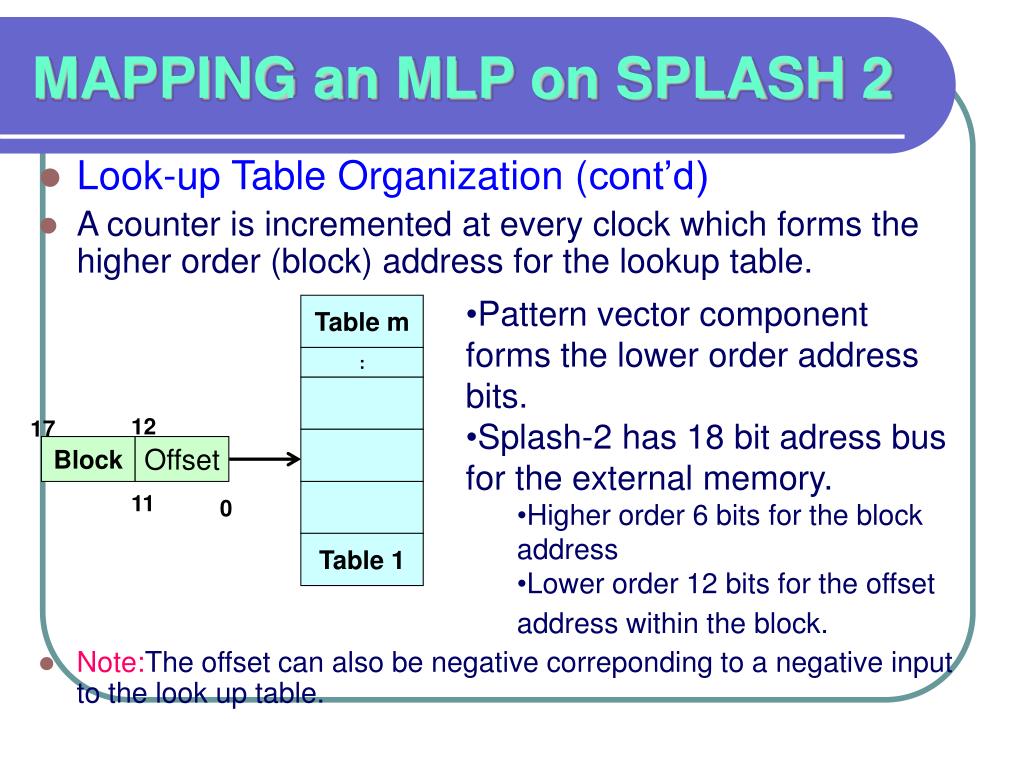

  • Look-up Table Organization (cont’d)
  • A counter is incremented at every clock which forms the higher order (block) address for the lookup table.
  • Note:The offset can also be negative correponding to a negative input to the look up table.
  • Pattern vector component
  • forms the lower order address bits.
  • Splash-2 has 18 bit adress bus for the external memory.
    • Higher order 6 bits for the block address
    • Lower order 12 bits for the offset address within the block.
mapping an mlp on splash 242
MAPPING an MLP on SPLASH 2
  • Look-up Table Organization (cont’d)
  • The numbers have been represented by 12 bits 2’s complement representation. Hence;
    • The resolution of this representation is eleven bits.
  • accumulator:
    • within PE
    • 16 bit wide
  • After accumulation, the accumulator result is scaled down to 12 bits.
mapping an mlp on splash 243
MAPPING an MLP on SPLASH 2

Lookup Table Organization

performance evaluation
PERFORMANCE EVALUATION

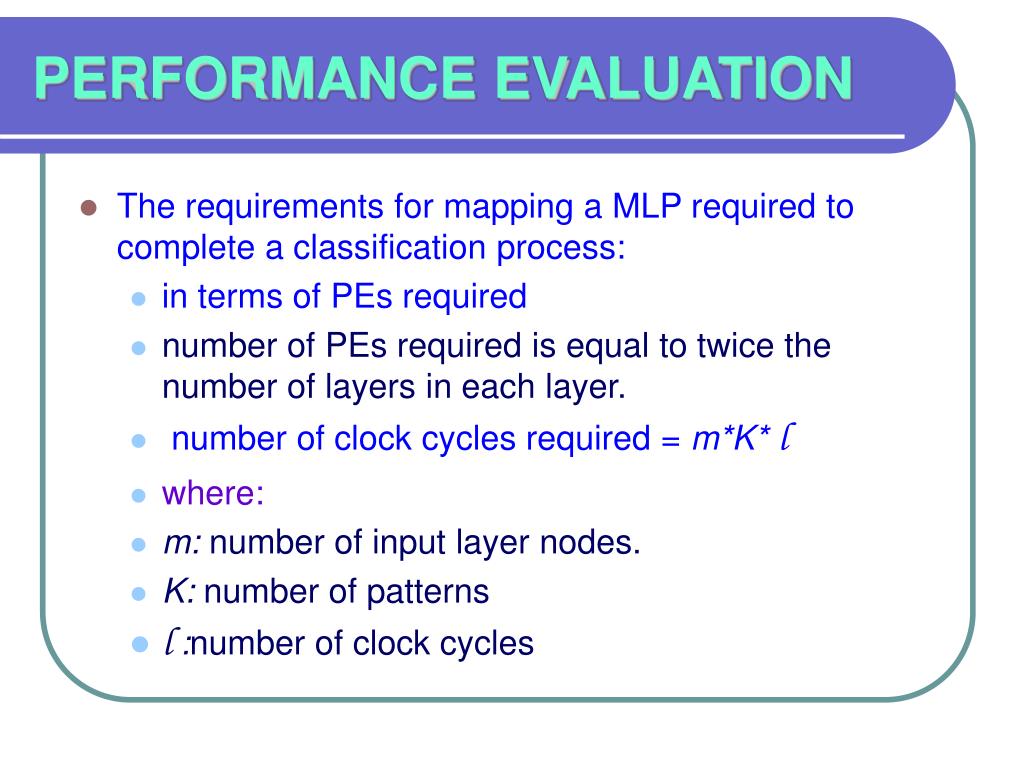

  • The requirements for mapping a MLP required to complete a classification process:
    • in terms of PEs required
    • number of PEs required is equal to twice the number of layers in each layer.
    • number of clock cycles required = m*K* l
    • where:
    • m: number of input layer nodes.
    • K: number of patterns
    • l :number of clock cycles
performance evaluation45
PERFORMANCE EVALUATION
  • in the implementation by authors of the paper:
    • m = 20
    • K = 1024 X 1024 =1 MB (Total number of pixels in the input şmage)
    • l = 2
    • THUS:
      • no. of clock-cycles = 20*2*106 = 40 million
      • with a clock rate of 22 MHz., time taken for 40 million clock ticks =1.81 secs.
performance evaluation46
PERFORMANCE EVALUATION

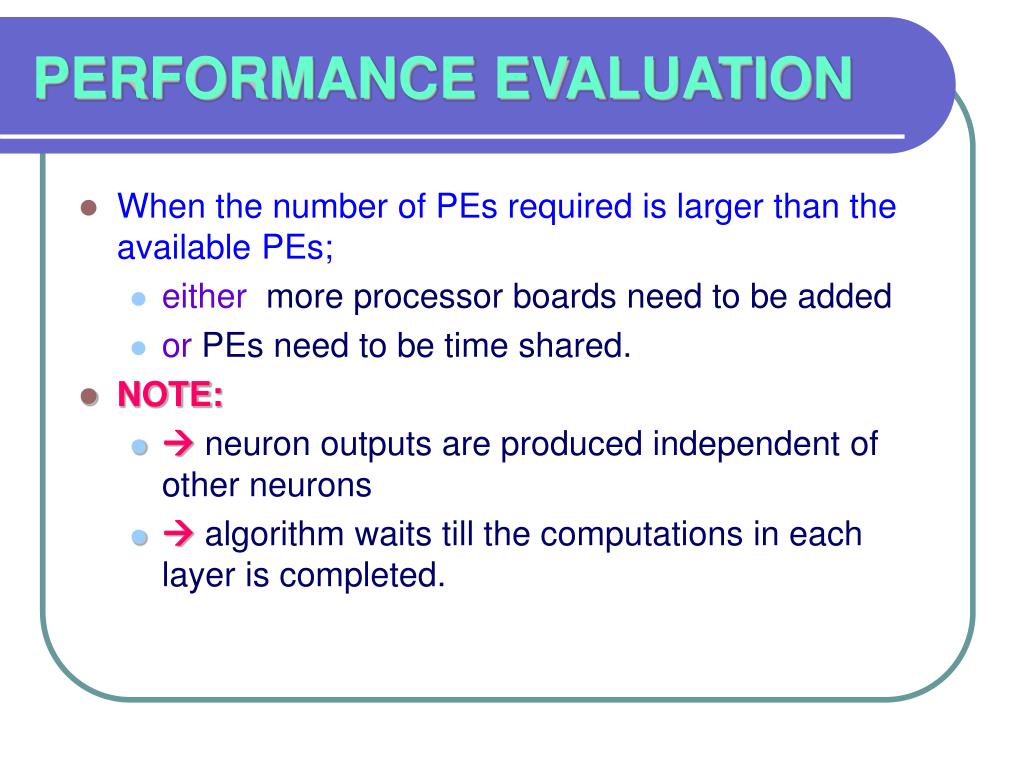

  • When the number of PEs required is larger than the available PEs;
    • either more processor boards need to be added
    • or PEs need to be time shared.
  • NOTE:
    •  neuron outputs are produced independent of other neurons
    •  algorithm waits till the computations in each layer is completed.
performance evaluation47
PERFORMANCE EVALUATION
  • A MLP has communication complexity of O(n2) where n is the number of nodes.
  • As n grows, it will be difficult to get good timing performance from a single processor system.
  • with a large number of processor boards, the single input data bus of 36 bits can cater to multiple input patterns.
    • Note:
    • In a multiboard system, all boards receive the same input.
    •  This parallelism can give rise to more data streaming into the system,
      •  thus the number of clock cycles is reduced.
performance evaluation48
PERFORMANCE EVALUATION

SCALABILITY:

only a single layer is

considered

network size is

represented by the # of

nodes in that layers

multilayered networks

are considered to be

linearly scalable in

Splash 2 architecture

performance measure is

processing time as

measured by # of clock

cycles for Splash 2 with

22 MHz. Clock.

sparc20

Time (Log Scale)

splash

Size of network

performance evaluation49
PERFORMANCE EVALUATION
  • Speed Evaluation:
  • 20 input nodes implemented on a 2-board system
  • 176 million connections per second (MCPS) is achieved per layer by running the Splash clock at 22 MHz.
  • A 6- board system can deliver more than a billion connections per second.
    • Comparable to the performance of many high level VLSI-based systems such as Synapse, CNAPS which perform in the range of 5 GCPS.
performance evaluation50
PERFORMANCE EVALUATION

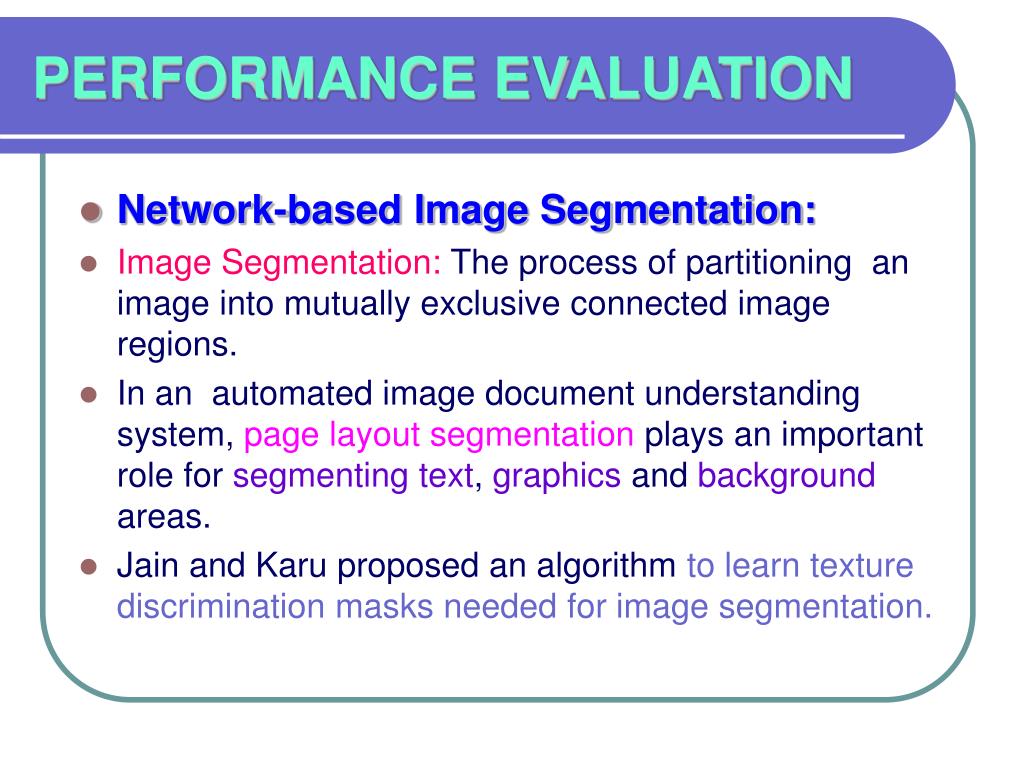

  • Network-based Image Segmentation:
  • Image Segmentation: The process of partitioning an image into mutually exclusive connected image regions.
  • In an automated image document understanding system, page layout segmentation plays an important role for segmentingtext, graphics and background areas.
  • Jain and Karu proposed an algorithm to learn texture discrimination masks needed for image segmentation.
performance evaluation51
PERFORMANCE EVALUATION
  • Network-based Image Segmentation (cont’d)
  • The page segmentation algorithm proposed by Jain and Karu has three stages of computation:
    • 1.feature extraction
      • Based on 20 masks
    • 2.classification
      • A multisate feedforward neural network with
        • 20 input nodes
        • 20 hidden nodes
        • 3 output nodes.
    • 3.postprocessing
      • involves removing small noisy regions and placing rectangular blocks around homogenous identical regions.
performance evaluation52
PERFORMANCE EVALUATION
  • Network-based Image Segmentation (cont’d)

Schematic of the Page Segmentation Algorithm

performance evaluation53
PERFORMANCE EVALUATION

Page Segmentation

input gray level image

result of segmentation algorithm

result after postprocessing

conclusions
CONCLUSIONS:
  • A novel sheme of mapping MLPs on Custom Computing Machine has been presented.
  • The scheme is scalable in terms of number of nodes and the number of layers in the MLP and provides near-ASIC level speed.
  • The reconfigurality of CCMs has been exploited to map several layers of a MLP onto the same hardware.
  • The performance gains achieved using this mapping have been demonstrated on a network-based image segmentation.
