slide1

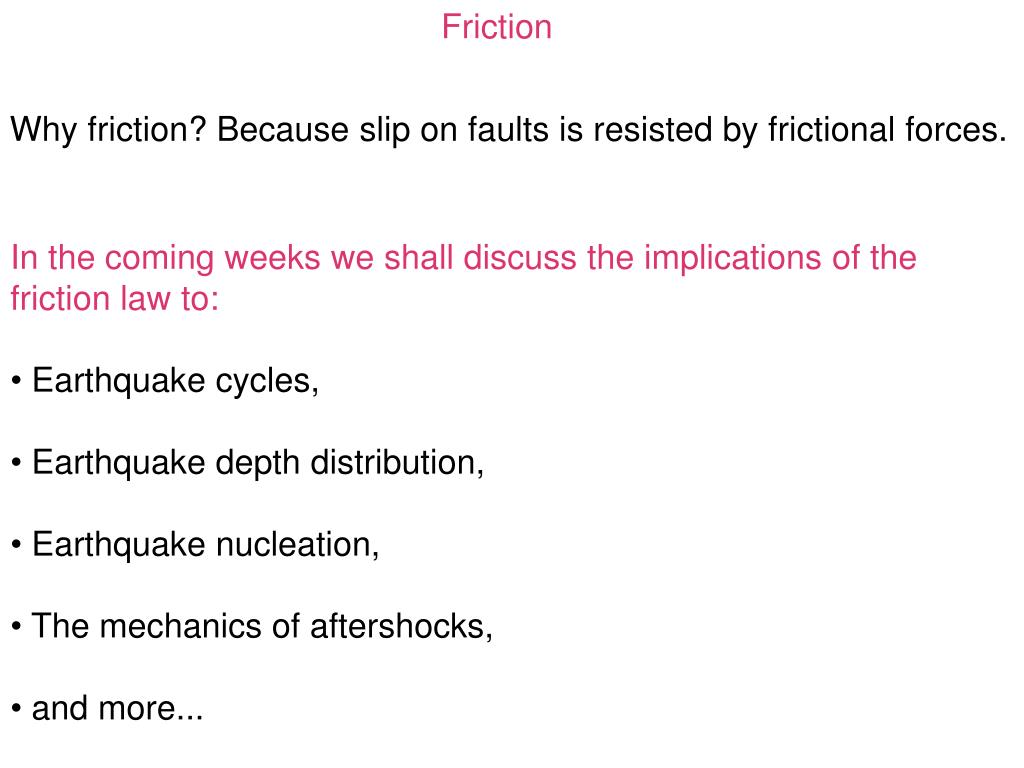

Friction

Why friction? Because slip on faults is resisted by frictional forces.

  • In the coming weeks we shall discuss the implications of the friction law to:
  • Earthquake cycles,
  • Earthquake depth distribution,
  • Earthquake nucleation,
  • The mechanics of aftershocks,
  • and more...
slide2

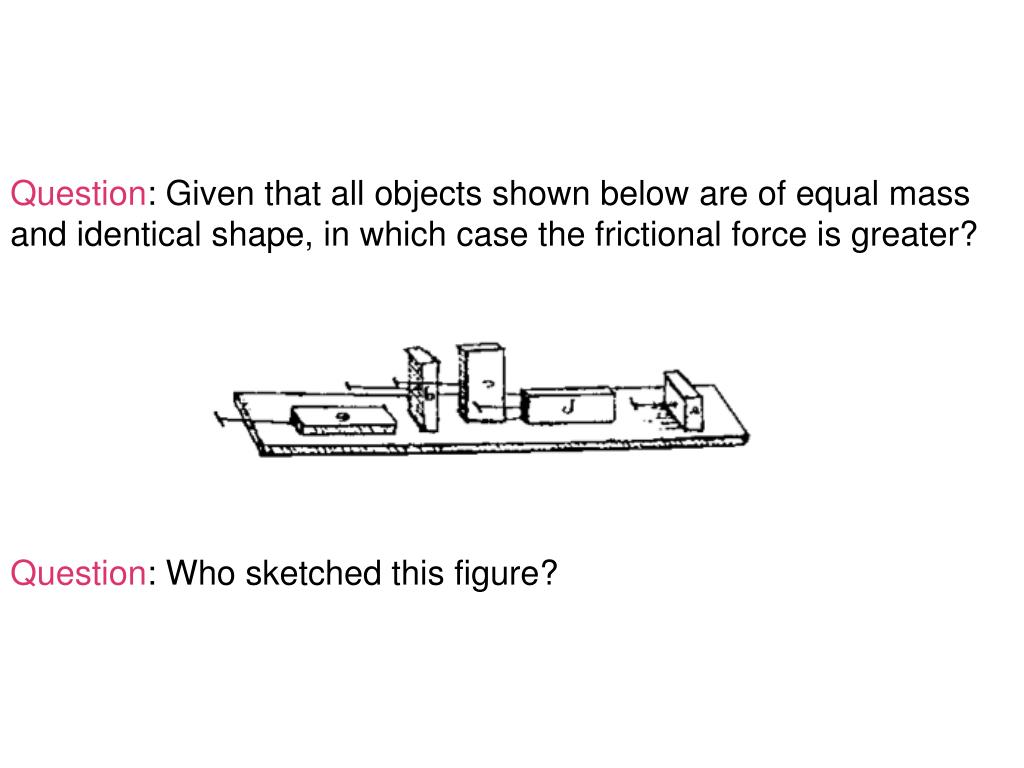

Question: Given that all objects shown below are of equal mass and identical shape, in which case the frictional force is greater?

Question: Who sketched this figure?

slide3

Da Vinci law and the paradox

Leonardo Da Vinci (1452-1519) showed that the friction force is independent of the geometrical area of contact.

Movie from: http://movies.nano-world.org

The paradox: Intuitively one would expect the friction force to scale proportionally to the contact area.

slide4

Amontons’ laws

Amontons' first law: The frictional force is independent of the geometrical contact area.

Amontons' second law: Friction, FS, is proportional to the normal force, FN:

Movie from: http://movies.nano-world.org

slide5

Bowden and Tabor (1950, 1964)

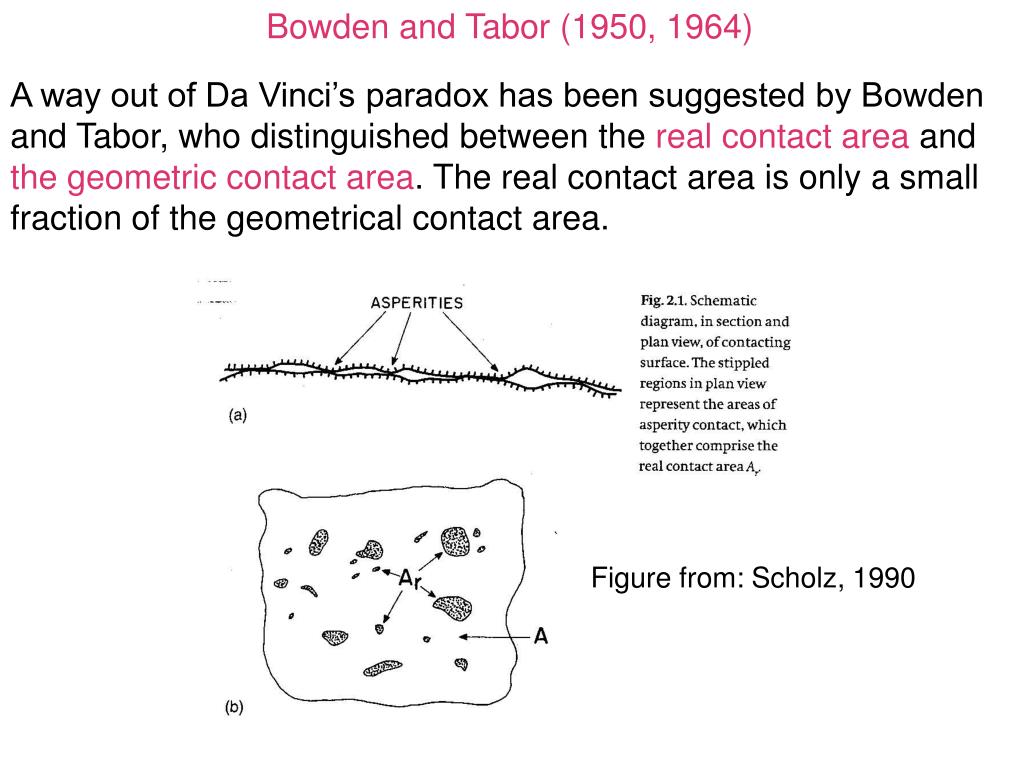

A way out of Da Vinci’s paradox has been suggested by Bowden and Tabor, who distinguished between the real contact area and the geometric contact area. The real contact area is only a small fraction of the geometrical contact area.

Figure from: Scholz, 1990

slide6

where p is the penetration hardness.

where s is the shear strength.

Thus:

Since both p and s are material constants, so is .

The good news is that this explains Da Vinci and Amontons’ laws.

But it does not explain Byerlee law…

slide7

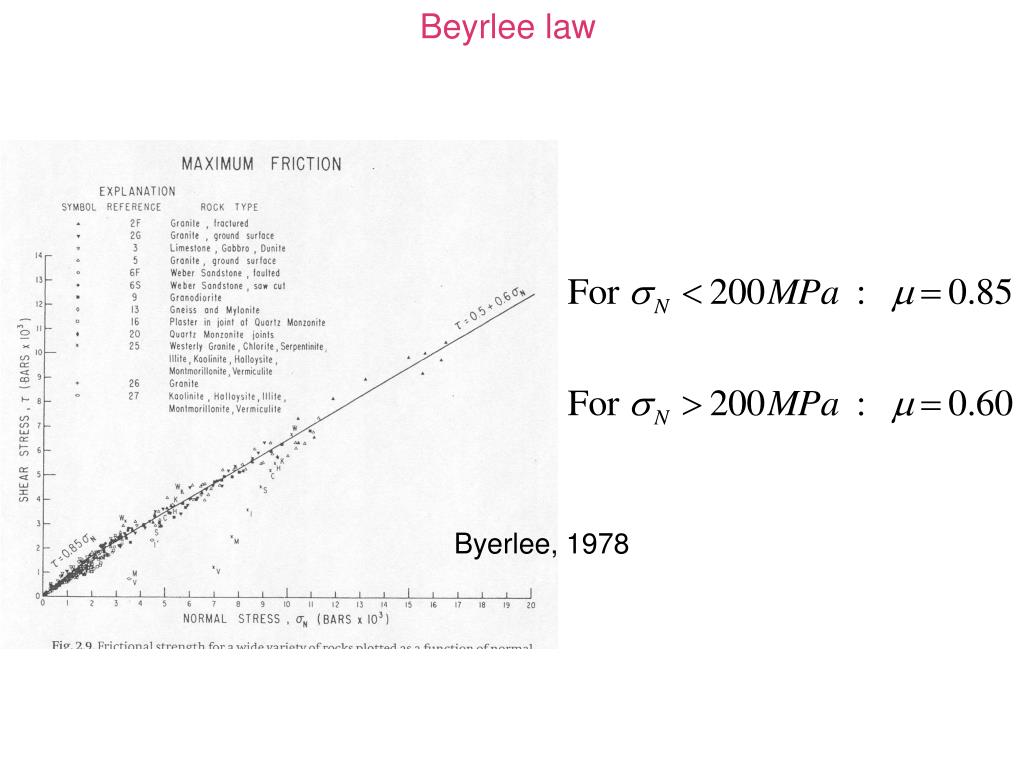

Beyrlee law

Byerlee, 1978

slide8

Static versus kinetic friction

The force required to start the motion of one object relative to another is greater than the force required to keep that object in motion.

Ohnaka (2003)

slide9

The law of Coulomb - is that so?

Friction is independent of sliding velocity.

Movie from: http://movies.nano-world.org

slide10

Velocity stepping - Dieterich

Dieterich and Kilgore, 1994

  • A sudden increase in the piston's velocity gives rise to a sudden increase in the friction, and vice versa.
  • The return of friction to steady-state occurs over a characteristic sliding distance.
  • Steady-state friction is velocity dependent.
slide11

Slide-hold-slide - Dieterich

Dieterich and Kilgore, 1994

Static (or peak) friction increases with hold time.

slide12

Slide-hold-slide - Dieterich

  • The increase in static friction is proportional to the logarithm of the hold duration.

Dieterich, 1972

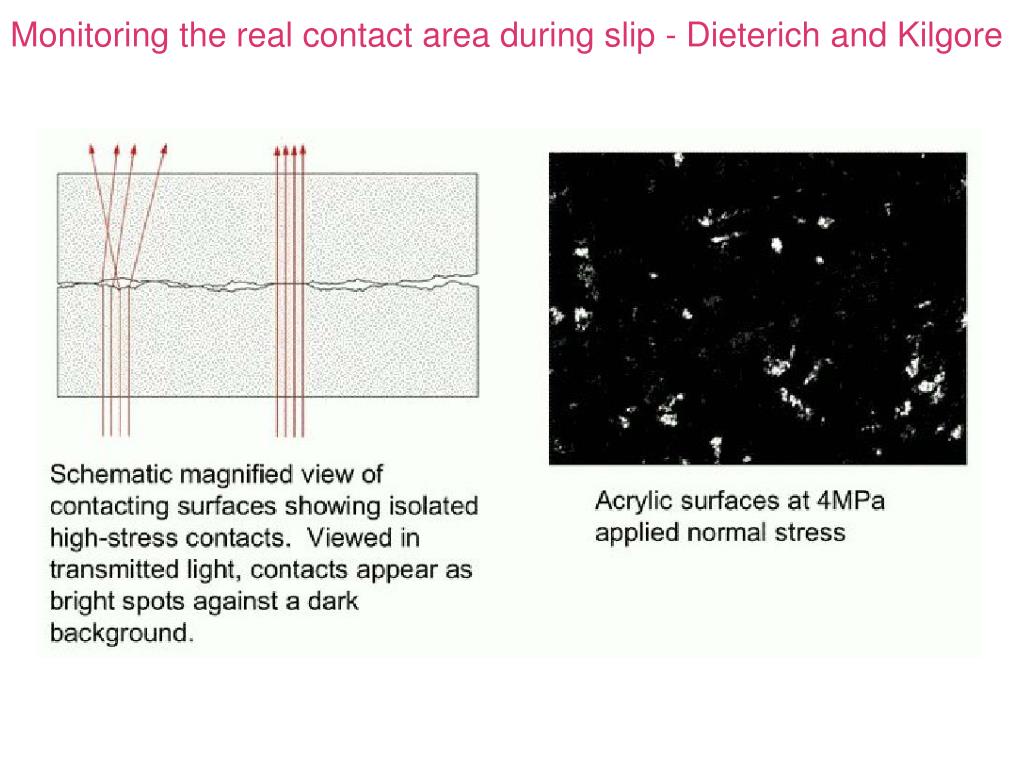

slide14

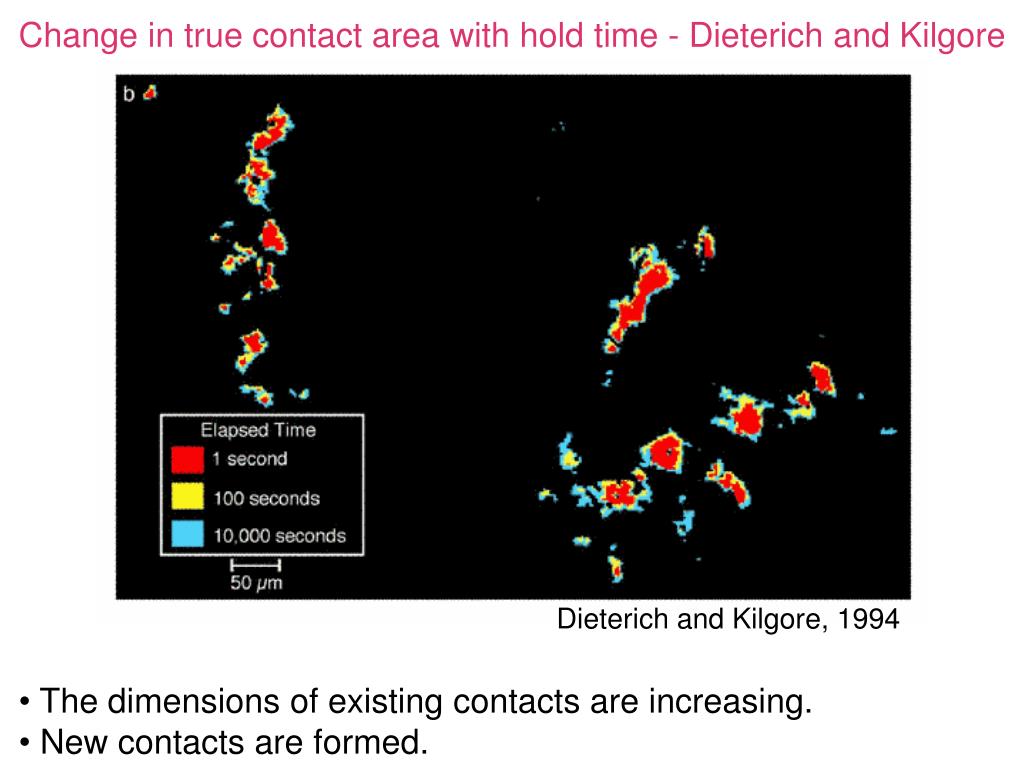

Change in true contact area with hold time - Dieterich and Kilgore

Dieterich and Kilgore, 1994

  • The dimensions of existing contacts are increasing.
  • New contacts are formed.
slide15

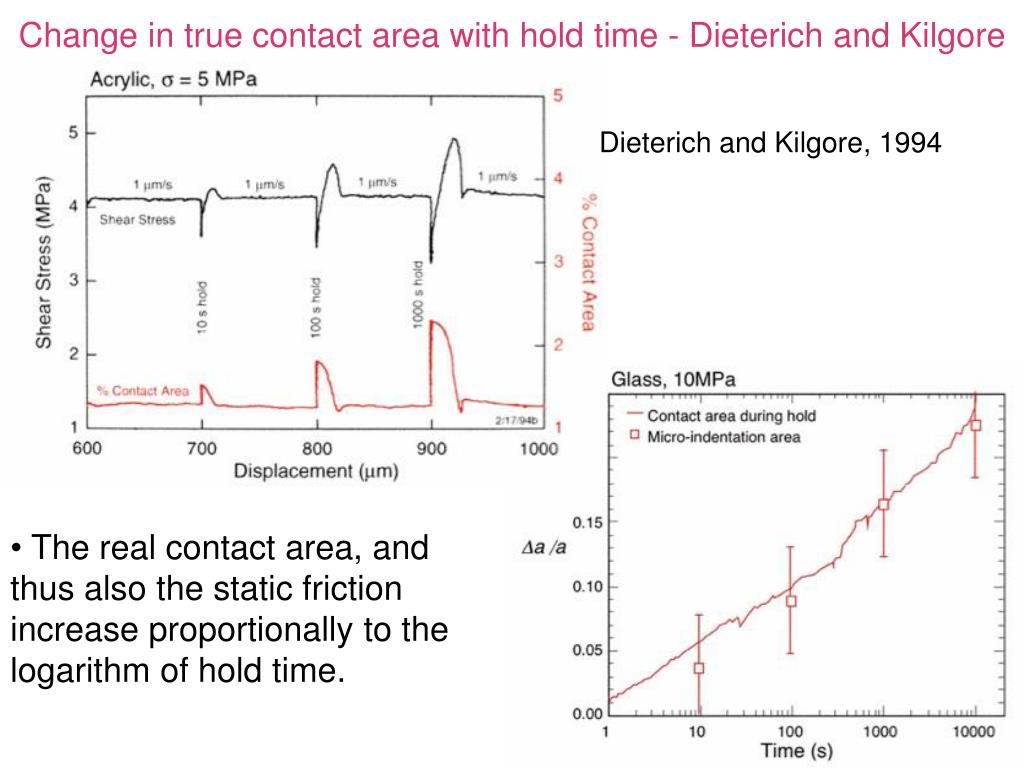

Change in true contact area with hold time - Dieterich and Kilgore

Dieterich and Kilgore, 1994

  • The real contact area, and thus also the static friction increase proportionally to the logarithm of hold time.
slide16

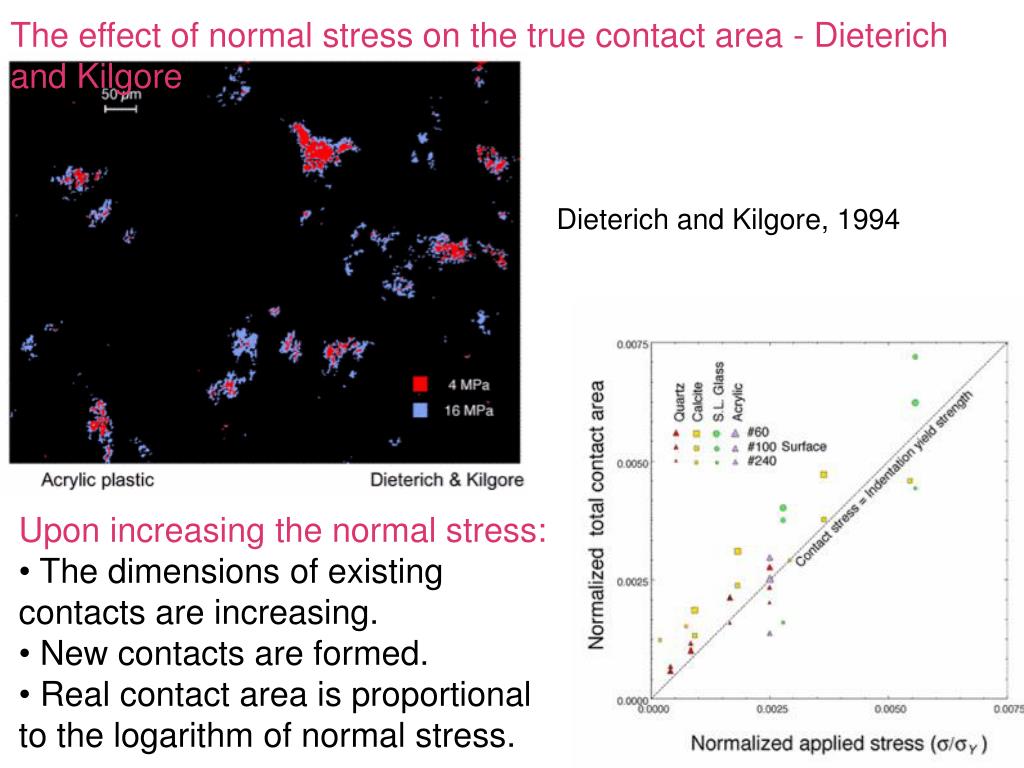

The effect of normal stress on the true contact area - Dieterich and Kilgore

Dieterich and Kilgore, 1994

  • Upon increasing the normal stress:
  • The dimensions of existing contacts are increasing.
  • New contacts are formed.
  • Real contact area is proportional to the logarithm of normal stress.
slide17

The effect of normal stress - Dieterich and Linker

  • Changes in the normal stresses affect the coefficient of friction in two ways:
  • Instantaneous response, whose trend on a shear stress versus shear strain curve is linear.
  • Delayed response, some of which is linear and some not.

Linker and Dieterich, 1992

Instantaneous

response

linear

response

slide18

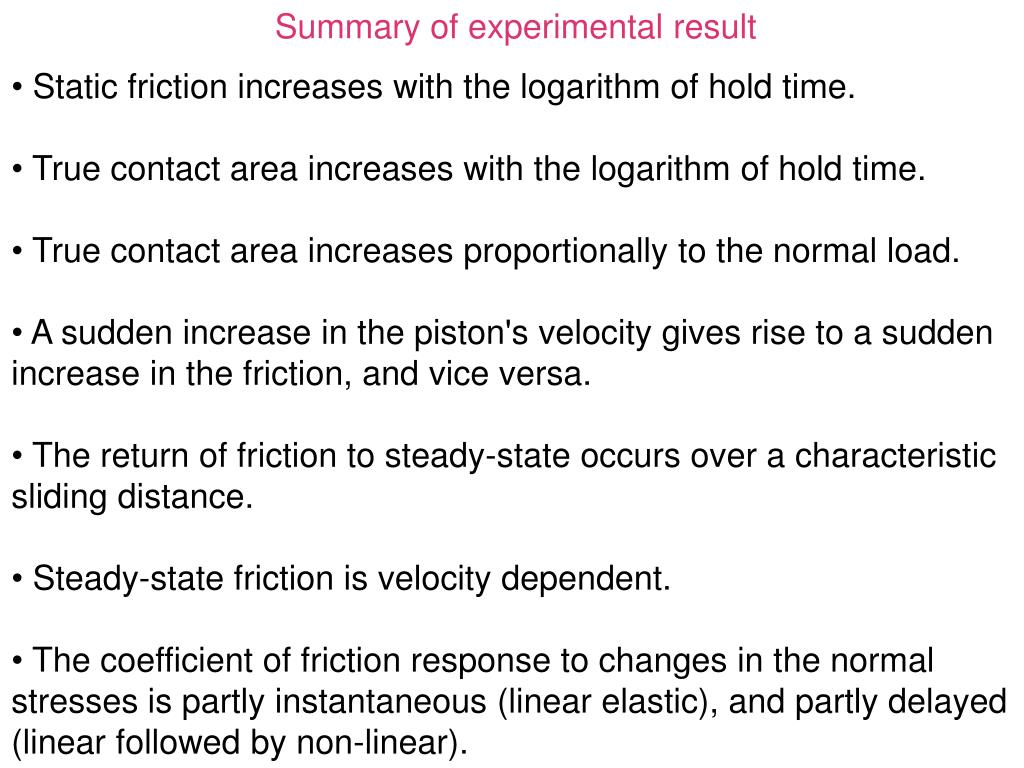

Summary of experimental result

  • Static friction increases with the logarithm of hold time.
  • True contact area increases with the logarithm of hold time.
  • True contact area increases proportionally to the normal load.
  • A sudden increase in the piston's velocity gives rise to a sudden increase in the friction, and vice versa.
  • The return of friction to steady-state occurs over a characteristic sliding distance.
  • Steady-state friction is velocity dependent.
  • The coefficient of friction response to changes in the normal stresses is partly instantaneous (linear elastic), and partly delayed (linear followed by non-linear).
slide19

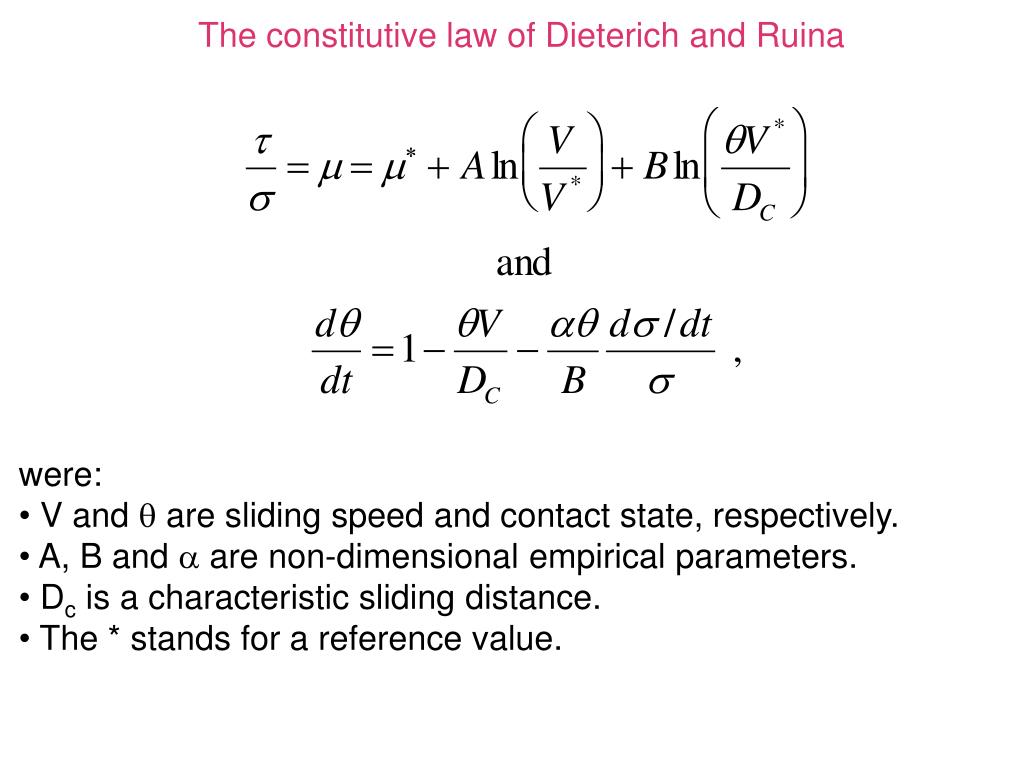

The constitutive law of Dieterich and Ruina

  • were:
  • V and  are sliding speed and contact state, respectively.
  • A, B and  are non-dimensional empirical parameters.
  • Dc is a characteristic sliding distance.
  • The * stands for a reference value.
slide20

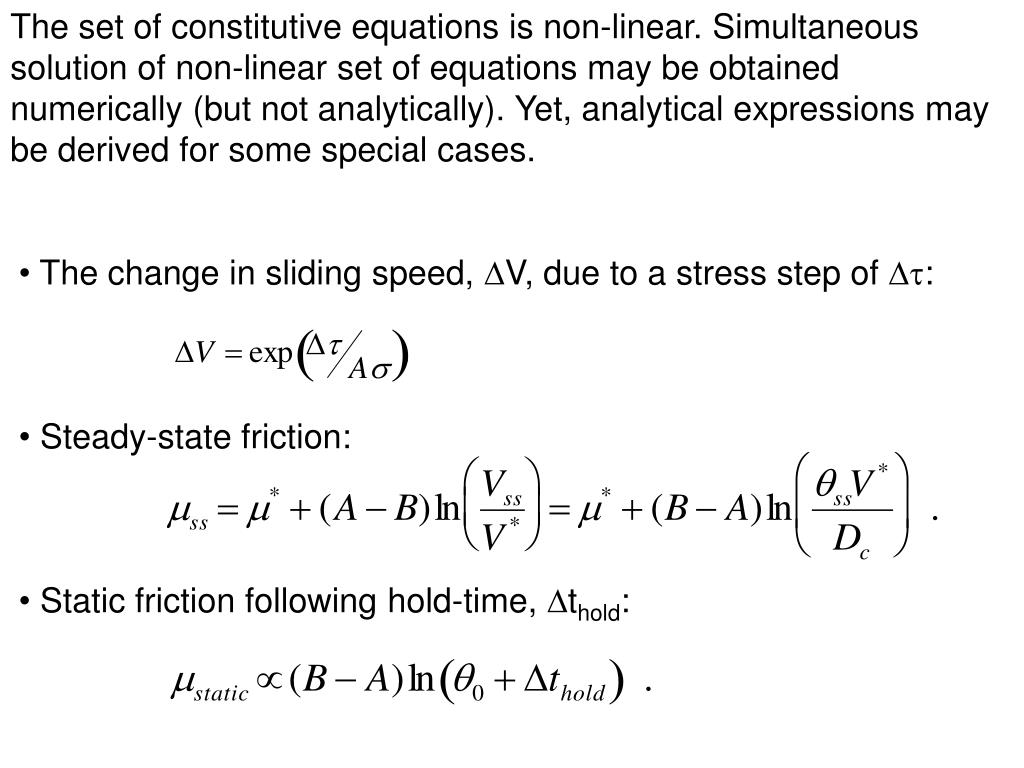

The set of constitutive equations is non-linear. Simultaneous solution of non-linear set of equations may be obtained numerically (but not analytically). Yet, analytical expressions may be derived for some special cases.

  • The change in sliding speed, V, due to a stress step of :
  • Steady-state friction:
  • Static friction following hold-time, thold:
slide21

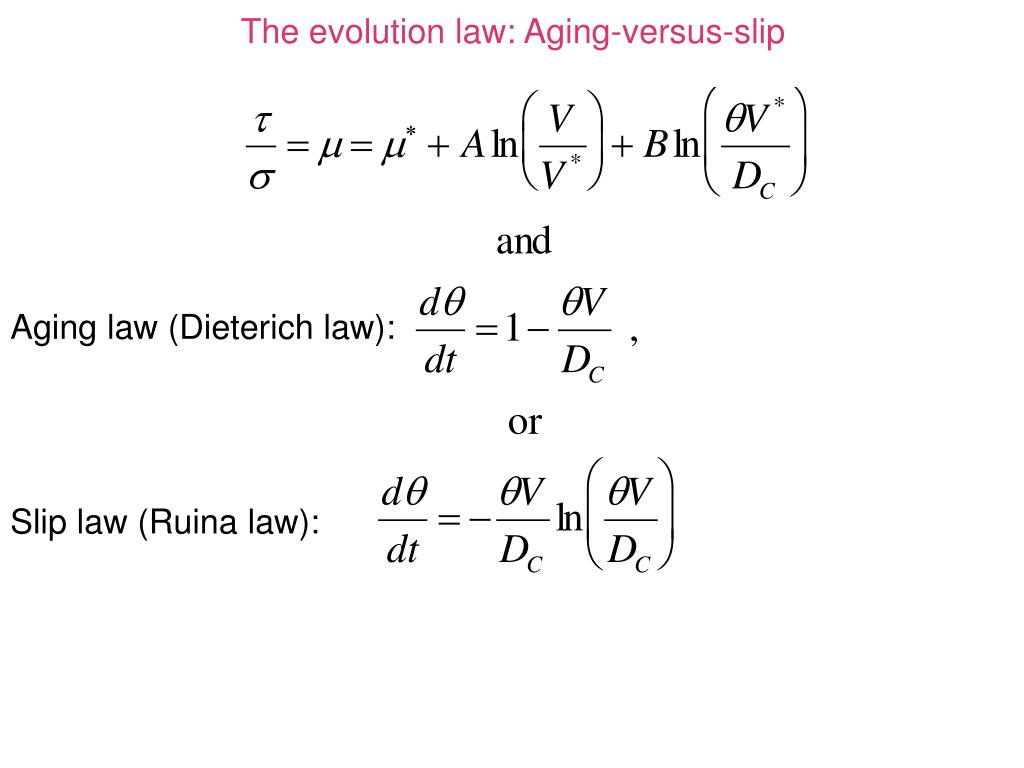

The evolution law: Aging-versus-slip

Aging law (Dieterich law):

Slip law (Ruina law):

slide22

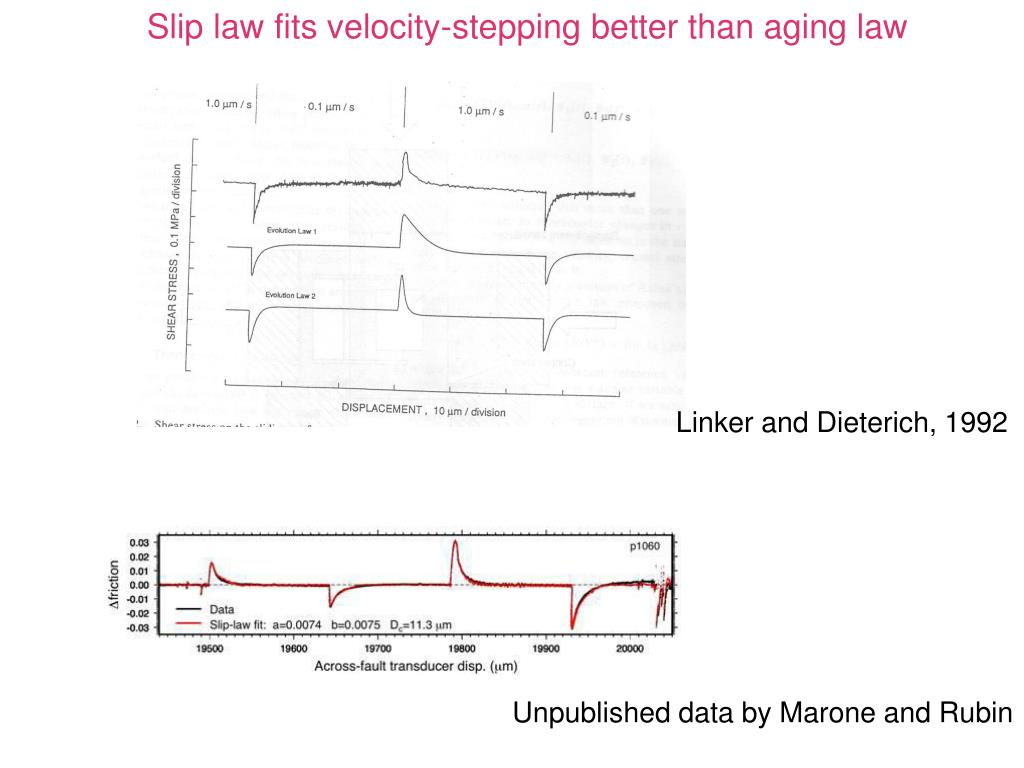

Slip law fits velocity-stepping better than aging law

Linker and Dieterich, 1992

Unpublished data by Marone and Rubin

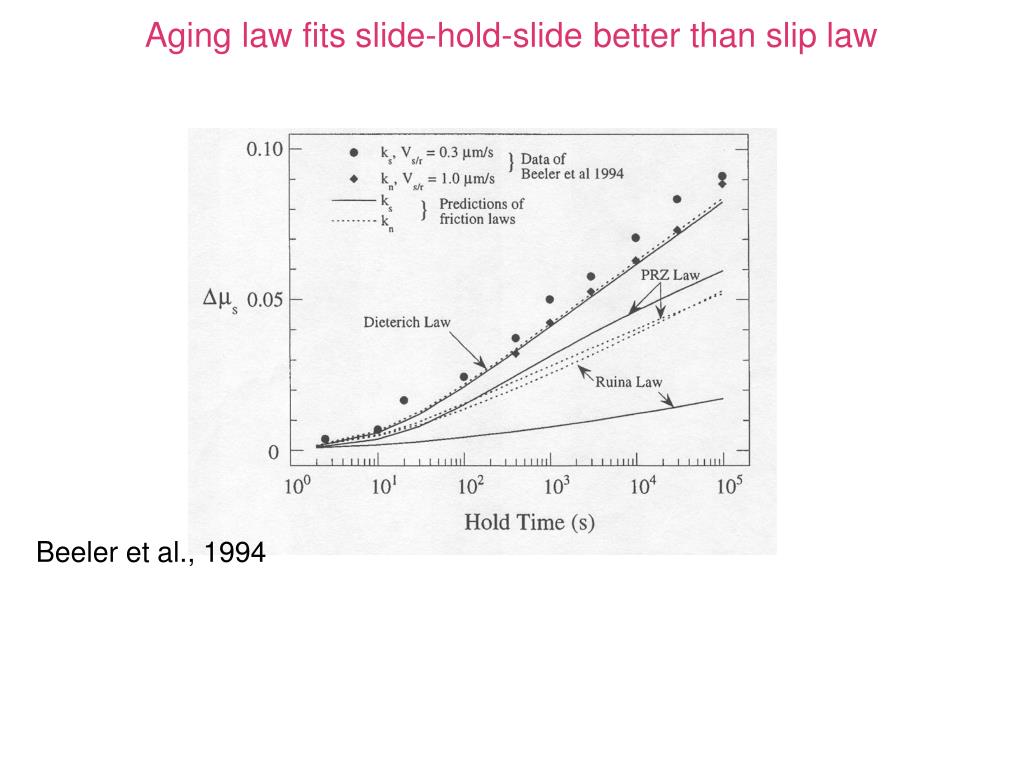

slide24

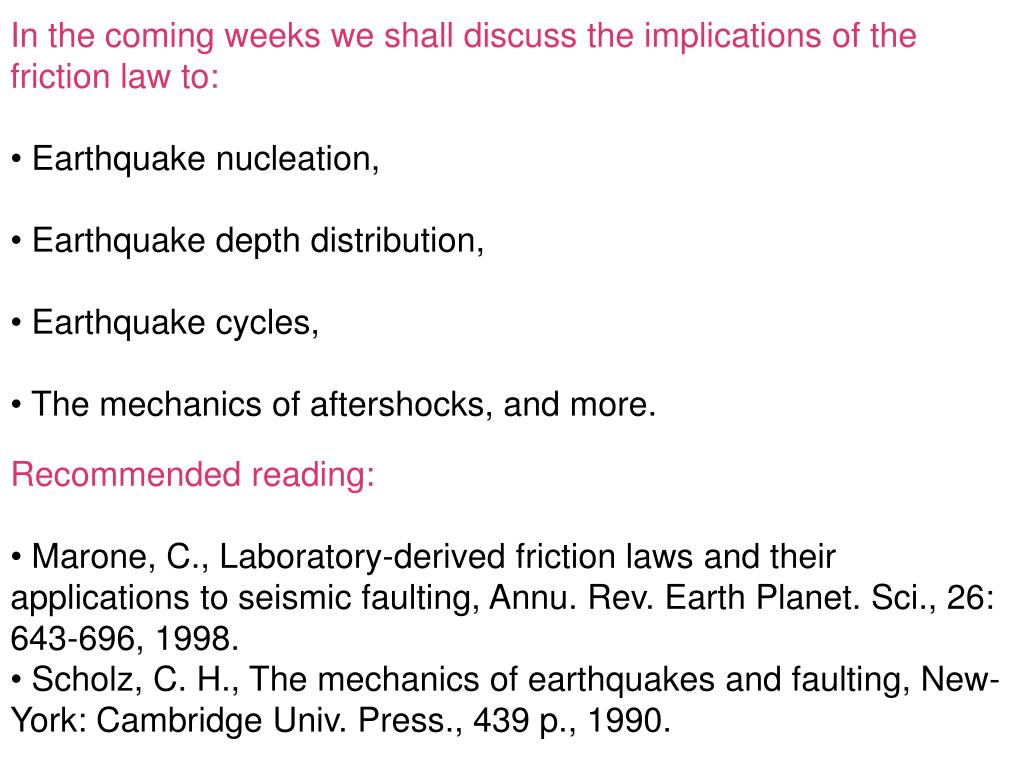

In the coming weeks we shall discuss the implications of the friction law to:

  • Earthquake nucleation,
  • Earthquake depth distribution,
  • Earthquake cycles,
  • The mechanics of aftershocks, and more.
  • Recommended reading:
  • Marone, C., Laboratory-derived friction laws and their applications to seismic faulting, Annu. Rev. Earth Planet. Sci., 26: 643-696, 1998.
  • Scholz, C. H., The mechanics of earthquakes and faulting, New-York: Cambridge Univ. Press., 439 p., 1990.
