Net compact framework development

.NET Compact Framework Development

With VB.NET

Don Sorcinelli

Microsoft MVP – Mobile Devices

Editor-In-Chief

Bostonpocketpc.com

Club Pocket PC - Boston


Agenda
Agenda

  • Introduction

  • A Brief History of Windows Mobile Development

  • Introduction to .NET Compact Framework Development

  • .NET CF Tips, Tricks and Recommendations

  • .NET CF “Futures”

  • Q & A


Introduction
Introduction

  • Windows Mobile “Evangelist”

    • Consumer

    • Enterprise

    • Developer

  • Developer

    • Enterprise focus

    • Multiple languages, platforms and technologies


A brief history of windows mobile development
A Brief History of Windows Mobile Development

  • Embedded Tools for Visual Studio

    • VS 6

    • Tools for VB, C++

  • eMBedded Tools

    • Standalone and free

    • eVB

    • eC++

  • .NET Compact Framework (First Pass)

    • Visual Studio.NET

    • Smart Device Extensions


Current state of the net compact framework

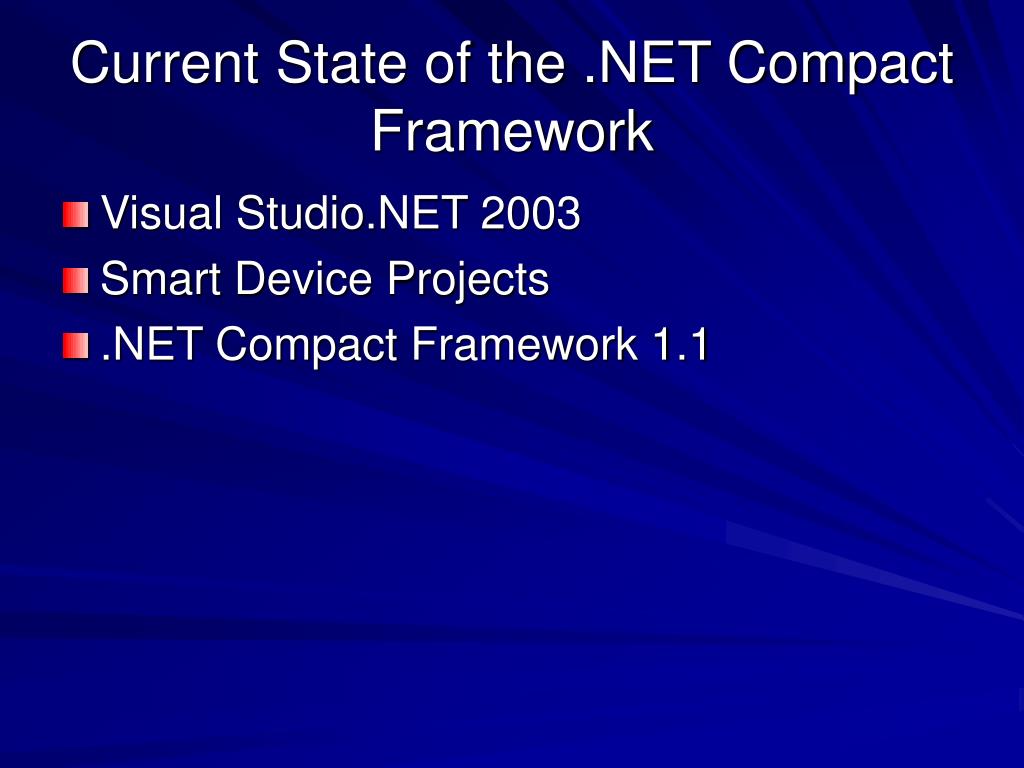

Current State of the .NET Compact Framework

  • Visual Studio.NET 2003

  • Smart Device Projects

  • .NET Compact Framework 1.1


Introduction to the net compact framework
Introduction to the .NET Compact Framework

  • What is the .NET CF?

  • What can I do with the .NET CF?

  • What can’t I do with the .NET CF?


What is the net cf
What is the .NET CF?

  • Essentially, the .NET CF is an “extended subset” of the .NET Framework

    • “Subset”: Some non-essential classes are not included

    • “Extended”: Functionality specific to the Windows Mobile platform

  • High-level goal: Extend the .NET developer platform to the Windows Mobile device platform


What can i do with the net cf
What can I do with the .NET CF?

  • Simple answer –

    • Much of what you would do with regards to .NET client development

  • Possibilities

    • Rich client applications

    • Web services

    • Extending enterprise applications to Windows Mobile devices


What can t i do with the net cf
What can’t I do with the .NET CF?

  • Simple answer: “Not much”

  • Limitations are mostly restricted to the classes not included in the .NET CF

    • .NET Remoting

    • Web server/ASP.NET

  • Some of the limitations can be overcome by third-party supplements

    • More on that later



Net cf tips tricks and recommendations
.NET CF Tips, Tricks and Recommendations

  • “Fill In The Holes”

  • UI Design Considerations

  • Extending Enterprise Applications


Fill in the holes
“Fill In The Holes”

  • Notable gaps in the .NET CF:

    • Managed access to “Pocket Outlook”

    • XML Serialization

    • Managed access to platform APIs

  • Third-Party Tools can fill the gap


Opennetcf org smart device framework
OpenNETCF.org – Smart Device Framework

  • Open source .NET CF library

  • Designed to fill the gaps in the .NET CF

  • http://www.opennetcf.org



Pocket outlook in the hand
Pocket Outlook In-The-Hand

  • Managed access to Pocket Outlook

    • Contacts

    • Tasks

    • Appointments



Pocket pc magazine best software awards
Pocket PC Magazine Best Software Awards

  • Includes a Developer category

  • Dozens of third-party tools for .NET CF development


Ui design considerations

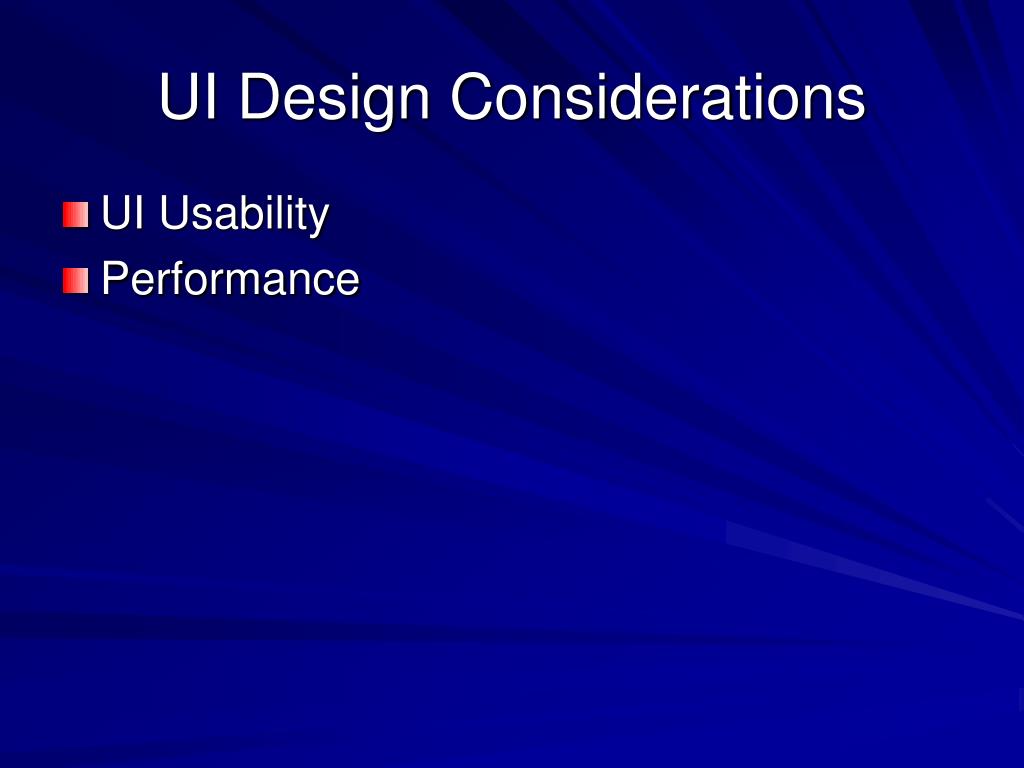

UI Design Considerations

  • UI Usability

  • Performance


Ui usability
UI Usability

  • Three device categories within the Windows Mobile platform:

    • Windows Mobile for Pocket PC

    • Windows Mobile for Pocket PC Phone Edition

    • Windows Mobile for Smartphone

  • Smartphone does not support stylus entry

    • T9 input and key navigation

  • IMPACT: Screen layouts for Smartphone should be carefully considered

    • Tab Order


Ui usability1
UI Usability

  • Windows Mobile 2003 Second Edition

    • Supports:

      • Landscape and portrait orientations

      • HiDPI resolution (VGA)

    • IMPACT: Applications should be orientation- and resolution-aware

    • For more information:

      • MSDN Mobile and Embedded Developer Center

        • http://msdn.microsoft.com/mobility

      • ARTICLE: Developing Orientation and dpi Aware Applications for the .NET Compact Framework

        • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/dnwm2k3/html/dpi_awareness.asp



Ui usability2
UI Usability

  • Limited Screen “Real Estate”

    • Pocket PC, Phone Edition

      • VGA – 480 x 640

      • QVGA (Most Common) – 240 x 320

    • Smartphone (Smaller Screen)

      • VGA – 480 x 640

      • QVGA (Most Common) – 240 x 320

  • IMPACT: UIs should be designed and tested for usability

    • Analogy: Early days of GUI and web application development


Performance
Performance

  • Windows Mobile Architecture “Primer”

  • Performance Techniques



Device cpus
Device CPUs

  • Intel XScale

    • Designed for battery life (ULV)

    • Fastest production model – 624 MHz

  • TI OMAP

    • Designed for use in Phone Edition and Smartphone

      • Even more emphasis on battery life

    • 200 MHz

  • Samsung Mobile CPU

    • Multiple clock speeds; fastest = 533 MHz


Device cpus1
Device CPUs

  • All are ARM Instruction Set compatible

    • You do not have to worry about device CPU differences

  • OVERALL IMPACTS:

    • CPUs are not as powerful as desktop computers

    • Processor-intensive applications will run more slowly

    • Consider offloading “heavy lifting”

      • Web services/Server


Memory model
Memory Model

  • Non-volatile ROM

    • System ROM

    • “FileStore”

    • Data will persist beyond a hard reset

  • Volatile ROM

    • “Main Memory”

    • Data will not persist beyond a hard reset

  • Smartphone OS

    • Volatile ROM will not persist beyond a soft reset


Memory management
Memory Management

  • Volatile ROM is broken into two categories:

    • Storage Memory: Application and data stored in the file system

    • Program Memory: Memory space for running applications

      • “Virtual RAM”

  • The more that is stored in Storage Memory, the less that is available for Program Memory

  • IMPACT: Memory can be constrained. Applications should be designed for maximum memory management.


Performance tips
Performance Tips

  • UI Usability

  • Memory Management/Performance


Ui usability3
UI Usability

  • Avoid graphics-intensive screens

    • Real Estate

    • Processing

  • Consider tabs rather than multiple forms

    • There is an initial performance hit

    • Less need for opening multiple forms

  • Preloading of forms

    • There is an initial performance hit

    • Showing rather than initializing saves time during execution



Memory management1
Memory Management

  • When done with objects, dispose of them

    • Do not rely solely on garbage collection

  • When connecting via the network, connect only as long as you need to

  • For enterprise and Internet applications: Plan for an “occasionally connected” model of data management

    • There is no perfect wireless technology

    • Consider:

      • SQL Server CE

      • XML


Sql server ce
SQL Server CE

  • Limited subset of SQL Server functionality

  • Good for:

    • Persistent storage locally

    • Persistent storage for occasionally-connected applications and large sets of data

    • Merge Replication

  • Currently, SQL Server CE requires an additional installation


XML

  • Good for:

    • Persistent storage of smaller sets of data

      • Local storage

      • Occasionally-connected computing

    • Not as secure as SQL Server CE


Net cf futures
.NET CF “Futures”

  • Whidbey – Visual Studio.NET 2005

  • .NET Compact Framework 2.0


Visual studio net 2005
Visual Studio.NET 2005

  • New Packaging

    • “Express” versions: Will not include .NET CF development

    • “Professional” version will provide .NET CF support

  • Native Emulators

    • Previously, an x86 emulator ran on the desktop

  • Integrated support for landscape development

  • Complete deployment support

    • Installation wizard support for Windows Mobile


Net compact framework 2 0
.NET Compact Framework 2.0

  • Additional classes

    • Serialization

  • Event Notification API

    • Publish/Subscribe methodology

    • Applications can subscribe to a variety of system events

    • Applications can publish events

    • POSSIBLE USES:

      • SMS Interception

      • Device-side real-time application integration
