Cycloidal Gearbox | SRV-E Series | PDF Download

SMD is glad to announce the release of our new line of products the CYCLOIDAL Gearbox( SRV-E series ).<br>Our team is ready for your inquiries, please feel free to get in touch with us at any time.<br><br>Visit us:- https://www.smdgearbox.com/cycloidal-gearbox<br><br>Rated Output Torque: 72Nm to 4410Nm<br>Backlash: Less than 1 Arc-min.<br>Ratio: 1:82 to 1:300 for case run.<br>High load impact resistance<br>Compact and light weight

SMD_Gearbox
Download Presentation

Cycloidal Gearbox | SRV-E Series | PDF Download

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

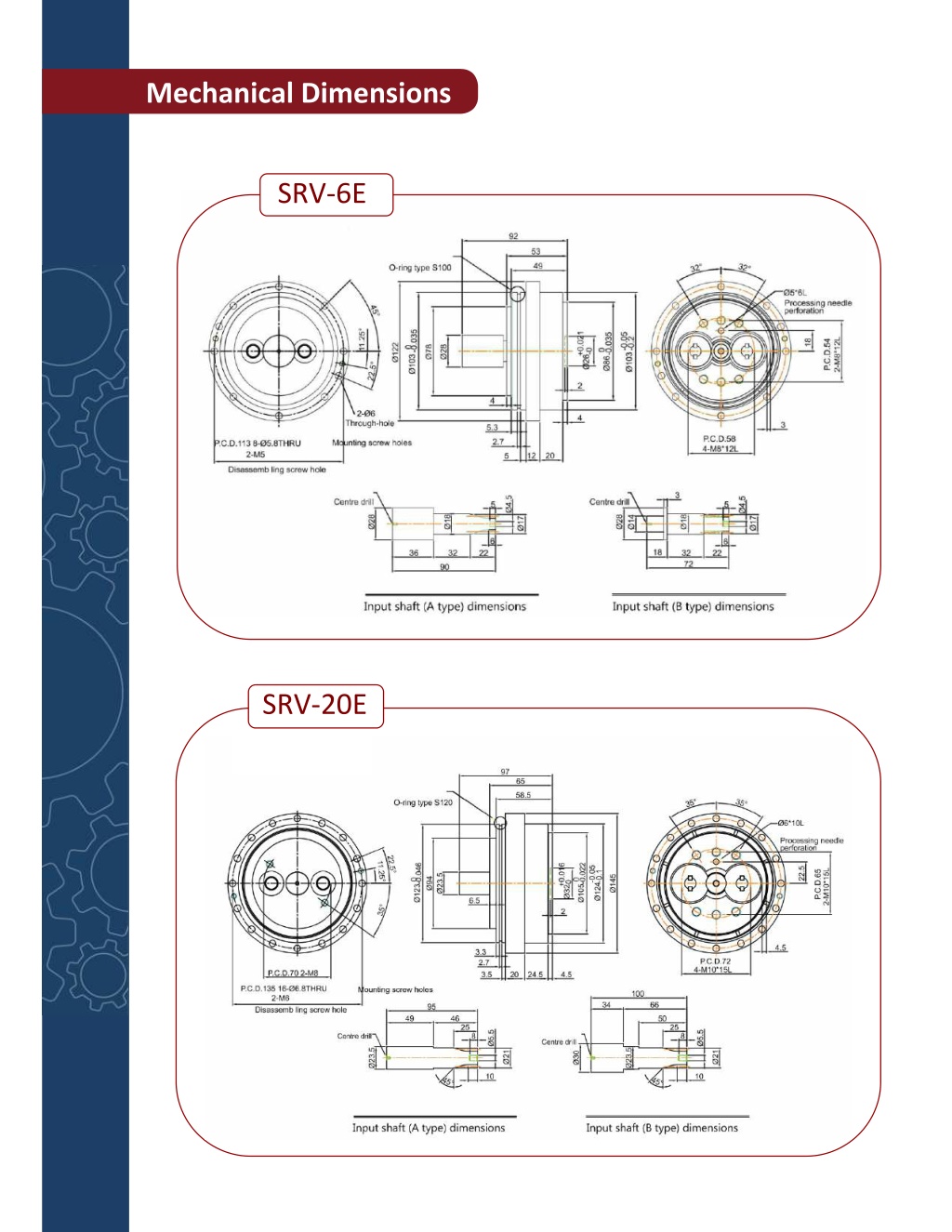

  1. Mechanical Dimensions SRV-6E SRV-20E

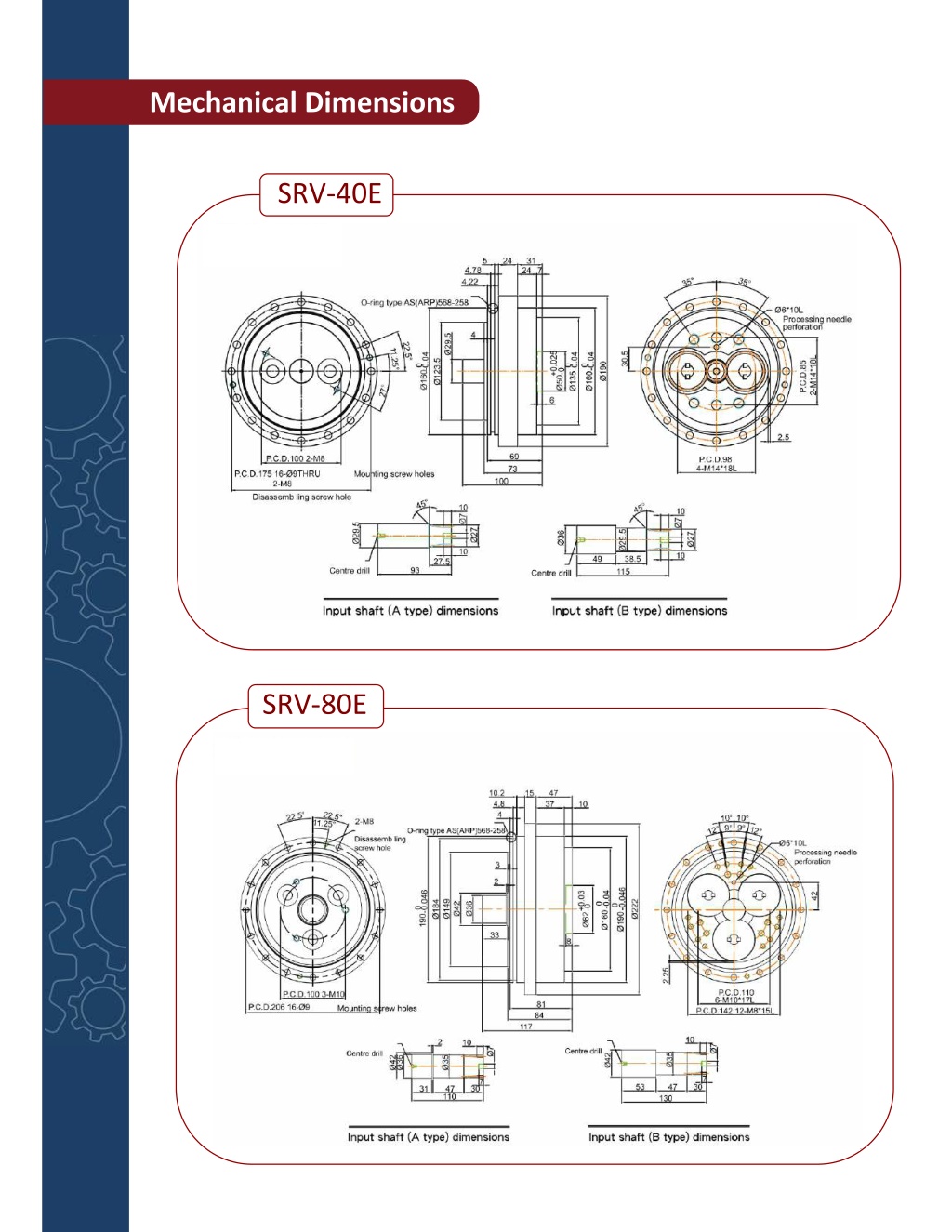

  2. Mechanical Dimensions SRV-40E SRV-80E

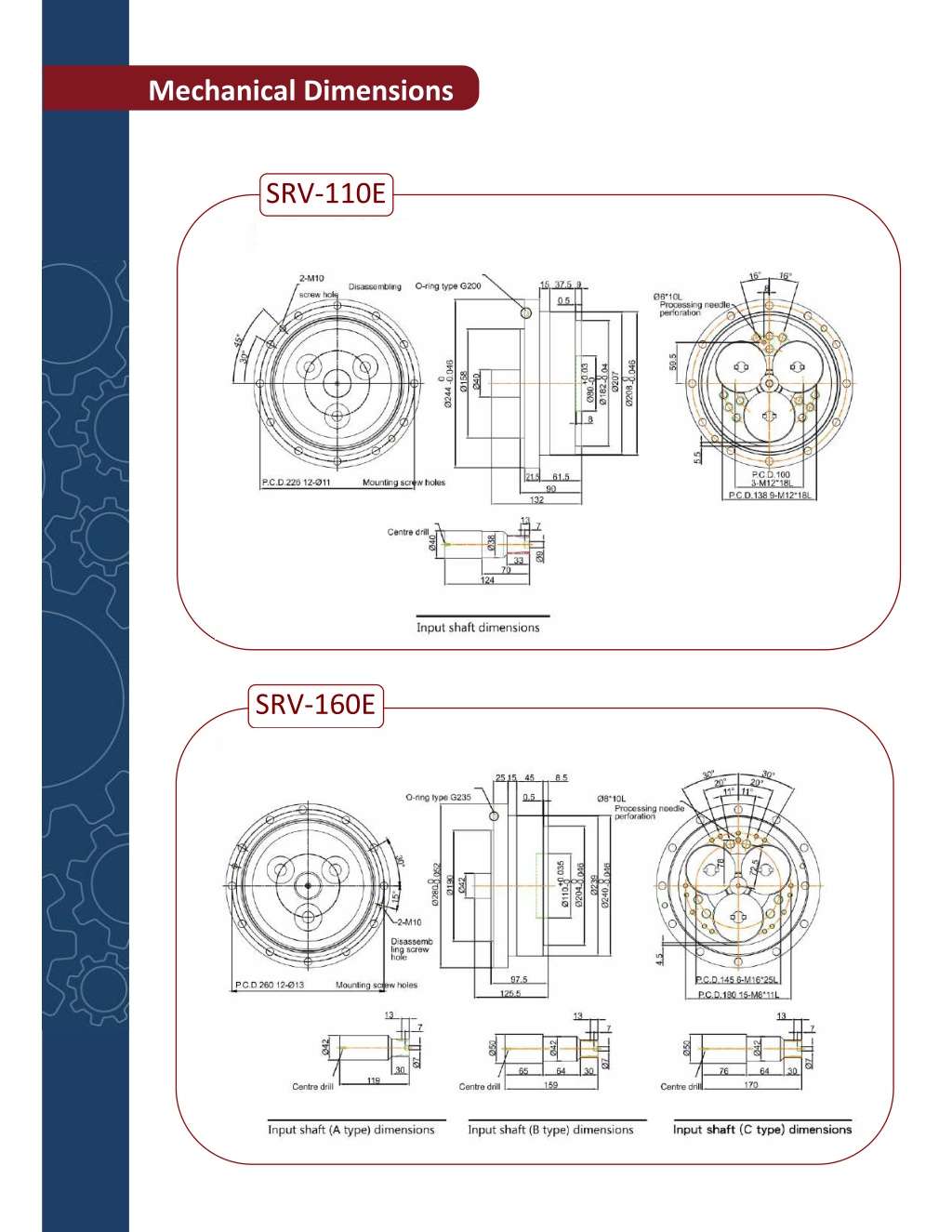

  3. Mechanical Dimensions SRV-110E SRV-160E

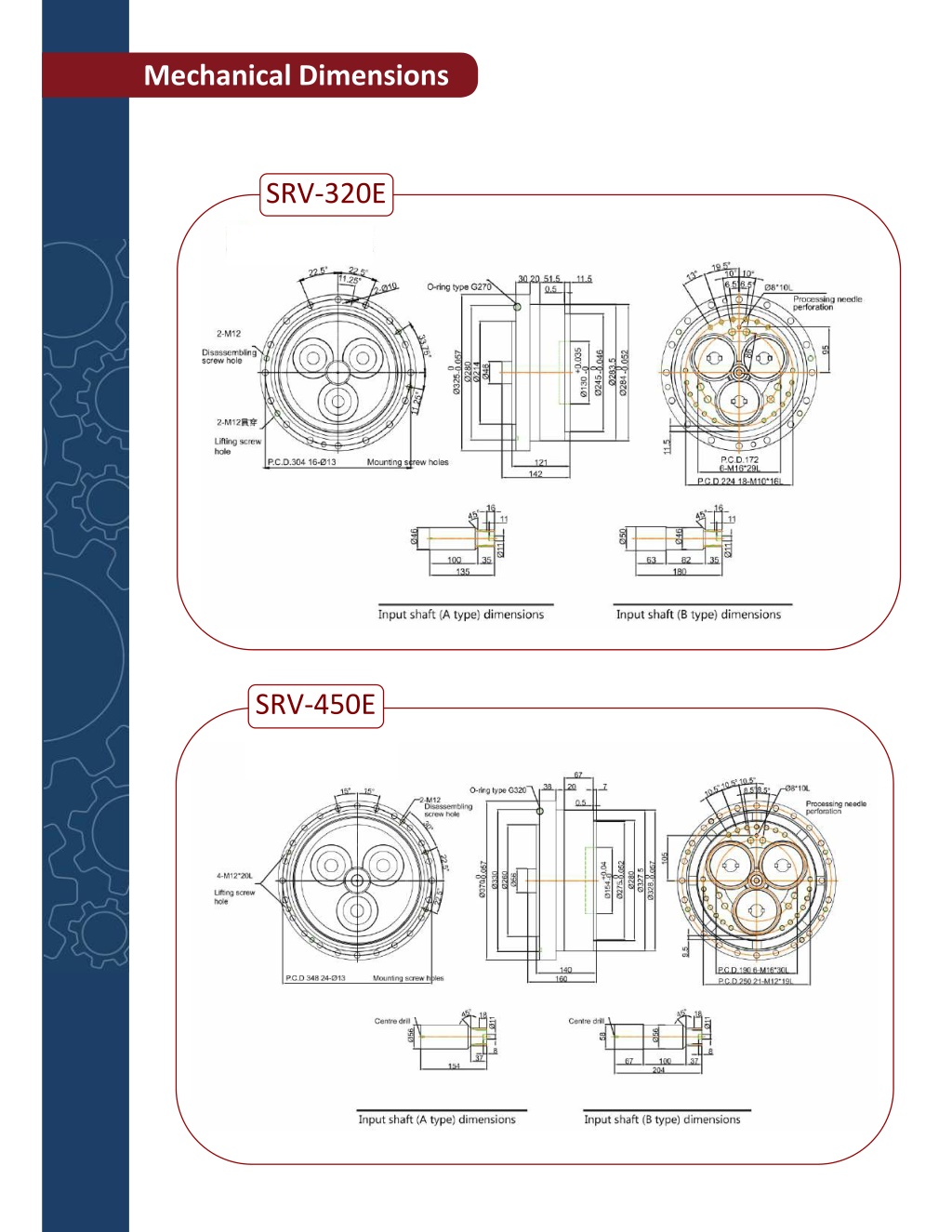

  4. Mechanical Dimensions SRV-320E SRV-450E
