algorithm types
ALGORITHM TYPES

Greedy, Divide and Conquer, Dynamic Programming, Random Algorithms, and Backtracking.

Note the general strategy from the examples.

The classification is neither exhaustive (there may be more) nor mutually exclusive (one may combine).

We are now emphasizing design of algorithms, not data structures.

greedy some scheduling problems
GREEDY: Some Scheduling problems

Scheduling Algorithm: Optimizing function is aggregate finish-time with one processor

(job-id, duration pairs)::(j1, 15), (j2, 8), (j3, 3), (j4, 10): aggregate FT in this order is 15+23+26+36=100

Note: durations of tasks are getting added multiple times: 15 + (15+8) + ((15+8) + 3) + . . .

Optimal schedule is the Greedy schedule: j3, j2, j4, j1. Aggregate FT=3+11+21+36=71 [Let the lower values get added more times: shortest job first]

Sort: O(n log n), + Placing: (n),

Total: O(n log n),

multi processor scheduling aggregate ft
MULTI-PROCESSOR SCHEDULING (Aggregate FT)

Optimizing Fn. Aggregate FT - Strategy: Assign pre-ordered jobs over processors one by one

Input (job-id, duration)::(j2, 5), (j1, 3), (j5, 11), (j3, 6), (j4, 10), (j8, 18), (j6, 14), (j7, 15), (j9, 20): 3 proc

Sort first: (j1, 3), (j2, 5), (j3, 6), (j4, 10), (j5, 11), (j6, 14), (j7, 15), (j8, 18), (j9, 20) // O (n log n)

Schedule next job on earliest available processor

Proc 1: j1, j4, j7

Proc 2: j2, j5, j8

Proc 3: j3, j6, j9

// Sort: Theta(n log n), Place: Theta(n), Total: Theta(n log n)

Note the first task is to order jobs for a “greedy” pick up

multi processor scheduling last ft
Optimizing Fn. Last FT - Strategy: Sort jobs in reverse order, assign next job on the earliest available processor

(j3, 6), (j1, 3), (j2, 5), (j4, 10), (j6, 14), (j5, 11), (j8, 18), (j7, 15), (j9, 20): 3 proc

Reverse sort-

(j9, 20), (j8, 18), (j7, 15), (j6, 14), (j5, 11), (j4, 10), (j3, 6), (j2, 5), (j1, 3)

Proc 1: j9 - 20, j4 - 30, j1 - 33.

Proc 2: j8 - 18, j5 - 29, j3 - 35,

Proc 3: j7 - 15, j6 - 29, j2 - 34, Last FT = 35.

// sort: O(n log n)

// place: naïve: (nM), with heap over processors: O(n log m)

Optimal: Proc1: j2, j5, j8; Proc 2: j6, j9; Proc 3: j1, j3, j4, j7. Last FT = 34.

Greedy alg is not optimal algorithm here, but the relative err <= [1/3 - 1/3m], for m processors.

An NP-complete problem, greedy alg is polynomial O(n logn) for n jobs (from sorting, assignment is additional O(n), choice of next proc. In each cycle O(log m) using heap, total O(n logn + n logm), for n>>m the first term dominates).

MULTI-PROCESSOR SCHEDULING (Last FT)
huffman codes
HUFFMAN CODES

Problem: device a (binary) coding of alphabets for a text, given their frequency in the text, such that the total number of bits in the translation is minimum.

Encoding: alphabets on leaves of a binary tree (each edge indicating 0 or 1).

Result of Weiss’ book: Fig 10.11, page 392, for 7 alphabets: (a, 001, freq=10, total=3x10=30 bits), (e, 01, 15, 2x15=30 bits), (i, 10, 12, 24 bits), (s, 00000, 3, 15 bits), (t, 0001, 4, 16 bits), (space, 11, 13, 26 bits), (newline, 00001, 1, 5 bits), Total bits=146 is the minimum possible.

huffman codes algorithm
HUFFMAN CODES: Algorithm

At every iteration, form a binary tree using the two smallest (lowest aggregate frequency) available trees in a forest, the tree’s frequency is the aggregate of its leaves’ frequency. Start from a forest of all nodes (alphabets) with their frequencies being their weights. When the final single binary-tree is formed use that tree for encoding.

Example: Weiss: page 390-395.

slide7

HUFFMAN CODES: Complexity

First, initialize a min-heap for n nodes: O(n)

Pick 2 best (minimum) trees: 2(log n)

Do that for an order of n times: O(n log n)

Insert 1 or 2 trees in the heap: O(log n)

Do that for an order of n times: O(n log n)

Total: O(n log n)

rational knapsack not in the text
RATIONAL KNAPSACK(not in the text)

Given a set of objects with (Weight, Profit) pair, and a Knapsack of limited weight capacity (M), find a subset of objects for the knapsack to maximize profit, partial objects (broken) are allowed.

Greedy Algorithm: Put objects in the KS in a non-increasing (high to low) order of profit density (profit/weight). Break the last object which does not fit in the KS otherwise.

Example: (4, 12), (5, 20), (10, 10), (12, 6); M=14.

Solution: KS={(5, 20), (4, 12), (5, 5), Weight=14, Profit=37}.

Optimal, polynomial algorithm O(N log N) for N objects - from sorting.

0-1 KS problem: cannot break any object: NP-complete, Greedy Algorithm is no longer optimal.

approximate bin packing
APPROXIMATE BIN PACKING

Problem: fill in objects each of size<= 1, in minimum number of bins (optimal) each of size=1 (NP-complete).

Example: 0.2, 0.5, 0.4, 0.7, 0.1, 0.3, 0.8.

Solution: B1: 0.2+0.8, B2: 0.3+0.7, B3: 0.1+0.4+0.5. All bins are full, so must be optimal solution (note: optimal solution need not have all bins full).

Online problem: do not have access to the full set: incremental;

Offline problem: can order the set before starting.

online bin packing
ONLINE BIN PACKING

Theorem 1: No online algorithm can do better than 4/3 of the optimal #bins, for any given input set.

Proof. (by contradiction: we will use a particular input set, on which our online algorithm A presumably violates the Theorem)

Consider input of M items of size 1/2 - k, followed by M items of size 1/2 + k, for 0<k<0.01

[Optimum #bin should be M for them.]

Suppose alg A can do better than 4/3, and it packs first M items in b bins, which optimally needs M/2 bins. So, by assumption of violation of Thm, b/(M/2)<4/3, or b/M<2/3 [fact 0]

online bin packing11
ONLINE BIN PACKING
  • Each bin has either 1 or 2 items
  • Say, the first b bins containing x items,
    • So, x is at most or 2b items
  • So, left out items are at least or (2M-x) in number [fact 1]
  • When A finishes with all 2M items, all 2-item bins are within the first b bins,
    • So, all of the bins after first b bins are 1-item bins [fact 2]
  • fact 1 plus fact 2: after first b bins A uses at least or (2M-x) number of bins
  • or BA (b + (2M - 2b)) = 2M - b.
online bin packing12
ONLINE BIN PACKING
    • - So, the total number of bins used by A (say, BA) is at least
  • or, BA (b + (2M - 2b)) = 2M - b.
  • - Optimal needed are M bins.
  • - So, (2M-b)/M < (BA /M)  4/3 (by assumption),
  • or, b/M>2/3 [fact 4]
  • - CONTRADICTION between fact 0 and fact 4 => A can never do better than 4/3 for this input.
next fit online bin packing
NEXT-FIT ONLINE BIN-PACKING

If the currentitem fits in the currentbin put it there, otherwise move on to the next bin. Linear time with respect to #items - O(n), for n items.

Example: Weiss Fig 10.21, page 364.

Thm 2: Suppose, M optimum number of bins are needed for an input. Next-fit never needs more than 2M bins.

Proof: Content(Bj) + Content(Bj+1) >1, So, Wastage(Bj) + Wastage(Bj+1)<2-1, Average wastage<0.5, less than half space is wasted, so, should not need more than 2M bins.

first fit online bin packing
FIRST-FIT ONLINE BIN-PACKING

Scan the existing bins, starting from the first bin, to find the place for the next item, if none exists create a new bin. O(N2) naïve, O(NlogN) possible, for N items.

Obviously cannot need more than 2M bins! Wastes less than Next-fit.

Thm 3: Never needs more than Ceiling(1.7M).

Proof: too complicated.

For random (Gaussian) input sequence, it takes 2% more than optimal, observed empirically. Great!

best fit online bin packing
BEST-FIT ONLINE BIN-PACKING

Scan to find the tightest spot for each item (reduce wastage even further than the previous algorithms), if none exists create a new bin.

Does not improve over First-Fit in worst case in optimality, but does not take more worst-case time either! Easy to code.

offline bin packing
OFFLINE BIN-PACKING

Create a non-increasing order (larger to smaller) of items first and then apply some of the same algorithms as before.

GOODNESS of FIRST-FIT NON-INCREASING ALGORITHM:

Lemma 1: If M is optimal #of bins, then all items put by the First-fit in the “extra” (M+1-th bin onwards) bins would be of size  1/3 (in other words, all items of size>1/3, and possibly some items of size  1/3 go into the first M bins).

Proof of Lemma 1. (by contradiction)

Suppose the lemma is not true and the first object that is being put in the M+1-th bin as the Algorithm is running, is say, si, is of size>1/3.

Note, none of the first M bins can have more than 2 objects (size of each>1/3). So, they have only one or two objects per bin.

offline bin packing17
Proof of Lemma 1 continued.

We will prove that the first j bins (0  jM) should have exactly 1 item each, and next M-j bins have 2 items each (i.e., 1 and 2 item-bins do not mix in the sequence of bins) at the time si is being introduced.

Suppose contrary to this there is a mix up of sizes and bin# B_x has two items and B_y has 1 item, for 1x<yM.

The two items from bottom in B_x, say, x1 and x2; it must be x1y1, where y1 is the only item in B_y

At the time of entering si, we must have {x1, x2, y1}  si, because si is picked up after all the three.

So, x1+ x2  y1 + si. Hence, if x1 and x2 can go in one bin, then y1 and si also can go in one bin. Thus, first-fit would put si in By, and not in the M+1-th bin. This negates our assumption that single occupied bins could mix with doubly occupied bins in the sequence of bins (over the first M bins) at the moment M+1-th bin is created.

OFFLINE BIN-PACKING
offline bin packing18
Proof of Lemma 1 continued:

Now, in an optimal fitthat needs exactly M bins: si cannot go into first j-bins (1 item-bins), because if it were feasible there is no reason why First-fit would not do that (such a bin would be a 2-item bin within the 1-item bin set).

Similarly, if si could go into one of the next (M-j) bins (irrespective of any algorithm), that would mean redistributing 2(M-j)+1 items in (M-j) bins. Then one of those bins would have 3 items in it, where each item>1/3 (because si>1/3).

So, si cannot fit in any of those M bins by any algorithm, if it is >1/3. Also note that if si does not go into those first j bins none of objects in the subsequent (M-j) bins would go either, i.e., you cannot redistribute all the objects up to si in the first M bins, or you need more than M bins optimally. This contradicts the assumption that the optimal #bin is M.

Restating: either si  1/3, or if si goes into (M+1)-th bin then optimal number of bins could not be M.

In other words, all items of size >1/3 goes into M or lesser number of bins, when M is the optimal #of bins for the given set.

End of Proof of Lemma 1.

OFFLINE BIN-PACKING
offline bin packing19
Lemma 2: The #of objects left out after M bins are filled (i.e., the ones that go into the extra bins, M+1-th bin onwards) are at most M. [This is a static picture after First Fit finished working]

Proof of Lemma 2.

On the contrary, suppose there are M or more objects left.

[Note that each of them are <1/3 because they were picked up after si from the Lemma 1 proof.]

Note, j=1Nsj  M, since M is optimum #bins, where N is #items.

Say, each bin Bj of the first M bins has items of total weight Wj in each bin, and xk represent the items in the extra bins ((M+1)-th bin onwards): x1, …, xM, …

OFFLINE BIN-PACKING
offline bin packing20
OFFLINE BIN-PACKING
  •  i=1N si j=1M Wj + k=1Mxk (the first term sums over bins, & the second term over items)

= j=1M (Wj + xj)

  • But  i=1N si  M,
  • or, j=1M (Wj + xj)  i=1N si  M.
  • So, Wj+xj  1
  • But, Wj+xj > 1, otherwise xj (or one of the xi’s) would go into the bin containing Wj, by First-fit algorithm.
  • Therefore, we have i=1Nsi > M. A contradiction.

End of Proof of Lemma 2.

offline bin packing21
Theorem: If M is optimum #bins, then First-fit-offline will not take more than M + (1/3)M #bins.

Proof of Theorem10.4.

#items in “extra” bins is  M. They are of size  1/3. So, 3 or more items per those “extra” bins.

Hence #extra bins itself  (1/3)M.

# of non-extra (initial) bins = M.

Total #bins  M + (1/3)M

End of proof.

OFFLINE BIN-PACKING
divide and conquer strategy
Example: MergeSort, QuickSort, Binary-search.

Recursive calls on divided parts of the input, combine the results from those calls, and then return.

A special case of recurrence equation becomes important in analysis (Master Theorem)

T(N) = aT(N/b) + (Nk), where a1 and b>1.

Solution: T(N) =

[case 1] for a>bk, (Nlogba)

[case 2] for a = bk, (Nk logN)

[case 3] for a<bk, (Nk)

Proof: [Easy, READ IT, Weiss: p 371-373]

DIVIDE and CONQUER STRATEGY
example binary search algorithm
Example: Binary Search Algorithm

BinSearch (array a, int start, int end, key) // T(N)

if start=end // (1)

if a[start] = = key then return start else return failure;

else // start  end

center = (start+end)/2;

if a[center] < key

BinSearch (a, start, center, key)

else BinSearch (a, center+1, end, key); // T(n/2)

end if;

End BinSearch. // T(N) = 1 + T(N/2)

divide and conquer strategy24
INTEGER MULTIPLICATION:

Divide the bits/digits into two sets,

X = XL*10(size/2) + XR, and

Y = YL*10(size/2) + YR

X*Y = XL*YL*10(size) + (XL*YR + XR*YL)*10 (size/2) + XR*YR,

four recursive calls to problems of size=size/2, and

three additions of size=size/2.

T(N) = 4T(N/2) + O(N),

or a=4, b=2, and k=1,

or case of a>bk.

Solution, T(N) = O(N logba) = O(N2).

DIVIDE and CONQUER STRATEGY
divide and conquer strategy integer mult
DIVIDE and CONQUER STRATEGY: INTEGER MULT
  • Change the algorithm for three recursive calls!
  • XL*YR + XR*YL = (XL - XR)*(YR - YL) + XL*YL + XR*YR
  • Now, T(N) = 3T(N/2) + O(N).
  • More additions, but the order (last term) does not change
  • Same case, but solution is,
  • T(N) = O(Nlog23) = O(N1.59).
divide and conquer strategy26
MATRIX MULTIPLICATION:

Naïve multiplication: O(N3)

Divide two square matrices into 4 parts each of size N/2, and

recursively multiply (N/2 x N/2) matrices,

and add resulting (N/2 x N/2) matrices,

then put them back to their respective places.

Eight recursive calls, O(N2) overhead for additions.

T(N) = 8T(N/2) + O(N2).

Solution [case a >bk]: T(N) = O(N^ logba) = O(N3)

Strassen’s algorithm;

rewrite multiplication formula reducing recursive calls to 7 from 8.

T(N) = 7T(n/2) + O(N2)

Solution: T(N) = O(Nlog27) = O(N2.81)

DIVIDE and CONQUER STRATEGY
dynamic programming strategy
In case the divide and conquer strategy can divide the problem at a very small level, and there are repetition of some calculation over some components, then one can apply a bottom up approach: calculate the smaller components first and then keep combining them until the highest level of the problem is solved.

Draw the recursion tree of Fibonacci-series calculation, you will see example of such repetitive calculations

f(n) = f(n-1) + f(n-2), for n>1; and f(n)=1 otherwise

fib(n) calculation

n = 1, 2, 3, 4, 5

fib = 1, 2, 3, 5, 8 [ p 385]

DYNAMIC PROGRAMMING STRATEGY
dynamic programming strategy continued
DYNAMIC PROGRAMMING STRATEGY (Continued)

Recursive fib(n)

if (n<=1) return 1;

else return (fib(n-1) + fib(n-2)).

Time complexity: exponential, O(kn) for some k>1.0

Iterative fibonacci(n)

fib(0) = fib(1) = 1;

for i=2 through n do

fib(i) = fib(i-1) + fib(i-2);

end for;

return fib(n).

Time complexity: O(n), Space complexity: O(n)

dynamic programming strategy continued29
SpaceSaving-fibonacci(n)

if (n<=1) return 1;

int last=1, last2last=1, result=1;

for i=2 through n do

result = last + last2last;

last2last = last;

last=result

end for;

return result.

Time complexity: O(n), Space complexity: O(1)

DYNAMIC PROGRAMMING STRATEGY (Continued)
dynamic programming strategy continued30
The recursive call recalculates fib(1) 5 times, fib(2) 3 times, fib(3) 2 times - in fib(5) calculation. The complexity is exponential.

In iterative calculation we avoid repetition by storing the needed values in variables - complexity of order n.

Dynamic Programming approach consumes more memory to store the result of calculations of lower levels for the purpose of calculating the next higher level. They are typically stored in atable.

DYNAMIC PROGRAMMING STRATEGY (Continued)
0 1 knapsack problem not in the book
Same as the Rational Knapsack Problem, except that you MAY NOT break any object. The Greedy algorithm no longer gets correct answer.

DP uses a table for optimal profit P(j, k):

for the first j objects (in any arbitrary ordering of objects) with a variable knapsack limit k.

Develop the table with rows j=1 through N (#objects), and

for each row, go from k=0 through M (the KS limit).

Finally P(N, M) gets the result.

0-1 Knapsack Problem (not in the book)
0 1 knapsack problem not in the book32
0-1 Knapsack Problem (not in the book)
  • The formula for
  • P(j, k) = (case 1) P(j-1, k),

if wj>k, wj weight of the j-th object;

else

  • P(j, k) = (case2) max-between{P(j-1, k-wj)+pj,

P(j-1, k)}

  • Explanation for the formula is quite intuitive.
0 1 knapsack recursive algorithm
0-1 knapsack recursive algorithm

Algorithm P(j, k)

If j = = 0 or k = = 0 then return 0; //recursion termination

else

if Wj>k then

return P(j-1, k)

else

return max{P(j-1, k-Wj) + pj, P(j-1, k)}

End algorithm.

Driver: call P(n, M), for given n objects & KS limit M.

Complexity: ?

0 1 knapsack dp algorithm
0-1 Knapsack DP-algorithm

For all j, k, P(0, k) = P(j, 0) = 0; //initialize

For j=1 to n do

For k= 1 to m do

if Wj>k then

P(j, k) = P(j-1, k)

else

P(j, k)= max{P(j-1, k-Wj) + pj, P(j-1, k)}

Complexity: O(NM), pseudo-polynomial because M is an input value. If M=30.5 the table would be of size O(10NM), or if M=30.54 it would be O(100NM).

0 1 knapsack problem example
0-1 Knapsack Problem (Example)

Objects (wt, p) = {(2, 1), (3, 2), (5, 3)}. M=8

J| 0 1 2 3 4 5 6 7 8

O -- -- -- -- -- -- -- -- --

1| 0 0 1 1 1 1 1 1 1

2| 0 0 1 2 2 3 3 3 3

3| 0 0 1 2 2 3 3 4 5

HOW TO FIND KS CONTENT FROM TABLE? SPACE COMPLEXITY?

ordering of matrix chain multiplications
ABCD a chain of matrices to be multiplied, where A (5x1), B(1x4), C(4x3), and D(3x6). Resulting matrix would be of size (5x6).

# scalar or integer multiplications for (BC), is 1.4.3, and the resulting matrix’s dimension is (1x3), 1 column and 3 rows.

Ordering of Matrix-chain Multiplications
ordering of matrix chain multiplications37

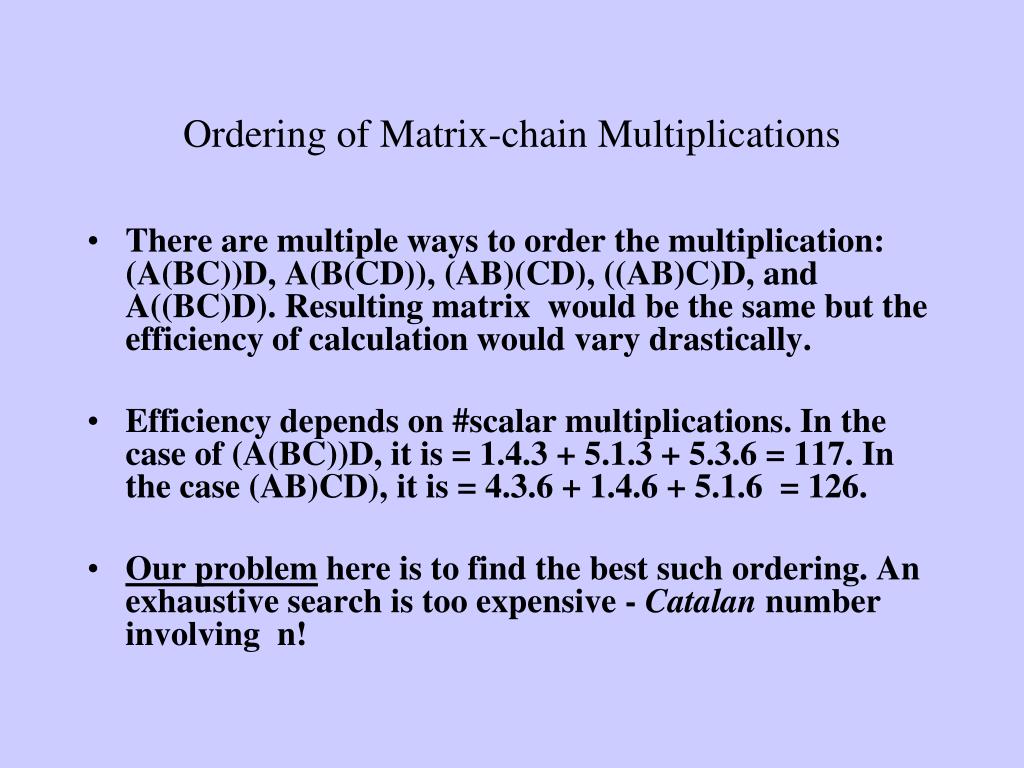

Ordering of Matrix-chain Multiplications
  • There are multiple ways to order the multiplication: (A(BC))D, A(B(CD)), (AB)(CD), ((AB)C)D, and A((BC)D). Resulting matrix would be the same but the efficiency of calculation would vary drastically.
  • Efficiency depends on #scalar multiplications. In the case of (A(BC))D, it is = 1.4.3 + 5.1.3 + 5.3.6 = 117. In the case (AB)CD), it is = 4.3.6 + 1.4.6 + 5.1.6 = 126.
  • Our problem here is to find the best such ordering. An exhaustive search is too expensive - Catalan number involving n!
ordering of matrix chain multiplications continued
For a sequence A1...(Aleft....Aright)...An, we want to find optimal break point for the parenthesized sequence.

Calculate for ( right-left+1) number of cases and find minimum: min{(Aleft...Ai) (Ai+1... Aright), with left  i < right},

Or,

M(left, right)

= min{M(left, i) + M(i+1, right) + rowleft .coli .colright,

with left  i < right}.

Start the calculation at the lowest level with two matrices, AB, BC, CD etc. Then calculate for triplets, ABC, BCD etc. And so on..

Ordering of Matrix-chain Multiplications continued
matrix chain recursive algorithm
Matrix-chain Recursive algorithm

Recursive Algorithm M(left, right)

if left > right return 0

else

return min{M(left, i) + M(i+1, right) + rowleft .coli .colright,

for lefti<right};

end algorithm.

Driver: call M(1, n).

matrix chain dp algorithm
Matrix-chain DP-algorithm

for all 1 j<i  n do M[i][j] = 0; //lower triangle 0

for size = 1 to n do // size of subsequence

for l =1 to n-size+1 do

r = left+size-1; //move along diagonal

M[l][r] = infinity; //minimizer

for i = l to r do

x = M(l, i) + M(i+1, r)

+ rowleft .coli .colright;

if x < min then M(l, r) = x

// Complexity?

ordering of matrix chain multiplications example
A1 (5x3), A2 (3x1), A3 (1x4), A4 (4x6).

c(1,1) = c(2, 2) = c(3, 3) = c(4, 4) = 0

c(1, 2) = c(1,1) + c(2,2) + 5.3.1 = 0 + 0 + 15.

c(1,3) = min{I=1 c(1,1)+c(2,3)+5.3.4, I=2 c(1,2)+c(3,3)+5.1.4 }

= min{72, 35} = 35(2)

c(1,4) = min{ I=1 c(1,1)+c(2,4)+5.3.6, I=2 c(1,2)+c(3,4)+5.1.6,

I=3 c(1,3)+c(4,4)+5.4.6} = min{132, 69, 155} = 69(2)

69 comes from the break-point i=2: (A1.A2)(A3.A4)

You may need to recursively break the sub-parts too, by looking at which value of i gave the min value at that stage, e.g., for (1,3) it was i=2: (A1.A2)A3

Ordering of Matrix-chain Multiplications (Example)
ordering of matrix chain multiplications example42
j = 1 2 3 4

i

1 0 15 35(2) 69(2)

2 0 12 42

3 0 24

4 0

Calculation goes diagonally.

Ordering of Matrix-chain Multiplications (Example)

Triplets

Pairs

computing the actual break points
Computing the actual break points

j = 1 2 3 4 5 6

i

1 - - (2) (2) (3) (3)

2 - - (3) (3) (4)

3 - - (4) (4)

4 - (3) (4)

5 - - -

6 - - -

ABCDEF -> (ABC)(DEF) -> ((AB)C) (D(EF))

ordering of matrix chain multiplications dp algorithm
Ordering of Matrix-chain Multiplications (DP Algorithm)

Algorithm optMult: returns cost matrix m and tracking matrix lastChange.

(1) for (left=1 through n) do cost[left][left] = 0;

(2) for k=2 through n do // k is the size of the sub-chain

for left=1 through (n-k+1) do

right=left+k-1;

(5) cost[left][right] = infinity;

//break is between I and I+1

for I=left through (right-1) do

(7) cst=cost[left][I]+cost[I+1][right] +

row[left]*col[I]*col[right];

(8) if (cst<cost[left][right]) then

(9) cost[left][right] = cst;

(10) lastChange[left][right]=I;

optimal binary search tree
Optimal Binary Search Tree

[REMIND BINARY-SEARCH TREE for efficiently accessing an element in an ordered list]

[DRAW MULTIPLE BIN-SEARCH TREES FOR SAME SET, EXPLAIN ACCESS STEP FOR NODES.]

Note: the access step for each node is its distance from the root plus one. So, it is relative to the sub-tree in which the node is in.

Assume some measure of frequency of access is associated with data at each node. Then different tree organization will have different aggregate access steps over all nodes, because the depths of the nodes are different on different tree.

[EXPLAIN DIFFERENT AGGREGATE COST FOR DIFFERENT TREE.]

Problem: We want to find the optimal aggregate access steps, and a bin-search tree organization that produces it.

optimal binary search tree continued
Optimal Binary Search Tree (Continued)

Say, the optimal cost for a sub-tree is C(left, right).

Note, when this sub-tree is at depth one

(under a parent,

within another higher level sub-tree)

then EACH node’s access step will increase by 1 in the higher level subtree.

slide47

a1 a2 … aleft … ak … aright … an

fk

C(k+1, right)

C(left, k-1)

optimal binary search tree continued48
Optimal Binary Search Tree (Continued)

If the i-th node is at the root for this sub-tree, then

C(left, right) =

min[left i right] { f(i) + C(left, i-1) + C(i+1, right)

+ åj=lti-1f(j) + åj=i+1rt f(j)} [additional costs]

= min[left  i  right] { C(left, i-1) + C(i+1, right)

+ åj=ltrtf(j)}

We will use the above formula to compute C(1, n).

We will start from one element sub-tree and finish with n element full tree.

optimal binary search tree continued49
Optimal Binary Search Tree (Continued)

Like matrix-chain multiplication-ordering we will develop a triangular part of the cost matrix (rt>= lt), and

we will develop it diagonally(rt = lt + size)

Note that our boundary condition is different now,

c(left, right)=0 if left>right (meaningless cost)

We start from, left=right: single node trees

(not with left=right-1: pairs of matrices, as in matrix-chain-mult case).

Also, i now goes from ‘left’ through ‘right,’ and

i is excluded from both the subtrees’ C’s.

optimal binary search tree example
Optimal Binary Search Tree (Example)

Keys: A1(7), A2(10), A3(5), A4(8), and A5(4).

C(1, 1)=7, C(2, 2)=10, ….

C(1,2)=min{k=1C(1,0)+C(2,2)+f1+f2=0+10+17,

k=2C(1,1) + C(3,2) + f1+f2 = 7 + 0 + 17} = min{27, 24} = 24 (i=2)

j = 1 2 3 4 5

i

1 7 24(2) 34 55 67

2 0 10 20 41 51

3 0 5 18 26

4 0 8 16

5 0 4

This algorithm: O(n3). However, O(n2) is feasible.

all pairs shortest path
All Pairs Shortest Path

A variation of Djikstra’s algorithm. Called Floyd-Warshal’s algorithm. Good for dense graph.

Algorithm Floyd

Copy the distance matrix in d[1..n][1..n];

for k=1 through n do //considr each vertex as updating candidate

for i=1 through n do

for j=1 through n do

if (d[i][k] + d[k][j] < d[i][j]) then

d[i][j] = d[i][k] + d[k][j];

path[i][j] = k; // last updated via k

End algorithm.

O(n3), for 3 loops.

randomized algorithms
Randomized Algorithms

QuickSort with randomly picked up pivot is an example.

The internal working of the algorithm is never same even for the same input. Randomized algorithms may have different output for same input.

Sensitive to the embedded random number generating algorithms. Computers work with pseudo-random number generators, dependent on the key, fed at the initiation of a generator. Typically clock digits (least significant ones) are used as a key.

There are powerful randomized algorithms that can non-deterministically solve some problems more efficiently. Examples: Genetic Algorithms, or GSAT. Often these algorithms do not guarantee any solution, or are “incomplete” algorithms!

random number generators
Random Number Generators

Random numbers are generated in a sequence, by a called routine.

The sequence is supposed to be aperiodic - never repeats.

A typical method: x(i+1) = Ax(i) mod M, where M is a prime number and A is an integer.

x(i) should never become 0 (WHY?), hence mod is taken with a prime number M. With the proper choice of A, the sequence will repeat itself after M-1 elements in the sequence (bad choice of A causes a shorter period): hence, they are called pseudo-random numbers.

Example, M=11, A=7, and x(0)=1 (the seed), the sequence is 7,5,2,3,10,4,6,9,8,1, 7,5,2,....

A large prime number should be used to avoid repetition.

The seed should not be zero. It could be the least significant digits of the clock.

genetic algorithms
Genetic Algorithms

Function Genetic-Algorithm (population, fitness-fn) returns an individual [Russell-Norvig text of AI, 2003, p 116-119]

Input: (1) population: a set of individuals, (2) fitness-fn: a fn that measures the goodness of individuals toward the solution

Repeat

parents <- SELECTION(population, fitness-fn)

population <- REPRODUCTION(parents)

Until some individual is “fit enough”

Return the best individual in population, according to fitness-fn.

gsat algorithm
GSAT Algorithm
  • Boolean satisfiability (SAT) problem: Given a set of Boolean variables V={v1, v2, v3,…}, and a CNF propositional formula C = (C1 ^ C2 ^ …), each clause Ci being constituted as a disjunction of “literals” (each of which is a variable or the negation of a variable), check if there exists an assignment of the variables such that the formula C is True.
  • GSAT: Start with a random assignment for variables;
  • repeat until C is True or a fixed number of steps are done
  • flip the value of a variable in a clause that is False;
  • May restart a few number of times. End algorithm.
  • Many variations of GSAT exist. Does not guarantee solution.
backtracking algorithms
Backtracking Algorithms

Input: an empty array of size n (or 4) and a starting level index

Output: Prints A

Algorithm Unknown(level, array A[])

if (level == 4) then print A;

else

A[level] =0;

Unknown(level+1, A);

A[level] =1;

Unknown(level+1, A);

End algorithm.

Driver: Unknown(1, A[1..3])

What does the algorithm do?

backtracking algorithms58
Backtracking Algorithms
  • Input: an empty array of size n (or 4) and a starting level index (=1)
  • Output: Prints A
  • Algorithm Unknown(level, array A)
    • if (level == 4) then print A;
    • else
      • A[level] =0;
      • Unknown(level+1, A);
      • A[level] =1;
      • Unknown(level+1, A);
  • End algorithm.
  • The algorithm prints (000),(001),(010),(011),..., when called as Unknown(1, A).
  • Draw recursion tree: this is an exhaustive Backtracking (BT) algorithm.
bt 0 1 knapsack problem
BT: 0-1 Knapsack Problem

Input: Set of n objects (w[i], p[i]), and knapsack limit=M

Output: Total profits for all possible subsets

Algorithm BTKS(level, array A)

if (level = = n+1) then

total_profit = i(A[i]*P[i]);

else

A[level] =0; //level-th object excluded from the bag

BTKS(level+1, A);

A[level] =1; // the object is included

BTKS(level+1, A);

End algorithm.

Driver: {Global optP=0; Global optA=null; BTKS(1, A)}

bt 0 1 knapsack problem60
BT: 0-1 Knapsack Problem

Input: Set of n objects (w[i], p[i]), and knapsack limit=M

Output: Optimumprofit over all possible subsets weighing <=M

Algorithm BTKS(level, array A)

if (level = = n+1) then

total_profit = i(A[i]*P[i]);

if total_profit is > optP then // optimizing

optP = total_profit;

optA = A;

else

A[level] =0; //level-th object excluded from the bag

BTKS(level+1, A);

A[level] =1; // the object is included

if (total_wtM) then // constraint checking

BTKS(level+1, A);

End algorithm.

Driver: {Global var optP=0; Global var optA=null; BTKS(1, A)}

bt with further pruning 0 1 knapsack problem
BT with further pruning: 0-1 Knapsack Problem
  • Algorithm BTKS_Prun(level, array A) // global optP and global optX
    • if (level = = n+1) then
      • <<same as before>>
    • else
    • B=i=1level-1(A[i]*P[i]) +RKS(A, level-1, M-  i=1level-1(A[i]*W[i]));
    • if (B>optP) then // we have a chance to make a better profit
      • A[level] =1;
      • if (total_wt  M) then
        • BTKS_Prun(level+1, A);
      • if (B>optP) then //optP may have increased now
      • A[level] =0;
      • BTKS_Prun(level+1, A);
  • End algorithm.
  • RKS is the Rational knapsack greedy algorithm, used for a “bounding function” here.
bounding function for pruning
Bounding function for pruning
  • BF is a guessing function: so that we can prune branches from unnecessarily expanding
  • Ideal value is = the real, at every level (impossible to have such a BF)
  • Should evaluate to  real value for maximization-problems, or real value for minimization-problems (correctness criterion)
  • Should be as close to the real value as possible (goodness, for pruning branches of the recursion tree)
  • Should be easy to calculate (calculation overhead on each step)
turnpike reconstruction problem
Given N exits (on a turnpike), and M=N(N-1)/2 number of distances between each pair of them, put the exits on a line with the first one being at zero.

Input: D={1,2,2,2,3,3,3,4,5,5,5,6,7,8,10}, the sorted gap values

Here, M=|D|=15, so, calculated N=6, obviously. [DRAW TREE, UPDATE D, page 407.]

x1=0 given, so, x6=10, the largest in D. D={1,2,2,2,3,3,3,4,5,5,5,6,7,8} now.

Largest now is 8. So, either x2=2, or x5=8. WHY?

In case x2=2, you can inverse direction and make x2 as x5, and then x5 would be =8 (prune branch for symmetry).

So, x5=8 is a unique choice. x6-x5=2, and x5-x1=8 are taken off D.

7 is now largest. So, either x4=7, or x2=3. We have two branches now, for these two options.

Turnpike Reconstruction Problem
turnpike reconstruction problem64
For x4=7, we should have in D x5-x4=1, and x6-x4=3. Take them off.

Next largest is 6. So, either x3=6 or x2=4 (so that x6-x2=6).

For x3=6, x4-x3=1. There is no more 1 in D, so, this is impossible.

Backtrack to x2=4 (instead of x3=6), x2-x0=4 and x5-x2=4. We don't have those many 4's left. So, this is impossible also.

So, we backtrack past the choice x4=7, because it has no solution. Rather, we reassign x2=3 (Note. x4 is no longer assigned : backtracked).

Turnpike Reconstruction Problem
turnpike reconstruction problem65
For x2=3, we take off 3,5,7 from D. Thus, D={1,2,2,3,3,4,5,5,6}

Now, either x4=6 or x3=4.

For x3=4, we need two 4’s for x3-x0, and x5-x3.

BT to x4=6, D={1,2,3,5,5}.

There is only one choice left now, i.e., x3=5, which fits all the values in D.

The algorithm terminates here.

Note that if backtracking leads up to the first choice and fails even there, then there is no solution (inconsistent) for the problem!

[READ ALGORITHM on p443-4].

Turnpike Reconstruction Problem
