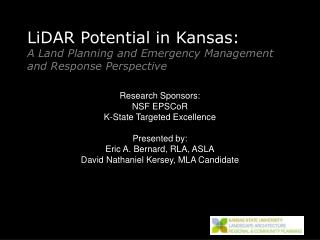

LiDAR Potential in Kansas: A Land Planning and Emergency Management and Response Perspective

Research Sponsors:

NSF EPSCoR

K-State Targeted Excellence

Presented by:

Eric A. Bernard, RLA, ASLA

David Nathaniel Kersey, MLA Candidate


Lidar acquisition project 2006 l.jpg
LiDAR: Acquisition Project 2006

  • 15 Partners

  • Led by USGS Ingrid Landgraf

  • K-State

    • Wildcat Creek Watershed

    • Konza Prairie


Lidar raw data l.jpg
LiDAR: Raw Data

  • Raw Data: LiDAR LAS Points All Returns 3D Points +/- 1,000,000 per km2

  • Capital Building Topeka, KS


Lidar landscape models l.jpg
LiDAR: Landscape Models

  • Konza Prairie LTER Site

  • LiDAR Raw Data Processed with LiDAR Explorer 2.0

    ArcScene 9.2 TIN LAS All Returns Illustrating Bare Earth, Vegetation and Structures


Lidar landscape models5 l.jpg
LiDAR: Landscape Models

  • Konza Prairie LTER Site

  • LiDAR Raw Data Processed with LiDAR Explorer 2.0

    NOTE:

    Lagoons, Utility Poles

    ArcScene 9.2 TIN LAS All Returns Illustrating Bare Earth, Vegetation and Structures


Lidar structures vegetation l.jpg
LiDAR: Structures/Vegetation

  • LiDAR Raw Data Processed with LiDAR Explorer 2.0

  • K-State Campus

    NOTE:

    Filter Algorithms for Extracting different Landscape Features

    ArcScene 9.2 TIN LAS All Returns Illustrating Bare Earth, Vegetation and Structures


Lidar structures l.jpg
LiDAR: Structures

  • Roof TIN Surfaces

    ArcScene 9.2 TIN LiDAR Explorer 2.0 Filter for Buildings on LAS data using Building Polygon Boundary for Selection of Points and TIN Boundary


Lidar floodplain models l.jpg
LiDAR: Floodplain Models

  • 3D River-Stream Channel and Floodplain


Lidar floodplain models9 l.jpg
LiDAR: Floodplain Models

  • 3D River-Stream Channel and Floodplain


Lidar flood prediction models l.jpg
LiDAR: Flood Prediction Models

  • 3D River-Stream Channel and Floodplain


Lidar flood prediction models11 l.jpg
LiDAR: Flood Prediction Models

Channel Profiles Kansas River

Manhattan, KS

NED 30m

NED 10 m

LiDAR

  • 3D River-Stream Channel and Floodplain


Lidar input to map2map l.jpg
LiDAR: Input to Map2Map

Map2Map Flood Inundation Model

Inputs:

LiDAR data

Nexrad Doppler Rainfall Stream Gauge data

Hydro Data Model


Lidar aerosol models l.jpg
LiDAR: Aerosol Models

  • Aerosol Plume Power Plant Lawrence, KS

  • LiDAR LAS Data Processed with LiDAR Explorer 2.0

    NOTE:

    Filter Algorithms for Extracting different Features

    ArcScene 9.2 TIN LAS All Returns Illustrating Bare Earth, Vegetation and Structures
