Presentation Transcript

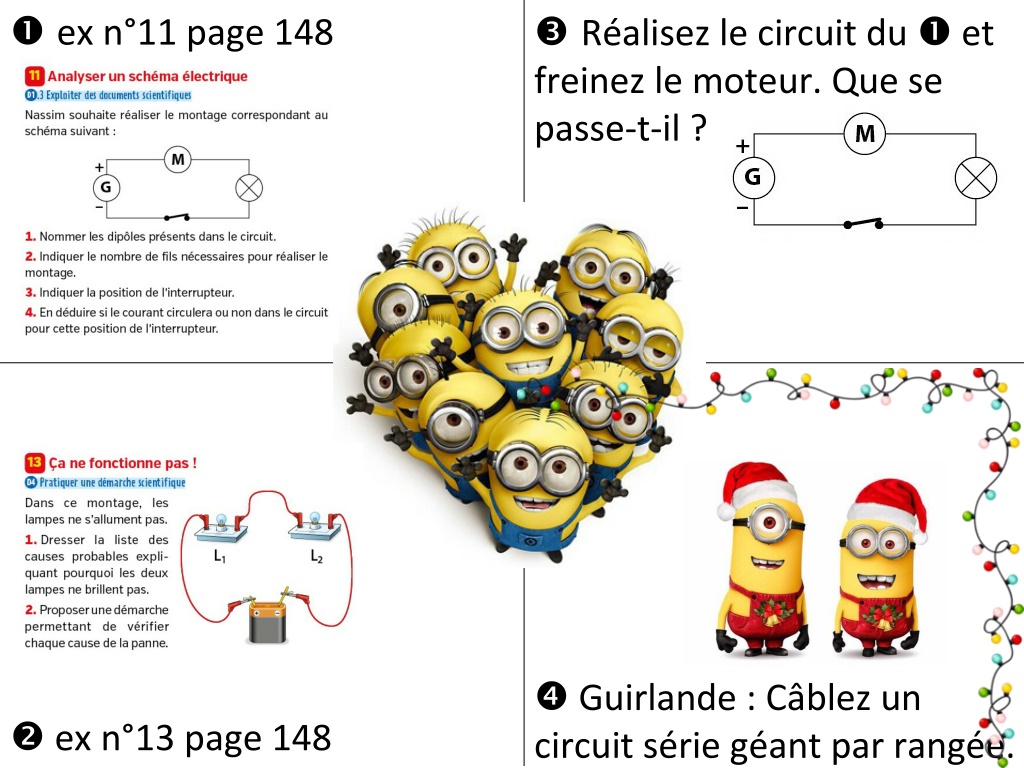

  1. ex n°11 page 148 Réalisez le circuit du  et freinez le moteur. Que se passe-t-il ?  Guirlande : Câblez un circuit série géant par rangée.  ex n°13 page 148

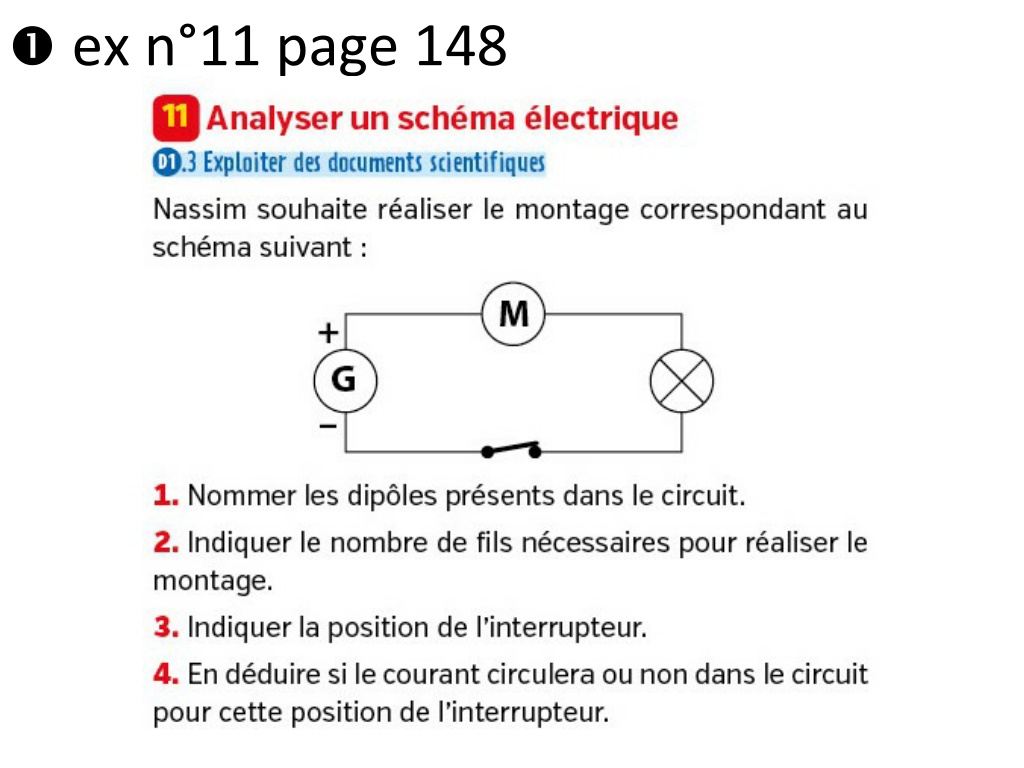

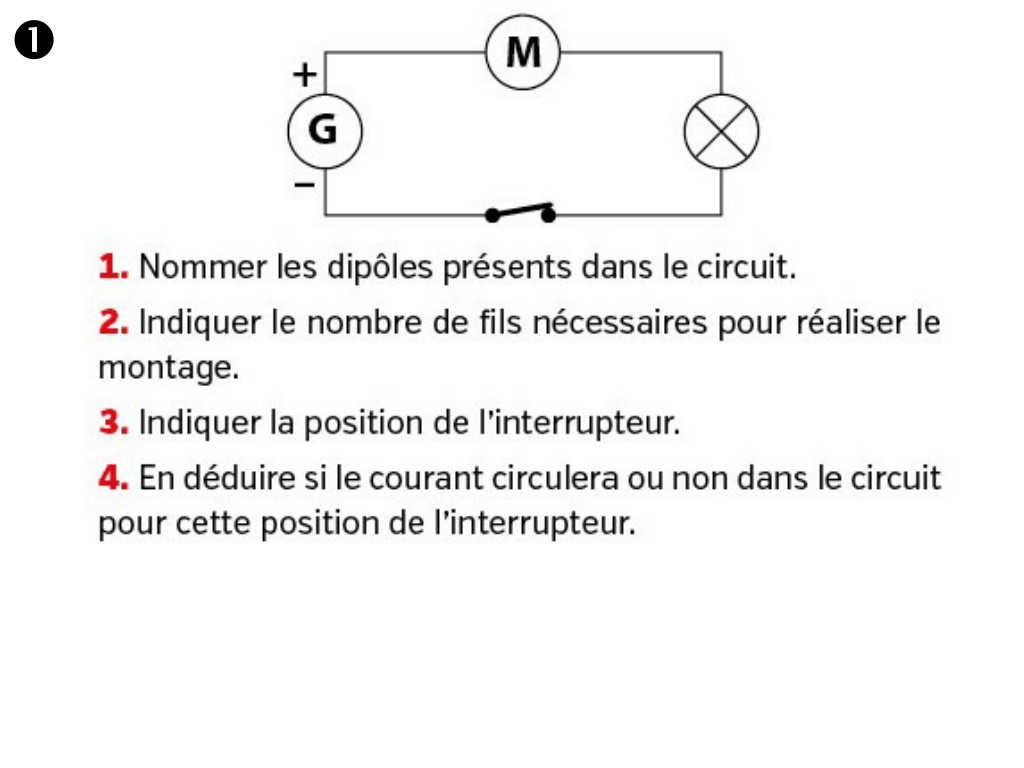

  2. ex n°11 page 148

  4. ex n°13 page 148

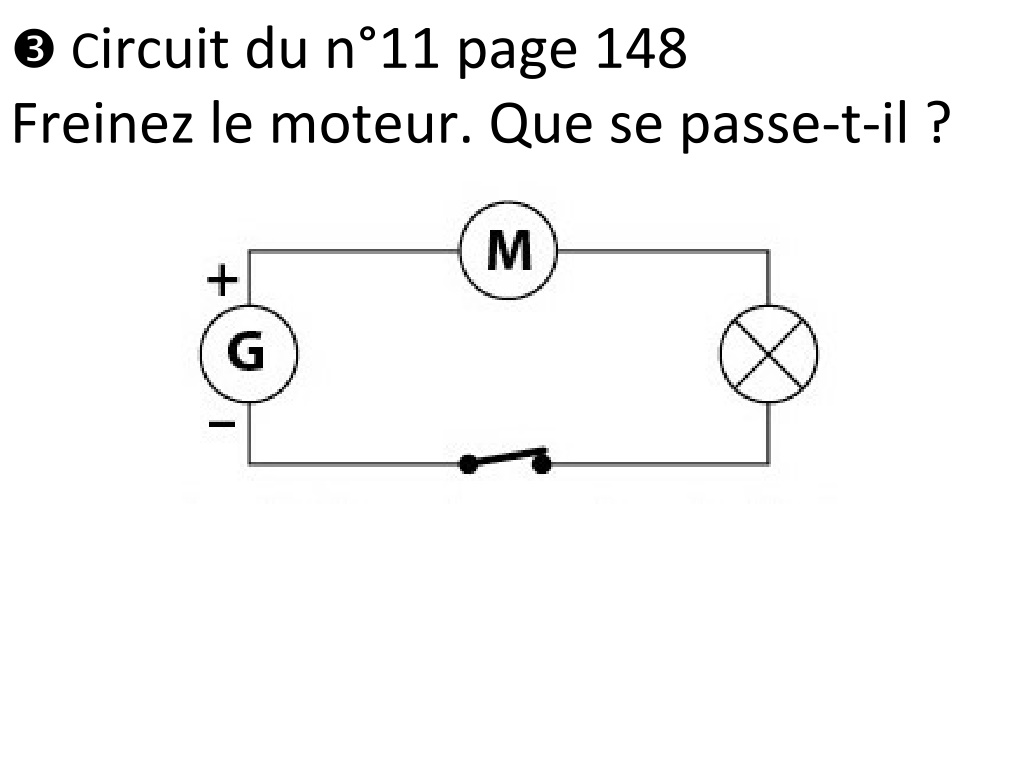

  5.  Circuit du n°11 page 148 Freinez le moteur. Que se passe-t-il ?

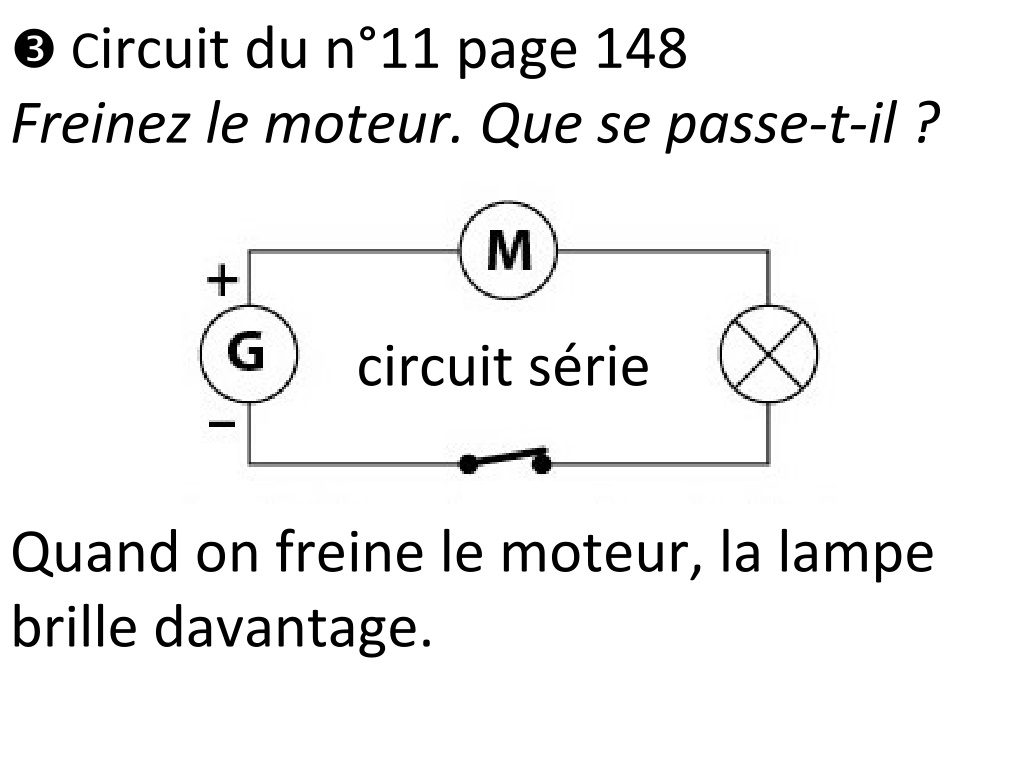

  6.  Circuit du n°11 page 148 Freinez le moteur. Que se passe-t-il ? circuit série Quand on freine le moteur, la lampe brille davantage.

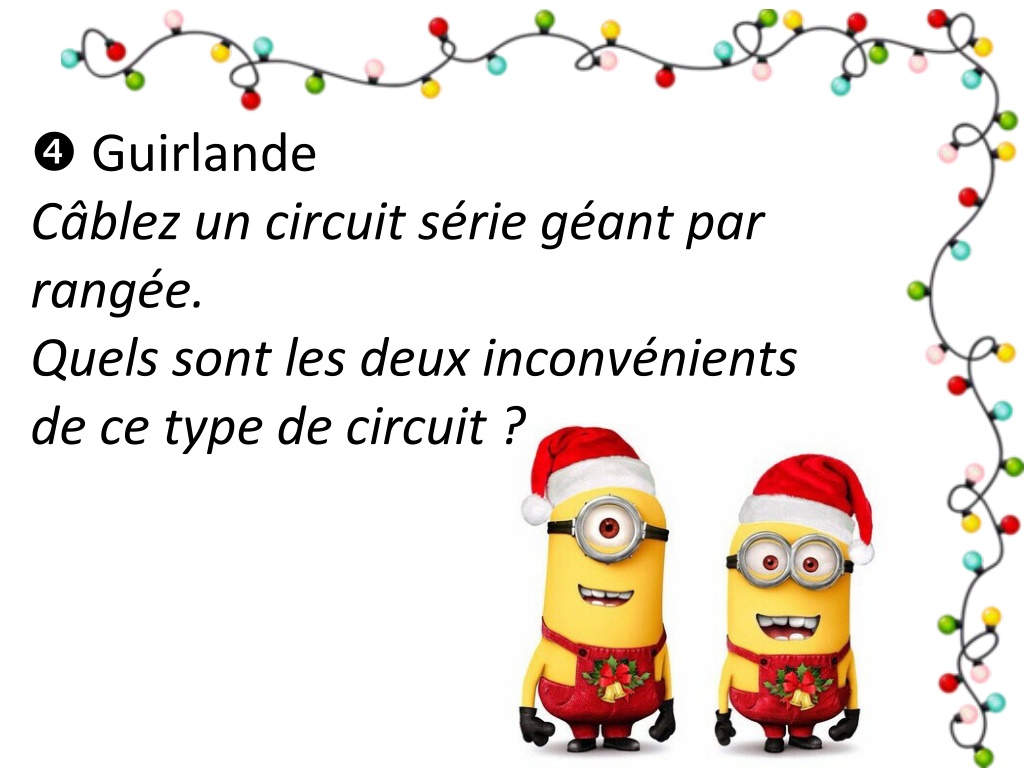

  7.  Guirlande Câblez un circuit série géant par rangée. Quels sont les deux inconvénients de ce type de circuit ?

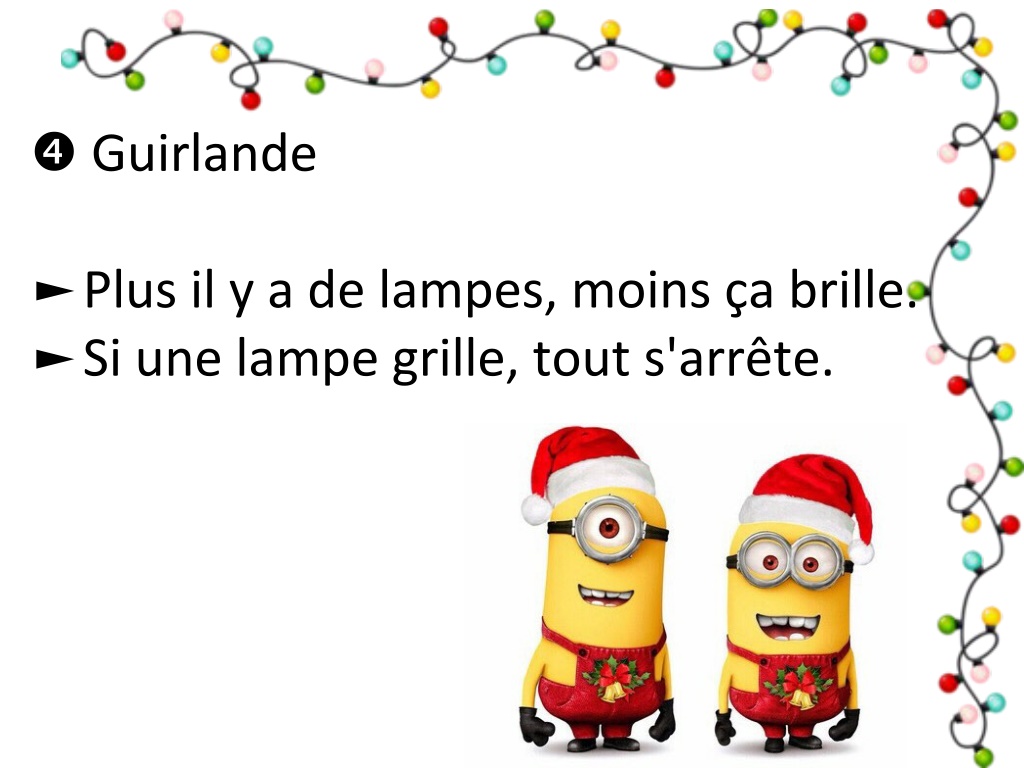

  8.  Guirlande ►Plus il y a de lampes, moins ça brille. ►Si une lampe grille, tout s'arrête.

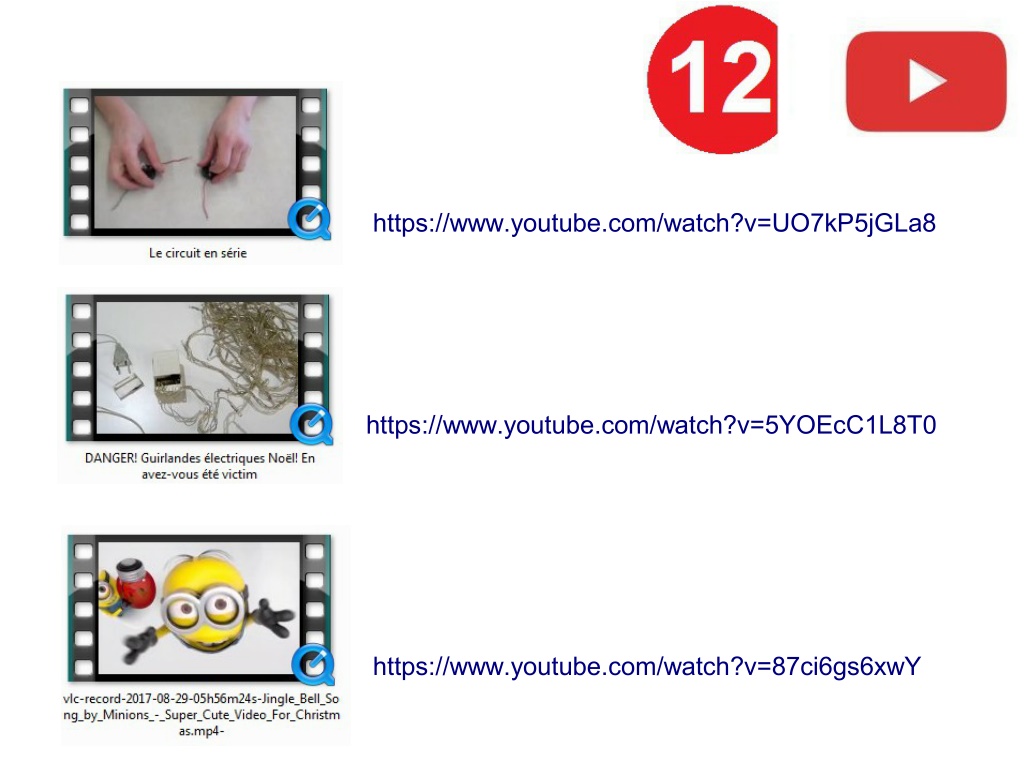

  9. https://www.youtube.com/watch?v=UO7kP5jGLa8 https://www.youtube.com/watch?v=5YOEcC1L8T0 https://www.youtube.com/watch?v=87ci6gs6xwY
