Get the best quality dart impact tester for determining the impact

In the packaging industry, there is a vast use of plastic films that act as a protective barrier between external contaminants and inside content. Thus, it is very important for you to use the right testing instrument to check the quality of these plastic films. Presto has come up with a dart impact tester that is provided with an electromagnetic dart hold/release mechanism to avoid any type of interference in force exertion.

Prestogroupweb
Download Presentation

Get the best quality dart impact tester for determining the impact

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

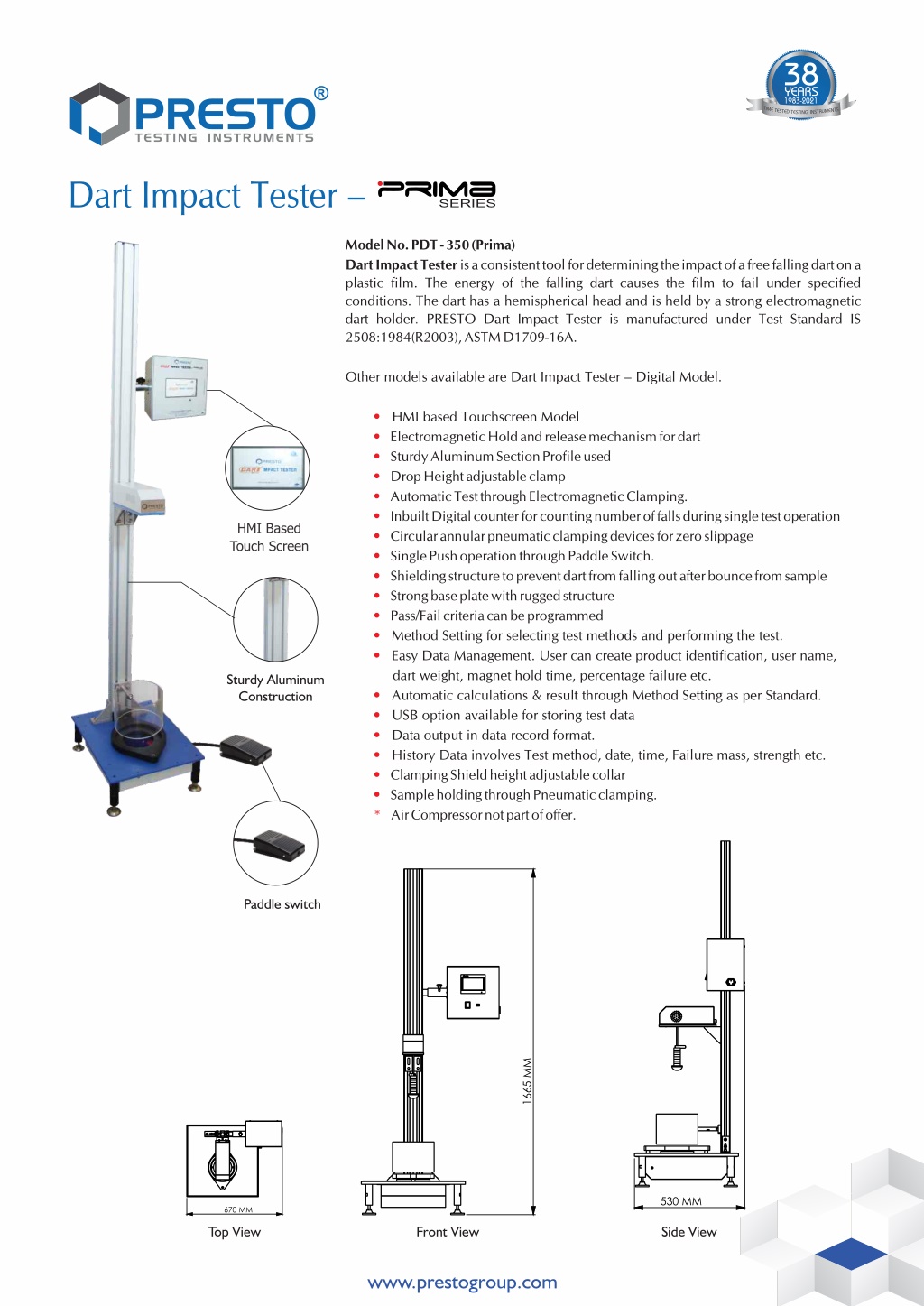

  1. 38 YEARS ® 1983-2021 TIME S T T EN ES UM TE STR D T ESTING IN Dart Impact Tester – SERIES Model No. PDT - 350 (Prima) Dart Impact Tester is a consistent tool for determining the impact of a free falling dart on a plastic film. The energy of the falling dart causes the film to fail under specified conditions. The dart has a hemispherical head and is held by a strong electromagnetic dart holder PRESTO Dart Impact Tester is manufactured under Test Standard IS . 2508:1984(R2003), ASTM D1709-16A. Other models available are Dart Impact Tester – Digital Model. • HMI based Touchscreen Model • Electromagnetic Hold and release mechanism for dart • Sturdy Aluminum Section Profile used • Drop Height adjustable clamp • Automatic Test through Electromagnetic Clamping. • Inbuilt Digital counter for counting number of falls during single test operation • Circular annular pneumatic clamping devices for zero slippage • Single Push operation through Paddle Switch. • Shielding structure to prevent dart from falling out after bounce from sample • Strong base plate with rugged structure • Pass/Fail criteria can be programmed • Method Setting for selecting test methods and performing the test. • Easy Data Management. User can create product identification, user name, dart weight, magnet hold time, percentage failure etc. • Automatic calculations & result through Method Setting as per Standard. • USB option available for storing test data • Data output in data record format. • History Data involves Test method, date, time, Failure mass, strength etc. • Clamping Shield height adjustable collar • Sample holding through Pneumatic clamping. * Air Compressor not part of offer. Sturdy Aluminum Construction Paddle switch Top View Front View Side View www.prestogroup.com

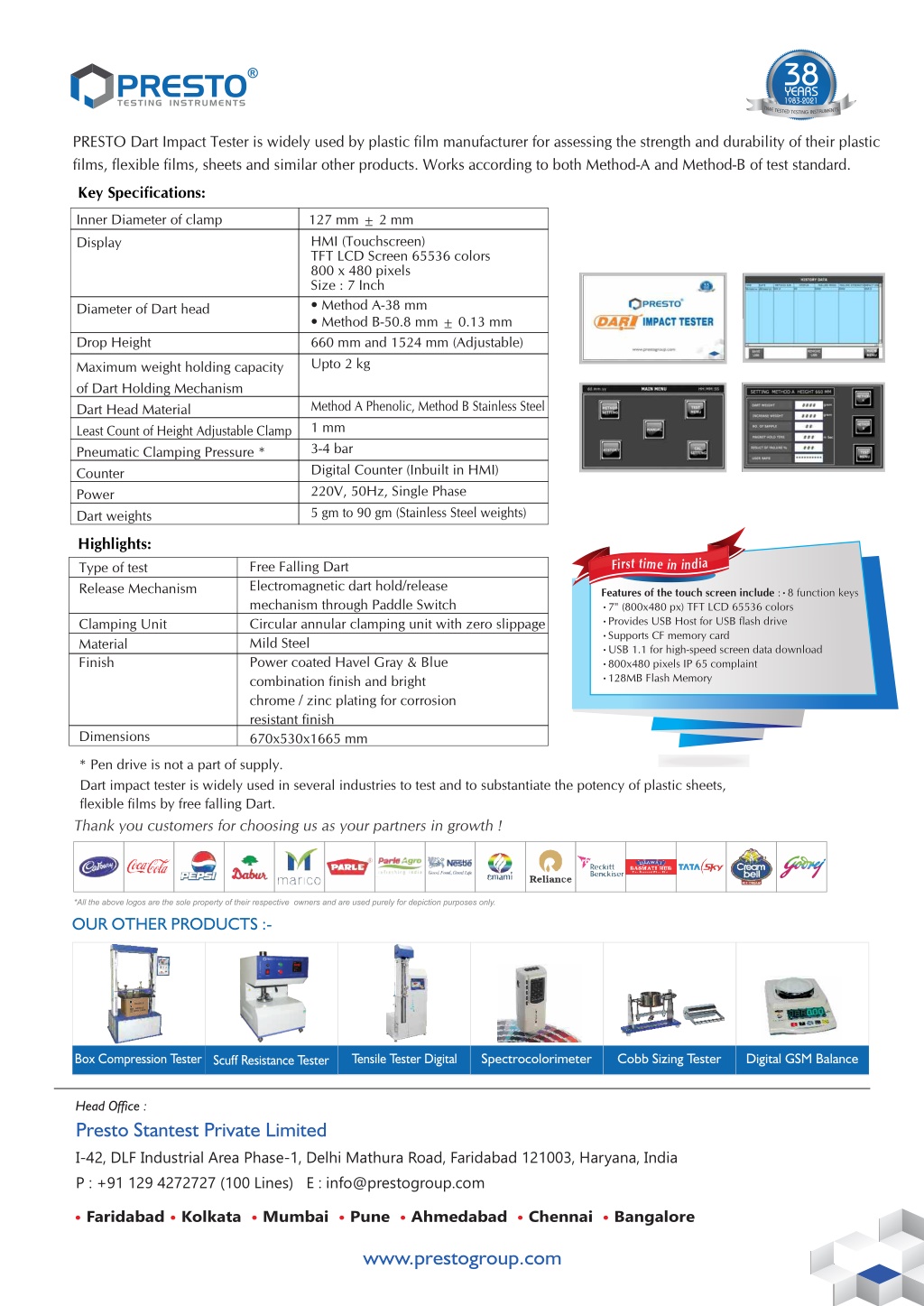

  2. 38 YEARS ® 1983-2021 TIME S T T EN ES UM TE STR D T ESTING IN PRESTO Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films, flexible films, sheets and similar other products. Works according to both Method-A and Method-B of test standard. Key Specifications: Inner Diameter of clamp 127 mm ± 2 mm HMI (Touchscreen) TFT LCD Screen 65536 colors 800 x 480 pixels Size : 7 Inch Display • Method A-38 mm • Method B-50.8 mm ± 0.13 mm 660 mm and 1524 mm (Adjustable) Upto 2 kg Diameter of Dart head Drop Height Maximum weight holding capacity of Dart Holding Mechanism Dart Head Material Least Count of Height Adjustable Clamp Pneumatic Clamping Pressure * Counter Power Dart weights Method A Phenolic, Method B Stainless Steel 1 mm 3-4 bar Digital Counter (Inbuilt in HMI) 220V, 50Hz, Single Phase 5 gm to 90 gm (Stainless Steel weights) Highlights: Type of test Release Mechanism a i d i tt s r i F m n in ie Free Falling Dart Electromagnetic dart hold/release mechanism through Paddle Switch Circular annular clamping unit with zero slippage Mild Steel Power coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish 670x530x1665 mm Features of the touch screen include :•8 function keys •7" (800x480 px) TFT LCD 65536 colors •Provides USB Host for USB flash drive •Supports CF memory card •USB 1.1 for high-speed screen data download •800x480 pixels IP 65 complaint •128MB Flash Memory Features of the touch screen include :•8 function keys •7" (800x480 px) TFT LCD 65536 colors •Provides USB Host for USB flash drive •Supports CF memory card •USB 1.1 for high-speed screen data download •800x480 pixels IP 65 complaint •128MB Flash Memory Features of the touch screen include :•8 function keys •7" (800x480 px) TFT LCD 65536 colors •Provides USB Host for USB flash drive •Supports CF memory card •USB 1.1 for high-speed screen data download •800x480 pixels IP 65 complaint •128MB Flash Memory Clamping Unit Material Finish Dimensions * Pen drive is not a part of supply. Dart impact tester is widely used in several industries to test and to substantiate the potency of plastic sheets, flexible films by free falling Dart. OUR OTHER PRODUCTS :- ®BOX COMPRESSION TESTER FRAGILE HANDLE WITH CARE Tensile Tester Digital Box Compression Tester Spectrocolorimeter Cobb Sizing Tester Digital GSM Balance Scuff Resistance Tester Head Office : Presto Stantest Private Limited I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : +91 129 4272727 (100 Lines) E : info@prestogroup.com • Faridabad Kolkata Mumbai Pune Ahmedabad • • • • • Chennai Bangalore • www.prestogroup.com
