Types of Cartridge Filter and their Applications

1. Pearl Water Technologies Types of Cartridge Filter and their Applications

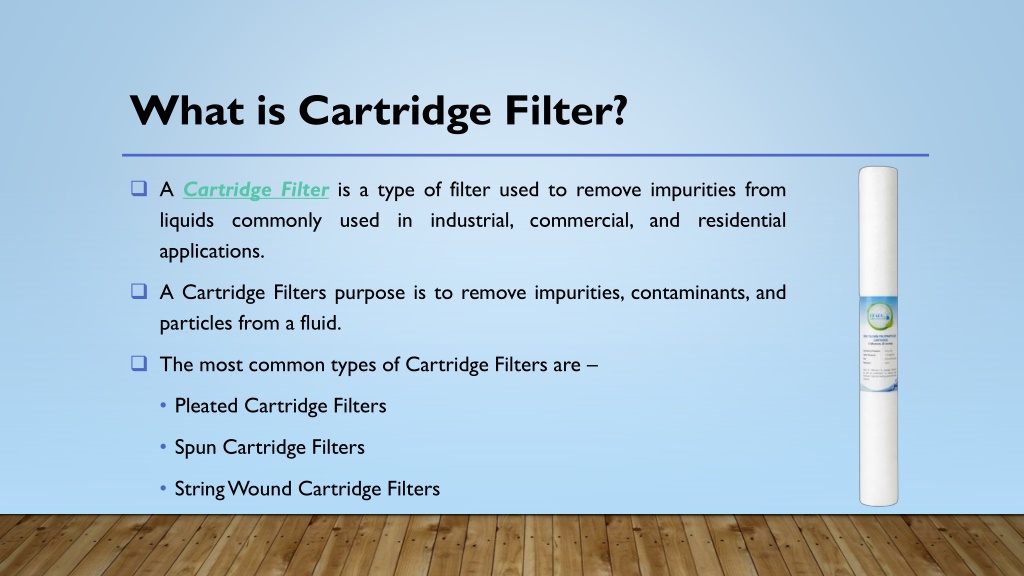

2. What is Cartridge Filter? • A Cartridge Filteris a type of filter used to remove impurities from liquids commonly used in industrial, commercial, and residential applications. • A Cartridge Filters purpose is to remove impurities, contaminants, and particles from a fluid. • The most common types of Cartridge Filters are – • Pleated Cartridge Filters • Spun Cartridge Filters • String Wound Cartridge Filters

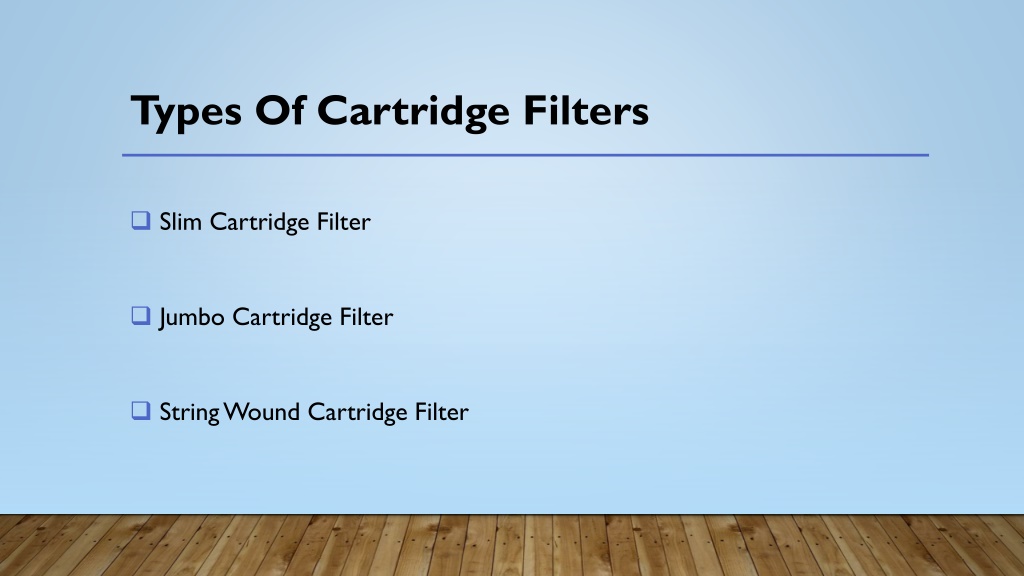

3. Types Of Cartridge Filters • Slim Cartridge Filter • Jumbo Cartridge Filter • String Wound Cartridge Filter

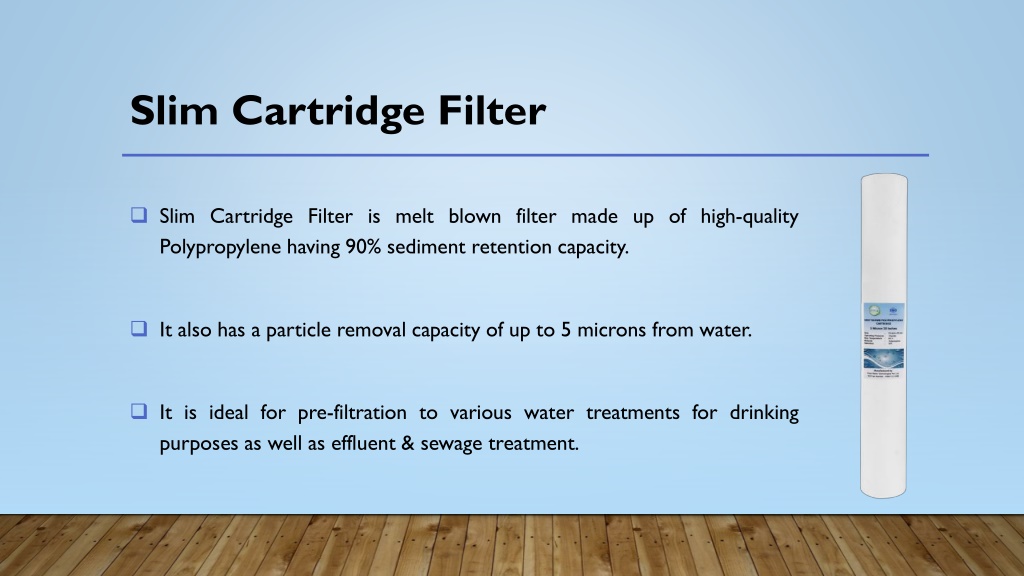

4. Slim Cartridge Filter • Slim Cartridge Filter is melt blown filter made up of high-quality Polypropylene having 90% sediment retention capacity. • It also has a particle removal capacity of up to 5 microns from water. • It is ideal for pre-filtration to various water treatments for drinking purposes as well as effluent & sewage treatment.

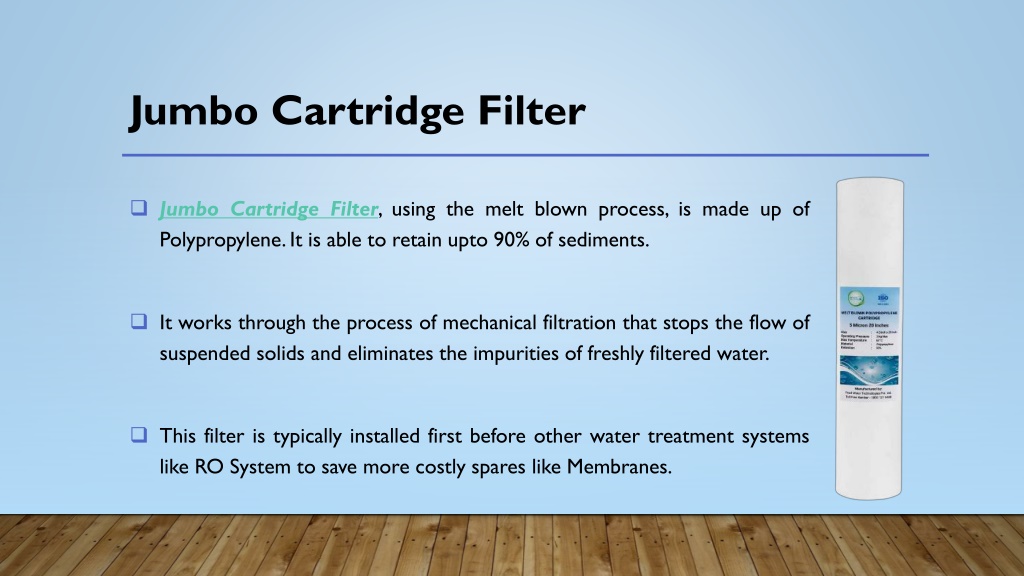

5. Jumbo Cartridge Filter • Jumbo Cartridge Filter, using the melt blown process, is made up of Polypropylene. It is able to retain upto 90% of sediments. • It works through the process of mechanical filtration that stops the flow of suspended solids and eliminates the impurities of freshly filtered water. • This filter is typically installed first before other water treatment systems like RO System to save more costly spares like Membranes.

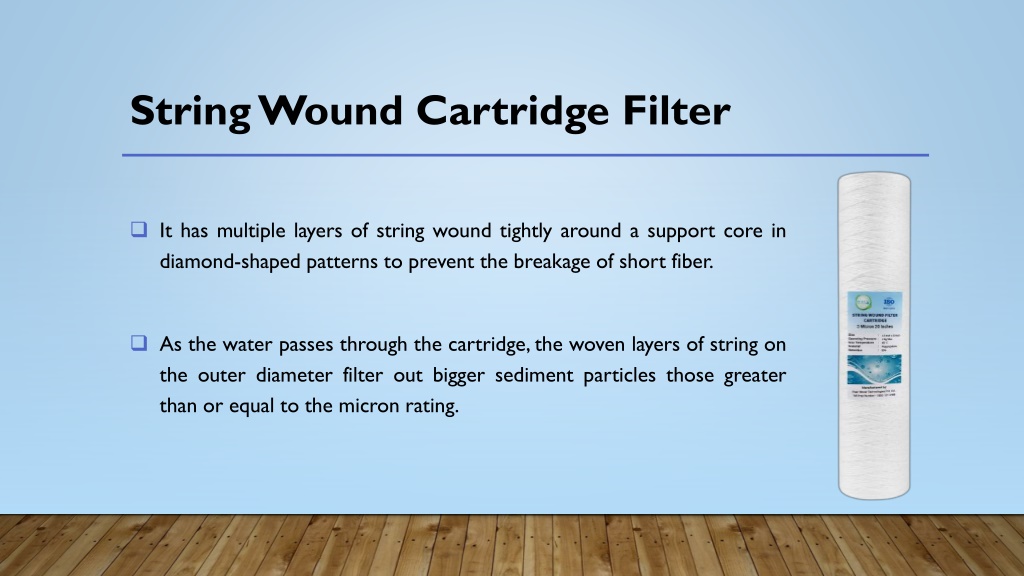

6. String Wound Cartridge Filter • It has multiple layers of string wound tightly around a support core in diamond-shaped patterns to prevent the breakage of short fiber. • As the water passes through the cartridge, the woven layers of string on the outer diameter filter out bigger sediment particles those greater than or equal to the micron rating.

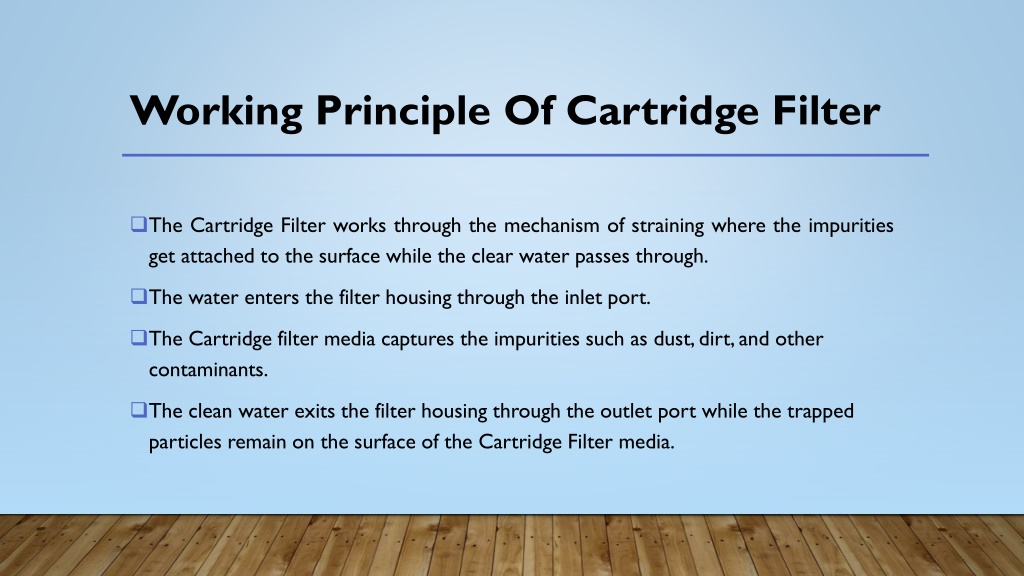

7. Working Principle Of Cartridge Filter • The Cartridge Filter works through the mechanism of straining where the impurities get attached to the surface while the clear water passes through. • The water enters the filter housing through the inlet port. • The Cartridge filter media captures the impurities such as dust, dirt, and other contaminants. • The clean water exits the filter housing through the outlet port while the trapped particles remain on the surface of the Cartridge Filter media.

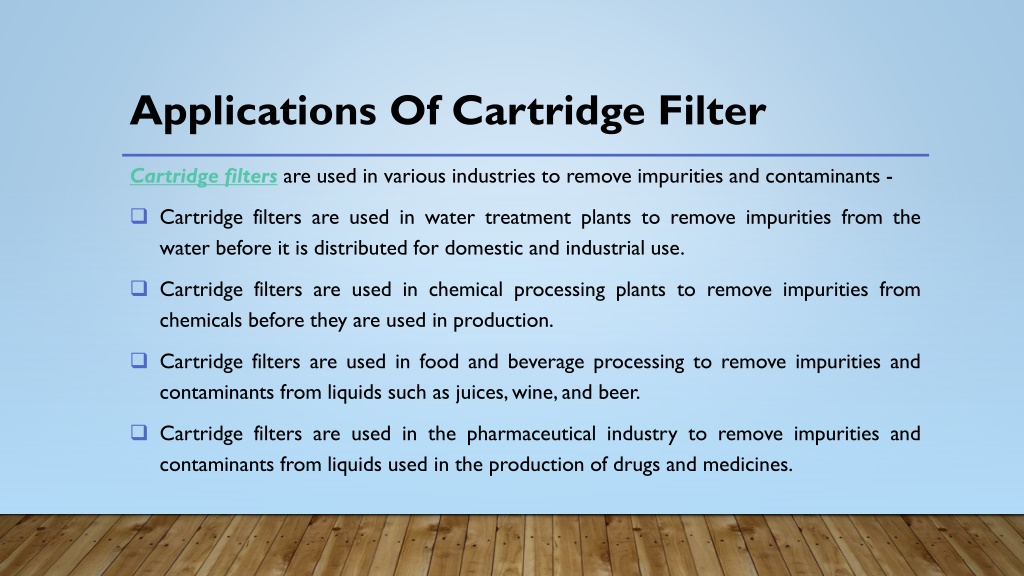

8. Applications Of Cartridge Filter Cartridge filters are used in various industries to remove impurities and contaminants - • Cartridge filters are used in water treatment plants to remove impurities from the water before it is distributed for domestic and industrial use. • Cartridge filters are used in chemical processing plants to remove impurities from chemicals before they are used in production. • Cartridge filters are used in food and beverage processing to remove impurities and contaminants from liquids such as juices, wine, and beer. • Cartridge filters are used in the pharmaceutical industry to remove impurities and contaminants from liquids used in the production of drugs and medicines.

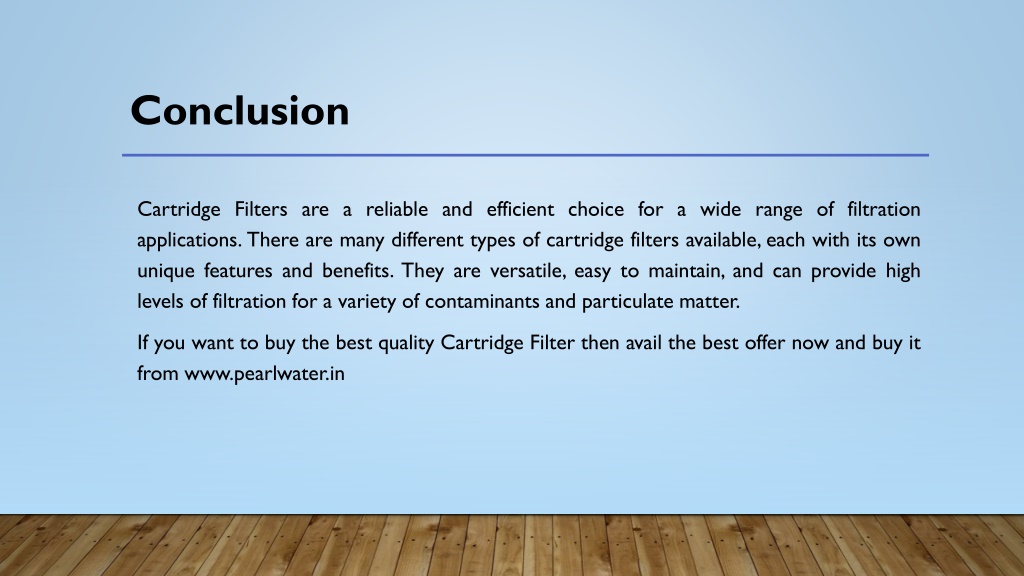

9. Conclusion Cartridge Filters are a reliable and efficient choice for a wide range of filtration applications. There are many different types of cartridge filters available, each with its own unique features and benefits. They are versatile, easy to maintain, and can provide high levels of filtration for a variety of contaminants and particulate matter. If you want to buy the best quality Cartridge Filter then avail the best offer now and buy it from www.pearlwater.in
