CPU Scheduling

CPU Scheduler

Performance metrics for CPU scheduling

Methods for analyzing schedulers

CPU scheduling algorithms

Case study:

CPU scheduling in Solaris, Window XP, and Linux.

cpu scheduler
CPU Scheduler
  • A CPU scheduler, running in the dispatcher,is responsible for selecting of the next running process.
    • Based on a particular strategy
  • When does CPU scheduling happen?
    • Four cases:
      • A process switches from the running state to waiting state (e.g. I/O request)
      • A process switches from the running state to the ready state.
      • A process switches from waiting state to ready state (completion of an I/O operation)
      • A process terminates
scheduling queues

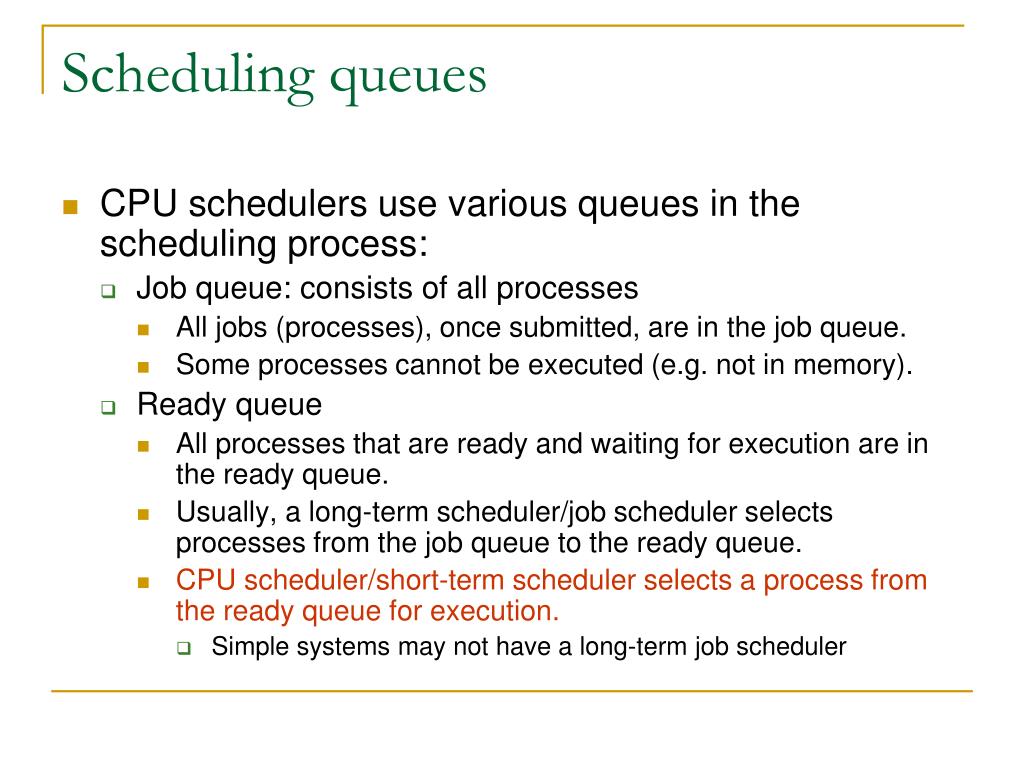

Scheduling queues
  • CPU schedulers use various queues in the scheduling process:
    • Job queue: consists of all processes
      • All jobs (processes), once submitted, are in the job queue.
      • Some processes cannot be executed (e.g. not in memory).
    • Ready queue
      • All processes that are ready and waiting for execution are in the ready queue.
      • Usually, a long-term scheduler/job scheduler selects processes from the job queue to the ready queue.
      • CPU scheduler/short-term scheduler selects a process from the ready queue for execution.
        • Simple systems may not have a long-term job scheduler
scheduling queues4
Scheduling queues
  • Device queue
    • When a process is blocked in an I/O operation, it is usually put in a device queue (waiting for the device).
    • When the I/O operation is completed, the process is moved from the device queue to the ready queue.
performance metrics for cpu scheduling
Performance metrics for CPU scheduling
  • CPU utilization: percentage of the time that CPU is busy.
  • Throughput: the number of processes completed per unit time
  • Turnaround time: the interval from the time of submission of a process to the time of completion.
  • Wait time: the sum of the periods spent waiting in the ready queue
  • Response time: the time of submission to the time the first response is produced
goal of cpu scheduling
Goal of CPU scheduling

Other performance metrics:

    • fairness: It is important, but harder to define quantitatively.
  • Goal:
    • Maximize CPU utilization, Throughput, and fairness.
    • Minimize turnaround time, waiting time, and response time.
which metric is used more
Which metric is used more?
  • CPU utilization
    • Trivial in a single CPU system
  • Fairness
    • Tricky, even definition is non-trivial
  • Throughput, turnaround time, wait time, and response time
    • Can usually be computed for a given scenario.
    • They may not be more important than fairness, but they are more tractable than fairness.
methods for evaluating cpu scheduling algorithms
Methods for evaluating CPU scheduling algorithms
  • Simulation:
    • Get the workload from a system
    • Simulate the scheduling algorithm
    • Compute the performance metrics based on simulation results
    • This is practically the best evaluation method.
  • Queueing models:
    • Analytically model the queue behavior (under some assumptions).
    • A lot of math, but may not be very accurate because of unrealistic assumptions.
methods for evaluating cpu scheduling algorithms11
Methods for evaluating CPU scheduling algorithms
  • Deterministic Modeling
    • Take a predetermined workload
    • Run the scheduling algorithm manually
    • Find out the value of the performance metric that you care about.
    • Not the best for practical uses, but can give a lot of insides about the scheduling algorithm.
      • Help understand the scheduling algorithm, as well as it strengths and weaknesses
deterministic modeling example

turnaround time

wait time

+

+

Deterministic modeling example:
  • Suppose we have processes A, B, and C, submitted at time 0
  • We want to know the response time, waiting time, and turnaround time of process A

response time = 0

A

B

C

A

B

C

A

C

A

C

Time

Gantt chart: visualize how processes execute.

deterministic modeling example13

turnaround time

wait time

+

response time

Deterministic modeling example
  • Suppose we have processes A, B, and C, submitted at time 0
  • We want to know the response time, waiting time, and turnaround time of process B

A

B

C

A

B

C

A

C

A

C

Time

deterministic modeling example14

response time

wait time

+

+

+

turnaround time

Deterministic modeling example
  • Suppose we have processes A, B, and C, submitted at time 0
  • We want to know the response time, waiting time, and turnaround time of process C

A

B

C

A

B

C

A

C

A

C

Time

preemptive versus nonpreemptive scheduling
Preemptive versus nonpreemptive scheduling
  • Many CPU scheduling algorithms have both preemptive and nonpreemptive versions:
    • Preemptive: schedule a new process even when the current process does not intend to give up the CPU
    • Non-preemptive: only schedule a new process when the current one does not want CPU any more.
  • When do we perform non-preemptive scheduling?
      • A process switches from the running state to waiting state (e.g. I/O request)
      • A process switches from the running state to the ready state.
      • A process switches from waiting state to ready state (completion of an I/O operation)
      • A process terminates
scheduling policies
Scheduling Policies
  • FIFO (first in, first out)
  • Round robin
  • SJF (shortest job first)
  • Priority Scheduling
  • Multilevel feedback queues
  • Lottery scheduling
  • This is obviously an incomplete list
slide17
FIFO
  • FIFO: assigns the CPU based on the order of requests
    • Nonpreemptive: A process keeps running on a CPU until it is blocked or terminated
    • Also known as FCFS (first come, first serve)

+ Simple

    • Short jobs can get stuck behind long jobs
      • Turnaround time is not ideal (get an example from the class)
round robin
Round Robin
  • Round Robin (RR) periodically releases the CPU from long-running jobs
    • Based on timer interrupts so short jobs can get a fair share of CPU time
    • Preemptive: a process can be forced to leave its running state and replaced by another running process
    • Time slice: interval between timer interrupts
more on round robin
More on Round Robin
  • If time slice is too long
    • Scheduling degrades to FIFO
  • If time slice is too short
    • Throughput suffers
    • Context switching cost dominates
fifo vs round robin
FIFO vs. Round Robin
  • With zero-cost context switch, is RR always better than FIFO?
fifo vs round robin21

turnaround time of C

turnaround time of B

turnaround time of C

turnaround time of B

turnaround time of A

turnaround time of A

A

B

C

A

B

C

A

B

C

Time

FIFO vs. Round Robin
  • Suppose we have three jobs of equal length

Round Robin

A

B

C

Time

FIFO

fifo vs round robin22
FIFO vs. Round Robin
  • Round Robin

+ Shorter response time

+ Fair sharing of CPU

- Not all jobs are preemptable

    • Not good for jobs of the same length
      • More precisely, not good in terms of the turnaround time.
shortest job first sjf
Shortest Job First (SJF)
  • SJF runs whatever job puts the least demand on the CPU, also known as STCF (shortest time to completion first)

+ Provably optimal in terms of turn-around time (anyone can give an informal proof?).

+ Great for short jobs

+ Small degradation for long jobs

  • Real life example: supermarket express checkouts
sjf illustrated

turnaround time of C

turnaround time of B

turnaround time of A

wait time of C

wait time of B

wait time of A = 0

response time of C

response time of B

response time of A = 0

SJF Illustrated

A

B

C

Time

Shortest Job First

shortest remaining time first srtf
Shortest Remaining Time First (SRTF)
  • SRTF: a preemptive version of SJF
    • If a job arrives with a shorter time to completion, SRTF preempts the CPU for the new job
    • Also known as SRTCF (shortest remaining time to completion first)
    • Generally used as the base case for comparisons
sjf and srtf vs fifo and round robin
SJF and SRTF vs. FIFO and Round Robin
  • If all jobs are the same length, SJF  FIFO
    • FIFO is the best you can do
  • If jobs have varying length
    • Short jobs do not get stuck behind long jobs under SRTF
drawbacks of shortest job first
Drawbacks of Shortest Job First

- Starvation: constant arrivals of short jobs can keep long ones from running

- There is no way to know the completion time of jobs (most of the time)

  • Some solutions
    • Ask the user, who may not know any better
    • If a user cheats, the job is killed
priority scheduling multilevel queues

C

A

B

Time

Priority Scheduling

Priority Scheduling (Multilevel Queues)
  • Priority scheduling: The process with the highest priority runs first
  • Priority 0:
  • Priority 1:
  • Priority 2:
  • Assume that low numbers represent high priority

C

A

B

priority scheduling
Priority Scheduling

+ Generalization of SJF

  • With SJF, priority = 1/requested_CPU_time

- Starvation

multilevel feedback queues
Multilevel Feedback Queues
  • Multilevel feedback queues use multiple queues with different priorities
    • Round robin at each priority level
    • Run highest priority jobs first
    • Once those finish, run next highest priority, etc
    • Jobs start in the highest priority queue
    • If time slice expires, drop the job by one level
    • If time slice does not expire, push the job up by one level
multilevel feedback queues31
Multilevel Feedback Queues

time = 0

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

A

B

C

Time

multilevel feedback queues32
Multilevel Feedback Queues

time = 1

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

B

C

A

A

Time

multilevel feedback queues33
Multilevel Feedback Queues

time = 2

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

C

A

B

A

B

Time

multilevel feedback queues34
Multilevel Feedback Queues

time = 3

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

A

B

C

A

B

C

Time

multilevel feedback queues35
Multilevel Feedback Queues

time = 3

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

A

B

C

suppose process A is blocked on an I/O

A

B

C

Time

multilevel feedback queues36
Multilevel Feedback Queues

time = 3

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

A

B

C

suppose process A is blocked on an I/O

A

B

C

Time

multilevel feedback queues37
Multilevel Feedback Queues

time = 5

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

A

C

suppose process A is returned from an I/O

A

B

C

B

Time

multilevel feedback queues38
Multilevel Feedback Queues

time = 6

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

C

A

B

C

B

A

Time

multilevel feedback queues39
Multilevel Feedback Queues

time = 8

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

C

A

B

C

B

A

C

Time

multilevel feedback queues40
Multilevel Feedback Queues

time = 9

  • Priority 0 (time slice = 1):
  • Priority 1 (time slice = 2):
  • Priority 2 (time slice = 4):

A

B

C

B

A

C

C

Time

multilevel feedback queues41

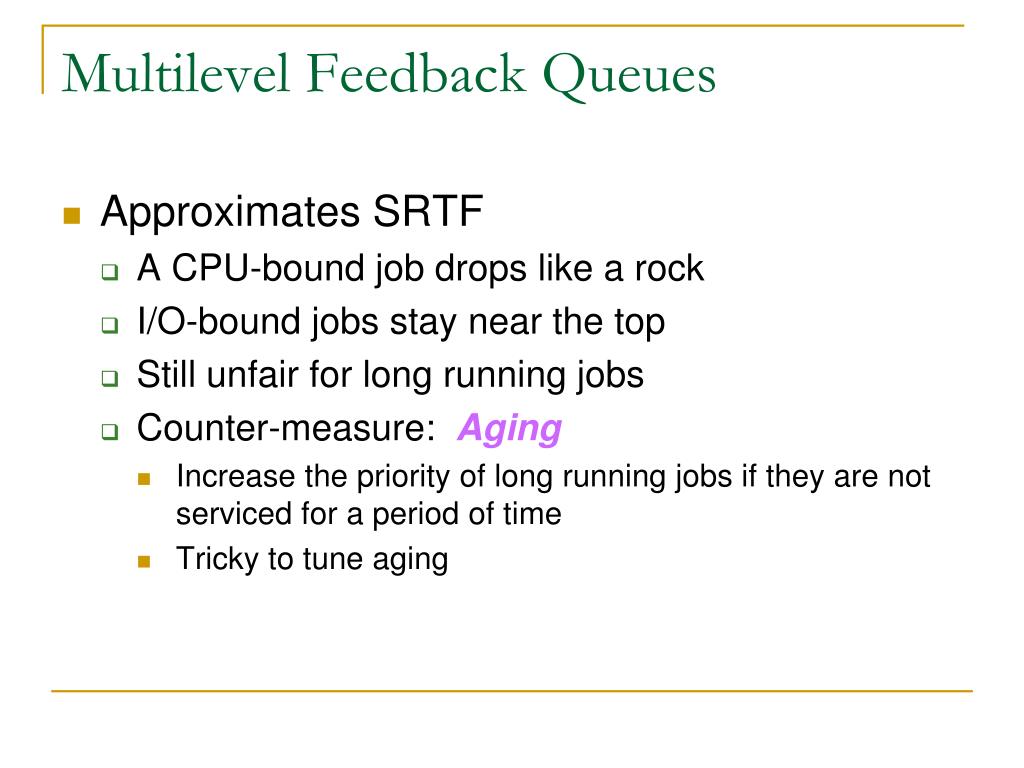

Multilevel Feedback Queues
  • Approximates SRTF
    • A CPU-bound job drops like a rock
    • I/O-bound jobs stay near the top
    • Still unfair for long running jobs
    • Counter-measure: Aging
      • Increase the priority of long running jobs if they are not serviced for a period of time
      • Tricky to tune aging
lottery scheduling
Lottery Scheduling
  • Lottery scheduling is an adaptive scheduling approach to address the fairness problem
    • Each process owns some tickets
    • On each time slice, a ticket is randomly picked
    • On average, the allocated CPU time is proportional to the number of tickets given to each job
lottery scheduling43
Lottery Scheduling
  • To approximate SJF, short jobs get more tickets
  • To avoid starvation, each job gets at least one ticket
lottery scheduling example
Lottery Scheduling Example
  • short jobs: 10 tickets each
  • long jobs: 1 ticket each
case study
Case study:
  • CPU scheduling in Solaris:
    • Priority-based scheduling
      • Four classes: real time, system, time sharing, interactive (in order of priority)
      • Different priorities and algorithm in different classes
      • Default class: time sharing
      • Policy in the time sharing class:
        • Multilevel feedback queue with variable time slices
        • See the dispatch table
solaris dispatch table for interactive and time sharing threads
Solaris dispatch table for interactive and time-sharing threads
  • Good response time for interactive processes and good throughput for CPU-bound processes
windows xp scheduling
Windows XP scheduling
  • A priority-based, preemptive scheduling
      • Highest priority thread will always run
      • Also have multiple classes and priorities within classes
  • Similar idea for user processes – Multilevel feedback queue
      • Lower priority when quantum runs out
      • Increase priority after a wait event
  • Some twists to improve “user perceived” performance:
      • Boost priority and quantum for foreground process (the window that is currently selected).
      • Boost priority more for a wait on keyboard I/O (as compared to disk I/O)
linux scheduling
Linux scheduling
  • A priority-based, preemptive with global round-robin scheduling
    • Each process have a priority
    • Processes with a larger priority also have a larger time slices
    • Before the time slices is used up, processes are scheduled based on priority.
    • After the time slice of a process is used up, the process must wait until all ready processes to use up their time slice (or be blocked) – a round-robin approach.
      • No starvation problem.
    • For a user process, its priority may + or – 5 depending whether the process is I/O- bound or CPU-bound.
      • Giving I/O bound process higher priority.
summary for the case study
Summary for the case study
  • Basic idea for schedule user processes is the same for all systems:
    • Lower priority for CPU bound process
    • Increase priority for I/O bound process
  • The scheduling in Solaris / Linux is more concerned about fairness.
    • More popular as the OSes for servers.
  • The scheduling in Window XP is more concerned about user perceived performance.
    • More popular as the OS for personal computers.
