EDGE Crush Tester i9 (DIGITAL) Paramount instruments

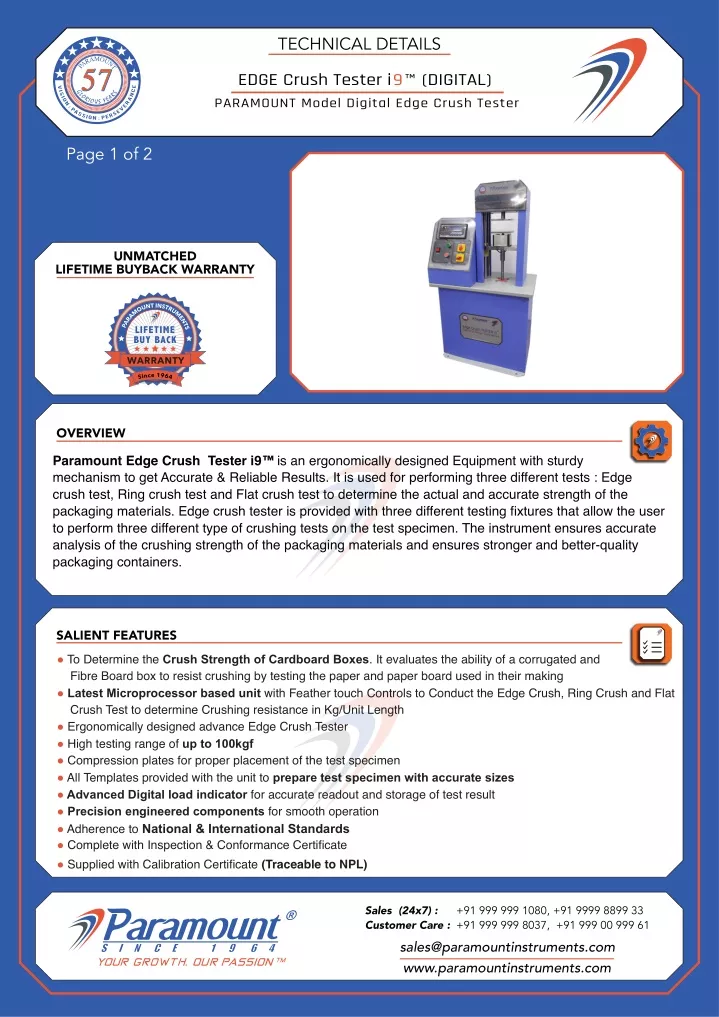

1. TECHNICAL DETAILS EDGE Crush Tester i9™ (DIGITAL) PARAMOUNT Model Digital Edge Crush Tester Page 1 of 2 UNMATCHED LIFETIME BUYBACK WARRANTY OVERVIEW Paramount Edge Crush Tester i9™ is an ergonomically designed Equipment with sturdy mechanism to get Accurate & Reliable Results. It is used for performing three different tests : Edge crush test, Ring crush test and Flat crush test to determine the actual and accurate strength of the packaging materials. Edge crush tester is provided with three different testing fixtures that allow the user to perform three different type of crushing tests on the test specimen. The instrument ensures accurate analysis of the crushing strength of the packaging materials and ensures stronger and better-quality packaging containers. SALIENT FEATURES ● To Determine the Crush Strength of Cardboard Boxes. It evaluates the ability of a corrugated and Fibre Board box to resist crushing by testing the paper and paper board used in their making ● Latest Microprocessor based unit with Feather touch Controls to Conduct the Edge Crush, Ring Crush and Flat Crush Test to determine Crushing resistance in Kg/Unit Length ● Ergonomically designed advance Edge Crush Tester ● High testing range of up to 100kgf ● Compression plates for proper placement of the test specimen ● All Templates provided with the unit to prepare test specimen with accurate sizes ● Advanced Digital load indicator for accurate readout and storage of test result ● Precision engineered components for smooth operation ● Adherence to National & International Standards ● Complete with Inspection & Conformance Certificate ● Supplied with Calibration Certificate (Traceable to NPL) Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com

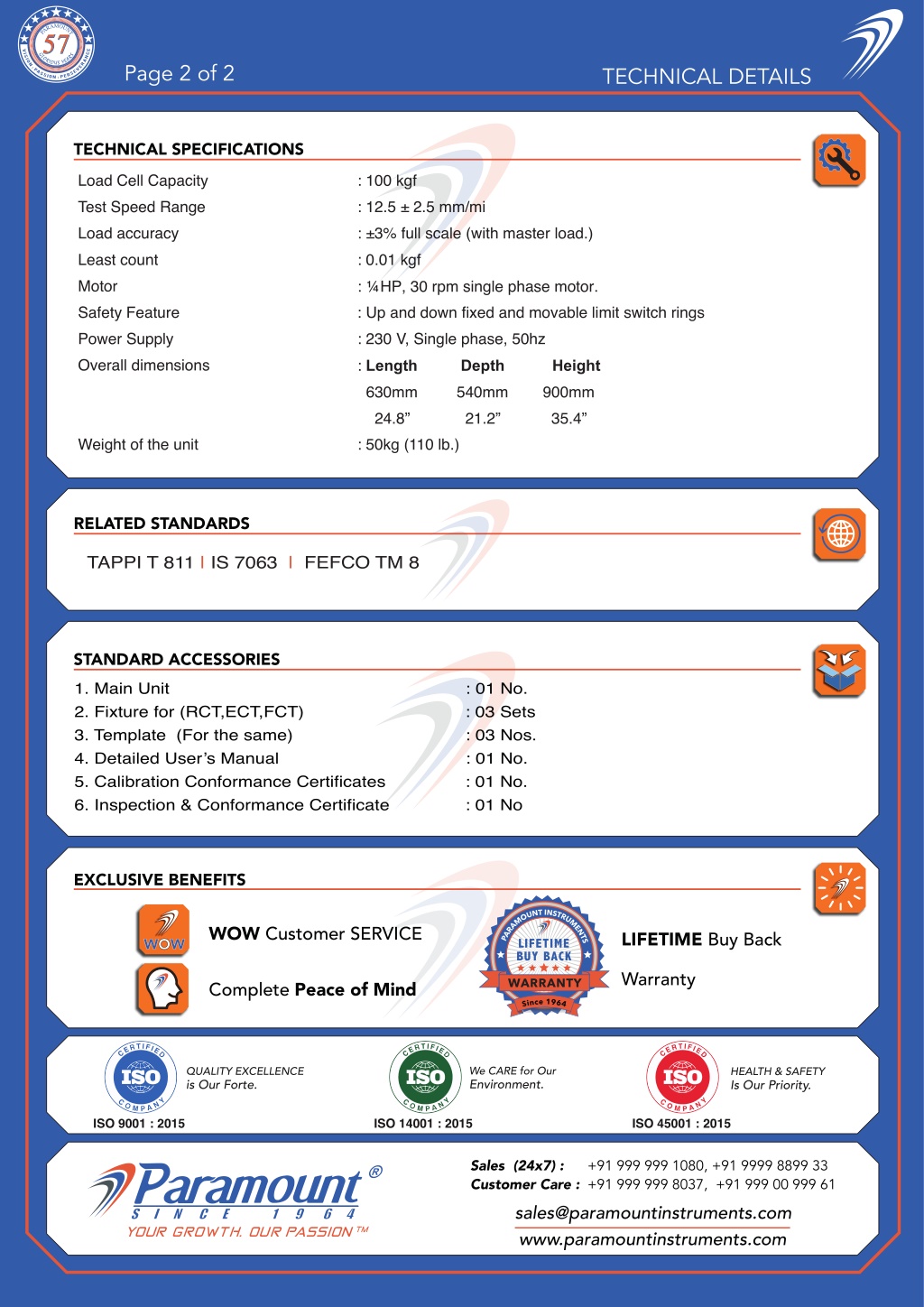

2. Page 2 of 2 TECHNICAL DETAILS TECHNICAL SPECIFICATIONS Load Cell Capacity : 100 kgf Test Speed Range : 12.5 ± 2.5 mm/mi Load accuracy : ±3% full scale (with master load.) Least count : 0.01 kgf : ¼ HP, 30 rpm single phase motor. Motor Safety Feature : Up and down fixed and movable limit switch rings Power Supply : 230 V, Single phase, 50hz : Length Depth Height Overall dimensions 630mm 540mm 900mm 24.8” 21.2” 35.4” Weight of the unit : 50kg (110 lb.) RELATED STANDARDS TAPPI T 811 | IS 7063 | FEFCO TM 8 STANDARD ACCESSORIES 1. Main Unit 2. Fixture for (RCT,ECT,FCT) 3. Template (For the same) 4. Detailed User’s Manual 5. Calibration Conformance Certificates 6. Inspection & Conformance Certificate : 01 No. : 03 Sets : 03 Nos. : 01 No. : 01 No. : 01 No EXCLUSIVE BENEFITS WOW Customer SERVICE LIFETIME Buy Back Warranty Complete Peace of Mind We CARE for Our Environment. QUALITY EXCELLENCE is Our Forte. HEALTH & SAFETY Is Our Priority. ISO 9001 : 2015 ISO 14001 : 2015 ISO 45001 : 2015 Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com
