Presentation Transcript

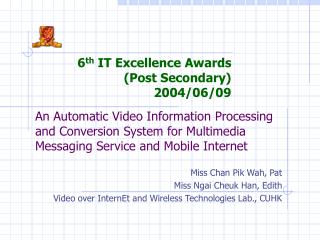

Slide1 l.jpg

6th IT Excellence Awards

(Post Secondary)

2004/06/09

An Automatic Video Information Processing and Conversion System for Multimedia Messaging Service and Mobile Internet

Miss Chan Pik Wah, Pat

Miss Ngai Cheuk Han, Edith

Video over InternEt and Wireless Technologies Lab., CUHK


Video over internet and wireless technologies laboratory l.jpg
Video over InternEt and Wireless Technologies Laboratory

  • VIEWLab is a research and application development laboratory

    • Computer Science and Engineering, CUHK

    • Prof. Michael R. Lyu

  • Focus on

    • Video Information Processing Technologies

    • Mobile and Wireless Application Development


Presentation outline l.jpg
Presentation Outline

  • Motivation

  • Functionality & Design

  • Demonstration

  • Innovation

  • Prospect for future commercialization

  • Q&A


Motivation l.jpg
Motivation

  • Needs of mobile video content is increasing

  • Video information processing technologies developed

  • A prototype system is created to automate the video authoring process

  • Enabling faster and cheaper mobile video entertainment


Functionality design l.jpg
Functionality & Design

  • An automatic video information processing and conversion system for MMS and Mobile Internet

  • Targets

    • Fully automation

    • Mechanical processing with pre-defined knowledge

    • Various video content type

    • Short processing time

    • Configurable for different needs


Overview of system l.jpg

Advertisement Removal

Program Identification

Scene Analysis

Overview of System

TV

Broadcast

MMS

Component

Creation

MMS

(Pictures +

Sound) /

Mobile Video

Video

Streaming /

Progressive

Download

Mobile Internet

Video Clip

Conversion


Video information processing l.jpg
Video Information Processing

  • These are the technologies to extract information from video using visual and audio channels

  • By extracting/identifying the information, “effective” condensation/summary techniques can be applied through information fusion or recognition steps

  • We define a type of information a “modality”

    • Transcript/Speech

    • On-screen characters

    • Face

    • Visual features


Every bit counts l.jpg
Every Bit Counts

  • MMS size is limited to within hundred KB

    • In order to delivery “useful” information to viewer

    • Condensation/summary techniques are required to locate/prioritize the most important bits

  • Bandwidth cost is relatively higher than other channels

    • the “value” of the content transmitted is curial to successfully MMS business

    • Utilize the “value” of the bandwidth use, only transmitting the important bits


Main features of video2mms l.jpg
Main Features of Video2MMS

  • Advertisement removal

  • TV program identification

  • Video condensation/summary

  • MMS creation and adaptation for different mobile handsets


Advertisement removal l.jpg
Advertisement Removal

  • Based on the logo detection techniques developed, TV program and non TV program segmentscan be separated automatically

TV

Broadcast

Non Program

Program

Non Program


Tv program identification l.jpg
TV Program Identification

  • Based on the visual features and audio characteristics, the desire TV program can be identified


Video condensation summary l.jpg

Video Summary

Video Condensation / Summary

  • Condense the long video into short slide show presentation

    • Segment the video into different scene

      • Two pass minimum difference color histogram

    • Choose the most representative shots

      • Video editing style

      • Longest scene


Mms creation and adaptation l.jpg
MMS Creation and Adaptation

  • Different handsets have different MMS size and screen size

    • Nokia 7650, 3650 - 100KB, 176 x 136

    • SonyEricsson T68i, T300 – 30KB, 101 x 80

    • Panasonic GD88 – 45KB, 176 x 136

  • Convert the pictures to correct screen size

  • Utilize the MMS size for most information (number of pictures and duration)

  • Configurable for new handsets


Mms matrix l.jpg
MMS Matrix

MMS Size = audio size + (picture size * n)

Audio size = length of audio * 0.8k, (4.75 bit-rate)

Picture size = f(screen size, number of colors)


Mobile internet video clips conversion l.jpg
Mobile Internet Video Clips Conversion

  • Control third party modules to cut and convert video into short video clips

  • Different handsets have different MMS size and screen size

    • 3GPP format

    • RealVideo format

    • Microsoft Windows Media Format

  • Clips size configurable for different usage

    • 100KB for MMS delivery

    • >100KB for video streaming


Demonstration video 1 l.jpg
Demonstration Video (1)

ATV News Headline

AMR + Animated Gif

Nokia 3650

100KB

20 seconds

174 x 136

128 colors

Animated Gif (6 pic.)

AMR Audio

(click to play)


Demonstration video 2 l.jpg
Demonstration Video (2)

ATV News Headline

3GP for Mobile Internet

Nokia 3650

195KB

20 seconds

174 x 136

256 colors

(click to play)


Demonstration video 3 l.jpg
Demonstration Video (3)

ATV Weather Report

AMR + Animated Gif

Nokia 3650

100KB

60 seconds

174 x 136

128 colors

Animated Gif (5 pic.)

AMR Audio

(click to play)


Demonstration video 4 l.jpg
Demonstration Video (4)

ATV Hourly News

AMR + Animated Gif

Nokia 3650

100KB

40 seconds

174 x 136

128 colors

Animated Gif (6 pic.)

AMR Audio

(click to play)


Demonstration video 5 l.jpg
Demonstration Video (5)

Horse Racing

3GP in MMS

Nokia 3650

95KB

20 seconds

174 x 136

(click to play)


Demonstration video 6 l.jpg
Demonstration Video (6)

Horse Racing

RealVideo in MMS

Nokia 3650

95KB

20 seconds

120 x 96

(click to play)


Demonstration video 7 l.jpg
Demonstration Video (7)

Soccer Goal Shot

RealVideo in MMS

Nokia 3650

92KB

5 seconds

120 x 96

(click to play)


System demonstration l.jpg
System Demonstration

Main

Panel

Modules

Editor

Task

Profile

Task

Scheduler


Innovation l.jpg
Innovation

  • We believed

    • this is the first application

    • applied Video Information Processing technologies

    • on automating the content preparation processes

    • for mobile handset in Hong Kong


Prospect for future commercialization l.jpg
Prospect for future commercialization

  • Base on this prototype, our laboratory technology commercialization team developed a production system called Video2MMS™

  • Video2MMS™ was licensed to HKCSL in spring 2003 to prepare daily news and weather video clips and MMS

  • Press release

    • http://www.hkcsl.com/show.jsp?pid=4&cnid1=407&type1=1&rhtID1=3&lid=2


Tested handsets l.jpg
Tested Handsets

  • MMS

    • Nokia 7560, 3650

    • SonyEricssion T68i, T300

    • Panasonic GD88

  • VideoClips (Download)

    • MS PocketPC, XDA


Recommended system requirements l.jpg
Recommended System Requirements

  • Intel P4 1.0G Hz

  • 512MB RAM

  • Microsoft Windows 2000 or above

  • DirectX 8.1

  • TV Capture Card (MPEG-1)

  • Optional third party software

    • Real Encoder

    • Nokia 3GP Encoder

    • Sony Ericsson AMR Convertor

    • Microsoft Windows Media Encoder
