Flexo Printing Machine

High speed Flexo Printing Machine supplier & exporter. Flexograph Printing Machine with Nessco India pairing with the latest technology.<br>

Nesscoindia
Download Presentation

Flexo Printing Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

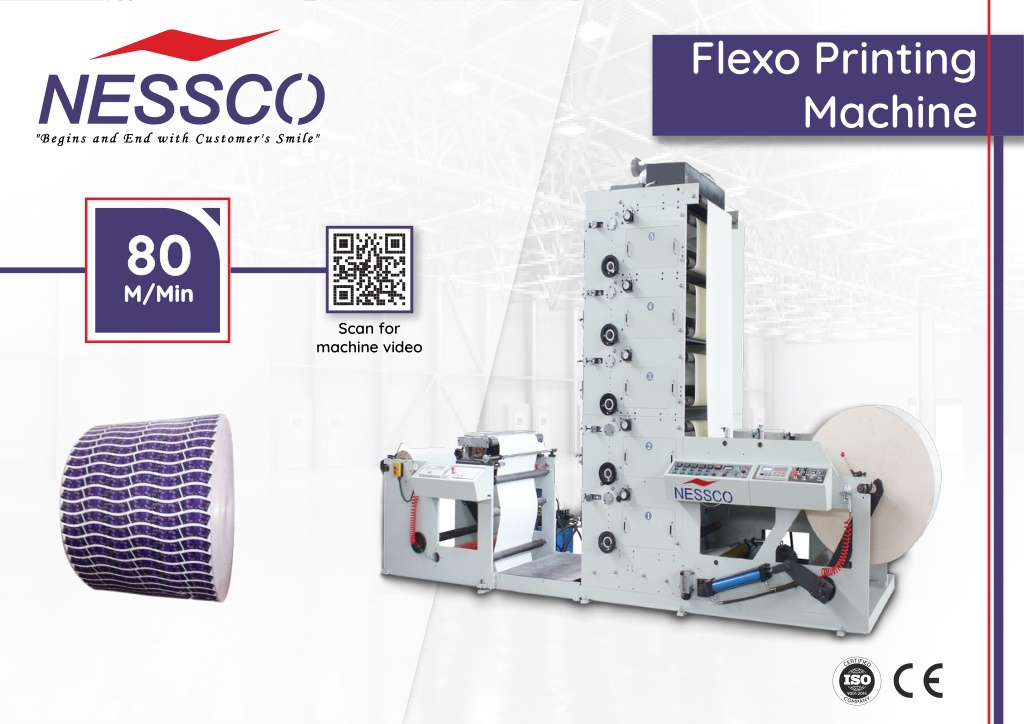

  1. Flexo Printing Machine 80 M/Min Scan for machine video CERTIFIED 9001:2015 COMPANY

  2. About Us Nessco India is a manufacturer and supplier of a wide range of Paper Cup Making Machines pairing with the latest technology. We provide High-Speed Paper Cup Machine Series, Paper Plate Making Machine, Face Mask Making Machine, Flexo Printing Machine, Roll Die Cutting Machine, PE Coating Machine, Paper Bag Machine, Paper Straw Machine and other machines in the disposable paper range. As paper cup machine manufactures staying true to our business, we use our own services to continuously build the NESSCO. This is the secret recipe behind our fast growth and that is why we are so confident in the unique benefits that our solution can bring to business around the world. We believe in treating our customers with respect and faith. We grow through creativity, Invention and innovation. We integrated honesty and business ethics with all aspects of business functioning. Our prime objective is to assist our clients in a significant manner by offering them a large variety of quality product at low cost.

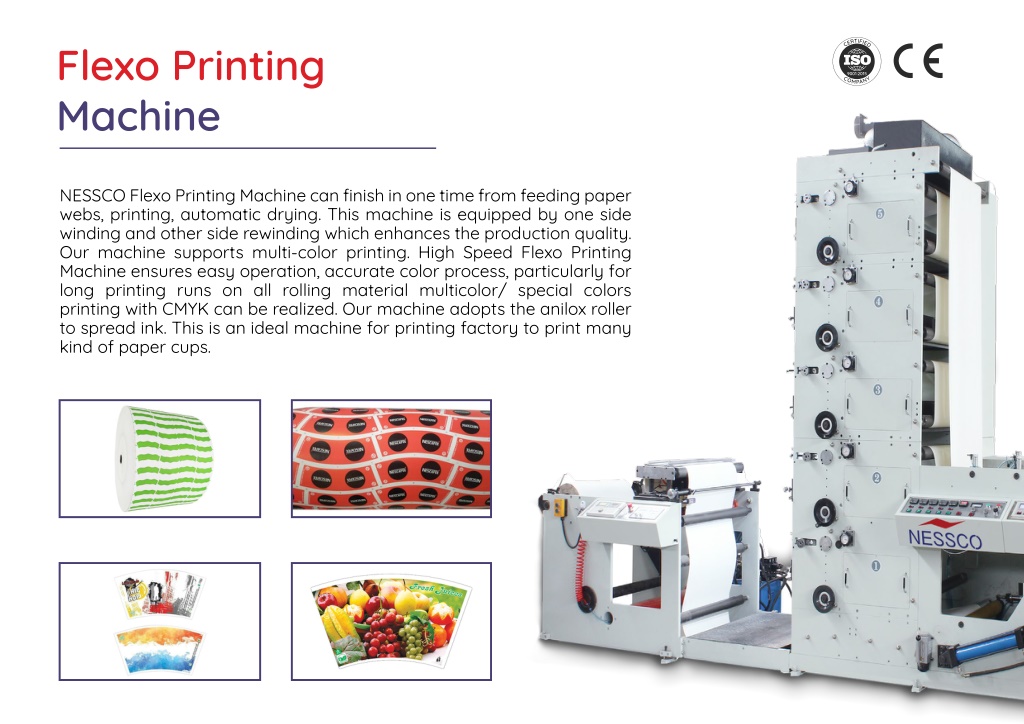

  3. CERTIFIED Flexo Printing Machine 9001:2015 COMPANY NESSCO Flexo Printing Machine can finish in one time from feeding paper webs, printing, automatic drying. This machine is equipped by one side winding and other side rewinding which enhances the production quality. Our machine supports multi-color printing. High Speed Flexo Printing Machine ensures easy operation, accurate color process, particularly for long printing runs on all rolling material multicolor/ special colors printing with CMYK can be realized. Our machine adopts the anilox roller to spread ink. This is an ideal machine for printing factory to print many kind of paper cups.

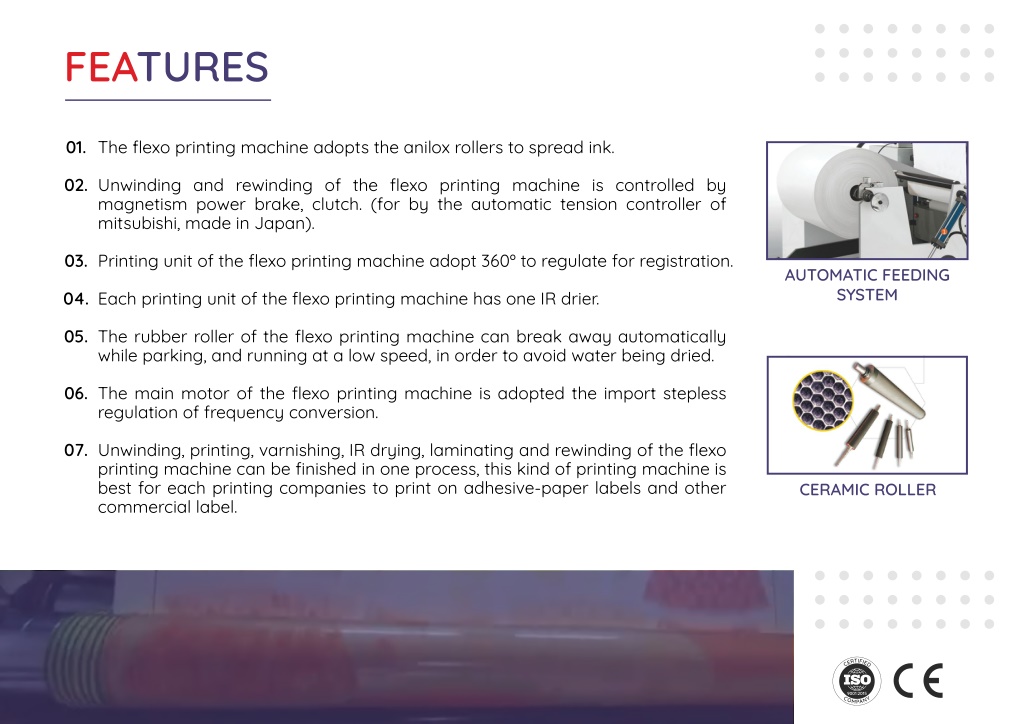

  4. FEATURES The flexo printing machine adopts the anilox rollers to spread ink. 01. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake, clutch. (for by the automatic tension controller of mitsubishi, made in Japan). 02. Printing unit of the flexo printing machine adopt 360º to regulate for registration. 03. Each printing unit of the flexo printing machine has one IR drier. 04. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried. 05. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion. 06. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label. 07. CERTIFIED 9001:2015 COMPANY

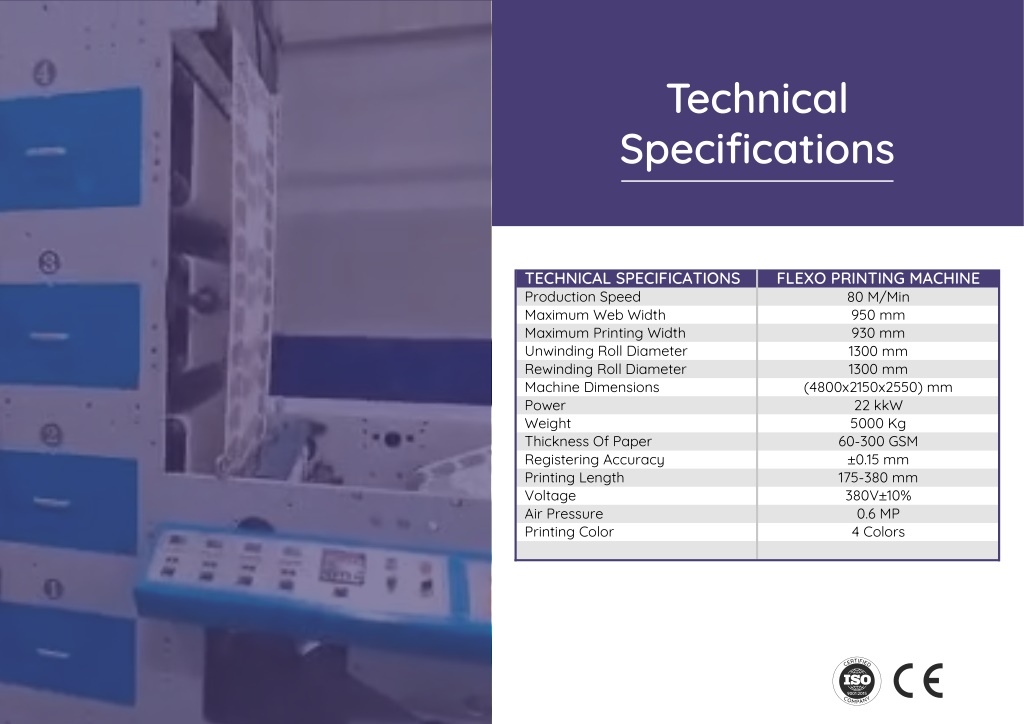

  5. Technical Specifications TECHNICAL SPECIFICATIONS FLEXO PRINTING MACHINE Production Speed Maximum Web Width Maximum Printing Width Unwinding Roll Diameter Rewinding Roll Diameter Machine Dimensions Power Weight Thickness Of Paper Registering Accuracy Printing Length Voltage Air Pressure Printing Color 80 M/Min 950 mm 930 mm 1300 mm 1300 mm (4800x2150x2550) mm 22 kkW 5000 Kg 60-300 GSM ±0.15 mm 175-380 mm 380V±10% 0.6 MP 4 Colors CERTIFIED 9001:2015 COMPANY

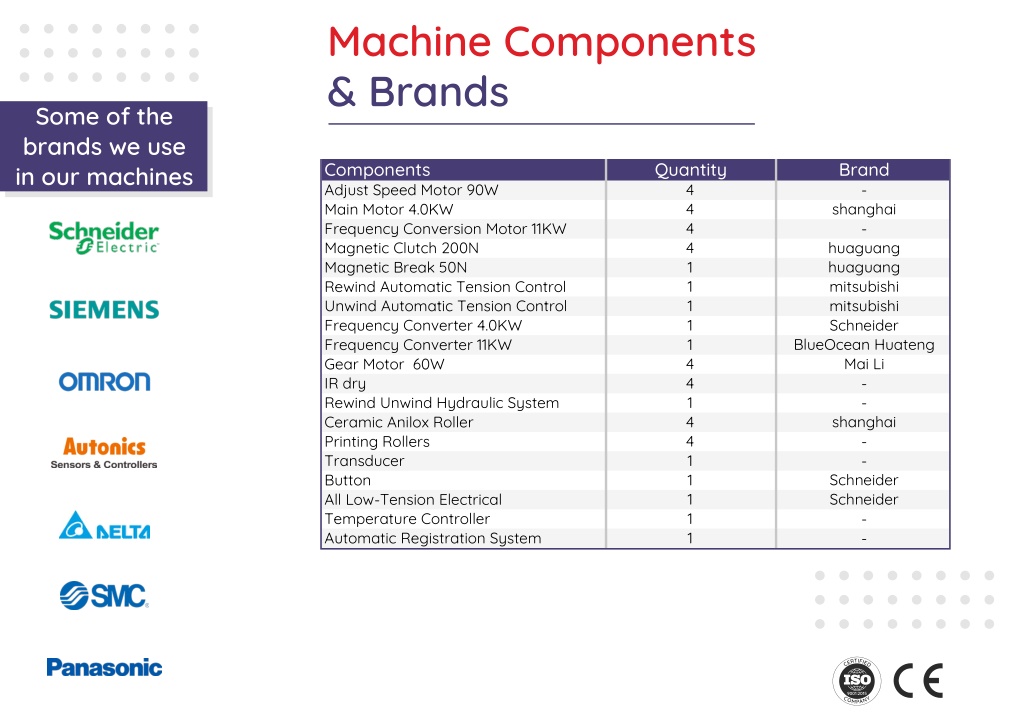

  6. Machine Components & Brands Some of the brands we use in our machines Components Adjust Speed Motor 90W Main Motor 4.0KW Frequency Conversion Motor 11KW Magnetic Clutch 200N Magnetic Break 50N Rewind Automatic Tension Control Unwind Automatic Tension Control Frequency Converter 4.0KW Frequency Converter 11KW Gear Motor 60W IR dry Rewind Unwind Hydraulic System Ceramic Anilox Roller Printing Rollers Transducer Button All Low-Tension Electrical Temperature Controller Automatic Registration System Quantity 4 4 4 4 1 1 1 1 1 4 4 1 4 4 1 1 1 1 1 Brand - shanghai - huaguang huaguang mitsubishi mitsubishi Schneider BlueOcean Huateng Mai Li - - shanghai - - Schneider Schneider - - CERTIFIED 9001:2015 COMPANY

  7. Headquaters & Branch Office Reaches OUR CLIENT COMPANIES CERTIFIED 9001:2015 COMPANY

  8. Scan Here: or visit us at www.nesscoindia.com Contact Us www.nesscoindia.com Head Office E-186, Apparel Park, RIICO Industrial Area, Mahal Road, Jaipur - 302022 @nesscopapercupmachine @nesscoindia Branch Office Mumbai Kolkata Bhubaneswar Delhi Bangalore Nessco Paper Cup Machine Nessco India Contact +91 90018 53344, +91 95300 39800 Nessco India @nesscopapercupmachine Email info@nesscoindia.com CERTIFIED 9001:2015 COMPANY
