Mastering Coaxial Cable Connectors: A Step-by-Step Guide to Seamless Connections

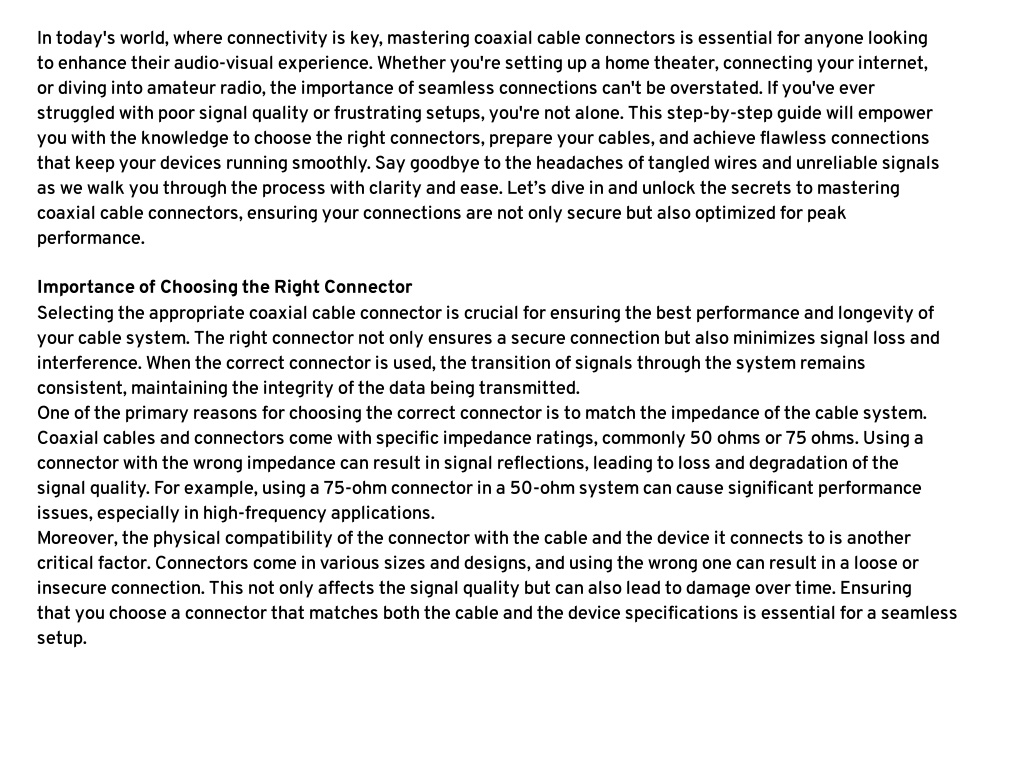

In today's world, where connectivity is key, mastering coaxial cable connectors is essential for anyone looking to enhance their audio-visual experience. Whether you're setting up a home theater, connecting your internet, or diving into amateur radio, the importance of seamless connections can't be overstated. If you've ever struggled with poor signal quality or frustrating setups, you're not alone. This step-by-step guide will empower you with the knowledge to choose the right connectors, prepare your cables, and achieve flawless connections that keep your devices running smoothly. Say goodbye to the headaches of tangled wires and unreliable signals as we walk you through the process with clarity and ease. Let’s dive in and unlock the secrets to mastering coaxial cable connectors, ensuring your connections are not only secure but also optimized for peak performance. Importance of Choosing the Right Connector Selecting the appropriate coaxial cable connector is crucial for ensuring the best performance and longevity of your cable system. The right connector not only ensures a secure connection but also minimizes signal loss and interference. When the correct connector is used, the transition of signals through the system remains consistent, maintaining the integrity of the data being transmitted. One of the primary reasons for choosing the correct connector is to match the impedance of the cable system. Coaxial cables and connectors come with specific impedance ratings, commonly 50 ohms or 75 ohms. Using a connector with the wrong impedance can result in signal reflections, leading to loss and degradation of the signal quality. For example, using a 75-ohm connector in a 50-ohm system can cause significant performance issues, especially in high-frequency applications. Moreover, the physical compatibility of the connector with the cable and the device it connects to is another critical factor. Connectors come in various sizes and designs, and using the wrong one can result in a loose or insecure connection. This not only affects the signal quality but can also lead to damage over time. Ensuring that you choose a connector that matches both the cable and the device specifications is essential for a seamless setup.

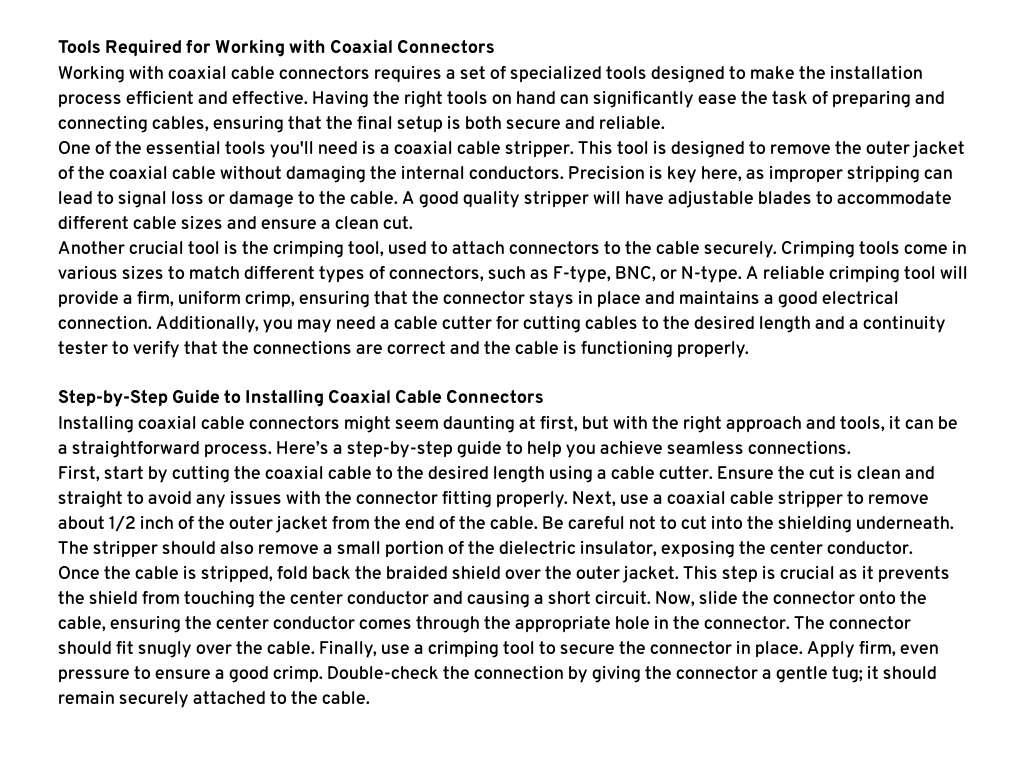

Tools Required for Working with Coaxial Connectors Working with coaxial cable connectors requires a set of specialized tools designed to make the installation process efficient and effective. Having the right tools on hand can significantly ease the task of preparing and connecting cables, ensuring that the final setup is both secure and reliable. One of the essential tools you'll need is a coaxial cable stripper. This tool is designed to remove the outer jacket of the coaxial cable without damaging the internal conductors. Precision is key here, as improper stripping can lead to signal loss or damage to the cable. A good quality stripper will have adjustable blades to accommodate different cable sizes and ensure a clean cut. Another crucial tool is the crimping tool, used to attach connectors to the cable securely. Crimping tools come in various sizes to match different types of connectors, such as F-type, BNC, or N-type. A reliable crimping tool will provide a firm, uniform crimp, ensuring that the connector stays in place and maintains a good electrical connection. Additionally, you may need a cable cutter for cutting cables to the desired length and a continuity tester to verify that the connections are correct and the cable is functioning properly. Step-by-Step Guide to Installing Coaxial Cable Connectors Installing coaxial cable connectors might seem daunting at first, but with the right approach and tools, it can be a straightforward process. Here’s a step-by-step guide to help you achieve seamless connections. First, start by cutting the coaxial cable to the desired length using a cable cutter. Ensure the cut is clean and straight to avoid any issues with the connector fitting properly. Next, use a coaxial cable stripper to remove about 1/2 inch of the outer jacket from the end of the cable. Be careful not to cut into the shielding underneath. The stripper should also remove a small portion of the dielectric insulator, exposing the center conductor. Once the cable is stripped, fold back the braided shield over the outer jacket. This step is crucial as it prevents the shield from touching the center conductor and causing a short circuit. Now, slide the connector onto the cable, ensuring the center conductor comes through the appropriate hole in the connector. The connector should fit snugly over the cable. Finally, use a crimping tool to secure the connector in place. Apply firm, even pressure to ensure a good crimp. Double-check the connection by giving the connector a gentle tug; it should remain securely attached to the cable.

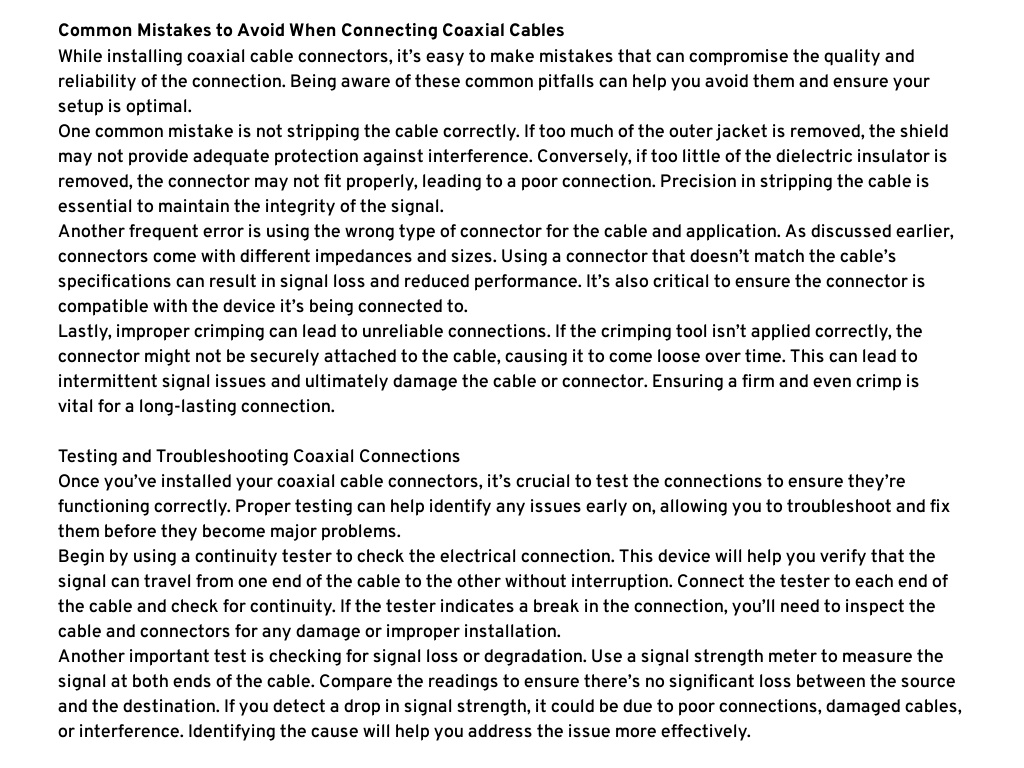

Common Mistakes to Avoid When Connecting Coaxial Cables While installing coaxial cable connectors, it’s easy to make mistakes that can compromise the quality and reliability of the connection. Being aware of these common pitfalls can help you avoid them and ensure your setup is optimal. One common mistake is not stripping the cable correctly. If too much of the outer jacket is removed, the shield may not provide adequate protection against interference. Conversely, if too little of the dielectric insulator is removed, the connector may not fit properly, leading to a poor connection. Precision in stripping the cable is essential to maintain the integrity of the signal. Another frequent error is using the wrong type of connector for the cable and application. As discussed earlier, connectors come with different impedances and sizes. Using a connector that doesn’t match the cable’s specifications can result in signal loss and reduced performance. It’s also critical to ensure the connector is compatible with the device it’s being connected to. Lastly, improper crimping can lead to unreliable connections. If the crimping tool isn’t applied correctly, the connector might not be securely attached to the cable, causing it to come loose over time. This can lead to intermittent signal issues and ultimately damage the cable or connector. Ensuring a firm and even crimp is vital for a long-lasting connection. Testing and Troubleshooting Coaxial Connections Once you’ve installed your coaxial cable connectors, it’s crucial to test the connections to ensure they’re functioning correctly. Proper testing can help identify any issues early on, allowing you to troubleshoot and fix them before they become major problems. Begin by using a continuity tester to check the electrical connection. This device will help you verify that the signal can travel from one end of the cable to the other without interruption. Connect the tester to each end of the cable and check for continuity. If the tester indicates a break in the connection, you’ll need to inspect the cable and connectors for any damage or improper installation. Another important test is checking for signal loss or degradation. Use a signal strength meter to measure the signal at both ends of the cable. Compare the readings to ensure there’s no significant loss between the source and the destination. If you detect a drop in signal strength, it could be due to poor connections, damaged cables, or interference. Identifying the cause will help you address the issue more effectively.

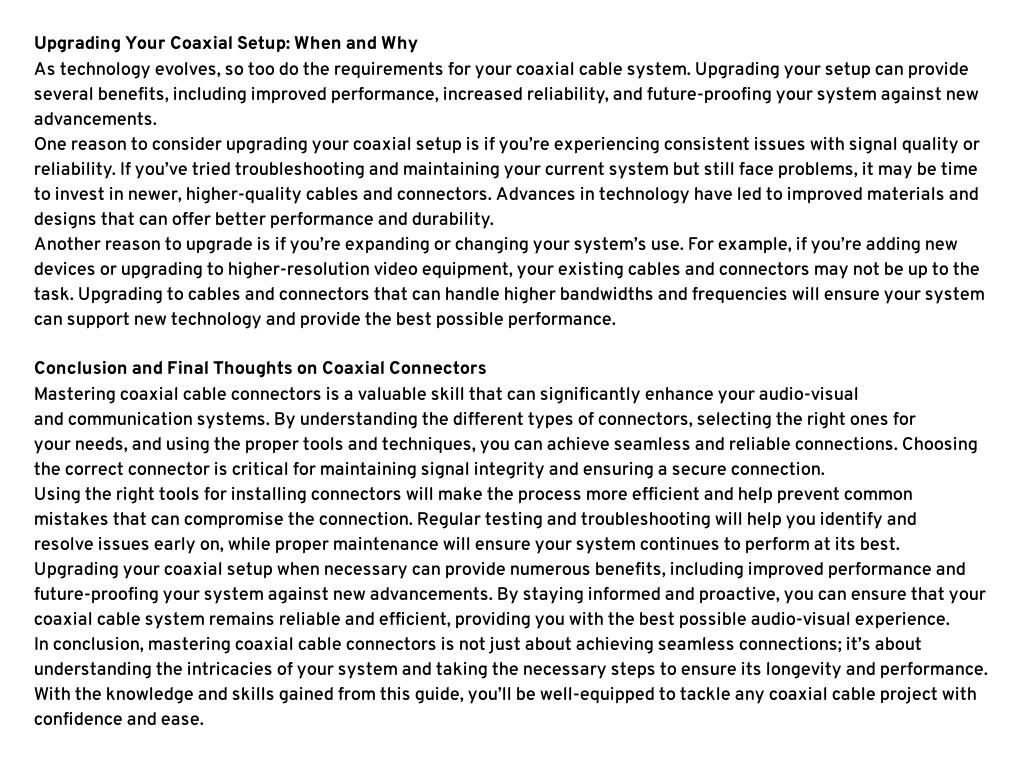

Upgrading Your Coaxial Setup: When and Why As technology evolves, so too do the requirements for your coaxial cable system. Upgrading your setup can provide several benefits, including improved performance, increased reliability, and future-proofing your system against new advancements. One reason to consider upgrading your coaxial setup is if you’re experiencing consistent issues with signal quality or reliability. If you’ve tried troubleshooting and maintaining your current system but still face problems, it may be time to invest in newer, higher-quality cables and connectors. Advances in technology have led to improved materials and designs that can offer better performance and durability. Another reason to upgrade is if you’re expanding or changing your system’s use. For example, if you’re adding new devices or upgrading to higher-resolution video equipment, your existing cables and connectors may not be up to the task. Upgrading to cables and connectors that can handle higher bandwidths and frequencies will ensure your system can support new technology and provide the best possible performance. Conclusion and Final Thoughts on Coaxial Connectors Mastering coaxial cable connectors is a valuable skill that can significantly enhance your audio-visual and communication systems. By understanding the different types of connectors, selecting the right ones for your needs, and using the proper tools and techniques, you can achieve seamless and reliable connections. Choosing the correct connector is critical for maintaining signal integrity and ensuring a secure connection. Using the right tools for installing connectors will make the process more efficient and help prevent common mistakes that can compromise the connection. Regular testing and troubleshooting will help you identify and resolve issues early on, while proper maintenance will ensure your system continues to perform at its best. Upgrading your coaxial setup when necessary can provide numerous benefits, including improved performance and future-proofing your system against new advancements. By staying informed and proactive, you can ensure that your coaxial cable system remains reliable and efficient, providing you with the best possible audio-visual experience. In conclusion, mastering coaxial cable connectors is not just about achieving seamless connections; it’s about understanding the intricacies of your system and taking the necessary steps to ensure its longevity and performance. With the knowledge and skills gained from this guide, you’ll be well-equipped to tackle any coaxial cable project with confidence and ease.
