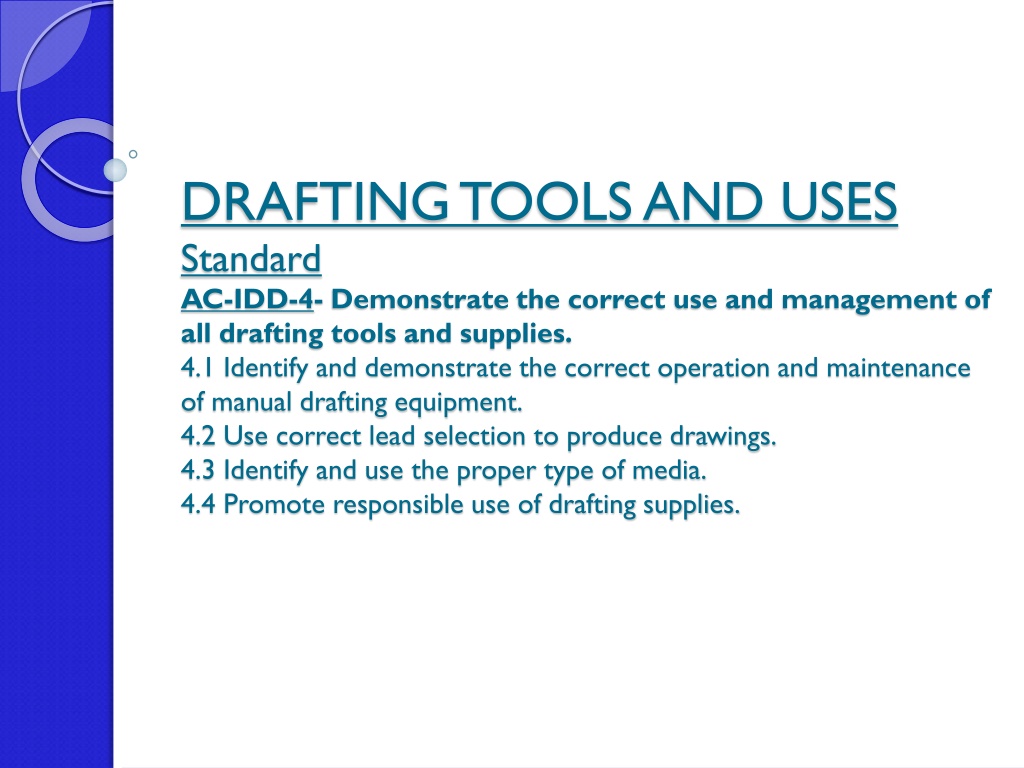

  1. DRAFTING TOOLS AND USESStandardAC-IDD-4- Demonstrate the correct use and management of all drafting tools and supplies.4.1 Identify and demonstrate the correct operation and maintenance of manual drafting equipment.4.2 Use correct lead selection to produce drawings.4.3 Identify and use the proper type of media.4.4 Promote responsible use of drafting supplies.

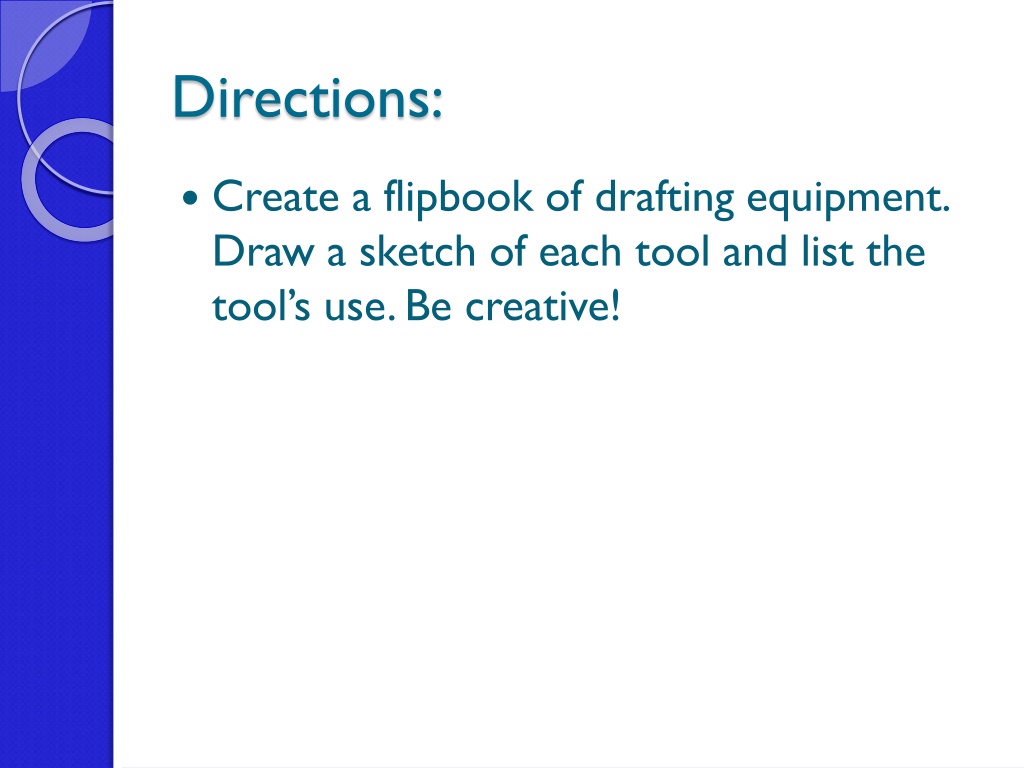

  2. Directions: • Create a flipbook of drafting equipment. Draw a sketch of each tool and list the tool’s use. Be creative!

  3. 1. ADJUSTABLE TRIANGLE Used to draw angles from 0 to 90 degrees

  4. 2. AMES LETTERING GUIDE Used to draw guidelines for lettering

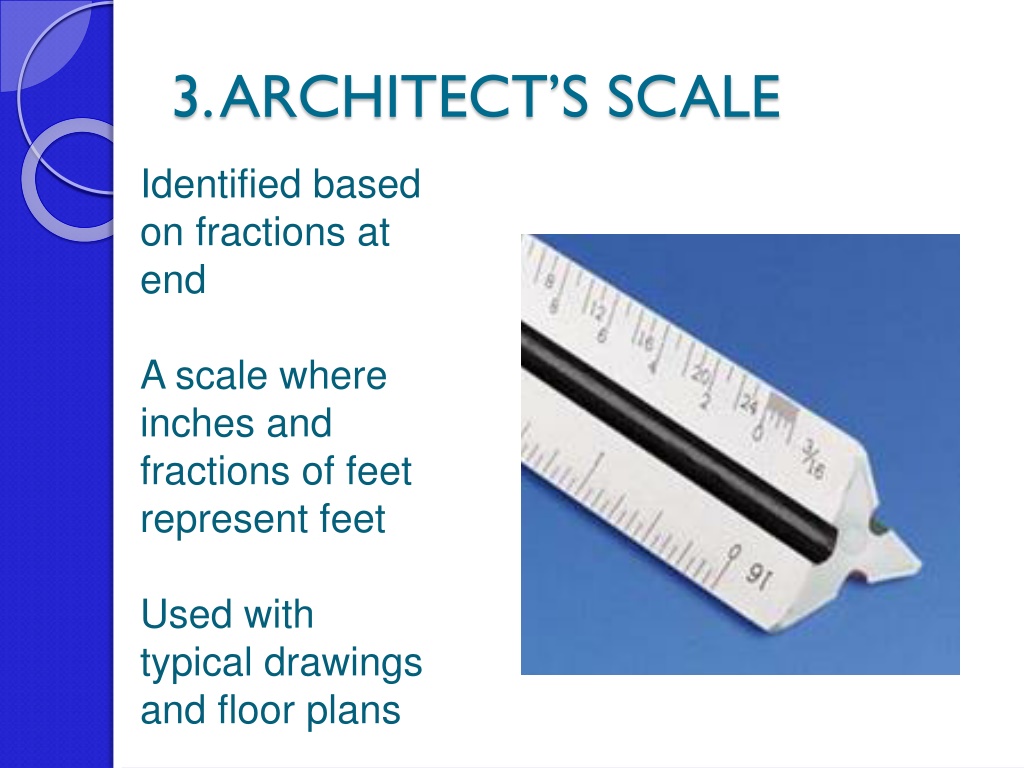

  5. 3. ARCHITECT’S SCALE Identified based on fractions at end A scale where inches and fractions of feet represent feet Used with typical drawings and floor plans

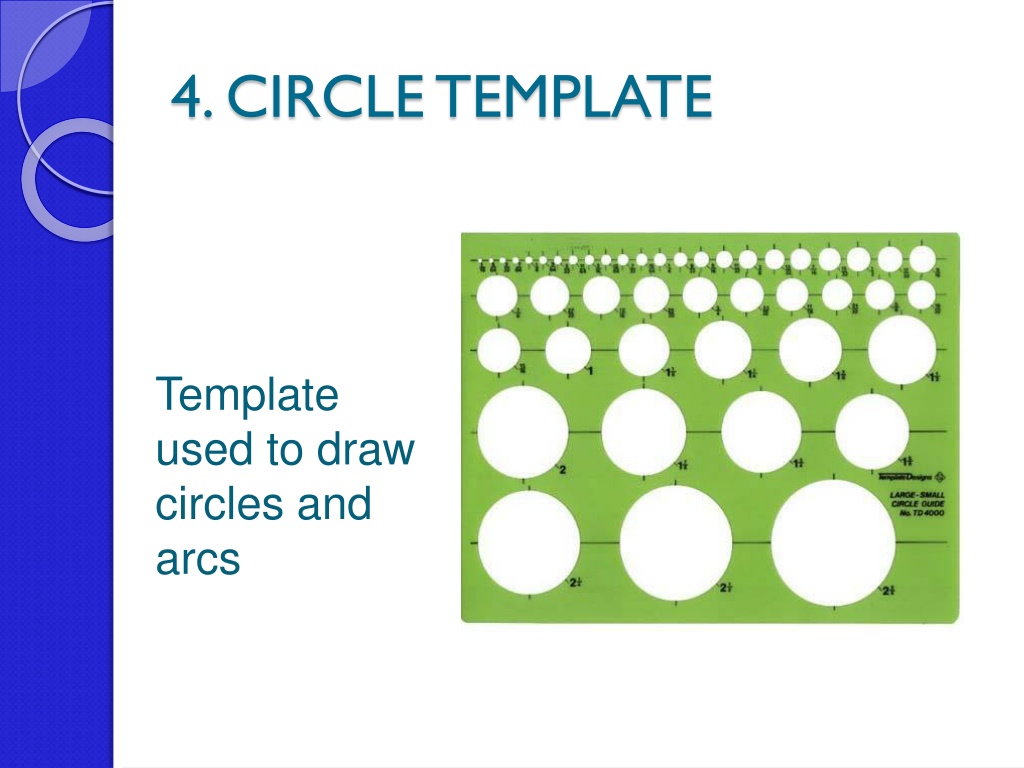

  6. 4. CIRCLE TEMPLATE Template used to draw circles and arcs

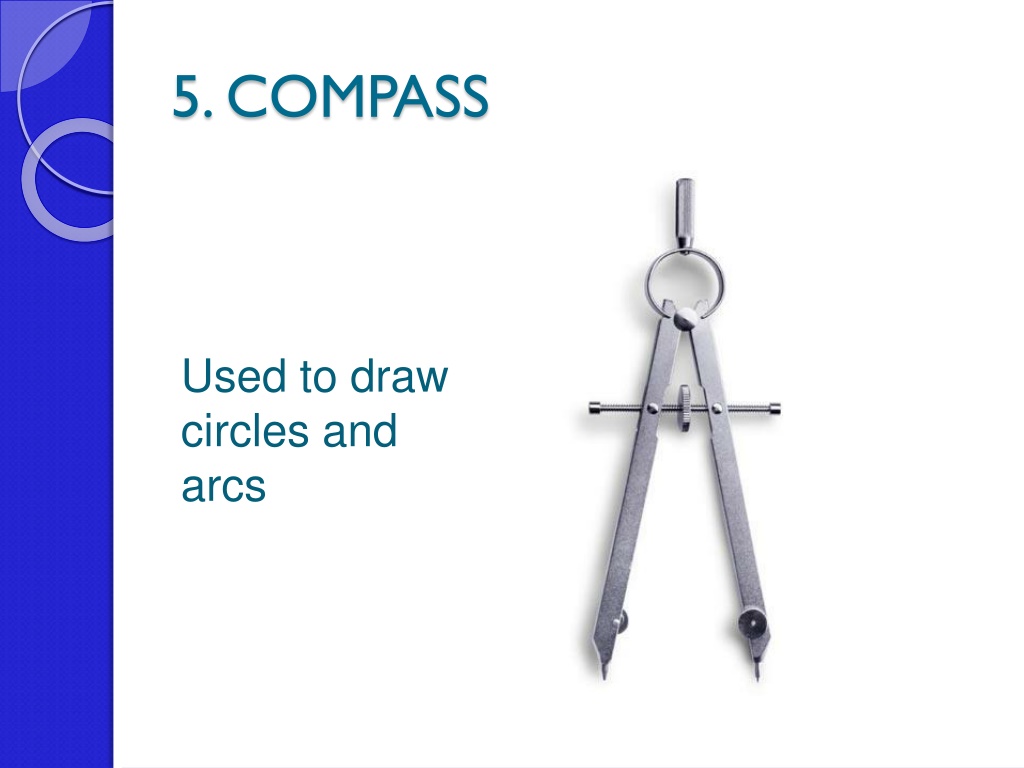

  7. 5. COMPASS Used to draw circles and arcs

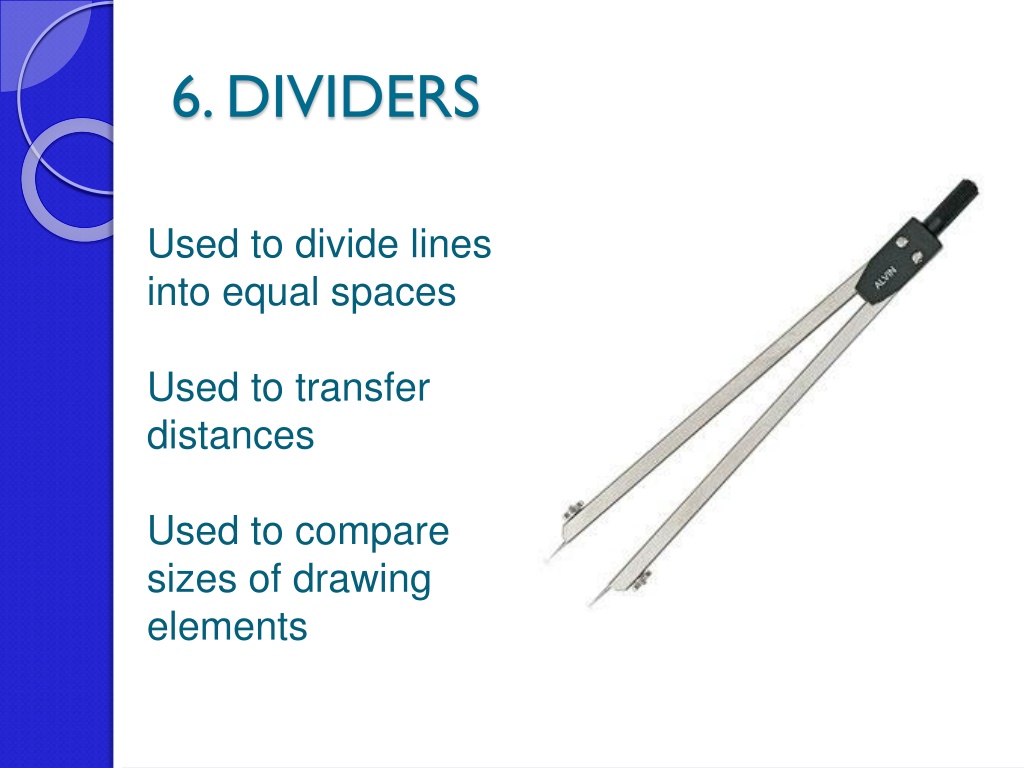

  8. 6. DIVIDERS Used to divide lines into equal spaces Used to transfer distances Used to compare sizes of drawing elements

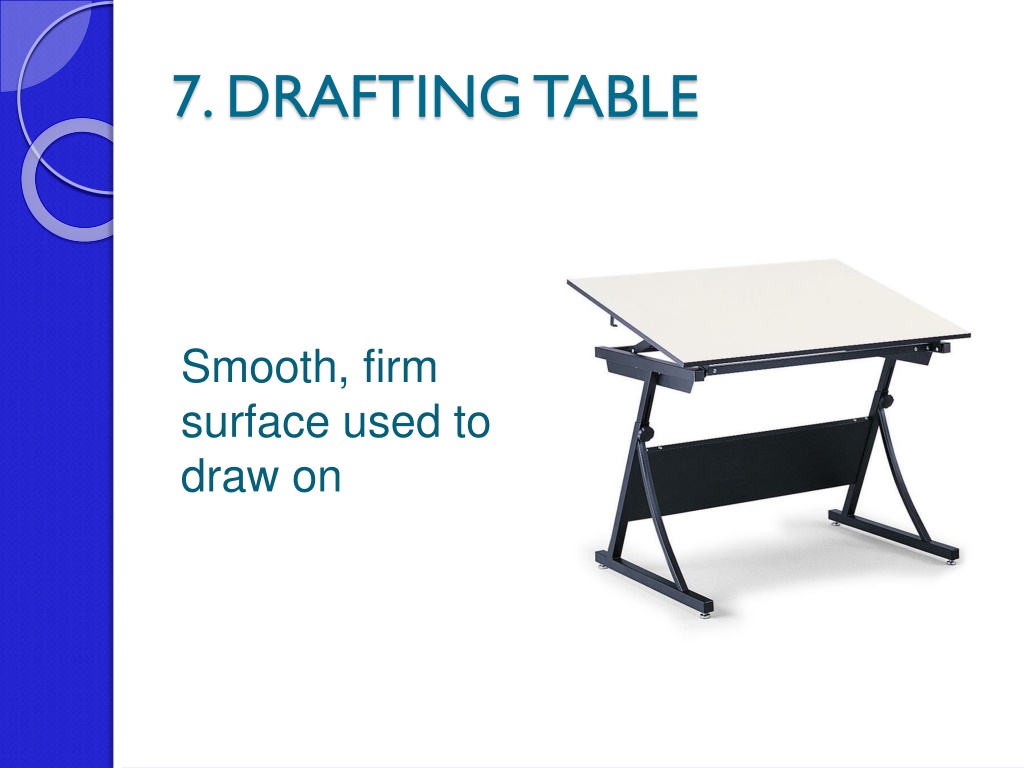

  9. 7. DRAFTING TABLE Smooth, firm surface used to draw on

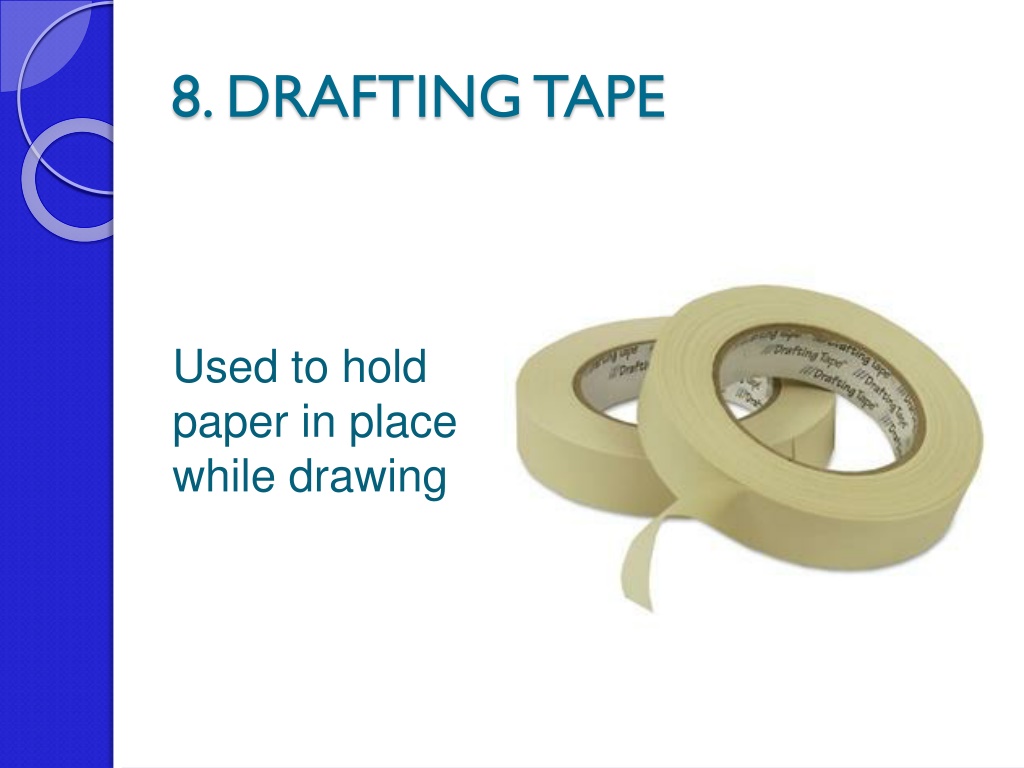

  10. 8. DRAFTING TAPE Used to hold paper in place while drawing

  11. 9. DRAWING PENCILS High quality pencils with varying sizes of lead

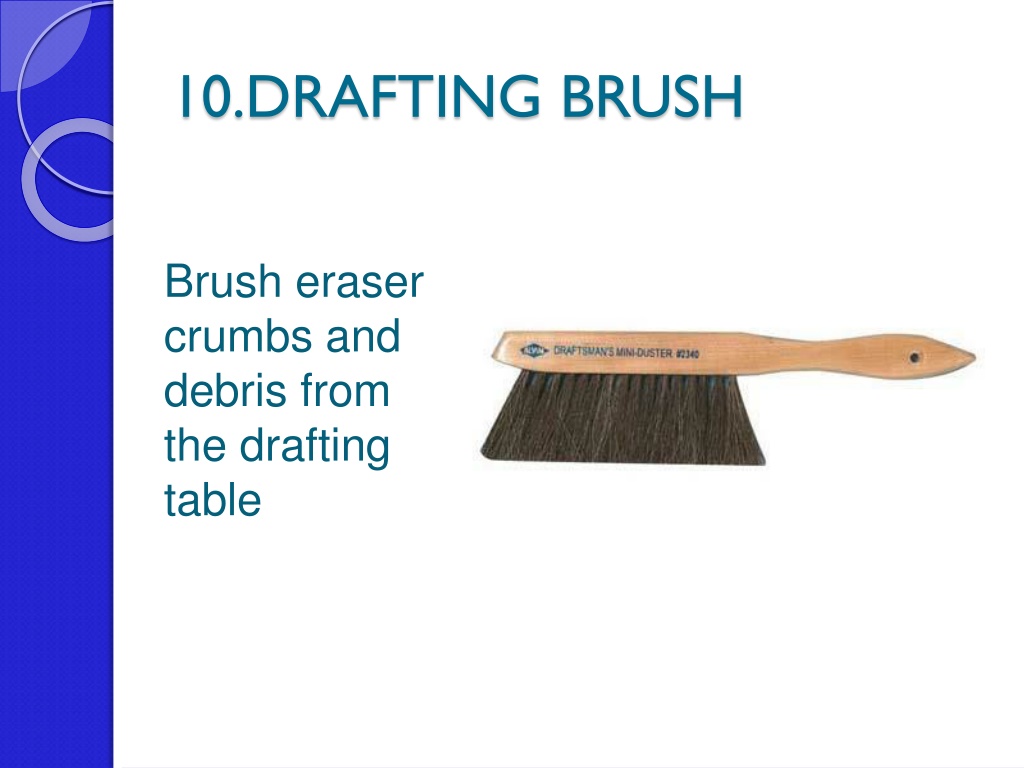

  12. 10.DRAFTING BRUSH Brush eraser crumbs and debris from the drafting table

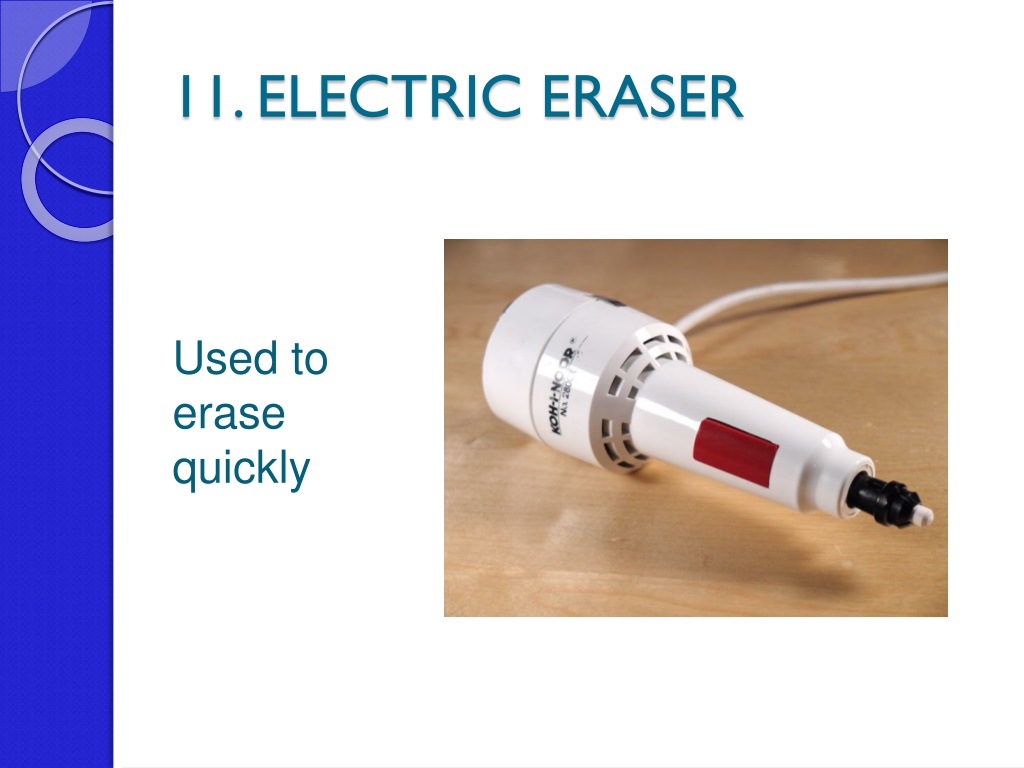

  13. 11. ELECTRIC ERASER Used to erase quickly

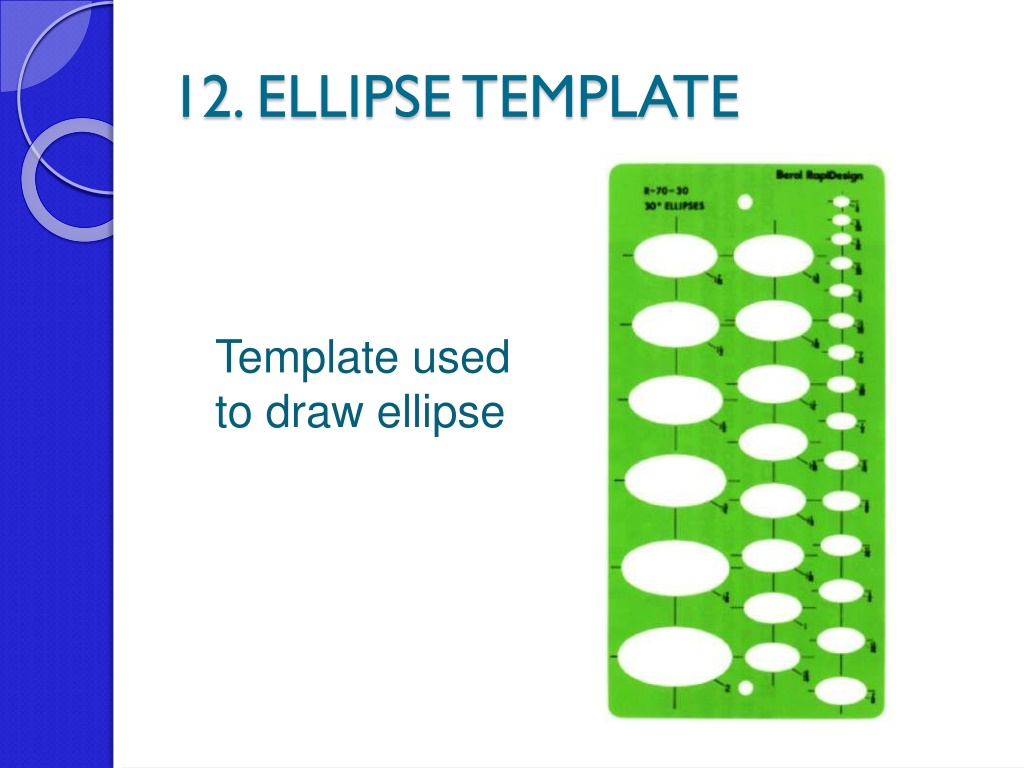

  14. 12. ELLIPSE TEMPLATE Template used to draw ellipse

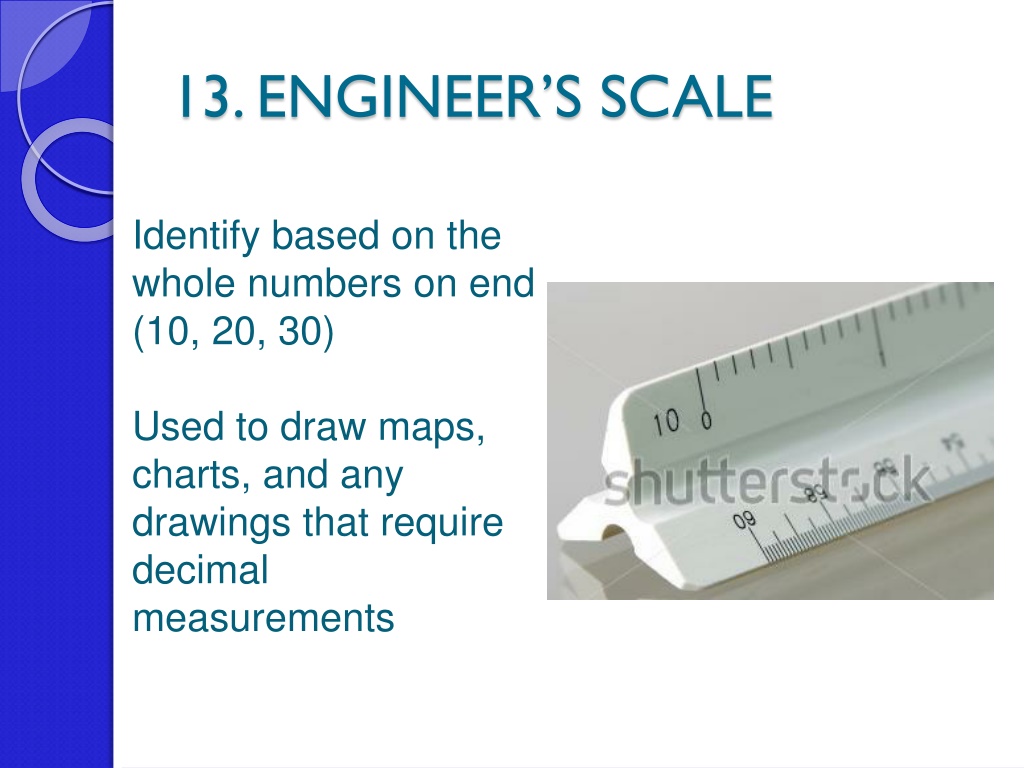

  15. 13. ENGINEER’S SCALE Identify based on the whole numbers on end (10, 20, 30) Used to draw maps, charts, and any drawings that require decimal measurements

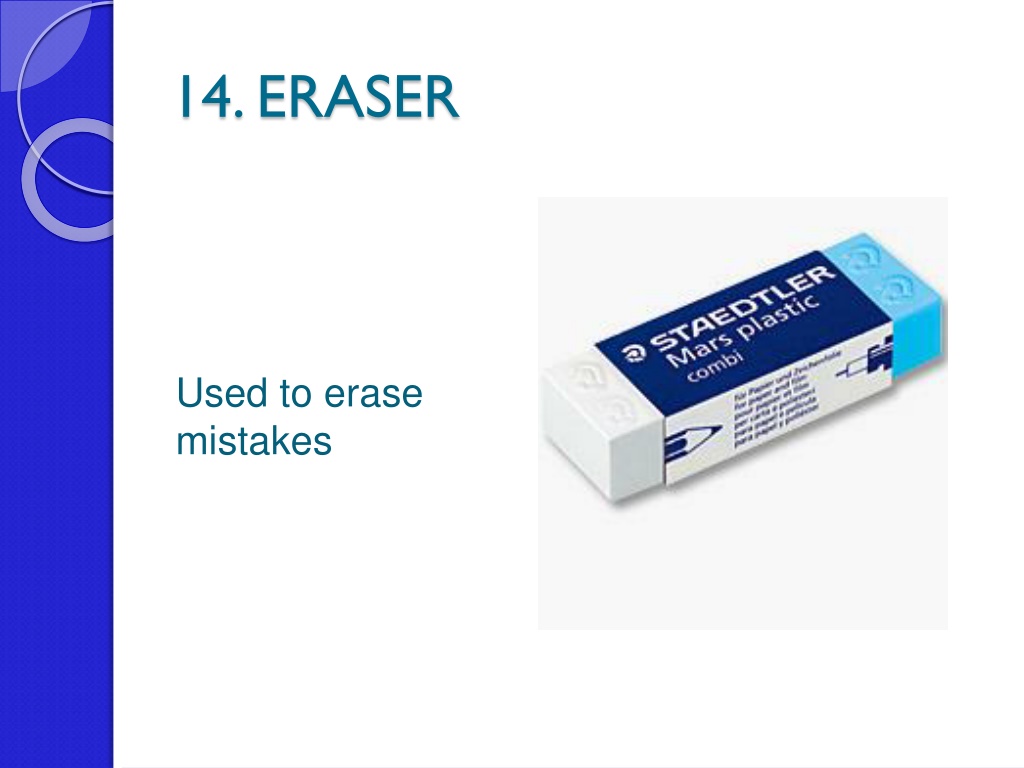

  16. 14. ERASER Used to erase mistakes

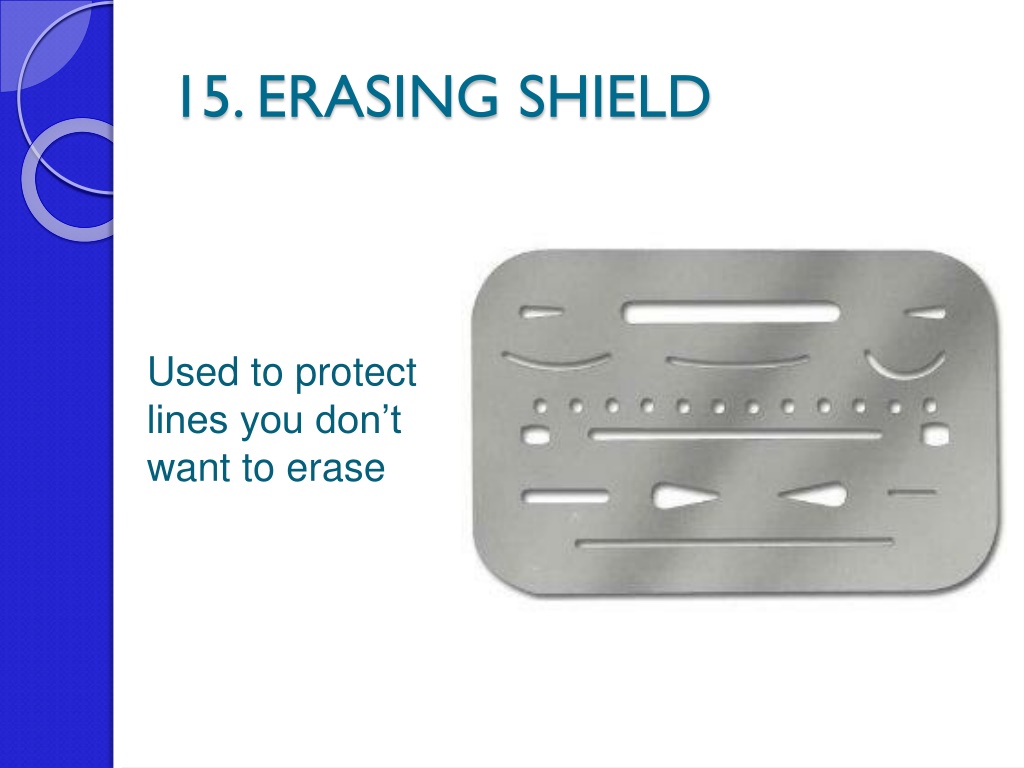

  17. 15. ERASING SHIELD Used to protect lines you don’t want to erase

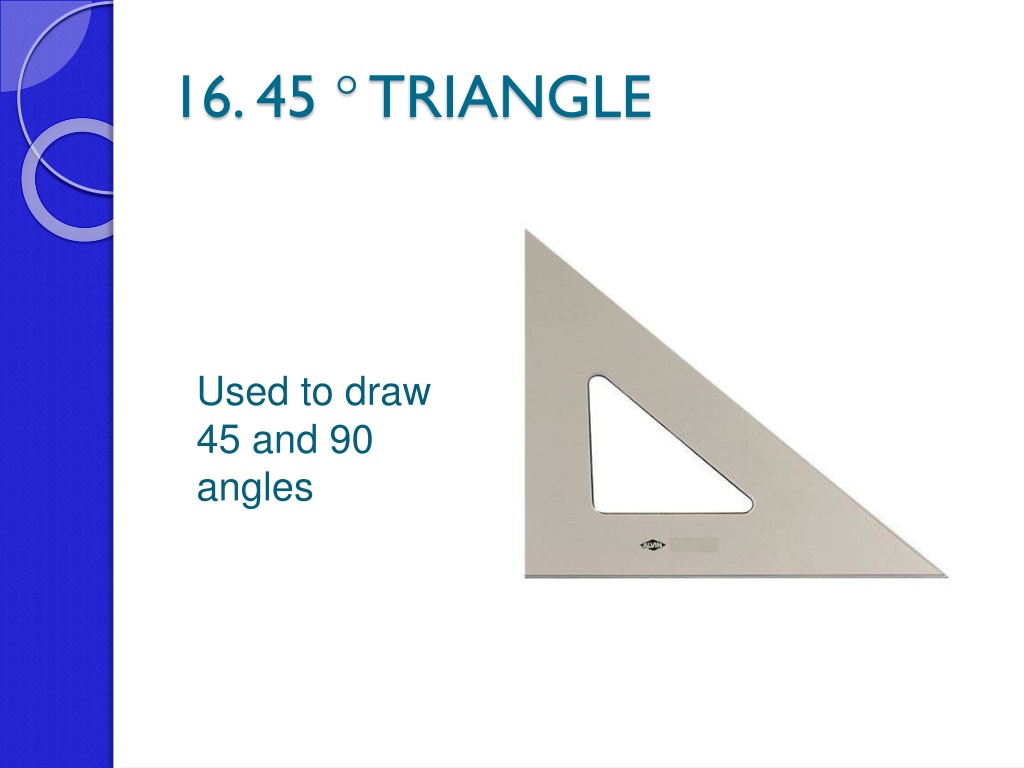

  18. 16. 45  TRIANGLE Used to draw 45 and 90 angles

  19. 17. HOUSE PLAN TEMPLATE Used to draw symbols on floor plans

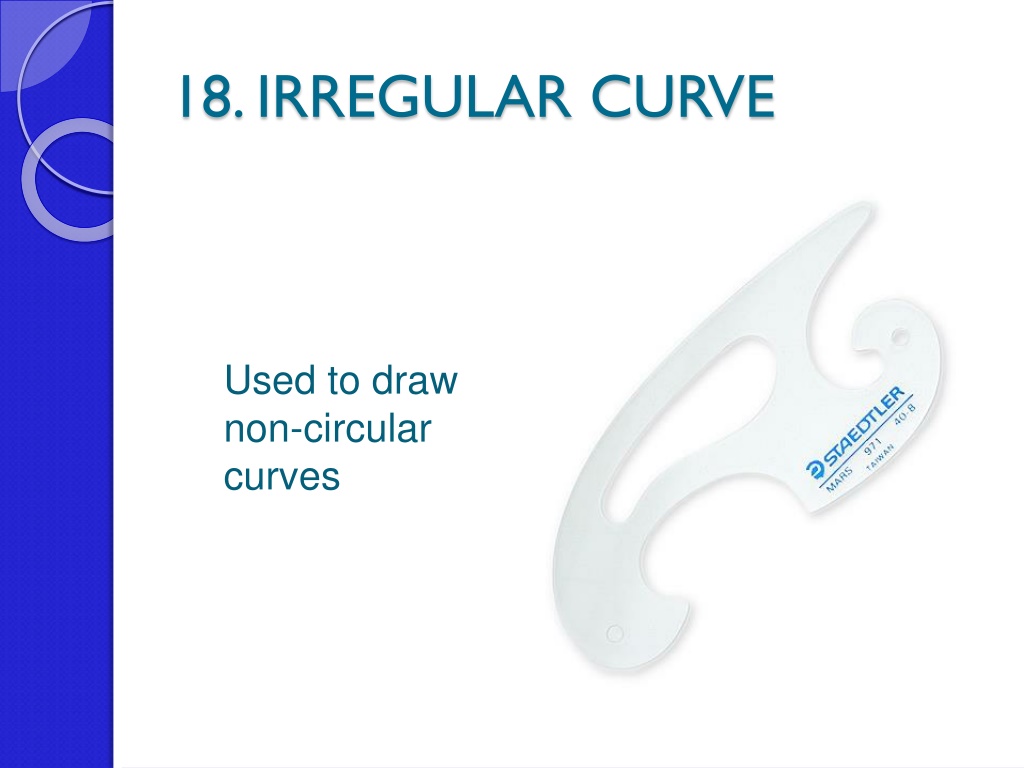

  20. 18. IRREGULAR CURVE Used to draw non-circular curves

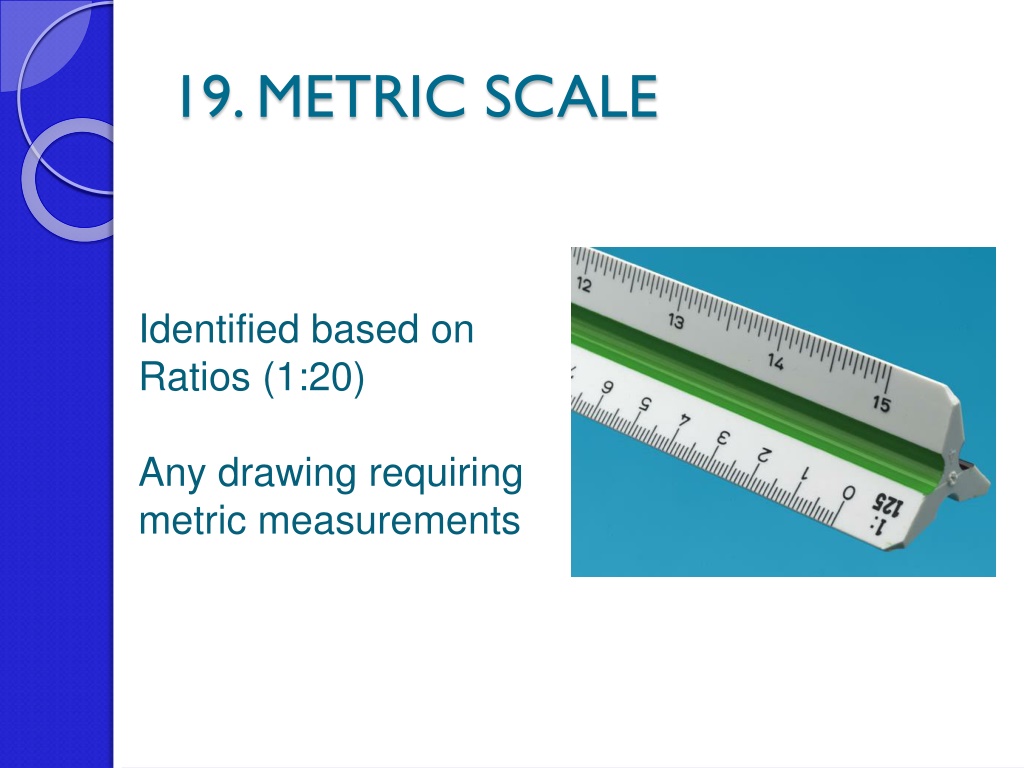

  21. 19. METRIC SCALE Identified based on Ratios (1:20) Any drawing requiring metric measurements

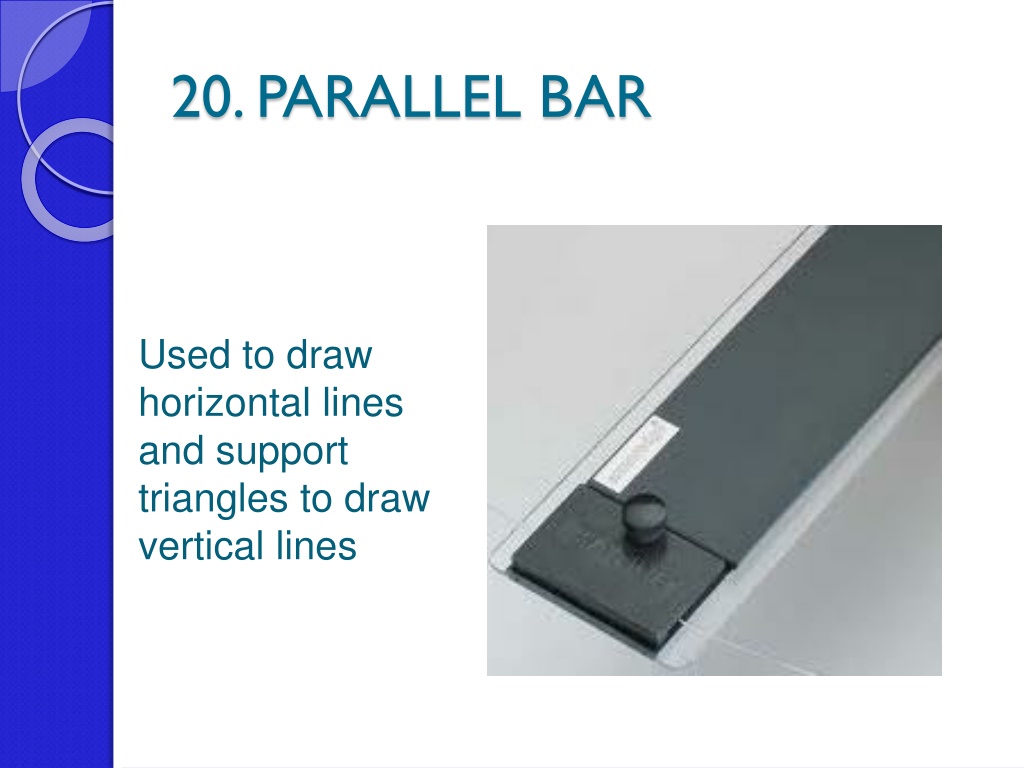

  22. 20. PARALLEL BAR Used to draw horizontal lines and support triangles to draw vertical lines

  23. 21. PROTRACTOR Used to measure and lay out angles

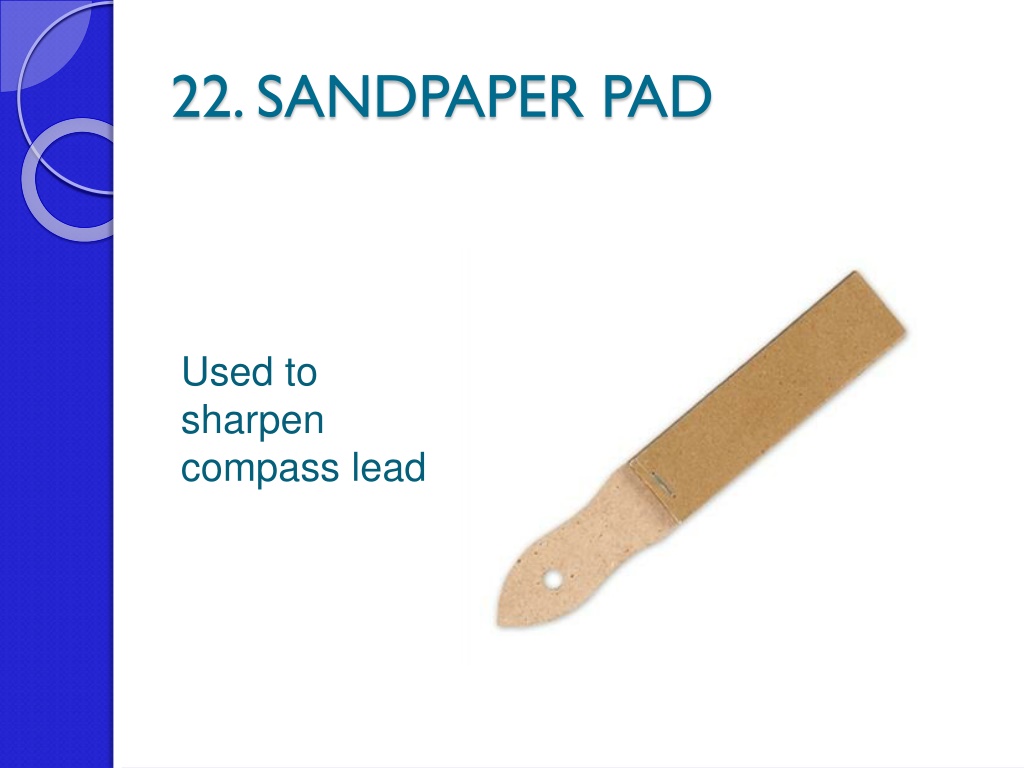

  24. 22. SANDPAPER PAD Used to sharpen compass lead

  25. 23. 30 - 60 TRIANGLE Used to draw 30 and 60 degree angles

  26. 24. T-SQUARE Used to draw horizontal lines and support triangles to draw vertical lines

  27. Name the different drafting tools below.

  28. 1.

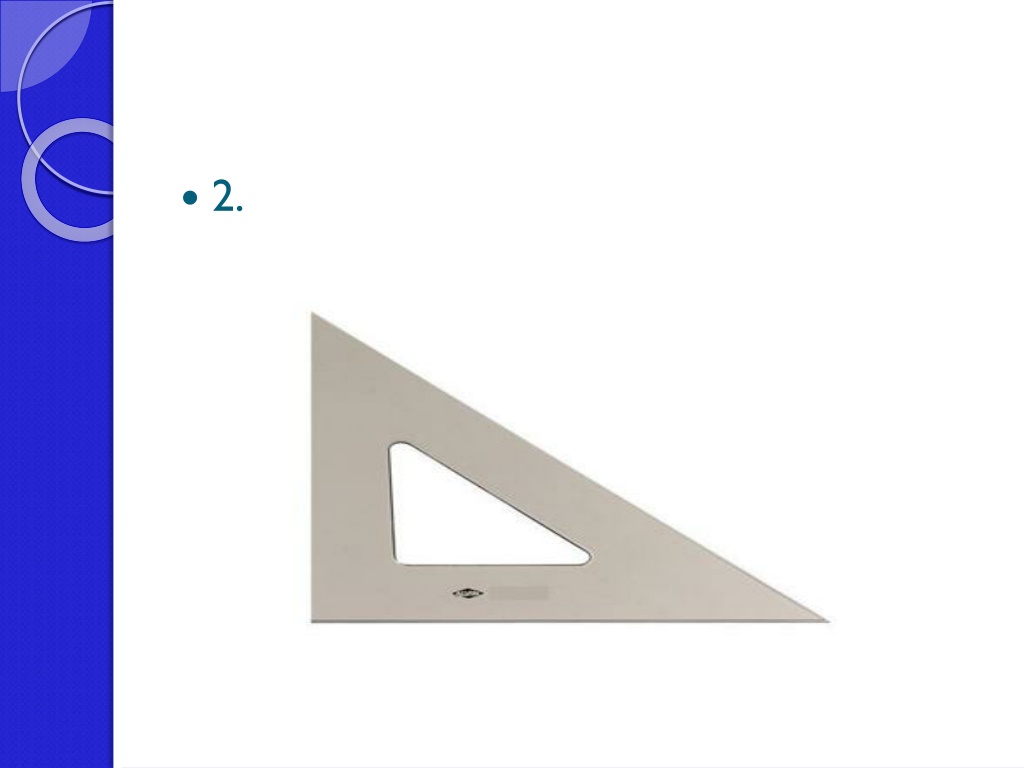

  29. 2.

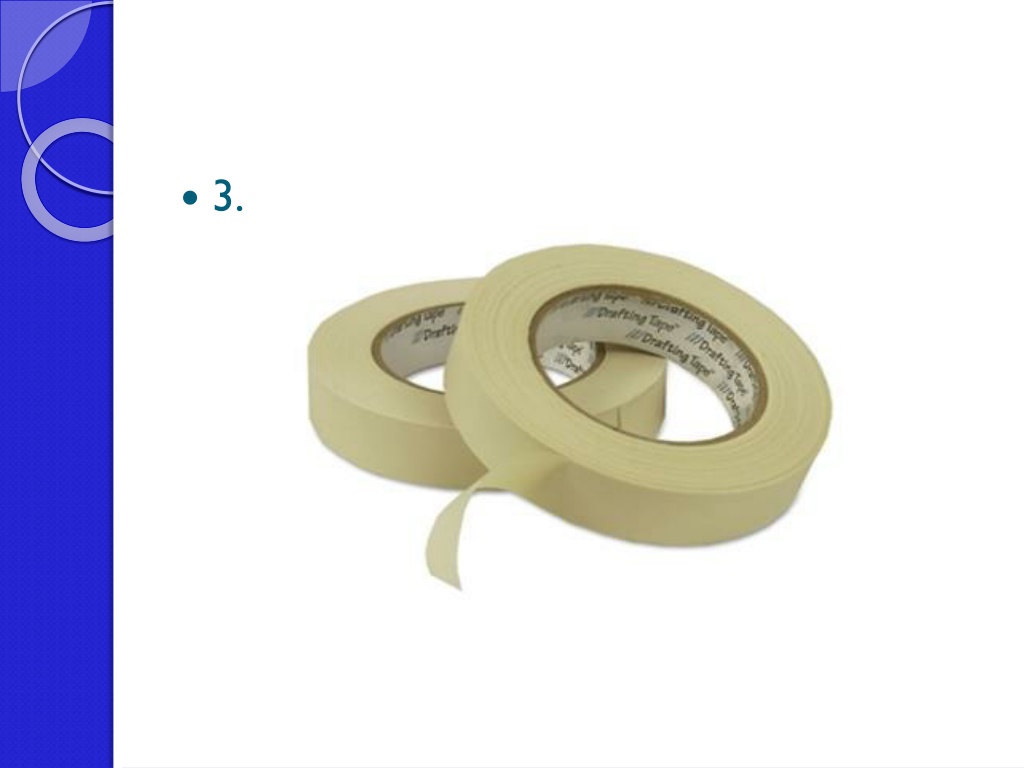

  30. 3.

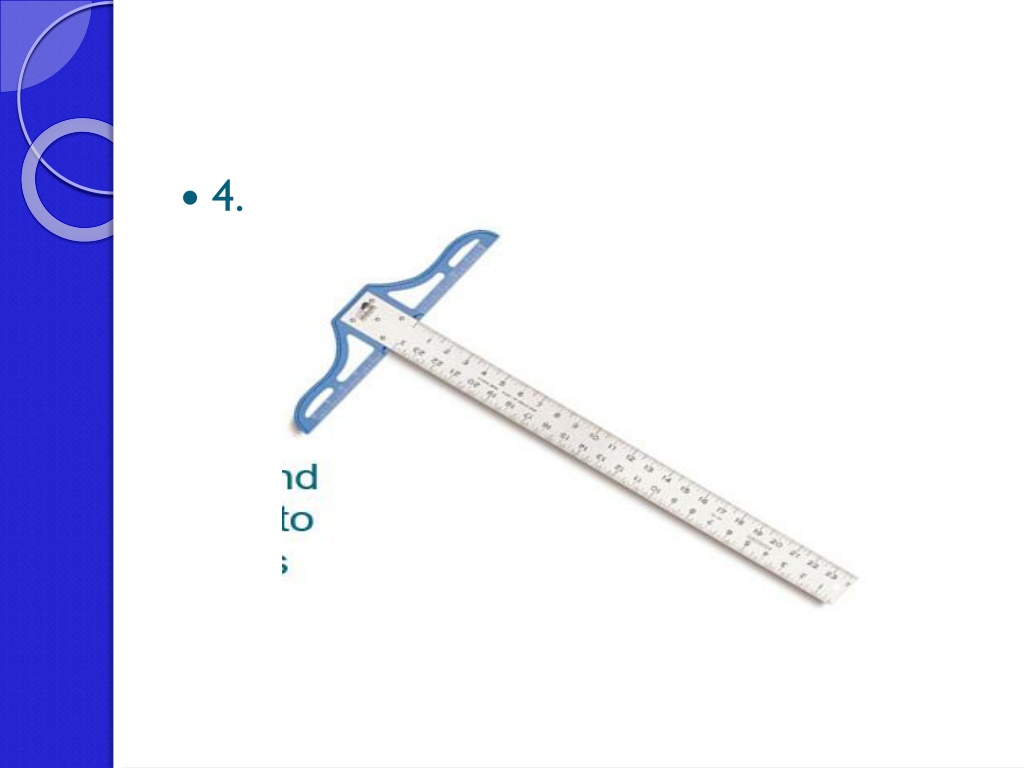

  31. 4.

  32. 5.

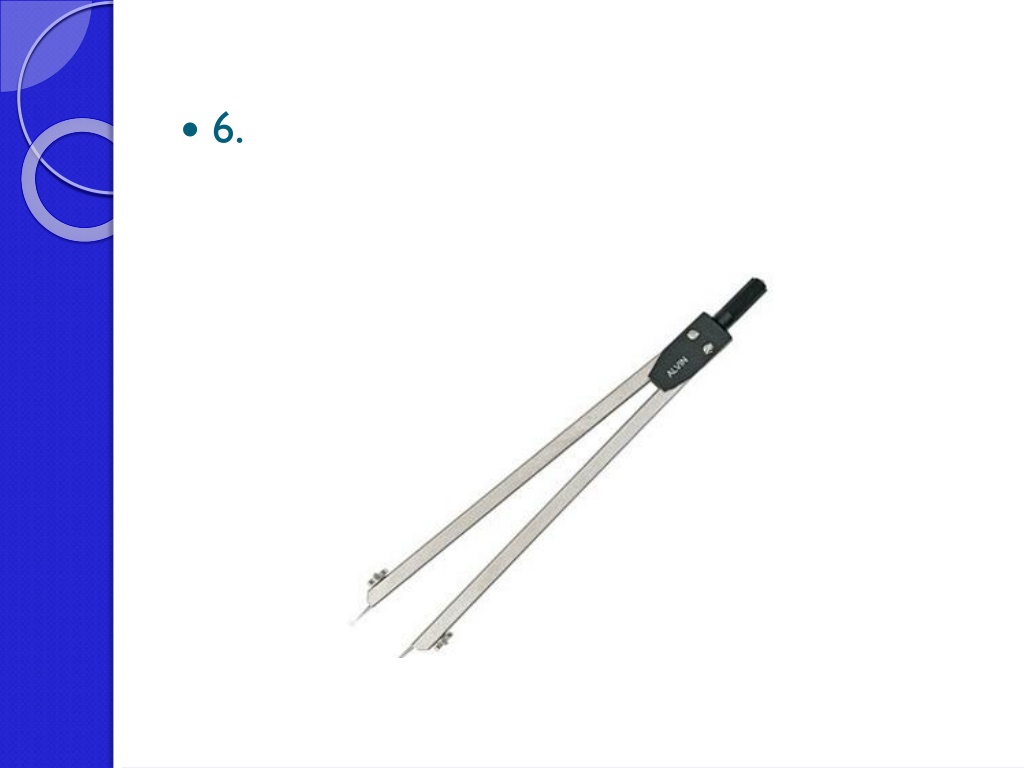

  33. 6.

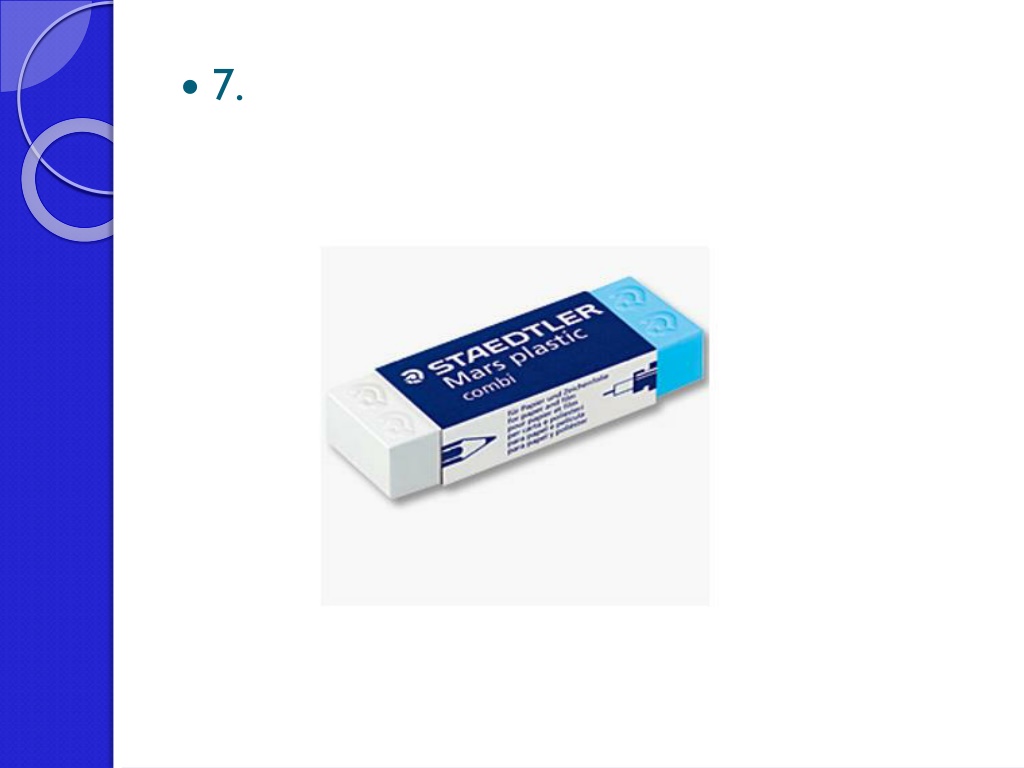

  34. 7.

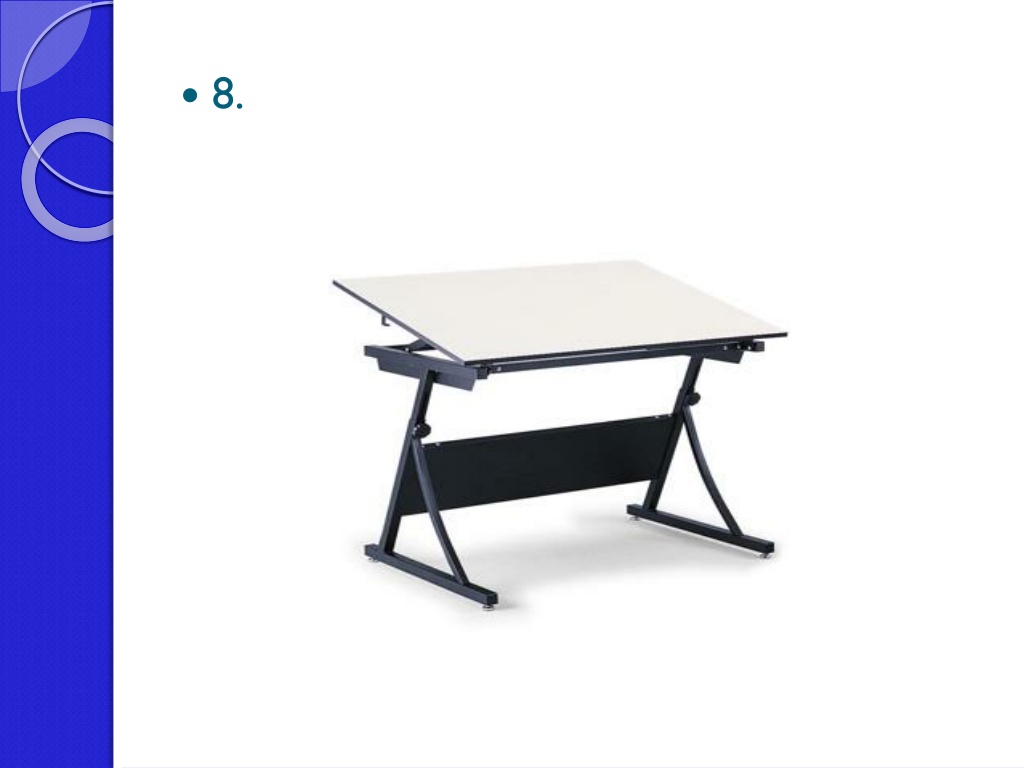

  35. 8.

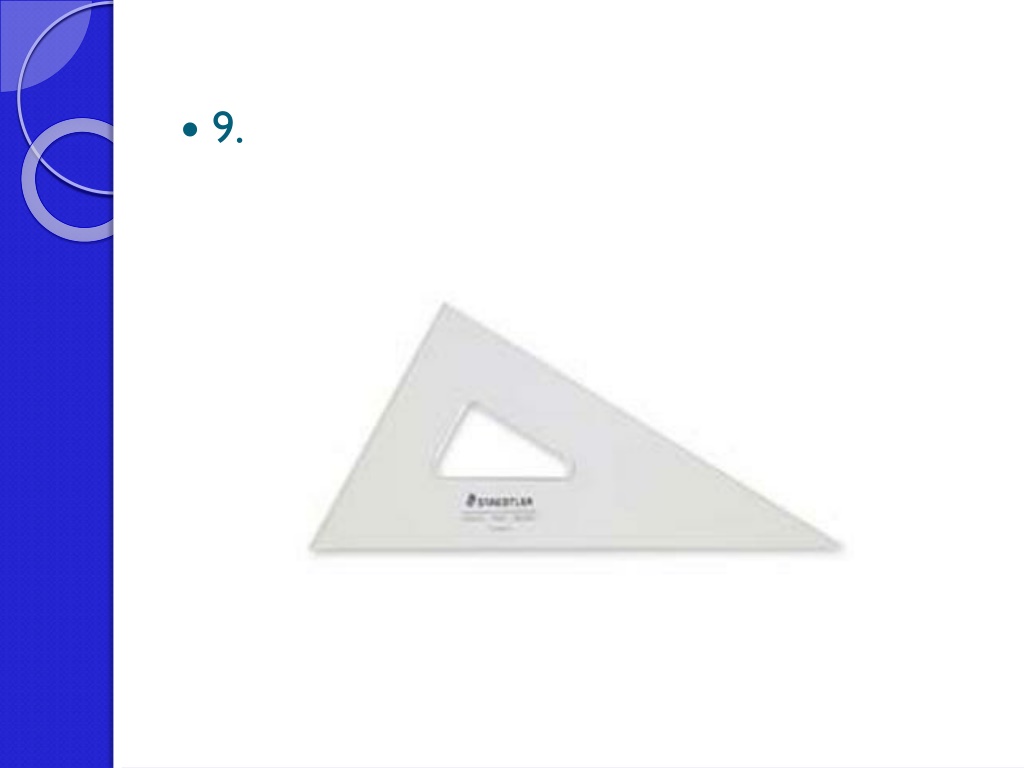

  36. 9.

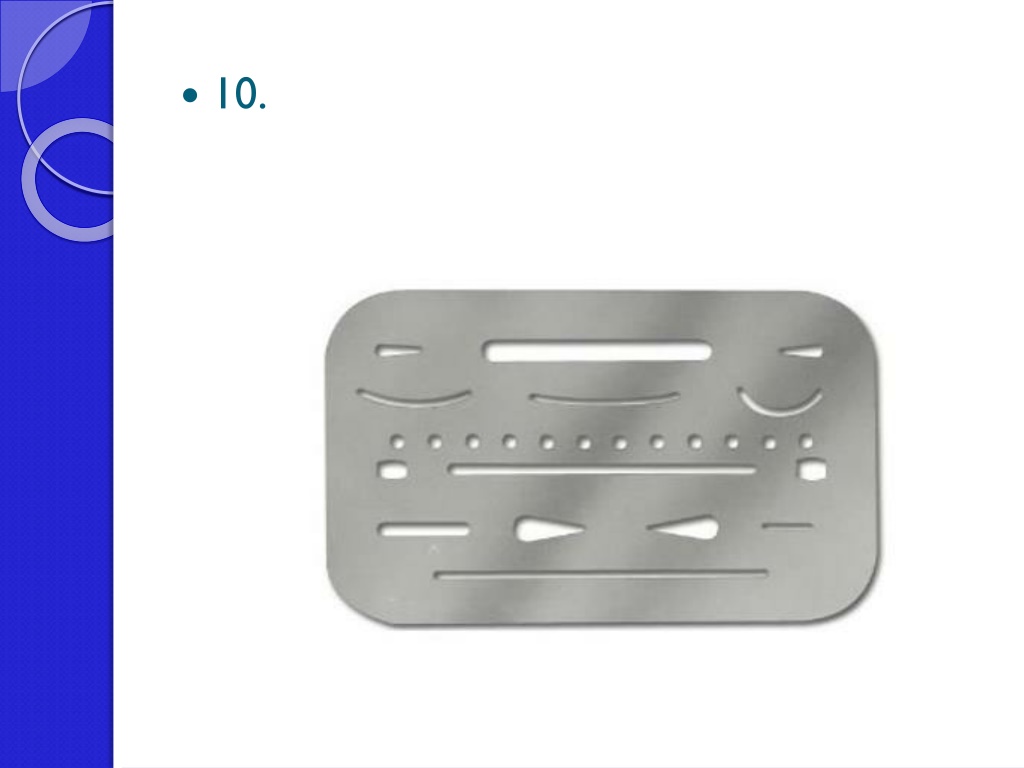

  37. 10.

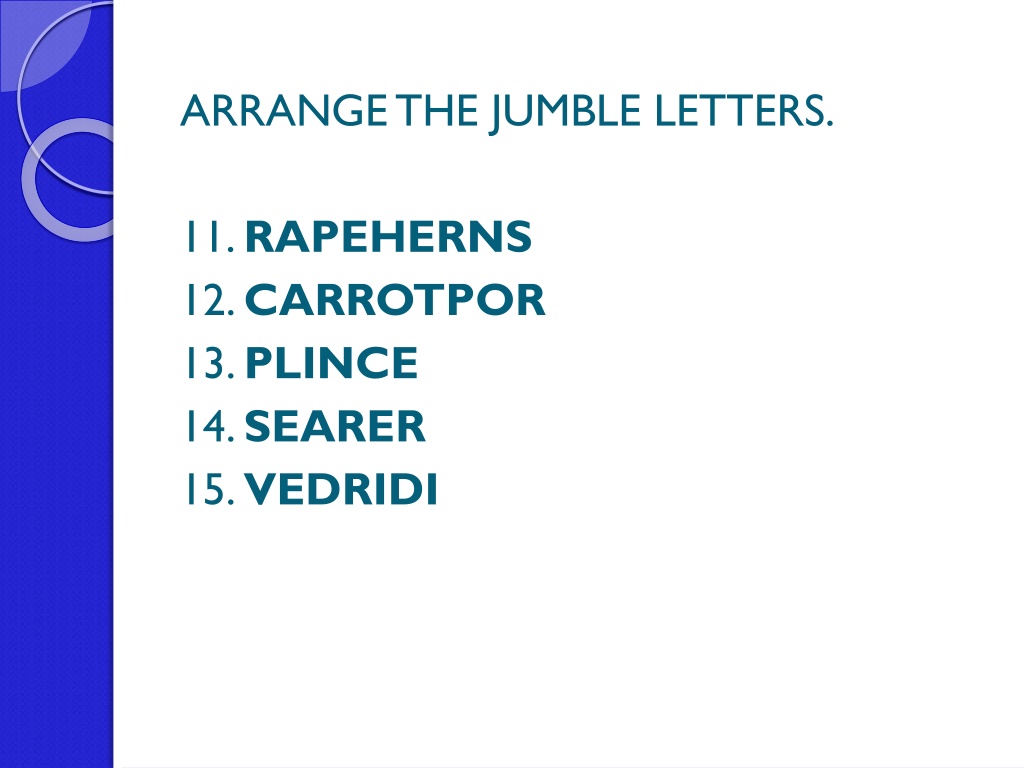

  38. ARRANGE THE JUMBLE LETTERS. 11. RAPEHERNS 12. CARROTPOR 13. PLINCE 14. SEARER 15. VEDRIDI

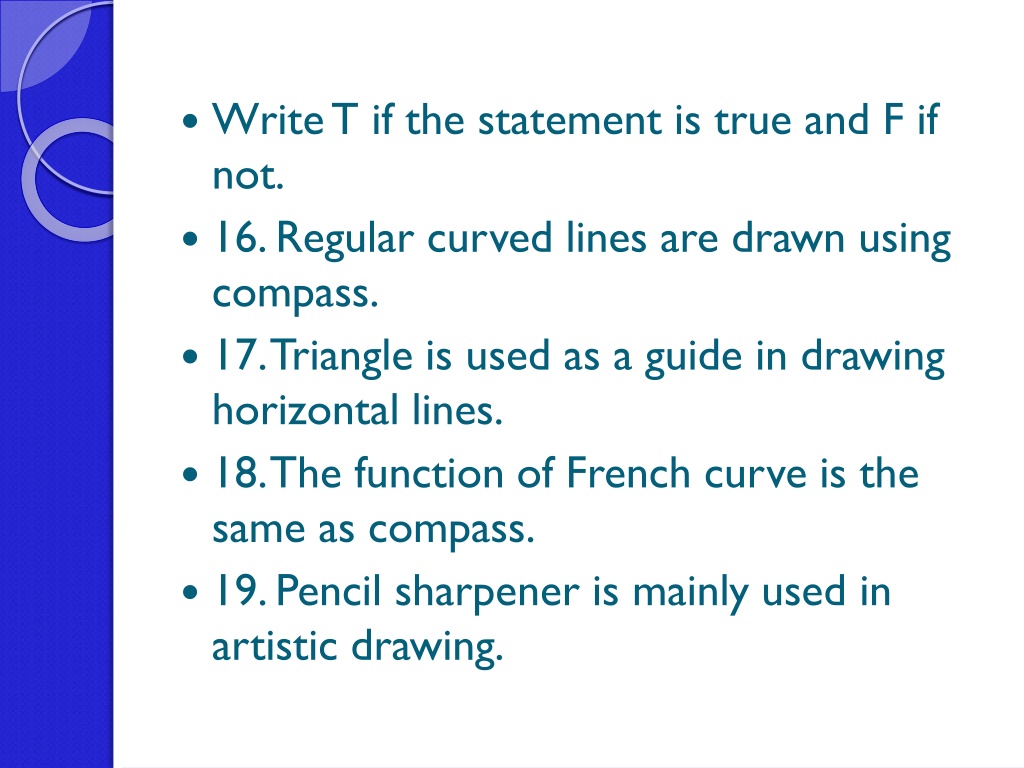

  39. Write T if the statement is true and F if not. • 16. Regular curved lines are drawn using compass. • 17. Triangle is used as a guide in drawing horizontal lines. • 18. The function of French curve is the same as compass. • 19. Pencil sharpener is mainly used in artistic drawing.

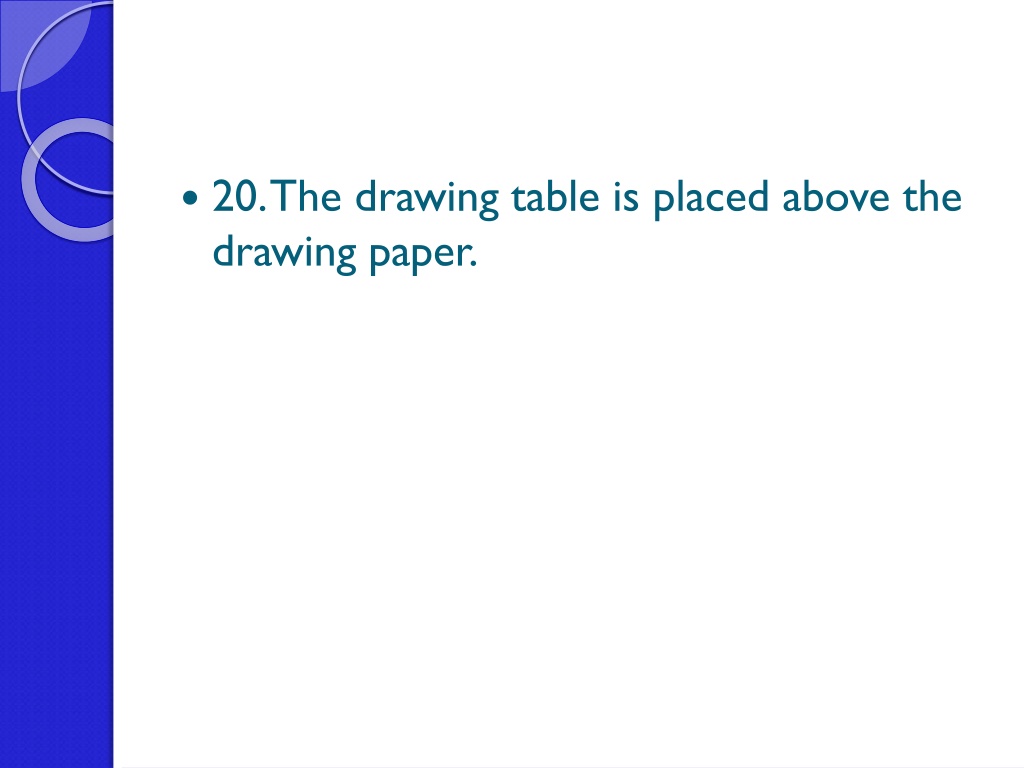

  40. 20. The drawing table is placed above the drawing paper.

  41. 21-25. Why is it important to use proper tools in drafting or drawing?
