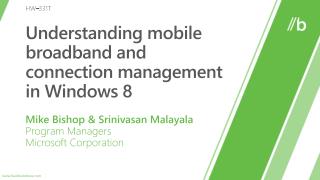

understanding mobile broadband and connection management in windows 8
HW-331T

Understanding mobile broadband and connection management in Windows 8

Mike Bishop & Srinivasan Malayala

Program Managers

Microsoft Corporation

agenda
Agenda
  • Mobile broadband service differentiation
  • Cost aware networking
  • Mobile broadband class driver and device services

You’ll leave with examples of how to…

  • Build MB-capable systems for Windows 8
  • Partner with Windows to provide great service experiences
  • Tie your brand to your service in Windows
connecting with windows 8
Connecting with Windows 8

Simplified User Experience

Smart about Networks

Robust platform for differentiation

connecting with windows 84
Connecting with Windows 8

Simplified User Experience

  • Mobile Broadband class driver
  • Device Services

Smart about Networks

  • Cost-aware networking
  • Wi-Fi Hotspots

Robust platform for differentiation

  • Metro style mobile broadband app
  • Branding in the OS
  • Device provisioning
building a differentiated experience
Building a differentiated experience

app

+

+

Metro style app

Mobile broadband service

Device

Device Metadata

what you just saw
What you just saw…
  • Carrier branding in the OS
  • Metro style mobile broadband app
  • Purchasing experience
  • Profile settings update
benefits of a metro style mb app
Benefits of a Metro style MB app
  • Easy to develop with HTML 5 and JavaScript
  • Easy to distribute through Windows Store
  • Easy to access through live tile on Start screen or “View my account” link in network list
  • Easy to differentiate based on Subscriber ID
purchasing experience
Purchasing experience
  • If account is not activated, “Connect” button launches app
  • Connectivity to back-end may be:
    • Restricted MB network
    • SMS/USSD
    • Wi-Fi connection
  • If app not yet installed, web-based experience is supported
  • Users can easily purchaseor “top up” mobile broadband connectivity
profile settings p rovisioning
Profile settings provisioning
  • Settings are packaged as an XML file
  • Settings include:
    • Mobile broadband (APN, etc.)
    • Wi-Fi hotspots (SSIDs, WISPr credentials)
    • Plan & data usage information
  • Connection profiles can be updated at any time
provisioning file
Provisioning File
  • <?xml version="1.0"?>
  • <CarrierProvisioningxmlns="http://www.microsoft.com/networking/CarrierControl/v1">
  •     <Issuer>{2c85b76b-f859-47c4-8122-721fe8b6c25f}</Issuer>
  •     <Subscriber>310410238950594</Subscriber>
  •     <MBNProfiles>
  • <DefaultProfilexmlns="http://www.microsoft.com/networking/CarrierControl/WWAN/v1">
  • ...
  •       </DefaultProfile>
  •     </MBNProfiles>
  • <WLANProfiles>
  • <WLANProfilexmlns="http://www.microsoft.com/networking/CarrierControl/WLAN/v1">
  • ...
  • </WLANProfile>
  • </WLANProfiles>
  • </CarrierProvisioning>
what you just saw16
What you just saw…
  • Connecting to a Wi-Fi hotspot
  • Data usage awareness
connecting to a wi fi hotspot
Connecting to a Wi-Fi hotspot
  • Configure Windows with your Wi-Fi networks
    • Can specify preference between hotspots & MB
    • Windows automatically connects to most preferred available
  • Automatically disconnects other interfaces once idle
    • New traffic is on the newly-connected interface
    • Once idle, old interface will disconnect
  • User can manually choose any connection
    • IT administrators can apply certain restrictions
wi fi authentication
Wi-Fi authentication
  • Windows supports authentication to common hotspot systems
    • WISPr 1.0 and 2.0
    • EAP-SIM, EAP-AKA, and EAP-AKA’
  • Mobile operator provides credentials during provisioning
cost aware n etworking
Cost-aware networking
  • Mobile operator provides plan information to Windows
  • Windows’ behavior changes based on this information
    • Windows Update
    • Download Broker
  • Plan information is provided to all apps for tailoring their behavior to the network
plan information
Plan information
  • Network state: over limit, congested, roaming
    • Roaming not set by API; detected by device
  • Plan information:
    • Plan type (unrestricted, fixed, variable)
    • Data usage
    • Data limit
    • Billing cycle (start and duration)
    • SMS plan
    • Security updates not charged
    • Recommended download size
updating plan i nformation
Updating plan information
  • Using Metro style mobile broadband app
    • Use APIs to adjust data usage and plan type
    • For all other changes, apply a new provisioning file
  • Using SMS / USSD messages
    • Can update plan information except billing cycle and Wi-Fi profiles
    • Windows will parse incoming messages and update connection profiles
updating plan information from an app
Updating Plan Information from an App
  • // Just crossed cap – now charging at overage rates
  • varaccountIds =
  • Windows.Networking.NetworkOperators.MobileBroadbandAccount.getAllNetworkAccountIds();
  • varaccountId = accountIds[0];
  • varprovAgent= Windows.Networking.NetworkOperators.ProvisioningAgent.createFromNetworkAccountId(accountId);
  • var profile =
  • provAgent.getProvisionedProfile(Windows.Networking.NetworkOperators.ProfileMediaType.wwan,
  • "Contoso");
  • profile.updateCost(Windows.Networking.Connectivity.NetworkCostType.variable);
  • profile.updateUsage({ usageInMegabytes: usage, lastSyncTime: new Date() });
plan information in provisioning file
Plan Information in Provisioning File
  • <?xml version="1.0"?>
  • <CarrierProvisioningxmlns="http://www.microsoft.com/networking/CarrierControl/v1">
  •     <Issuer>{2c85b76b-f859-47c4-8122-721fe8b6c25f}</Issuer>
  •     <Subscriber>310410238950594</Subscriber>
  •     <MBNProfiles>
  • <DefaultProfilexmlns="http://www.microsoft.com/networking/CarrierControl/WWAN/v1">
  • ...
  • <Cost xmlns="http://www.microsoft.com/networking/CarrierControl/DUSM/v1"
  • PlanType="Fixed">
  • <UsageInMegabytes Timestamp="2010-12-08T12:00:00">100</UsageInMegabytes>
  • <DataLimitInMegabytes>5000</DataLimitInMegabytes>
  • </Cost>
  • ...
  •       </DefaultProfile>
  •     </MBNProfiles>
  • </CarrierProvisioning>
enabling windows to parse notifications
Enabling Windows to parse notifications
  •     <MBNProfiles>
  • <DefaultProfilexmlns="http://www.microsoft.com/networking/CarrierControl/WWAN/v1">
  • ...
  •         <Messages xmlns="http://www.microsoft.com/networking/CarrierControl/WWAN/v1">
  • <Message Sender="14255551234" ClassZero="false">
  •             <Pattern>.*Your current usage is (\d+)(\S+) of (\d+)(\S+) as of (\S+).*</Pattern>
  •             <Locale>English_United States.1252</Locale>
  •             <Units M="MB"/>
  •             <Fields>
  •               <Usage Group="1" UnitGroup="2"/>
  •               <DataLimit Group="3" UnitGroup="4"/>
  •               <UsageTimestamp Group="5" Format="%m/%d/%Y"/>
  •             </Fields>
  • </Message>
  • </Messages>
  • ...
  •       </DefaultProfile>
  •     </MBNProfiles>
benefits of class d river
Benefits of class driver
  • No software installation needed
  • Simplifies device certification for mobile operators
    • Single driver covers a range of devices
    • Minimizes number of re-certifications
  • Focus on compatibility, reliability and supportability
compatible with a broad array of devices
Compatible with a broad array of devices
  • MB class driver supports multiple USB form factors:
    • Embedded modules with USB over mini-PCIe
    • Surface-mounted solutions (e.g. HSIC)
    • External dongles
  • Windows is contributing to standardization of NCM 2.0 in USB-implementers forum
support for network technologies
Support for network technologies
  • Mobile broadband class driver supports -
    • GSM based networks including 4G-LTE
    • CDMA based networks
    • Dual-mode networks offering CDMA for 3G and LTE for 4G
device services e xtensibility
Device services extensibility
  • Enables partners to implement additional features as “device services” in the firmware
    • Examples: Phonebook, SIM Tool Kit, Firmware Update
  • Easy-to-use APIs for interfacing with device services
    • Enumerate
    • Query
    • Send commands
    • Register for notifications
device services a rchitecture
Device services architecture

Metro style mobile broadband app

MB API

Metro style MB APIs

Device Services API

WWAN Service

Mobile Broadband Class Driver

Mobile Broadband Device

Connectivity

Device Service #1

SMS

Device Service #2

USSD

PIN

Device Service #n

Microsoft

Partner

recap
Recap

Simplified User Experience

  • Mobile Broadband class driver
  • Device Services

Smart about Networks

  • Cost-aware networking
  • Wi-Fi hotspots

Robust platform for differentiation

  • Metro style mobile broadband app
  • Branding in the OS
  • Device provisioning
related sessions
Related sessions
  • [HW-732T] Connecting Windows 8 to mobile broadband and Wi-Fi networks
  • [HW-288T] Building great Metro style apps for mobile broadband devices
  • [HW-342T] Understanding Wi-Fi networking in Windows 8
further reading and documentation
Further reading and documentation
  • Metro Style Device Apps for Mobile Network Operators
  • Mobile Broadband (MB) Design Guide
  • Mobile Broadband (MB) Reference
  • Windows Hardware Dev Center
  • Windows Dev Center
  • Contact – windowswireless@microsoft.com
feedback and q uestions http forums dev windows com session f eedback http bldw in sessionfeedback
thank you

Feedback and questions http://forums.dev.windows.com

Session feedbackhttp://bldw.in/SessionFeedback
