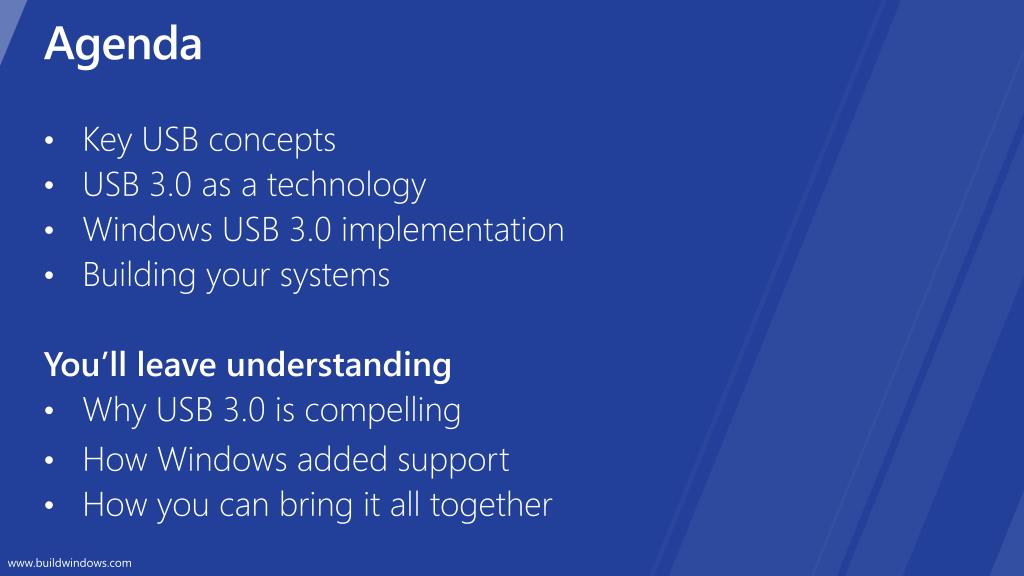

4. Agenda • Key USB concepts • USB 3.0 as a technology • Windows USB 3.0 implementation • Building your systems You’ll leave understanding • Why USB 3.0 is compelling • How Windows added support • How you can bring it all together

5. USB is the most successful interface in the history of the PC.

6. Adoption is virtually 100% in PC and peripheral categories.

7. USB install base is at 10+ billion units and is growing at 3+ billion units each year.

8. Key USB concepts • USB 1.0/1.1 • 1.5 Mbps “Low Speed” and 12 Mbps “Full Speed” • UHCI and OHCI • USB 2.0 • 480 Mbps “High Speed” • EHCI • USB 3.0 • 5 Gbps “SuperSpeed” • xHCI

9. USB 3.0 as a technology

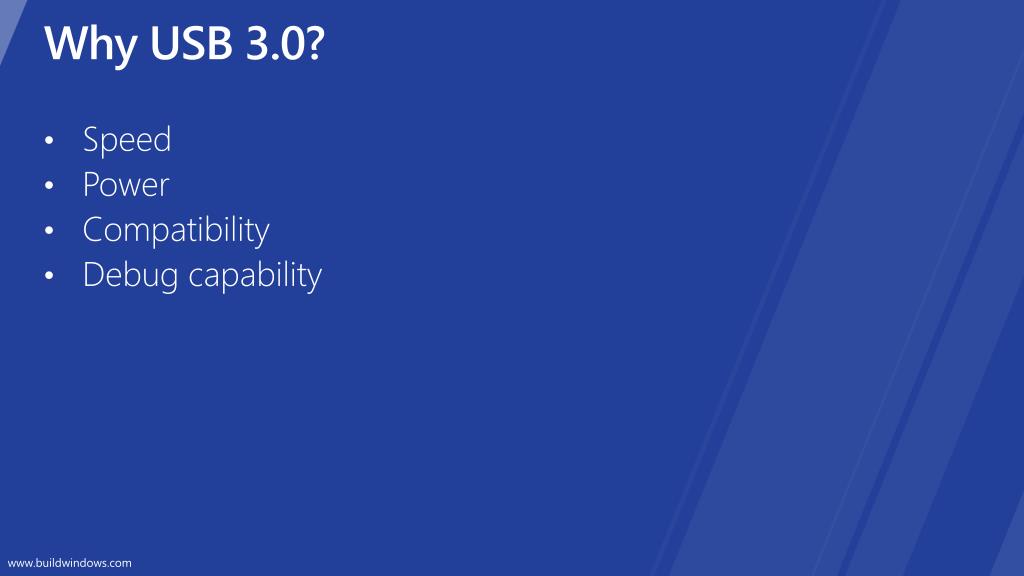

10. Why USB 3.0? • Speed • Power • Compatibility • Debug capability

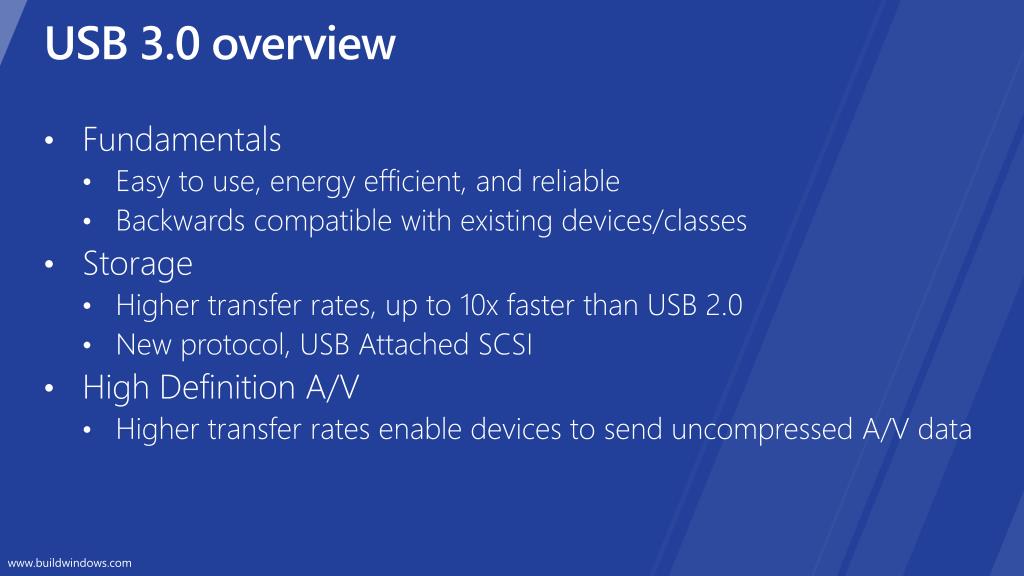

11. USB 3.0 overview • Fundamentals • Easy to use, energy efficient, and reliable • Backwards compatible with existing devices/classes • Storage • Higher transfer rates, up to 10x faster than USB 2.0 • New protocol, USB Attached SCSI • High Definition A/V • Higher transfer rates enable devices to send uncompressed A/V data

12. New PCs with USB 3.0 Source: In-Stat May 2011

13. New USB devices Source: In-Stat May 2011

14. Expected USB performance Song or Picture (4 MB) Standard Definition Movie (6 GB) High Definition Movie (25 GB) 5.3 seconds 2.2 hours 9.3 hours USB 1.0 USB 2.0 0.1 seconds 3.3 minutes 13.9 minutes USB 3.0 0.01 seconds 20 seconds 70 seconds Source: USB Implementers Forum

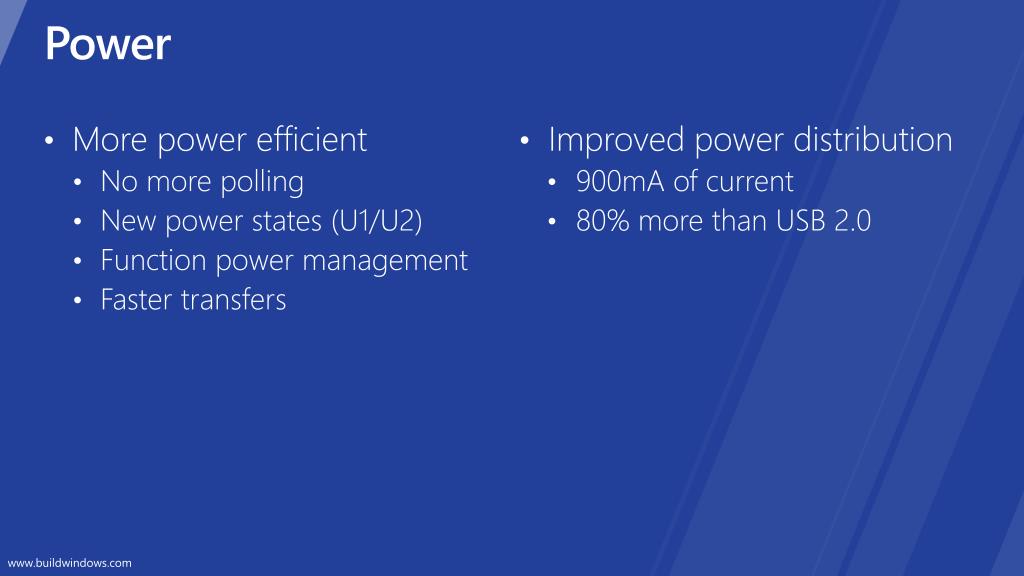

15. Power • More power efficient • No more polling • New power states (U1/U2) • Function power management • Faster transfers • Improved power distribution • 900mA of current • 80% more than USB 2.0

16. Compatibility

17. USB device enumeration 5.3 X 5.3 5.3 X 5.3

18. USB device enumeration

19. USB device enumeration

20. USB device enumeration

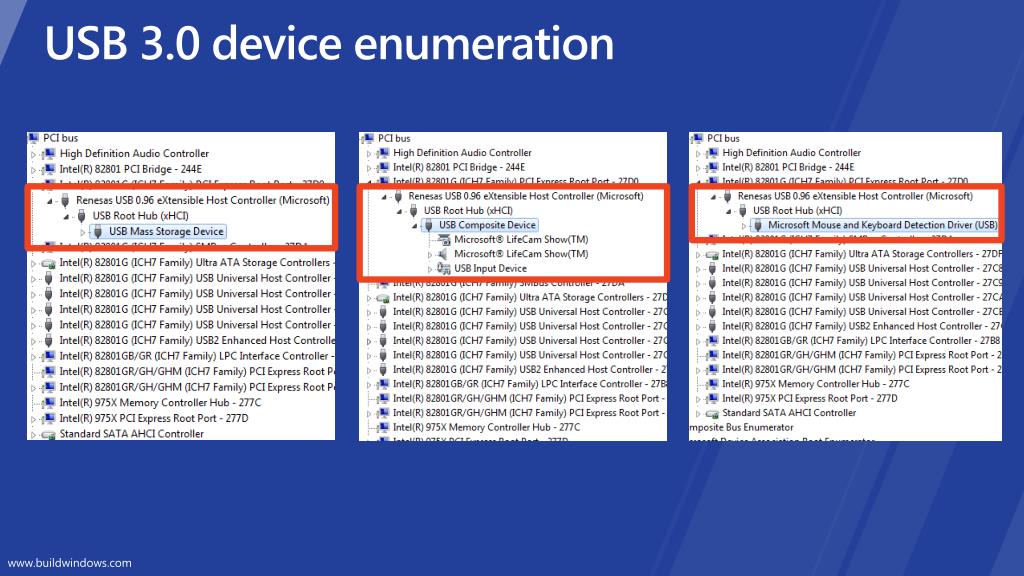

21. USB 3.0 device enumeration

22. USB device enumeration

23. Debug • USB 2.0 • Enabled on a port by port basis • Requires specialized piece of equipment • USB 3.0 • Available on each port exposed by the controller • Uses a single, male, A-to-A cable

24. Windows USB 3.0 implementation

25. Provide the world’s best experience for USB devices.

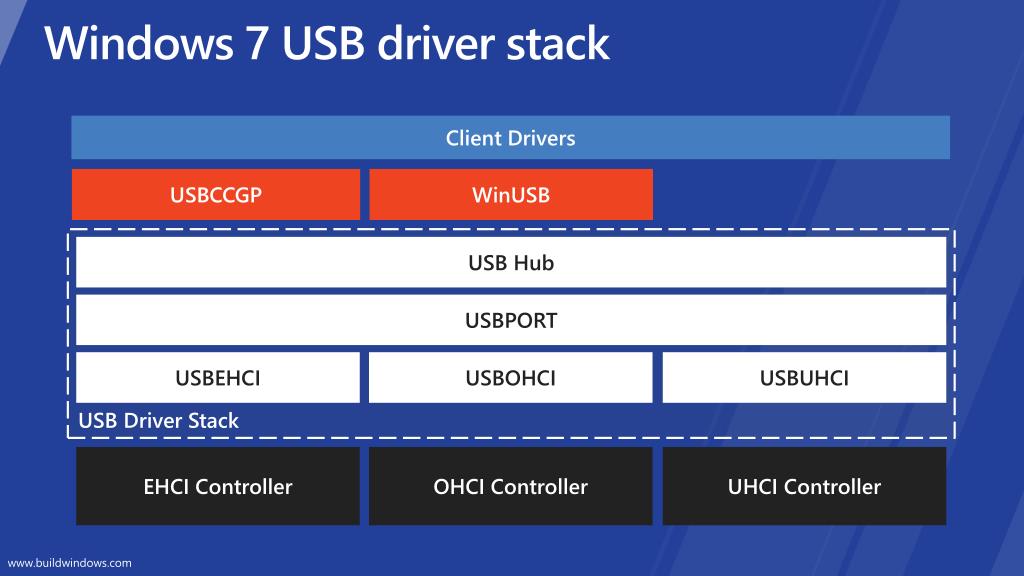

26. Windows 7 USB driver stack Client Drivers USBCCGP WinUSB USB Driver Stack USB Hub USBPORT USBEHCI USBOHCI USBUHCI UHCI Controller EHCI Controller OHCI Controller

27. Windows 8 USB Driver Stacks Client Drivers USBCCGP WinUSB EHCI, UHCI and OHCI Driver Stack xHCI Driver Stack USBHub USBHub3 USBPORT UCX (Host Controller Class Extension Driver) USBOHCI USBEHCI USBUHCI USBxHCI xHCI Controller EHCI Controller UHCI Controller OHCI Controller

28. Partners

29. New to Windows • USB 3.0 support • UASP driver • Boot support • Enhanced debugging and diagnostic capabilities

30. Building your systems

31. Device drivers • Existing low, full and high speed device drivers are compatible with the new USB 3.0 stack • Test your drivers with USB 3.0 on Windows 8

32. Windows certification • System fundamentals • Keep designs simple, don’t route a port to more than one controller • Create systems which can be debugged

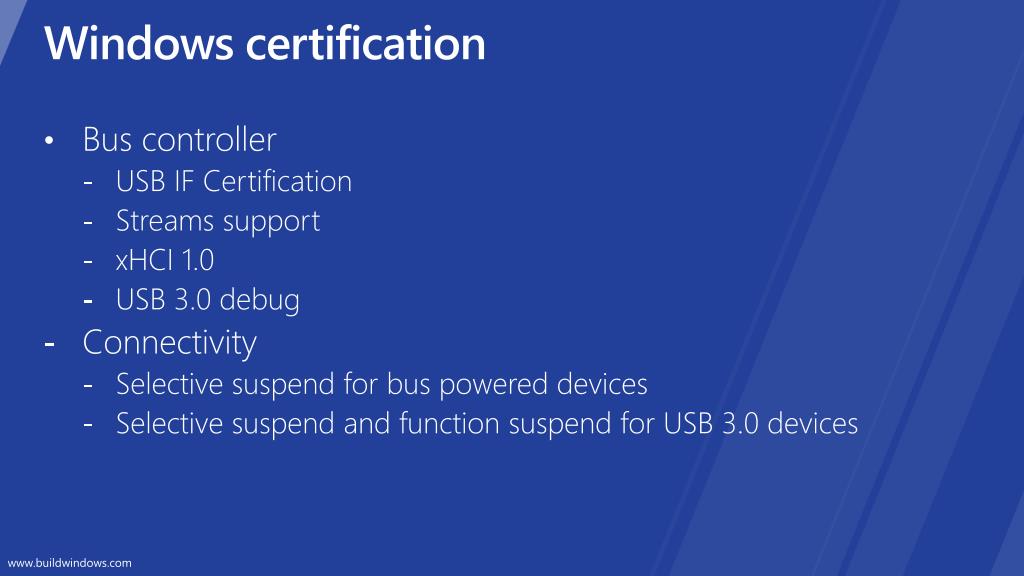

33. Windows certification • Bus controller • USB IF Certification • Streams support • xHCI1.0 • USB 3.0 debug • Connectivity • Selective suspend for bus powered devices • Selective suspend and function suspend for USB 3.0 devices

34. General guidelines • Enable boot • Support USB 3.0 in your BIOS • Offer USB ports • Use a micro A/B connector and dongle if a standard “A” port is too thick • Save power • Support Selective Suspend in all of your device drivers • Ensure SuperSpeed hubs and devices support Link Power states (U1/U2)

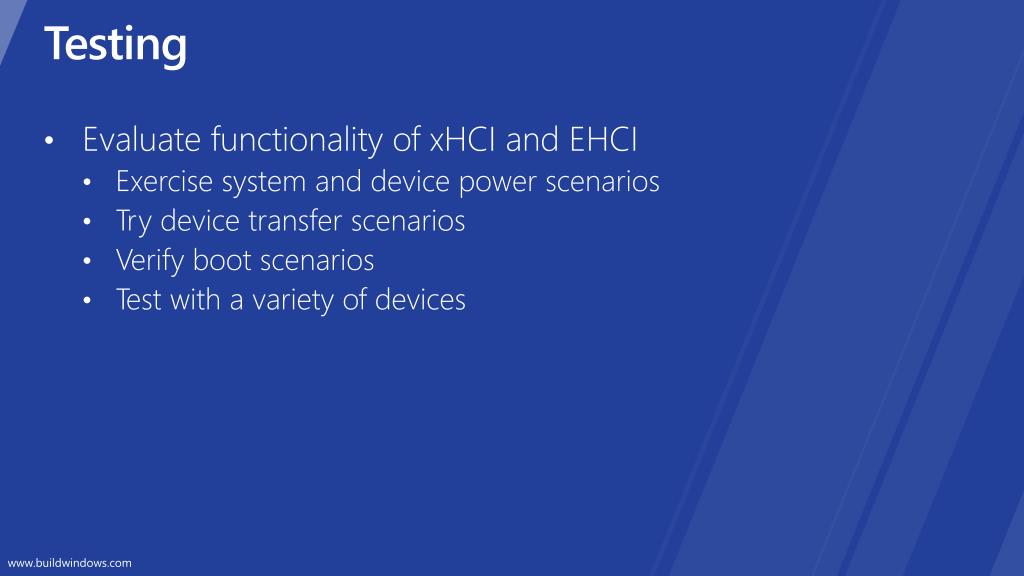

35. Testing • Evaluate functionality of xHCIand EHCI • Exercise system and device power scenarios • Try device transfer scenarios • Verify boot scenarios • Test with a variety of devices

36. Remember…

37. USB 3.0 is here.

38. It’s fast and power efficient.

39. USB 3.0 is USB.

40. Call to action • Continue to ship systems with USB 3.0 ports, and add USB 3.0 to all of your product roadmaps • Ensure your systems, controllers, hubs,embedded and bundled devices are Windows Certified • Test thoroughly

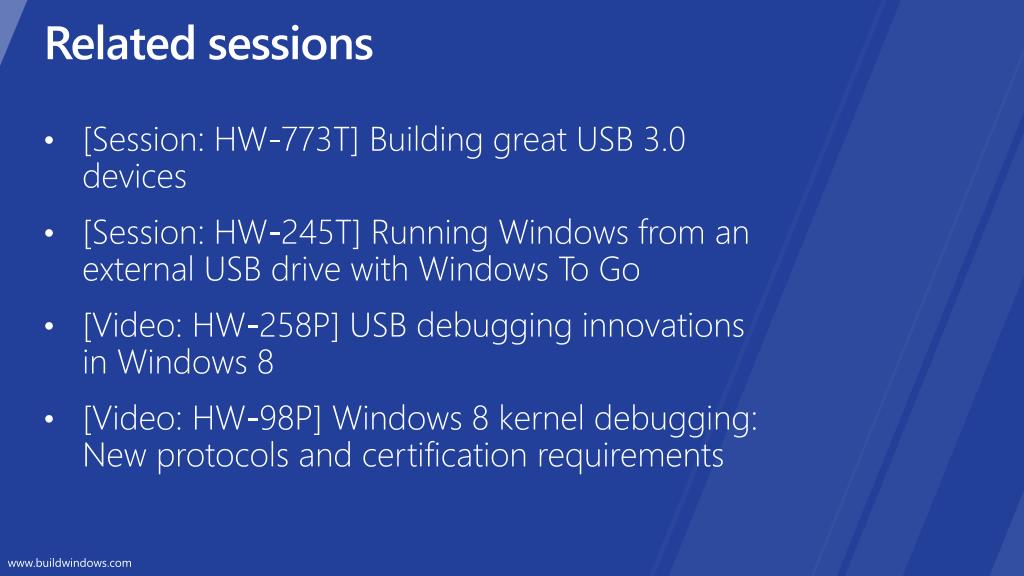

41. Related sessions • [Session: HW-773T] Building great USB 3.0 devices • [Session: HW-245T] Running Windows from an external USB drive with Windows To Go • [Video: HW-258P] USB debugging innovations in Windows 8 • [Video: HW-98P] Windows 8 kernel debugging: New protocols and certification requirements

42. Further reading and documentation • Universal Serial Bus (USB) Drivers • Windows Hardware Developer Center • Windows Developer Center • Microsoft Windows USB Core Team Blog • Building Windows 8: Building robust USB 3.0 support • Contact info – usb3fb @microsoft.com
