Presentation Transcript
programming with functions
Programming with Functions

Everyone understands functions:

f(x) = x + 1

g(x,y) = sine(x) - y

abs(x) = if x < 0 then -x else x

Functional Programming uses functions (and nothing else!) to write computer programs.

We use functions to create some simple but interesting programs that explore things like math or music or art …

programming languages

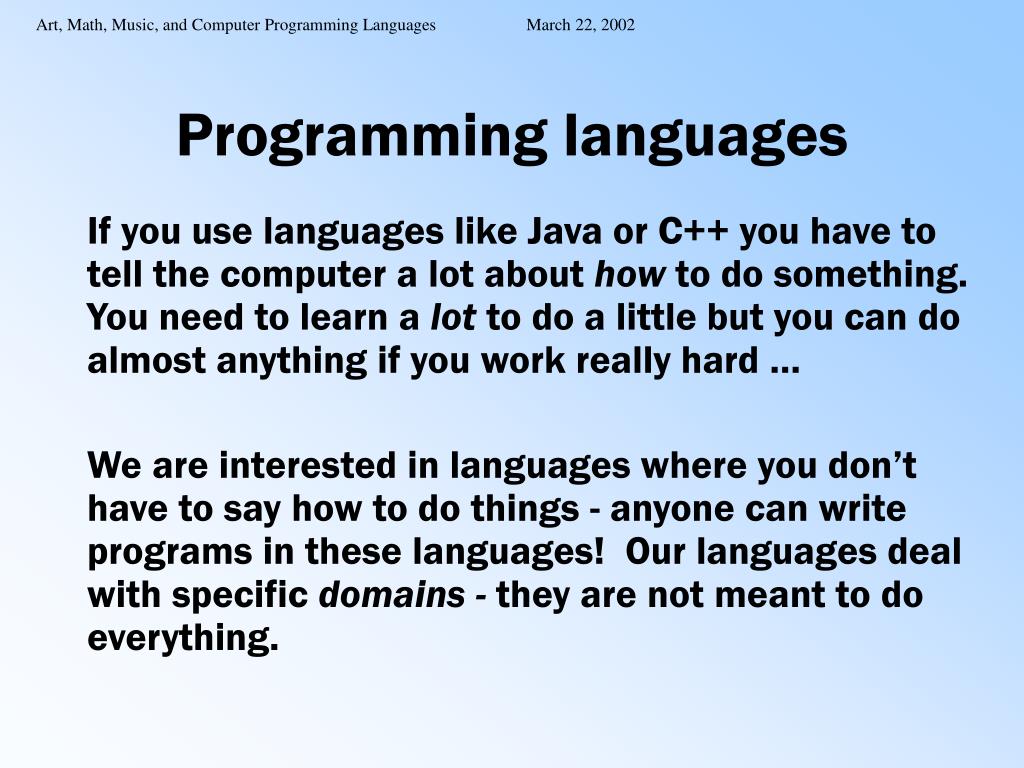

Programming languages

If you use languages like Java or C++ you have to tell the computer a lot about how to do something. You need to learn a lot to do a little but you can do almost anything if you work really hard …

We are interested in languages where you don’t have to say how to do things - anyone can write programs in these languages! Our languages deal with specific domains - they are not meant to do everything.

everything is a function
Everything is a Function

Why functions? Because we can represent just about everything with them:

Pictures are functions from points onto colors

Music is a function from time to sets of notes

Math is a study of functions

In all of these areas, we want to capture patterns and give them names

Reflection Shapes Scales Rotations Repetition

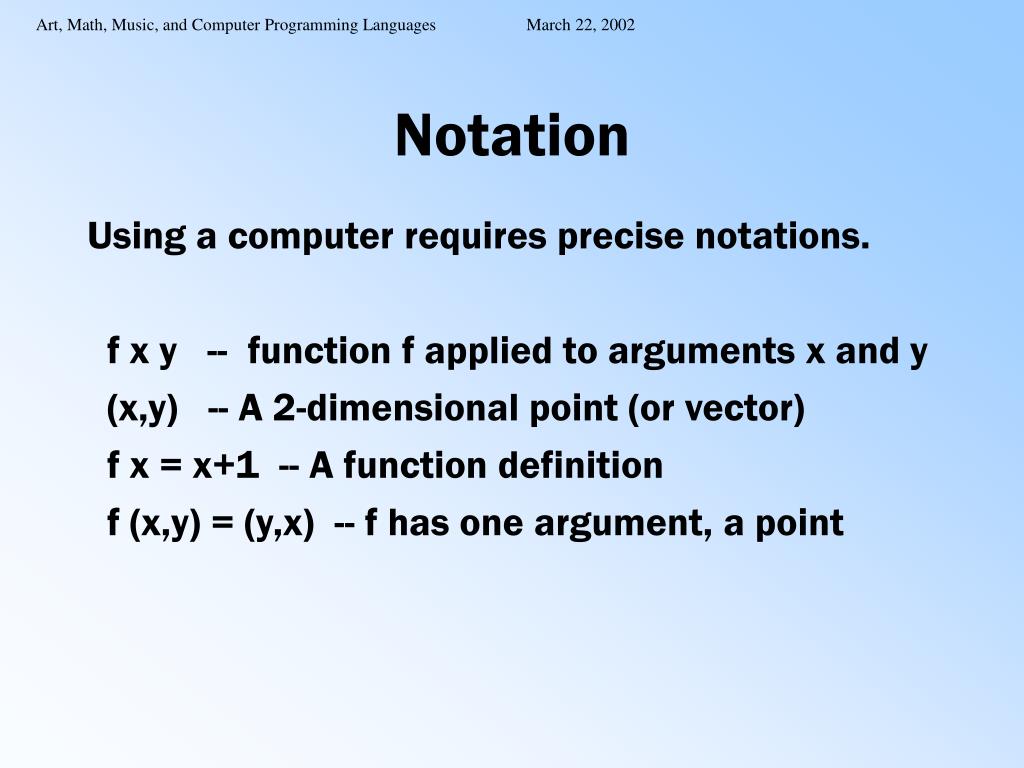

notation
Notation

Using a computer requires precise notations.

f x y -- function f applied to arguments x and y

(x,y) -- A 2-dimensional point (or vector)

f x = x+1 -- A function definition

f (x,y) = (y,x) -- f has one argument, a point

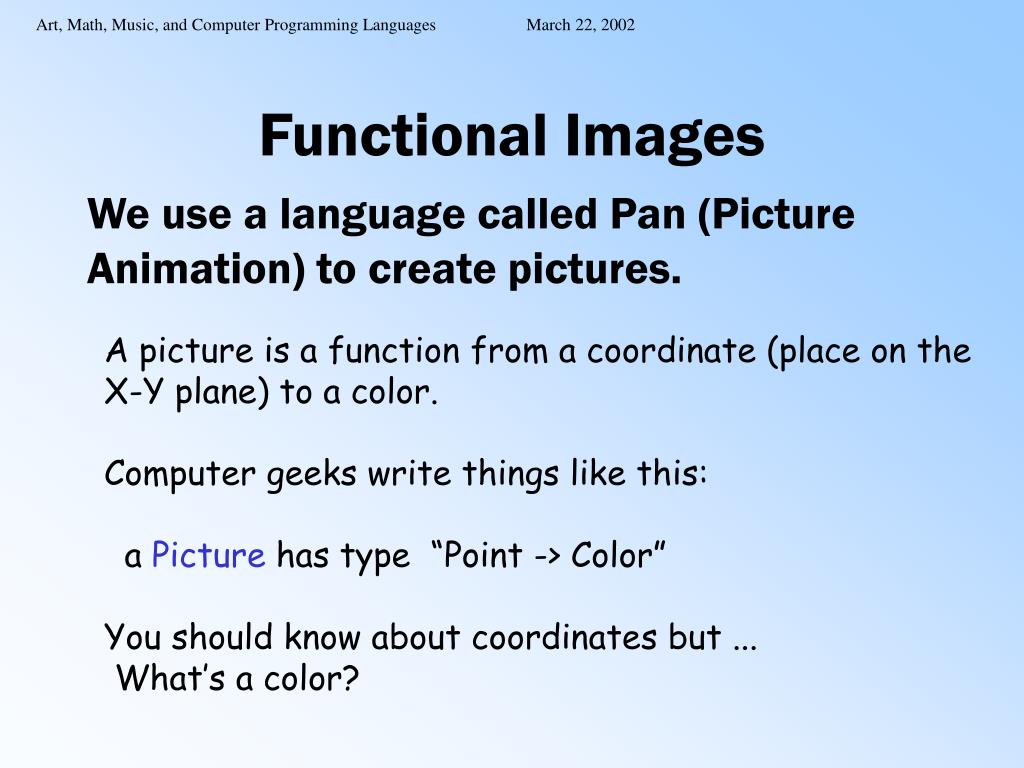

functional images
Functional Images

We use a language called Pan (Picture Animation) to create pictures.

A picture is a function from a coordinate (place on the

X-Y plane) to a color.

Computer geeks write things like this:

a Picture has type “Point -> Color”

You should know about coordinates but ...

What’s a color?

slide7

Colors

We describe colors using 3 numbers, each between 0 and 1

Amount of Red

Amount of Green

Amount of Blue

Example: Yellow = Red + Green rgb 1 1 0

We can also add Transparency

0 = clear, 1 = solid

rgba 1 1 0 0.5 -- semi-transparent yellow

a picture

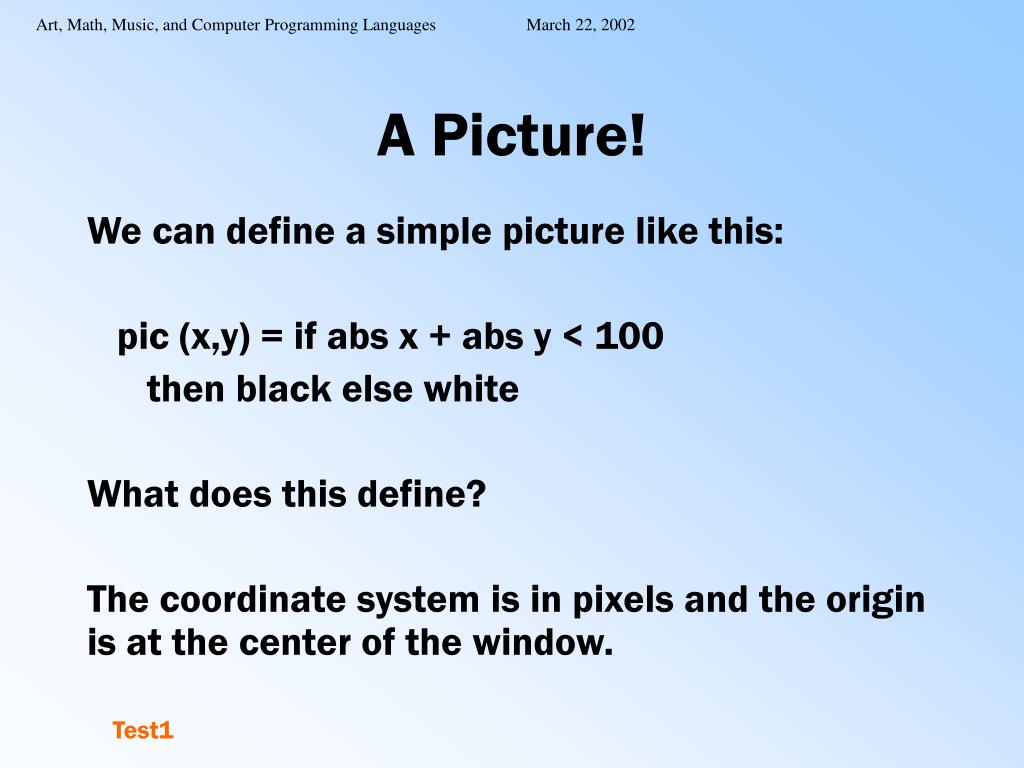

A Picture!

We can define a simple picture like this:

pic (x,y) = if abs x + abs y < 100

then black else white

What does this define?

The coordinate system is in pixels and the origin is at the center of the window.

Test1

another picture
Another Picture!

More colors! Let’s change the black to a color that varies with location

pic (x,y) = if abs x + abs y < 100

then rgb 0.5 (abs x/100) (abs y/100)

else white

rgb defines a color from the red, green, and blue components.

Test2

adding controls
Adding Controls

r <- slider “red” (0,1) 0

pic (x,y) = if abs x + abs y < 100

then rgb r (abs x/100) (abs y/100)

else white

slider uses a label, a range, and an initial value to define an interactive controller

Test3

transformations

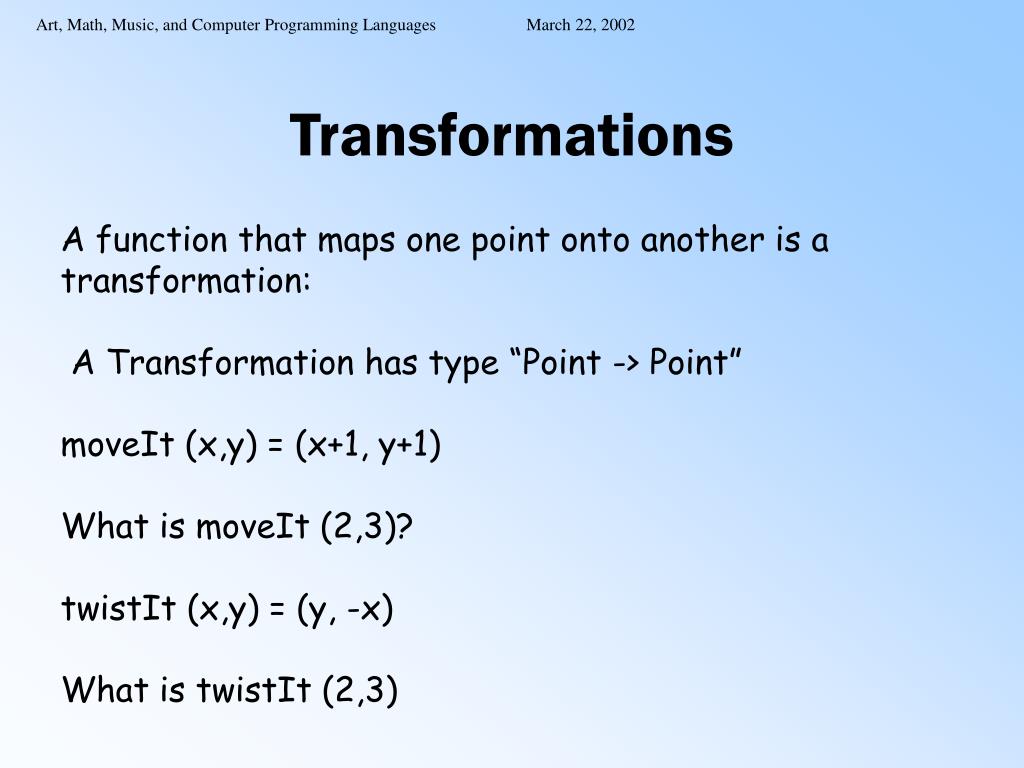

Transformations

A function that maps one point onto another is a transformation:

A Transformation has type “Point -> Point”

moveIt (x,y) = (x+1, y+1)

What is moveIt (2,3)?

twistIt (x,y) = (y, -x)

What is twistIt (2,3)

visualizing transformations

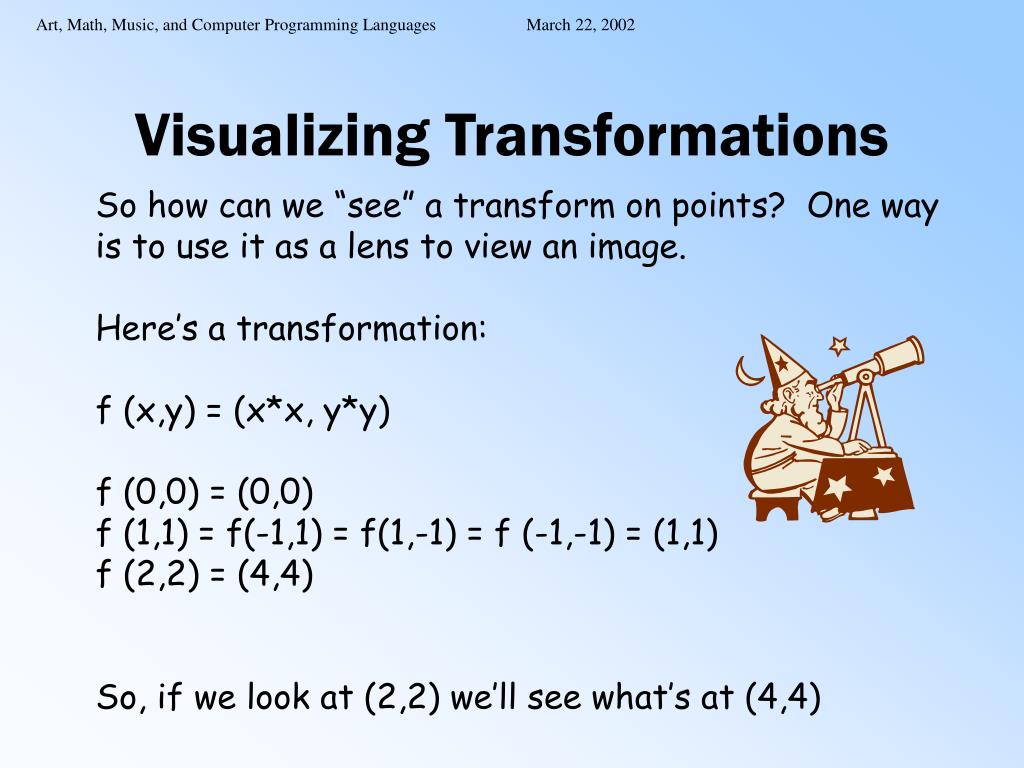

Visualizing Transformations

So how can we “see” a transform on points? One way

is to use it as a lens to view an image.

Here’s a transformation:

f (x,y) = (x*x, y*y)

f (0,0) = (0,0)

f (1,1) = f(-1,1) = f(1,-1) = f (-1,-1) = (1,1)

f (2,2) = (4,4)

So, if we look at (2,2) we’ll see what’s at (4,4)

slide13

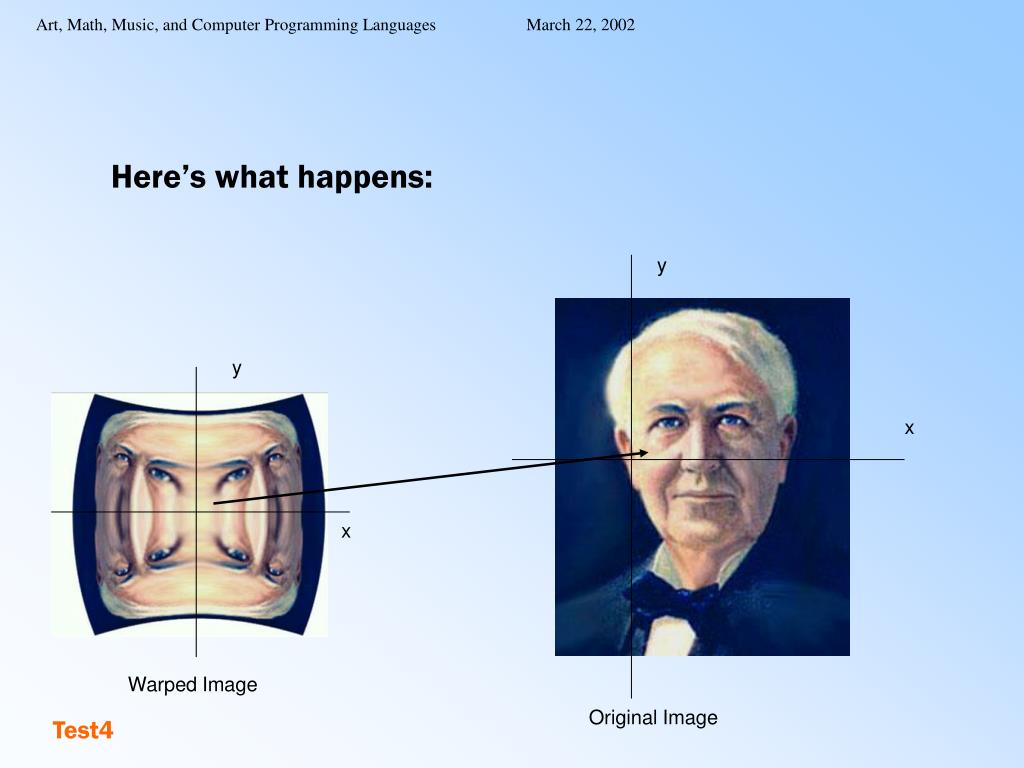

y

x

Original Image

Warped Image

Here’s what happens:

y

x

Test4

symmetry

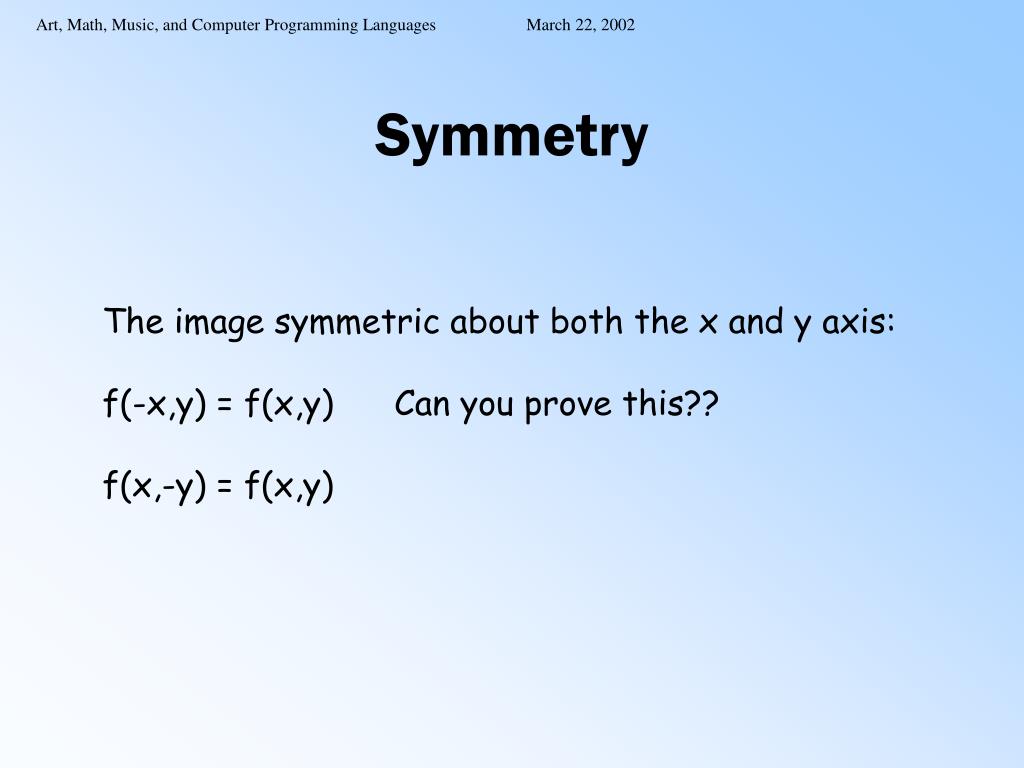

Symmetry

The image symmetric about both the x and y axis:

f(-x,y) = f(x,y) Can you prove this??

f(x,-y) = f(x,y)

polar coordinates

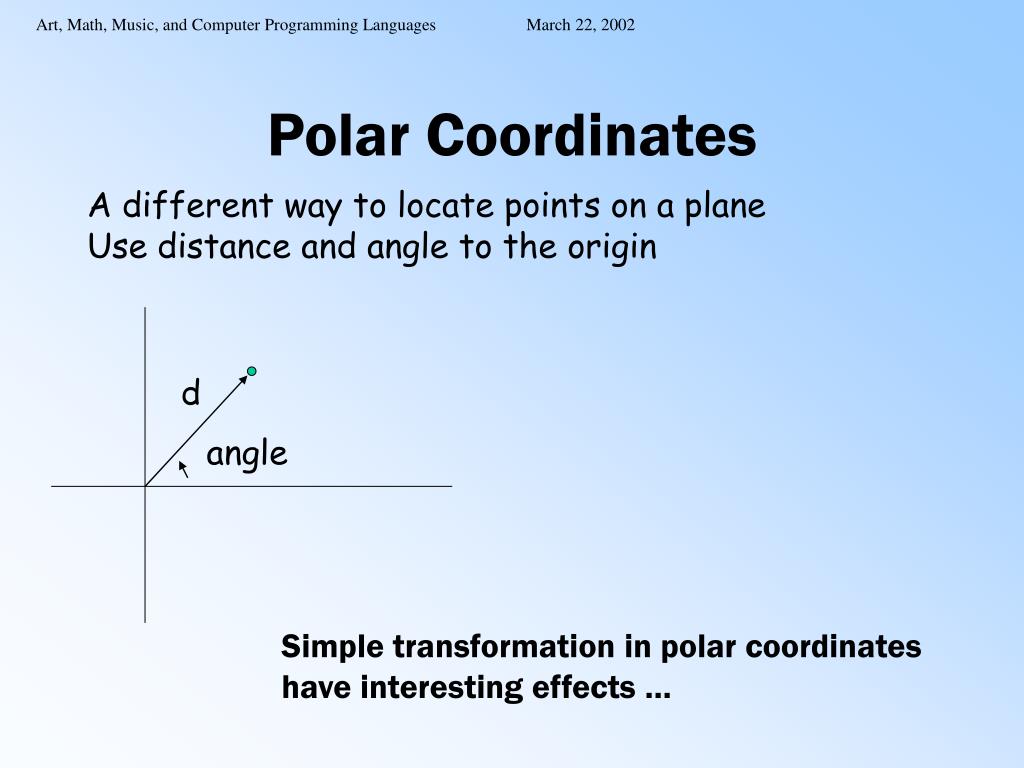

Polar Coordinates

A different way to locate points on a plane

Use distance and angle to the origin

d

angle

Simple transformation in polar coordinates

have interesting effects …

swirling

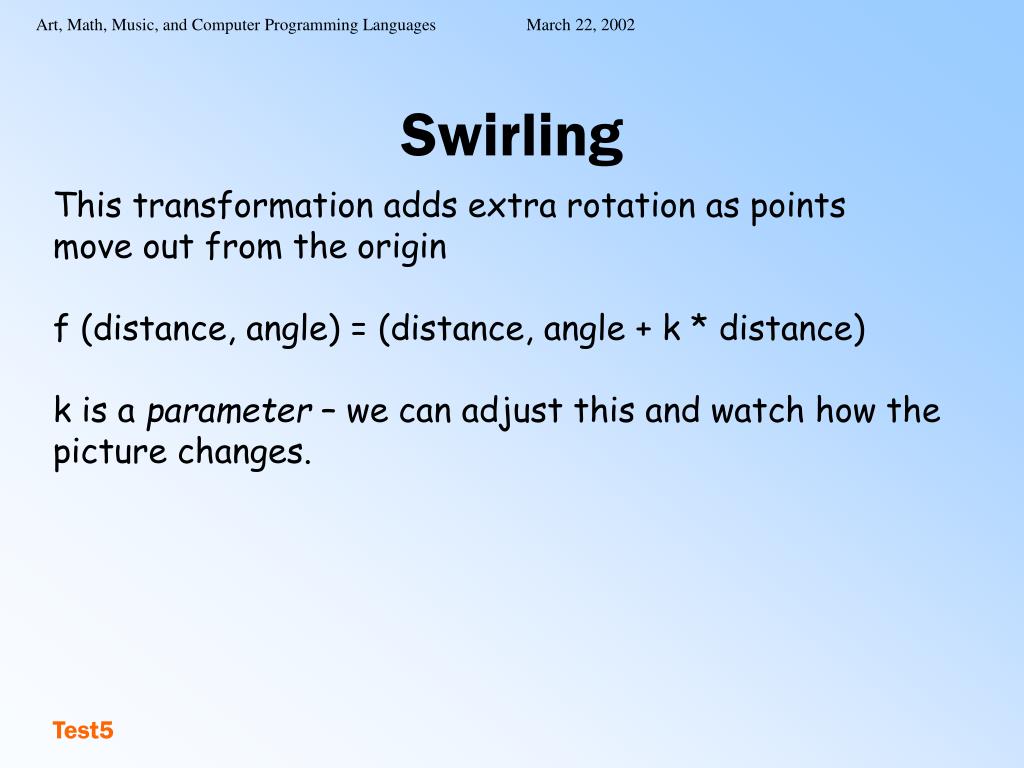

Swirling

This transformation adds extra rotation as points

move out from the origin

f (distance, angle) = (distance, angle + k * distance)

k is a parameter – we can adjust this and watch how the

picture changes.

Test5

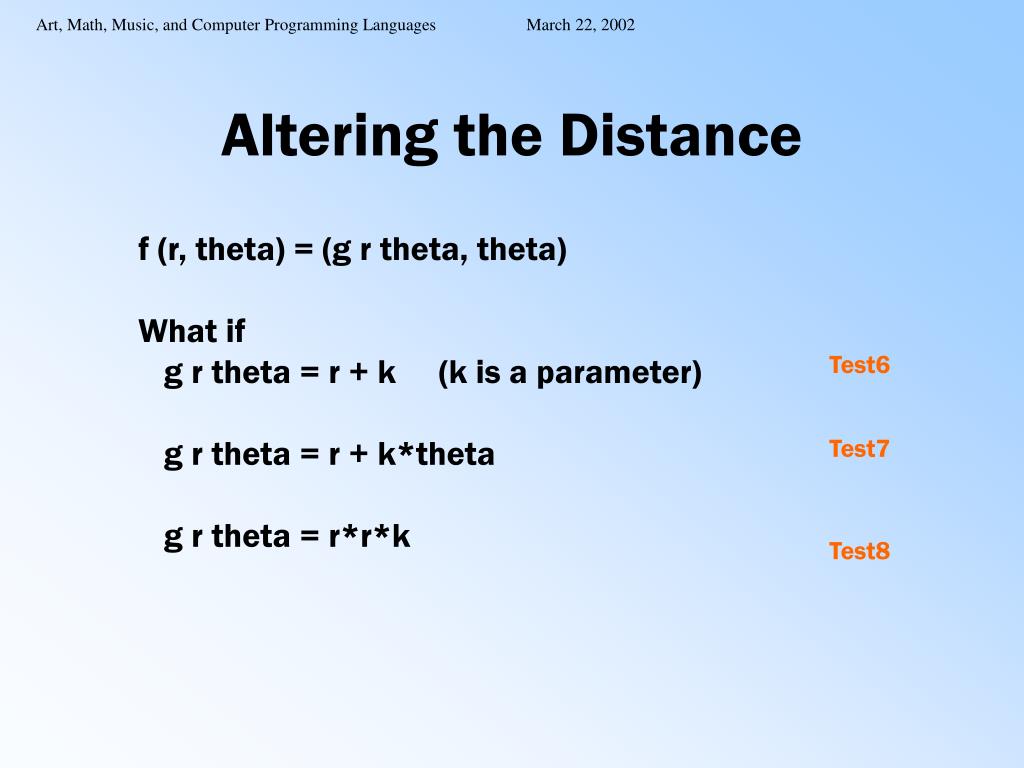

altering the distance
Altering the Distance

f (r, theta) = (g r theta, theta)

What if

g r theta = r + k (k is a parameter)

g r theta = r + k*theta

g r theta = r*r*k

Test6

Test7

Test8

rippling
Rippling

Move further or closer to the origin depending on

the angle

g r theta = r * (1 + k*sine (n * theta))

The “sine” function generates a ripple.

Test9

Sine tells you how high up

you are on the unit circle

given an angle.

ramps
Ramps

A periodic function repeats itself. One of the simplest periodic functions is a series of ramps from 0 to 1, repeated over and over:

ramps x

= x when 0 <= x and x < 1 = x

= ramps (x+1) when x < 0

= ramps (x-1) when x >= 1

A more useful version of this function is parameterized by its period:

pramps p x = p * ramps (x/p)

y = ramps p x

using ramps

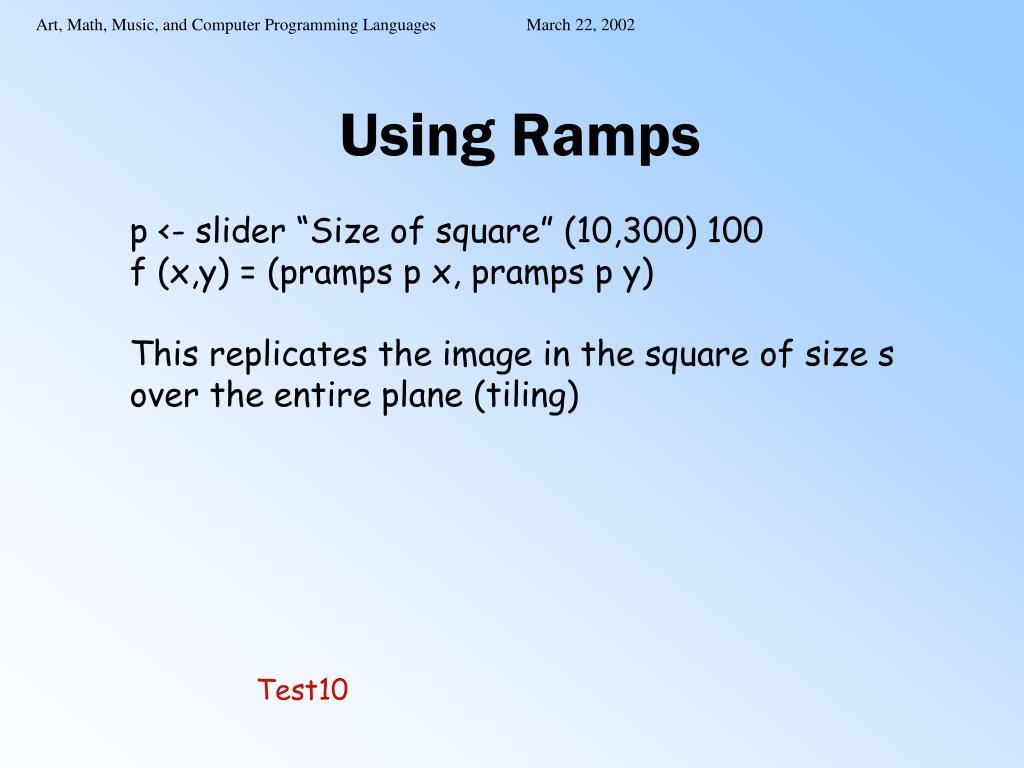

Using Ramps

p <- slider “Size of square” (10,300) 100

f (x,y) = (pramps p x, pramps p y)

This replicates the image in the square of size s

over the entire plane (tiling)

Test10

a sawtooth

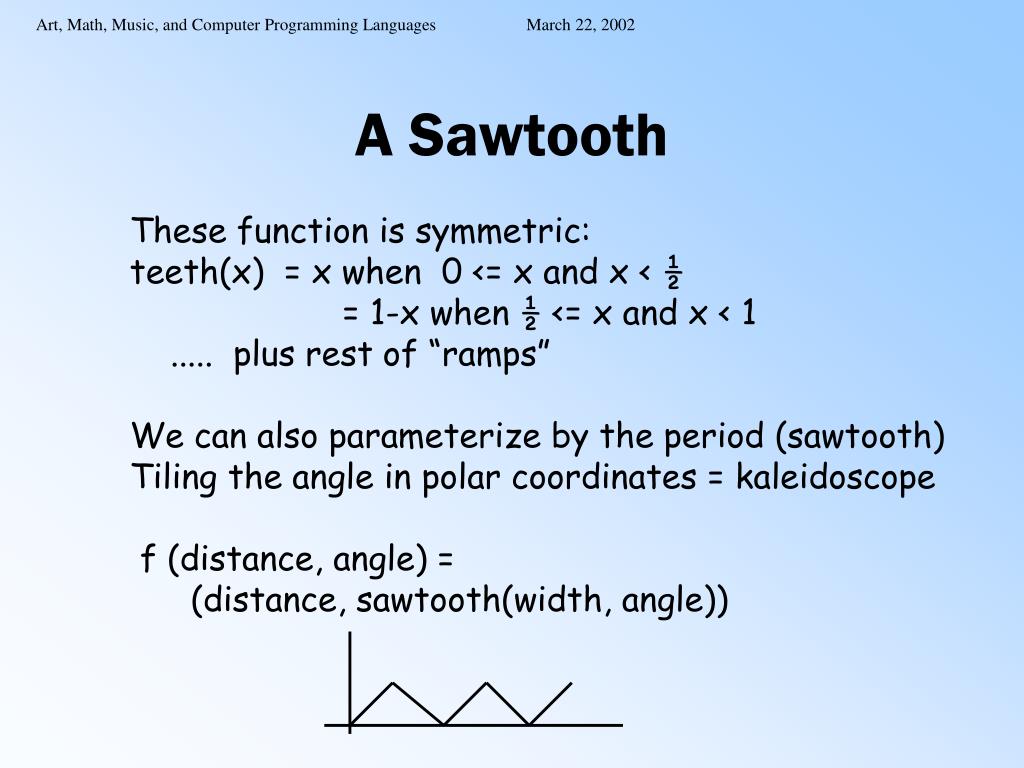

A Sawtooth

These function is symmetric:

teeth(x) = x when 0 <= x and x < ½

= 1-x when ½ <= x and x < 1

..... plus rest of “ramps”

We can also parameterize by the period (sawtooth)

Tiling the angle in polar coordinates = kaleidoscope

f (distance, angle) =

(distance, sawtooth(width, angle))

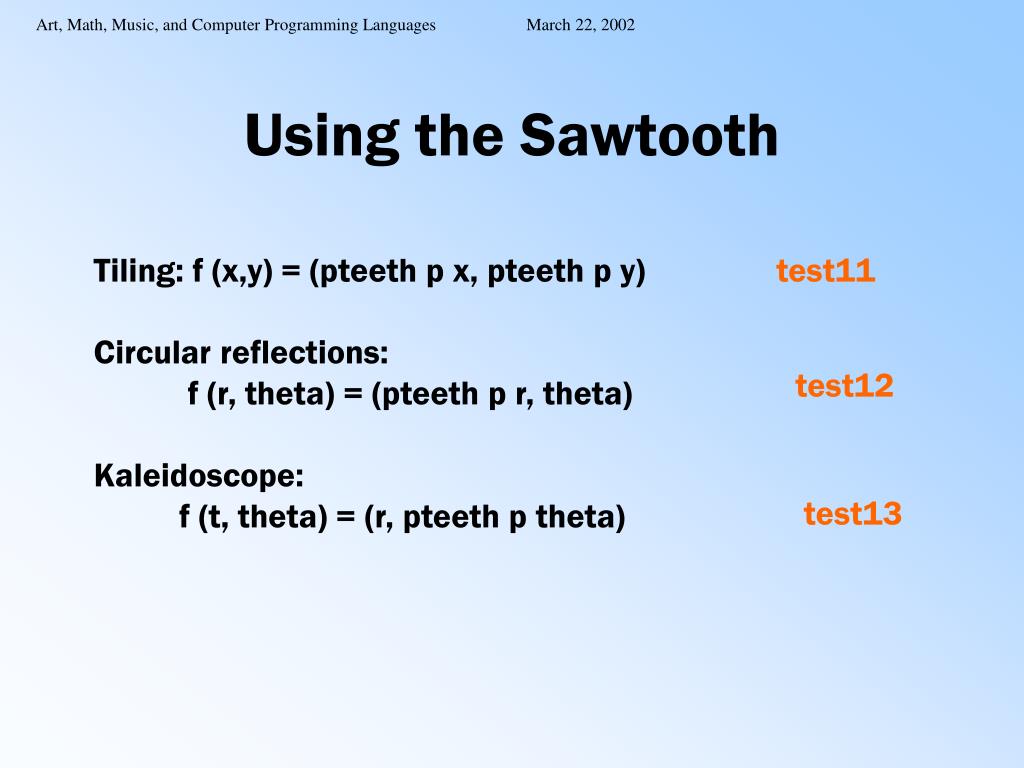

using the sawtooth
Using the Sawtooth

Tiling: f (x,y) = (pteeth p x, pteeth p y)

Circular reflections:

f (r, theta) = (pteeth p r, theta)

Kaleidoscope:

f (t, theta) = (r, pteeth p theta)

test11

test12

test13

slide23

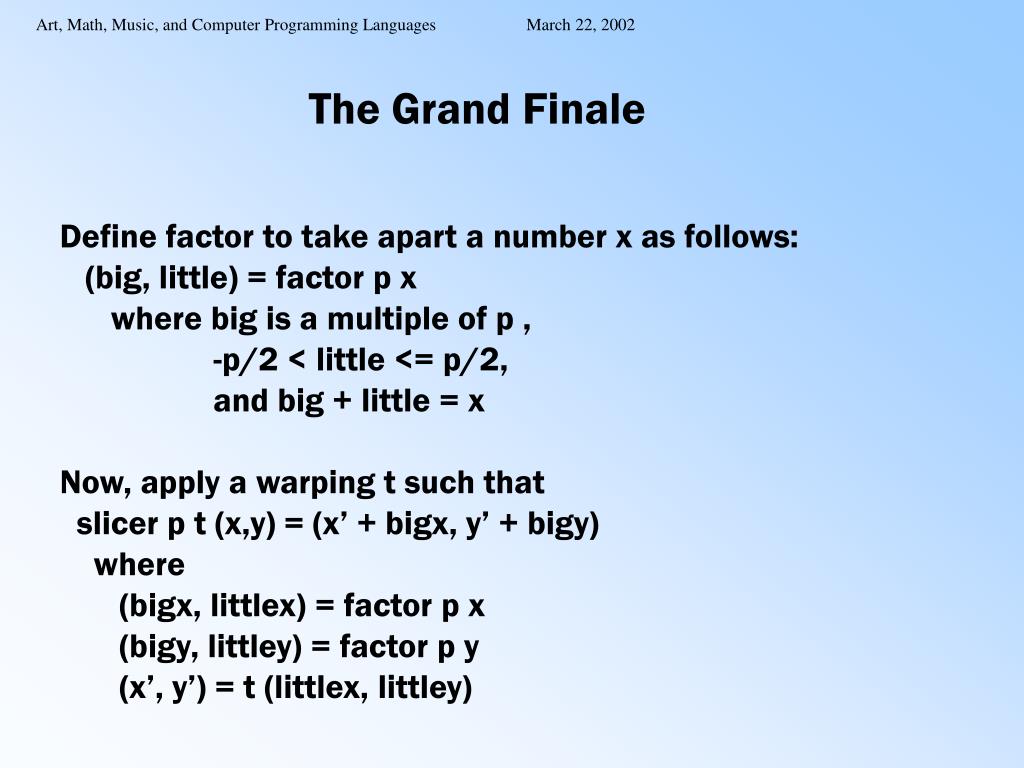

The Grand Finale

Define factor to take apart a number x as follows:

(big, little) = factor p x

where big is a multiple of p ,

-p/2 < little <= p/2,

and big + little = x

Now, apply a warping t such that

slicer p t (x,y) = (x’ + bigx, y’ + bigy)

where

(bigx, littlex) = factor p x

(bigy, littley) = factor p y

(x’, y’) = t (littlex, littley)

slide24

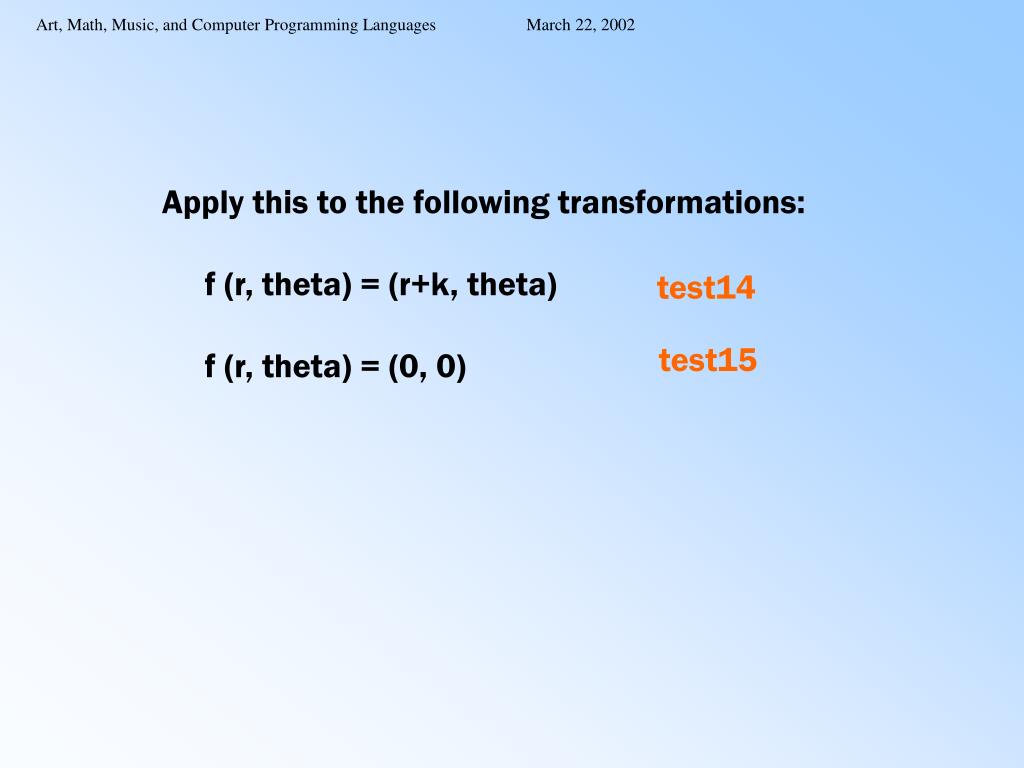

Apply this to the following transformations:

f (r, theta) = (r+k, theta)

f (r, theta) = (0, 0)

test14

test15

haskore

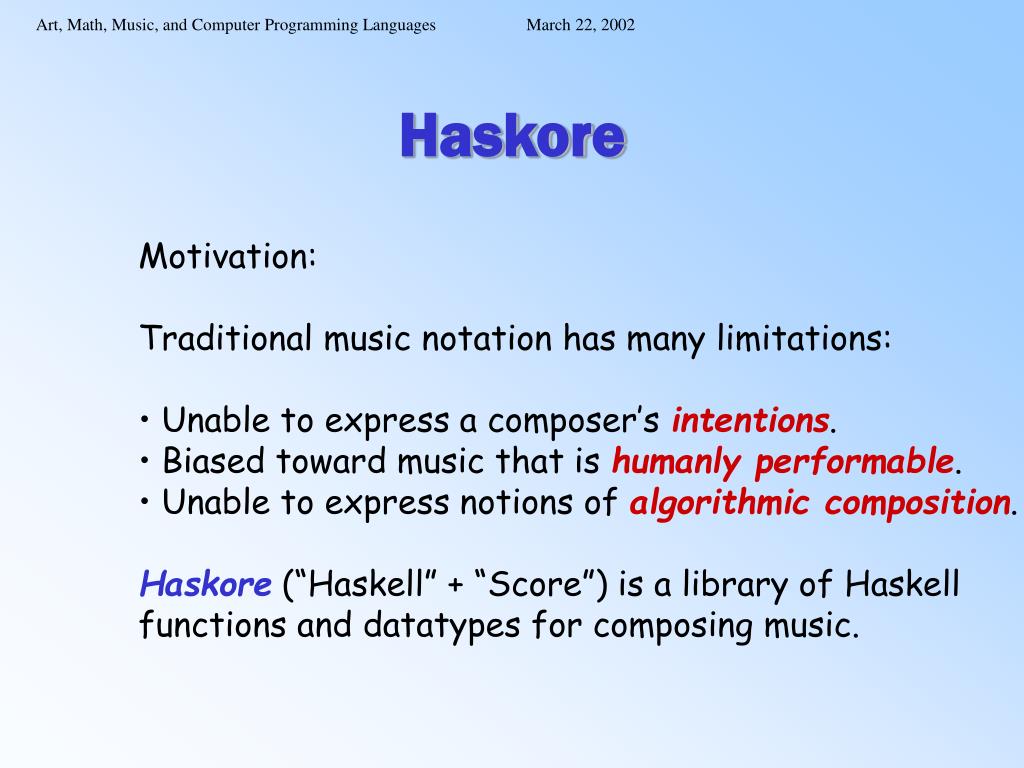

Haskore
  • Motivation:
  • Traditional music notation has many limitations:
  • Unable to express a composer’s intentions.
  • Biased toward music that is humanly performable.
  • Unable to express notions of algorithmic composition.Haskore (“Haskell” + “Score”) is a library of Haskellfunctions and datatypes for composing music.
defining music
Defining Music…

Can we create music with functions? Of course!

NoteName = Cf | C | Cs | Df | D | Ds | Ef | E | Es | Ff | F | Fs

| Gf | G | Gs | Af | A | As | Bf | B | Bs

Music =

Note (NoteName, Integer) Duration [Attributes] -- a note

Rest Duration -- a rest

Music :+: Music -- sequential composition

Music :=: Music -- parallel composition

Tempo Float Music -- scale the tempo

Trans Integer Music -- transposition

c major scale

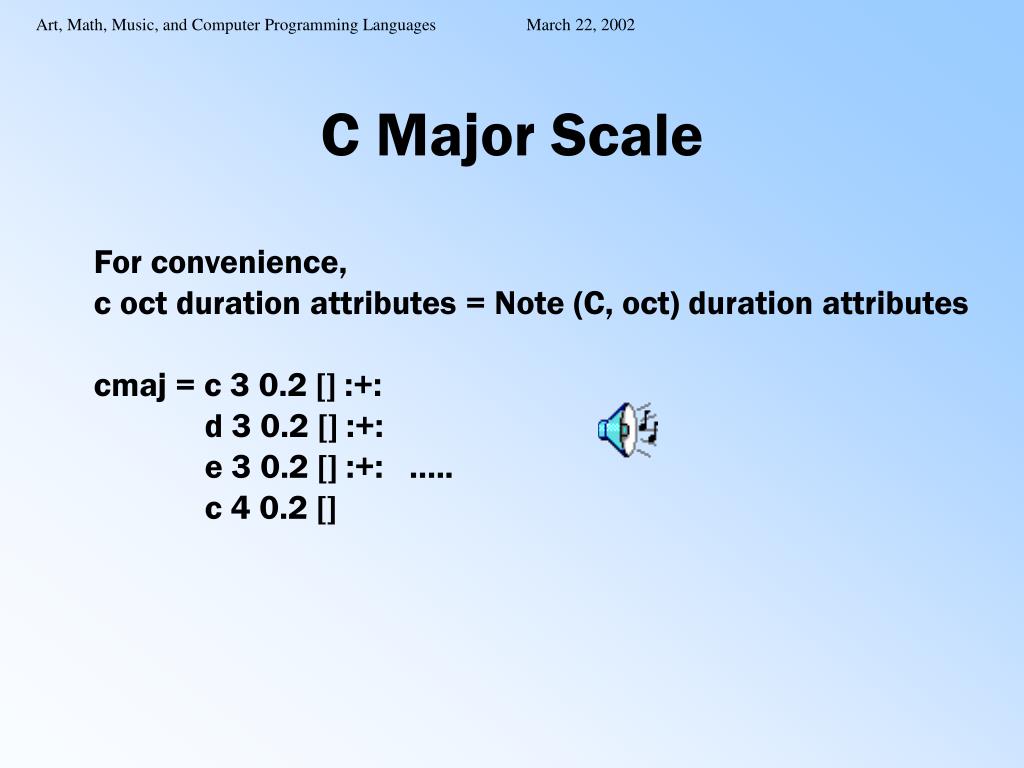

C Major Scale

For convenience,

c oct duration attributes = Note (C, oct) duration attributes

cmaj = c 3 0.2 [] :+:

d 3 0.2 [] :+:

e 3 0.2 [] :+: …..

c 4 0.2 []

simple transformations
Simple Transformations

Add a parallel line 7 notes higher:

pfifth m = m :=: Trans 7 m

cmaj5 = pfifth cmaj

againFaster m = m :+: (Tempo 2 m)

cmaj5twice = againFaster cmaj5

cmaj5four = againFaster cmaj5twice

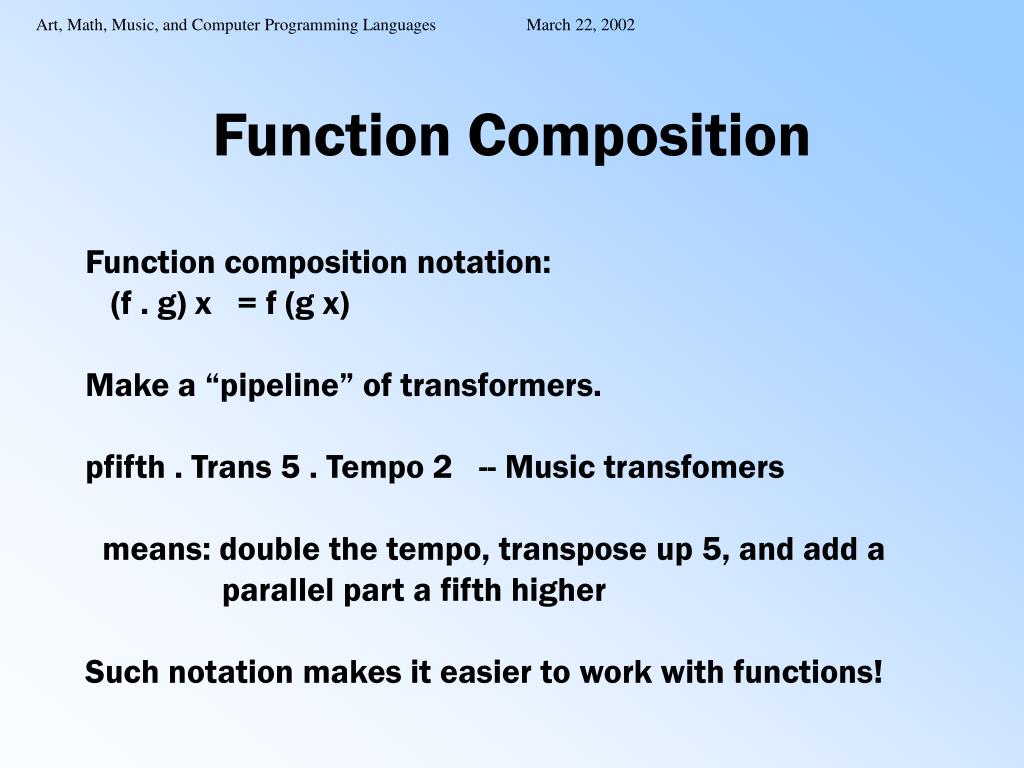

function composition
Function Composition

Function composition notation:

(f . g) x = f (g x)

Make a “pipeline” of transformers.

pfifth . Trans 5 . Tempo 2 -- Music transfomers

means: double the tempo, transpose up 5, and add a

parallel part a fifth higher

Such notation makes it easier to work with functions!

types

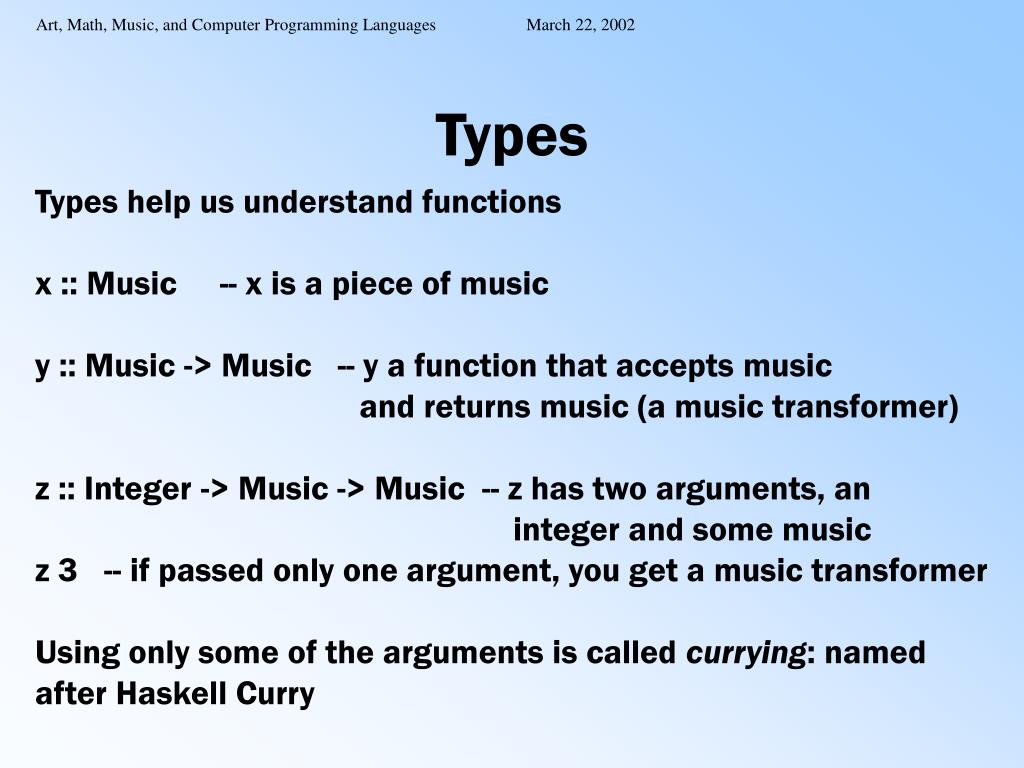

Types

Types help us understand functions

x :: Music -- x is a piece of music

y :: Music -> Music -- y a function that accepts music

and returns music (a music transformer)

z :: Integer -> Music -> Music -- z has two arguments, an

integer and some music

z 3 -- if passed only one argument, you get a music transformer

Using only some of the arguments is called currying: named

after Haskell Curry

simple iteration
Simple Iteration

We use functions to capture music structures

One such structure is simple iteration:

rpt :: Integer -> Music -> Music

rpt 0 m = Rest 0 --- a “null” piece of music

rpt n m = m :+: rpt (n-1) m

Use recursion to define a function that iterates n times

cmaj4 = rpt 4 cmaj

What does rpt 3 . rpt 3 do?

more complex patterns

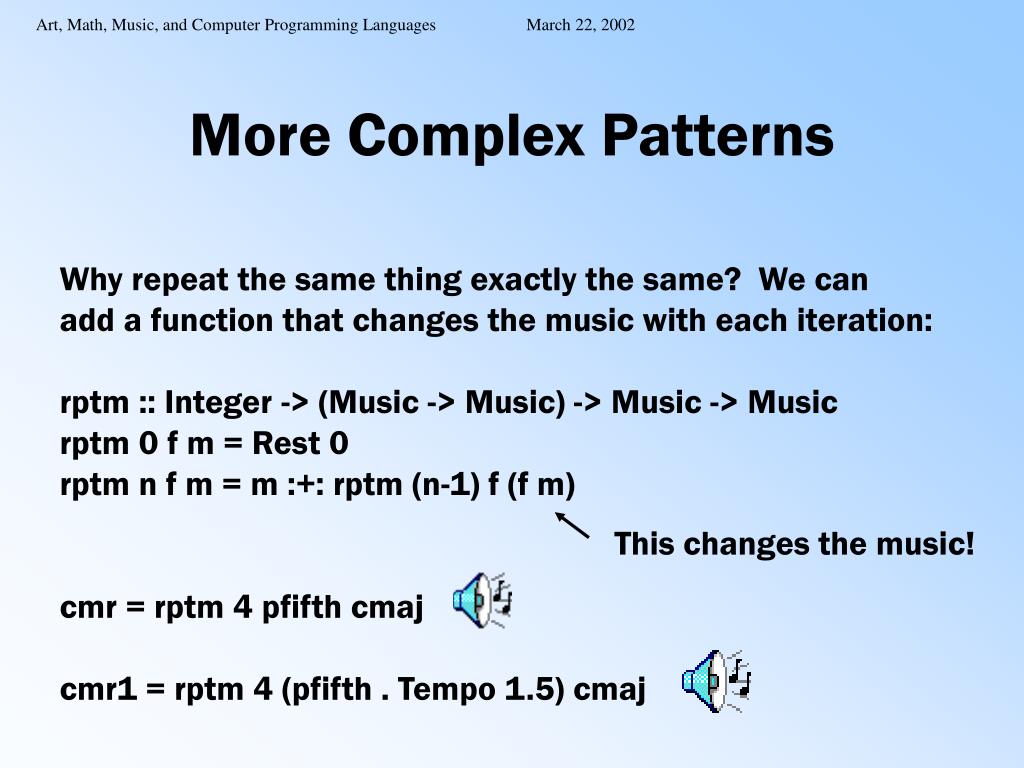

More Complex Patterns

Why repeat the same thing exactly the same? We can

add a function that changes the music with each iteration:

rptm :: Integer -> (Music -> Music) -> Music -> Music

rptm 0 f m = Rest 0

rptm n f m = m :+: rptm (n-1) f (f m)

cmr = rptm 4 pfifth cmaj

cmr1 = rptm 4 (pfifth . Tempo 1.5) cmaj

This changes the music!

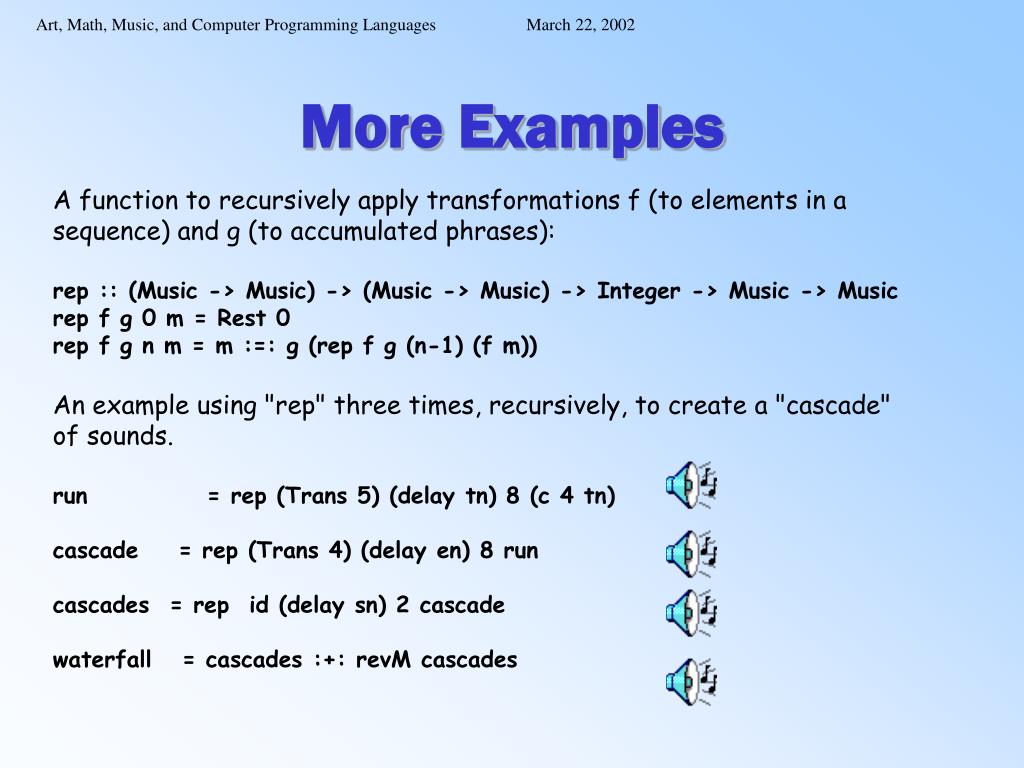

more examples
More Examples

A function to recursively apply transformations f (to elements in a

sequence) and g (to accumulated phrases):

rep :: (Music -> Music) -> (Music -> Music) -> Integer -> Music -> Music

rep f g 0 m = Rest 0

rep f g n m = m :=: g (rep f g (n-1) (f m))

An example using "rep" three times, recursively, to create a "cascade"

of sounds.

run = rep (Trans 5) (delay tn) 8 (c 4 tn)

cascade = rep (Trans 4) (delay en) 8 run

cascades = rep id (delay sn) 2 cascade

waterfall = cascades :+: revM cascades

how did that work

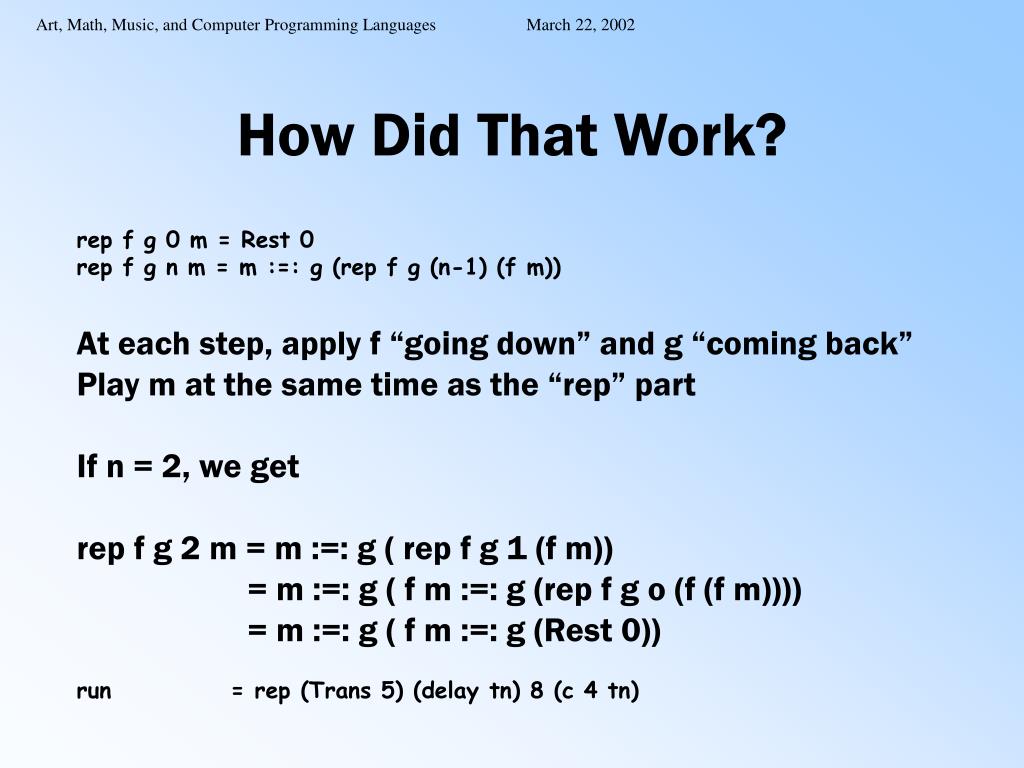

How Did That Work?

rep f g 0 m = Rest 0

rep f g n m = m :=: g (rep f g (n-1) (f m))

At each step, apply f “going down” and g “coming back”

Play m at the same time as the “rep” part

If n = 2, we get

rep f g 2 m = m :=: g ( rep f g 1 (f m))

= m :=: g ( f m :=: g (rep f g o (f (f m))))

= m :=: g ( f m :=: g (Rest 0))

run = rep (Trans 5) (delay tn) 8 (c 4 tn)

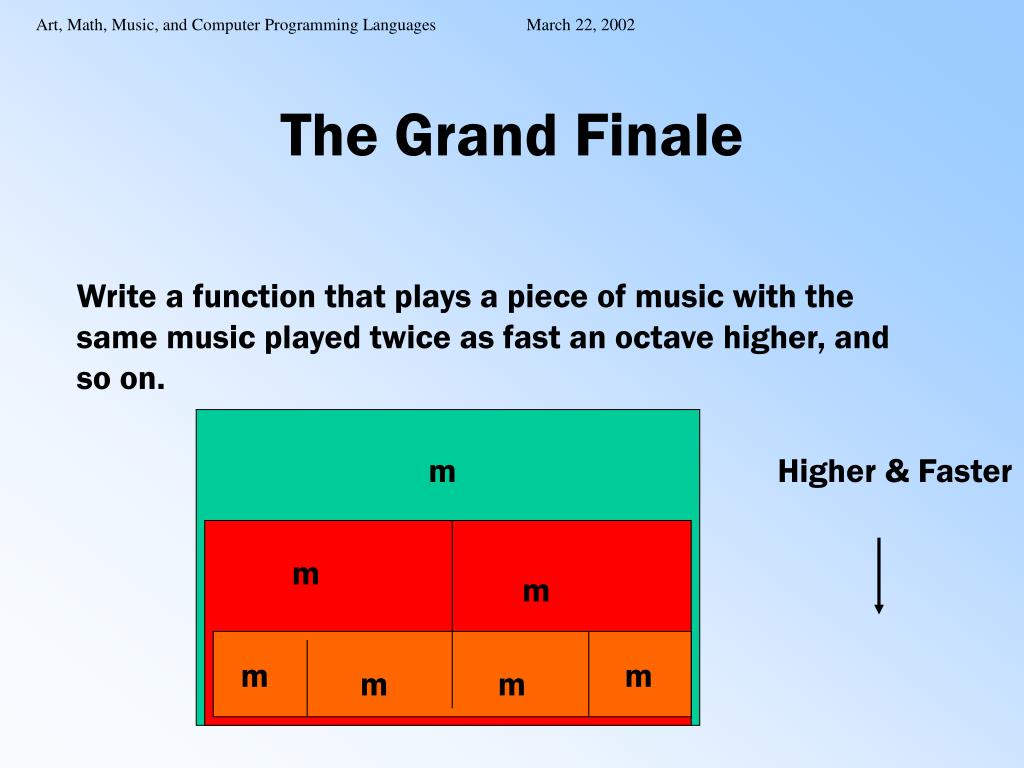

the grand finale
The Grand Finale

Write a function that plays a piece of music with the

same music played twice as fast an octave higher, and

so on.

m

Higher & Faster

m

m

m

m

m

m

the program

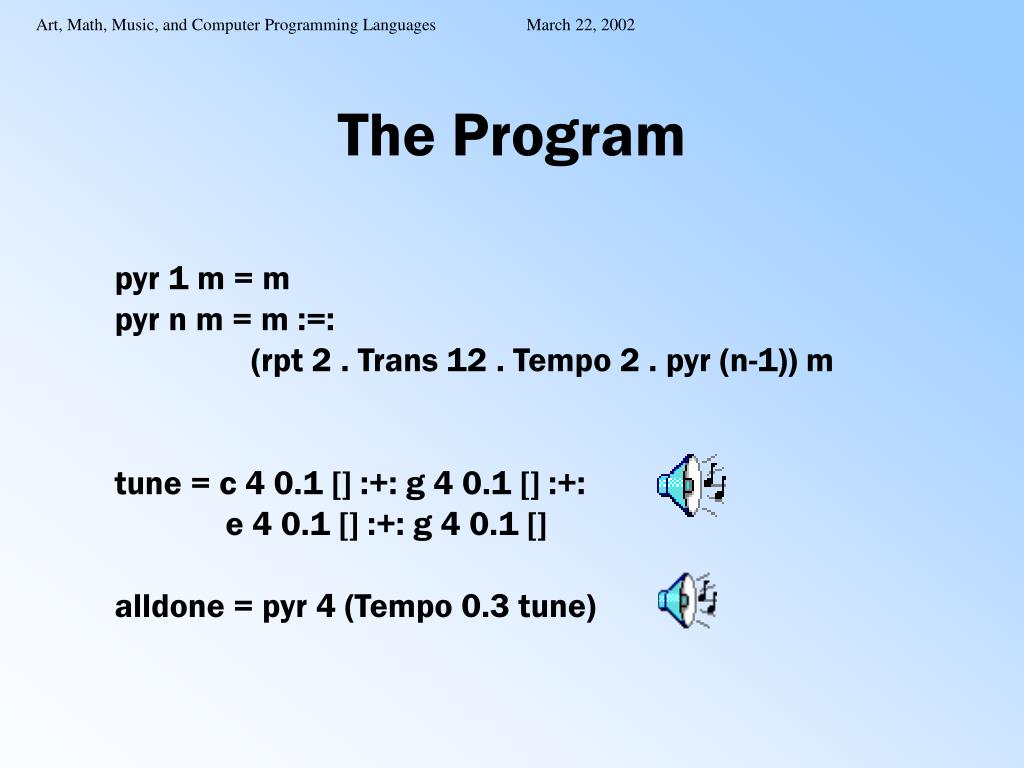

The Program

pyr 1 m = m

pyr n m = m :=:

(rpt 2 . Trans 12 . Tempo 2 . pyr (n-1)) m

tune = c 4 0.1 [] :+: g 4 0.1 [] :+:

e 4 0.1 [] :+: g 4 0.1 []

alldone = pyr 4 (Tempo 0.3 tune)

slide37

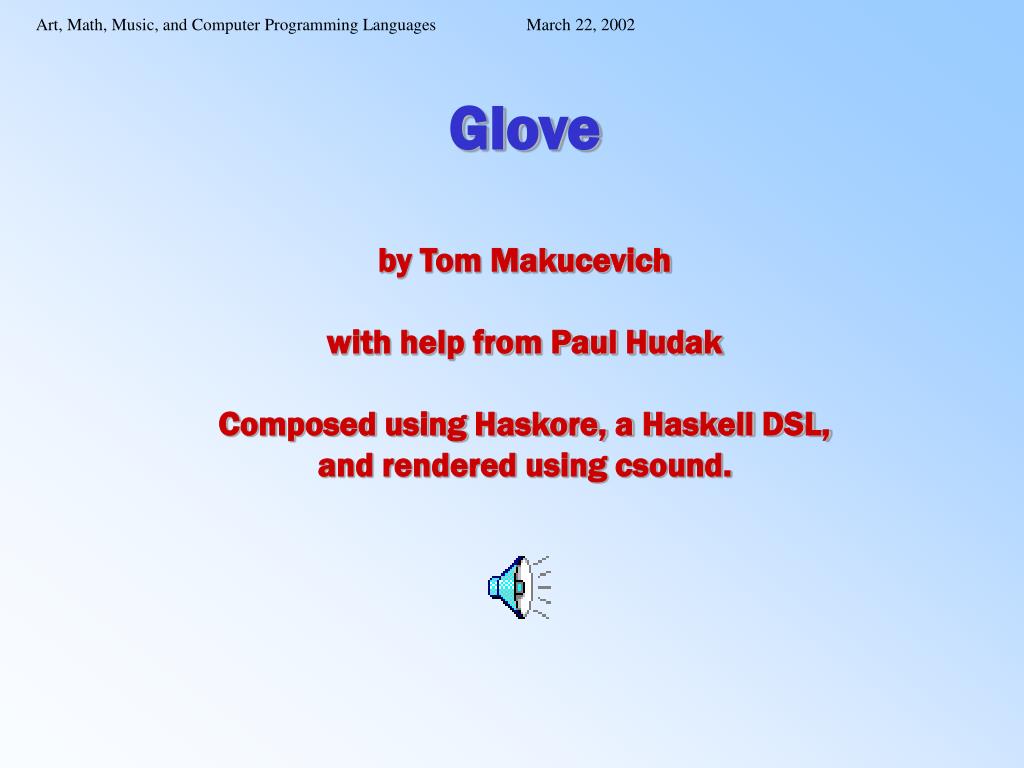

Gloveby Tom Makucevichwith help from Paul HudakComposed using Haskore, a Haskell DSL,and rendered using csound.
slide38

Thank You!

Join us tomorrow to get some “hands on” experience with

tunes and toons. Help us build a web page.

Bring your creativity!

Embarrass your friends. Compose music. Play with pictures.

We will have a camera available …
