12 volt led lightscaper fixtures adding elegance value and security to your home or business

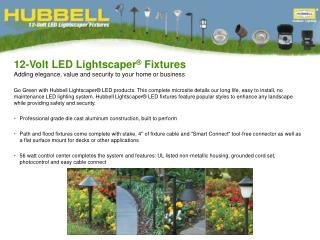

12-Volt LED Lightscaper® FixturesAdding elegance, value and security to your home or business

Go Green with Hubbell Lightscaper® LED products. This complete microsite details our long life, easy to install, no maintenance LED lighting system. Hubbell Lightscaper® LED fixtures feature popular styles to enhance any landscape while providing safety and security.

• Professional grade die cast aluminum construction, built to perform

• Path and flood fixtures come complete with stake, 4" of fixture cable and "Smart Connect" tool-free connector as well as a flat surface mount for decks or other applications

• 56 watt control center completes the system and features: UL listed non-metallic housing, grounded cord set, photocontrol and easy cable connect

slide2

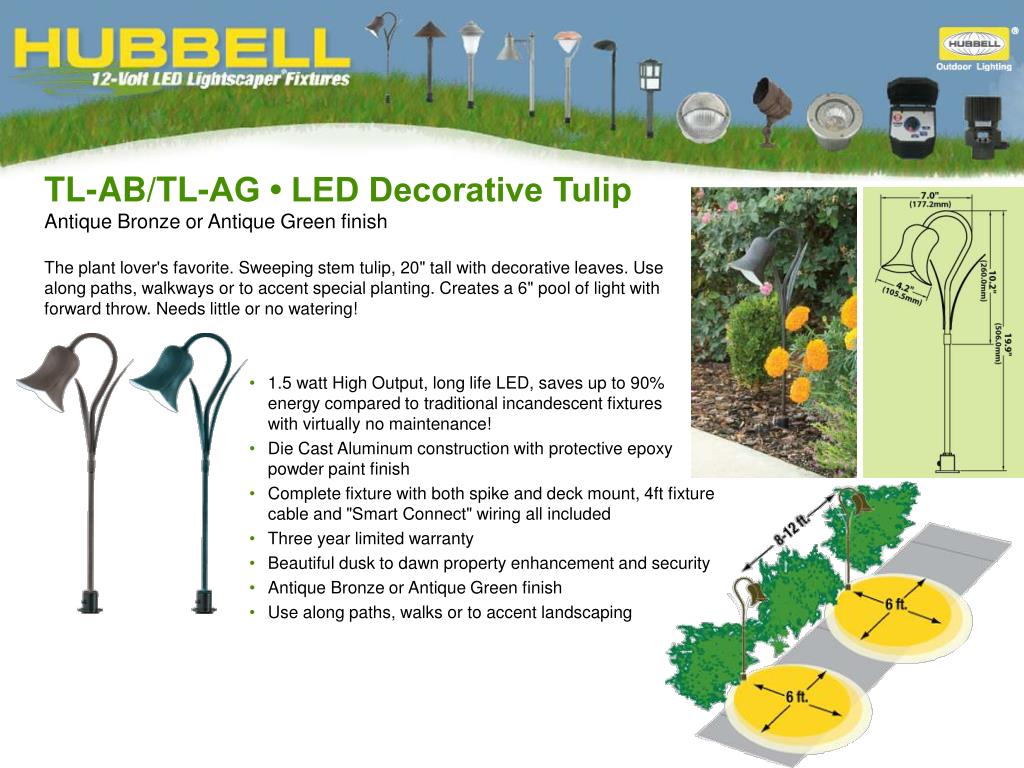

TL-AB/TL-AG • LED Decorative TulipAntique Bronze or Antique Green finishThe plant lover's favorite. Sweeping stem tulip, 20" tall with decorative leaves. Use along paths, walkways or to accent special planting. Creates a 6" pool of light with forward throw. Needs little or no watering!

• 1.5 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Antique Green finish

• Use along paths, walks or to accent landscaping

slide3

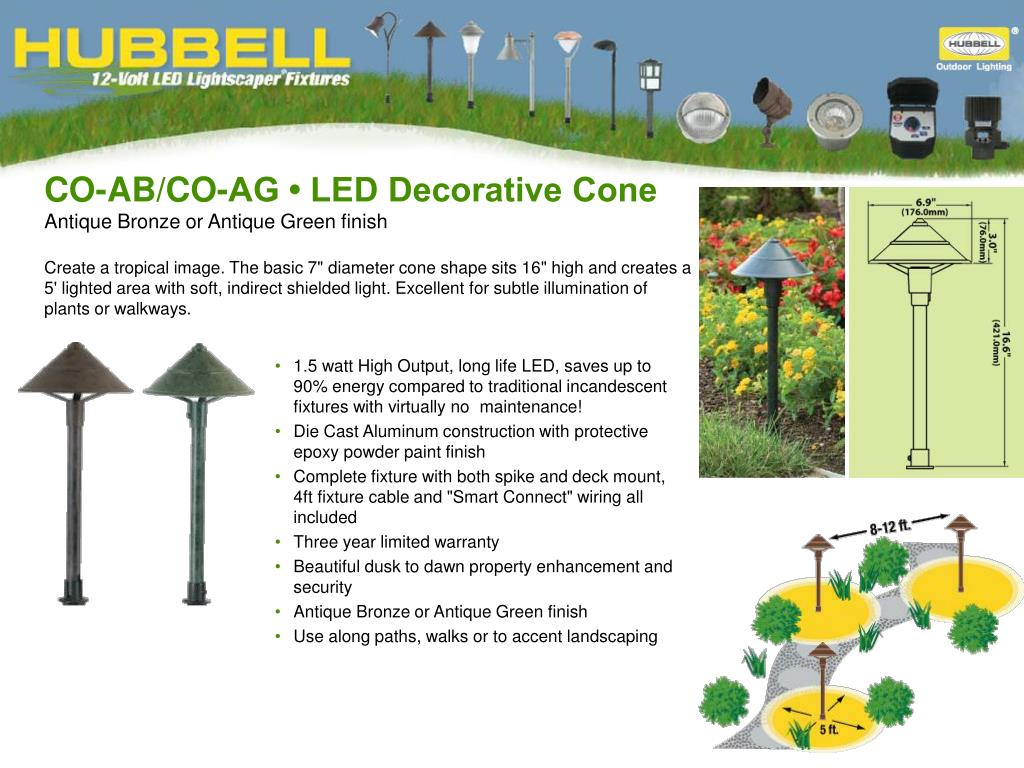

CO-AB/CO-AG • LED Decorative ConeAntique Bronze or Antique Green finishCreate a tropical image. The basic 7" diameter cone shape sits 16" high and creates a 5' lighted area with soft, indirect shielded light. Excellent for subtle illumination of plants or walkways.

• 1.5 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Antique Green finish

• Use along paths, walks or to accent landscaping

slide4

GN-AB/GN-PT • LED GreenvilleAntique Bronze or Pewter finishCreate a tropical image. The basic 7" diameter cone shape sits 16" high and creates a 5' lighted area with soft, indirect shielded light. Excellent for subtle illumination of plants or walkways.

• 1.5 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Pewter finish

• Use along paths, walks or to accent landscaping

slide5

RD-AB/RD-PT • LED ReidvilleAntique Bronze or Pewter finishBell-shaped head supported by decorative arm and sturdy staff. Full cutoff pattern provides 5" pool of light on ground with no glare. Perfect for highlighting walkways, flowers and plants. Typical spacing 8"-10".

• 1.5 watt High Output, long life LED, saves up to 90%

energy compared to traditional incandescent fixtures

with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Pewter finish

• Use along paths, walks or to accent landscaping

slide6

SA-AB/SA-PT • LED SaturnAntique Bronze or Pewter finishModern and distinctive Shepherd's crook with rotatable arm. Decorative copper-top head and cone shape frosted glass lens. Lighting covers 6' circle with ample vertical illumination for taller plantings. Make a statement with Saturn!

• 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Pewter finish

• Soft beam covers 6ft. area with ample vertical illumination

for taller plantings. Copper top provides distinctive

appearance.

slide7

SS-AB/SS-AG • LED SeashellAntique Bronze or Antique Green finishLarge seashell with adjustable knuckle. Use as full cutoff or tilt up (45° max.) for larger area coverage. A powerful and flexible luminaire for lighting large flower beds or plantings around building perimeters.

• 1.5 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Antique Green finish

• Use for path, driveway, in flower beds or to light perimeter plantings. Adjustable tilt head allows you to control coverage area!

slide8

MS-AB/MS-AG • LED MissionAntique Bronze or Antique Green finishTraditional and classic. Complements a wide variety of architecture. Soft glow to side and ground. Stands 16" tall with 5" square head. Typical spacing 8'-10'.

• 1.5 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Antique Green finish

• Use along paths, walks or to accent landscaping

slide9

EL-AB/EL-PT • LED EyelidAntique Bronze or Pewter finishRound 4" diameter eyelid for deck post or step-lighting. Can be surface mounted or semi-recessed. Use for accent or small area illumination of perimeters or stairways. 2' mounting height provides soft coverage 5'w, 2' forward.

• 1.5 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with mounting hardware

• Three year limited warranty

• Beautiful dusk to dawn property enhancement

and security

• Antique Bronze or Pewter finish

• Use for deck post mount, near steps or

perimeter illumination

slide10

FL-AB • LED FloodAntique Bronze finishPowerful 3W LED projection flood with adjustable knuckle for versatile aiming. Use for accent lighting of building facades, small signs or address numbers, columns, trees and residential flags to 20' height.

• 3 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Antique Green finish

• Use for accent lighting of building facade, small signs, address numbers, trees and residential flags

slide11

RE-PT • LED RecessedPewter finishRound recessed up-light for accent lighting of trees, columns and building facades. Powerful 3W LED projection beam. Provides hidden light source.

• 3 watt High Output, long life LED, saves up to 90% energy compared to traditional incandescent fixtures with virtually no maintenance!

• Die Cast Aluminum construction with protective epoxy powder paint finish

• Complete fixture with both spike and deck mount, 4ft fixture cable and "Smart Connect" wiring all included

• Three year limited warranty

• Beautiful dusk to dawn property enhancement and security

• Antique Bronze or Antique Green finish

• Use for accent, illumination of facades, trees, statues, and small flag poles. Produces a powerful flood beam to 20’

slide12

Control CenterCable/Stake/Included AccessoriesControl Center – 56 watt capacityNon-metallic case protects timer controls and 120V to 12V transformer. Surge protected with grounded cord/plug set and easy 12V cable attachment. Photocontrol triggers "time on", eliminating seasonal adjustment. UL and cUL certified. (Controls (15) 3 watt or (30) 1.5 watt fixtures)PhotocontrolTriggers "time on" eliminating seasonal adjustment. Included with transformer.CableCB-75 CB-150Low voltage #14 cable runs from LVT56 control center down path of lighting. UV protected, burial is not required, hide with mulch if desired. Perfect fit with fixture connectors for easy installation (150' is the max. run distance from transformer location to assure best fixture operation.) Available in 75’ or 150’ lengths.

Photocontrol

Cable

Smart Connect

Flat Surface Connector

Stake

slide13

"Smart Connect" Quick Connect SystemHow to Connect – 4 easy steps!Easy to install tool-free connectors allows complete customization of landscape lighting fixture layouts. The "Smart Connect" system is included with each landscape fixture. The three-part system simply and efficiently connects for years of hassle free enjoyment. (See 1-4 instructions)

Place main #14 cable (CB-75/CB150) into Centering Guide.

Slide Guide down onto "stabs" in Connector base.

Carefully thread Cap down, forcing cable into "stabs". Provides a sure and lasting electro-mechanical connection.

http www hubbelloutdoor com content resources lightscaper index php

http://www.hubbelloutdoor.com/content/resources/lightscaper/index.phphttp://www.hubbelloutdoor.com/content/resources/lightscaper/index.php

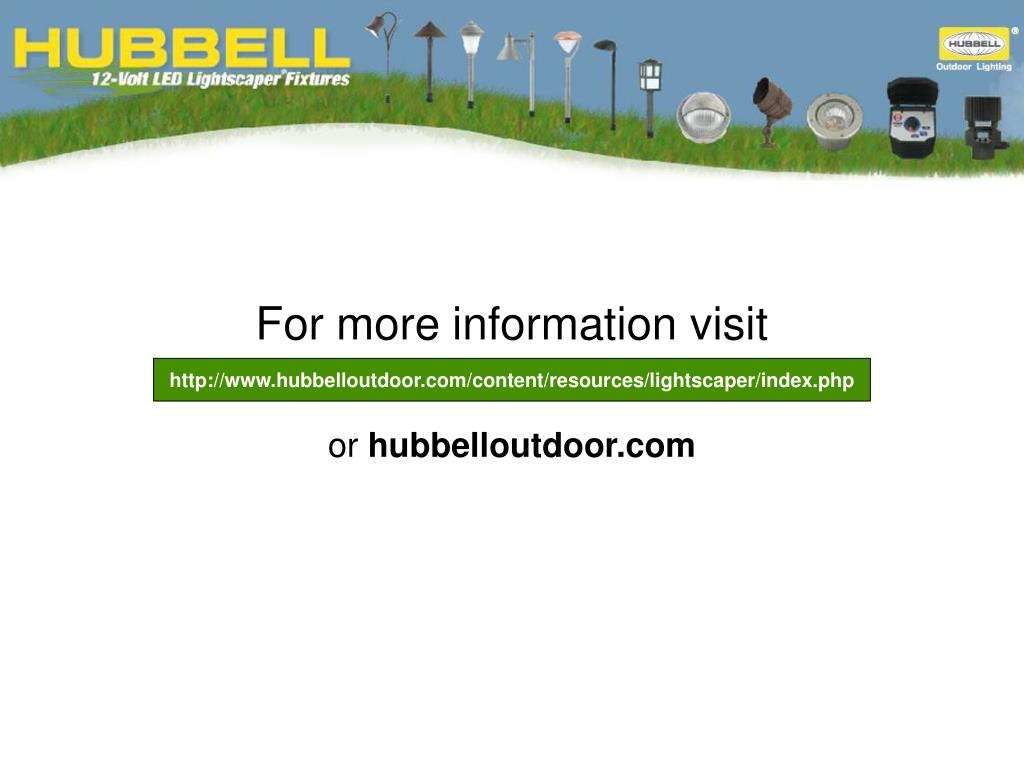

For more information visit

or hubbelloutdoor.com
