Attack graphs for EPCglobal RFID

1. Attack graphs for EPCglobal RFID Senthilkumar Chinnappa gounder Periaswamy, Suman Bharath, Manideep Chagarlamudi, Scott Estes and Dale R. Thompson, Ph.D., P.E.

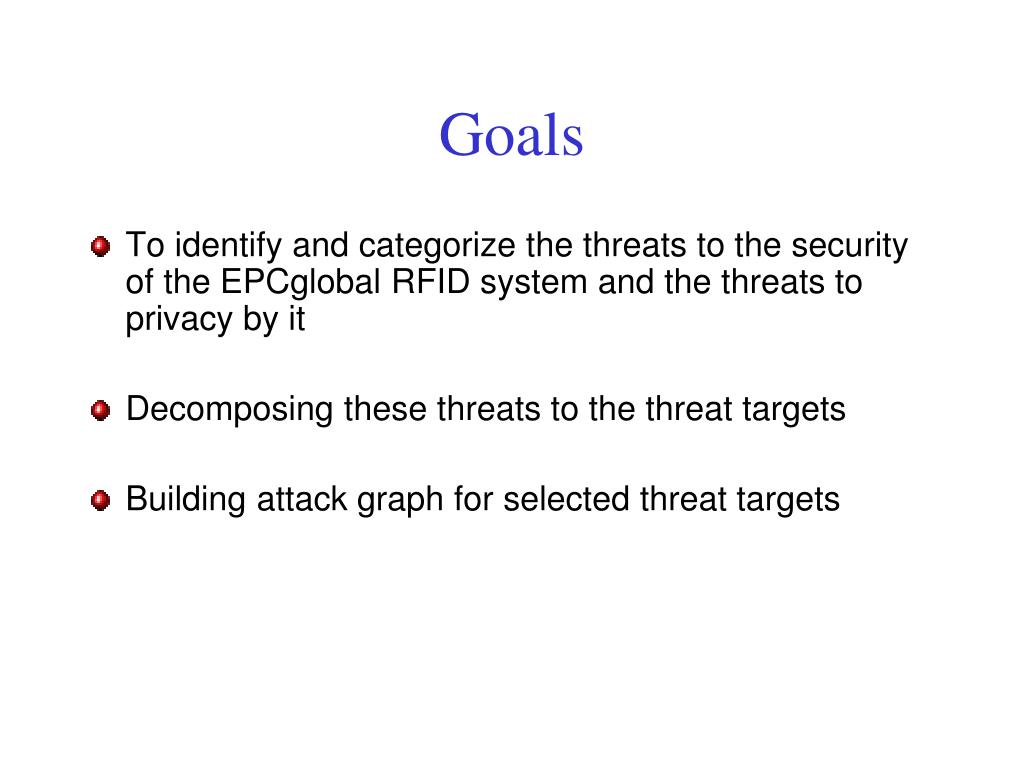

2. Goals • To identify and categorize the threats to the security of the EPCglobal RFID system and the threats to privacy by it • Decomposing these threats to the threat targets • Building attack graph for selected threat targets

3. EPCglobal RFID • Radio frequency signals to provide no-contact and non-line-of-sight automatic identification • Most common form is EPC system managed by EPCglobal Inc. • The potential features of RFID has made its deployment in a wide range of applications

4. Threats to Security and Privacy • RFID can pose invasive threats to rights, privacy of individuals, and security of organizations • The low cost of the tags limits the resources needed for the security of the system • Threat modeling needs to be done to determine the highest risks and to identify how attacks occur

5. Threats • Potential events that cause a system to respond in a way in which it was not designed, including a damaging way • A list of threats to the system and by the system was identified • Security and Privacy issues • Based on known attacks and attack that are possible on the system

6. Threat targets • Threats decomposed into threat targets • Threats targets are the states which an attacker or intruder tries to achieve in the system • Categorized based on social and economical conditions • Top priority threats for the generation of attack graphs

7. Attack Graphs • An attack graph is a graph-based approach to network-vulnerability analysis • Identify the set of attack paths through which an intruder or attacker achieves the target

8. Attack Graphs • Node - Possible attack state • Level of penetration • Configuration changes • Vulnerabilities at the current state • Capabilities the attacker acquired • State of the system • Edge - A change of state caused by a single action • Weighed by a metric (effort, time) • Action by the attacker • Required condition

9. Inputs for the attack graph • Configuration files • Architectural information about the system • Based on the EPCglobal Class-1 Generation-2 tags • Attackers profile • Assumed capabilities of the attacker • Advanced level • Attack templates • Known possible and assumed attacks on the system broken into atomic steps

10. Generation of attack graph • Threat target taken as initial node of the graph • The attack templates which matched the current node are customized to join with the goal node • The process of matching done recursively on the new nodes formed till the initial or default configuration of the system was reached • Discard nodes that didn’t have any match

11. Duplicate nodes • Merging the nodes and edges from both the nodes were applied to the merged node

12. Redundant edges • Removed by making a loop of the original or the initial edges

13. Subset of other targets • In attack graphs built there existed subsets of the graph, which represented other threat targets. • Therefore to avoid redundancy and due to space constraints • Replaced the whole subset by the threat target to be achieved.

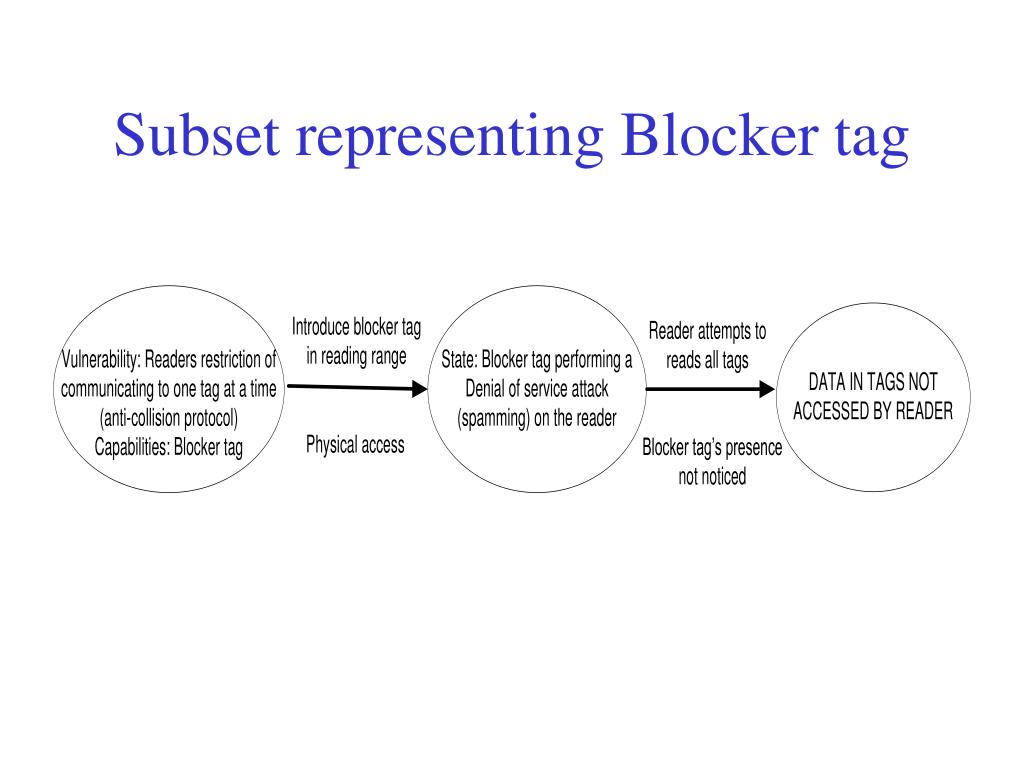

14. Subset representing Blocker tag

15. Subset representing Physical damage

16. Future work • Automated generation • Simulation of attacks • Multiple attacker capabilities • Generated based on vulnerabilities which could possibly identify new attacks • Probabilistic measure on the edges with availability of more technical details of the attack

17. Thank you

18. Contact • Senthil kumar • schinna@uark.edu • Dale R. Thompson, Ph.D., P.E. • d.r.thompson@ieee.org
