XRF-RoHS-analyzer

The XRF RoHS analyzer employs cutting-edge technology for rapid, <br>non-destructive identification of hazardous substances in electronic <br>products. Ensure RoHS compliance effortlessly with precise analysis <br>of elements like lead and cadmium, ensuring product safety and regulatory <br>adherence

Mary238
Download Presentation

XRF-RoHS-analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

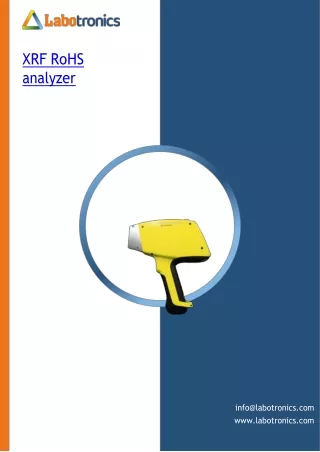

  1. XRF RoHS analyzer info@labotronics.com www.labotronics.com

  2. Overview XRF RoHS analyzer is a handheld analyzer designed for on-site analysis of lead, mercury, cadmium and other restricted toxic element concentration present in electronic equipments and consumer products. Built-in ultra-short light path design improves light element Mg, Al, Si, S and P excitation effect. Equipped with BOOST Si-pin detector and automated environmental parameter (temperature, dust and dark) regulation facilitates high accuracy analysis. Specifications : Detector BOOST Si-pin detector Detection range ( ppm ) Pb, Hg, Cd, Cr, Br and As Excitation source ( standard ) 50 kV / 200 µA Ag target Operating temperature ( -20 °C to 50 °C ) Operating humidity ≤ 90 % Pipe flow pressure Adjustable Digital pulse processor 80 MHz ADC digital pulse processor Heat dissipation system T-shaped radiator 4.3 inch industrial resistive touch screen Display panel Display brightness Automated adjustment Memory capacity 32 GB Data storage 32 GB, 300,000 spectral data Battery life 8 hours Dimensions ( W x H x D ) 79 x 280 x 254 mm

  3. Weight ( with battery ) 1.6 kgs Features : Non-destructive, rapid and accurate analysis of restricted toxic elements Built-in environmental range sensing system Double beam technology for auto detection of sample front and brightness adjustment Enhanced spectral analysis ( intensity fitting algorithm ) Industrial resistance touch screen ( enhanced backlight performance ) Analysis of small diameter samples ( ppm range ) Real-time battery monitoring ( M-bus battery ) 50 kV / 200 µA Au, W, Rh target excitation source ( optional ) USB, Bluetooth and WiFi compatible Data exportable to EXCEL or PDF format Applications : Used in petrochemical, metal, plastic, electronic, mining and automotive industry to test and identify the concentration of restricted toxic elements like cadmium, lead and mercury present in consumer goods, polymeric materials, plastic articles, packaging materials and electronic components Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
