How Fiber Optic Perimeter Intrusion Detection Systems Work

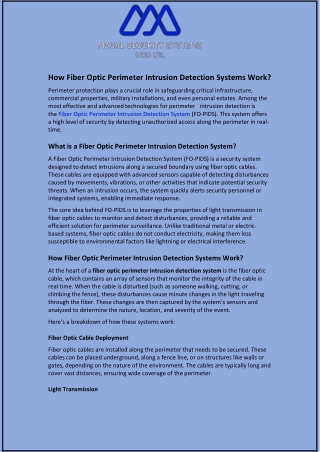

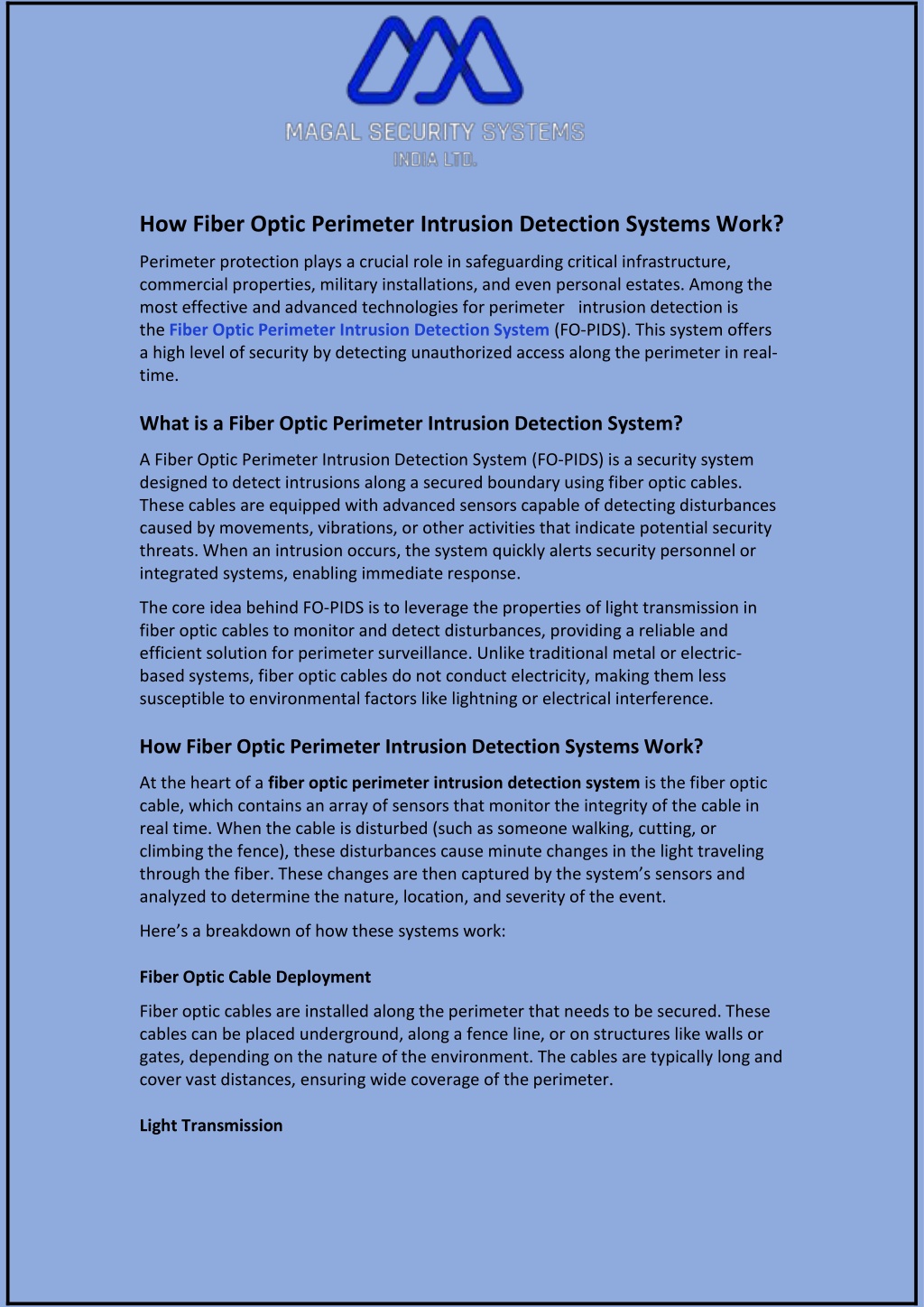

1. How Fiber Optic Perimeter Intrusion Detection Systems Work? Perimeter protection plays a crucial role in safeguarding critical infrastructure, commercial properties, military installations, and even personal estates. Among the most effective and advanced technologies for perimeter intrusion detection is the Fiber Optic Perimeter Intrusion Detection System (FO-PIDS). This system offers a high level of security by detecting unauthorized access along the perimeter in real- time. What is a Fiber Optic Perimeter Intrusion Detection System? A Fiber Optic Perimeter Intrusion Detection System (FO-PIDS) is a security system designed to detect intrusions along a secured boundary using fiber optic cables. These cables are equipped with advanced sensors capable of detecting disturbances caused by movements, vibrations, or other activities that indicate potential security threats. When an intrusion occurs, the system quickly alerts security personnel or integrated systems, enabling immediate response. The core idea behind FO-PIDS is to leverage the properties of light transmission in fiber optic cables to monitor and detect disturbances, providing a reliable and efficient solution for perimeter surveillance. Unlike traditional metal or electric- based systems, fiber optic cables do not conduct electricity, making them less susceptible to environmental factors like lightning or electrical interference. How Fiber Optic Perimeter Intrusion Detection Systems Work? At the heart of a fiber optic perimeter intrusion detection system is the fiber optic cable, which contains an array of sensors that monitor the integrity of the cable in real time. When the cable is disturbed (such as someone walking, cutting, or climbing the fence), these disturbances cause minute changes in the light traveling through the fiber. These changes are then captured by the system’s sensors and analyzed to determine the nature, location, and severity of the event. Here’s a breakdown of how these systems work: Fiber Optic Cable Deployment Fiber optic cables are installed along the perimeter that needs to be secured. These cables can be placed underground, along a fence line, or on structures like walls or gates, depending on the nature of the environment. The cables are typically long and cover vast distances, ensuring wide coverage of the perimeter. Light Transmission

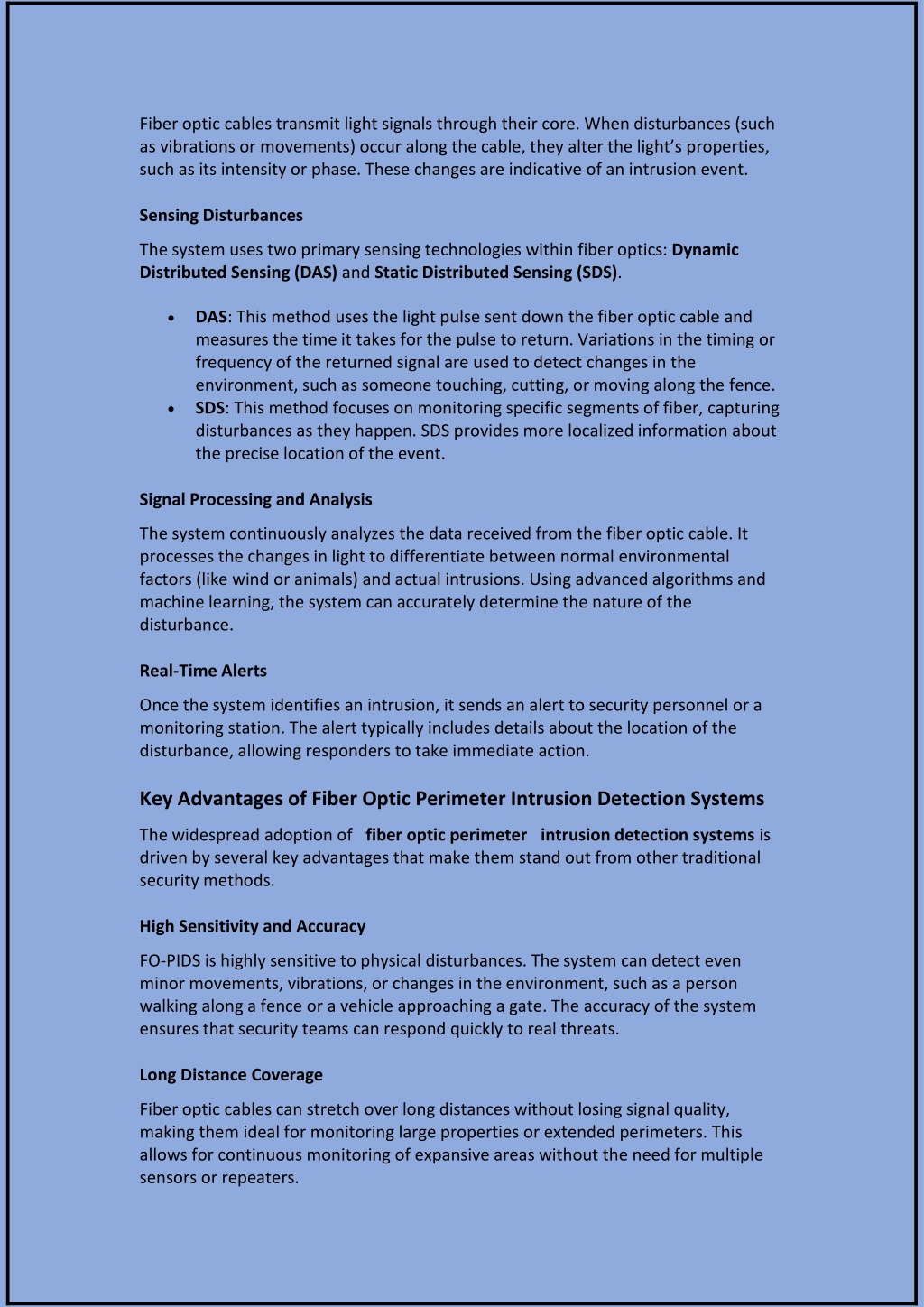

2. Fiber optic cables transmit light signals through their core. When disturbances (such as vibrations or movements) occur along the cable, they alter the light’s properties, such as its intensity or phase. These changes are indicative of an intrusion event. Sensing Disturbances The system uses two primary sensing technologies within fiber optics: Dynamic Distributed Sensing (DAS) and Static Distributed Sensing (SDS).  DAS: This method uses the light pulse sent down the fiber optic cable and measures the time it takes for the pulse to return. Variations in the timing or frequency of the returned signal are used to detect changes in the environment, such as someone touching, cutting, or moving along the fence. SDS: This method focuses on monitoring specific segments of fiber, capturing disturbances as they happen. SDS provides more localized information about the precise location of the event.  Signal Processing and Analysis The system continuously analyzes the data received from the fiber optic cable. It processes the changes in light to differentiate between normal environmental factors (like wind or animals) and actual intrusions. Using advanced algorithms and machine learning, the system can accurately determine the nature of the disturbance. Real-Time Alerts Once the system identifies an intrusion, it sends an alert to security personnel or a monitoring station. The alert typically includes details about the location of the disturbance, allowing responders to take immediate action. Key Advantages of Fiber Optic Perimeter Intrusion Detection Systems The widespread adoption of fiber optic perimeter intrusion detection systems is driven by several key advantages that make them stand out from other traditional security methods. High Sensitivity and Accuracy FO-PIDS is highly sensitive to physical disturbances. The system can detect even minor movements, vibrations, or changes in the environment, such as a person walking along a fence or a vehicle approaching a gate. The accuracy of the system ensures that security teams can respond quickly to real threats. Long Distance Coverage Fiber optic cables can stretch over long distances without losing signal quality, making them ideal for monitoring large properties or extended perimeters. This allows for continuous monitoring of expansive areas without the need for multiple sensors or repeaters.

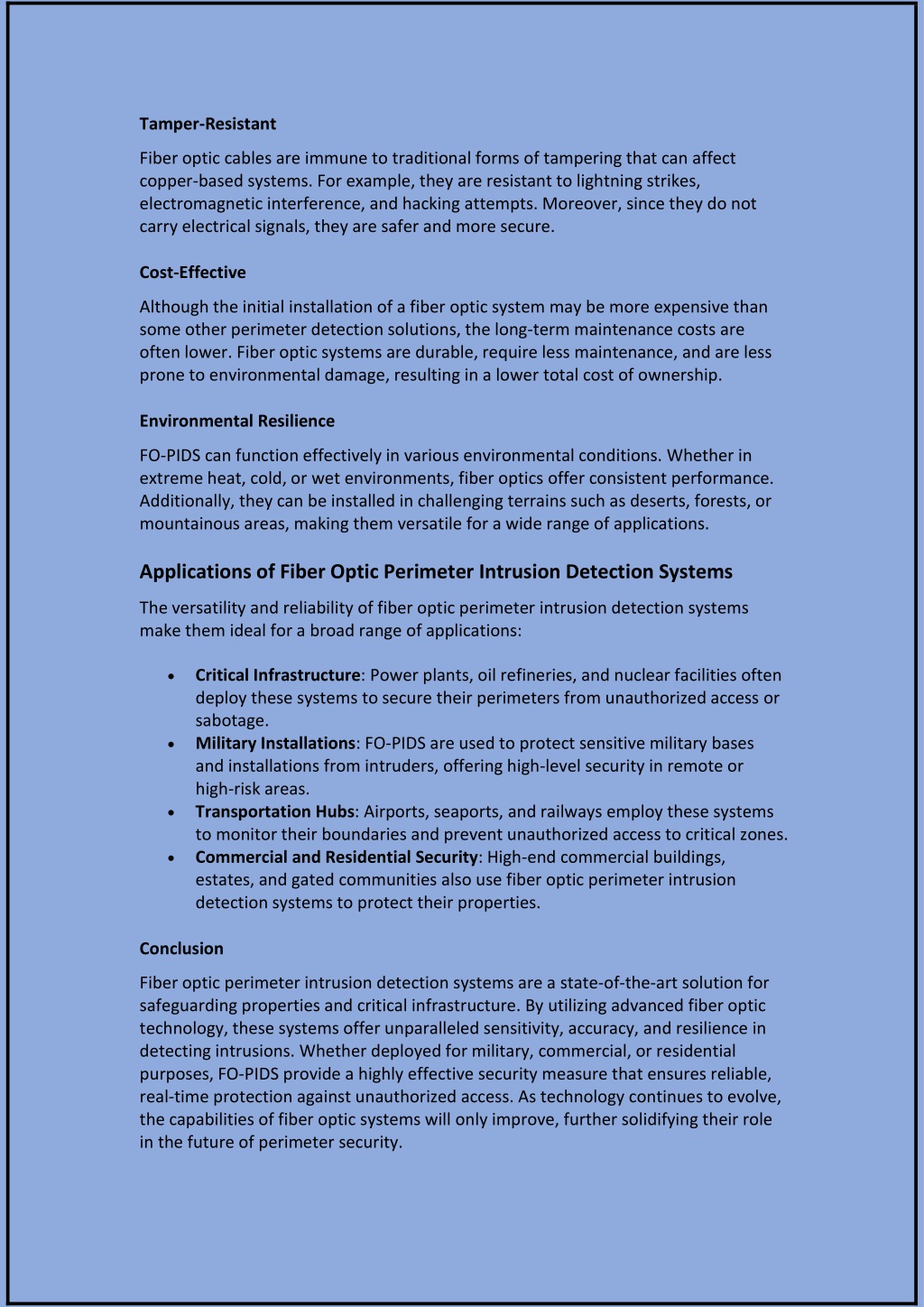

3. Tamper-Resistant Fiber optic cables are immune to traditional forms of tampering that can affect copper-based systems. For example, they are resistant to lightning strikes, electromagnetic interference, and hacking attempts. Moreover, since they do not carry electrical signals, they are safer and more secure. Cost-Effective Although the initial installation of a fiber optic system may be more expensive than some other perimeter detection solutions, the long-term maintenance costs are often lower. Fiber optic systems are durable, require less maintenance, and are less prone to environmental damage, resulting in a lower total cost of ownership. Environmental Resilience FO-PIDS can function effectively in various environmental conditions. Whether in extreme heat, cold, or wet environments, fiber optics offer consistent performance. Additionally, they can be installed in challenging terrains such as deserts, forests, or mountainous areas, making them versatile for a wide range of applications. Applications of Fiber Optic Perimeter Intrusion Detection Systems The versatility and reliability of fiber optic perimeter intrusion detection systems make them ideal for a broad range of applications:  Critical Infrastructure: Power plants, oil refineries, and nuclear facilities often deploy these systems to secure their perimeters from unauthorized access or sabotage. Military Installations: FO-PIDS are used to protect sensitive military bases and installations from intruders, offering high-level security in remote or high-risk areas. Transportation Hubs: Airports, seaports, and railways employ these systems to monitor their boundaries and prevent unauthorized access to critical zones. Commercial and Residential Security: High-end commercial buildings, estates, and gated communities also use fiber optic perimeter intrusion detection systems to protect their properties.    Conclusion Fiber optic perimeter intrusion detection systems are a state-of-the-art solution for safeguarding properties and critical infrastructure. By utilizing advanced fiber optic technology, these systems offer unparalleled sensitivity, accuracy, and resilience in detecting intrusions. Whether deployed for military, commercial, or residential purposes, FO-PIDS provide a highly effective security measure that ensures reliable, real-time protection against unauthorized access. As technology continues to evolve, the capabilities of fiber optic systems will only improve, further solidifying their role in the future of perimeter security.
