computer engineering hands on interfacing activities

Computer EngineeringHands-On Interfacing Activities

Graham Smyth

Computer Education Consultant

computer engineering units
Computer Engineering Units
  • Hardware
  • Networking
  • Chips
  • Programming
  • Interfaces
slide3

The Breadboard

Connected

(horizontally)

Divider

Connected

(vertically)

Connected

(horizontally)

slide4

Parallelport(printer port)

13 12 11 10 9 8 7 6 5 4 3 2 1

Output Pins

Grounds

25 24 23 22 21 20 19 18 17 16 15 14

View from back of Computer

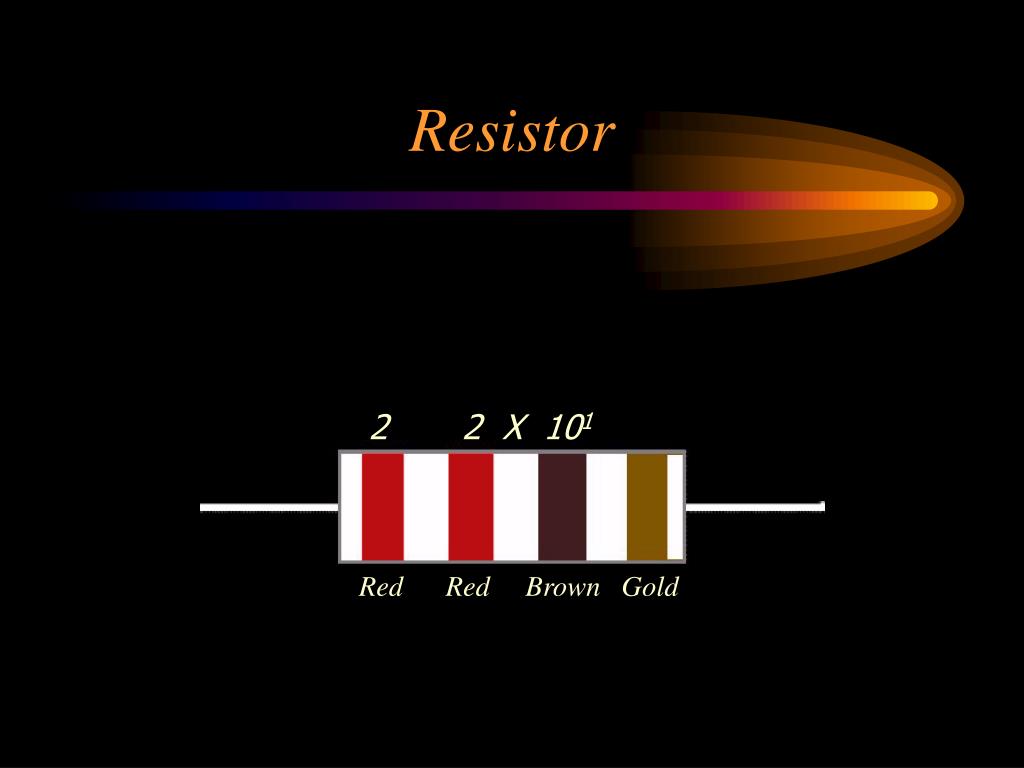

resistor
Resistor

2 2 X 101

Red Red Brown Gold

slide8
LED

+ = long lead

interface wire
Interface Wire

Stripped Wire Male Pin

1 byte interface
1 Byte Interface

220 ohms

9 8 7 6 5 4 3 2

18

other projects
Other Projects
  • Motors -small -medium -large
  • Lights -DC -AC
  • Sensors
