ngn architecture and release 1 definition agenda item 4

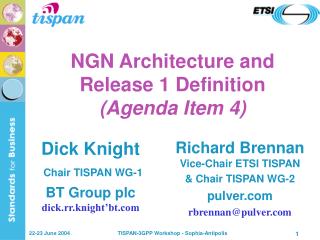

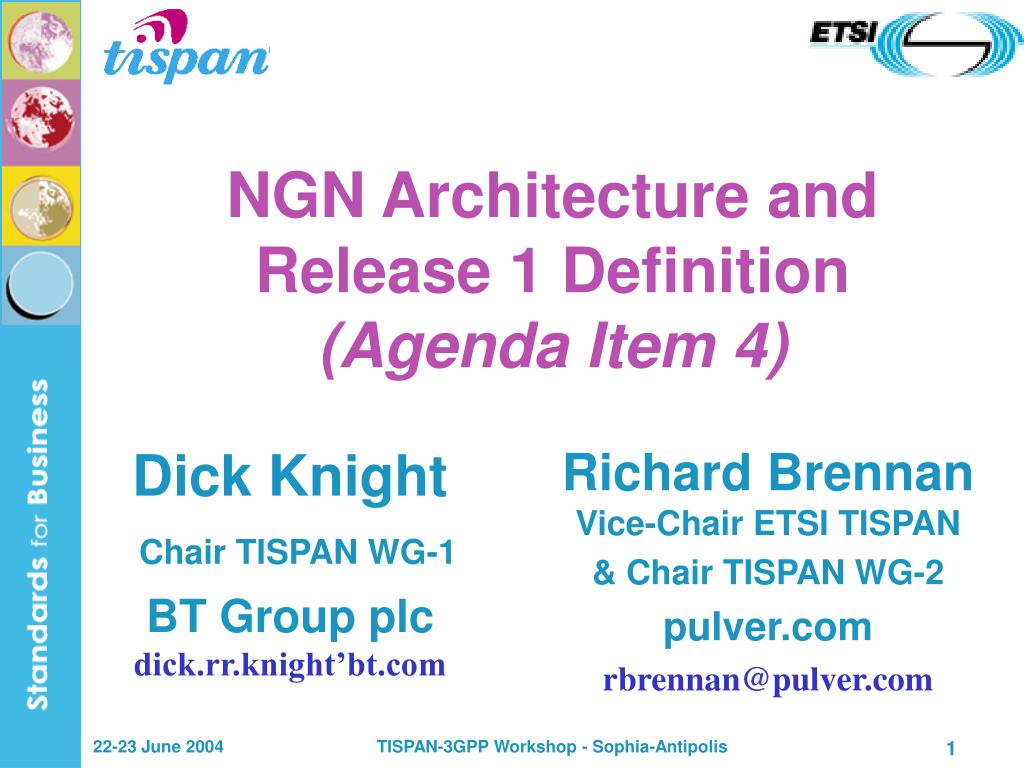

NGN Architecture and Release 1 Definition (Agenda Item 4)

Richard BrennanVice-Chair ETSI TISPAN

& Chair TISPAN WG-2

pulver.com

rbrennan@pulver.com

Dick KnightChair TISPAN WG-1

BT Group plcdick.rr.knight’bt.com

TISPAN-3GPP Workshop - Sophia-Antipolis

agenda
Agenda
  • Approval of agenda and Documents (s1)
  • Workshop objectives (s1)
  • 3GPP and TISPAN organisation (s1)
  • NGN Architecture & Release 1 definition (s2)
  • IMS architecture and capabilities (s2)
  • Issues related to reuse of IMS for NGN (s3-s4)
  • Support of PSTN/ISDN service emulation (s5)
  • Ongoing activities and Workplan (s5)
  • Future cooperation/interactions (s6)
  • Wrap-up and closure (s6)

TISPAN-3GPP Workshop - Sophia-Antipolis

fundamentals

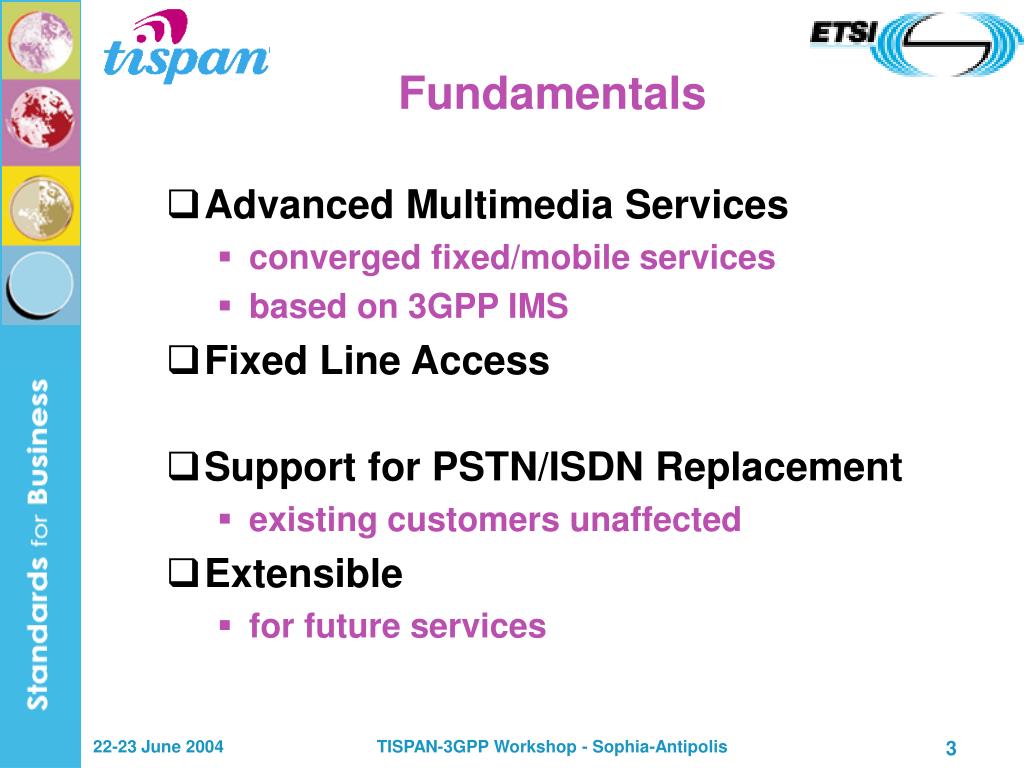

Fundamentals
  • Advanced Multimedia Services
    • converged fixed/mobile services
    • based on 3GPP IMS
  • Fixed Line Access
  • Support for PSTN/ISDN Replacement
    • existing customers unaffected
  • Extensible
    • for future services

TISPAN-3GPP Workshop - Sophia-Antipolis

services

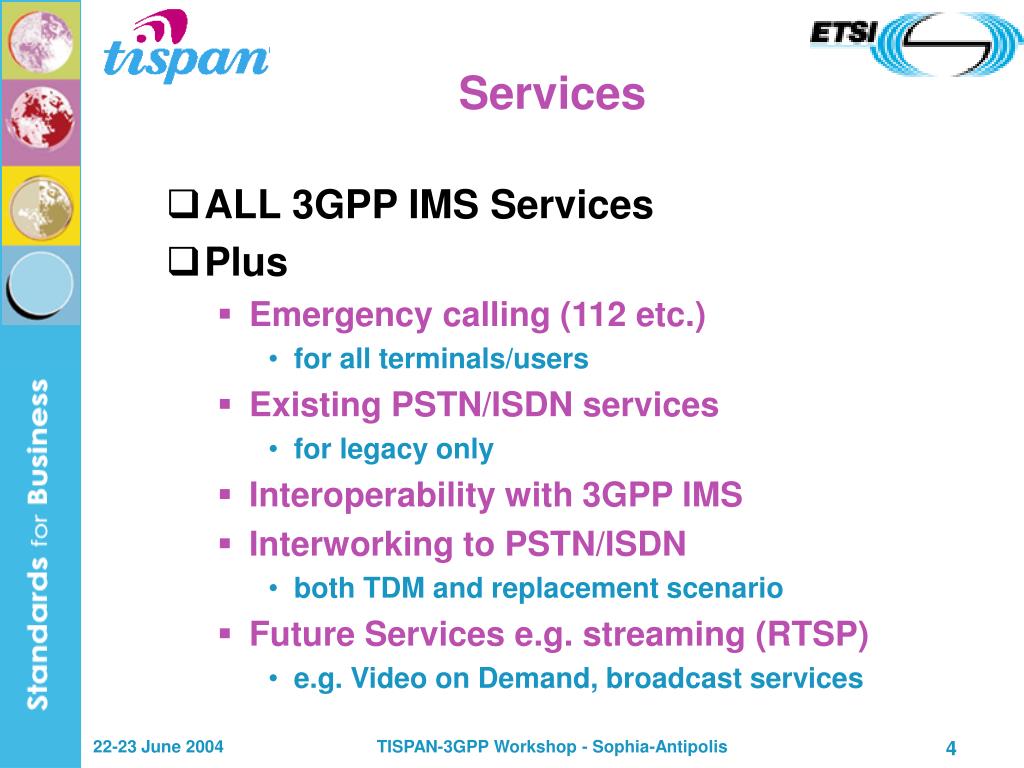

Services
  • ALL 3GPP IMS Services
  • Plus
    • Emergency calling (112 etc.)
      • for all terminals/users
    • Existing PSTN/ISDN services
      • for legacy only
    • Interoperability with 3GPP IMS
    • Interworking to PSTN/ISDN
      • both TDM and replacement scenario
    • Future Services e.g. streaming (RTSP)
      • e.g. Video on Demand, broadcast services

TISPAN-3GPP Workshop - Sophia-Antipolis

system overview

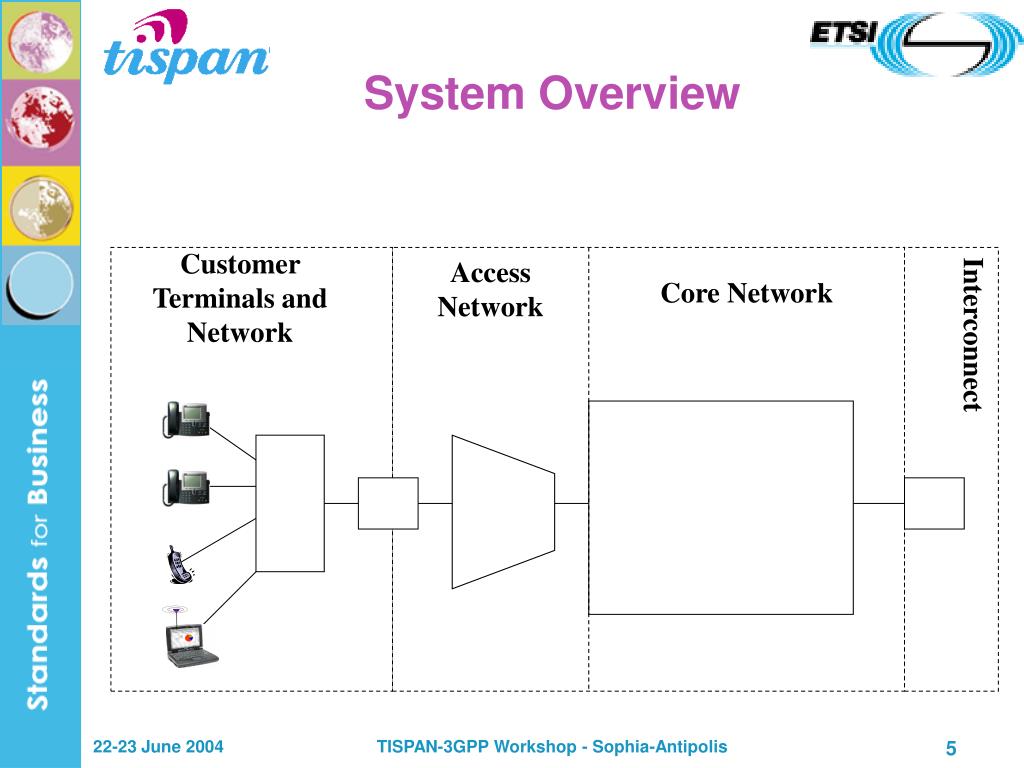

System Overview

Customer Terminals and Network

Access Network

Core Network

Interconnect

TISPAN-3GPP Workshop - Sophia-Antipolis

system components
System Components
  • Customer Networks & Terminals
    • Diverse Customer Networks supporting multiple diverse terminals
    • “shared terminal use” as well as exclusive
  • Access Networks
    • re-using existing deployments
      • xDS,LWireless Lan, Corporate Lan, cable networks, 3GPP GPRS
  • Core Network
    • IP Based transport network + IMS
  • Interconnect

TISPAN-3GPP Workshop - Sophia-Antipolis

constraints

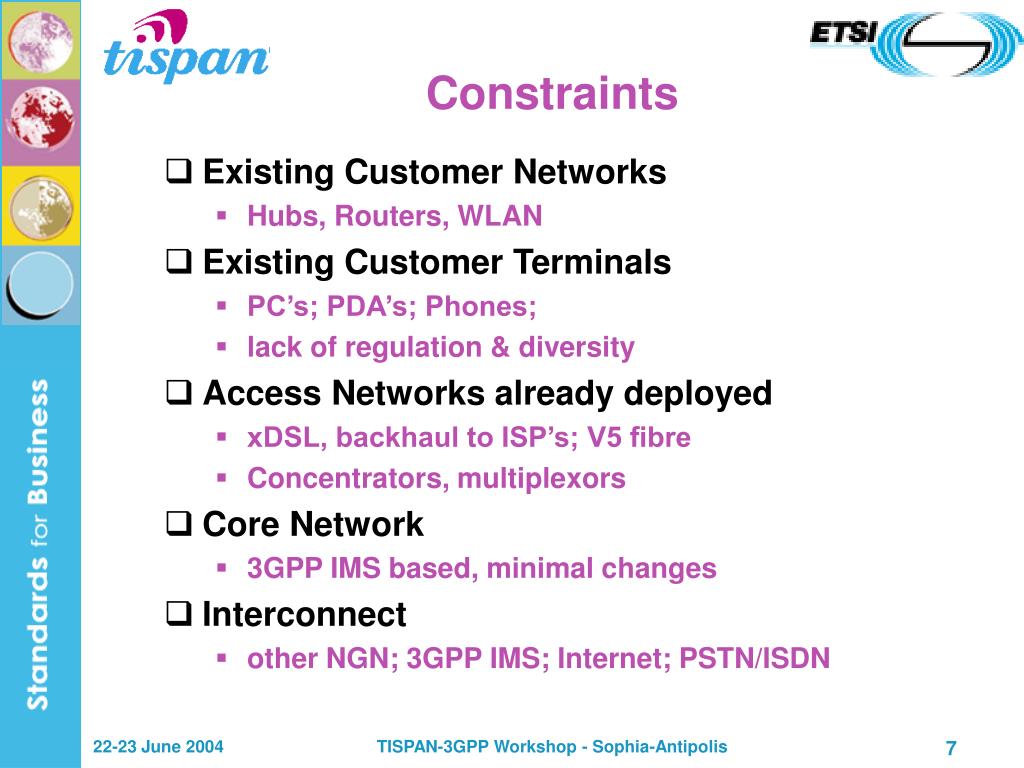

Constraints
  • Existing Customer Networks
    • Hubs, Routers, WLAN
  • Existing Customer Terminals
    • PC’s; PDA’s; Phones;
    • lack of regulation & diversity
  • Access Networks already deployed
    • xDSL, backhaul to ISP’s; V5 fibre
    • Concentrators, multiplexors
  • Core Network
    • 3GPP IMS based, minimal changes
  • Interconnect
    • other NGN; 3GPP IMS; Internet; PSTN/ISDN

TISPAN-3GPP Workshop - Sophia-Antipolis

requirements overview 1
Requirements Overview 1
  • All 3GPP IMS services;
    • extended/adapted for fixed-line terminals;
  • Conversational and non conversational services;
  • Support for existing PSTN/ISDN terminals;
    • partial or wholesale replacement of existing core infrastructure;
  • Regulatory Requirements
    • e.g. Emergency calling from any access;
  • Interworking at the NNI;
  • Mobility: nomadicity of users and devices;

TISPAN-3GPP Workshop - Sophia-Antipolis

requirements overview 2

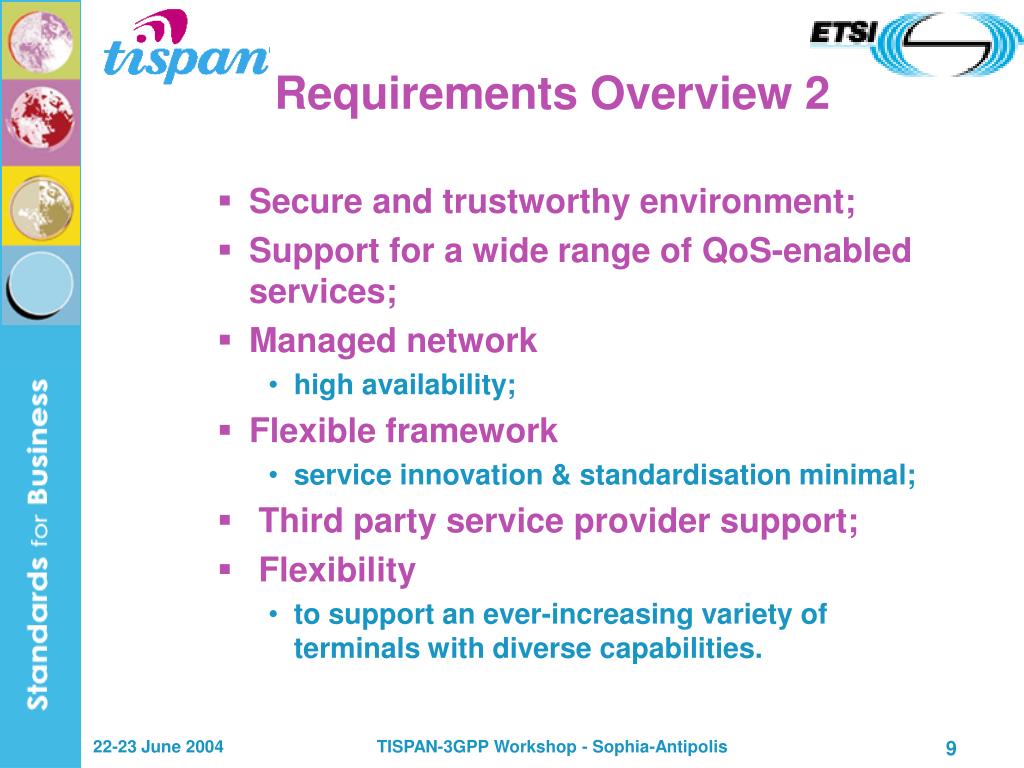

Requirements Overview 2
  • Secure and trustworthy environment;
  • Support for a wide range of QoS-enabled services;
  • Managed network
    • high availability;
  • Flexible framework
    • service innovation & standardisation minimal;
  • Third party service provider support;
  • Flexibility
    • to support an ever-increasing variety of terminals with diverse capabilities.

TISPAN-3GPP Workshop - Sophia-Antipolis

mobility

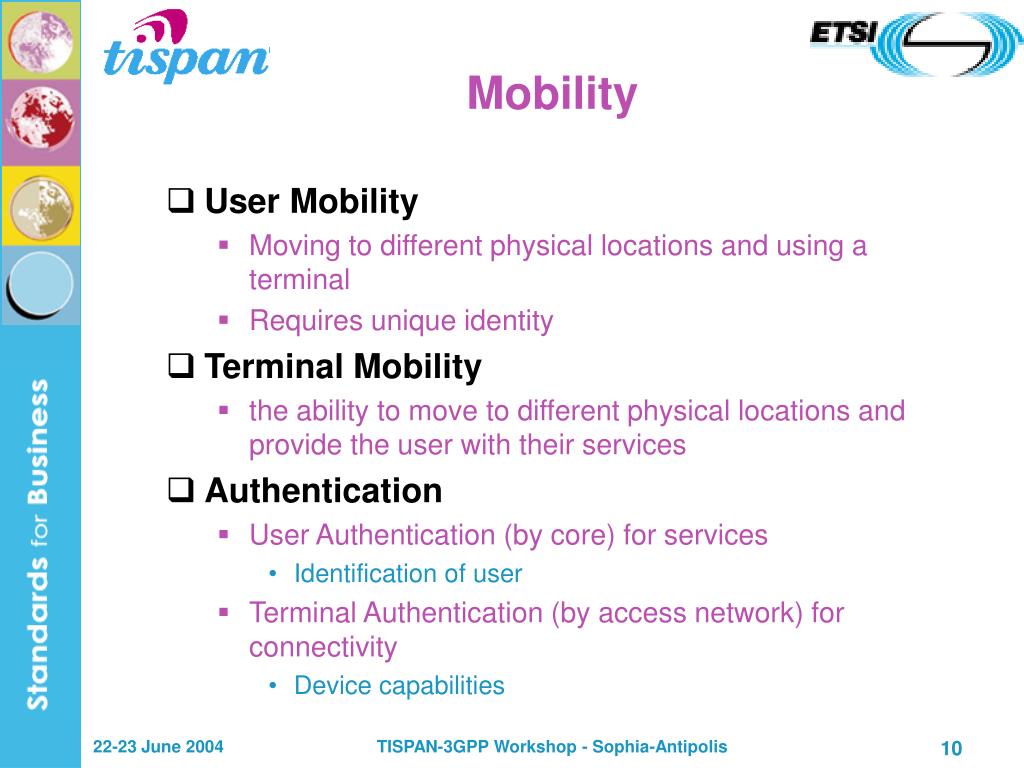

Mobility
  • User Mobility
    • Moving to different physical locations and using a terminal
    • Requires unique identity
  • Terminal Mobility
    • the ability to move to different physical locations and provide the user with their services
  • Authentication
    • User Authentication (by core) for services
      • Identification of user
    • Terminal Authentication (by access network) for connectivity
      • Device capabilities

TISPAN-3GPP Workshop - Sophia-Antipolis

pstn isdn replacement

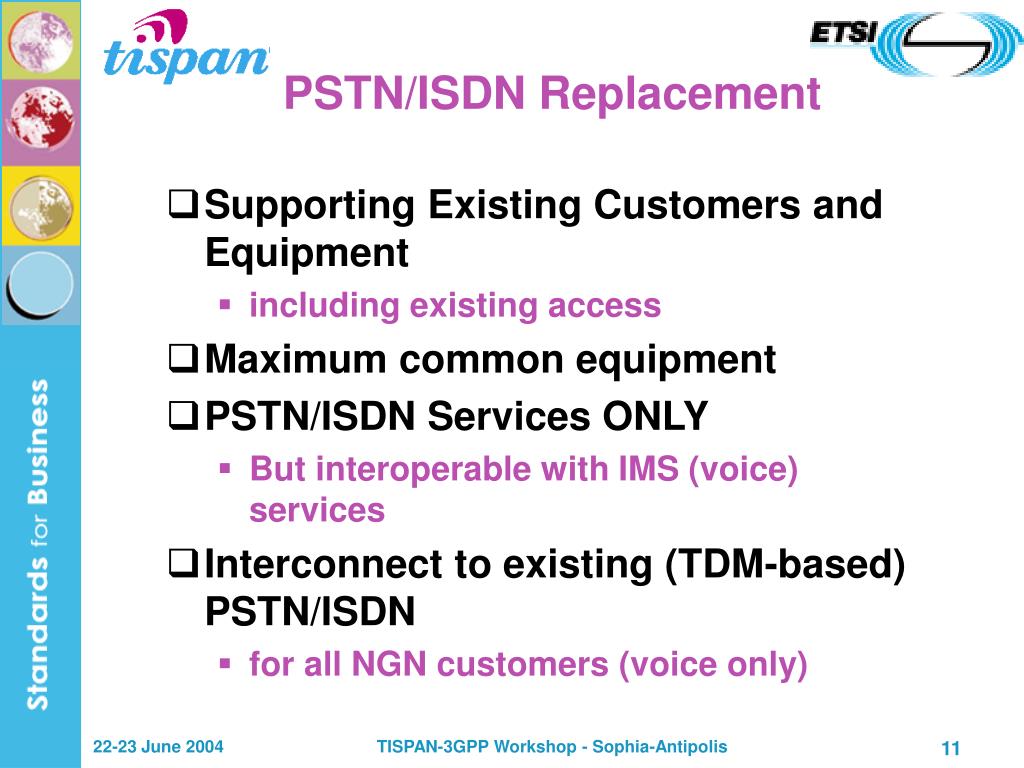

PSTN/ISDN Replacement
  • Supporting Existing Customers and Equipment
    • including existing access
  • Maximum common equipment
  • PSTN/ISDN Services ONLY
    • But interoperable with IMS (voice) services
  • Interconnect to existing (TDM-based) PSTN/ISDN
    • for all NGN customers (voice only)

TISPAN-3GPP Workshop - Sophia-Antipolis

pstn isdn service re use
PSTN/ISDN Service Re-use

(PSTN/ISDN Simulation)

  • NGN Customers
    • Existing (similar) services
      • divert, voice mailbox, “CLI” etc.
    • Not Identical to PSTN
    • Different invocation/ergonomics
      • To take advantage of new network and terminal capabilities
  • True PSTN/ISDN Services
    • Not available, but interworked.

TISPAN-3GPP Workshop - Sophia-Antipolis

services requirements
Services & Requirements
  • Service Sets
    • IP Multimedia Services (from 3GPP IMS)
    • PSTN/ISDN Emulation
    • Streaming Services
    • Other Multimedia Services
  • Requirements
    • Network Attachment & Authentication
    • Resource Control
    • Transport
    • Interconnect

TISPAN-3GPP Workshop - Sophia-Antipolis

design issues
Design Issues
  • Multiple Access Technologies
  • Mobility & Roaming, & Nomadicity
  • Numbering & Addressing
  • Quality of Service (QoS)
  • Emergency Telephone Services (ETS)
  • Lawful Interception
  • Security / Privacy
  • Routing / Path Determination
  • Service Capabilities….

TISPAN-3GPP Workshop - Sophia-Antipolis

ngn architectural concept

Access

Network Attachment

Subsystem

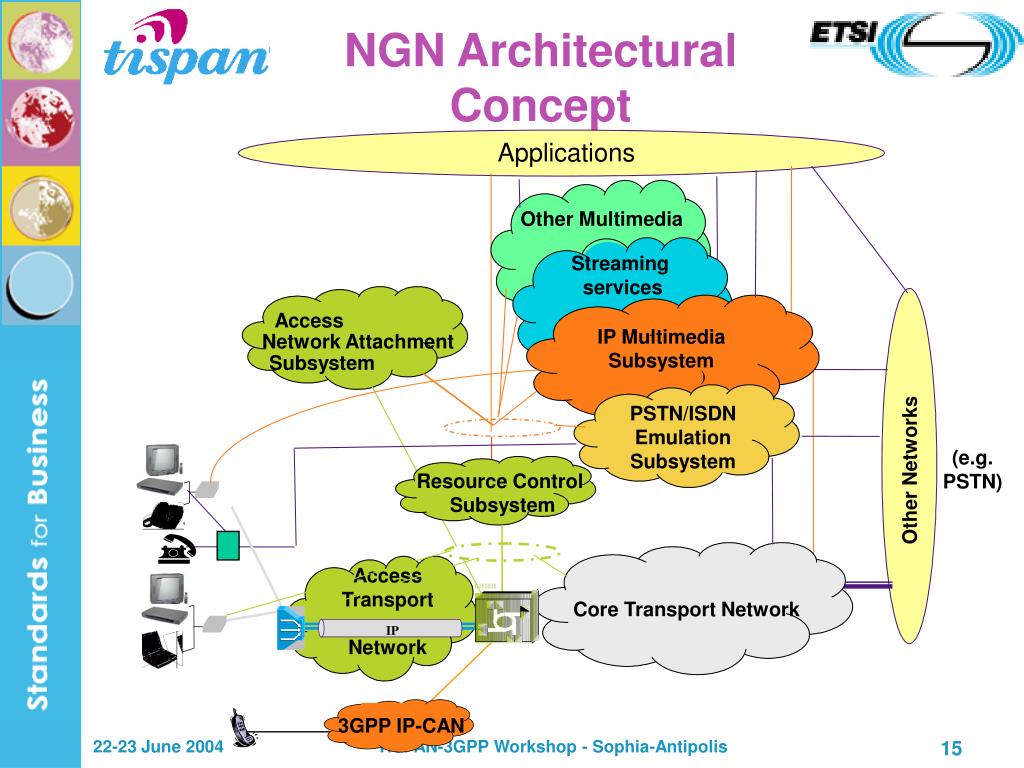

NGN Architectural Concept

Applications

Other Multimedia

Streaming services

-

-

IP MultimediaSubsystem

)

Other Networks

PSTN/ISDNEmulationSubsystem

(e.g.PSTN)

Resource Control Subsystem

AccessTransport

Network

Core Transport Network

IP

3GPP IP-CAN

TISPAN-3GPP Workshop - Sophia-Antipolis

tispan release 1 core ims
TISPAN Release 1: Core IMS

TISPAN-3GPP Workshop - Sophia-Antipolis

core ims reuse in ngn architecture

NGN

specific

Rf

Rf

/Ro

/Ro

impacted

Charging

Charging

Sh

Sh

HSS

HSS

Functions

Functions

AS

AS

Network

Network

Attachment

Attachment

Dh

Dh

Ia

Ia

ISC

ISC

Cx

Cx

Cx

Cx

Rf

Rf

/Ro

/Ro

IWF

IWF

Subsystem

Subsystem

Ib

Ib

Dx

Dx

SLF

SLF

IBCF

IBCF

Mw

Mw

Mw/Mk/Mm

Mw/Mk/Mm

Ic

Ic

I

I

-

-

CSCF

CSCF

S

S

-

-

CSCF

CSCF

Mw

Mw

If

If

«

«

Core IMS

Core IMS

»

»

Mi

Mi

Mi

Mi

SIP

BGCF

BGCF

Mw

Mw

H.248

Mr

Mr

Mj

Mj

Id

Id

DIAMETER

Mg

Mg

SGF

SGF

P

P

-

-

CSCF

CSCF

MGCF

MGCF

MRFC

MRFC

Ie

Ie

Other IP Networks

Other IP Networks

Gq

Gq

PSTN/ISDN

PSTN/ISDN

Mp

Mp

Mn

Mn

Gm

Gm

Resource and Admission Control Subsystem

Resource and Admission Control Subsystem

MRFP

MRFP

T

T

-

-

MGF

MGF

A

A

-

-

BGF

BGF

UE

UE

IP Transport (Access and Core)

IP Transport (Access and Core)

I

I

-

-

BGF

BGF

Core IMS reuse in NGN Architecture
