lanspectre pro

LANspectre PRO

- makes networking easy

start lanspectre pro

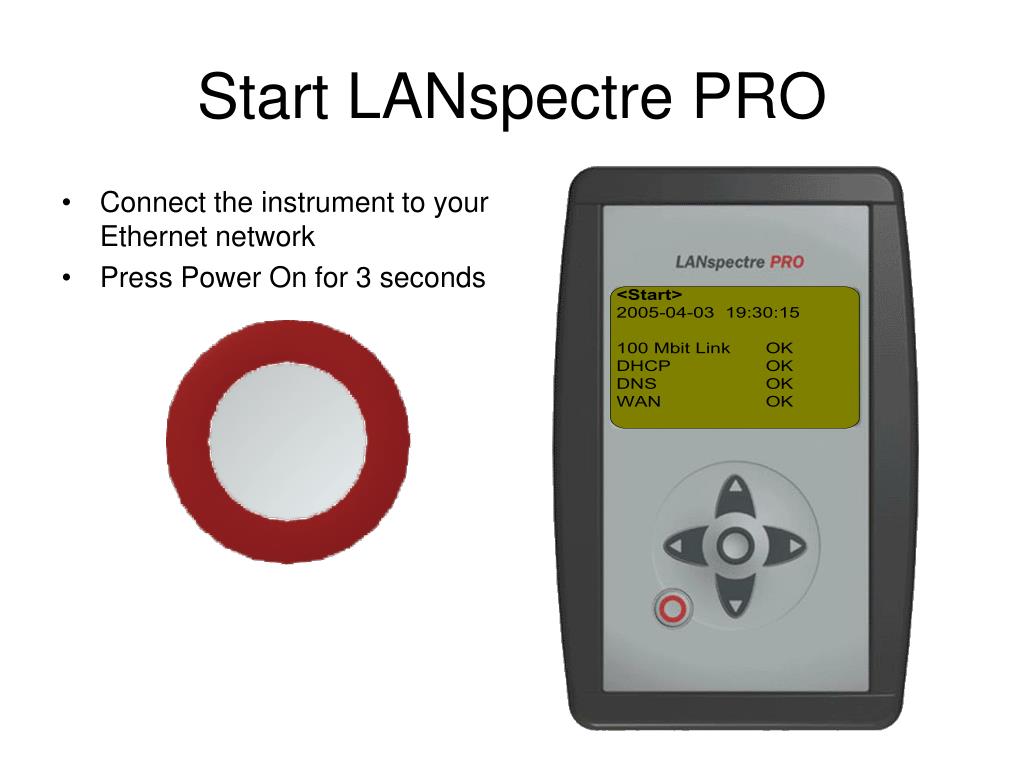

Start LANspectre PRO
  • Connect the instrument to your Ethernet network
  • Press Power On for 3 seconds
enter the scan menu
Enter the Scan menu
  • Press right arrow to enter Scan-menu
scan the network

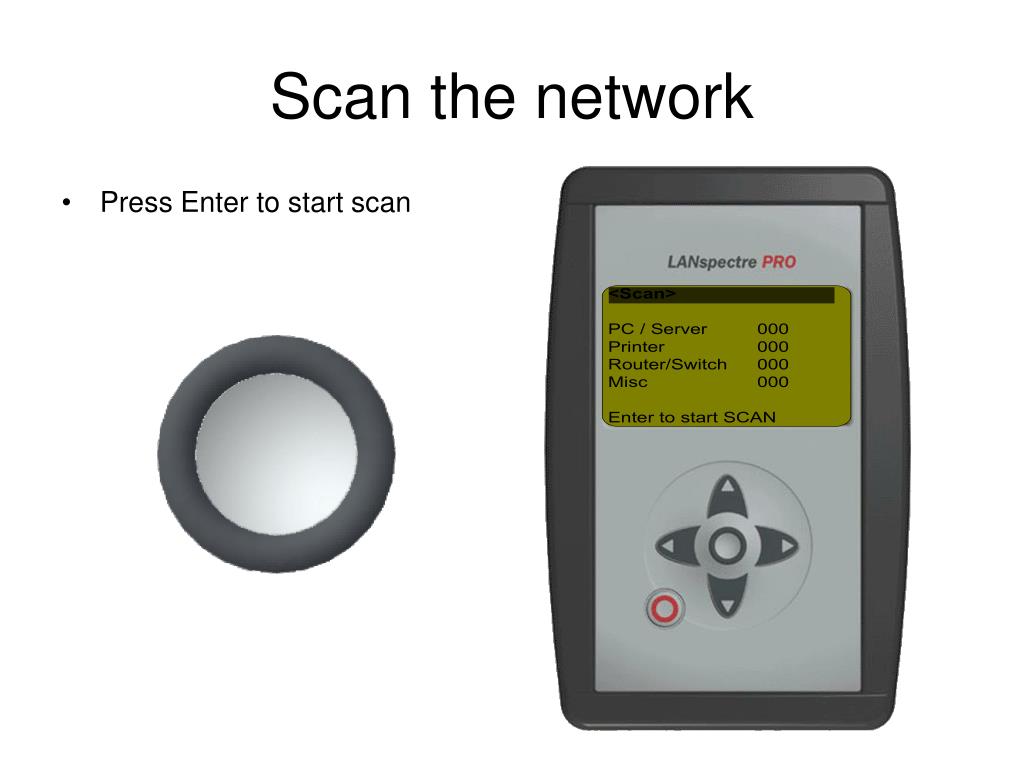

Scan the network
  • Press Enter to start scan
result from scan
Result from Scan
  • Move up/down to select units
  • Press right arrow to choose
result from scan by type
Result from Scan by type
  • Move up/down to select unit
  • Press right arrow to choose
result from scan details
Result from Scan - details
  • Information about:
    • Name & Group
    • Mac-address
    • IP-adress
    • Server-services enabled like HTTP, DHCP, FTP
  • Press right arrow to enter Ping menu
result from ping

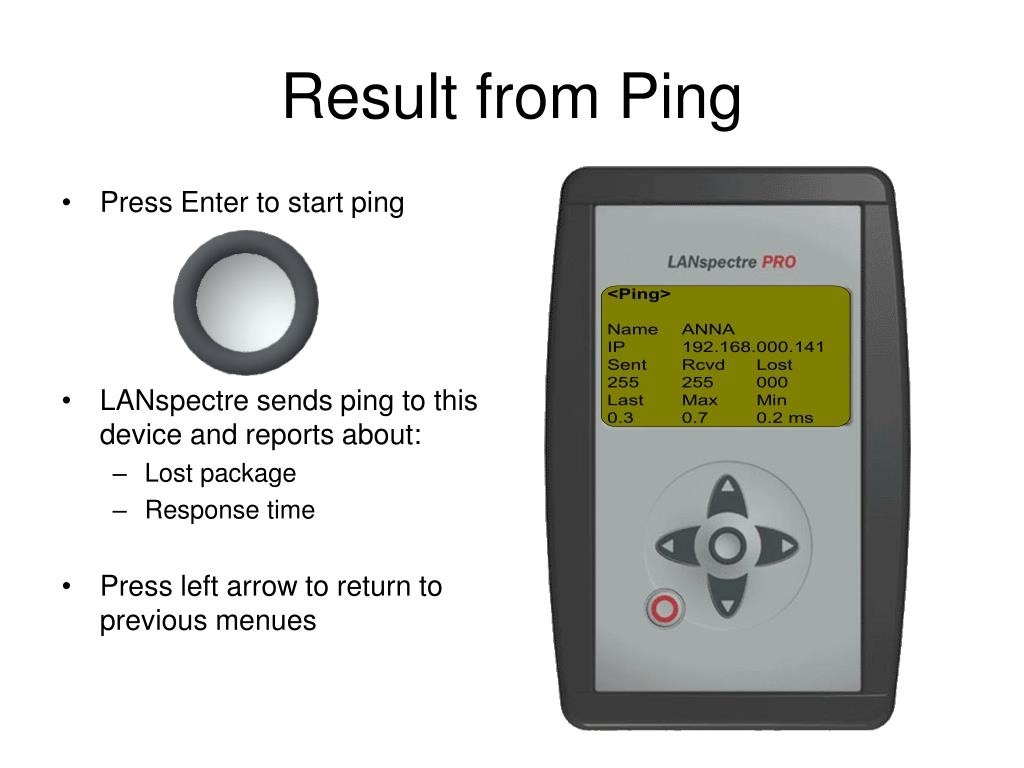

Result from Ping
  • Press Enter to start ping
  • LANspectre sends ping to this device and reports about:
    • Lost package
    • Response time
  • Press left arrow to return to previous menues
units by ip addresses
Units by IP-addresses
  • Press left arrow to return to previous menues
  • Press Enter to show IP/Name
lanspectre by browser
LANspectre by browser
  • For a better overview of the LAN
  • For documentation of the network
  • LANspectre still connected and with power on
  • Type ”lanspectre” in your browser (Explorer, Netscape…)
lanspectre by browser status
LANspectre by browser - Status

Basic networking facts about

  • The computer you currently use
  • Your WAN-connection
  • Your LANspectre
lanspectre by browser database

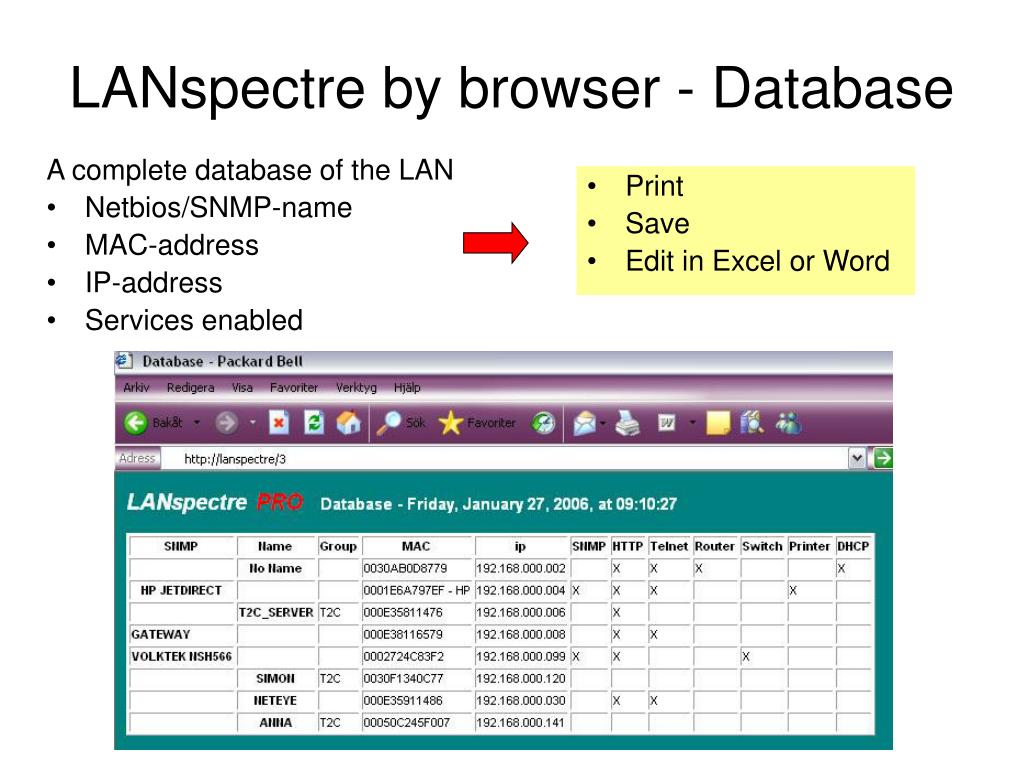

LANspectre by browser - Database
  • Print
  • Save
  • Edit in Excel or Word

A complete database of the LAN

  • Netbios/SNMP-name
  • MAC-address
  • IP-address
  • Services enabled
power off lanspectre

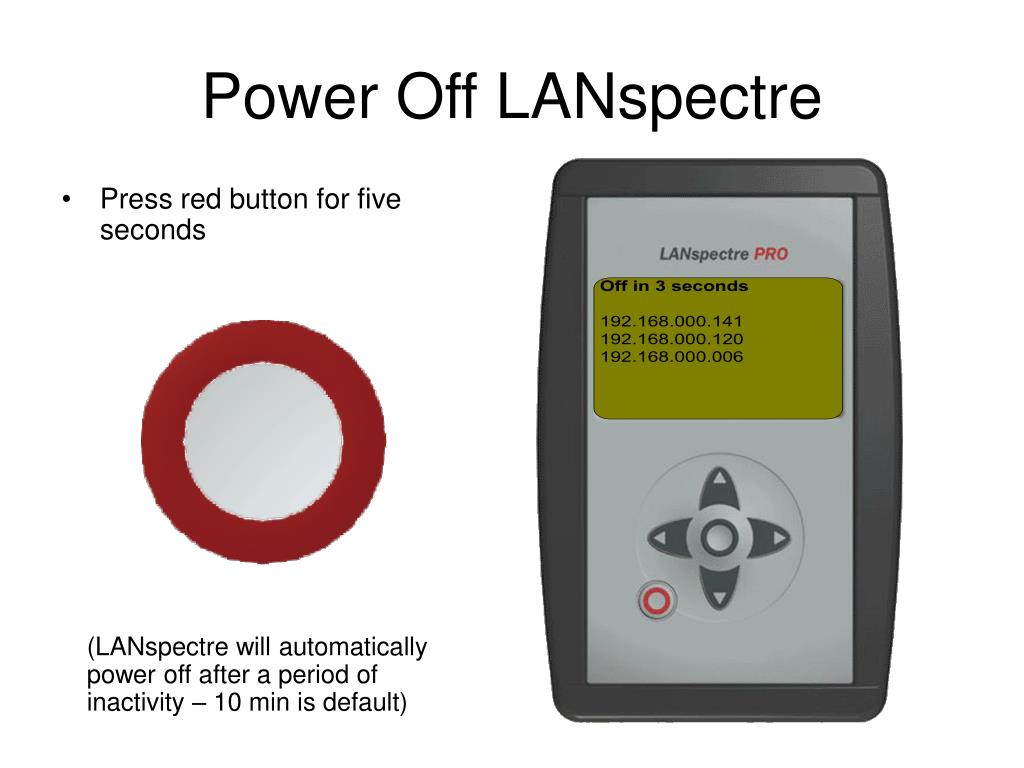

Power Off LANspectre
  • Press red button for five seconds

(LANspectre will automatically power off after a period of inactivity – 10 min is default)

lanspectre pro14

LANspectre PRO

END OF DEMO

Thank you for your attention

For further information:

www.lanspectre.com

Made by T2C Marketing Sweden
