hydroforming

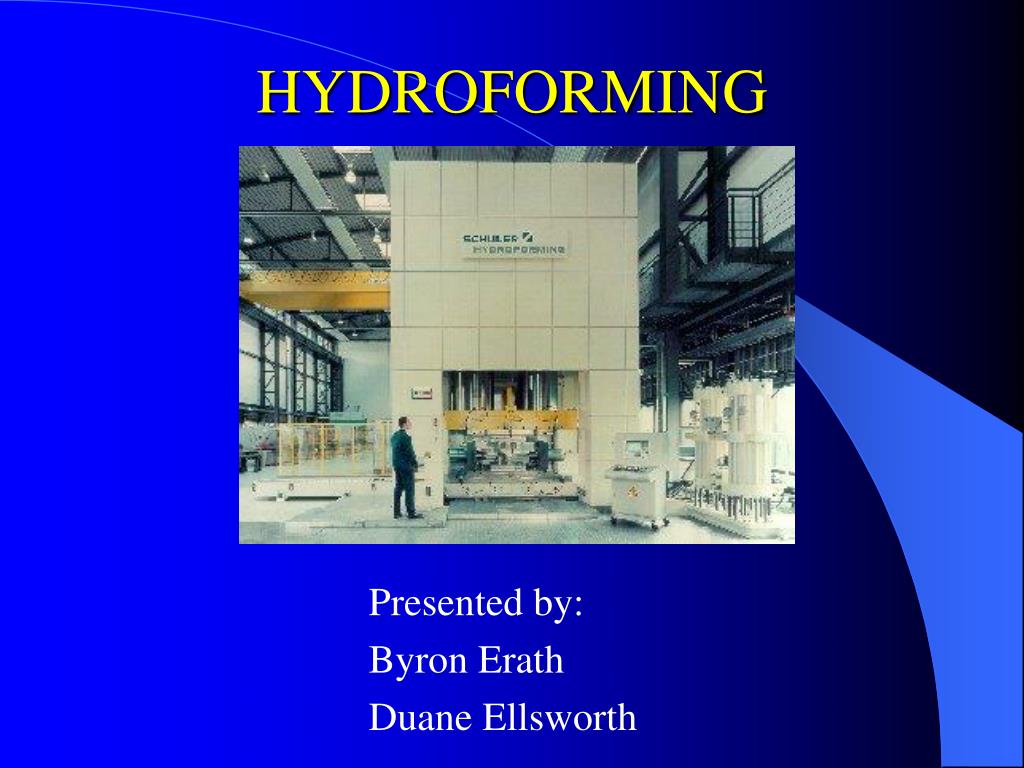

HYDROFORMING

Presented by:

Byron Erath

Duane Ellsworth

outline
OUTLINE:
  • What is Hydroforming
  • How and where is Hydroforming used
  • Materials used in Hydroforming processes
  • Design Considerations
  • Advantages/Disadvantages
  • Economics of Hydroforming
  • Websites and Links
  • Conclusion
hydroforming3
HYDROFORMING

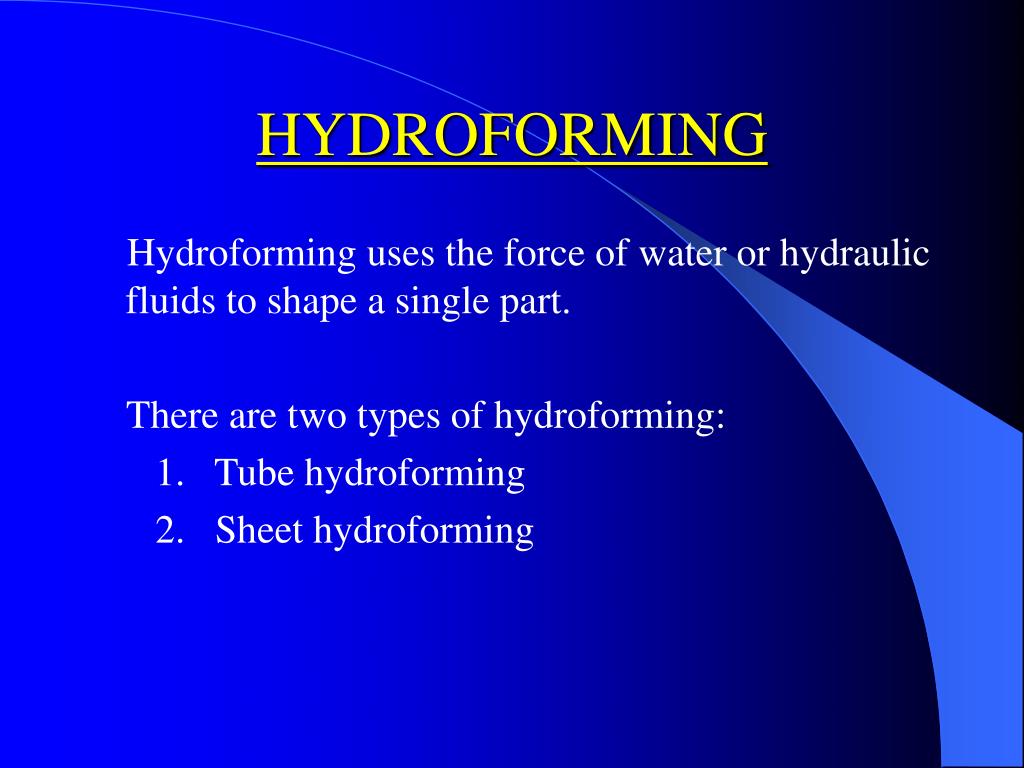

Hydroforming uses the force of water or hydraulic fluids to shape a single part.

There are two types of hydroforming:

1. Tube hydroforming

2. Sheet hydroforming

tube hydroforming

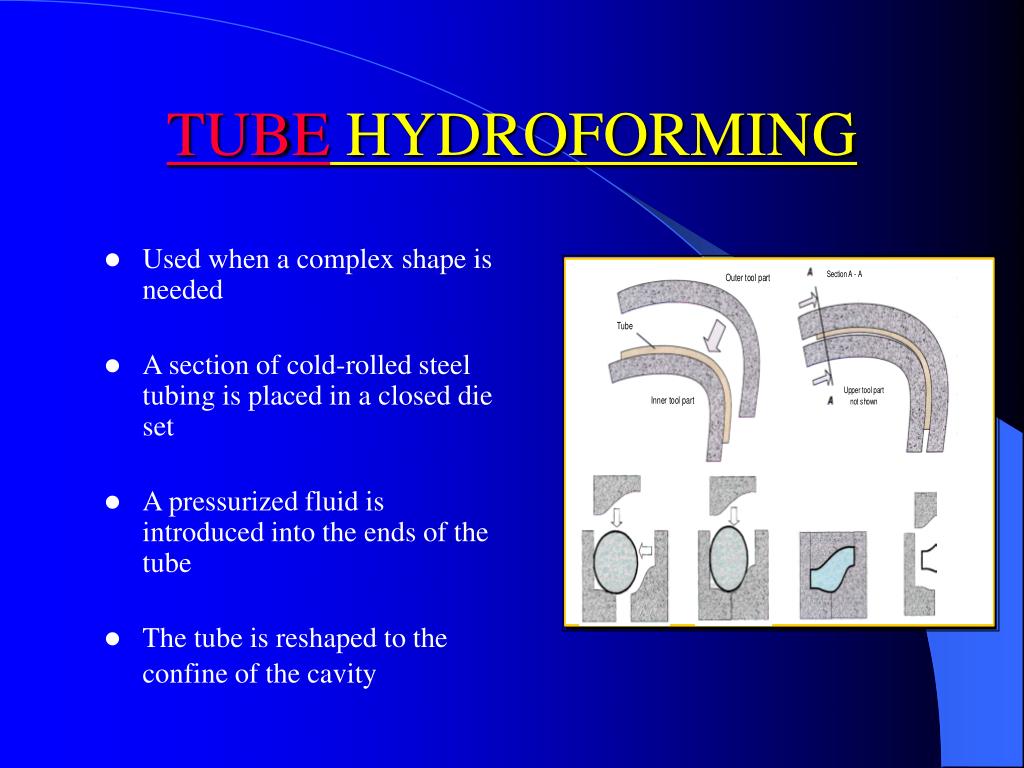

TUBE HYDROFORMING
  • Used when a complex shape is needed
  • A section of cold-rolled steel tubing is placed in a closed die set
  • A pressurized fluid is introduced into the ends of the tube
  • The tube is reshaped to the confine of the cavity
sheet hydroforming
SHEET HYDROFORMING

2 METHODS:

  • Sheet steel is forced into a female cavity by water under pressure from a pump or by press action
  • Sheet steel is deformed by a male punch, which acts against the fluid under pressure.

Note: Sheet hydroforming provides a work-hardening effect as the steel is forced against the blanks through fluid pressure.

applications
APPLICATIONS
  • Automotive industry
  • Sanitary use
  • Aerospace
    • Lighter, stiffer parts

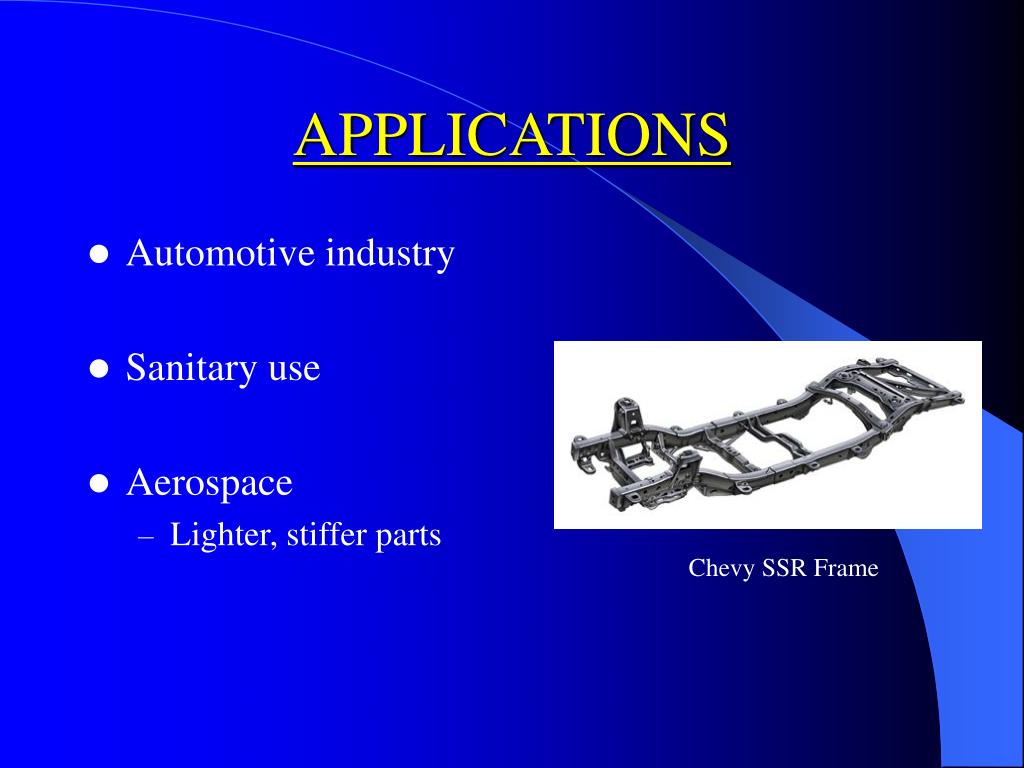

Chevy SSR Frame

applications cont

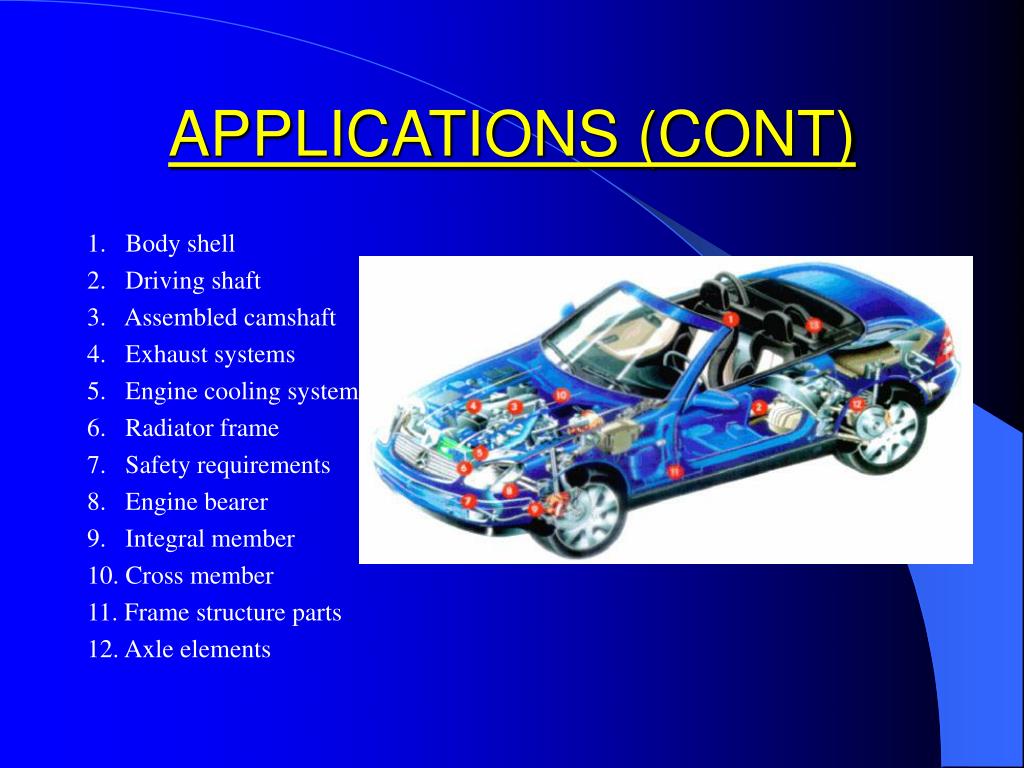

APPLICATIONS (CONT)

1. Body shell

2. Driving shaft

3. Assembled camshaft

4. Exhaust systems

5. Engine cooling system

6. Radiator frame

7. Safety requirements

8. Engine bearer

9. Integral member

10. Cross member

11. Frame structure parts

12. Axle elements

materials
MATERIALS
  • Steel (mild and harder steels)
  • Stainless Steel
  • Aluminum alloys
  • Research continues to expand the capabilities of the hydroforming process
design considerations
DESIGN CONSIDERATIONS
  • Hydroforming is generally defined as either low-pressure or high pressure.
  • The demarcation point is 83MPa
  • Constant pressure volumetric expansion

< 5% required to shape the part = Low pressure

> 5% (but < 25%) = High Pressure

design considerations10
DESIGN CONSIDERATIONS

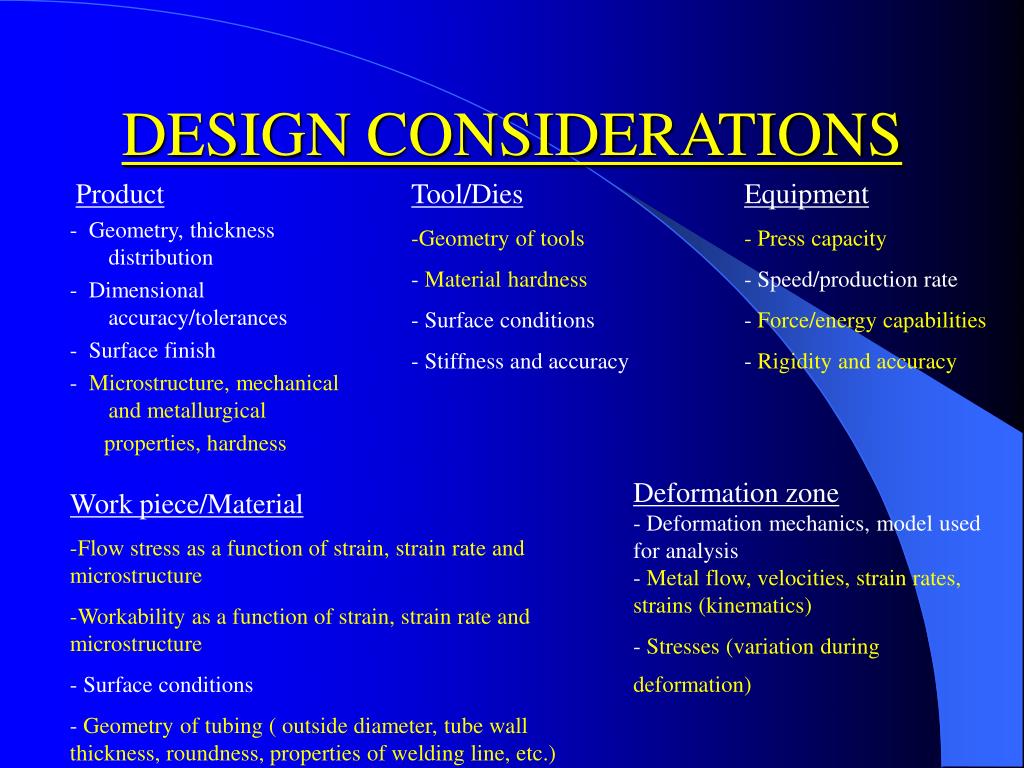

Tool/Dies

-Geometry of tools

- Material hardness

- Surface conditions

- Stiffness and accuracy

Equipment

- Press capacity

- Speed/production rate

- Force/energy capabilities

- Rigidity and accuracy

Product

- Geometry, thickness distribution

- Dimensional accuracy/tolerances

- Surface finish

- Microstructure, mechanical and metallurgical

properties, hardness

Deformation zone - Deformation mechanics, model used for analysis - Metal flow, velocities, strain rates, strains (kinematics)

- Stresses (variation during deformation)

  • Work piece/Material
  • Flow stress as a function of strain, strain rate and microstructure
  • Workability as a function of strain, strain rate and microstructure
  • - Surface conditions
  • - Geometry of tubing ( outside diameter, tube wall thickness, roundness, properties of welding line, etc.)
advantages

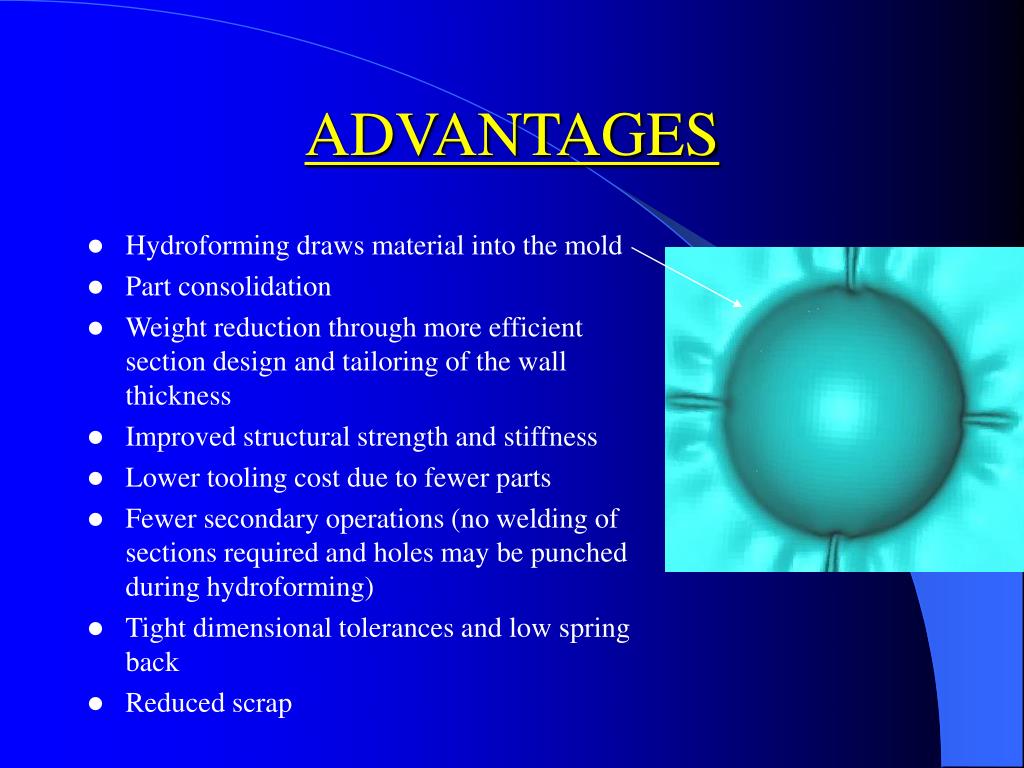

ADVANTAGES
  • Hydroforming draws material into the mold
  • Part consolidation
  • Weight reduction through more efficient section design and tailoring of the wall thickness
  • Improved structural strength and stiffness
  • Lower tooling cost due to fewer parts
  • Fewer secondary operations (no welding of sections required and holes may be punched during hydroforming)
  • Tight dimensional tolerances and low spring back
  • Reduced scrap
advantages cont
ADVANTAGES (CONT.)

Results compared to conventional steel body structure:

  • 50% less weight
  • 45% less parts (less tools, less assembly)
  • 45% less welding seams
  • Tighter tolerances

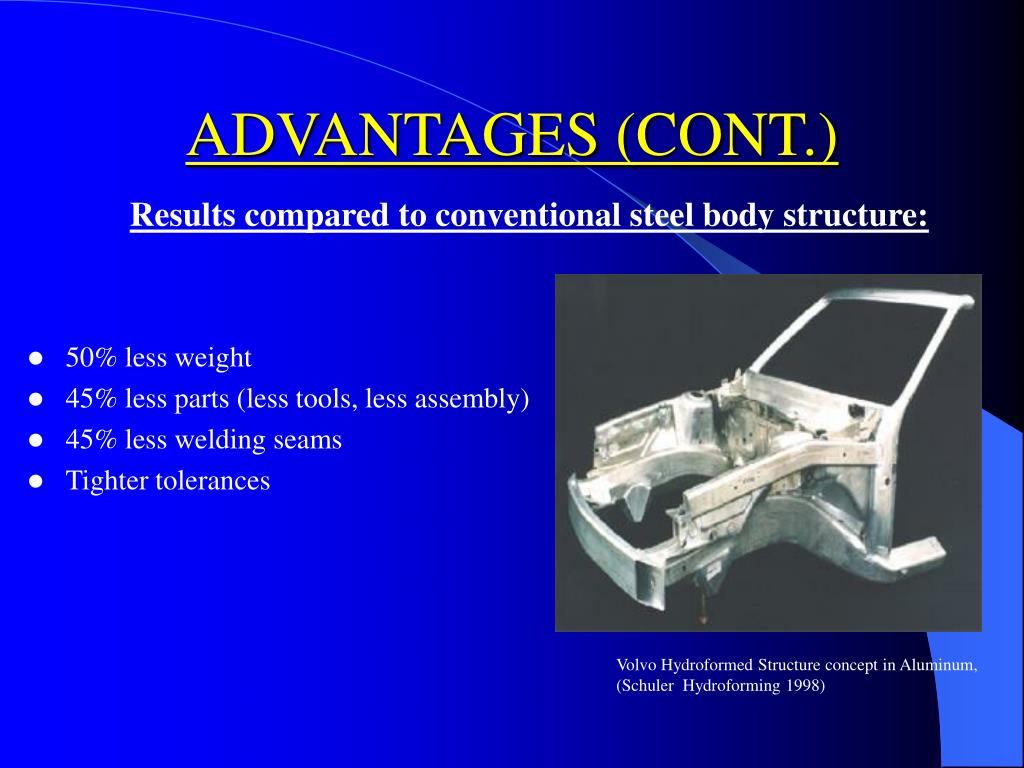

Volvo Hydroformed Structure concept in Aluminum, (Schuler Hydroforming 1998)

disadvantages
DISADVANTAGES
  • Slow cycle time
  • Expensive equipment and lack of extensive knowledge base for process and tool design
  • Requires new welding techniques for assembly.
