general guidance on conduct of technical reviews
GENERAL GUIDANCE ON CONDUCT OF TECHNICAL REVIEWS

Type and Number

Selection should be based on the complexity of the program and the phase of development (modification).

Participants

Include tasking and performing activity personnel responsible for the area or item being reviewed, key representatives for lower level items, and other personnel who have a stake in the specific objectives of the review.

Objectives

1. Demonstrate progress 3. Verify the expected maturity

2. Ensure issues have been resolved 4. Confirm that risks are acceptable

focus in major reviews
FOCUS IN MAJOR REVIEWS

In General

  • Confirm that issues addressed during previous reviews have been satisfactorily resolved.
  • Only areas requiring close scrutiny should be addressed in detail. Proper integration and management of interim, subsystem, and functional reviews (as planned in SEMP) should make a detailed total evaluation unnecessary.
  • Opportunity to modify program emphasis for the next phase based on risk levels.
types of reviews
TYPES OF REVIEWS

Major: Demonstrate that risk levels are acceptable and provide an opportunity to modify program emphasis for next phase/effort. (Examples: ASR, SRR, SFR, PDR, CDR, SVR, PCA)

Functional: System wide review conducted by involved disciplines to address progress and issues associated with one functional area. (Examples: Development, Training, Support, Verification, Manufacturing, Disposal, etc.)

Subsystem: Multidisciplinary reviews to assess progress in defining and satisfying subsystem requirements.

Interim: Reviews held between major reviews that cover spectrum of system, segments, and configuration items.

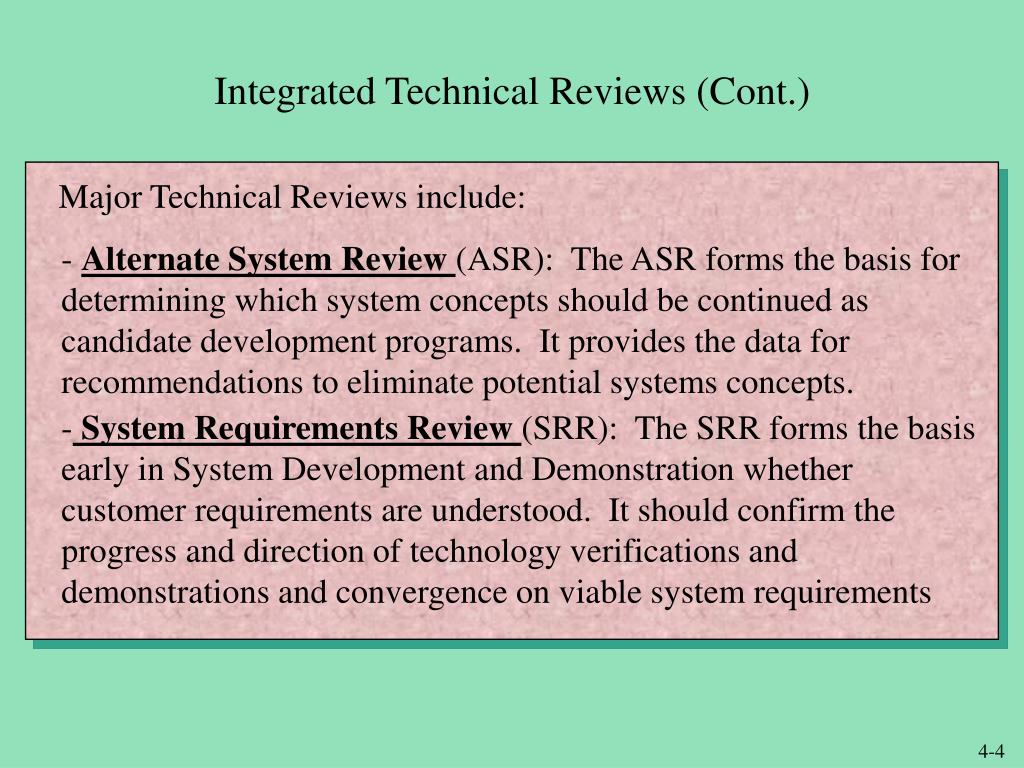

integrated technical reviews cont
Integrated Technical Reviews (Cont.)

Major Technical Reviews include:

- Alternate System Review (ASR): The ASR forms the basis for determining which system concepts should be continued as candidate development programs. It provides the data for recommendations to eliminate potential systems concepts.

- System Requirements Review (SRR): The SRR forms the basis early in System Development and Demonstration whether customer requirements are understood. It should confirm the progress and direction of technology verifications and demonstrations and convergence on viable system requirements

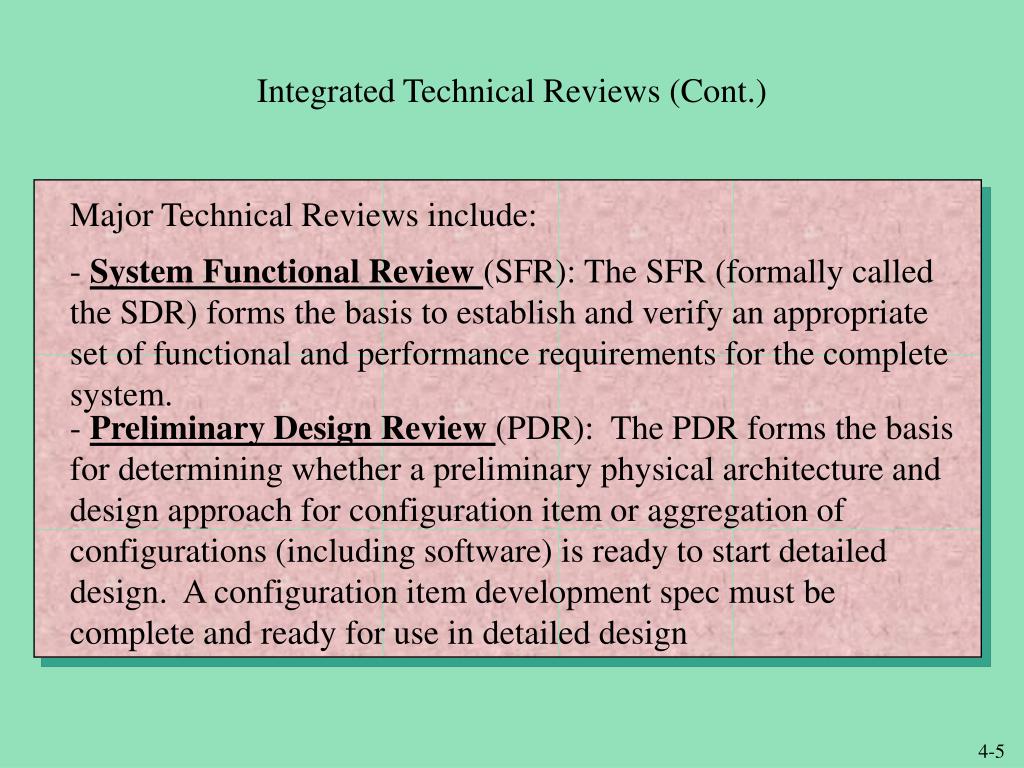

integrated technical reviews cont5
Integrated Technical Reviews (Cont.)

Major Technical Reviews include:

- System Functional Review (SFR): The SFR (formally called the SDR) forms the basis to establish and verify an appropriate set of functional and performance requirements for the complete system.

- Preliminary Design Review (PDR): The PDR forms the basis for determining whether a preliminary physical architecture and design approach for configuration item or aggregation of configurations (including software) is ready to start detailed design. A configuration item development spec must be complete and ready for use in detailed design

slide6

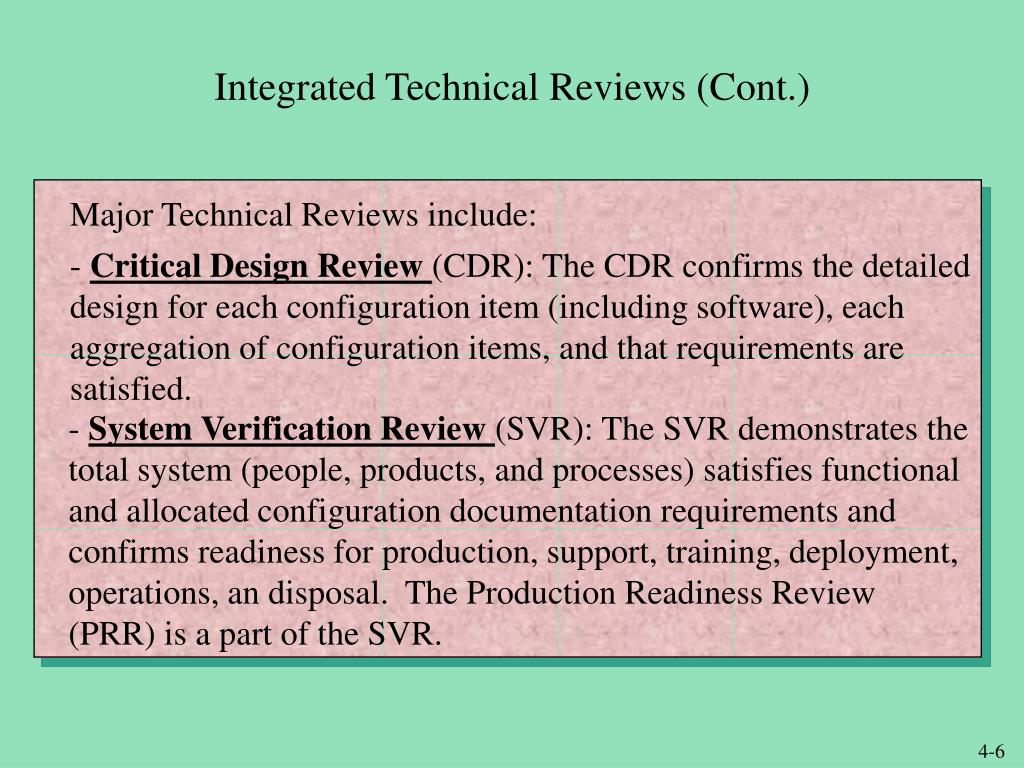

Integrated Technical Reviews (Cont.)

Major Technical Reviews include:

- Critical Design Review (CDR): The CDR confirms the detailed design for each configuration item (including software), each aggregation of configuration items, and that requirements are satisfied.

- System Verification Review (SVR): The SVR demonstrates the total system (people, products, and processes) satisfies functional and allocated configuration documentation requirements and confirms readiness for production, support, training, deployment, operations, an disposal. The Production Readiness Review (PRR) is a part of the SVR.

customary system level review accomplishments

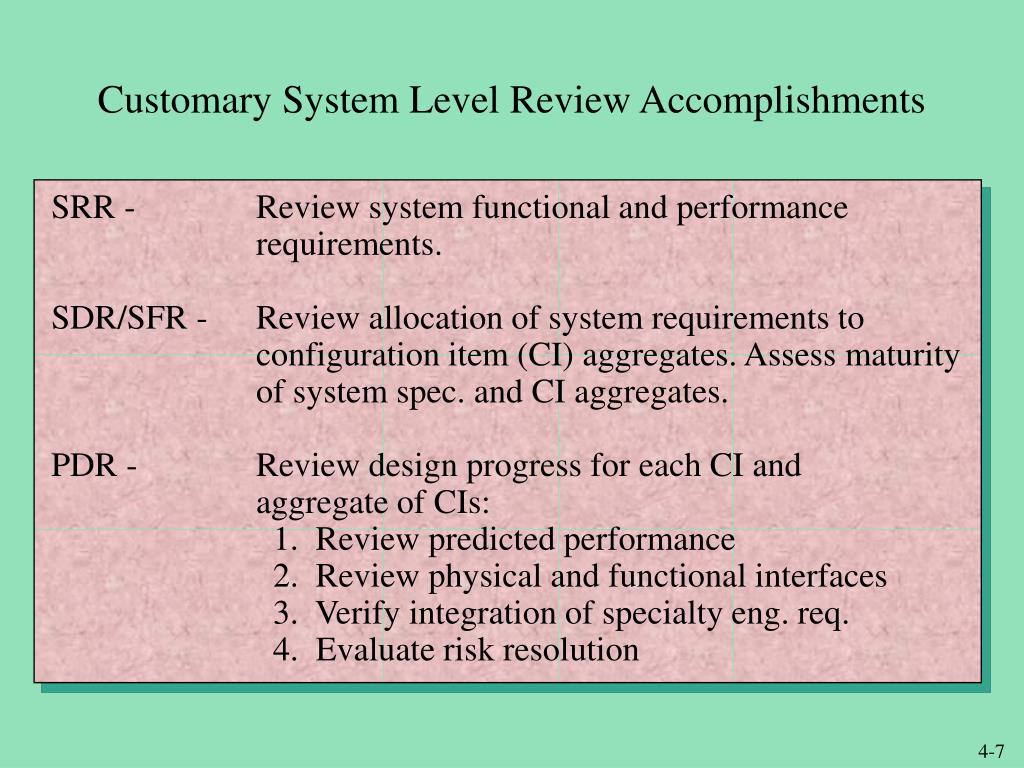

Customary System Level Review Accomplishments

SRR - Review system functional and performance requirements.

SDR/SFR - Review allocation of system requirements to

configuration item (CI) aggregates. Assess maturity of system spec. and CI aggregates.

PDR - Review design progress for each CI and

aggregate of CIs:

1. Review predicted performance

2. Review physical and functional interfaces

3. Verify integration of specialty eng. req.

4. Evaluate risk resolution

customary system level review accomplishments cont
Customary System Level Review Accomplishments (Cont.)

CDR - Review maturity of design for each CI and aggregate CIs:

1. Verify that functional and performance requirements of CI specs are satisfied.

2. Verify that engineering specialty requirements have been satisfied.

3. Verify compatibility between CIs and hardware, software, facilities and personnel.

4. Review preliminary product specs.

5. Assess producibility risks.

customary system level review accomplishments cont9
Customary System Level Review Accomplishments (Cont.)
  • SVR - Confirms readiness to enter full rate production:
  • 1. Verify work on all CIs – all functions & performance levels met.
  • FCA conducted for CIs.

See page 107 of Sys. Eng. Fundamentals for additional accomplishments.

systems engineering master schedule sems

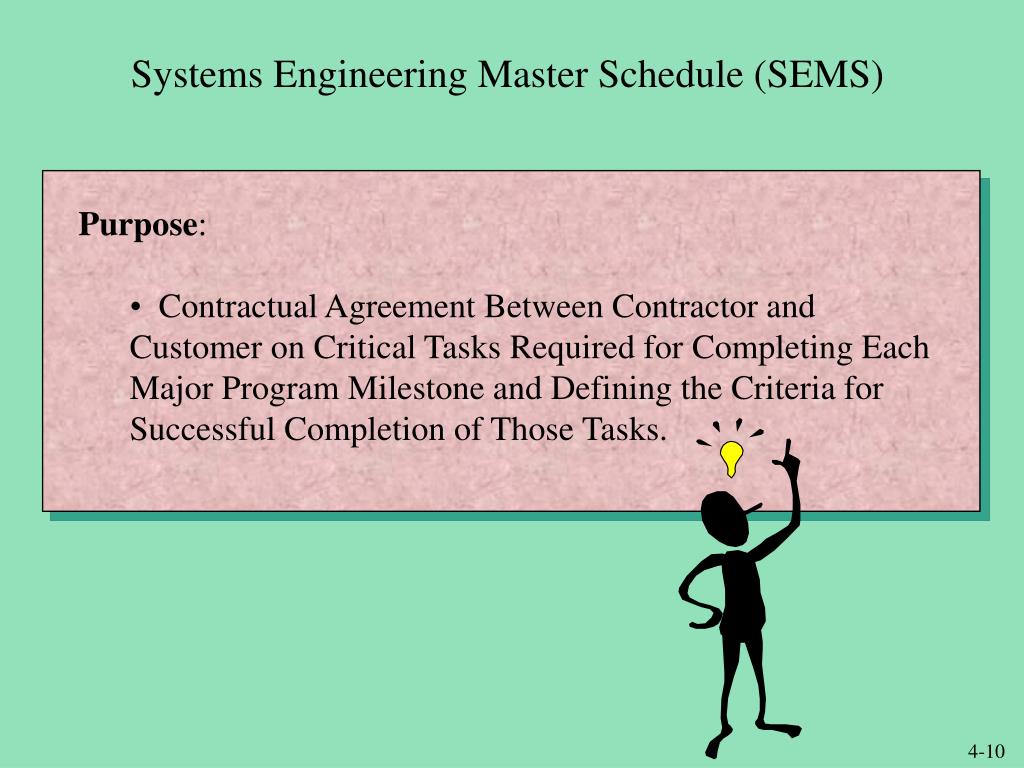

Systems Engineering Master Schedule (SEMS)
  • Purpose:
    • Contractual Agreement Between Contractor and Customer on Critical Tasks Required for Completing Each Major Program Milestone and Defining the Criteria for Successful Completion of Those Tasks.
role of sems in acquisition planning
Role of SEMS in Acquisition Planning

The SEMS Outlines the Integration of All Major Tasks Necessary to Design, Develop, Test, Produce, Deploy and Support the System.

Reliability

Producibility

Schedule

Performance

Cost

Support

Training

Risk

Management

System

Balanced Process/Product

to Satisfy User Needs

Prime Mission

Equipment

sems key tasks
SEMS Key Tasks
  • Typical Tasks
    • Develop Test Plans
    • Develop Software Plans
  • Tasks Define Interim Steps to Developing and Producing System
  • Tasks Should Include Verification Criteria

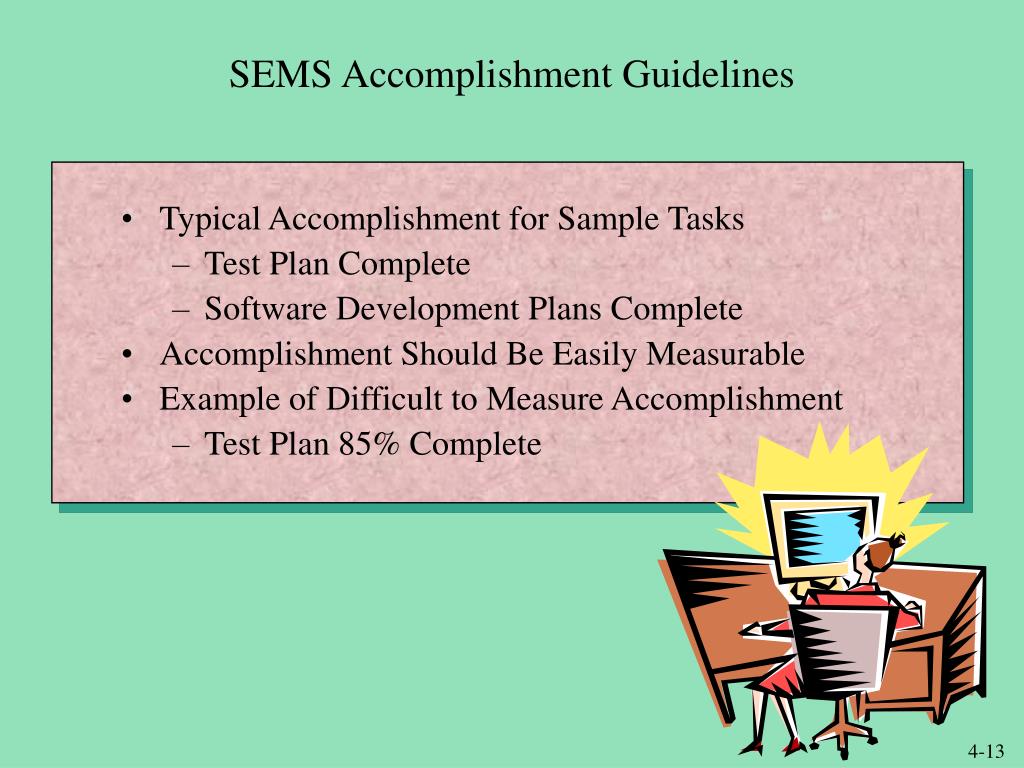

sems accomplishment guidelines
Typical Accomplishment for Sample Tasks

Test Plan Complete

Software Development Plans Complete

Accomplishment Should Be Easily Measurable

Example of Difficult to Measure Accomplishment

Test Plan 85% Complete

SEMS Accomplishment Guidelines

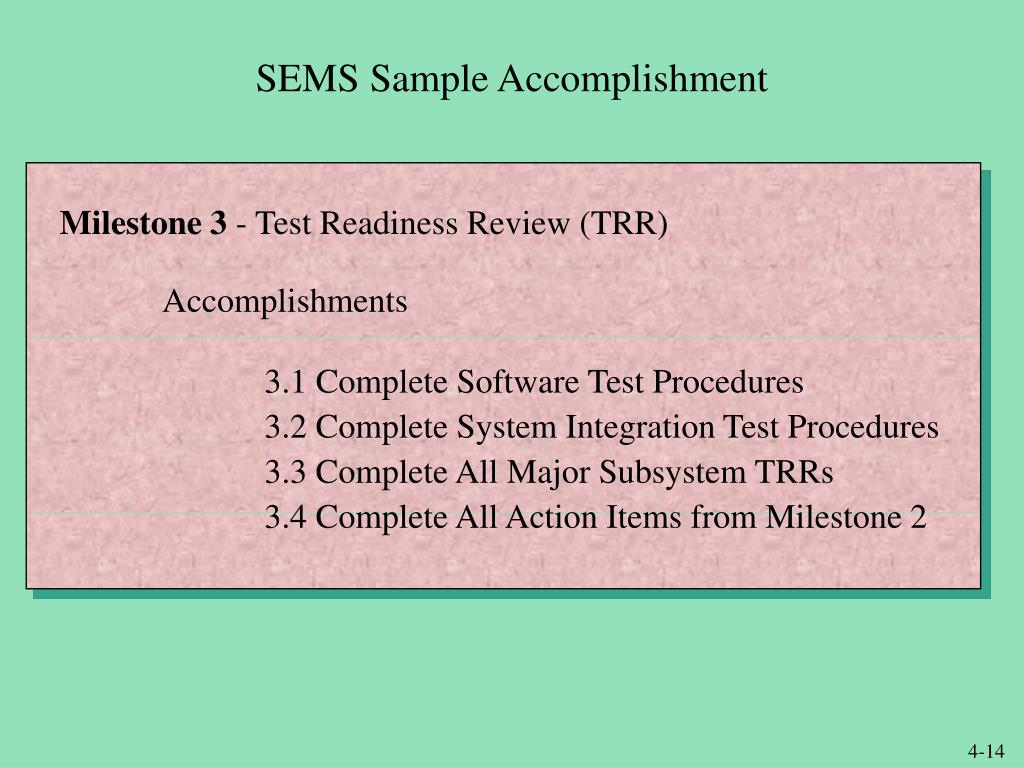

sems sample accomplishment
SEMS Sample Accomplishment
  • Milestone 3 - Test Readiness Review (TRR)
  • Accomplishments
  • 3.1 Complete Software Test Procedures
  • 3.2 Complete System Integration Test Procedures
          • 3.3 Complete All Major Subsystem TRRs
          • 3.4 Complete All Action Items from Milestone 2
slide17

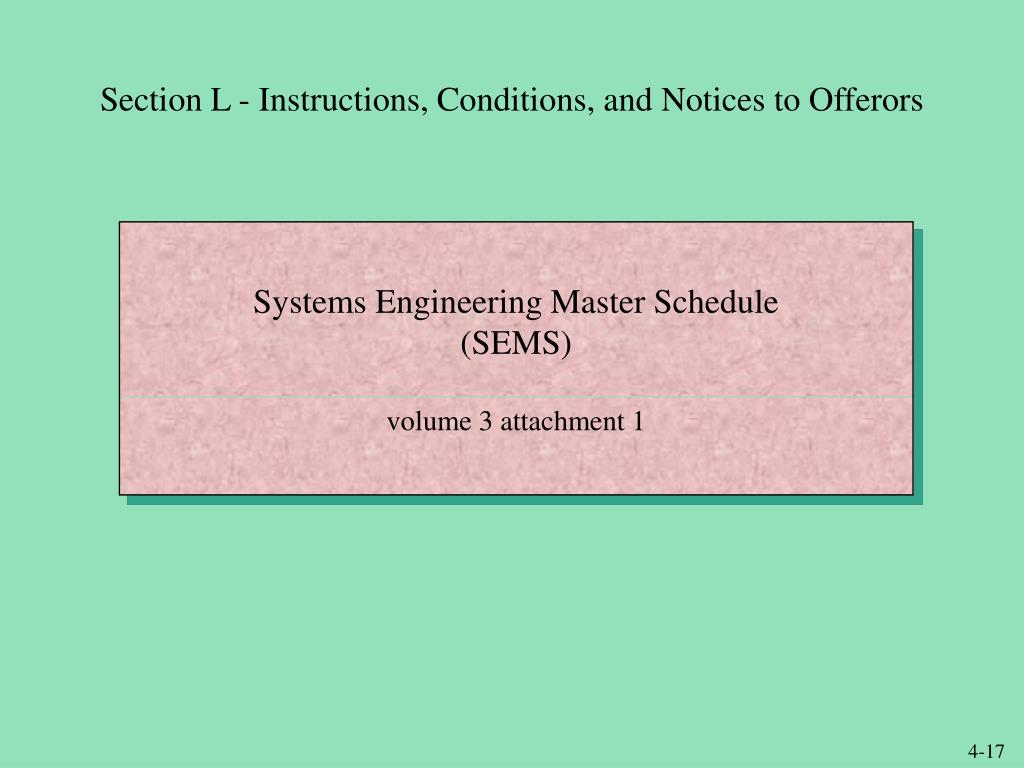

Section L - Instructions, Conditions, and Notices to Offerors

Systems Engineering Master Schedule

(SEMS)

volume 3 attachment 1

section l instructions conditions and notices to offerors cont
Section L - Instructions, Conditions, and Notices to Offerors (Cont.)

3.0 SEMS PROGRAM EVENTS

Listed below are the Major Program Events and their scheduled time of achievement. Each event shall be considered achieved upon successful demonstration of criteria accomplishments. Criteria for each event is defined in Section 4.0.

Event Number Event Title Event Date

1. System Hardware Preliminary 5 MACA

Design Review(PDR)

2. System Software PDR 7 MACA

3. ILS Management Team (ILSMT) 9 MACA

Meeting

4. System Hardware Critical Design 11 MACA

Review (CDR)

5. System Software CDR 13 MACA

6. System Test Readiness Review 22 MACA

7. Ground Durability/Qualification 24 MACA

Test Release

section l instructions conditions and notices to offerors cont19
Section L - Instructions, Conditions, and Notices to Offerors (Cont.)

Event Number Event Title Event Date

8. (Reserved)

9. RF-4C #1 Development Flight 29 MACA

Test Release

10. RF-4C DT&E/IOT&E start 29 MACA

11. UARS #1 Development Flight 29 MACA

Test Release

12. UARS DT&E/IOT&E start 29 MACA

13. F/A-18 DT&E/IOT&E Start 29 MACA

14. FSD Maintainability Demonstration 34 MACA

15. Production Readiness Review 35 MACA

16. System Function Configuration 36 MACA

Audit (FCA)

17. RF-4C DT&E/IOT&E Complete 38 MACA

18. UARS DT&E/IOT&E Complete 38 MACA

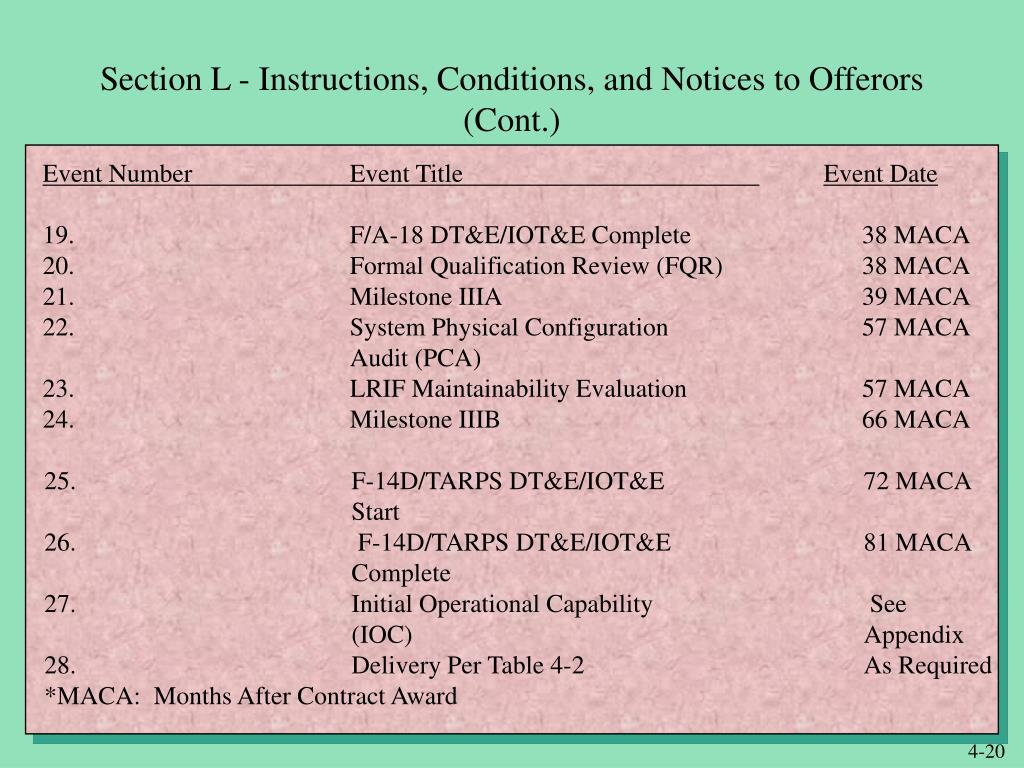

section l instructions conditions and notices to offerors cont20
Section L - Instructions, Conditions, and Notices to Offerors (Cont.)

Event Number Event Title Event Date

19. F/A-18 DT&E/IOT&E Complete 38 MACA

20. Formal Qualification Review (FQR) 38 MACA

21. Milestone IIIA 39 MACA

22. System Physical Configuration 57 MACA

Audit (PCA)

23. LRIF Maintainability Evaluation 57 MACA

24. Milestone IIIB 66 MACA

25. F-14D/TARPS DT&E/IOT&E 72 MACA

Start

26. F-14D/TARPS DT&E/IOT&E 81 MACA

Complete

27. Initial Operational Capability See

(IOC) Appendix

28. Delivery Per Table 4-2 As Required

*MACA: Months After Contract Award

exercise 2
EXERCISE #2

Exercise: Develop the portion of a Systems Engineering Master Schedule (SEMS) for the AJS design and development tasks. Assume the system level schedule for Peace Whey includes a SRR, SFR, PDR, CDR, and PRR. Your SEMS should identify a list of AJS program reviews with accomplishment criteria.

  • Part 1: Referring to the system level Peace Whey reviews, identify and list the major reviews which need to be supported by inputs from the AJS design and development tasks. Based upon this list, determine a set or reviews for the AJS development effort required to support the Peace Whey program.
  • Part 2: Identify the accomplishment criteria for one AJS review.
  • You will have 20 minutes to complete this exercise.
imp sems ims seds relationships
IMP/SEMS & IMS/SEDS Relationships

Integrated Master Plan

(IMP)

Integrated Master Schdule

(IMS)

System

Engineering

Detailed

Schedule

(SEDS)

System

Engineering

Master

Schedule

(SEMS)

Program

Office

Contracts

Security

Program

Office

Contracts

Security

slide31

A

NN

NN

NN

NN

Product

Event No.

Accomplishment

Criteria

IMS Task

IMP/IMS Development Steps

1. Define Events, Accomplishments (RFP “Shalls”), and Criteria

SYSTEM PRODUCT

HIERARCHY

SPEC TREE

2. Define a Product Oriented

Management Structure

(SPEC Tree, WBS, and

IPT Organization)

A

WBS

IPT

SPEC TREE

B

C

D

E

WBS

IPT

SPEC TREE

WBS

J

K

L

M

IPT

SPEC TREE

WBS

F

G

H

I

IPT

3. Build a Top Down, Layered IMP/IMS with Activity Numbers as Shown Below

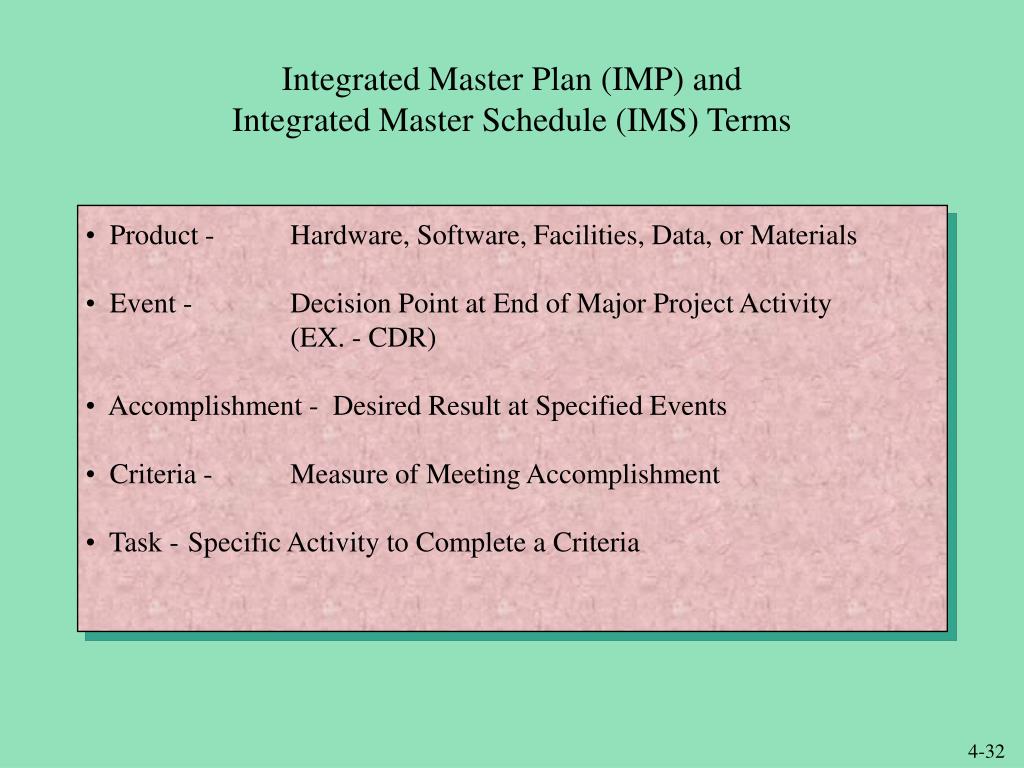

integrated master plan imp and integrated master schedule ims terms
Integrated Master Plan (IMP) and Integrated Master Schedule (IMS) Terms
  • Product - Hardware, Software, Facilities, Data, or Materials
  • Event - Decision Point at End of Major Project Activity (EX. - CDR)
  • Accomplishment - Desired Result at Specified Events
  • Criteria - Measure of Meeting Accomplishment
  • Task - Specific Activity to Complete a Criteria
slide33

Top Level Task Relationships

Product

Requirements

Suppliers

Development

• Primary

Production

• Derived

Product Definition

• Inventory Control

Delivered

• Parts Production

Product

• Assembly

Hardware

Design

Parts

Assemblies

Requirements

Software

For Design

Design

Component

& System

Weapon

Testing

Software

System

Implementation

Integration

Requirements

FEEDBACK

& Testing

For

• Requirements

Integrated Test

• Design

slide34

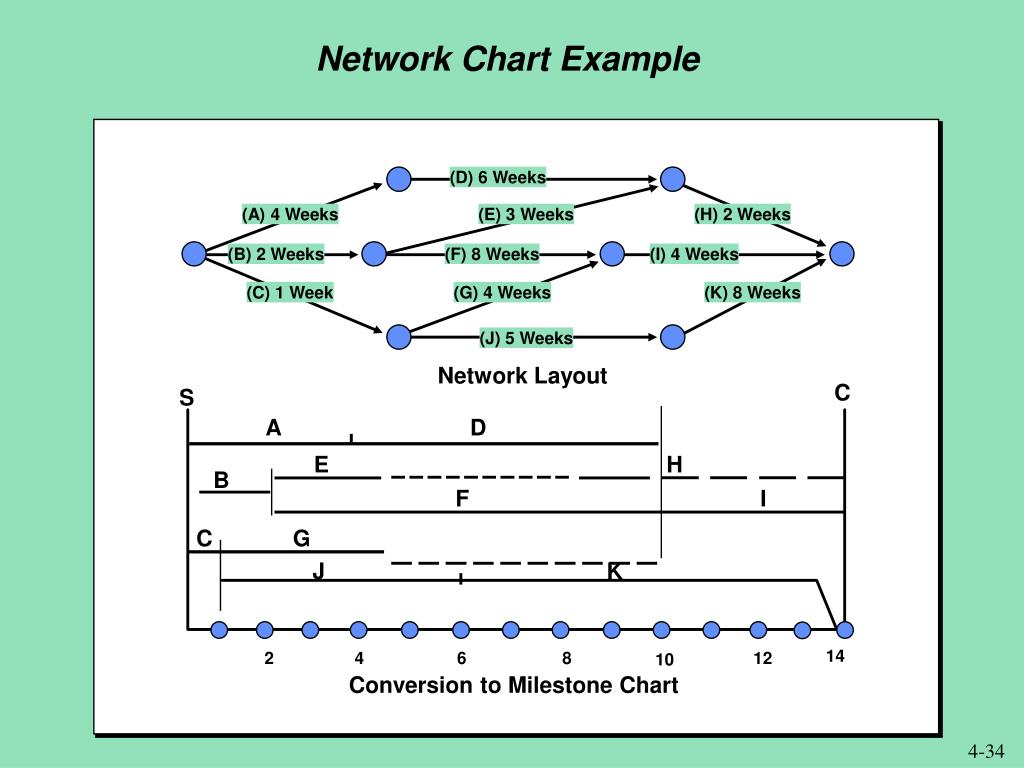

Network Chart Example

(D) 6 Weeks

(A) 4 Weeks

(E) 3 Weeks

(H) 2 Weeks

(B) 2 Weeks

(F) 8 Weeks

(I) 4 Weeks

(C) 1 Week

(G) 4 Weeks

(K) 8 Weeks

(J) 5 Weeks

Network Layout

C

S

A

D

E

H

B

F

I

C

G

J

K

14

2

4

6

8

12

10

Conversion to Milestone Chart

integrated master schedule ims and network schedules
Integrated Master Schedule(IMS) and Network Schedules
  • IMS Show Dates for Major Tasks and Milestones
    • - Usually Presented as Gantt (Bar) Chart
    • - Shows Tasks Corresponding to Entry/Exit Criteria
    • - Must Include All IMP Milestones
  • Network Schedules Are Essential to the IMS
    • - Helps Determine if IMS Dates and IMP Events Are Achievable
    • - Critical-Path Method (CPM) Schedule Software is Essential
    • - Essentials: Tasks, Relationships, Durations, Resources

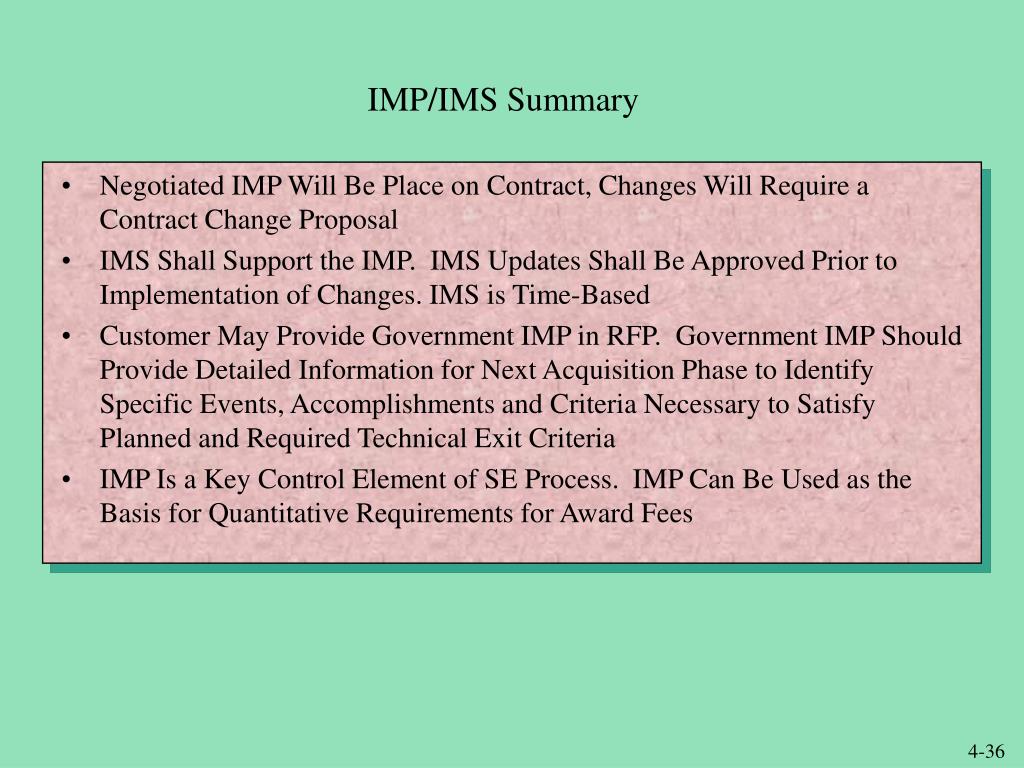

imp ims summary
Negotiated IMP Will Be Place on Contract, Changes Will Require a Contract Change Proposal

IMS Shall Support the IMP. IMS Updates Shall Be Approved Prior to Implementation of Changes. IMS is Time-Based

Customer May Provide Government IMP in RFP. Government IMP Should Provide Detailed Information for Next Acquisition Phase to Identify Specific Events, Accomplishments and Criteria Necessary to Satisfy Planned and Required Technical Exit Criteria

IMP Is a Key Control Element of SE Process. IMP Can Be Used as the Basis for Quantitative Requirements for Award Fees

IMP/IMS Summary
exercise 3
Exercise # 3
  • Exercise:
      • Referring to the SEMS from Exercise #2, develop a System Engineering Detailed Schedule (SEDS) for the AJS design and development task. The AJS Safety of Flight unit must be available in month 26 and first production aircraft in month 36. Be prepared to report your results to the class. You will have 20 minutes for this exercise.

Hint – Use building block tasks on next page.

slide38

Electronic

Warfare

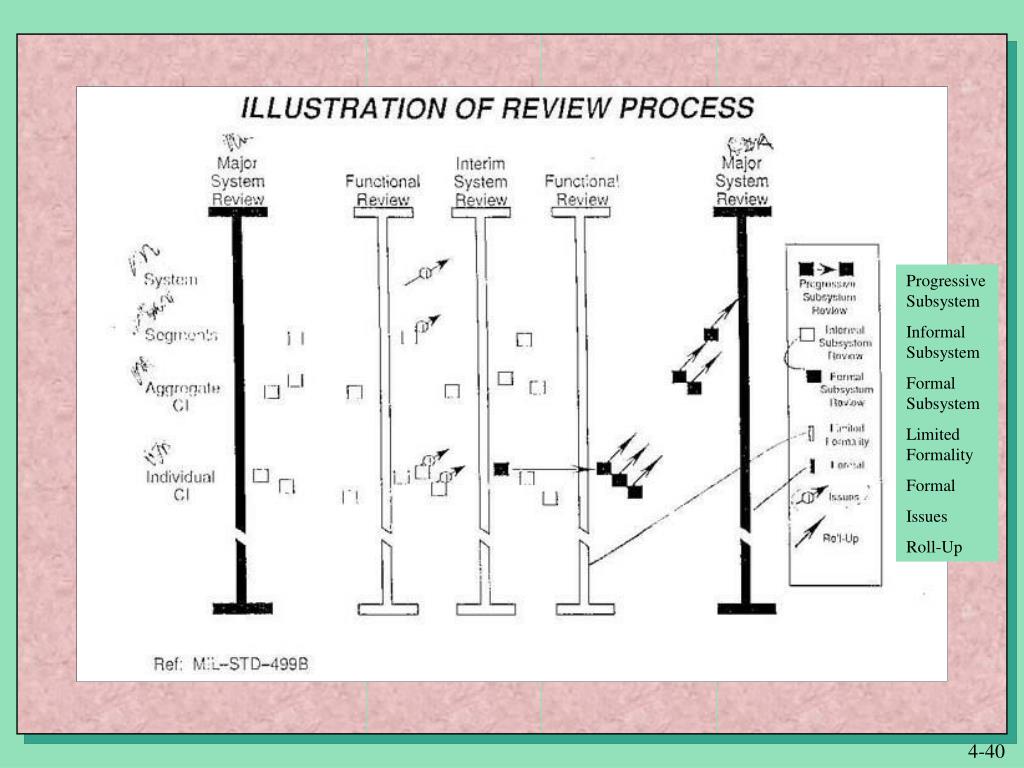

slide40

Progressive Subsystem

Informal Subsystem

Formal Subsystem

Limited Formality

Formal

Issues

Roll-Up

integrated technical reviews cont41

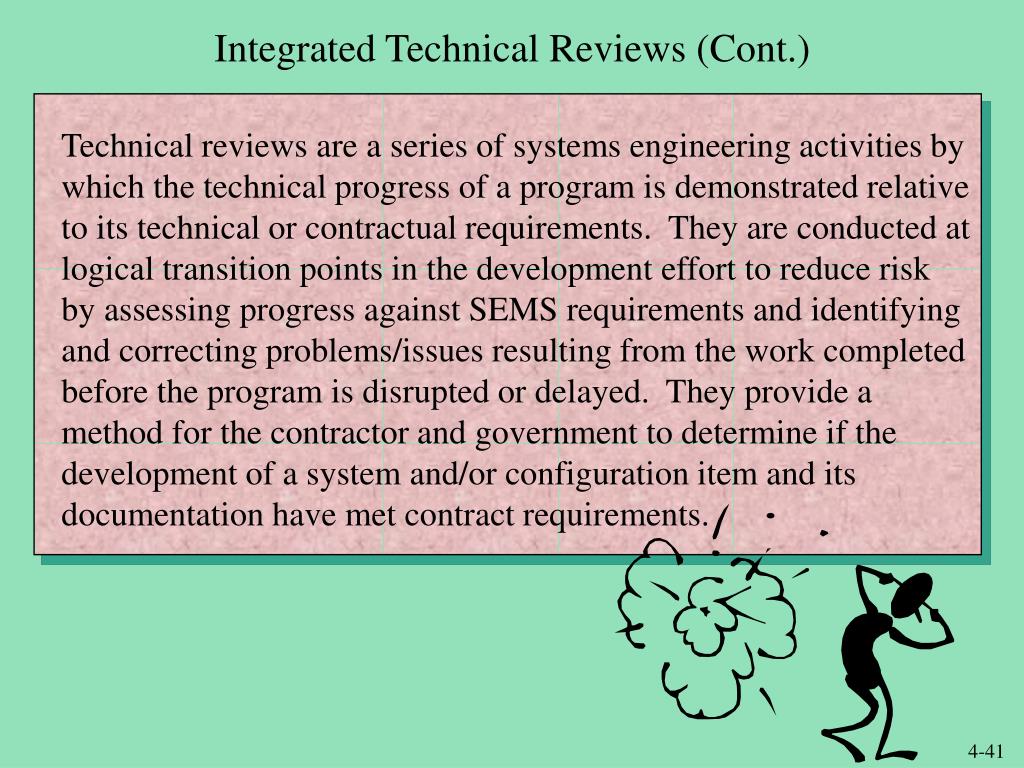

Integrated Technical Reviews (Cont.)

Technical reviews are a series of systems engineering activities by which the technical progress of a program is demonstrated relative to its technical or contractual requirements. They are conducted at logical transition points in the development effort to reduce risk by assessing progress against SEMS requirements and identifying and correcting problems/issues resulting from the work completed before the program is disrupted or delayed. They provide a method for the contractor and government to determine if the development of a system and/or configuration item and its documentation have met contract requirements.

planning guidance from dodd 5000 1 defense acquisition

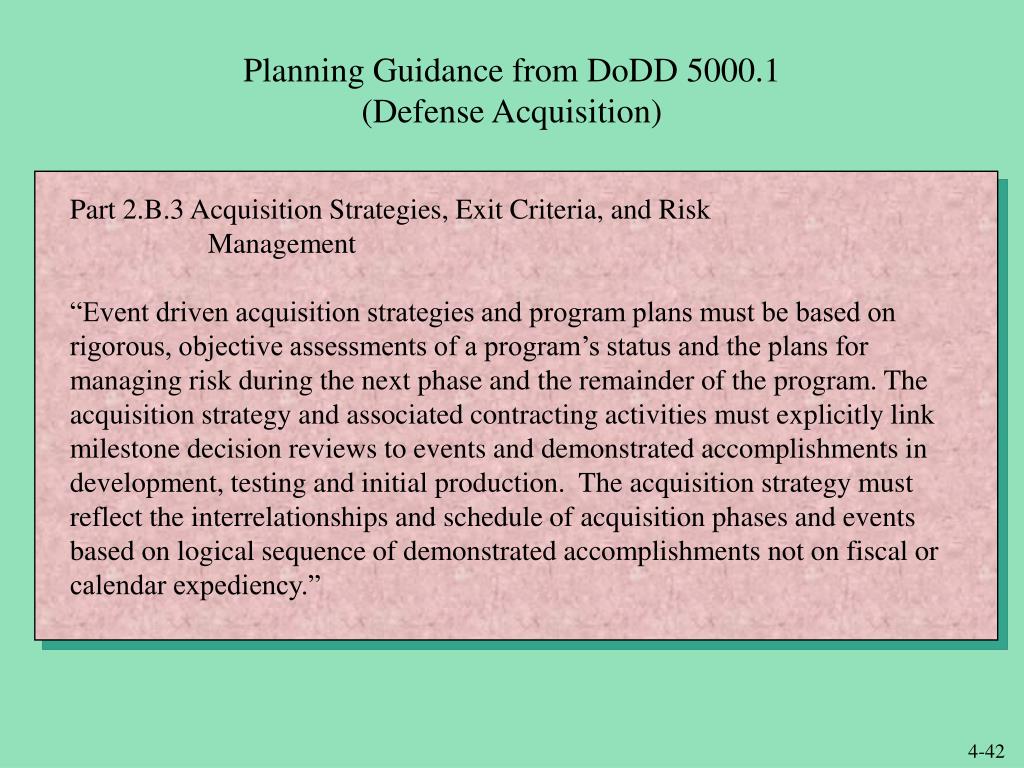

Planning Guidance from DoDD 5000.1(Defense Acquisition)

Part 2.B.3 Acquisition Strategies, Exit Criteria, and Risk

Management

“Event driven acquisition strategies and program plans must be based on rigorous, objective assessments of a program’s status and the plans for managing risk during the next phase and the remainder of the program. The acquisition strategy and associated contracting activities must explicitly link milestone decision reviews to events and demonstrated accomplishments in development, testing and initial production. The acquisition strategy must reflect the interrelationships and schedule of acquisition phases and events based on logical sequence of demonstrated accomplishments not on fiscal or calendar expediency.”

integrated technical reviews
Integrated Technical Reviews
  • The government assesses the status, maturity, risk, and verification status by conducting reviews that will:
    • Be adequately planned prior to the initiation technical work
    • Have event-driven entry and exit criteria with defined accomplishments and success metrics via the SEMS.
    • Be conducted incrementally (as appropriately) to measure progress towards achieving major accomplishments and obviate unexpected issues resulting from incomplete or inconclusive development activities.
    • Be conducted by multidisciplinary teams to ensure that all the system's functions are addressed and all system elements are integrated and balanced across the system.
