Different Types Of Material Utilized In Transmission Line Conductor Manufacturing

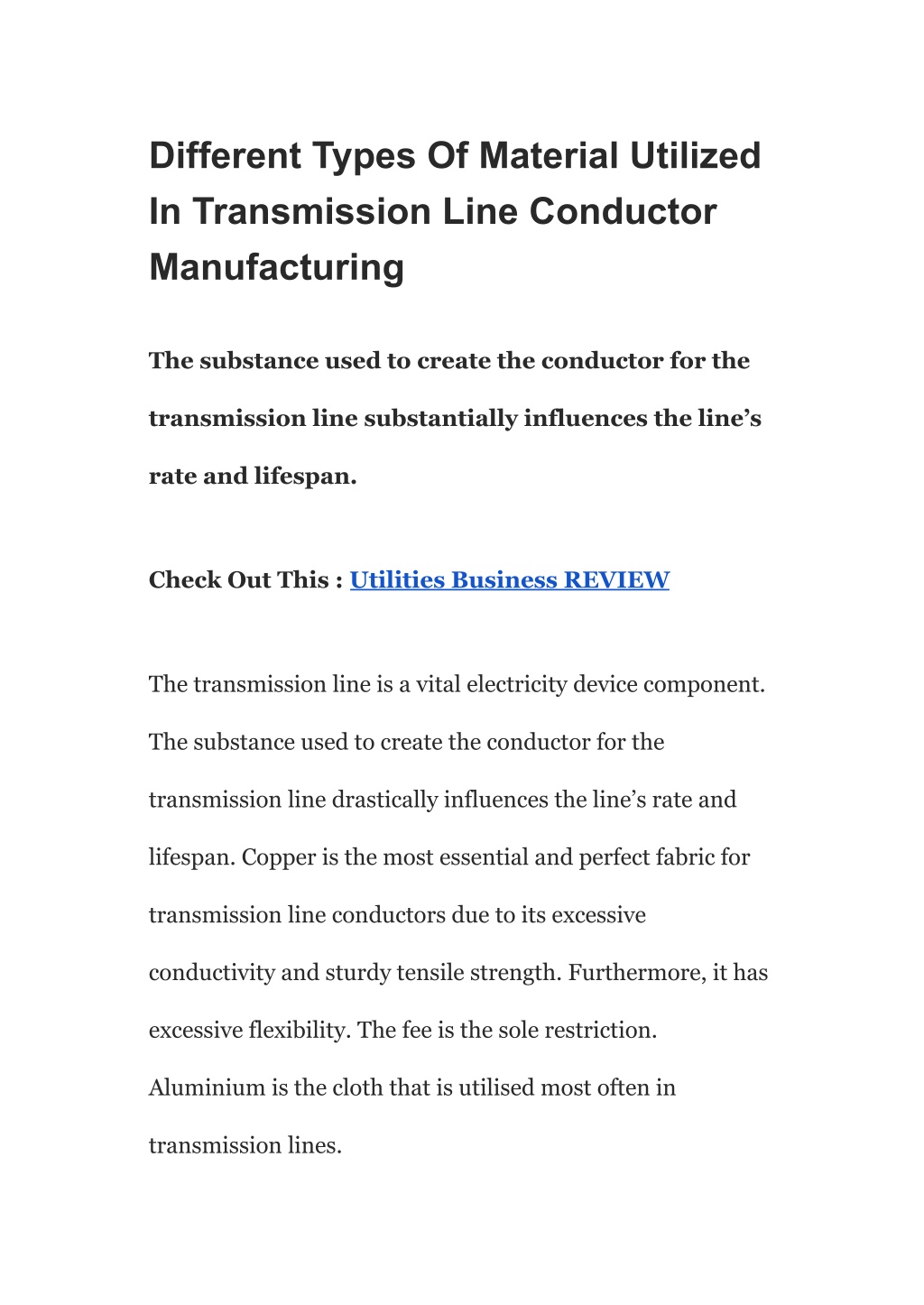

1. Different Types Of Material Utilized In Transmission Line Conductor Manufacturing The substance used to create the conductor for the transmission line substantially influences the line’s rate and lifespan. Check Out This : Utilities Business REVIEW The transmission line is a vital electricity device component. The substance used to create the conductor for the transmission line drastically influences the line’s rate and lifespan. Copper is the most essential and perfect fabric for transmission line conductors due to its excessive conductivity and sturdy tensile strength. Furthermore, it has excessive flexibility. The fee is the sole restriction. Aluminium is the cloth that is utilised most often in transmission lines.

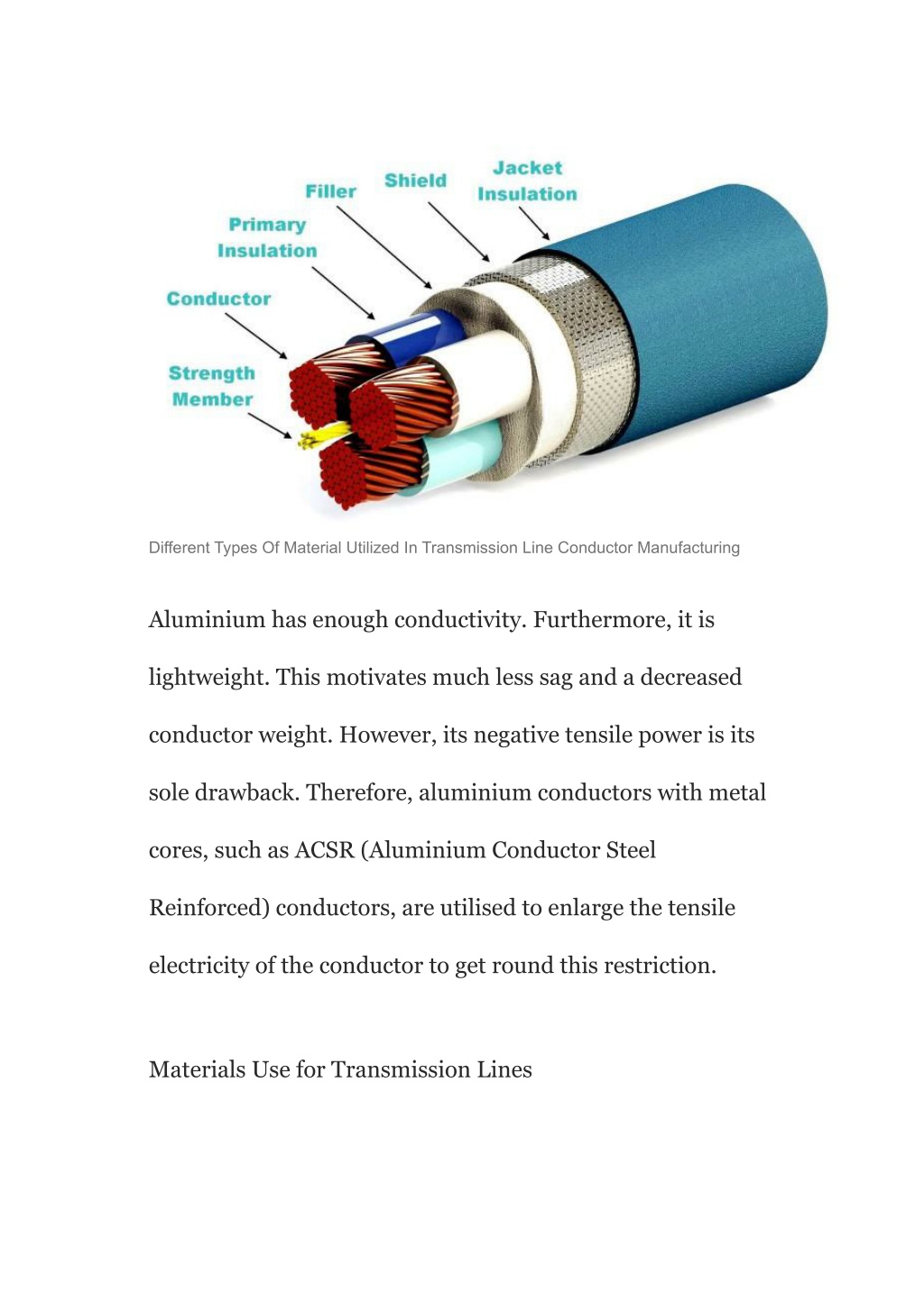

2. Different Types Of Material Utilized In Transmission Line Conductor Manufacturing Aluminium has enough conductivity. Furthermore, it is lightweight. This motivates much less sag and a decreased conductor weight. However, its negative tensile power is its sole drawback. Therefore, aluminium conductors with metal cores, such as ACSR (Aluminium Conductor Steel Reinforced) conductors, are utilised to enlarge the tensile electricity of the conductor to get round this restriction. Materials Use for Transmission Lines

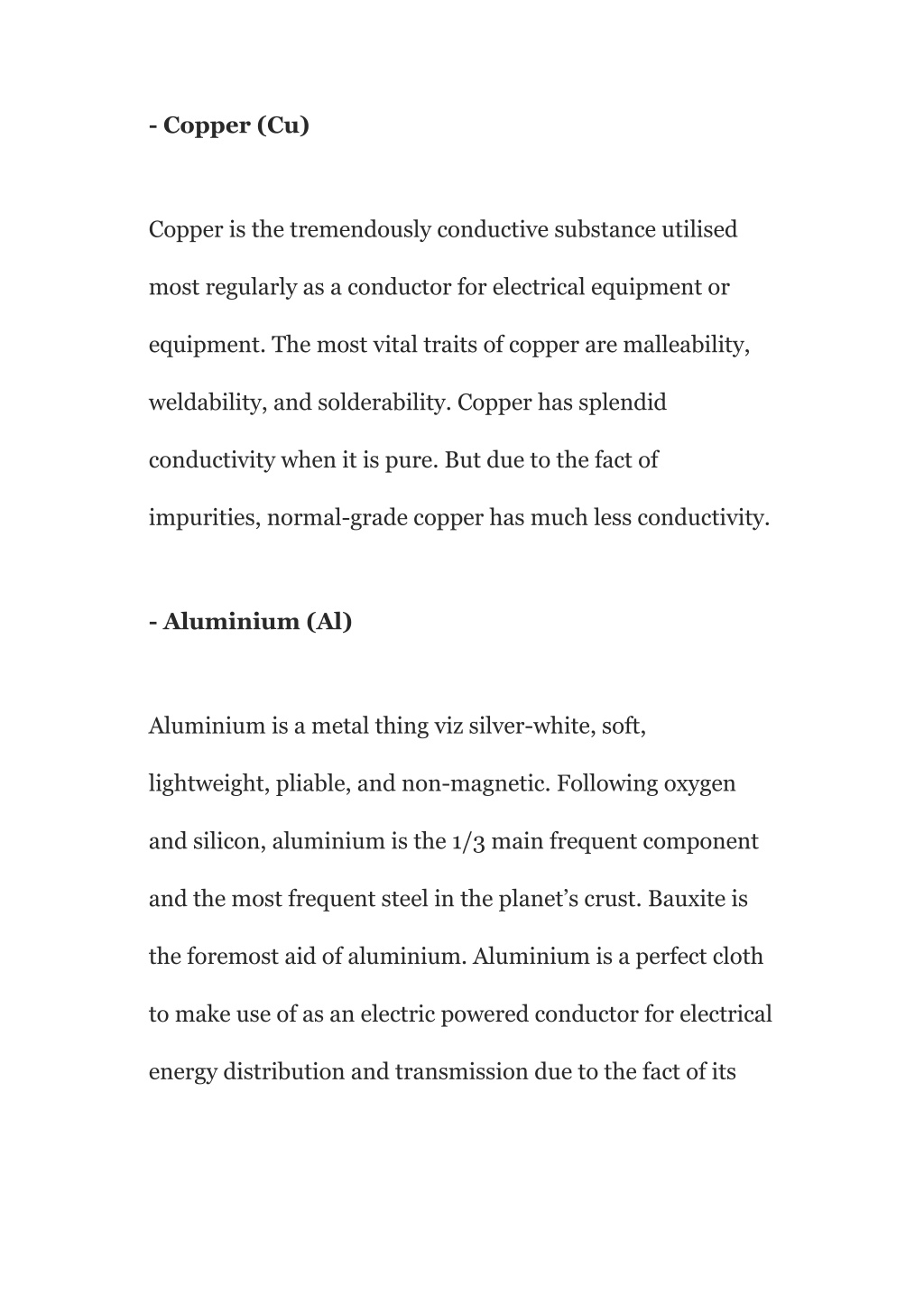

3. - Copper (Cu) Copper is the tremendously conductive substance utilised most regularly as a conductor for electrical equipment or equipment. The most vital traits of copper are malleability, weldability, and solderability. Copper has splendid conductivity when it is pure. But due to the fact of impurities, normal-grade copper has much less conductivity. - Aluminium (Al) Aluminium is a metal thing viz silver-white, soft, lightweight, pliable, and non-magnetic. Following oxygen and silicon, aluminium is the 1/3 main frequent component and the most frequent steel in the planet’s crust. Bauxite is the foremost aid of aluminium. Aluminium is a perfect cloth to make use of as an electric powered conductor for electrical energy distribution and transmission due to the fact of its

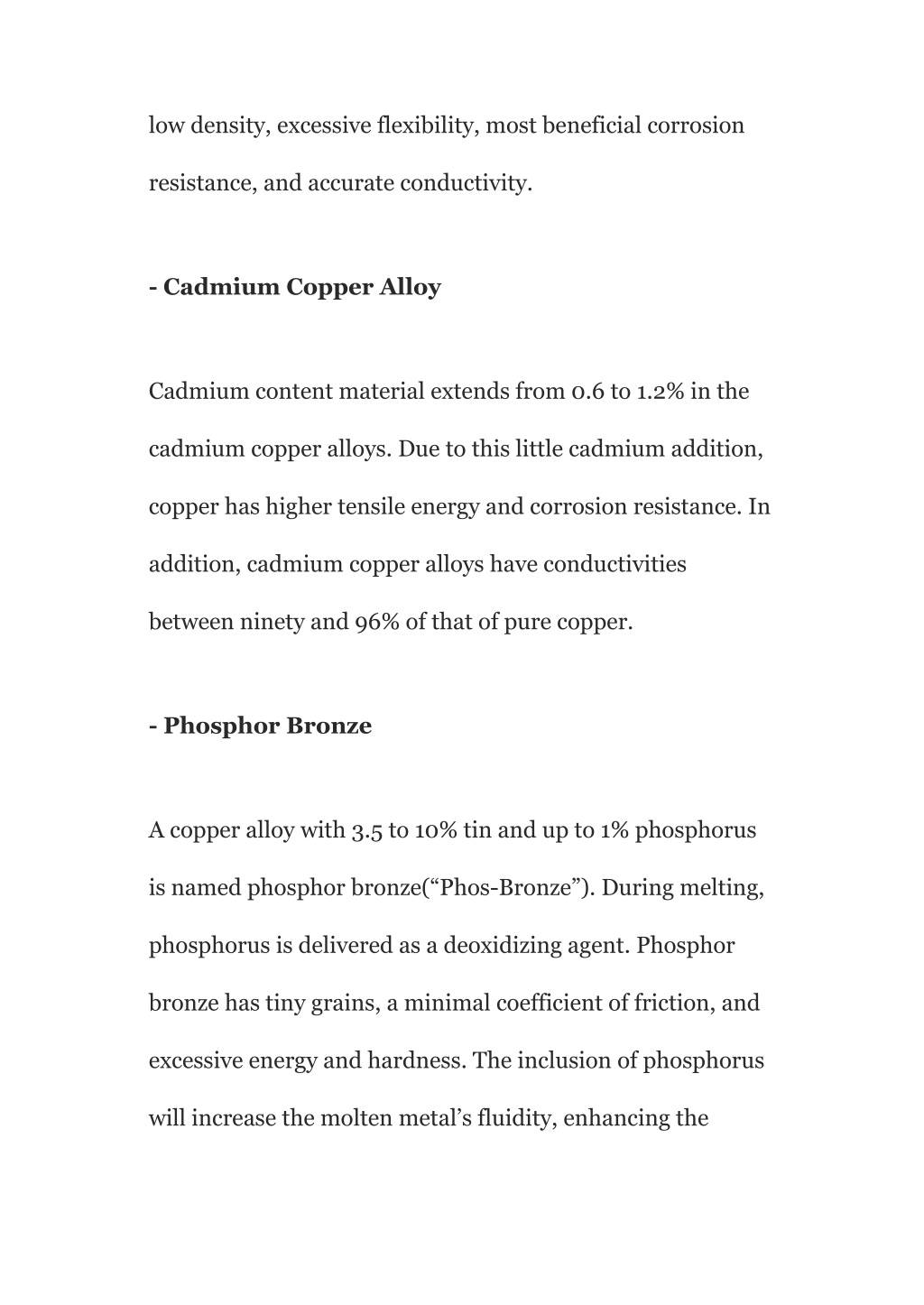

4. low density, excessive flexibility, most beneficial corrosion resistance, and accurate conductivity. - Cadmium Copper Alloy Cadmium content material extends from 0.6 to 1.2% in the cadmium copper alloys. Due to this little cadmium addition, copper has higher tensile energy and corrosion resistance. In addition, cadmium copper alloys have conductivities between ninety and 96% of that of pure copper. - Phosphor Bronze A copper alloy with 3.5 to 10% tin and up to 1% phosphorus is named phosphor bronze(“Phos-Bronze”). During melting, phosphorus is delivered as a deoxidizing agent. Phosphor bronze has tiny grains, a minimal coefficient of friction, and excessive energy and hardness. The inclusion of phosphorus will increase the molten metal’s fluidity, enhancing the

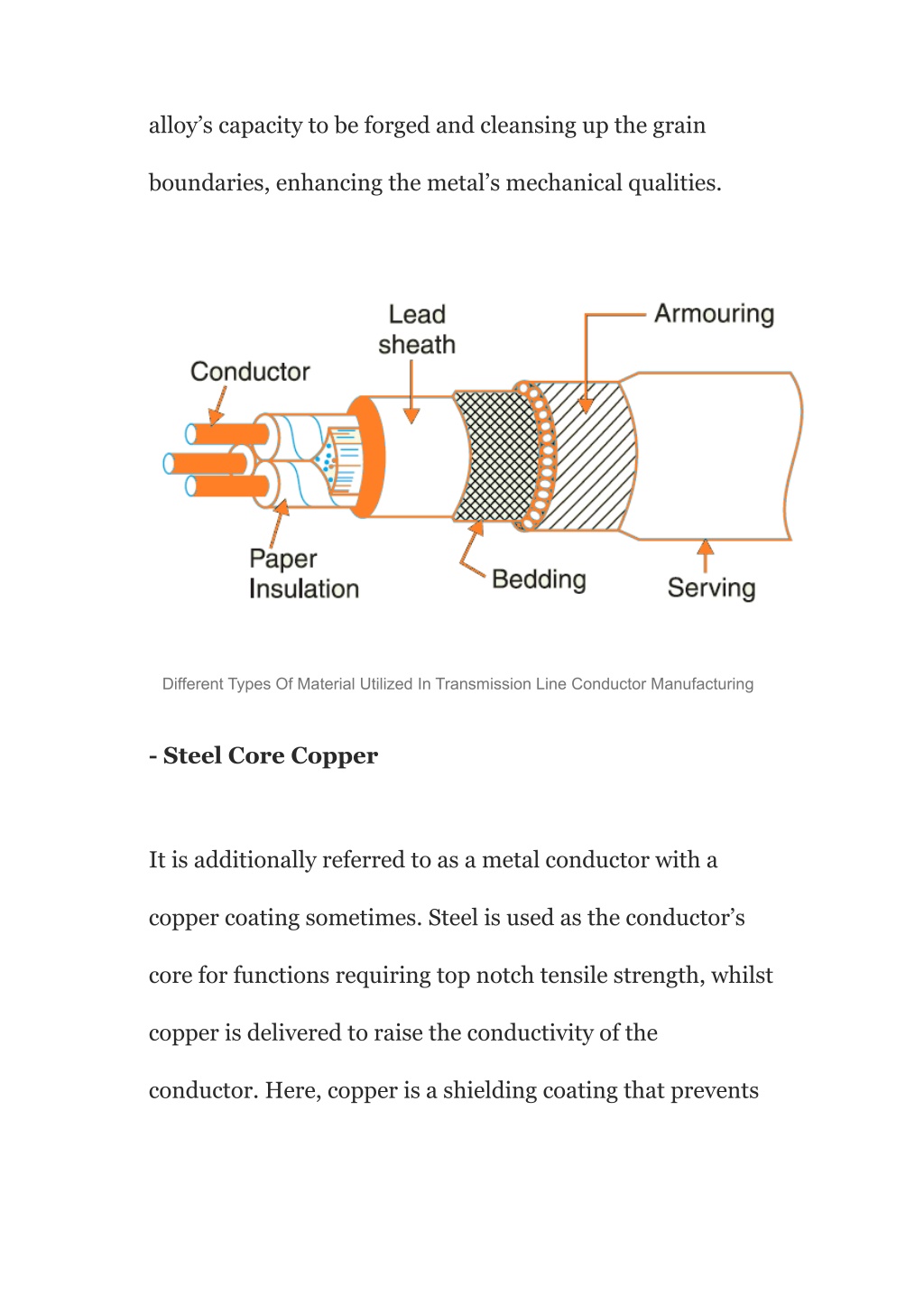

5. alloy’s capacity to be forged and cleansing up the grain boundaries, enhancing the metal’s mechanical qualities. Different Types Of Material Utilized In Transmission Line Conductor Manufacturing - Steel Core Copper It is additionally referred to as a metal conductor with a copper coating sometimes. Steel is used as the conductor’s core for functions requiring top notch tensile strength, whilst copper is delivered to raise the conductivity of the conductor. Here, copper is a shielding coating that prevents

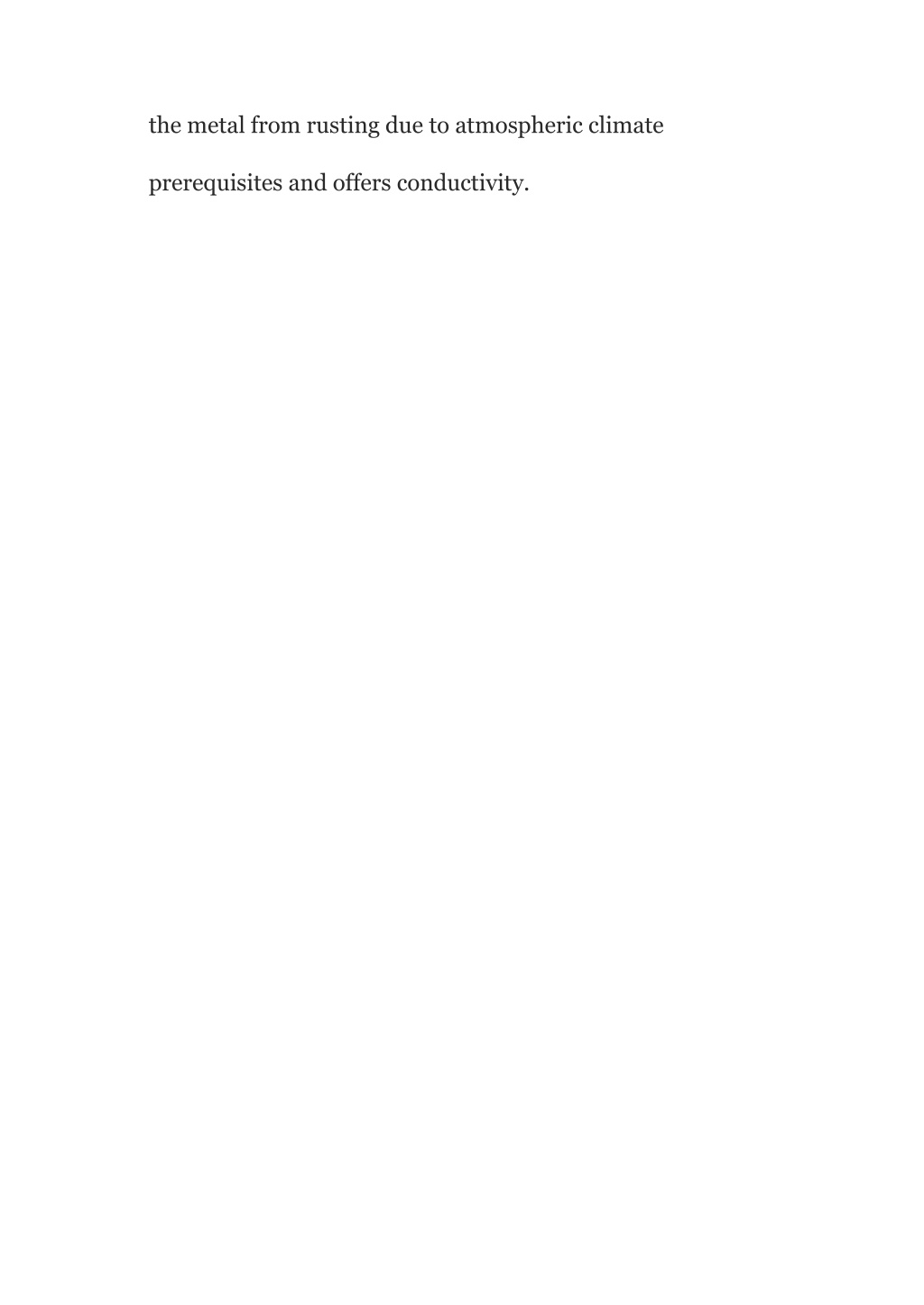

6. the metal from rusting due to atmospheric climate prerequisites and offers conductivity.
