spinal trauma a pain in the neck

Spinal Trauma A Pain in the Neck?

James I. Syrett, MD, MBChB.

George Lin, MD

Office of Prehospital Care.

Strong Memorial Hospital.

  • Cases.
  • Background.
  • Spinal Injuries.
  • Options for Immobilization.
  • Clearing in the Field.
  • Patient A.
    • 57 year old male, drunk, restrained driver in a 60 mph impact into a tree. No airbag.
    • Mobile on scene. No pain. Aggressive to police.
patient a
Patient A
  • You are the first responder: What do you do?
patient a5

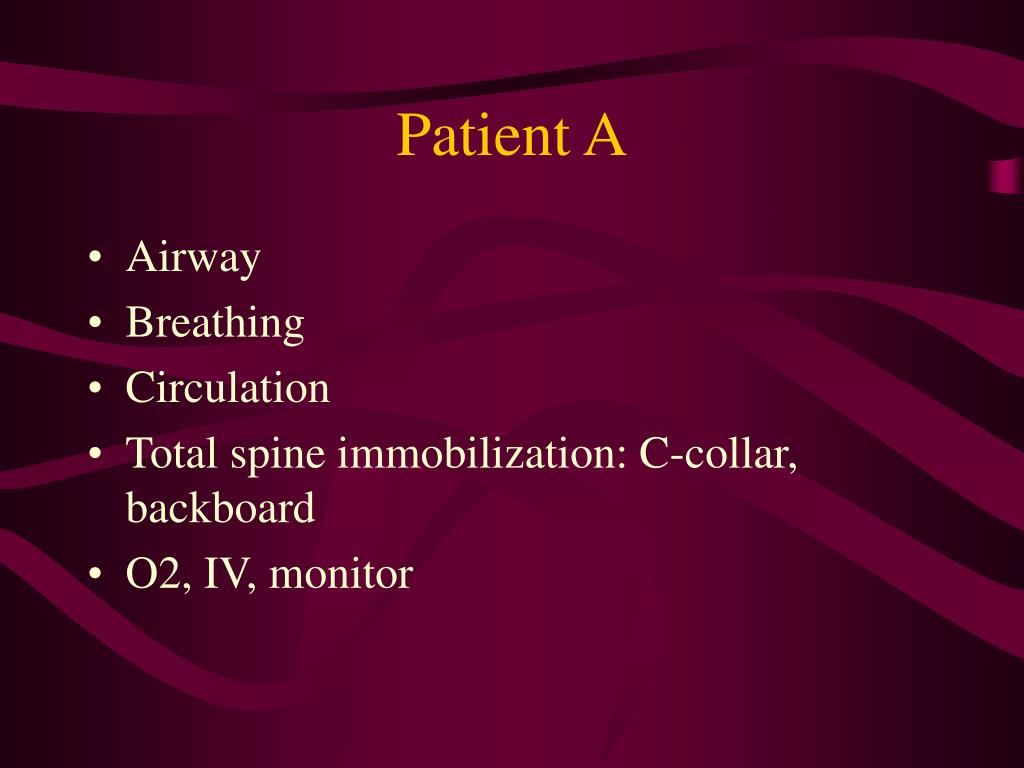

Patient A
  • Airway
  • Breathing
  • Circulation
  • Total spine immobilization: C-collar, backboard
  • O2, IV, monitor
patient a6
Patient A
  • Patient immobilized by EMS
  • Demand to be let off backboard.
  • Do you let him off?
  • Patient A
    • Patient let off backboard due to no apparent injuries.
    • Patient sat upright.
    • Patient went into cardio-respiratory arrest.
    • Pronounced dead 27 minutes later.
  • Patient B.
    • Airplane crash with ejection of pilot.
    • Thrown from crash site.
    • Burns to hands.
    • Neck pain.
    • Chest pain.
  • Patient B.
    • Backboard and collar.
    • Due to chest/lower back pain patient claimed could not breath, wants to be let off backboard and collar.
patient b
Patient B
  • What do you do?
  • Is it ok to let him off?
  • Patient B.
    • Bilateral pneumothorax.
    • C5 fracture.
    • Multiple lumbar fractures.

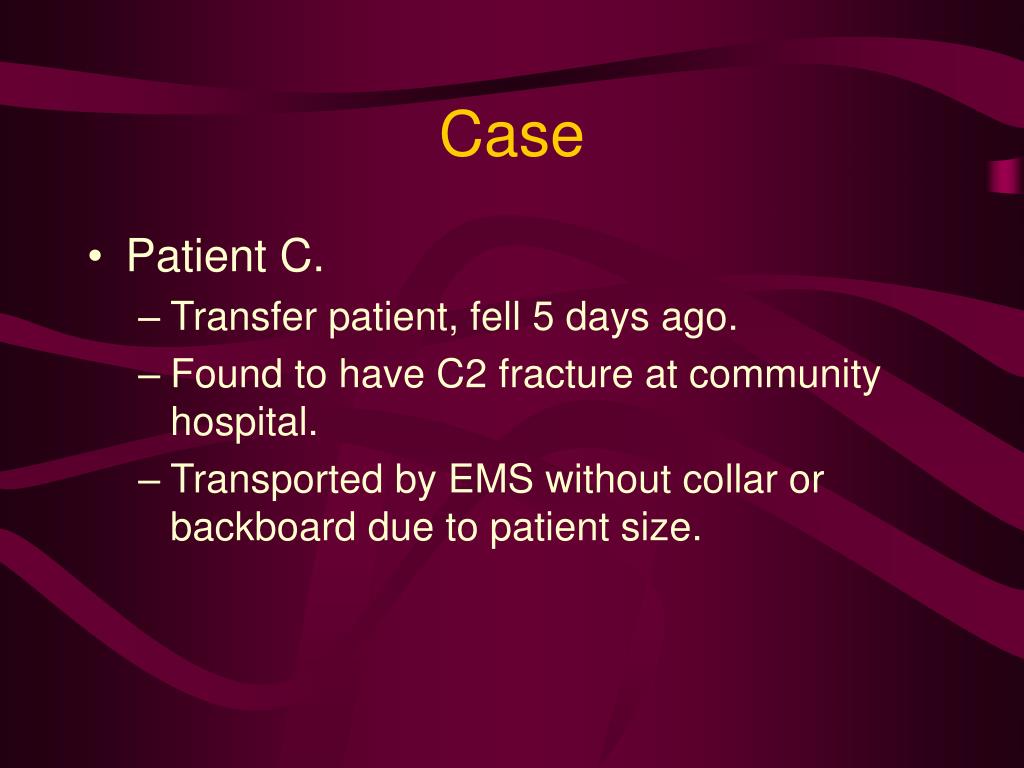

  • Patient C.
    • Transfer patient, fell 5 days ago.
    • Found to have C2 fracture at community hospital.
    • Transported by EMS without collar or backboard due to patient size.
  • Patient C.
    • Found on arrival to have new paralysis from shoulder down.
    • Admitted to ICU.
    • Died from pneumonia 19 days later.
why talk about spinal trauma
Why Talk About Spinal Trauma?
  • +200,000 spinal trauma victims living in the USA.
  • +10,000 new victims each year.
  • Annual cost to society is $5 billion each year.
  • The impact on victims and families is devastating.
  • “In the past, up to 10% of cases of permanent neurologic impairment after spinal trauma have been attributed to injudicious manipulation by paramedical personnel, examining physicians, or radiology technicians.”

Robert S. Hockberger in Emergency Medicine, 4th Ed.

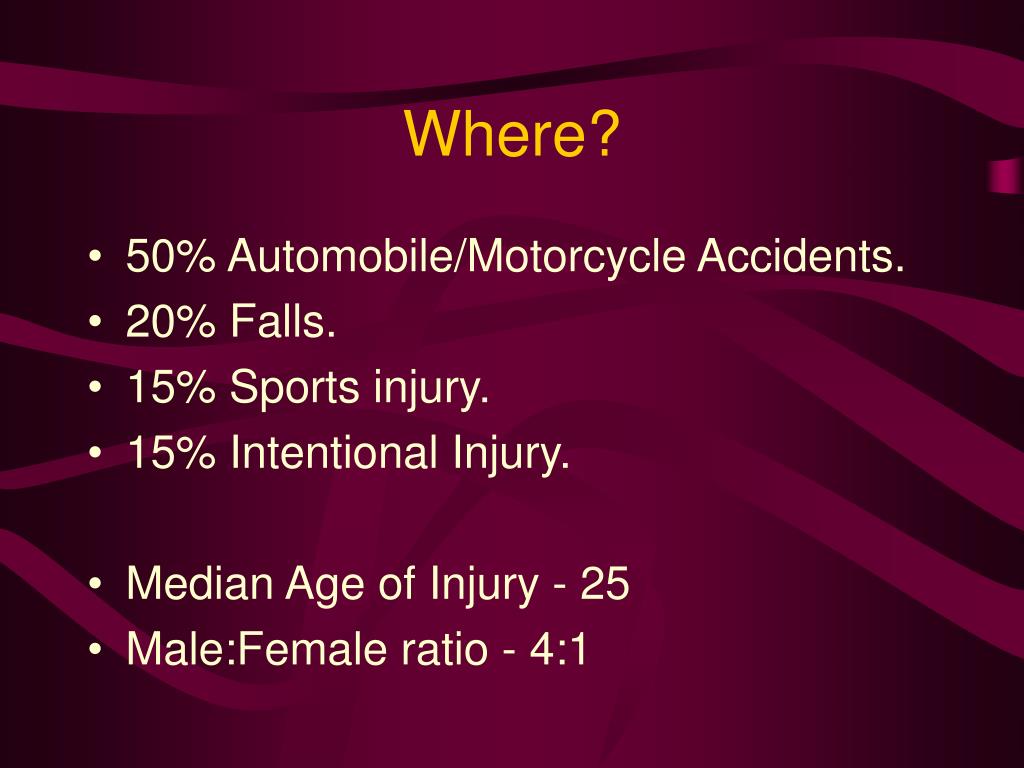

  • 50% Automobile/Motorcycle Accidents.
  • 20% Falls.
  • 15% Sports injury.
  • 15% Intentional Injury.
  • Median Age of Injury - 25
  • Male:Female ratio - 4:1
  • First, DO NO HARM.
  • Second: Immobilization equipment is readily available to EMS, easy to use, relatively cheap and prevents further injury.
  • Third: It is the responsibility and the duty of EMS to ensure the patient gets to hospital in the same or a better condition than when they left the scene.
hangman s
  • Historically from Hangings
  • Extreme Hyperextension
  • Head On Collision and Sudden Deceleration
  • Unstable Fracture through Pedicle of C2: minimal cord injury
wedge fracture24

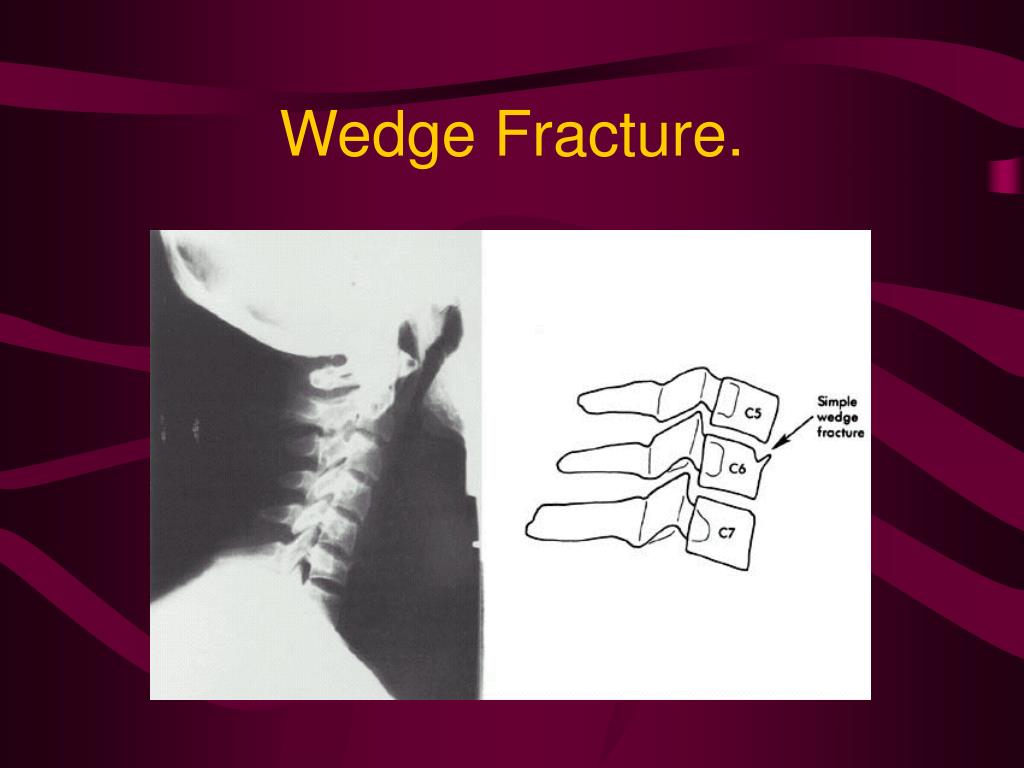

Wedge Fracture
  • Flexion
  • Anterior vertebral body injury/collapse
  • Stable fracture with minimal cord involvement
teardrop fracture26

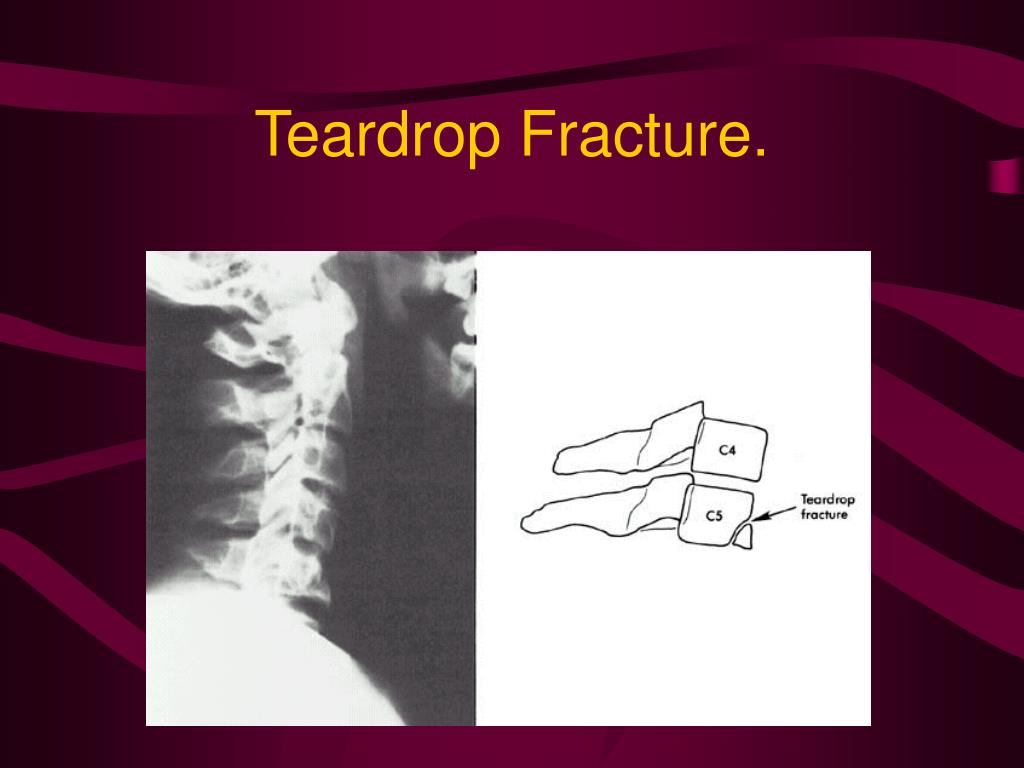

Teardrop Fracture
  • Flexion
  • Injury to anterior vertebral body: wedge shape fragment is displaced anteriorly
  • Unstable fracture: ligamentous injury
clay shoveler s fracture
Clay Shoveler’s Fracture
  • Historically: Clay miners in Australia in 1930s when the lift heavy clay and flex their necks.
  • Flexion injury
  • Avulsion fracture of spinous process usually C7
  • Stable
spinal emergencies
Spinal Emergencies
  • Diaphragmatic Paralysis
  • Bradycardia
  • Neurogenic Shock
diaphragmatic paralysis
Diaphragmatic Paralysis
  • C3 and above cord injury
  • C3,4,5 keep diaphragm alive
  • Secure airway
  • Provide respiratory support
  • Immobilization
  • Sympathetic outflow cutoff
  • Atropine ready to patient side
neurogenic shock
Neurogenic Shock
  • Diagnosis of exclusion: rule out hemorrhagic shock, cardiac tamponade, tension pneumothorax
  • Usually mild
  • Trendelenburg’s position, IVF
  • Hospital setting: Dopamine/Levophed drip
  • Mechanism of injury causing possible spinal trauma
    • MVC
    • Fall
    • Flash burn
    • GSW to neck
    • Stab wound to neck is usually not necessary
    • GSW to head usually not necessary
    • When in doubt, IMMOBILIZE
aims of immobilization
Aims of Immobilization.
  • Prevent further damage - Protect the Cord.
  • Hold the entire spine in a comfortable, anatomically correct and safe way.
  • Prevent movement of the entire spine.
  • Allow for safe concurrent management of other injuries.
options for immobilization
Options for Immobilization
  • Anatomical Regions (ENTIRE SPINE).

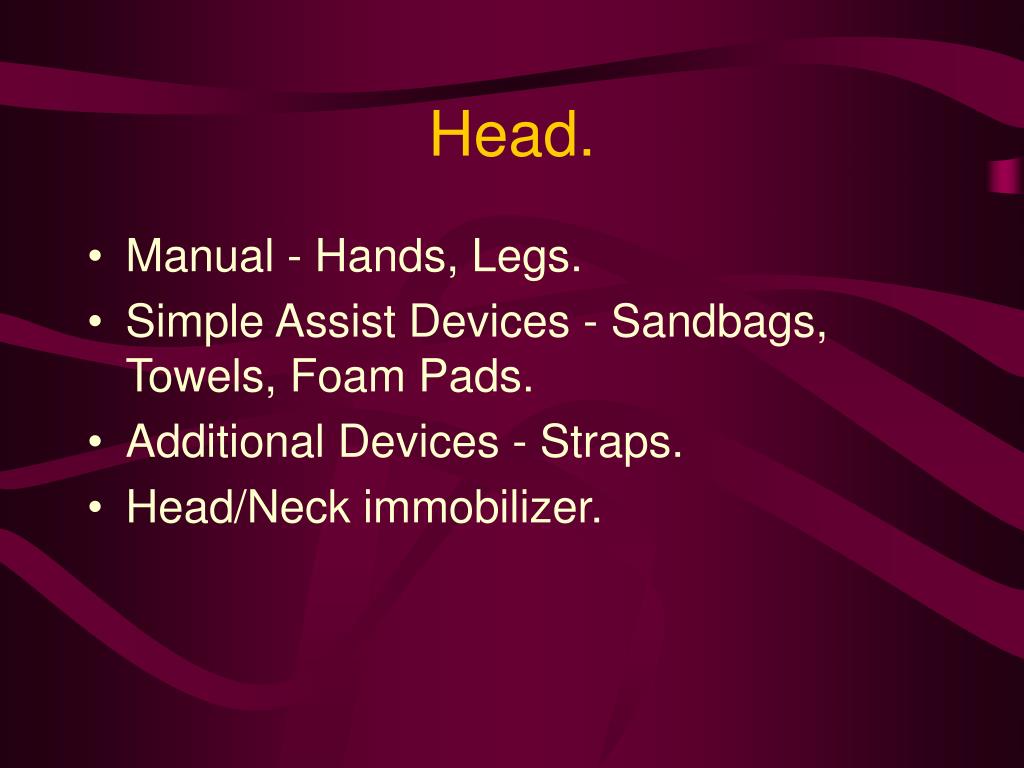

    • Head.
    • Neck.
    • Body.
  • Manual - Hands, Legs.
  • Simple Assist Devices - Sandbags, Towels, Foam Pads.
  • Additional Devices - Straps.
  • Head/Neck immobilizer.
  • Collars.
    • Philadelphia.
    • Stiffneck.
    • Other options.
  • Backboards.
    • Hard, soft, shaped.
    • Short, long.
  • Kendrick Extrication Device.
  • Vacuum Splints.
immobilization principles
Immobilization Principles.
  • No movement should be made that would worsen potential injuries.
    • No sudden movements.
    • No anatomically incorrect movements.
    • One at a time or careful coordination.
    • Make sure everyone knows what they are doing.
immobilization principles40

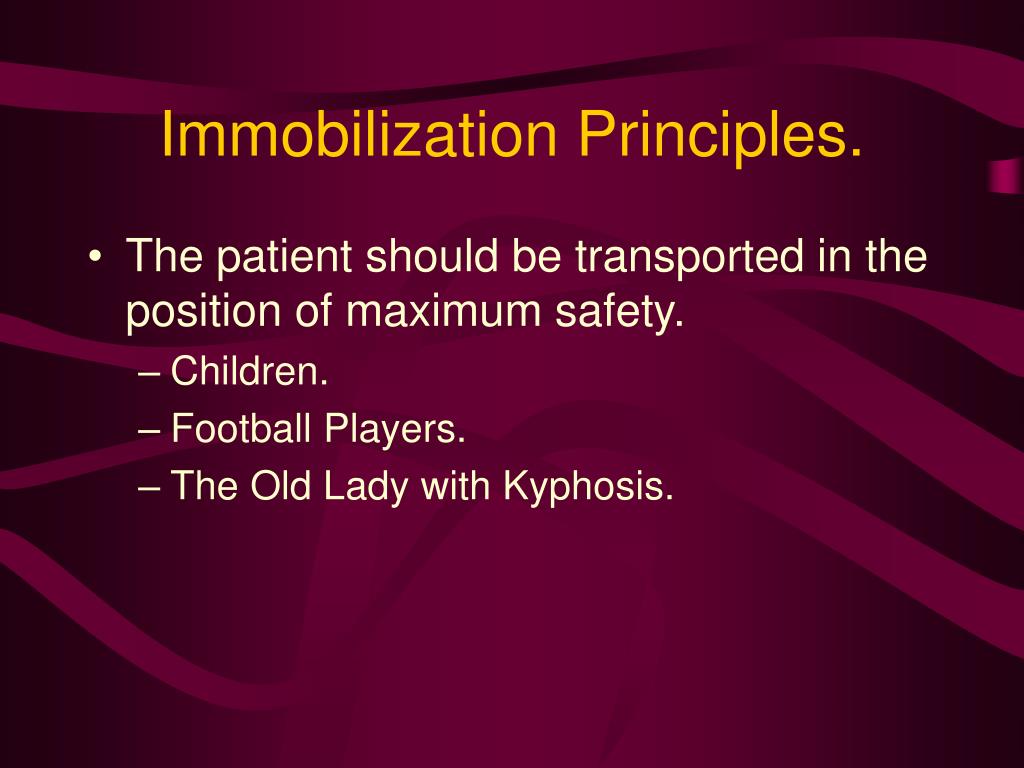

Immobilization Principles.
  • The patient should be transported in the position of maximum safety.
    • Children.
    • Football Players.
    • The Old Lady with Kyphosis.
immobilization principles41
Immobilization Principles.
  • The patient should be transported in a method that ensures the minimal amount of movement during transport.
    • Full Body Immobilization.
what is the minimum standard

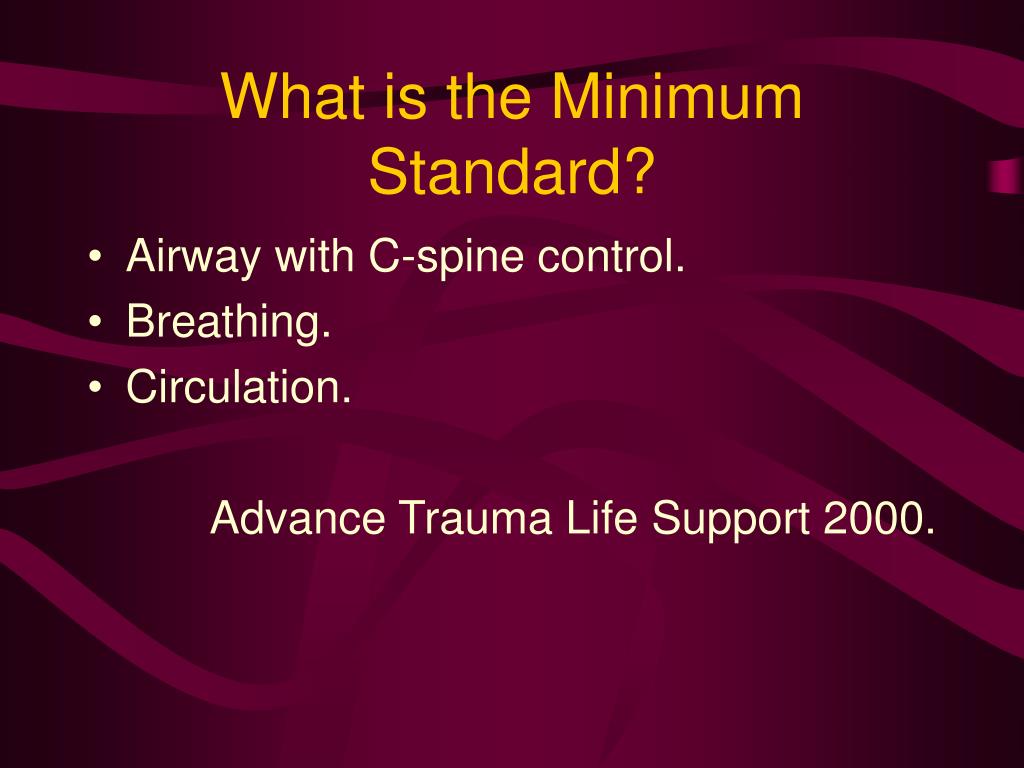

What is the Minimum Standard?
  • Airway with C-spine control.
  • Breathing.
  • Circulation.

Advance Trauma Life Support 2000.

clearing in the field
Clearing in the Field.
  • Benefits.
    • Reduction of on-scene time.
    • Reduction of ‘unnecessary’ transports.
    • Feeling of EMS autonomy.
clearing in the field44
Clearing in the Field.
  • Negatives.
    • Increased risk of litigation.
    • Cost of an error.
    • Difficulty in defining a standard that is known to work.
the nexus study

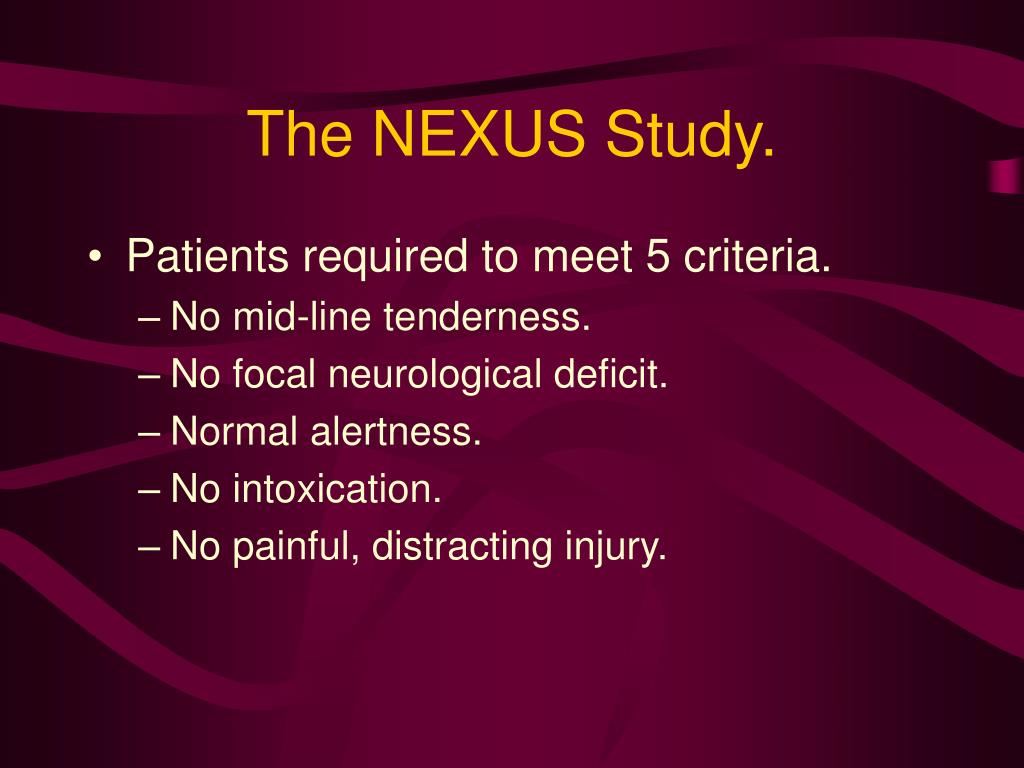

The NEXUS Study.
  • Patients required to meet 5 criteria.
    • No mid-line tenderness.
    • No focal neurological deficit.
    • Normal alertness.
    • No intoxication.
    • No painful, distracting injury.
  • Patients who underwent C-spine Xray for blunt trauma.
  • 34,069 patients included in study.
  • 818 patients had a C-spine injury.
  • 8 of these patients met all 5 criteria.
  • 4209 non-injured patients met all 5 criteria.
  • A good model for MDs with good insurance.
  • Bad model for EMS.
    • Scene stress.
    • Management stressors.
    • Failure to discriminate what pain is significant.
    • What is a distracting injury.
    • How drunk is intoxicated.
