joint work with

An Introduction toParallel ComputationandΡ-Completeness TheorybyRaymond Greenlaw

Joint work with:

Larry RuzzoDepartment of Computer ScienceUniversity of Washington

Jim HooverComputing Science DepartmentUniversity of Alberta

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

outline
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

outline3
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

introduction
Introduction
  • Sequential computation:

Feasible ~ nO(1) time (polynomial time).

  • Parallel computation:

Feasible ~ nO(1) time and~ nO(1) processors.

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

introduction5

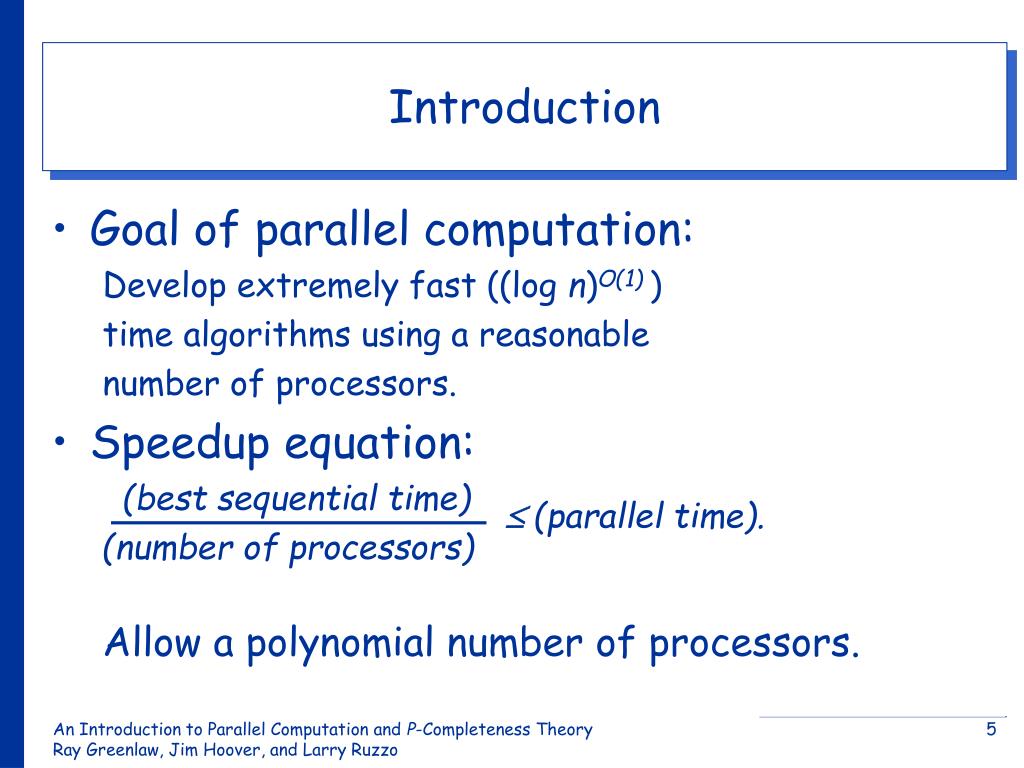

Introduction
  • Goal of parallel computation:

Develop extremely fast ((log n)O(1) )

time algorithms using a reasonable

number of processors.

  • Speedup equation:

(best sequential time)

(number of processors)

Allow a polynomial number of processors.

 (parallel time).

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

introduction6
Introduction

Roughly,

  • A problem is feasible if it can be solved by a parallel algorithm with worst case time and processor complexity nO(1).
  • A problem is feasiblehighly parallelif it can be solved by an algorithm with worst case time complexity (log n)O(1) and processor complexity nO(1).
  • A problem is inherentlysequentialif it is feasible but has no feasible highly parallel algorithm for its solution.

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

outline7
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

parallel models of computation
Parallel Models of Computation
  • Parallel Random Access Machine Model
  • Boolean Circuit Model
  • Circuits and PRAMs

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

parallel random access machine

P0

C0

P1

C1

P2

C2

Parallel Random Access Machine

RAM Processors

Global Memory Cells

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

boolean circuit model

0

1

1

1

0

AND

OR

OR

AND

OR

NOT

AND

Boolean Circuit Model

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

circuits and prams
Circuits and PRAMS

Theorem:

A function f from {0,1}* to {0,1}* can be computed by a logarithmic space uniform Boolean circuit family {n} with depth(n)є(logn)O(1) and size(n) єnO(1)if and only iff can be computed by a CREW-PRAM M on inputs of length n in time t(n) є (logn)O(1) using p(n) є nO(1).

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

outline12
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

basic complexity
Basic Complexity
  • Decision, Function, and Search Problems
  • Complexity Classes
  • Reducibility
  • Completeness

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

decision function and search problems

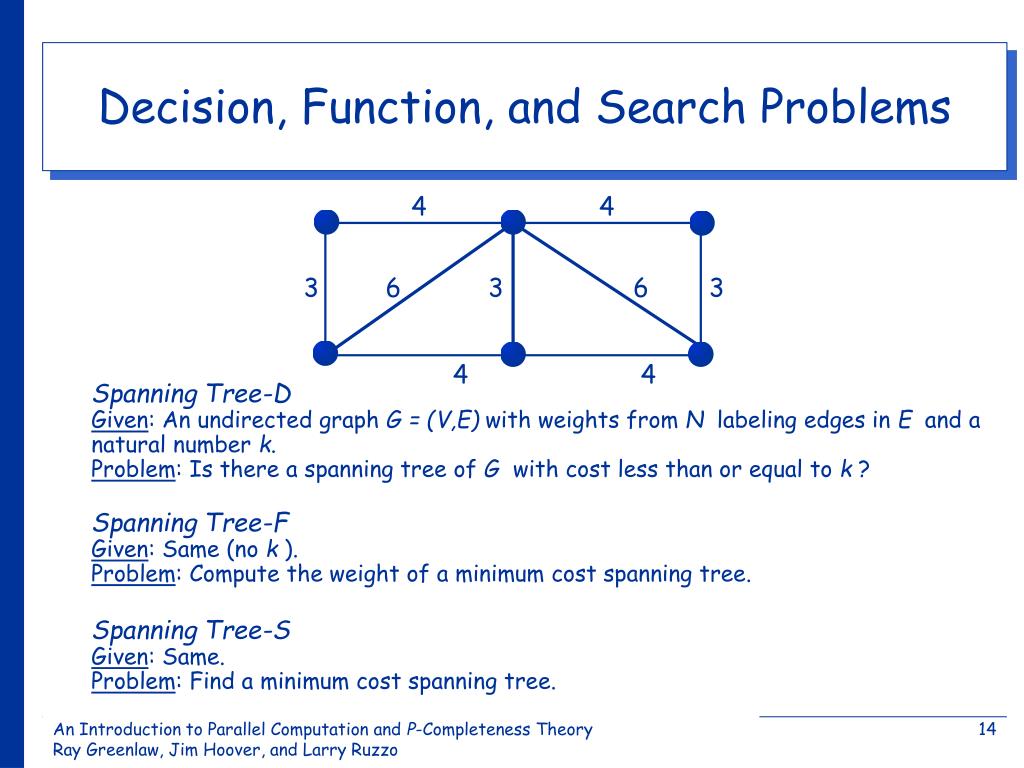

Decision, Function, and Search Problems

4

4

Spanning Tree-DGiven: An undirected graph G = (V,E) with weights from N labeling edges in E and a natural number k.Problem: Is there a spanning tree of G with cost less than or equal to k ?Spanning Tree-FGiven: Same (no k ).Problem: Compute the weight of a minimum cost spanning tree.Spanning Tree-SGiven: Same.Problem: Find a minimum cost spanning tree.

3

6

3

6

3

4

4

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

complexity classes
Complexity Classes

Definitions:P is the set of all languages L that are decidable in sequential time nO(1).NC is the set of all languages L that are decidable in parallel time (logn)O(1) and processors nO(1). FP is the set of all functions from {0,1}* to {0,1}* that are computable in sequential time nO(1).FNC is the set of all functions from {0,1}* to {0,1}* that are computable in parallel time (logn)O(1) and processors nO(1).NC k, k 1, is the set of all languages L such that L is recognized by a uniform Boolean circuit family {n} with size(n) = nO(1) and depth (n) = O((logn)k).

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

many one reducibility
Many-One Reducibility

Definitions:A language L is many-one reducibleto a language L’, written L PL’ , if there is a function f such that x є L if and only if f(x) є L’.

L is P many-one reducibleto L’, written L  PL’ , if the function fis in FP.For k  1, L is NCk many-one reducibleto L’, written L  NC kL’, if the function fis in FNCk.

L is NC many-one reducibleto L’, written L NCL’, if the function fis in FNC.

m

m

m

m

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

many one reducibility17
Many-One Reducibility

Lemma:The reducibilities m,  P, NC k(k 1), and NC are transitive.

  • If L’ є P and LP L’, LNC kL’ (k >1), or L NCL’ then L є P.
  • If L’ є NC k (k >1), and LNC kL’ then L є NC k.
  • If L’ є NC and LNCL’ then L є NC .

m

m

m

m

m

m

m

m

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

turing reducibility
Turing Reducibility

Definition:L is NC Turing reducibleto L’, written LNCL’, if and only if the L’-oracle PRAM on inputs of length n uses time (logn)O(1) and processors nO(1).

Lemma:

The reducibility NC is transitive.

  • If LNCL’then LNCL’.
  • If LNCL’and L’ єNCthen L є NC.
  • If LNCL’and L’ єPthen L є P.

T

T

m

T

T

T

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

completeness

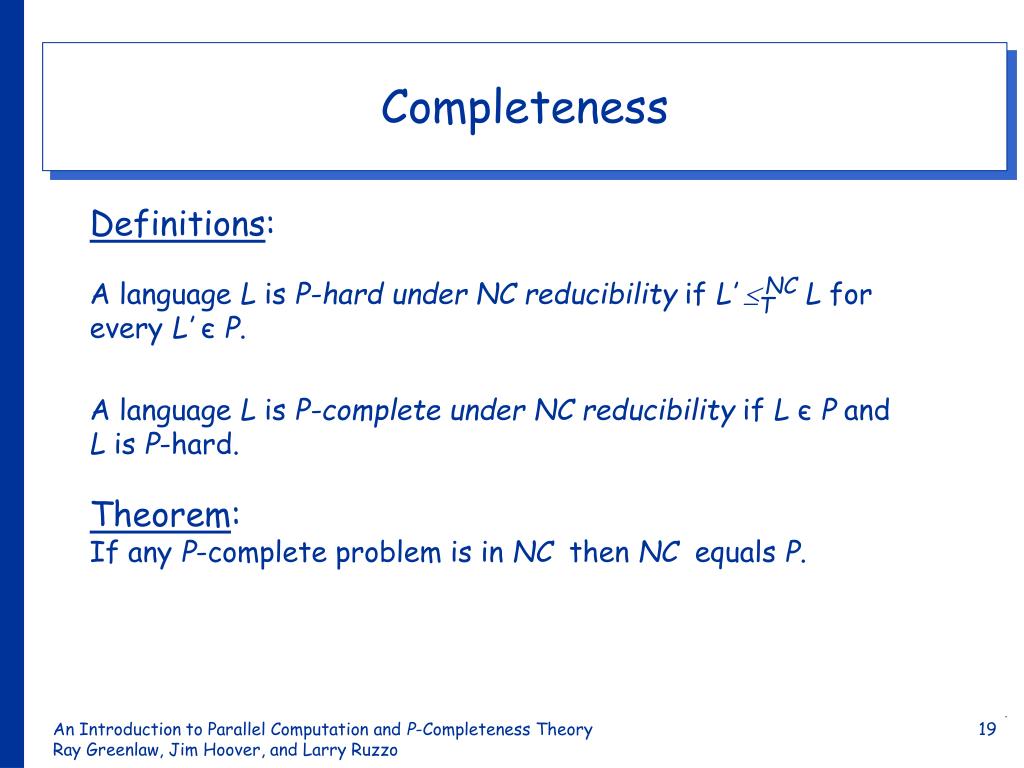

Completeness

Definitions:

A language L is P-hard under NC reducibility if L’ NCL for every L’ є P. A language L is P-complete under NC reducibility if L є P and L is P-hard.

Theorem:If any P-complete problem is in NC then NC equals P.

T

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

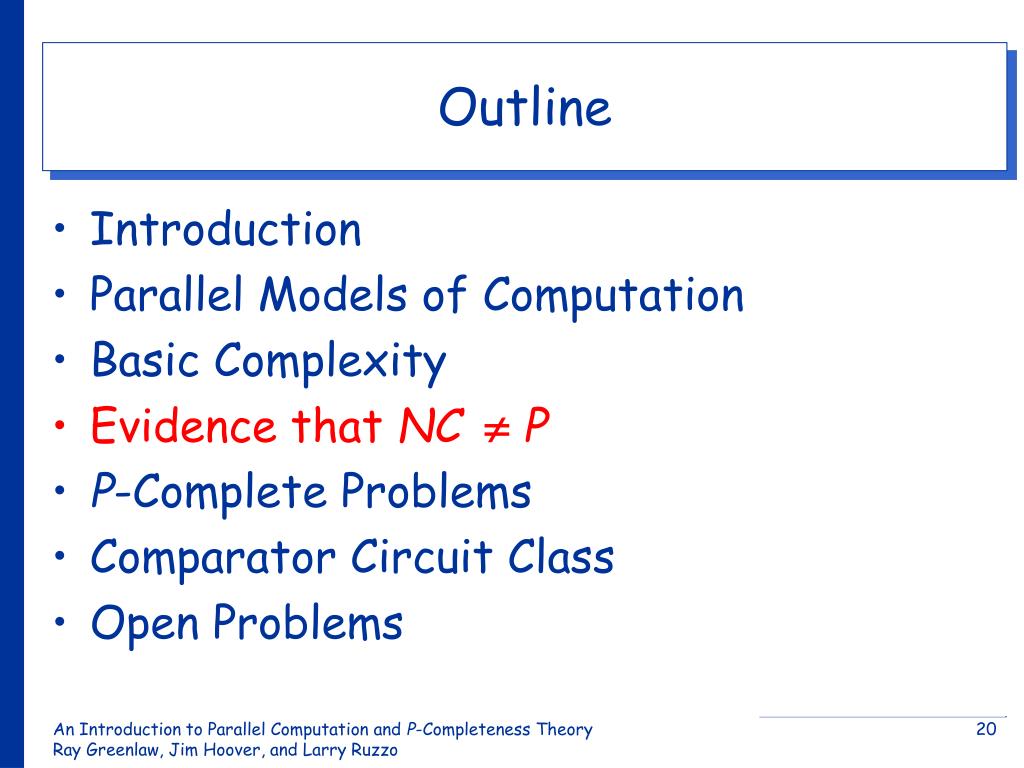

outline20
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

evidence that nc p
Evidence That NCP
  • General Simulations Are Not Fast
  • Fast Simulations Are Not General
  • Natural Approaches Provably Fail

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

evidence that nc p22
Evidence That NC P

Gaps in Simulations

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

outline23
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

p complete problems
P-Complete Problems

There are approximately 175 P-complete problems (500 with variations).Categories:

  • Circuit complexity
  • Graph theory
  • Searching graphs
  • Combinatorial optimization and flow
  • Local optimality
  • Logic
  • Formal languages
  • Algebra
  • Geometry
  • Real analysis
  • Games
  • Miscellaneous

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

circuit value problem
Circuit Value Problem

Given: An encoding  of a Boolean circuit , inputs x1,…,xn, and a designated output y.

Problem:Is output y of  TRUE on input x1,…,xn?

Theorem: [Ladner 75]The Circuit Value Problem is P-complete under NC1 reductions.

m

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

p complete variations of cvp
P-Complete Variations of CVP
  • Topologically Ordered [Folklore]
  • Monotone [Goldschlager 77]
  • Alternating Monotone Fanin 2, Fanout 2 [Folklore]
  • NAND [Folklore]
  • Topologically Ordered NOR [Folklore]
  • Synchronous Alternating Monotone Fanout 2 CVP [Greenlaw, Hoover, and Ruzzo 87]
  • Planar [Goldschlager 77]

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

nand circuit value problem
NAND Circuit Value Problem

Given: An encoding  of a Boolean circuit  that consists solely of NAND gates, inputs x1,…,xn, and a designated output y.

Problem:Is output y of  TRUE on input x1,…,xn?

Theorem:The NAND Circuit Value Problem is P-complete.

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

nand circuit value problem28

1

0

0

1

0

0

1

1

0

1

1

1

1

1

NAND

OR

NAND

NAND

AND

OR

OR

NAND

1

0

1

1

NAND Circuit Value Problem

Proof:Reduce AM2CVP to NAND CVP. Complement all inputs. Relabel all gates as NAND.

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

graph theory

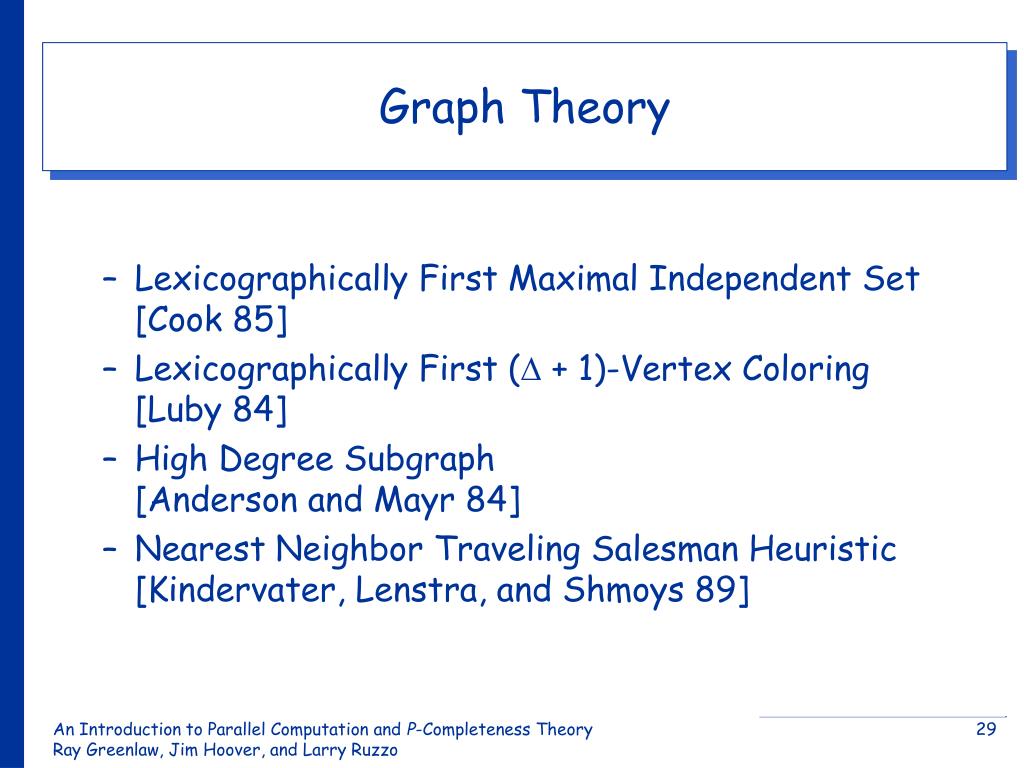

Graph Theory
  • Lexicographically First Maximal Independent Set [Cook 85]
  • Lexicographically First ( + 1)-Vertex Coloring [Luby 84]
  • High Degree Subgraph [Anderson and Mayr 84]
  • Nearest Neighbor Traveling Salesman Heuristic [Kindervater, Lenstra, and Shmoys 89]

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

lexicographically first maximal independent set

1

1

0

0

0

0

X

1

2

3

4

5

X

X

NOR

NOR

1

2

3

4

5

6

7

0

6

7

X

NOR

1

8

8

0

NOR

9

9

0

Lexicographically First Maximal Independent Set

Theorem: [Cook 85]LFMIS is P-complete.

Proof:Reduce TopNOR CVP to LFMIS. Add new vertex 0. Connect to all false inputs.

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

searching graphs

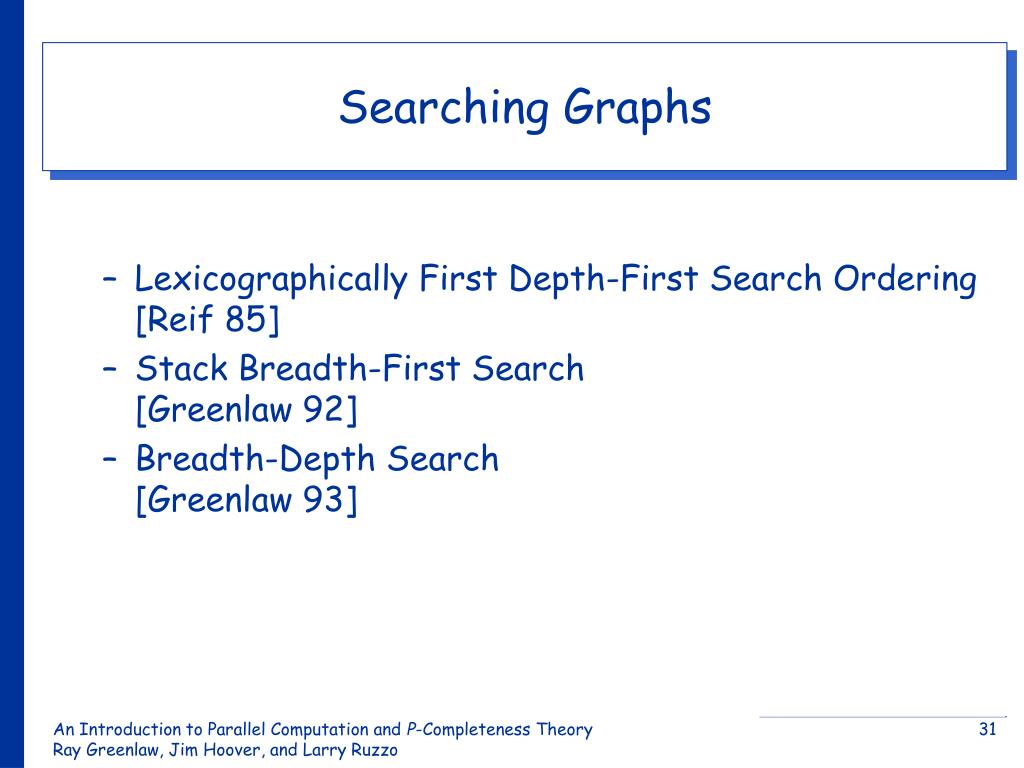

Searching Graphs
  • Lexicographically First Depth-First Search Ordering [Reif 85]
  • Stack Breadth-First Search [Greenlaw 92]
  • Breadth-Depth Search [Greenlaw 93]

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

context free grammar empty
Context-Free Grammar Empty

Given: A context-free grammar G=(N,T,P,S).

Problem: Is L(G)empty?

Theorem: [Jones and Laaser 76], [Goldschlager 81], [Tompa 91]CFGempty is P-complete.

Proof: Reduce Monotone CVP to CFGempty. Given  construct G=(N,T,P,S) with N, T, S, and P as follows:

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

context free grammar empty33

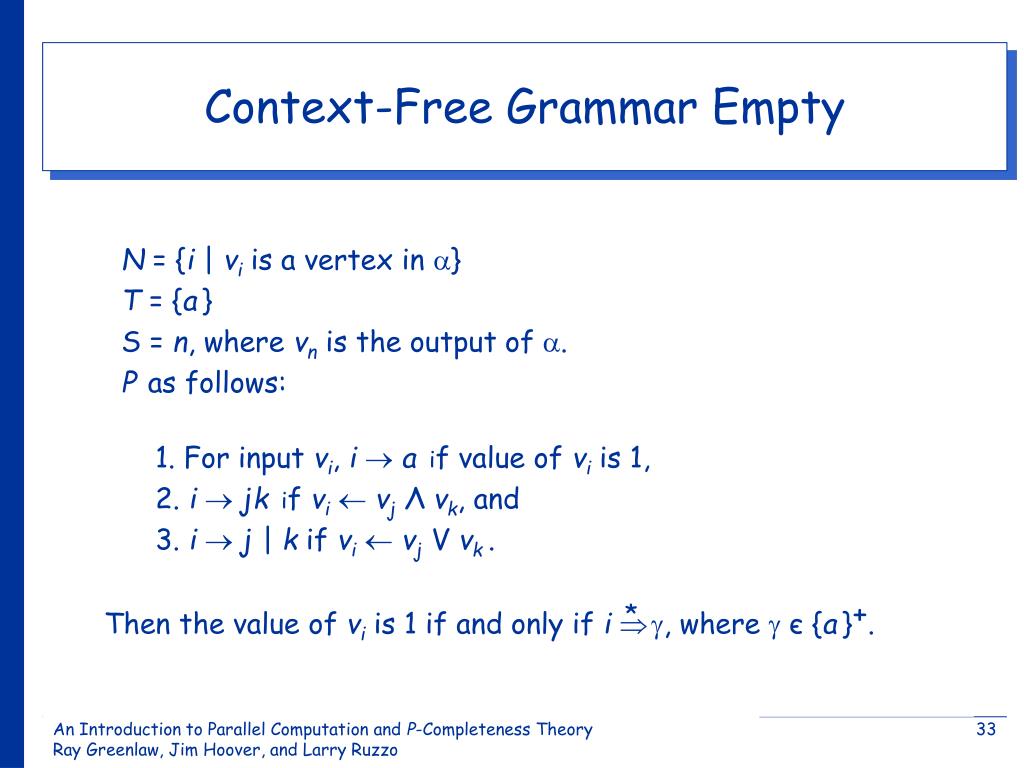

Context-Free Grammar Empty

N = {i | vi is a vertex in }

T = {a}

S = n, where vn is the output of .

P as follows:

1. For input vi, i aif value of vi is 1,

2. i jkif vi vjΛ vk, and

3. i j | k if vi vj V vk .

Then the value of vi is 1 if and only if i , where  є {a}+.

*

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

cfgempty example

x1

x3

x2

x4

1

2

3

4

5

6

AND

OR

AND

7

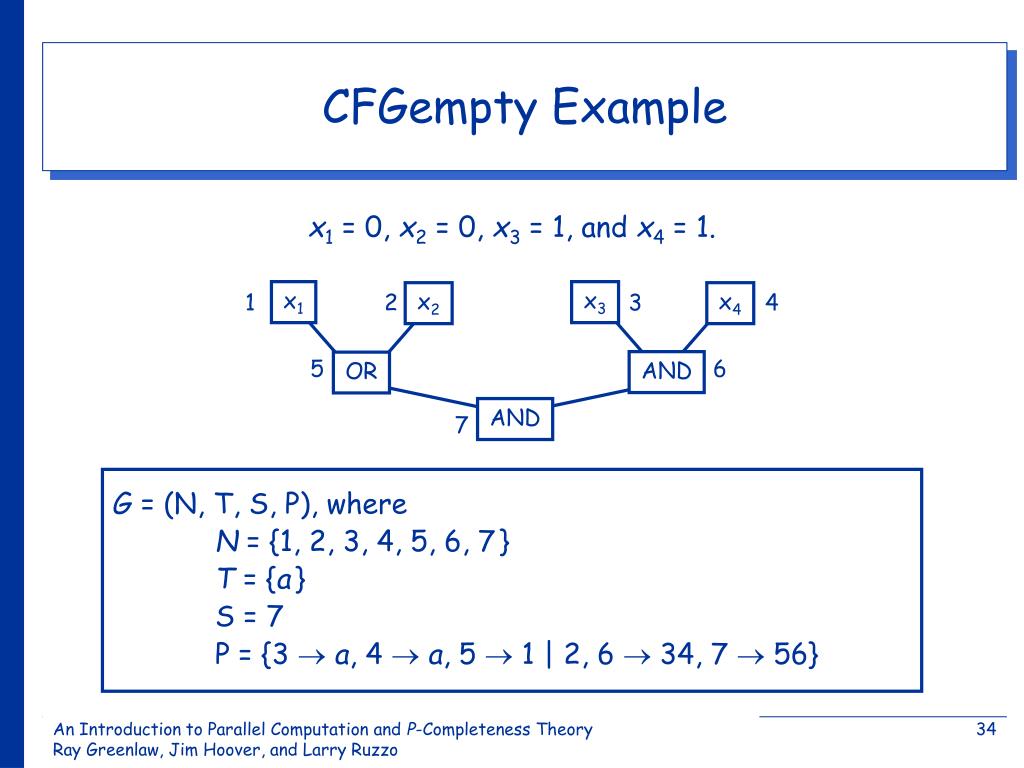

CFGempty Example

x1 = 0, x2 = 0, x3 = 1, and x4 = 1.

G = (N, T, S, P), where

N = {1, 2, 3, 4, 5, 6, 7}

T = {a}

S = 7

P = {3  a, 4  a, 5  1 | 2, 6  34, 7  56}

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

outline35
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

comparator circuit class

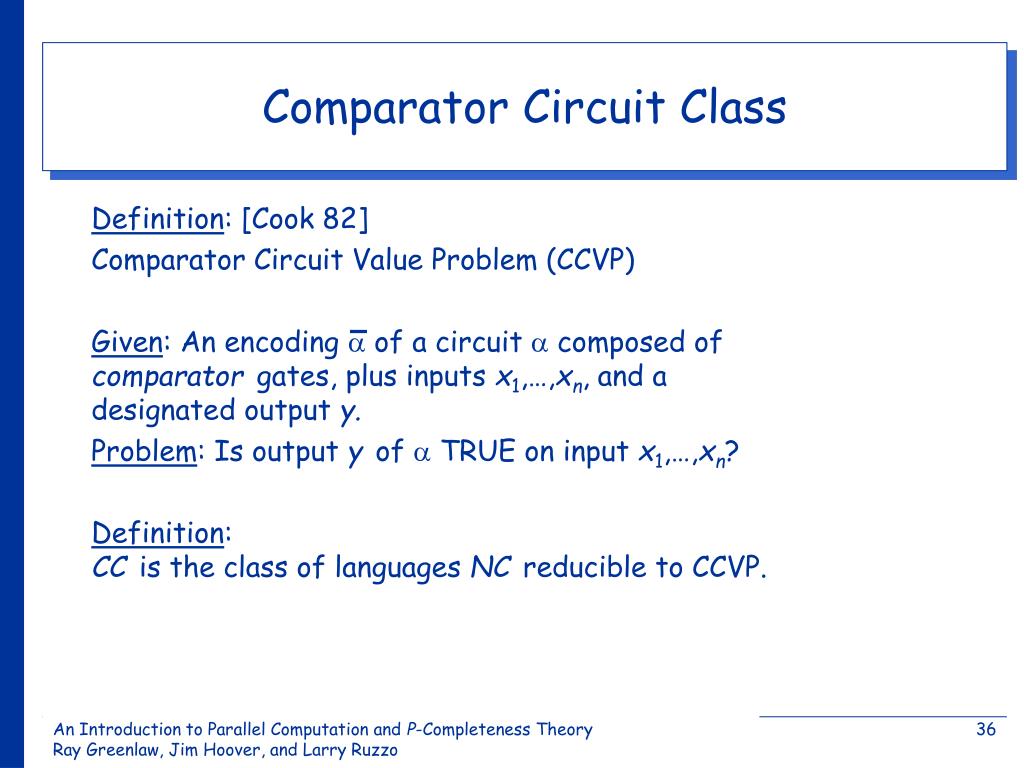

Comparator Circuit Class

Definition: [Cook 82]

Comparator Circuit Value Problem (CCVP)

Given: An encoding  of a circuit  composed of comparatorgates, plus inputs x1,…,xn, and a designated output y.

Problem: Is output yof  TRUE on input x1,…,xn?

Definition: CC is the class oflanguages NC reducible to CCVP.

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

cc complete problems
CC-Complete Problems
  • Lexicographically First Maximal Matching [Cook 82]
  • Telephone Connection [Ramachandran and Wang 91]
  • Stable Marriage [Mayr and Subramanian 92]

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

outline38
Outline
  • Introduction
  • Parallel Models of Computation
  • Basic Complexity
  • Evidence that NC  Ρ
  • Ρ-Complete Problems
  • Comparator Circuit Class
  • Open Problems

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo

open problems
Open Problems

Find an NC algorithm or classify

as P-complete.

  • Edge Ranking
  • Edge-Weighted Matching
  • Restricted Lexicographically First Maximal Independent Set
  • Integer Greatest Common Divisor
  • Modular Powering

An Introduction to Parallel Computation and Ρ-Completeness TheoryRay Greenlaw, Jim Hoover, and Larry Ruzzo
