canning at home

Canning At Home

Rick Sloan

FCS Agent

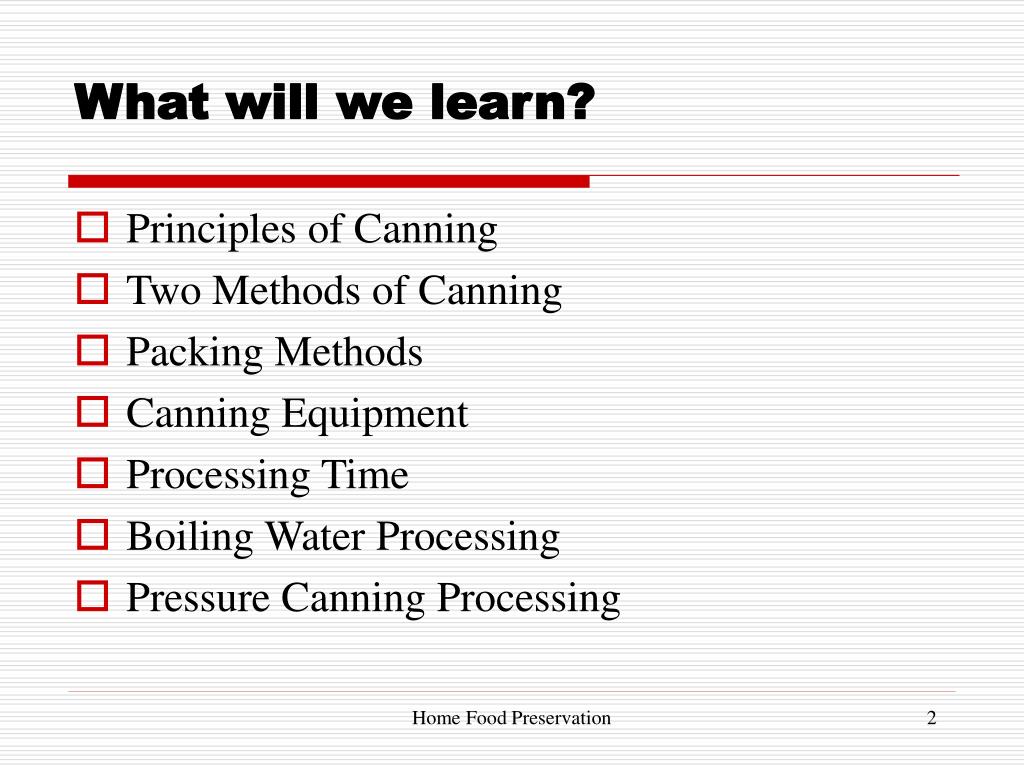

what will we learn
What will we learn?

Principles of Canning

Two Methods of Canning

Packing Methods

Canning Equipment

Processing Time

Boiling Water Processing

Pressure Canning Processing

Home Food Preservation

2

principles of canning

Principles of Canning

Home Food Preservation

3

canning basics
Canning Basics

Food is placed in a canning jar and heated to a temperature that destroys targeted microorganisms.

Heat also inactivates enzymes that cause spoilage.

Air is driven from the jar during heating. As the jar cools a vacuum seal is formed.

Home Food Preservation

4

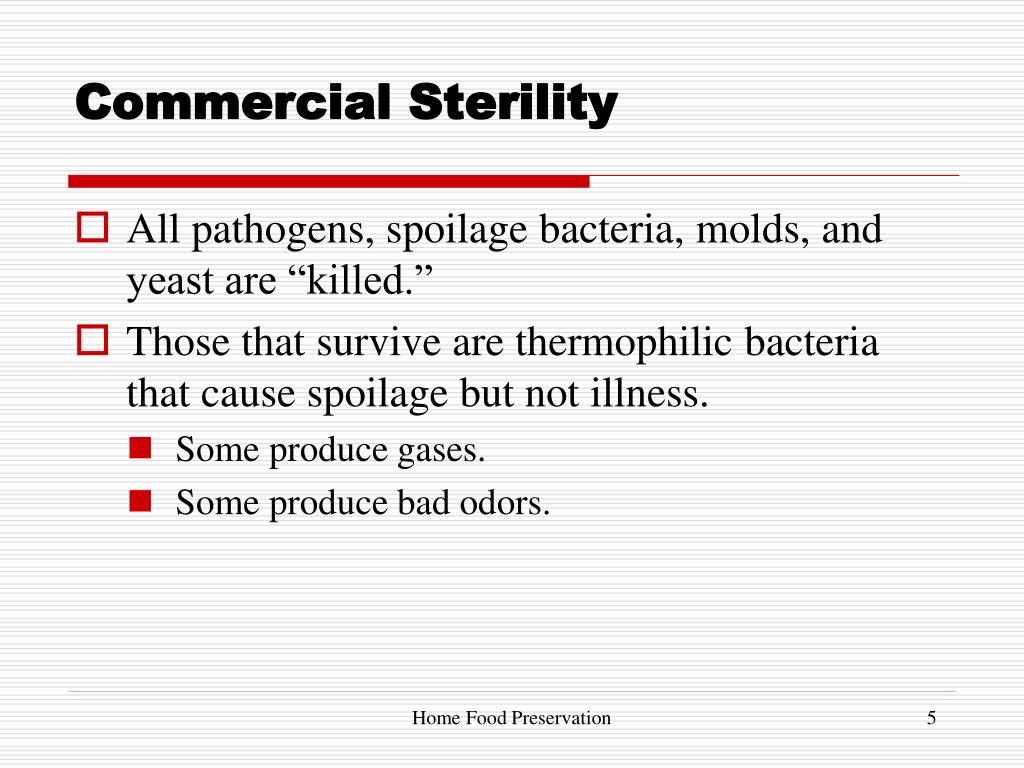

commercial sterility
Commercial Sterility

All pathogens, spoilage bacteria, molds, and yeast are “killed.”

Those that survive are thermophilic bacteria that cause spoilage but not illness.

Some produce gases.

Some produce bad odors.

Home Food Preservation

5

vacuum seal

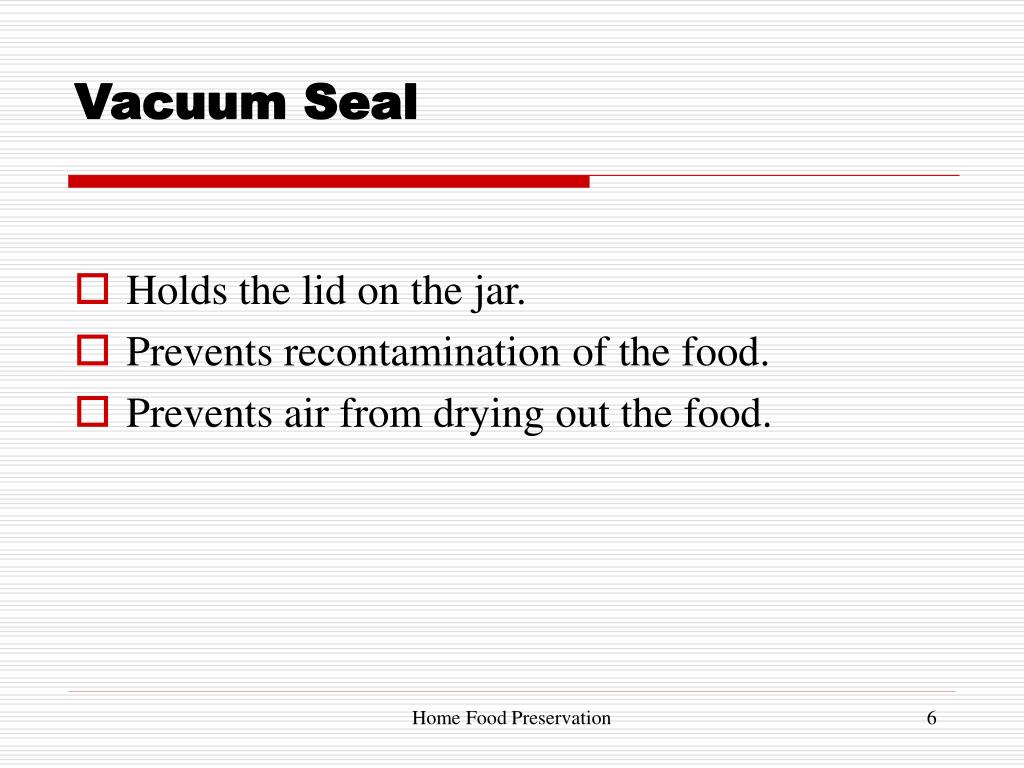

Vacuum Seal

Holds the lid on the jar.

Prevents recontamination of the food.

Prevents air from drying out the food.

Home Food Preservation

6

two methods of canning

Two Methods of Canning

Home Food Preservation

7

two methods of canning8
Two Methods of Canning

Boiling Water Canning

Used for high-acid foods

Pressure Canning

Used for low-acid foods.

Can also be used for high-acid foods but might result in a soft texture.

Home Food Preservation

8

high acid foods ph 4 6

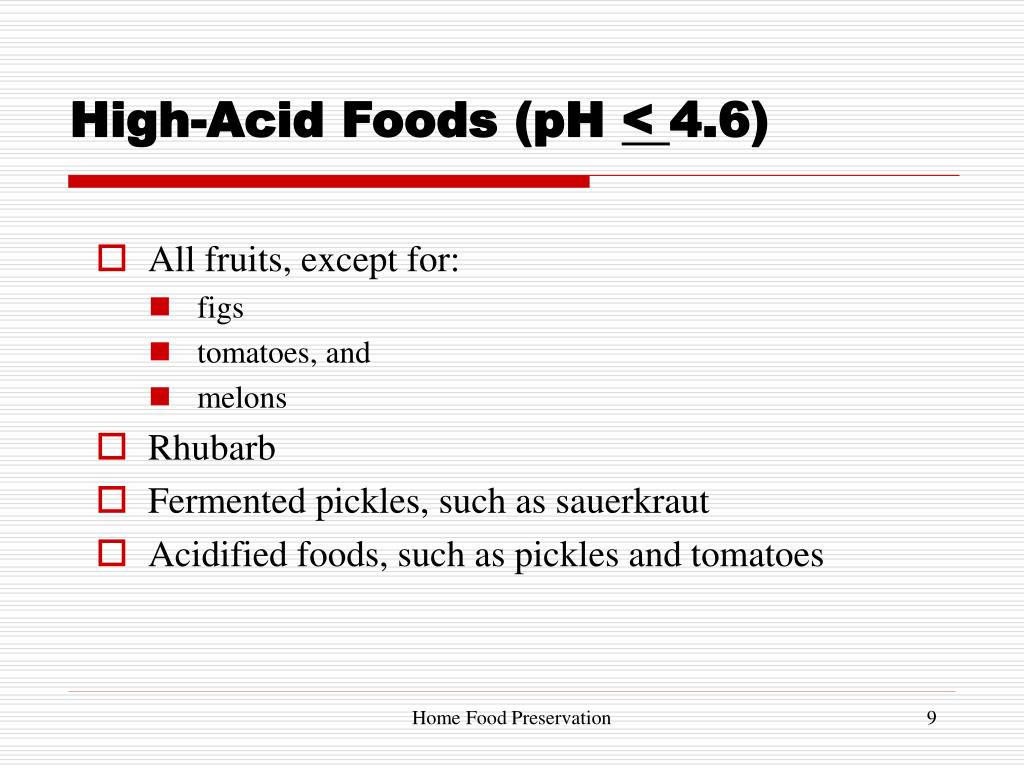

High-Acid Foods (pH < 4.6)

All fruits, except for:

figs

tomatoes, and

melons

Rhubarb

Fermented pickles, such as sauerkraut

Acidified foods, such as pickles and tomatoes

Home Food Preservation

9

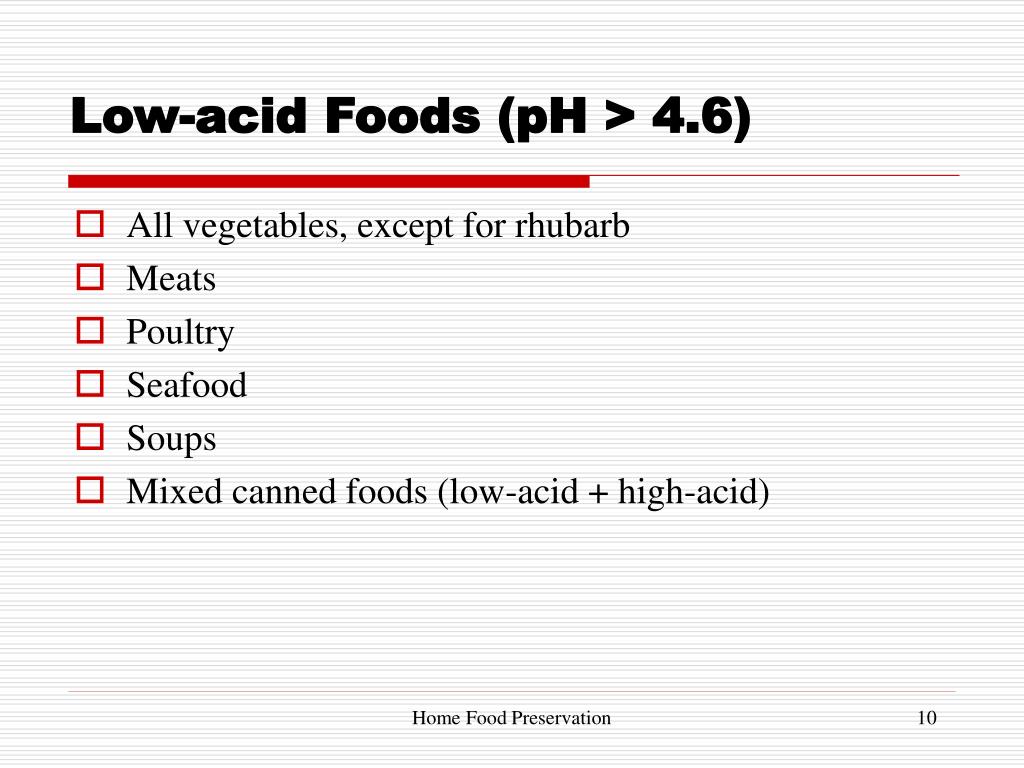

low acid foods ph 4 6
Low-acid Foods (pH > 4.6)

All vegetables, except for rhubarb

Meats

Poultry

Seafood

Soups

Mixed canned foods (low-acid + high-acid)

Home Food Preservation

10

why two methods of canning

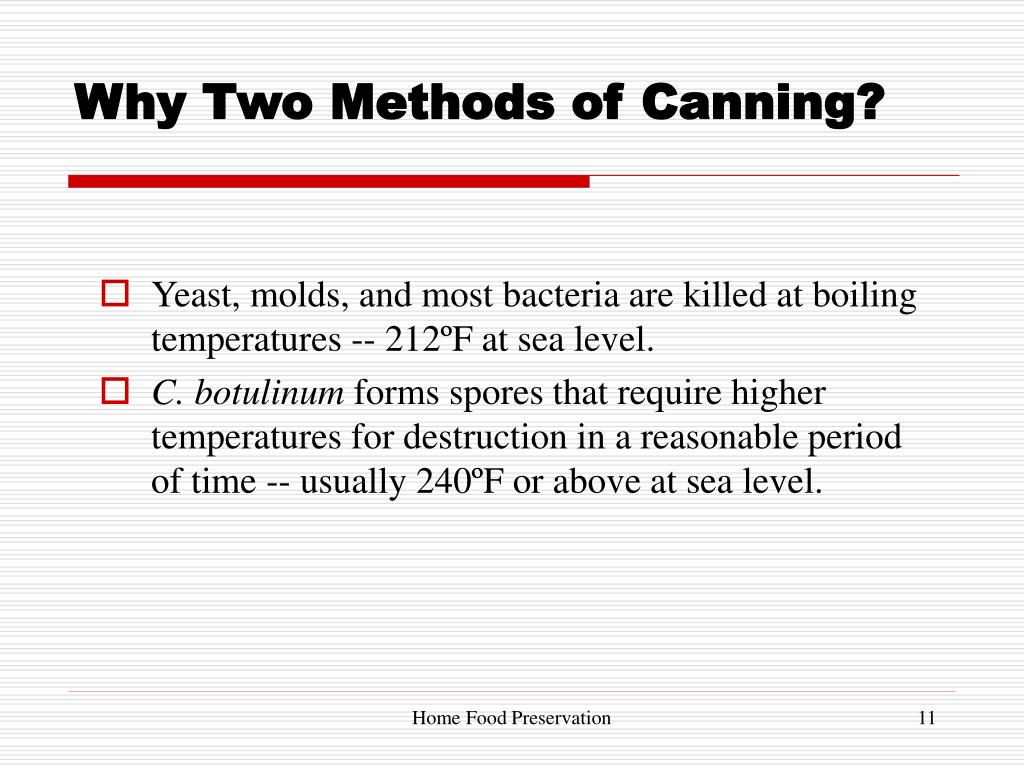

Why Two Methods of Canning?

Yeast, molds, and most bacteria are killed at boiling temperatures -- 212ºF at sea level.

C. botulinum forms spores that require higher temperatures for destruction in a reasonable period of time -- usually 240ºF or above at sea level.

Home Food Preservation

11

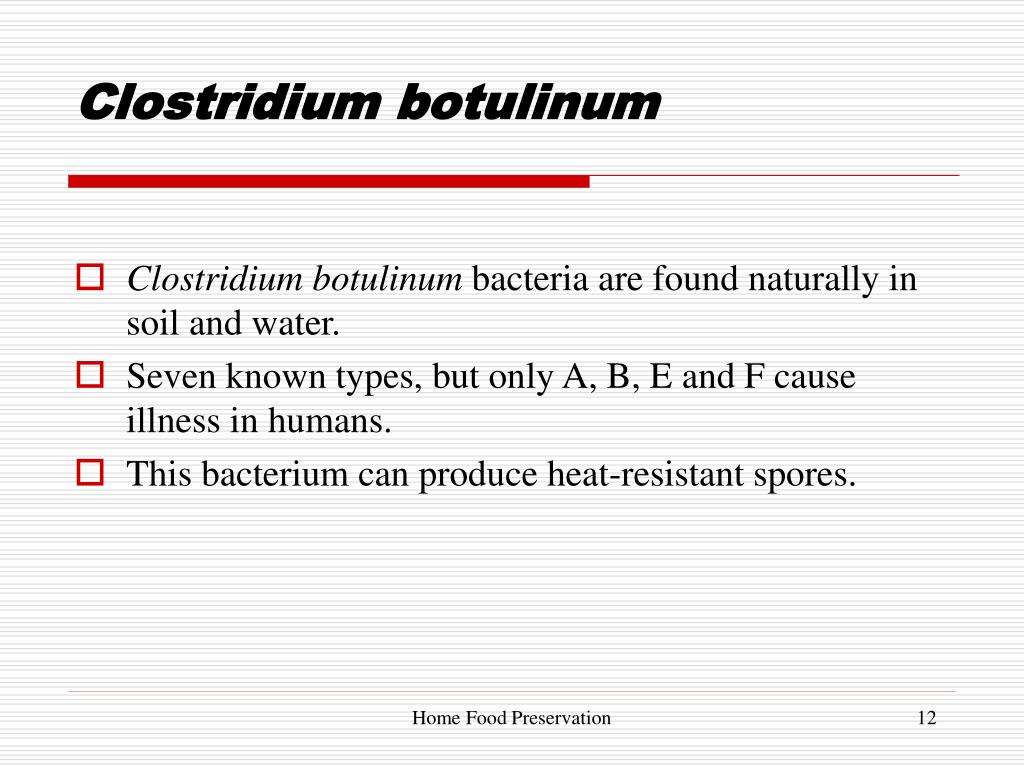

clostridium botulinum
Clostridium botulinum

Clostridium botulinum bacteria are found naturally in soil and water.

Seven known types, but only A, B, E and F cause illness in humans.

This bacterium can produce heat-resistant spores.

Home Food Preservation

12

c botulinum growth
C. botulinum -- Growth

To germinate, the spores need the following conditions:

anaerobic environment (No Oxygen)

low-acid food

temperature between 40ºF and120ºF

relatively high moisture

Home Food Preservation

13

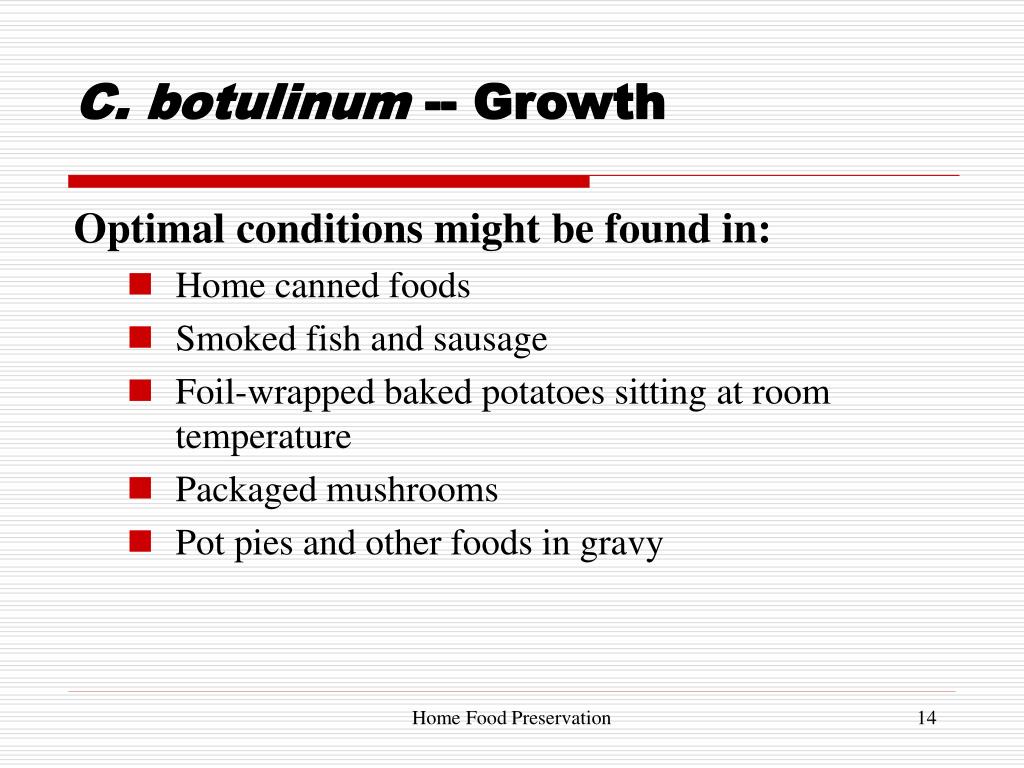

c botulinum growth14
C. botulinum -- Growth

Optimal conditions might be found in:

Home canned foods

Smoked fish and sausage

Foil-wrapped baked potatoes sitting at room temperature

Packaged mushrooms

Pot pies and other foods in gravy

Home Food Preservation

14

botulinum toxin

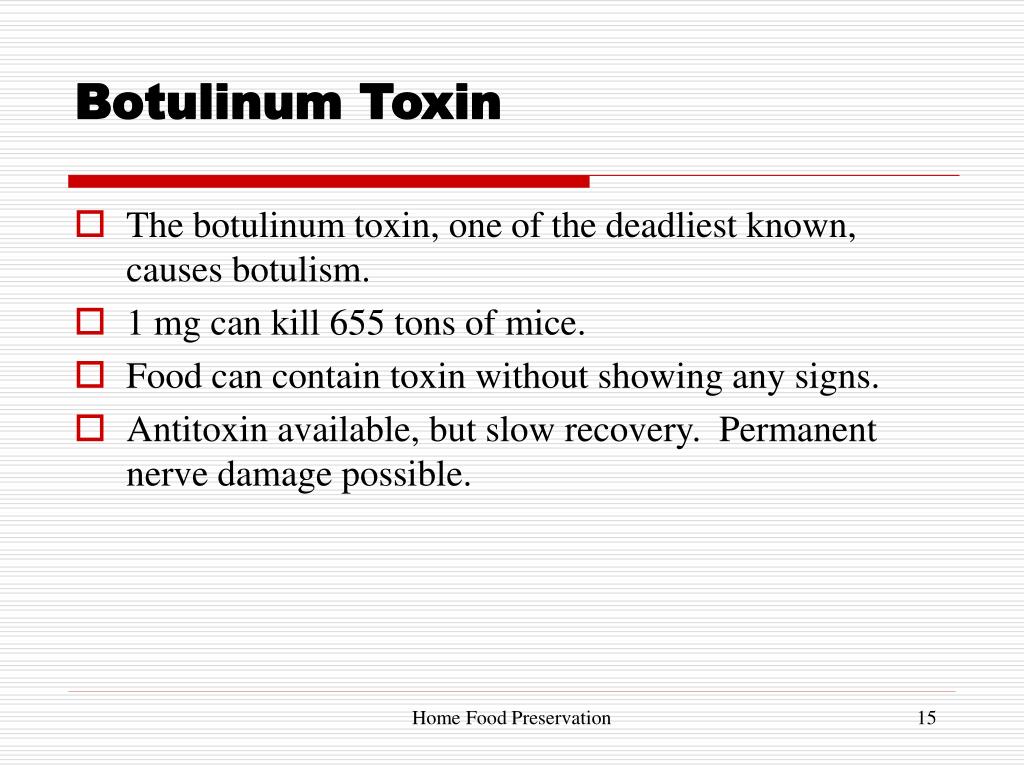

Botulinum Toxin

The botulinum toxin, one of the deadliest known, causes botulism.

1 mg can kill 655 tons of mice.

Food can contain toxin without showing any signs.

Antitoxin available, but slow recovery. Permanent nerve damage possible.

Home Food Preservation

15

botulism symptoms
Botulism -- Symptoms

Symptoms usually appear within 12 to 72 h after eating contaminated food:

Digestive upset (in some cases)

Blurred, double vision

Difficulty swallowing, speaking, and breathing

Possible death from suffocation

10-35% mortality rate

Home Food Preservation

16

preventing botulism

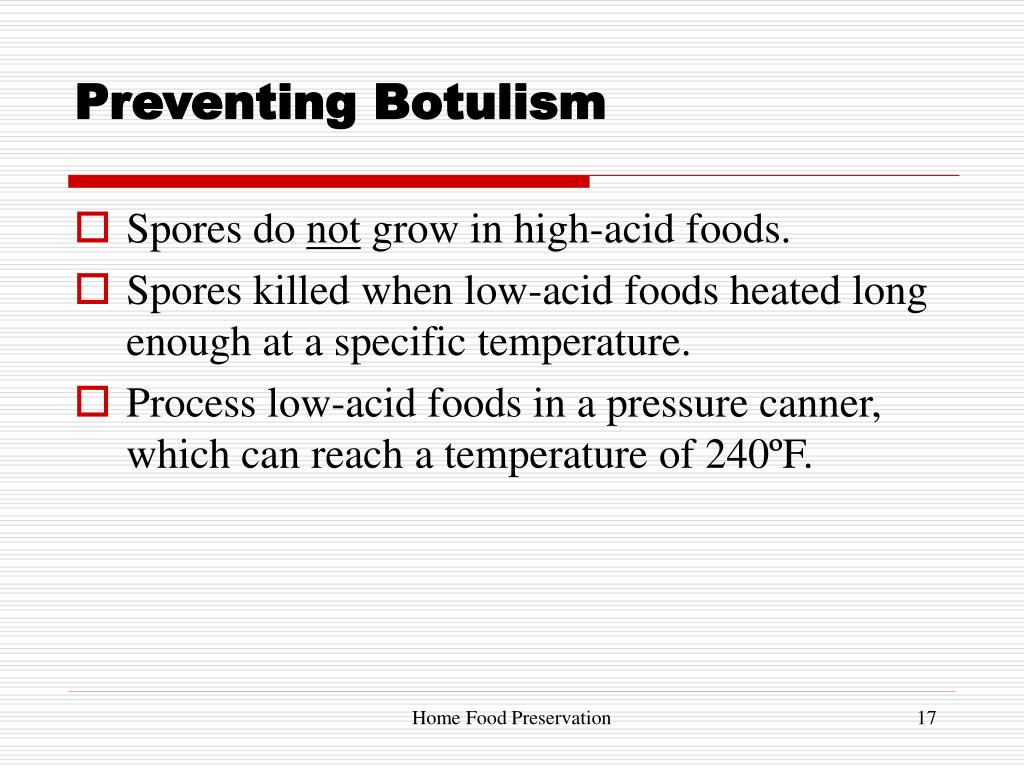

Preventing Botulism

Spores do not grow in high-acid foods.

Spores killed when low-acid foods heated long enough at a specific temperature.

Process low-acid foods in a pressure canner, which can reach a temperature of 240ºF.

Home Food Preservation

17

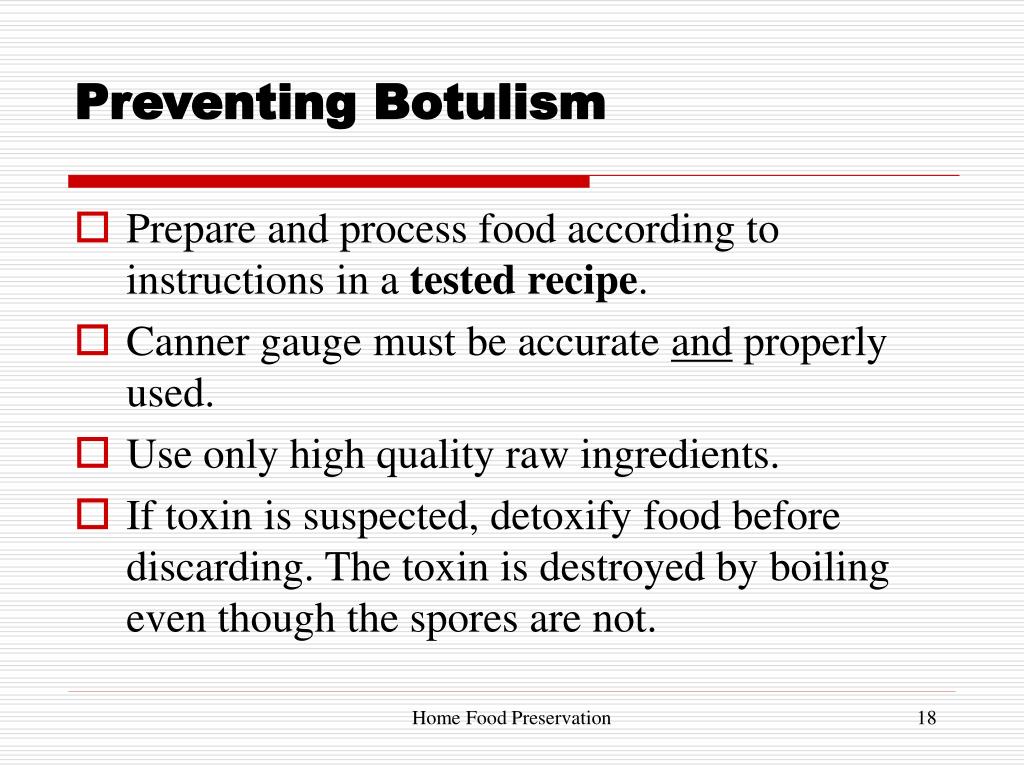

preventing botulism18
Preventing Botulism

Prepare and process food according to instructions in a tested recipe.

Canner gauge must be accurate and properly used.

Use only high quality raw ingredients.

If toxin is suspected, detoxify food before discarding. The toxin is destroyed by boiling even though the spores are not.

Home Food Preservation

18

improperly canned foods
Improperly Canned Foods

Never consume improperly canned foods.

Throw out – do not feed to animals.

Boiling will not always adequately destroy toxin.

When cleaning up surfaces contaminated by unsafe canned foods, prepare a 1:5 bleach to water solution.

Home Food Preservation

19

packing methods

Packing Methods

Home Food Preservation

20

raw pack
Raw Pack

For foods that lose shape when cooked.

Place raw food directly in jars. Pour boiling hot liquid over the food.

Pack firmly, do not crush.

Add jars carefully to warm canner to prevent jar breakage from heat shock.

Preheat water to 140oF before putting raw-packed foods into boiling water bath.

Home Food Preservation

21

hot pack
Hot Pack

Preferred method for most foods.

Food is cooked in liquid before packing. Cooking liquid is then poured over food in jar.

Less floating of food pieces in the jar.

Better food color and flavor.

Easier to pack, foods more pliable

Heat in preparing kills some microorganisms.

Preheat water to 180oF before putting into boiling water bath.

Home Food Preservation

22

canning equipment

Canning Equipment

Home Food Preservation

23

pressure canners
Pressure Canners

Flat rack in bottom

Pressure regulator or indicator:

Dial or weighted gauge

Older models have petcocks

Vent pipe for pressurizing

Safety valves or overpressure plugs

Safety locks when pressurized

Rubber gaskets in lid (metal to metal seal)

Home Food Preservation

24

replacement parts
Replacement Parts

Dial gauges, when inaccurate

Gaskets (sealing rings)

Every 2 years usually

Rubber overpressure plugs

Every 2 years

Vent pipes if clogged

Air vent/cover lock from lid

Weighted gauges or dead weight if lost

Home Food Preservation

25

processing time

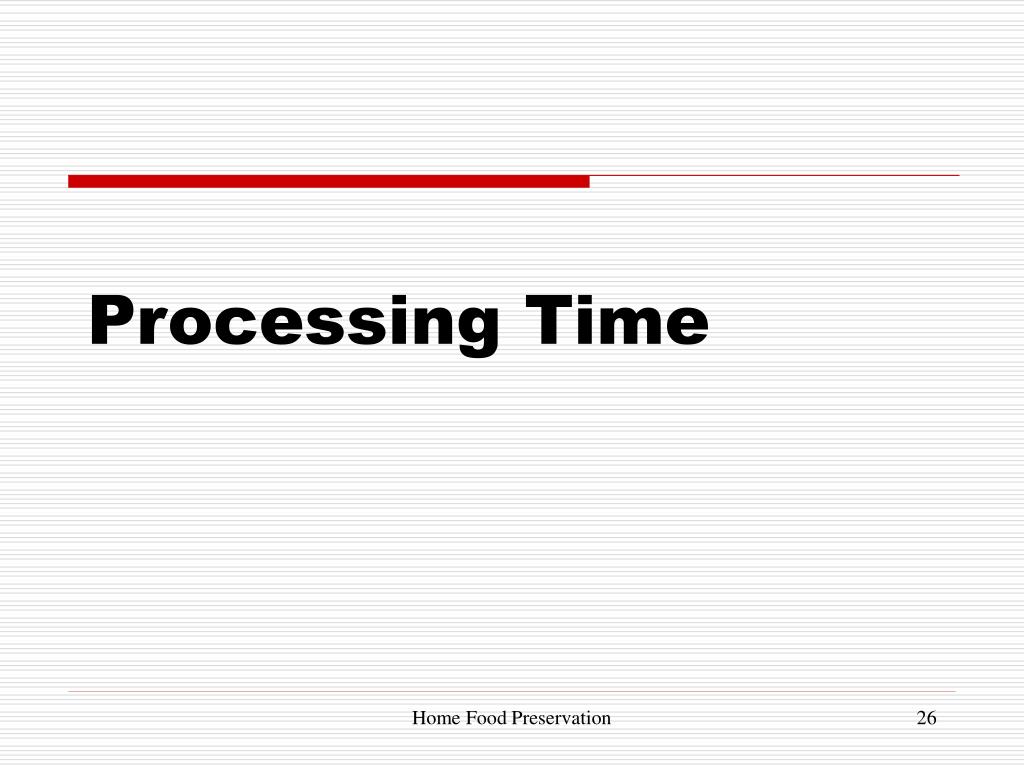

Processing Time

Home Food Preservation

26

processing schedules
Processing Schedules

Definition:

Length of time at a specific temperature that a food must be processed.

Affected by:

pH value of the food

Composition of the food

- Viscosity

- Tightness of pack

- Convection vs. conduction transfer of heat

- Starches, fats, bones

Home Food Preservation

27

processing schedules28
Affected by:

Preparation style of food

Initial temperature of food as it is filled into jar

Temperature of processing

Size of jar

Shape of jar

Processing Schedules

Home Food Preservation

28

significance of heat penetration
Significance of Heat Penetration

Processing time is affected by whether food heats by convection, conduction, or a combination of both.

Heat penetration studies used to scientifically determine safe processing times.

The “cold spot” in the food must reach the correct temperature for the correct length of time to destroy target pathogens.

Home Food Preservation

29

heat penetration
Heat Penetration

Follow recipe exactly.

The following slows heat penetration:

Extra sugar or fat

Oversized food pieces

Added thickeners

Use recommended canners.

Heat-up and cool-down times in pressure canners are counted toward sterilizing value of the process. Do not rush them.

Home Food Preservation

30

processing time31
Processing Time

Each food and preparation style has its own processing time so always use a tested recipe.

Time differs with size of jar.

Too little = under processing  spoiled or unsafe food

Too much = over processing  overcooked

Home Food Preservation

31

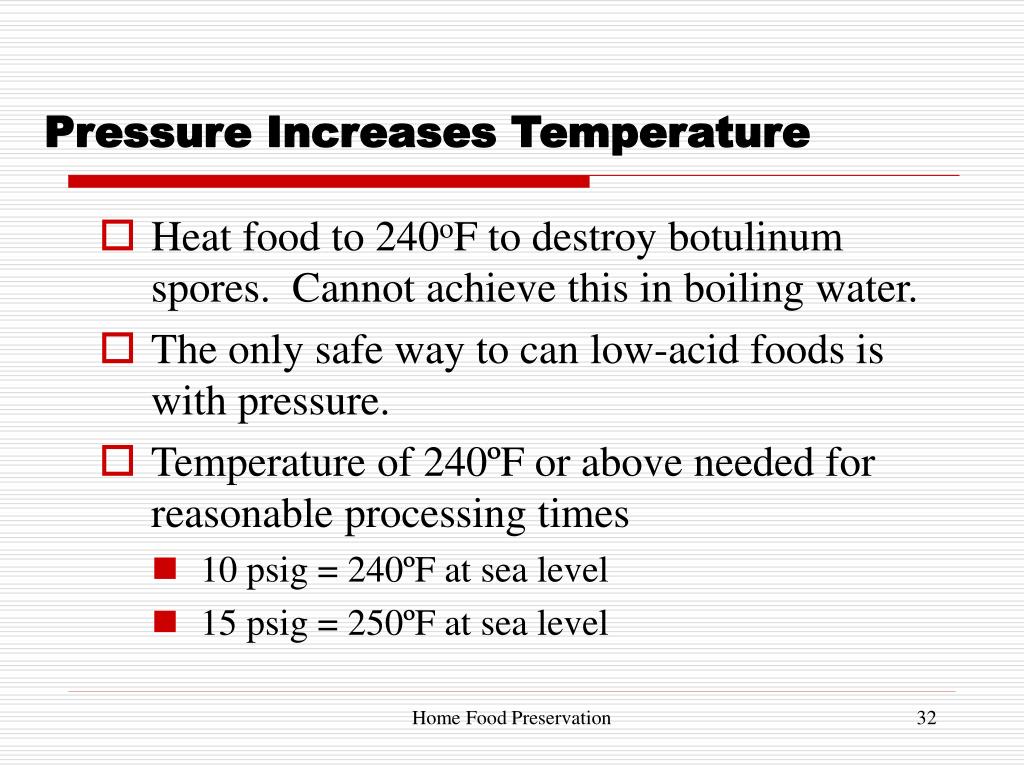

pressure increases temperature
Pressure Increases Temperature

Heat food to 240oF to destroy botulinum spores. Cannot achieve this in boiling water.

The only safe way to can low-acid foods is with pressure.

Temperature of 240ºF or above needed for reasonable processing times

10 psig = 240ºF at sea level

15 psig = 250ºF at sea level

Home Food Preservation

32

boiling water processing

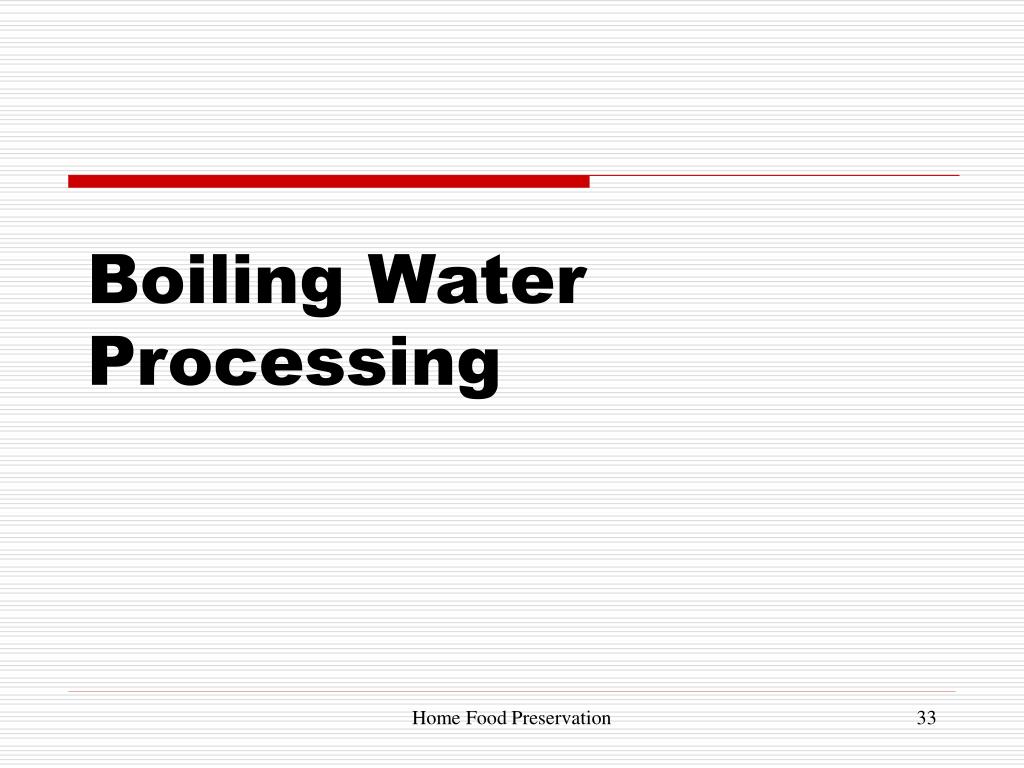

Boiling Water Processing

Home Food Preservation

33

boiling water bath
Boiling Water Bath

Have water simmering (180oF) in canner, high enough to cover jars when filled (about six inches for most loads).

Hot packed jars = simmering water

Raw packed jars = warm to hot water

Place jars on rack in canner.

Add more hot water if necessary, once jars are in canner. (Never pour hot water directly onto raw-packed jars).

Home Food Preservation

34

boiling water bath35
Boiling Water Bath

Start counting processing time after water returns to a full boil.

Adjust processing time for altitudes over 1,000 feet.

Home Food Preservation

35

boiling water bath36
Boiling Water Bath

If processing foods for more than 30 minutes, water should be two inches over jars when process begins.

If water stops boiling at any time during process, bring the water to a boil and begin the process over.

Home Food Preservation

36

pressure canning processing

Pressure Canning Processing

Home Food Preservation

37

pressure processing
Pressure Processing

Have 2 to 3 inches of water simmering or hot in canner.

Hot packed jars = simmering water

Raw packed jars = warm to hot water

Place jars on rack in canner.

Put lid on canner with weight off or petcock open.

Home Food Preservation

38

pressure processing39

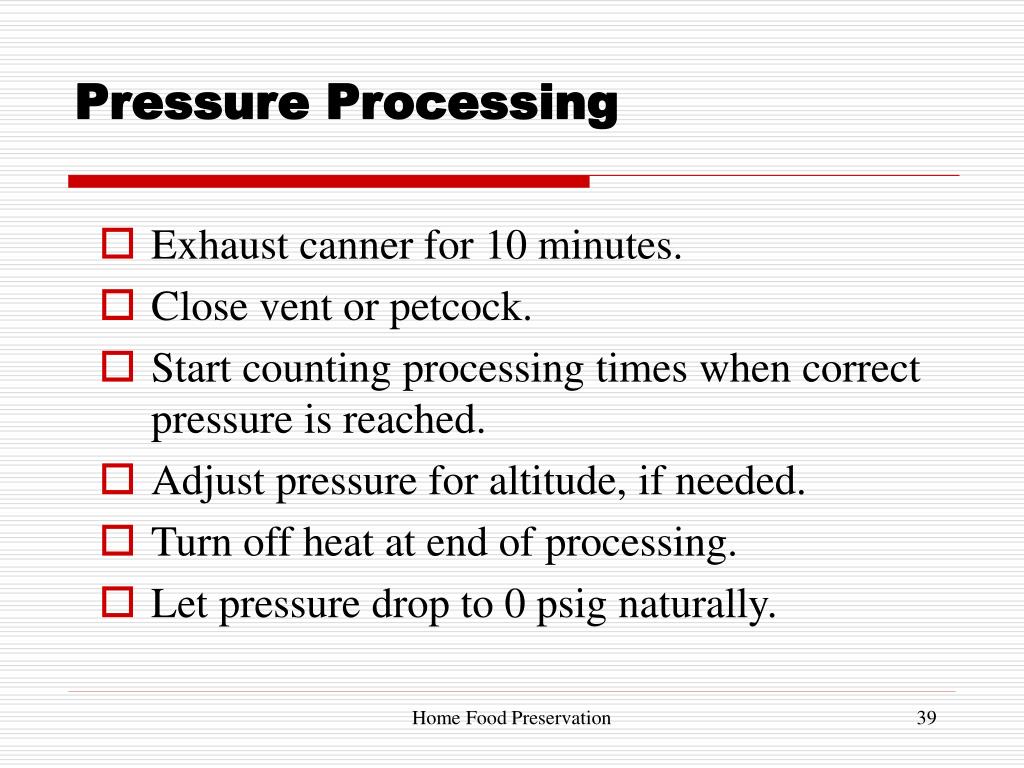

Pressure Processing

Exhaust canner for 10 minutes.

Close vent or petcock.

Start counting processing times when correct pressure is reached.

Adjust pressure for altitude, if needed.

Turn off heat at end of processing.

Let pressure drop to 0 psig naturally.

Home Food Preservation

39

pressure processing40
Pressure Processing

Wait two minutes after pressure drops to 0 psig. (For some canners, check that locks in handles are released.)

Remove weight or petcock.

Open canner. Watch steam!

Remove jars to padded surface or rack.

Cool jars 2 to 24 hours, undisturbed.

Check that the jars have sealed.

Home Food Preservation

40

module 3 canning high acid foods

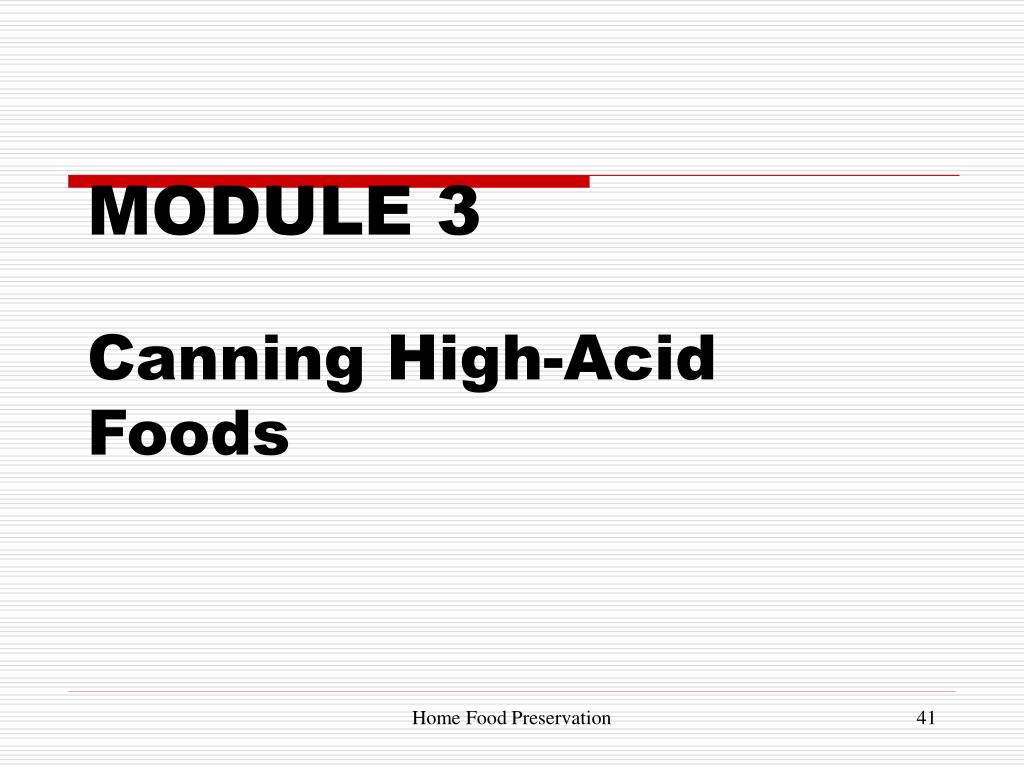

MODULE 3Canning High-Acid Foods

Home Food Preservation

41

module 3 units
MODULE 3: Units

Definition of a High-Acid Food

Preparing Foods for Canning

Acidifying Tomatoes

Canning High-Acid Foods

Home Food Preservation

42

definition of a high acid food

Definition of a High-Acid Food

Home Food Preservation

43

high acid foods ph 4 644
High-Acid Foods (pH < 4.6)

All fruits, except for:

figs

tomatoes, and

melons

Rhubarb

Fermented pickles, such as sauerkraut

Acidified foods, such as pickles and tomatoes

Home Food Preservation

44

preparing foods for canning

Preparing Foods for Canning

Home Food Preservation

45

selecting fruits and tomatoes for canning
Selecting Fruits and Tomatoes for Canning

Choose firm, ripe products.

Do not use overripe fruits.

Gather or purchase only what you are able to can within 2 to 3 hours.

Home Food Preservation

46

washing fruits and tomatoes for canning

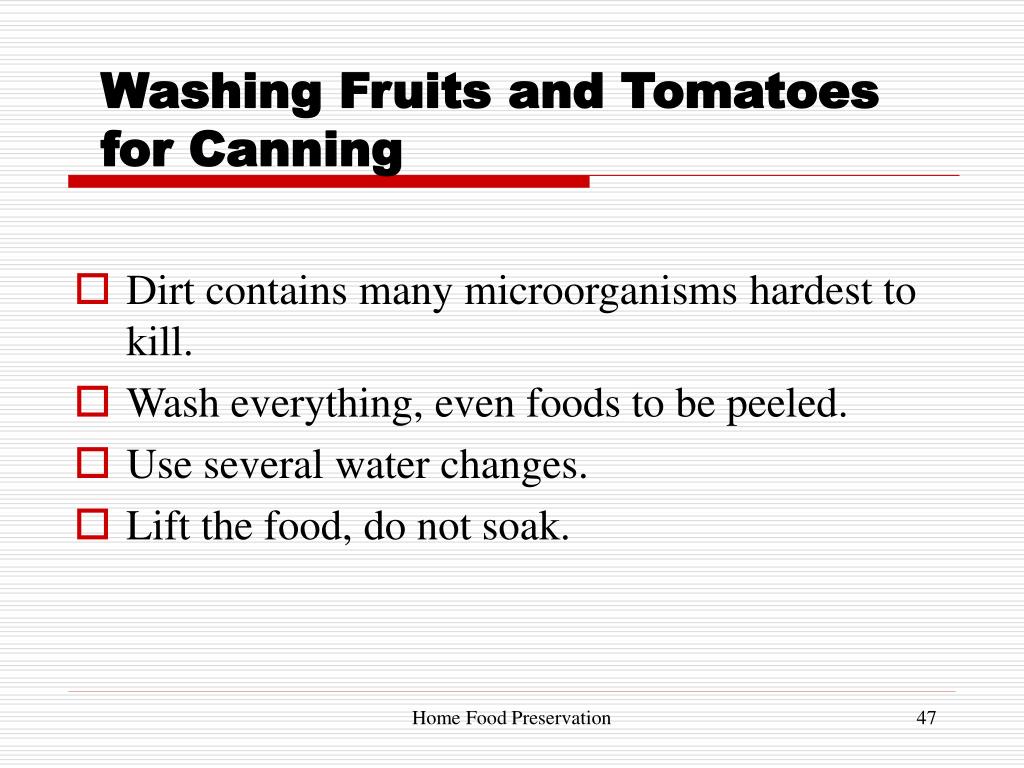

Washing Fruits and Tomatoes for Canning

Dirt contains many microorganisms hardest to kill.

Wash everything, even foods to be peeled.

Use several water changes.

Lift the food, do not soak.

Home Food Preservation

47

preventing fruit darkening
Preventing Fruit Darkening

1 teaspoon (3000 mg) ascorbic acid added to one gallon of water

Commercial ascorbic acid mixture

Heating the fruit

Home Food Preservation

48

preventing fruit darkening49
Preventing Fruit Darkening

The following do not work as well:

Citric acid solution

Lemon juice

Sugar syrup

Salt/vinegar solution

Home Food Preservation

49

canning liquids for fruits
Canning Liquids for Fruits

Sweet syrup, water or juice can be used.

Sweet syrup:

Helps retain shape, color, and flavor of fruit. Not needed for safety

Mix sugar with water or juice, heat to dissolve sugar.

Proportions of sugar to liquid given in publications.

Up to 1/2 the sugar can be replaced by corn syrup or mild flavored honey. (Use more corn syrup if bland.)

Home Food Preservation

50

canning liquids for fruits51
Canning Liquids for Fruits

Juice Packs:

Commercial unsweetened apple, pineapple, or white grape juice.

Juice can also be extracted from fruit being canned or from the above fresh fruits.

Extracting juice:

Thoroughly crush ripe, sound fruit. Heat to simmering. Strain.

Home Food Preservation

51

canning liquids for fruits52
Canning Liquids for Fruits

Artificial Sweeteners:

Add just before serving

Saccharin-based sweeteners turn bitter

Aspartame-based sweeteners lose flavor

Home Food Preservation

52

acidifying tomatoes

Acidifying Tomatoes

Home Food Preservation

53

acidifying tomatoes54
Acidifying Tomatoes

pH between 4.0 - 4.6 (borderline)

Even if pressure processing, tomatoes must be acidified.

For Pints:

1 tablespoon bottled lemon juice or 1/4 teaspoon citric acid

For Quarts:

2 tablespoon bottled lemon juice or 1/2 teaspoon. citric acid

Home Food Preservation

54

acidifying tomatoes55
Acidifying Tomatoes

Add directly to jar before filling.

If too acid tasting, add sugar.

Use 4 tablespoons vinegar per quart or 2 tablespoons per pint. However, flavor might be off.

Home Food Preservation

55

slide56
Salt

Salt is only used for flavor in canned tomatoes and vegetables.

It can be omitted because does improve the safety of the final product.

Home Food Preservation

56

canning high acid foods

Canning High-Acid Foods

Home Food Preservation

57

canning high acid foods58
Canning High-Acid Foods

Heat canner with about six inches of water to simmering.

Treat new lids.

Wash jars.

Select and wash high quality raw product.

Home Food Preservation

58

canning high acid foods59
Canning High-Acid Foods

Fill jars either hot pack or cold pack:

hot pack (food and liquid heated before filling)

cold pack (raw food put in jar and boiling liquid poured over it)

Leave appropriate headspace.

Remove air bubbles.

Home Food Preservation

59

canning high acid foods60
Canning High-Acid Foods

Wipe rim of jars.

Adjust lids.

Lower jars slowly into canner.

Count processing time when the water returns to a boil.

Remove jars to a padded surface.

Cool away from drafts, 12 to 24 hours.

Home Food Preservation

60

canning high acid foods61
Canning High-Acid Foods

Check seals.

Remove screw bands.

Label.

Store.

Home Food Preservation

61

headspace
Headspace

Space in the jar between the inside of the lid and the top of the food or its liquid.

Check canning directions for that correct headspace for each food.

Usually:

1/4” for jellied fruit products

1/2” for high-acid foods, such as fruits, tomatoes, and pickles

1” to 1-1/4” for low-acid foods

Home Food Preservation

62

headspace63
Headspace

Too little:

Food may bubble out during processing.

Deposit on rim may prevent proper sealing.

Too much:

Food at the top is likely to discolor.

Jar may not seal properly, because processing time not long enough to drive all the air from inside the jar.

Home Food Preservation

63

closing the jars
Closing the Jars

Remove air bubbles.

Re-adjust headspace if necessary.

Wipe jar rims.

Adjust two-piece lids, fingertip-tight.

Home Food Preservation

64
