The Diesel Cycle

By: Andrew Hoover

  • Objectives:
  • Explain the Diesel Cycle
  • Relate it to basic examples
  • Is our engine a diesel cycle?
slide2

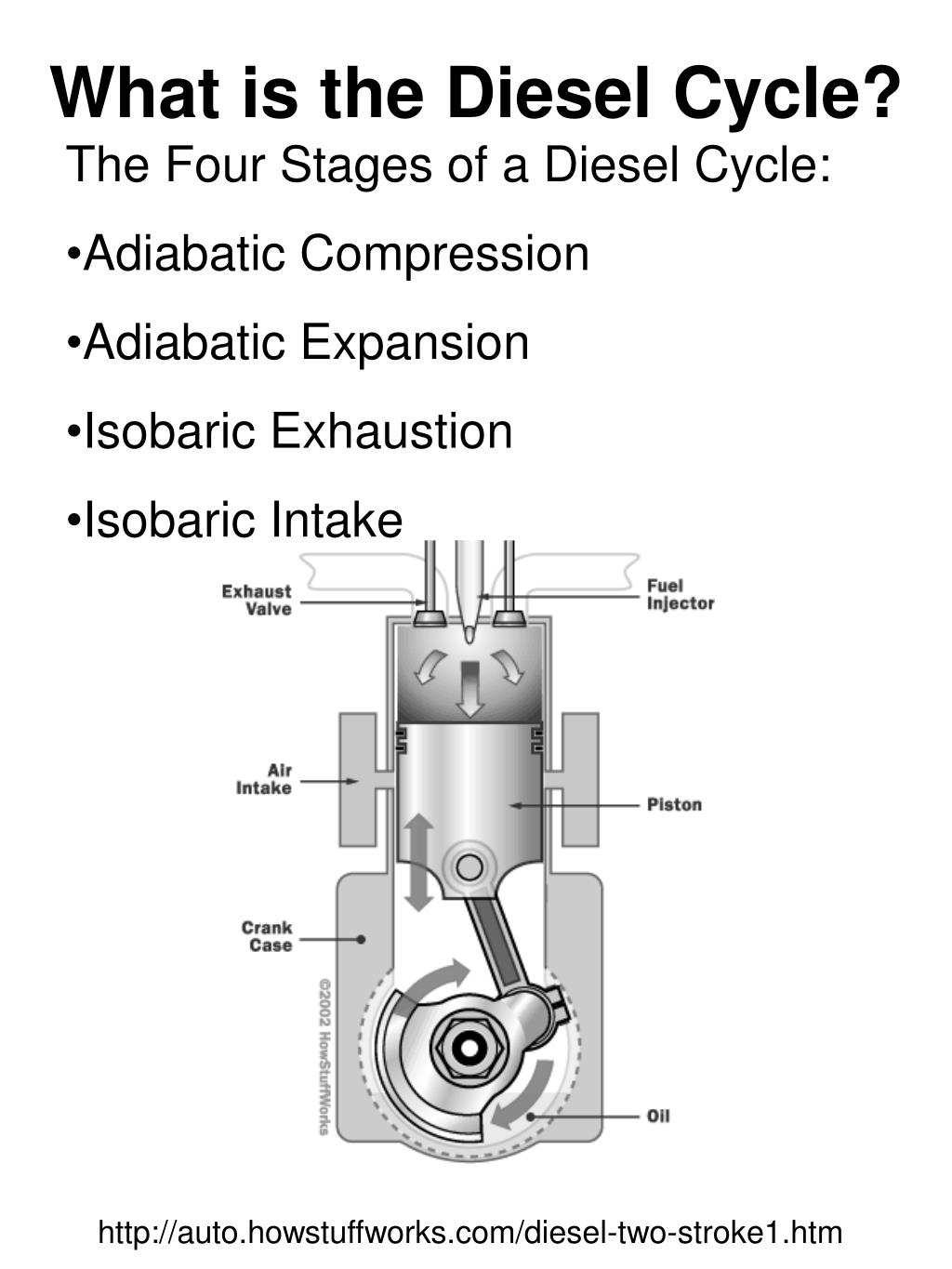

What is the Diesel Cycle?

  • The Four Stages of a Diesel Cycle:
  • Adiabatic Compression
  • Adiabatic Expansion
  • Isobaric Exhaustion
  • Isobaric Intake

http://auto.howstuffworks.com/diesel-two-stroke1.htm

slide3

Examples

Volkswagen TDI Engine – new air intake values and direct injection fuel

Trains and other Large Power Vehicles – use a diesel two stroke engine for maximum power

Majority of cars and smaller diesel engines are usually four stroke

slide4

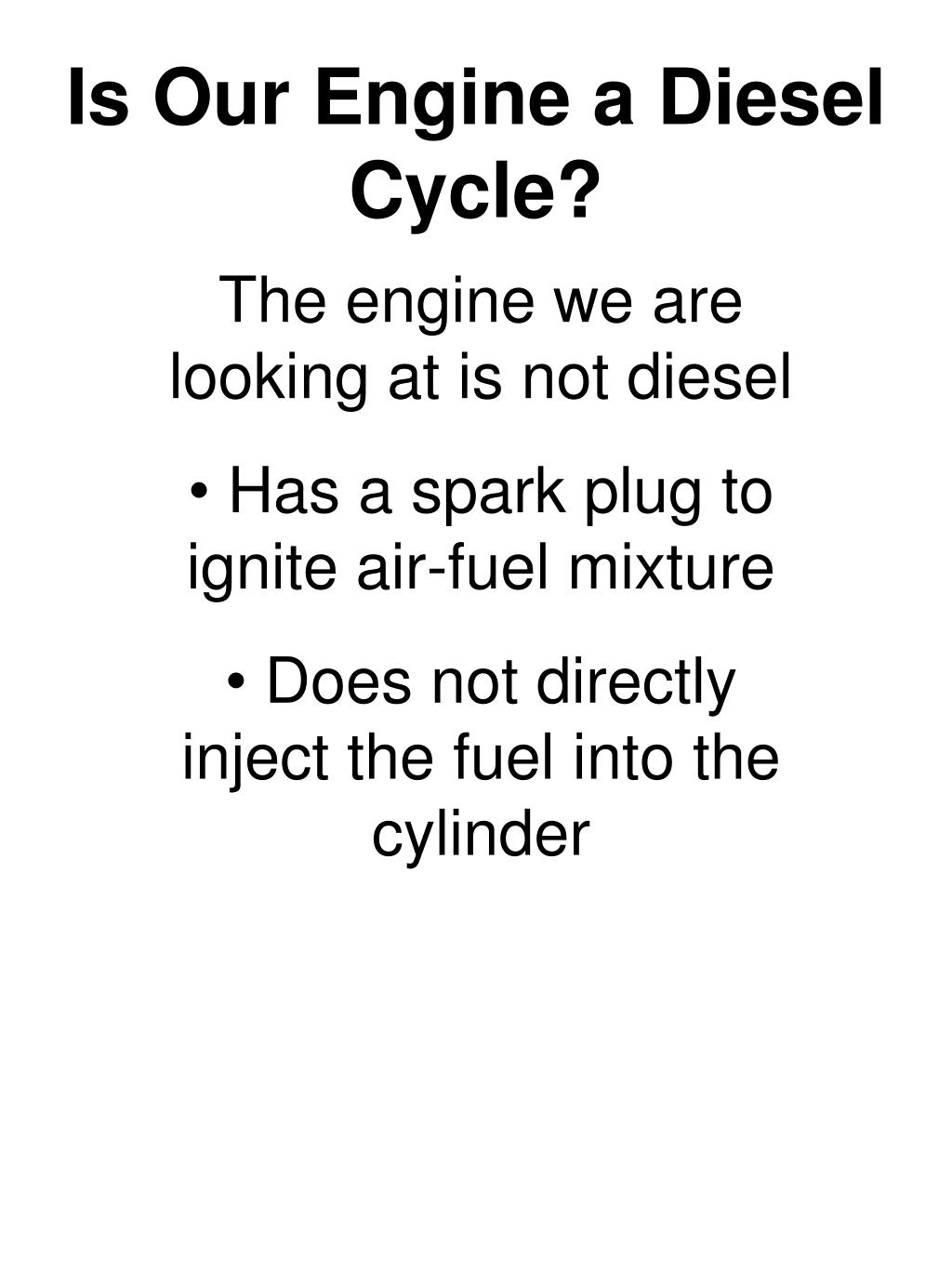

Is Our Engine a Diesel Cycle?

  • The engine we are looking at is not diesel
  • Has a spark plug to ignite air-fuel mixture
  • Does not directly inject the fuel into the cylinder
slide5

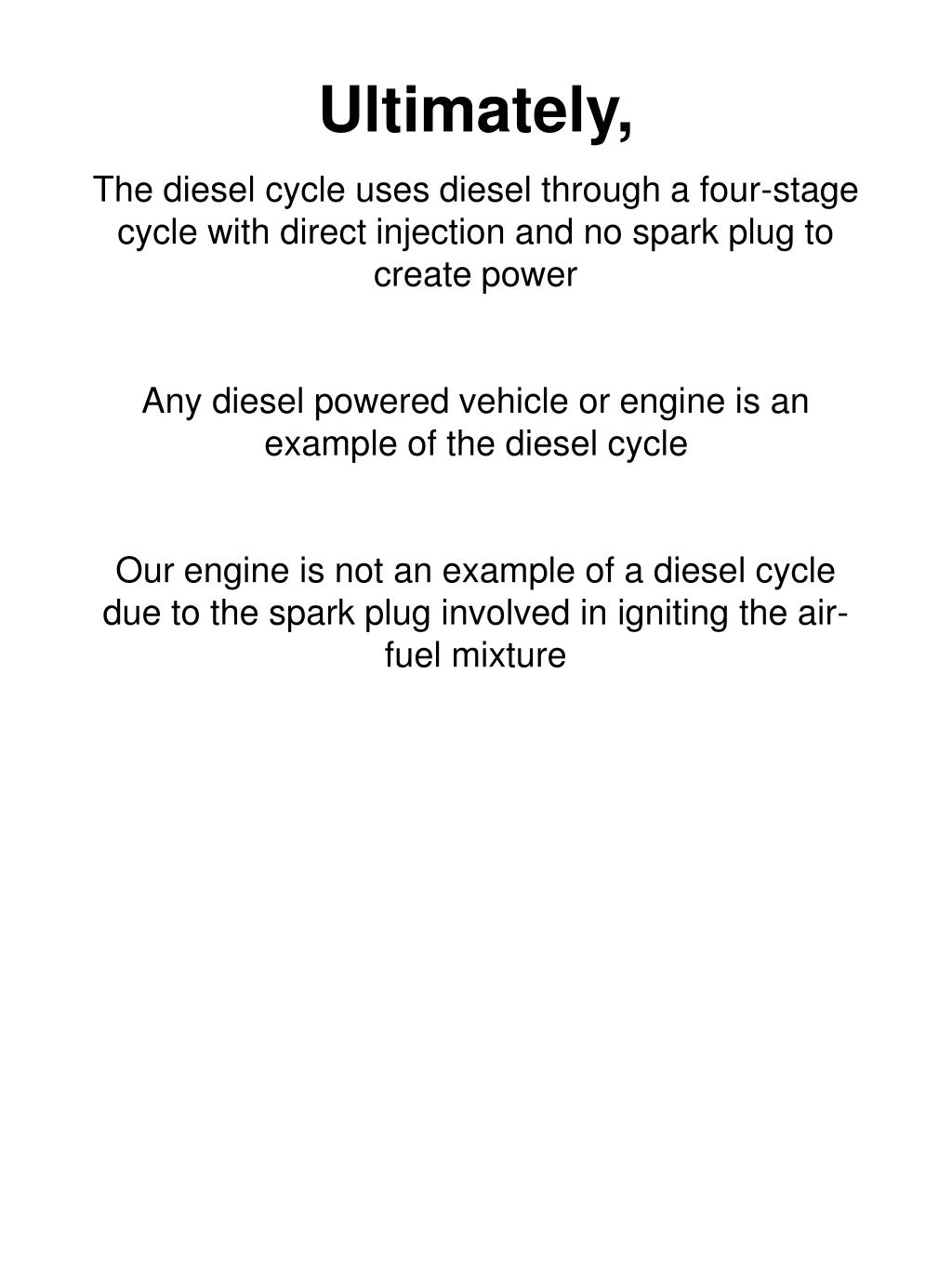

Ultimately,

The diesel cycle uses diesel through a four-stage cycle with direct injection and no spark plug to create power

Any diesel powered vehicle or engine is an example of the diesel cycle

Our engine is not an example of a diesel cycle due to the spark plug involved in igniting the air-fuel mixture
