handheld dust monitor.

Labtron handheld dust meter adopts light scattering for rapid detection across six adjustable channel sizes with simultaneous result display. It offers large data storage of 20 groups, each holding 25,000 data points. Data can be exported via USB in TXT, Excel, or PDF formats. A Free software is included for easy data integration and analysis.

LabtronUS
Download Presentation

handheld dust monitor.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

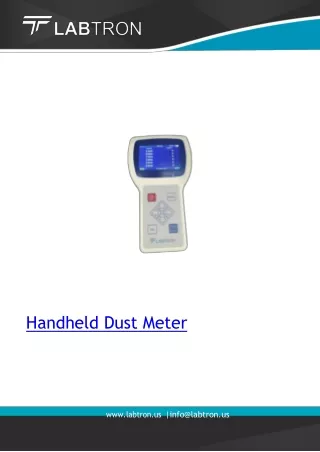

  1. Handheld Dust Meter www.labtron.us |info@labtron.us

  2. Overview Labtron handheld dust meter adopts light scattering for rapid detection across six adjustable channel sizes with simultaneous result display. It offers large data storage of 20 groups, each holding 25,000 data points. Data can be exported via USB in TXT, Excel, or PDF formats. A Free software is included for easy data integration and analysis. Specifications: Measurement range PM 1.0, PM 2.5, and PM 10.0 Resolution 0.1 µg/m3 Concentration limits 1000 µg/m3 Accuracy 0.1 Flow rate 2.83 L/min Channels for Count mode 0.3,0.5,1.0,2.5,5.0,10.0µm Sampling period 1 min to 10 min Interface port Mini USB Data export format Txt,excel,pdf(selectable) Light source Laser diode > 30000 h Display 480×320 High-resolution colour LCD display Data storage 500,000 pcs Power battery Li-Ion Battery Dimension 130×45×245 mm

  3. Weight 0.9 kg Features : -Can change to count mode with 6 channel size: 0.3µm, 0.5µm, 1.0µm, 2.5µm, 5.0µm, 10.0µm -LCD screen shows PM 1.0, PM 2.5, PM 10.0 at same time -Built-in li-ion battery for 8 hours continuous use -Large data storage capacity, 20 group and each group 25000 pcs data -Export data by USB, free software and data stored as txt, excel, PDF file as per requirement Applications: Handheld dust Meter finds application in outdoor air quality investigations, industrial hygiene, occupational health and safety units, Quality control plants, laboratory research etc. Standard Accessories : Accessories No. Name 1 Isokinetic probe 2 Purge Filter 3 Carrying case 4 Software 5 Data cable

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.us |Website: www.labtron.us Phone: +44 2080 043 608
