Flame-Photometer-LFP-A30.

<br>Labtron Flame Photometer detects K, Na, Li, and Ca ions in four channels with rapid calculations in under 8 seconds and a sample uptake rate below 6 ml/min. It includes a 7-inch touchscreen, flameout protection, and an air compressor. Customizable flame sizes and concentration units offer flexibility for diverse lab applications.<br>

LabtronUS
Download Presentation

Flame-Photometer-LFP-A30.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

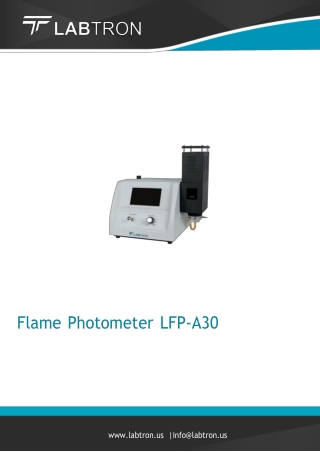

  1. Flame Photometer LFP-A30 www.labtron.us|info@labtron.us

  2. Overview Labtron Flame Photometer detects K, Na, Li, and Ca ions in four channels with rapid calculations in under 8 seconds and a sample uptake rate below 6 ml/min. It includes a 7-inch touchscreen, flameout protection, and an air compressor. Customizable flame sizes and concentration units offer flexibility for diverse lab applications. Specifications : Testing Elements K, Na, Li, Ca No of Channels 4 Display Value Concentration value Data Range 0.000 to 999.9 Range K 0 to 100 ppm Na 0 to 160 ppm Li 0 to 100 ppm Ca 0 to 1000 ppm LOD K 0.01 ppm Na 0.01 ppm Li 0.1 ppm Ca 2 ppm

  3. Linear Error K 0.195 Na 0.69 Li 0.15 Ca 3 Display 7-inch colour touch screen Response time time <8s Sample uptake < 6 ml/min Stability <3% drift over 15s during continuous aspiration Reproducibility <3% coefficient of variation for 7 consecutive samples Fuel LPG Interface USB Power supply AC 220 V±22 V 50 Hz±1 Hz, 250 W Overall Dimensions 780 × 560 × 390 mm Weight 18 kg Features : -7 inch Color touch screen display Display of direct concentration of elements -Automatically determines correlation coefficient of test sample -Allows pre- selection of flame sizes

  4. -Equipped with flame out protection devices -Supported with air compressor that ensures essential stable flame conditions -Provides selection of different concentration units -USB interface for data transfer and storage -Easy to operate Applications : Flame Photometer has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, pharmaceutical and beverage industries. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.us |Website: www.labtron.us Phone: +44 2080 043 608
