Colorimeter-LCC-A14.

DESCRIPTION

Labtron colorimeter precisely measures color by allowing manual adjustment of L x a x b values for accurate comparison. It evaluates yellowness and whiteness with 8u00b0/d illumination in under 5 seconds, displays results on a 2.4-inch screen. Supports the storage of 10 samples and 100 data groups each, featuring USB and Bluetooth connectivity for seamless data transfer.

Download Presentation

Colorimeter-LCC-A14.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

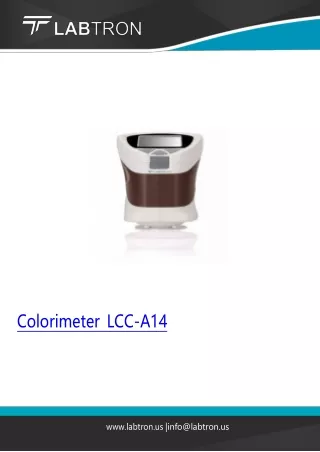

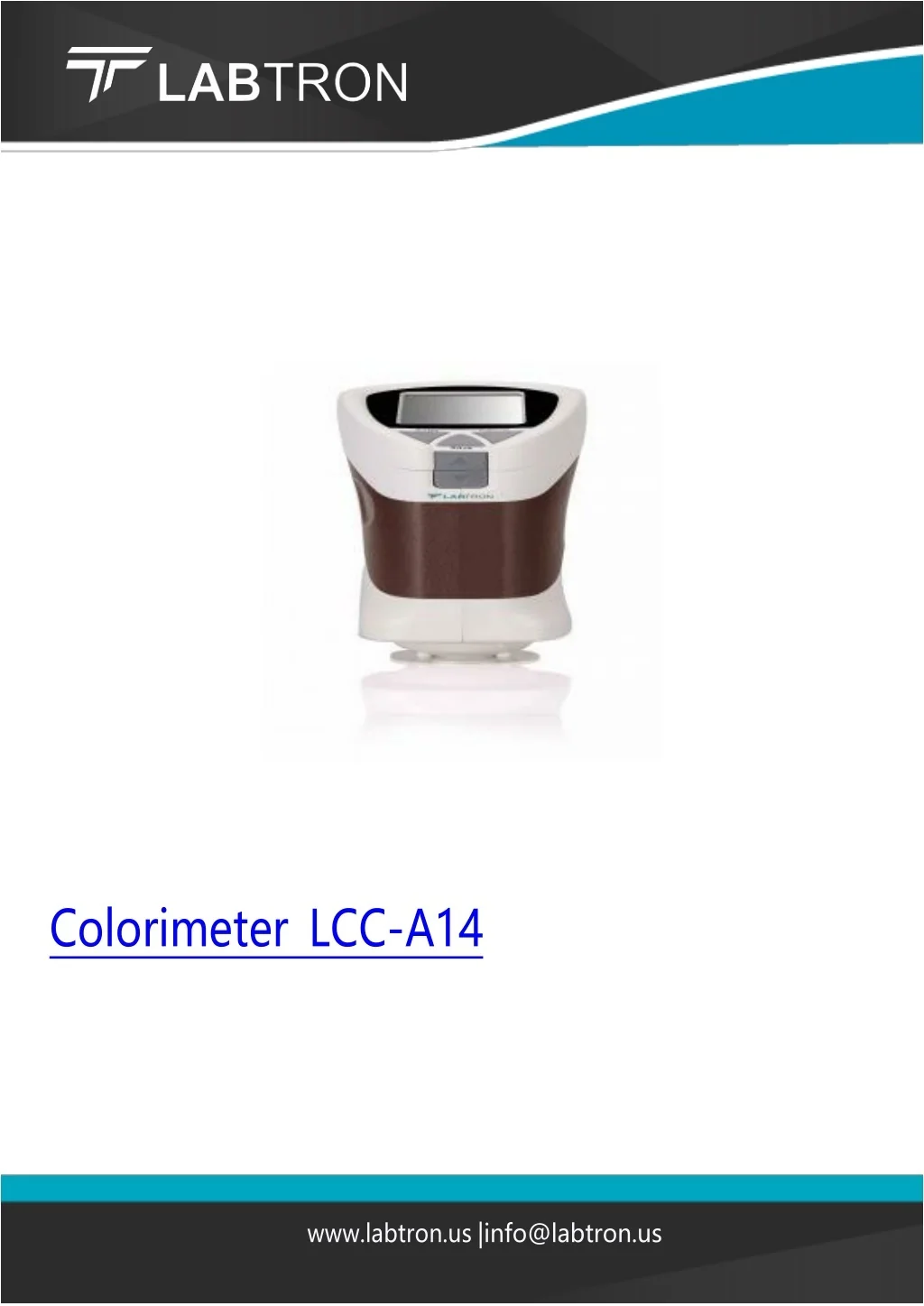

  1. ColorimeterLCC-A14 www.labtron.us |info@labtron.us

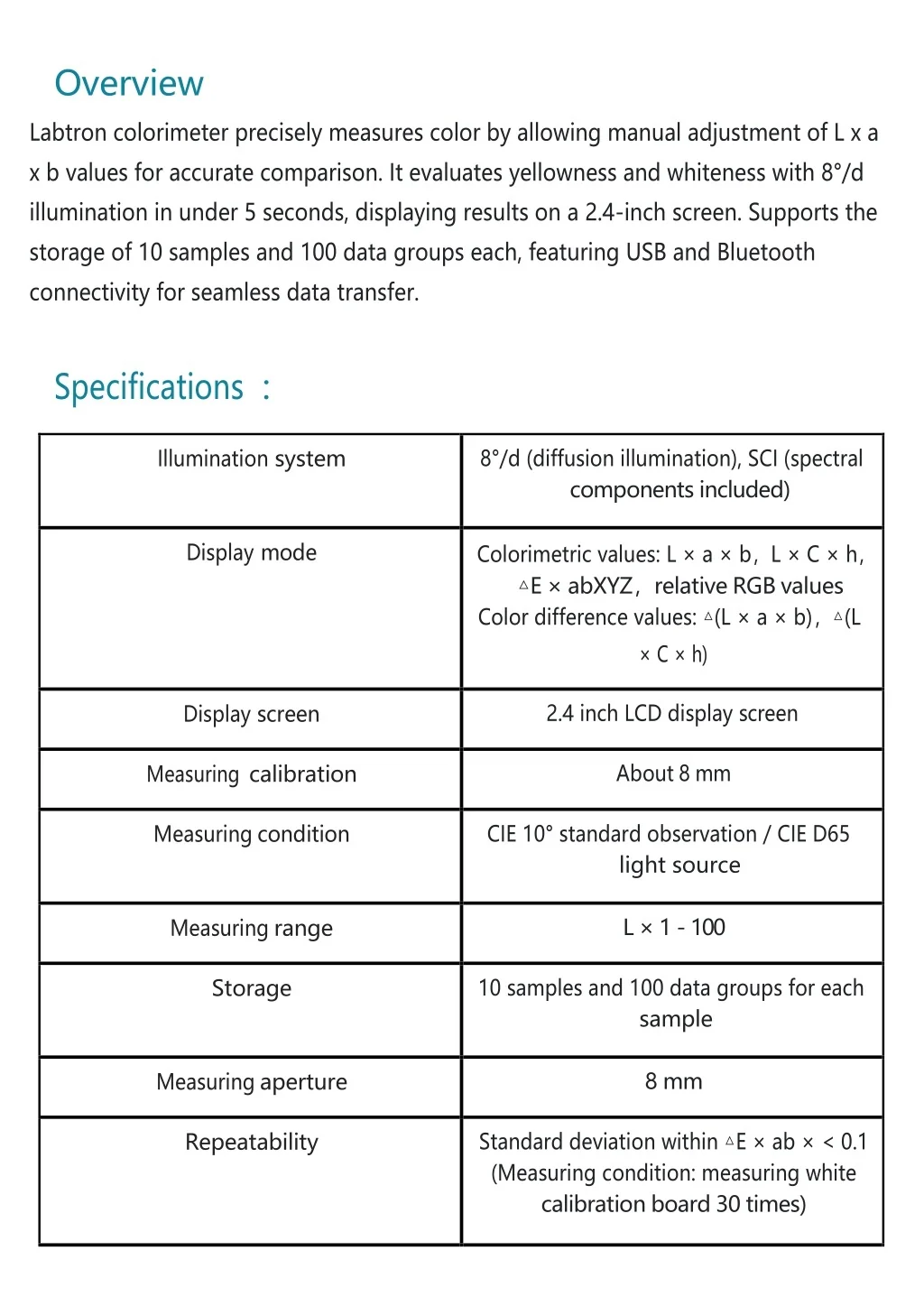

  2. Overview Labtron colorimeter precisely measures color by allowing manual adjustment of L x a x b values for accurate comparison. It evaluates yellowness and whiteness with 8°/d illumination in under 5 seconds, displaying results on a 2.4-inch screen. Supports the storage of 10 samples and 100 data groups each, featuring USB and Bluetooth connectivity for seamless data transfer. Specifications: 8°/d (diffusion illumination), SCI (spectral components included) Illumination system Displaymode Colorimetric values: L × a × b,L × C × h, △E× abXYZ,relative RGB values Color difference values: △(L × a × b),△(L ×C×h) 2.4 inch LCD display screen Display screen About 8 mm Measuring calibration CIE 10° standard observation / CIE D65 light source Measuring condition L × 1 - 100 Measuring range 10 samples and 100 data groups for each sample Storage 8 mm Measuring aperture Standard deviation within △E× ab × < 0.1 (Measuring condition: measuring white calibration board 30 times) Repeatability

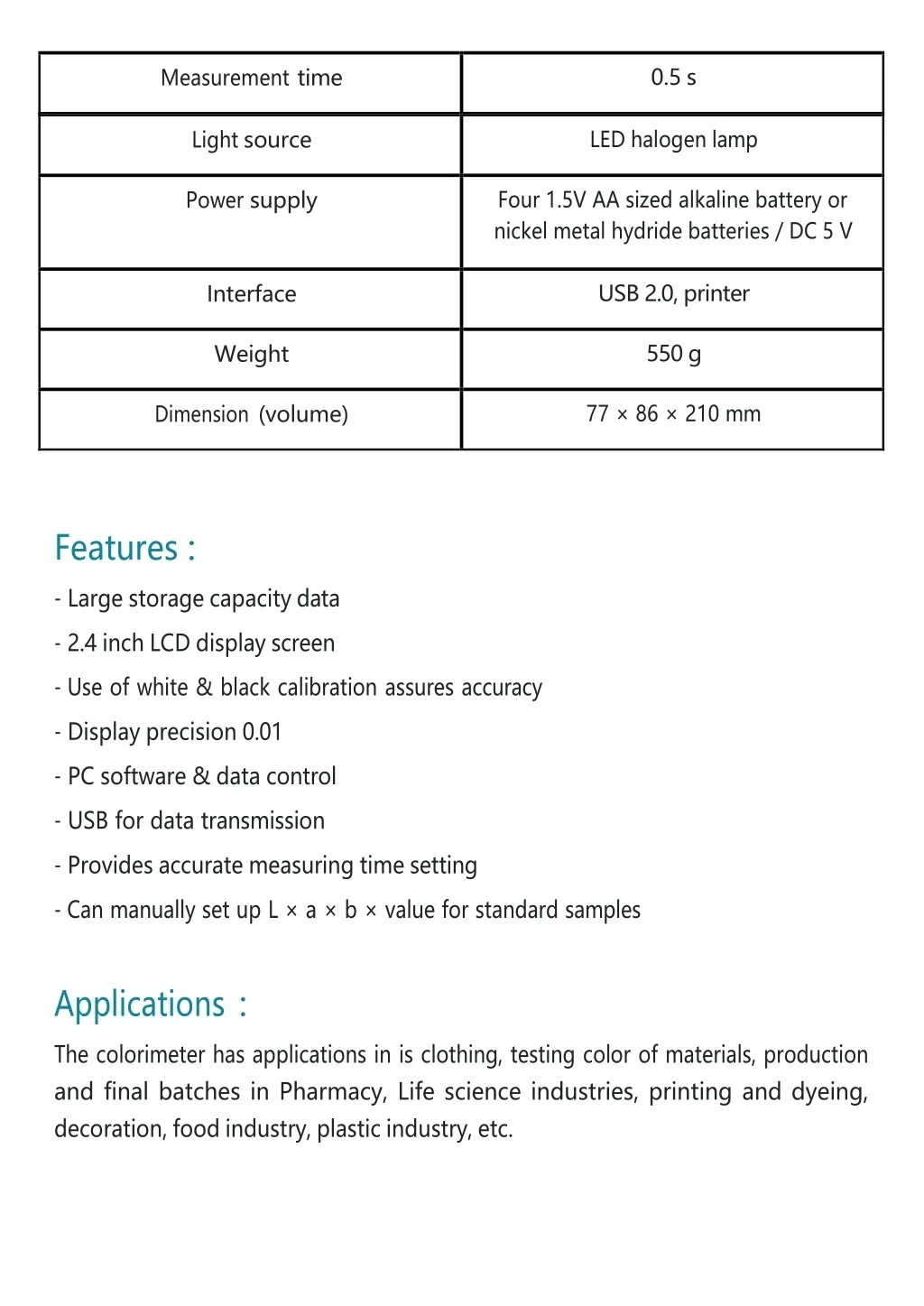

  3. 0.5 s Measurement time LED halogen lamp Light source Four 1.5V AA sized alkaline battery or nickel metal hydride batteries / DC 5 V Power supply USB 2.0, printer Interface 550 g Weight 77×86×210mm Dimension (volume) Features : -Large storage capacity data -2.4 inch LCD display screen -Useofwhite&blackcalibrationassuresaccuracy -Display precision 0.01 -PC software & data control -USBfordatatransmission -Provides accurate measuring time setting -CanmanuallysetupL×a×b×valueforstandardsamples Applications : The colorimeter has applications in is clothing, testing color of materials, production and final batches in Pharmacy, Life science industries, printing and dyeing, decoration, food industry, plastic industry, etc.

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.us |Website: www.labtron.us Phone: +44 2080 043 608
