Colorimeter-LCC-A11.

DESCRIPTION

<br>Labtron colorimeter is designed to accurately measure yellowness YI and whiteness index WI using advanced white and black calibration with an 8mm aperture. It allows for multiple spot measurements for average readings, achieving exceptional precision of 0.01. Offers ample storage for data and USB and Bluetooth slots for easy transmission.

Download Presentation

Colorimeter-LCC-A11.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

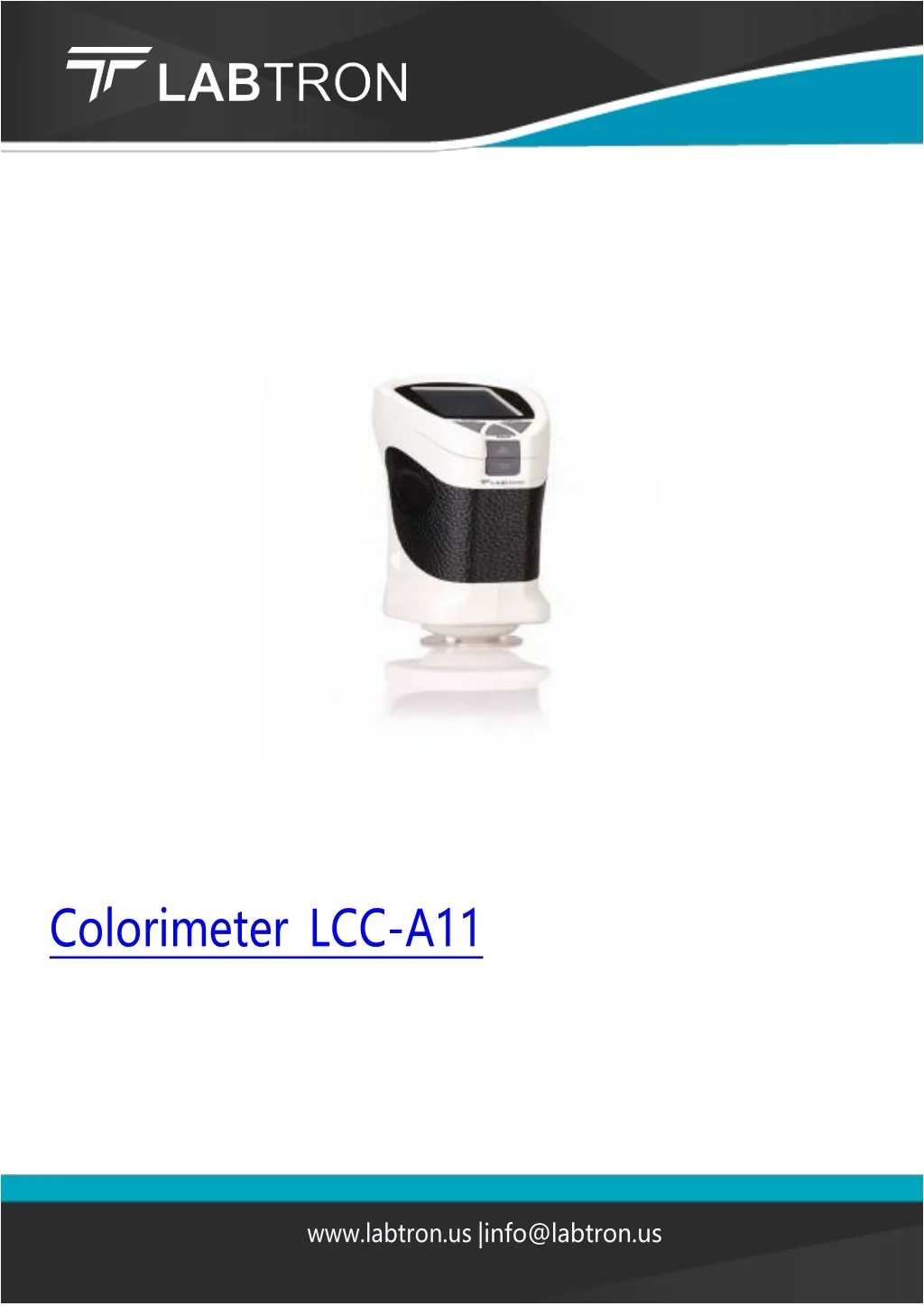

  1. ColorimeterLCC-A11 www.labtron.us |info@labtron.us

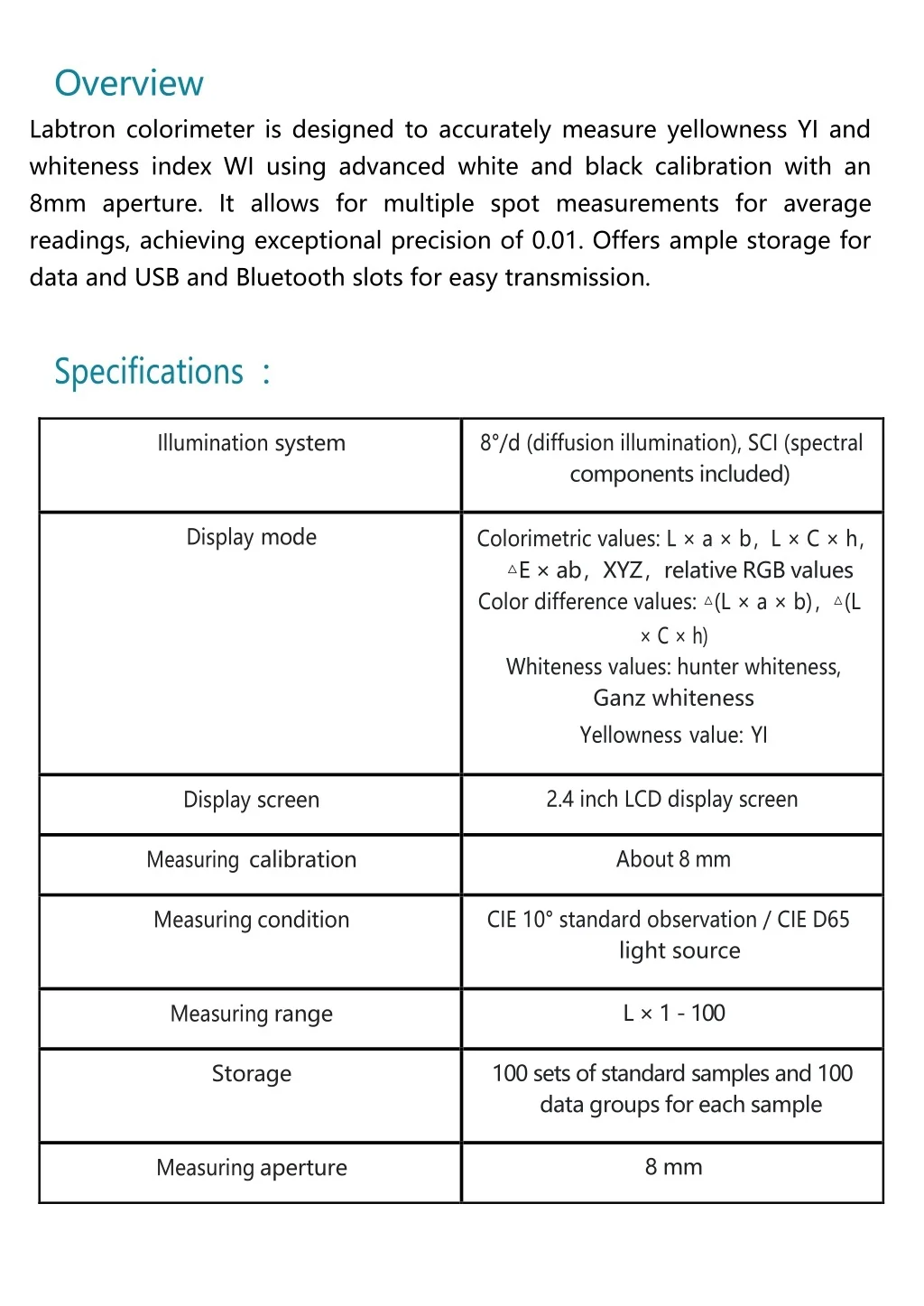

  2. Overview Labtron colorimeter is designed to accurately measure yellowness YI and whiteness index WI using advanced white and black calibration with an 8mm aperture. It allows for multiple spot measurements for average readings, achieving exceptional precision of 0.01. Offers ample storage for data and USB and Bluetooth slots for easy transmission. Specifications: 8°/d (diffusion illumination), SCI (spectral components included) Illumination system Displaymode Colorimetric values: L × a × b,L × C × h, △E× ab,XYZ,relative RGB values Color difference values: △(L × a × b),△(L ×C×h) Whiteness values: hunter whiteness, Ganz whiteness Yellownessvalue:YI 2.4 inch LCD display screen Display screen About 8 mm Measuring calibration CIE 10° standard observation / CIE D65 light source Measuring condition L × 1 - 100 Measuring range 100 sets of standard samples and 100 data groups for each sample Storage 8 mm Measuring aperture

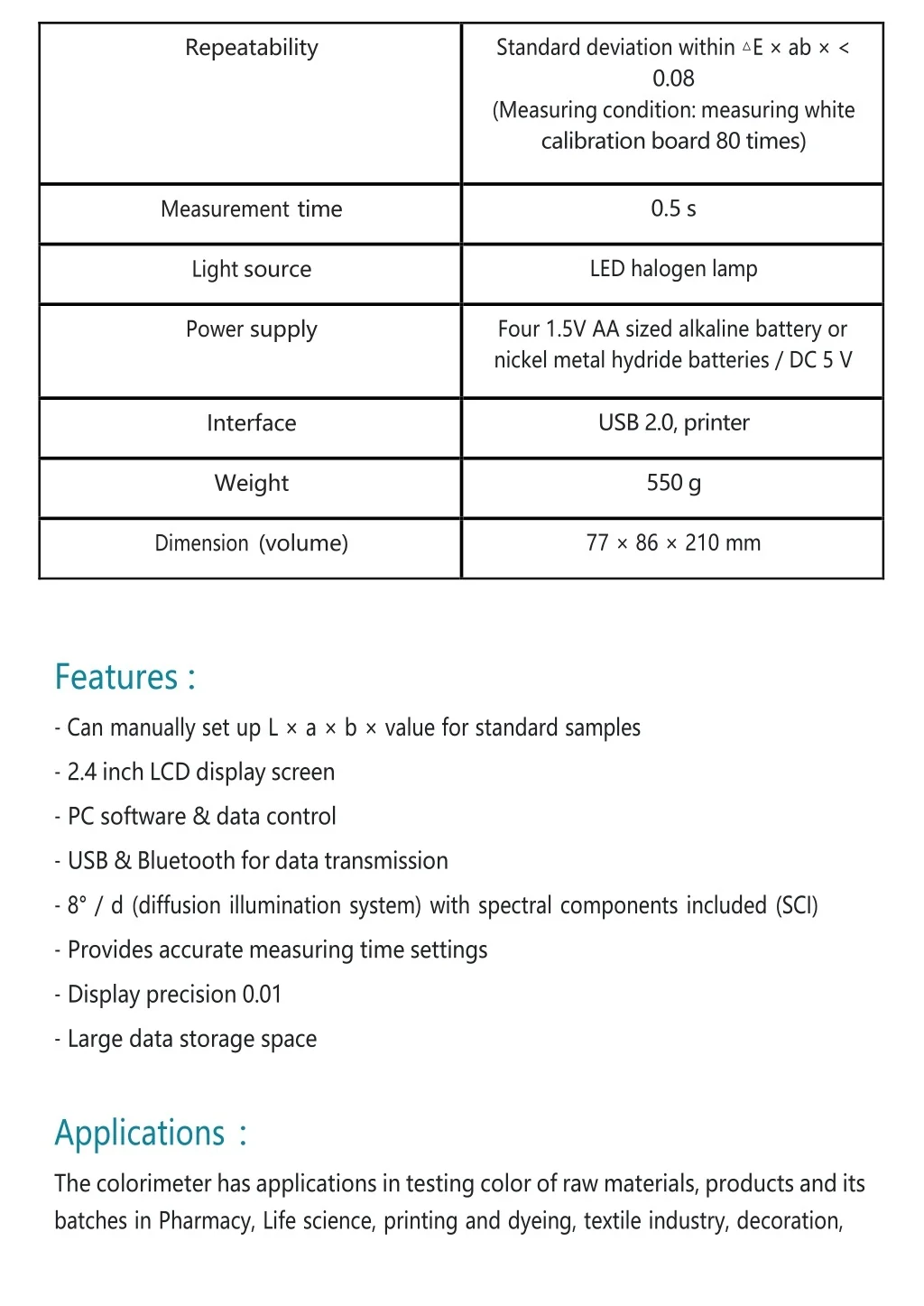

  3. Standard deviation within △E× ab × < 0.08 (Measuring condition: measuring white calibration board 80 times) Repeatability 0.5 s Measurement time LED halogen lamp Light source Four 1.5V AA sized alkaline battery or nickel metal hydride batteries / DC 5 V Power supply USB 2.0, printer Interface 550 g Weight 77×86×210mm Dimension (volume) Features : -CanmanuallysetupL×a×b×valueforstandardsamples -2.4 inch LCD display screen -PC software & data control -USB & Bluetooth for data transmission -8°/d(diffusionilluminationsystem)withspectralcomponentsincluded(SCI) -Provides accurate measuring time settings -Display precision 0.01 -Large data storage space Applications : The colorimeter has applications in testing color of raw materials, products and its batchesinPharmacy,Lifescience,printinganddyeing,textileindustry,decoration,

  4. foodindustryandplasticindustry. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.us |Website: www.labtron.us Phone: +44 2080 043 608
